Универсальный Источник питания переменного тока в постоянного 1000 Вт 36 В 48 светодиодный трансформатор для паук светильник выращивания гидропоники комнатные овощи цветок
- Категория: >>>
- Поставщик: Shenzhen Topway Electronic Technology Co. Ltd.
Сохранить в закладки 1601226475775:
Описание и отзывы
Характеристики

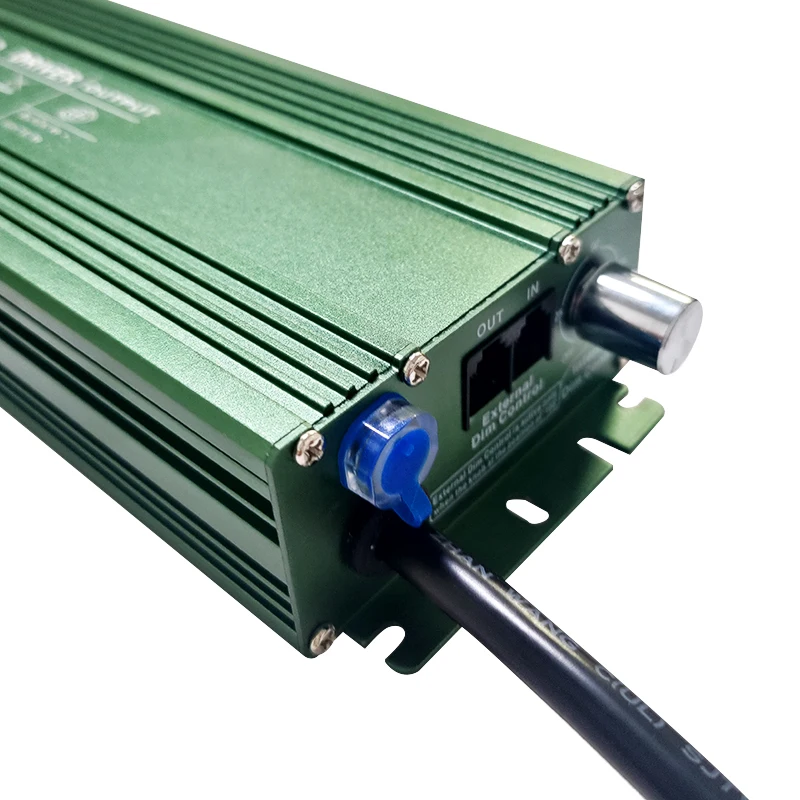

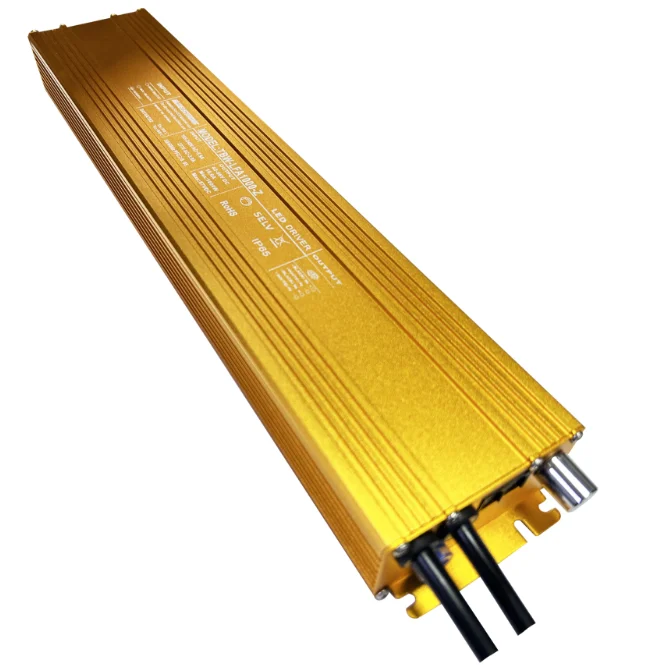

UL Certified AC to DC Converter Transformer Light Stabilized Power Supply 1000W LED Light Driver For Plant Light
Products Description
Model-No. | Output Voltage | Output range | Watt | PFC | Current Tolerance | Efficiency | |||||
TBW-LFA100 | 40-56V | 14-20A | 1000W | 0.95 | 5% | 96% | |||||
Input | AC input: 100-277v Input Frequency:47Hz-63HZ Input inrush current:60A | ||||||||||
Output | No load Voltage： 58(max) Output voltage ripple PK-PK: 10%(max) Output current ripple PK-PK:10%(max) Output Overshoot:+10% Rise Time:200mS Turn-on Delay TIME: 0.8s-1.5s | ||||||||||
PROTECTION FUNCION | Output Over-Voltage Protection: Over voltage recovery Short Circuit Protection：Not damaged with long time short circuit ，short circuit power≤10W Return to normal status when output limit current to get right | ||||||||||
Feature | No Flicer Waterproof Dimming function( 3 in 1 dimming or Knob Switch) Current adjust Rj14 network- Dasiy-chain | ||||||||||
Environment Requirement | Operation Temperature：-40°C to +50°C Storage Temperature: -40°C to +85°C Relative Operation Humidity: 10%RH To 90%RH Relative Storage Humidit: 5%RH To 95%RH | ||||||||||
Safety standards | UL/ETL SAA TUV/CE CQC/CCC | ||||||||||
Paraments:
1.Item:led driver power supply 1000w
2. Model: TBW-LFA1000-T/Z/D
3.Input Voltage:100-277VAC
4.Output Voltage:40-56V 14-20AA
5.Output Power:1000W
6.Efficiency:95%
7.PFC:≥0.95
8.Shell Material:Aluminum
9.Work temperature:-40℃ ~ + 50℃
10.Relative Storage :Humidity:5%RH~95%RH
11.Size:440*90*45mm
12..Gross Weight:3.1KG
13.Lifespan: 100,000hours
OEM/ODM could be accpeted
Notes:
1.Note:TBW-LFA1000-* series is our company developed LED driver power supply, high power factor, high efficiency, high reliability,high constant current precision, full-featured, a variety of specifications to meet the needs of more customers with different parameters, has a perfect protection function, can ensure the life and reliability of the power supply and lamps.
2.Test Condition :230Vac Input,Full Load,25℃.
3.When adjusting the output current, output power must lower then 1000 w power, otherwise it will cause overload and damage.
4.Function:3-in-1 dimming function (0-10V, PWM, external resistor, plus DC12V300mA auxiliary source output
Optional letter T \\ D or empty, indicating that the output side to add different optional functions.
Watts | Model | Input Voltage | Output Voltage | Output Current | PFC | Efficiency |
30W | TBW-LFA301-T | 100-277V | 28-52V | 0.5-0.9A | 0.95 | 87% |
50W | TBW-LFA501-T | 100-277V | 28-52V | 0.8-1.5A | 0.95 | 88% |
60W | TBW-LFA601-T | 100-277V | 28-52V | 1-1.8A | 0.95 | 88% |
80W | TBW-LFA801-T | 100-277V | 28-56V | 1.5-2.3A | 0.95 | 88% |
100W | TBW-LFA100-T | 100-277V | 28-56V | 1.5-2.5A | 0.95 | 89% |
50-80V | 1-1.8A | 0.95 | 89% | |||
TBW-LFA150-T | 100-277V | 28-56V | 2.1-4.2A | 0.95 | 90.5% | |
55-90V | 1.5-2.5A | 0.95 | 91% | |||
200W | TBW-LFA200-T | 100-277V | 28-56V | 3.0-5.6A | 0.95 | 92% |
55-90V | 3.0-5.6A | 92.5% | ||||
100-150V | 1-2A | 93% | ||||
160-220V | 0.6-1.2A | 93% | ||||
100-277V | 28-56V | 3.5-6.7A | 0.95 | 92.5% | ||
28-56V | 2.5-4A | 92.5% | ||||
100-150V | 1.5-2.4A | 93% | ||||
100-150V | 0.8-1.3A | 93% | ||||
320W | 100-277V | 28-56V | 5.0-8A | 0.95 | 93% | |
55-90V | 3-5.5A | 93% | ||||
100-150V | 1.8-3.2A | 93.5% | ||||
100-150V | 1.2-2.1A | 93.5% | ||||
400W | TBW-LFA400-T | 100-277V | 28-56V | 5-8.9A | 0.95 | 94.5% |
500W | TBW-LFA500-T | 100-277V | 28-56V | 6-11.5A | 0.95 | 94.5% |
650W | TBW-LF650-T | 100-277V | 28-56V | 7.5-15A | 0.95 | 94.5% |
730W | TBW-LFA730-T | 100-277V | 28-56V | 8.5-17A | 0.95 | 95% |
800W | TBW-LFA800-T | 100-277V | 28-56V | 9-18A | 0.95 | 95% |
1000W | TBW-LFA1000-T | 185-277V 100-277V | 28-56V | 10-20A | 0.95 | 96% |
1200W | TBW-LFA1200-T | 185-277V | 28-56V | 12.5-25A | 0.95 | 95% |
Other Power | ||||||||
UV led power supply: TBW-UV | ||||||||
UV led power supply: TBW-UV-H | ||||||||
Constant Current: TBW-LFA | ||||||||
Constant Voltage: TBW-HYGP | ||||||||
Recommend Products
Company Profile
Shenzhen Topway Technology Co,ltd, ,established in 2009, is a national high-tech enterprise integrating R&D, manufacturing,and sales of high-power LED Driver AND Smart LED Aquarium light .Our products are widely used in domestic and foreign horticulture lighting, outdoor lighting, industrial lighting, landscape lighting, smart lighting, and other fields.
With advanced and efficient management,backed by cutting-edge R&D technology and supported by advanced production and inspection technology, our company is committed to providing specialized and customized led driver solutions for customers in UVLED curing equipment,animal and plant lighting, industrial automation equipment,new energy,5G communication,LED lighting, electric power,rail transportation,ships, aerospace and medical industries to help customers to improve production efficiency and energy efficiency.All led drivers can support WIFI, Bluetooth MESH,power carrier,2.4G, 0-10V, PWM dimming, 485 communication, CAN communication.
In order to ensure product quality and meet the requirements of global customers,Topway strictly follows the latest ISO9001:2015 quality management system, and the company's products are comply with multi-national safety certification and have obtained many certifications including UL, CE, TUV,SAA, KC, BIS and CCC etc.
With accurate and rapid response to market demand, continuous R&D innovation, and excellent product quality, "TBWTEK LED Driver" has always been favored by the market and customers and enjoys the reputation of "Excellent LED Driver Brand". In the future,Topway will always adhere to the vision of "creating an excellent brand of LED Driver,Light up the Word" and committed to provide global customers with high-efficiency, energy-saving, stable and reliable LED Driver and solutions,make outstanding contributions to global energy saving and emission reduction, and a cleaner living environment!
With advanced and efficient management,backed by cutting-edge R&D technology and supported by advanced production and inspection technology, our company is committed to providing specialized and customized led driver solutions for customers in UVLED curing equipment,animal and plant lighting, industrial automation equipment,new energy,5G communication,LED lighting, electric power,rail transportation,ships, aerospace and medical industries to help customers to improve production efficiency and energy efficiency.All led drivers can support WIFI, Bluetooth MESH,power carrier,2.4G, 0-10V, PWM dimming, 485 communication, CAN communication.
In order to ensure product quality and meet the requirements of global customers,Topway strictly follows the latest ISO9001:2015 quality management system, and the company's products are comply with multi-national safety certification and have obtained many certifications including UL, CE, TUV,SAA, KC, BIS and CCC etc.
With accurate and rapid response to market demand, continuous R&D innovation, and excellent product quality, "TBWTEK LED Driver" has always been favored by the market and customers and enjoys the reputation of "Excellent LED Driver Brand". In the future,Topway will always adhere to the vision of "creating an excellent brand of LED Driver,Light up the Word" and committed to provide global customers with high-efficiency, energy-saving, stable and reliable LED Driver and solutions,make outstanding contributions to global energy saving and emission reduction, and a cleaner living environment!
Certifications
Product packaging
Why Choose Us
1. What we sell is 100% Certificated Power Supply 1000w;
2. Small quantity orders acceptable;
3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4. We have larger stocks and this support us can make a very prompt shipping;
5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;
6. Price could be negotiated for more and large quantity;
7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you
2. Small quantity orders acceptable;
3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4. We have larger stocks and this support us can make a very prompt shipping;
5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;
6. Price could be negotiated for more and large quantity;
7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you
FAQ
Q1. Are you manufacturer or trade company ?
A1: We are the real manufacturer focus on 1000w switch power supply and led light driver 1000w
Q2:What is the warranty for 1000w drivers ?
A2:5 years. After steady cooperations, we can support LIFETIME WARRANTY, the failed parts can be replaced with the next order.
Q3:Does your company accept OEM & ODM?
A3:Yes, we support OEM/ODM, with 12 years experience of R&D to serve you.
Q4:Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A4:Yes. Normally we offer white inner box and carton box. Use your own design is ok. Please inform us.
Q5:Can I get a grow lights driver sample?
A5:Sure, If you need sample, pls tell me your spec need or tell me your led light info, then i will recommend you.
Q6:What's your lead time ?
A6: The delivery time is 1 to 15days, which depends on your quantity.
A1: We are the real manufacturer focus on 1000w switch power supply and led light driver 1000w
Q2:What is the warranty for 1000w drivers ?
A2:5 years. After steady cooperations, we can support LIFETIME WARRANTY, the failed parts can be replaced with the next order.
Q3:Does your company accept OEM & ODM?
A3:Yes, we support OEM/ODM, with 12 years experience of R&D to serve you.
Q4:Is it OK to print my logo on led driver & light product and use my own package and trade mark?
A4:Yes. Normally we offer white inner box and carton box. Use your own design is ok. Please inform us.
Q5:Can I get a grow lights driver sample?
A5:Sure, If you need sample, pls tell me your spec need or tell me your led light info, then i will recommend you.
Q6:What's your lead time ?
A6: The delivery time is 1 to 15days, which depends on your quantity.
Похожие товары

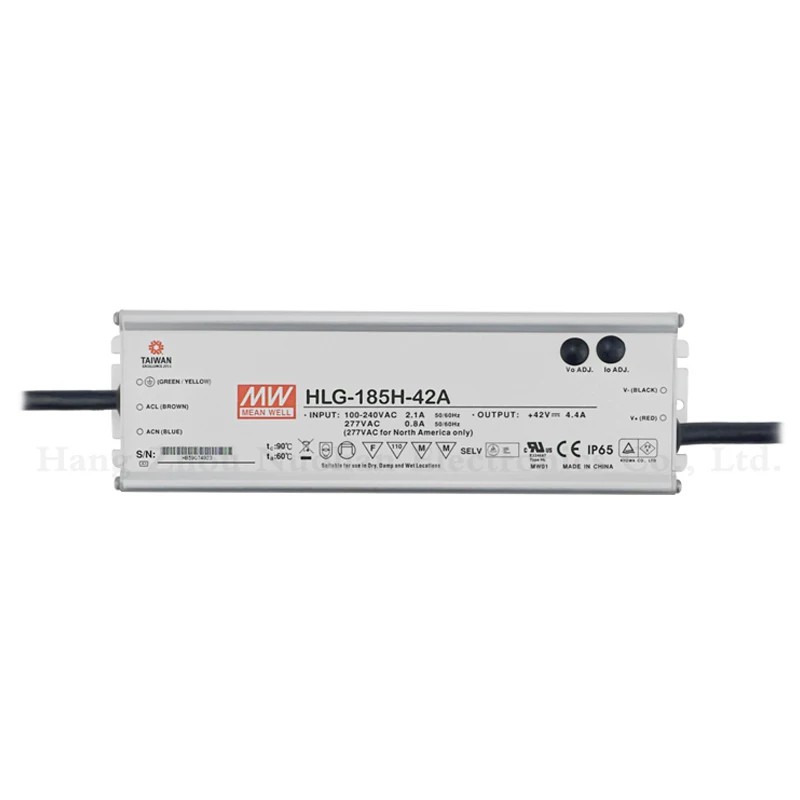

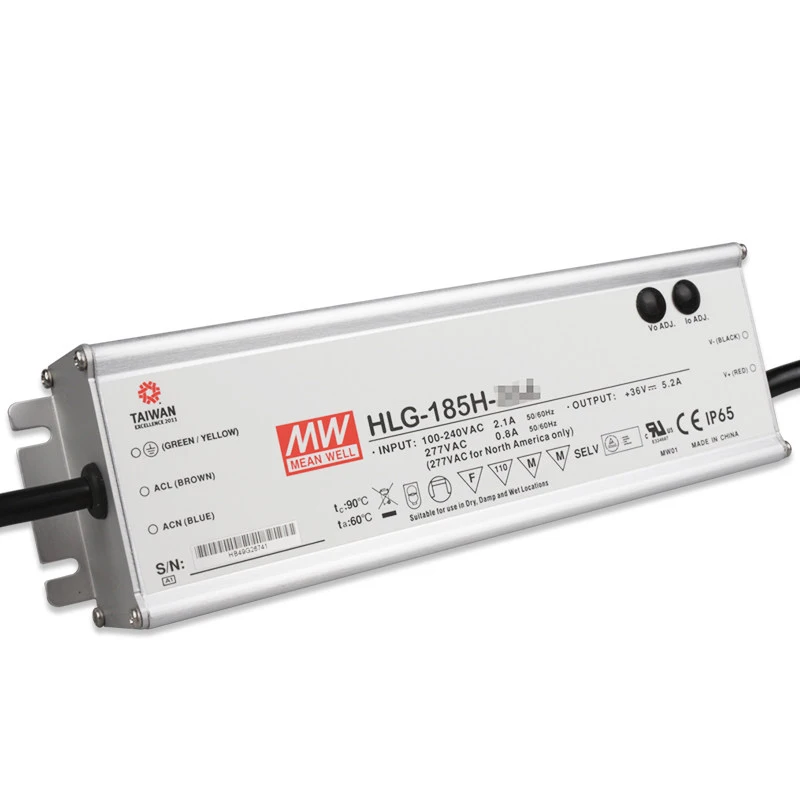

Бренд Mean well представляет HLG-185H-48 185w 48V блок питания 48v затемнения светодиодный драйвер 185W
