Станок для лазерной гравировки и резки 1390 CO2 с контроллером ruida автоматное авторазведение трубок/ccd/поворотный опционально 80 Вт 100 120 180
- Категория: >>>
- Поставщик: Founder Laser Technology Co. Ltd.Founder Ltd.
Сохранить в закладки 1601226489515:
Описание и отзывы
Характеристики
Product Description

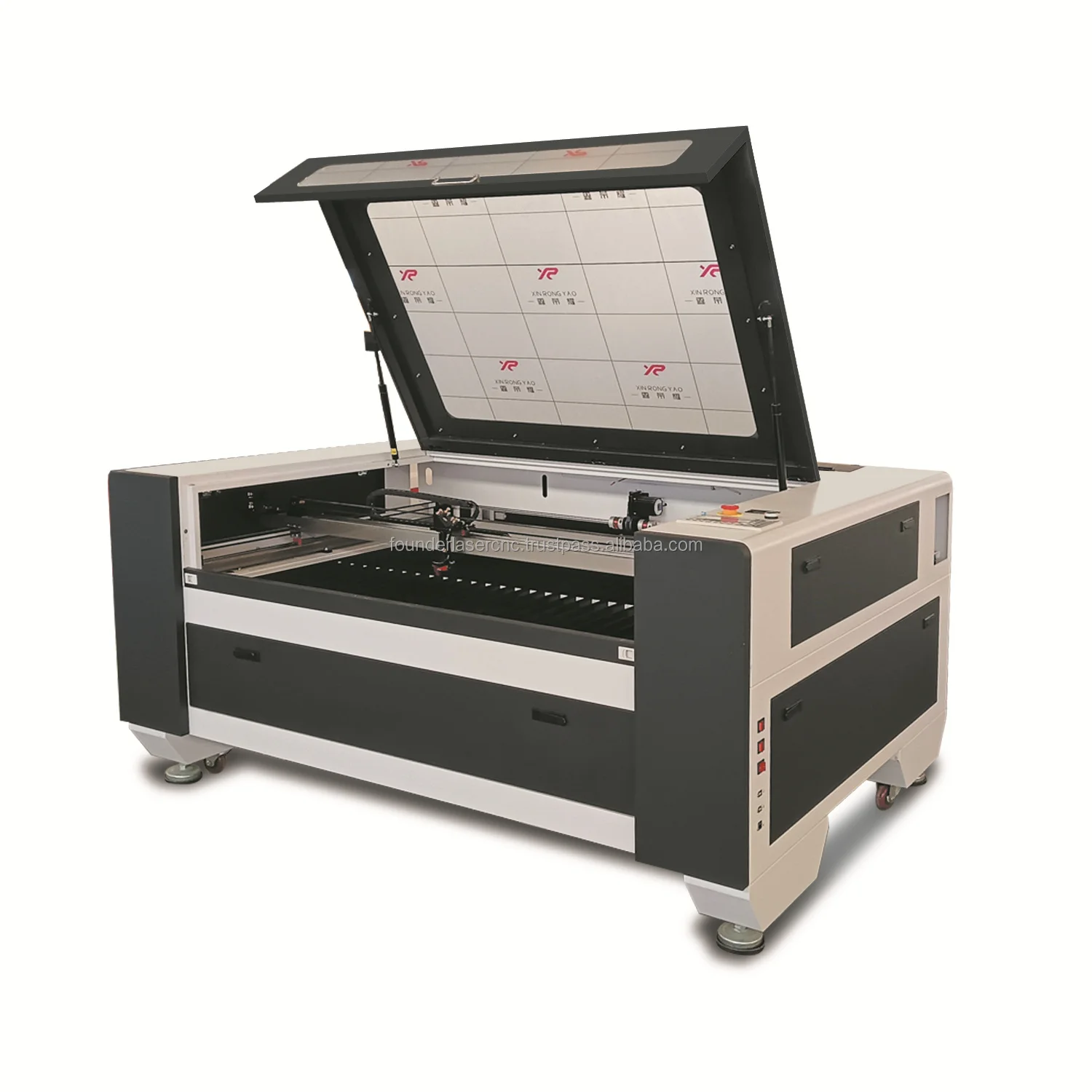

FDC-1390 linear guide laser engraving and cutting machine
Linear guide plotter, single and double laser heads, ball screw lifting.
Specification
Machine instruction diagram
Machine parameters： | ||||||||
Working area： | 1300 X 900mm | |||||||
Laser tube power： | 60W/80W/90-100W/100-130W | |||||||
Max cutting depth： | 10/15/20/25mm (acrylic) | |||||||
Max engraving speed： | 0-1000mm/s | |||||||
Max cutting speed ： | 0-600mm/s | |||||||
Positioning accuracy： | ≦ 0.01mm | |||||||
Minimum formed characters： | Word1.5 x 1.5mm；letter1*1mm | |||||||
Power： | 220V±10% 50HZ or 110V±10% 60HZ | |||||||
Total power： | < 1200W | |||||||
Ambient temperature： | 0℃ - 45℃ | |||||||
Environment humidity： | 5% - 95% (No condensate) | |||||||
Machine Configuration
Industrial laser head
The machine can be installed with one
head, two heads, or multiple heads.
Customized according to work needs.
head, two heads, or multiple heads.
Customized according to work needs.
Lesai motion system
The motion system uses Lesai motors
and Lesai drives to ensure machine
movement
and Lesai drives to ensure machine
movement

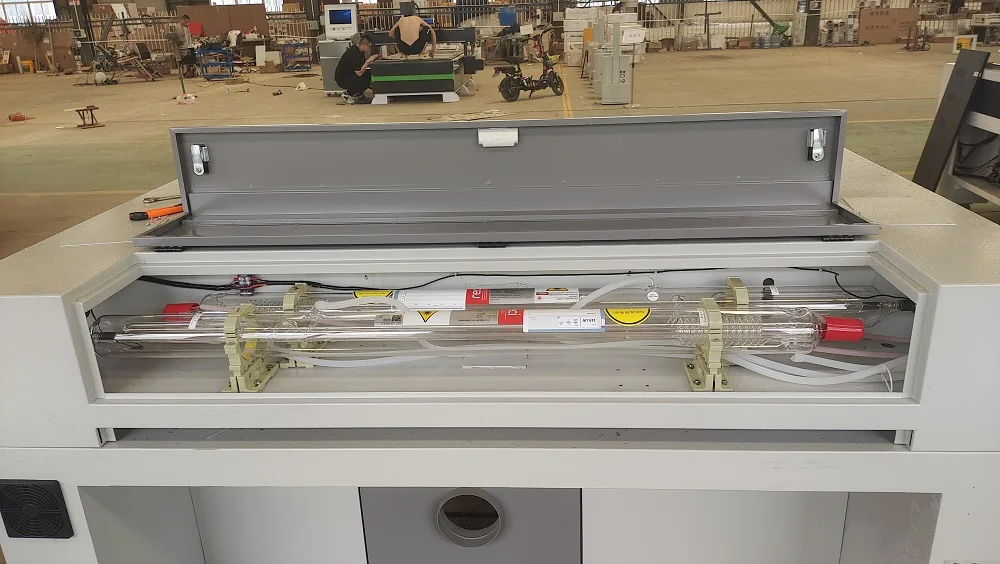

High quality laser tube
The machine can install high-quality
laser tubes such as Reci, LA.SEA,
Chengdu WG, and Shenxian tubes.
laser tubes such as Reci, LA.SEA,
Chengdu WG, and Shenxian tubes.
Ruida operating system
The machine uses Ruida 6445
motherboard and a large color screen
operation panel, which is simple and
easy to understand.
motherboard and a large color screen
operation panel, which is simple and
easy to understand.
HIWIN guide rail
The X/Y axes of the machine all use
HIWIN linear guides, which ensure
smooth movement without jamming.
HIWIN linear guides, which ensure
smooth movement without jamming.
Ball screw lifting system
It adopts ball screw + belt lifting
system, which is noise-free, and the
screw will not bend after long-term
use.
system, which is noise-free, and the
screw will not bend after long-term
use.
Machine details display:

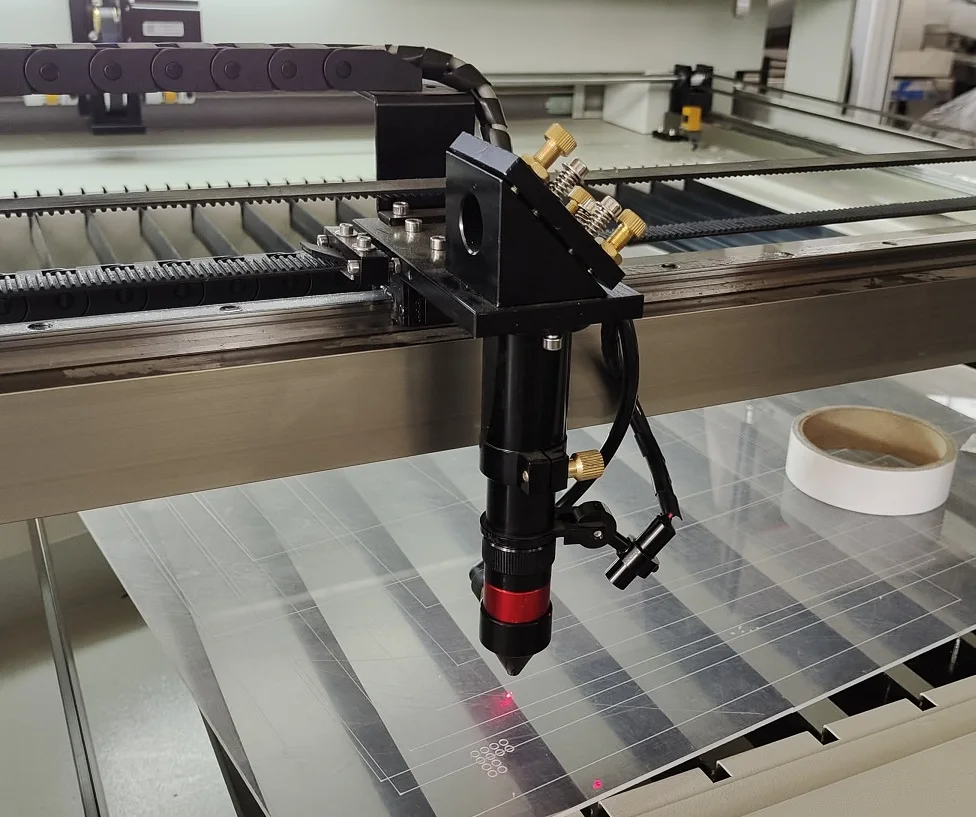

The aluminum industrial laser head prevents high temperature deformation and is equipped with red light positioning and air blowing cooling functions. The machine can be equipped with single-head, double-head, CCD, automatic focusing and other systems.

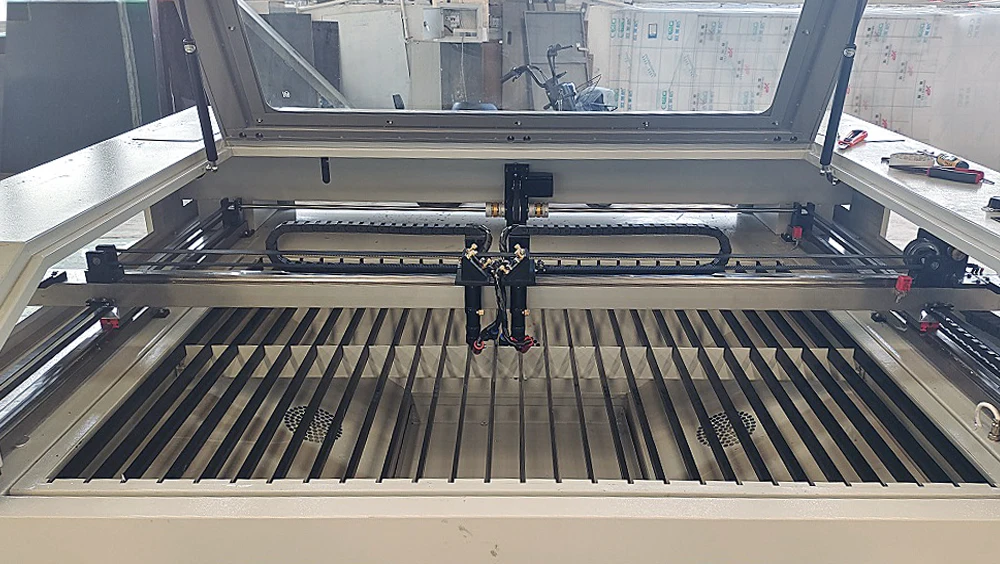

Linear guide plotter
The X\\Y axes of the plotter all use high-quality linear silver guide rails to ensure that the movement of
the X\\Y axes will not deform after the machine has been working for a long time.
the X\\Y axes will not deform after the machine has been working for a long time.
The machine can be installed with a variety of laser tube types, such as: reci, STP, LA-SEA,CDWG etc.
Reasonable wiring system for electromechanical boxes
The machine uses Ruida 6445 motherboard and operating system, and a large color screen operation panel, which is easy to learn and understand. Reasonable wiring of the electromechanical box maximizes the performance of the machine system.
The machine uses a ball screw + belt lifting system, which can lift up to 25cm.
Packing & Delivery
Random accessories:
Tool box, Air pump, Plastic smoke pipe, Aluminum foil smoke pipe, Hexagonal wrench, Clamp, Water pipe, USB flash drive, Certificate of conformity, Double-sided tape, Power cord, Focal length ruler, Lens removal tool, Air pipe, Data cable, Water cooling machine signal cable (optional), USB cable.
Each machine is shipped with moisture-proof, shock-proof and wear-proof protection measures.
The packaging of the machine is divided into 4 steps:
Cleaning - moisture-proof, shock-proof and wear-proof packaging - random accessories packaging - wooden box packaging
Cleaning - moisture-proof, shock-proof and wear-proof packaging - random accessories packaging - wooden box packaging
Company Profile
Company introduction
Liaocheng Founder Laser Technology Co., Ltd. was established in 2017 and is located in Liaocheng High-tech Zone. It covers an area of 3,000 square meters, has more than 80 employees, and has an annual output of more than 3,000 units.
Founder Laser's main products include: laser engraving machine series, laser cutting machine series,laser marking machine series, laser welding machine series, and optical fiber cutting machine series.
Founder Laser has its own registered trademark, and has won the titles of "China Famous Brand", "High-tech Enterprise Certificate", "Specialized and New" Small and Medium Enterprises in Shandong Province, and has passed the international FDA and CE certifications. Founder Laser insists on innovation, has 15 product design patents, seeks development through science and technology, and wins the market through service.
Founder Laser's main products include: laser engraving machine series, laser cutting machine series,laser marking machine series, laser welding machine series, and optical fiber cutting machine series.
Founder Laser has its own registered trademark, and has won the titles of "China Famous Brand", "High-tech Enterprise Certificate", "Specialized and New" Small and Medium Enterprises in Shandong Province, and has passed the international FDA and CE certifications. Founder Laser insists on innovation, has 15 product design patents, seeks development through science and technology, and wins the market through service.
Founder Laser has a variety of series of products, and friends are welcome to inquire, visit and order!
FAQ
1. How to operate the machine?
We will provide you with English manuals and videos at any time. We have an after-sales team forexhibition business.
2. When will the machine be shipped?
We ship according to the customer's order, the size of the machine, and whether the machine is customized.
3. Can the company visit online?
Our company is a physical company, and customers are welcome to visit the factory at any time, and video connection is also OK.
4. What should I do if this machine has problems during the warranty period?
If there is a problem with the machine, we will provide free parts during the warranty period of the machine. The freight needs to be borne by the customer. At the same time, we also provide free lifetime after-sales service.
5. Can the machine be customized according to my requirements?
Of course, we have a strong technical team and rich experience. Our goal is to satisfy you.
6. Can you help me arrange the shipment?
We can arrange sea or air transportation for customers. The transaction terms include FOB, CIF, EXW.
2. When will the machine be shipped?
We ship according to the customer's order, the size of the machine, and whether the machine is customized.
3. Can the company visit online?
Our company is a physical company, and customers are welcome to visit the factory at any time, and video connection is also OK.
4. What should I do if this machine has problems during the warranty period?
If there is a problem with the machine, we will provide free parts during the warranty period of the machine. The freight needs to be borne by the customer. At the same time, we also provide free lifetime after-sales service.
5. Can the machine be customized according to my requirements?
Of course, we have a strong technical team and rich experience. Our goal is to satisfy you.
6. Can you help me arrange the shipment?
We can arrange sea or air transportation for customers. The transaction terms include FOB, CIF, EXW.
