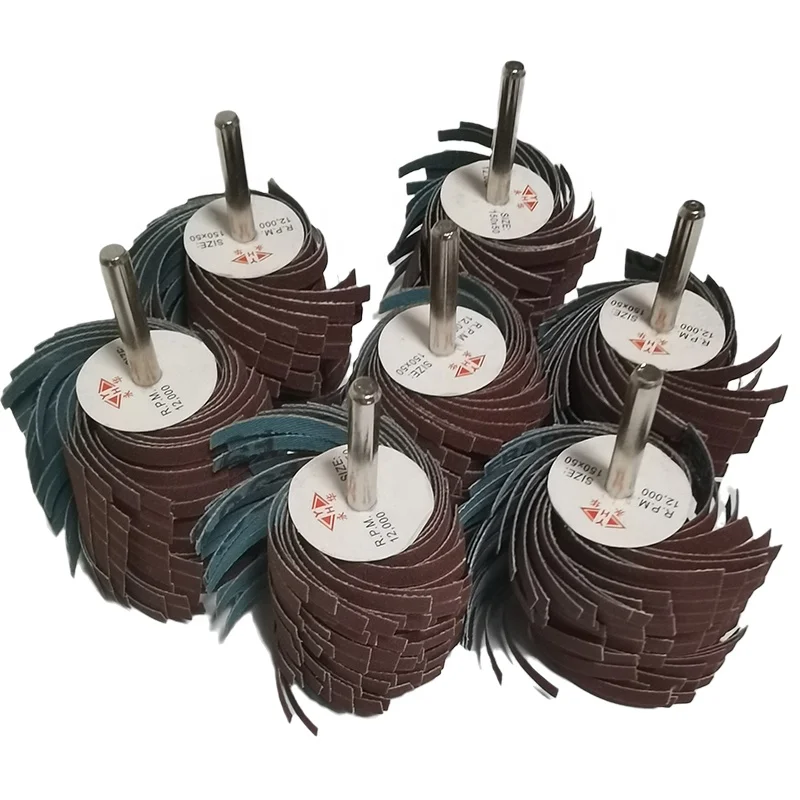

Шпиндельное швабра шлифовальное колесо с валом для металла и дерева
109,65 ₽
CHN TOP скорость шпинделя CNC автоматические шлифовальные станки для PCD / PCBN инструменты
- Категория: >>>
- Поставщик: Chn-Top Sci&tech Co. Ltd.
Сохранить в закладки 1601226556232:
Описание и отзывы
Характеристики
Product Description

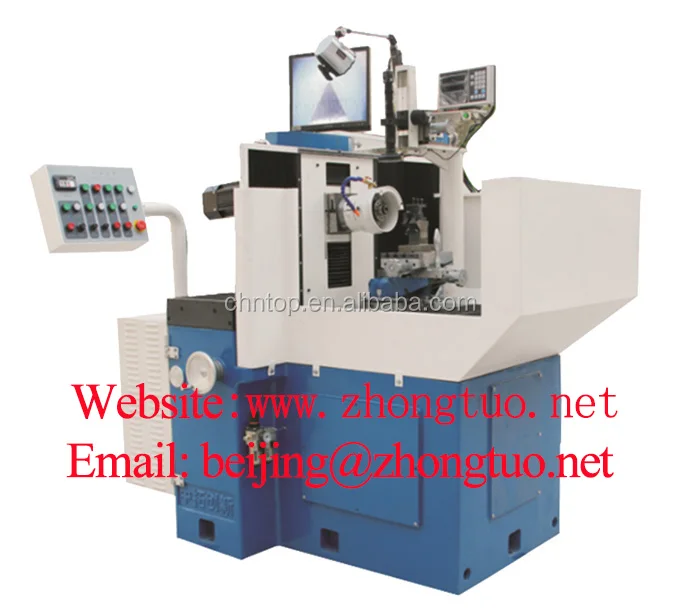

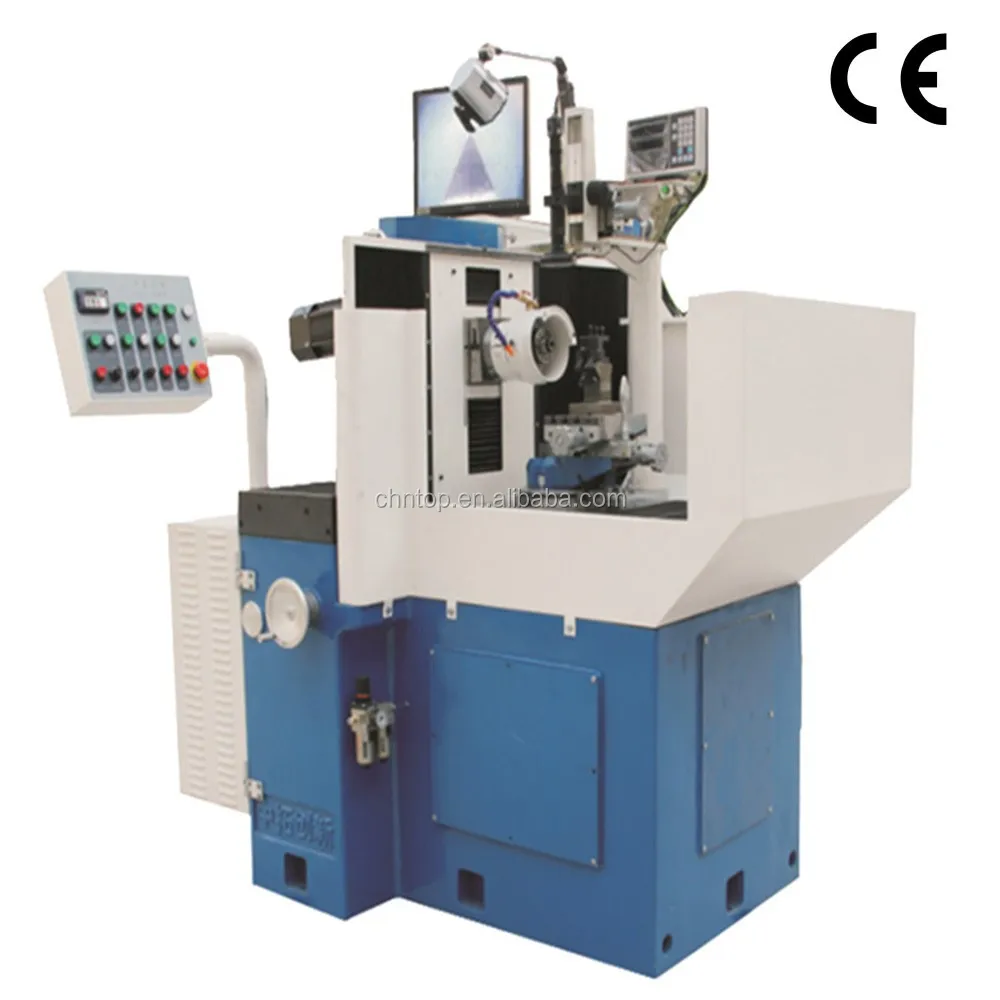

ZT-180 HIGH PRECISION PCD & PCBN TOOLS’ CNC GRINDER
ZT-180 is a high precision PCD & PCBN tools automatic grinder, especially for indexable inserts and milling cutters.
1, All cast machine bed and cast accessories are average 18 months natural ageing;
2, SCHNEEBERGER heavy duty and precision linear slide guide for its accuracy and life;
3, 5-Axises NC and 2 linked machine, high efficiency, accuracy and stability;
4, Swing mechanism utilizing ball-screw by a servo motor, smoother, more stable durable;
5, The whole pneumatic system use Japan SMC products, and is designed and selected by domestic top pneumatic system engineers to
realize rapid advance and retreat and flexible grinding of the worktable.
6, Linear grating and angle encoder of this model is FAGOR, make sure the precision indication;

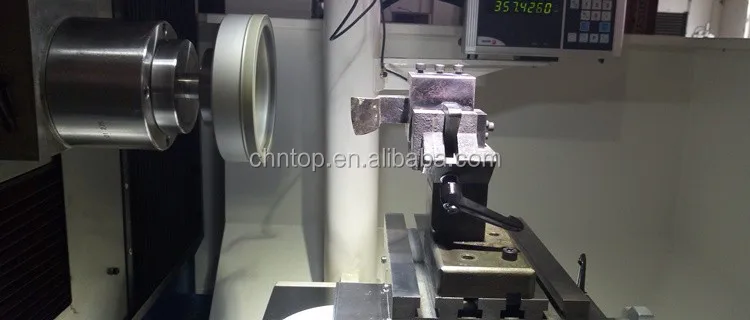

7, Camera with LCD monitor and precision scale for easy set up and inspection during grinding;
8, Optical system for adjustable from 7-45 magnification even 0.05 radius can be grinded and inspected.
2, SCHNEEBERGER heavy duty and precision linear slide guide for its accuracy and life;
3, 5-Axises NC and 2 linked machine, high efficiency, accuracy and stability;
4, Swing mechanism utilizing ball-screw by a servo motor, smoother, more stable durable;
5, The whole pneumatic system use Japan SMC products, and is designed and selected by domestic top pneumatic system engineers to
realize rapid advance and retreat and flexible grinding of the worktable.
6, Linear grating and angle encoder of this model is FAGOR, make sure the precision indication;
7, Camera with LCD monitor and precision scale for easy set up and inspection during grinding;
8, Optical system for adjustable from 7-45 magnification even 0.05 radius can be grinded and inspected.
Specification
Tip Radius | 0-100mm | ||||||
Grinding Pressure | 0-450N Adjustable | ||||||
Spindle Speed | 0-4200RPM adjustable | ||||||
Grinding Wheel Size | 150*40*40mm (D*H*T) | ||||||
Grinding Wheel Oscillation Frequency | 0-45/min adjustable | ||||||
Grinding Wheel Oscillation Distance | 0-70mm adjustable | ||||||
Grinding Wheel Height Adjustment | 140mm | ||||||
Grinding Wheel Traveling Range | 400mm | ||||||
Grinding Wheel Inclination | -13︒ ~ +24︒ | ||||||
Cross Table Swiveling Angle | 0-270︒ | ||||||
Size of Cross Table | 210*160mm with 4 T grooves | ||||||
Readout of Linear Gratings | 0.001mm | ||||||
Spindle Power | 2.2KW | ||||||
Dimension | 1850*2200*1650mm (L*H*W) | ||||||
N.W Weight | 2000KGS | ||||||
Name: Pneumatic system Brand: SMC Original: JAPAN The grinding head achieves the spindle lifting and angle adjusting, is a flawless combination of precision, rigidity and dexterity | ||
Name: Guide rails Brand: SCHNEEBERGER Original: SWITERLAND Original guide rails company since 1923, a very famous world brand.all of the guide rail of grinding machine use this . | ||
Name: CCD system Brand: Fuji Original: Japan The camera is Fuji, together with CCD system, it can do measurement online | ||
Operation Panel The whole operation panel is metal wire drawing process And very Ergonomics for body, it's easy to operation. There is fast infeed and out feed, grinding wheel swing, presure adjustable here. | ||
Wheel dresser
Customised wheel dressor for dressing wheels

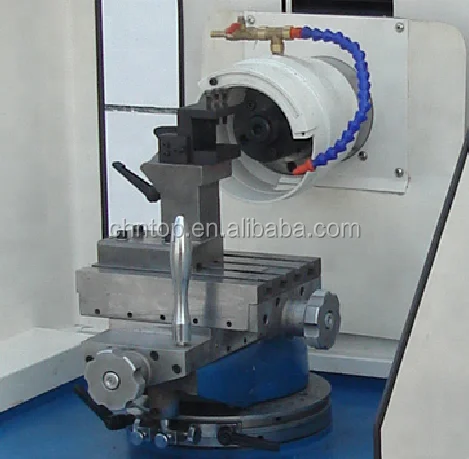

versatile Holder
The versiable tool holder to fit at workable
Rotary holder
The rotoary holder can suitable for ER holder and widly use for rotary tools
Grinding Wheel
The 6A2 150*40*40*10*20 W3.5/W5/W20
Fine grinding and rought grinding wheel for choice
Dressing stick
The dressing sticker for wheel dressing
CHN-TOP is the company offer comprehensive solutions for PCD PCBN diamond tools making
Machines: PCD/PCBN diamond grinding machine, Vacuum brazing machine, laser cutting machine, chip breaker machines
Material: World famous PCD/ PCBN blanks , such as ILJIN, Element six, Hypersion, Adico, CTSTC, SF with competive price
Machining service: Cutting for segements, brazing service for MD/PDC cutter, PCBN tools, Notching service for tools
About CHN-TOP
Originally founed by some engineers graduated from Tsinghua University ,CHN-TOP SCI&TECH CO;LTD is specializing in ultra hard
cutting tools(PCD,PCBN,MD,ND,CVD diamonds) ;high precision equipments(ultra hard tools grinders,vacuum brazing machines,laser
cutting machines,polish machines ; CNC process cutting ,brazing,polish service for PCD,PCBN,Cystal and other ultra hard
material;distribute some imported compact blanks:(GE,E6,ILJIN,SUMITOMO,EU-DIA).As the professional maker,not only we can offer
technical service,but also the ONE STOP SHOP for ultra hard material field with good reputation from global market.
cutting tools(PCD,PCBN,MD,ND,CVD diamonds) ;high precision equipments(ultra hard tools grinders,vacuum brazing machines,laser
cutting machines,polish machines ; CNC process cutting ,brazing,polish service for PCD,PCBN,Cystal and other ultra hard
material;distribute some imported compact blanks:(GE,E6,ILJIN,SUMITOMO,EU-DIA).As the professional maker,not only we can offer
technical service,but also the ONE STOP SHOP for ultra hard material field with good reputation from global market.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD, CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.
A: We are manufactory for PCD, CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries. And for the machines, there is a installation and training service door to door
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands, customers do not need to worry
about genuine and delivery problems.
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according to different needs, we
also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum thickness of 8-10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries. And for the machines, there is a installation and training service door to door
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands, customers do not need to worry
about genuine and delivery problems.
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according to different needs, we
also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum thickness of 8-10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
