Product Description
Products Description

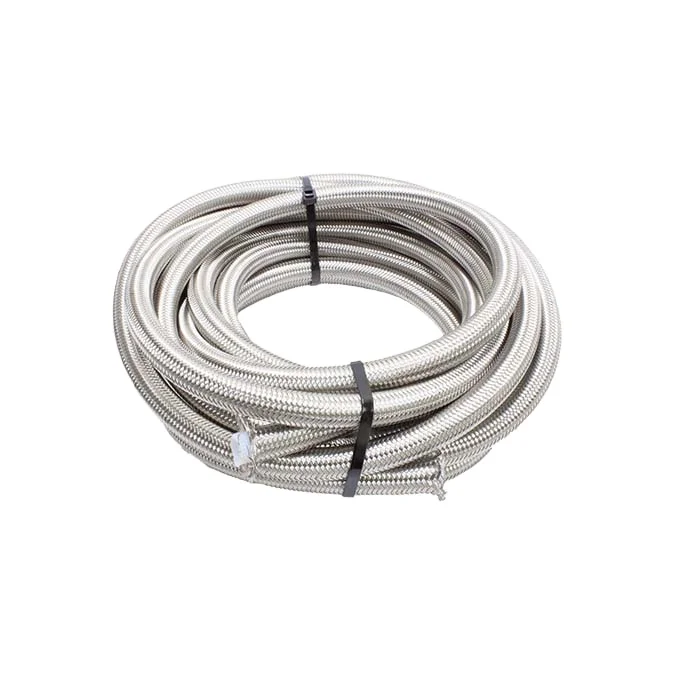

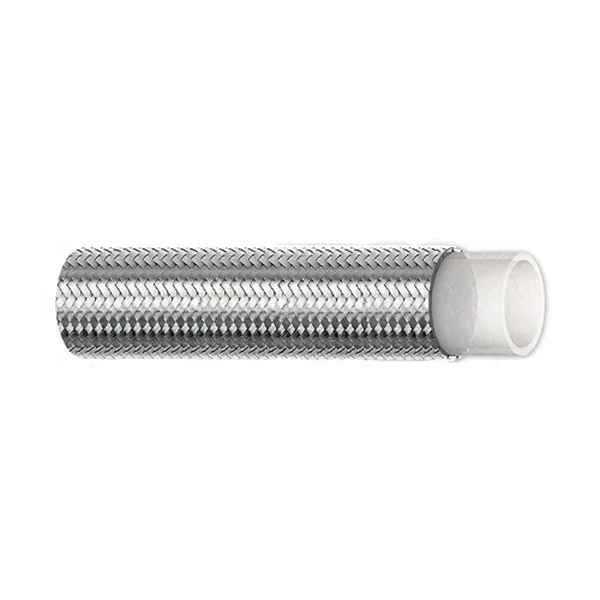

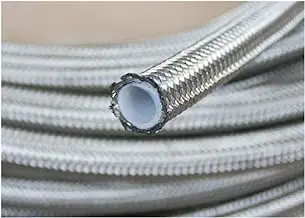

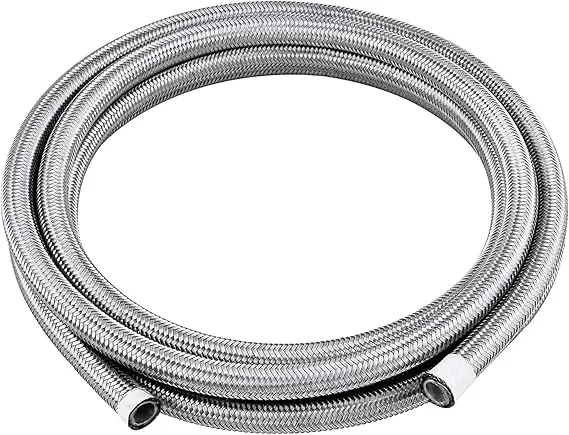

ptfe braided hose truck silicone hose ptfe fuel hose
INNER TUBE
Polytetrafluoroethylene
Polytetrafluoroethylene
REINFORCEMENT
One braid of stainless 304 wire
COVER
N/A
APPLICATIONS
Aggressive chemicals transfer systems - Compressed air and gases High or low temperature fluid or gas transfer
FEATURES
Pure PTFE tube material: lightweight resistant to almost all chemical gas and solvents. Stainless steel braid / cover to support medium pressure requirements. Hose comes in random length coils PTFE HOSE.
1. Temperature range:-60℃~+260℃. |
2. Product features: corrosion resistance, high temperature resistance.. |
3.Scope of application: equipment with higher temperature of media . |
INCH | Hose I.D(MM) | Hose O.D(MM) | Model No. | Working Pressure | Test Pressure | Bend radius(MM) | Hose Weight(gr/m) |
1/8 | 3.2 | 8.1 | P0190A | 210BAR/21MPA | 420BAR | 20 | 60 |
1/4 | 6.3 | 12.2 | P0190C | 200BAR/20MPA | 400BAR | 30 | 110 |
5/16 | 8 | 14.2 | P0190D | 175BAR/17.5MPA | 350BAR | 40 | 140 |
3/8 | 10 | 16 | P0190E | 155BAR/15.5MPA | 310BAR | 70 | 170 |
1/2 | 13 | 19.5 | P0190F | 140BAR/14MPA | 315BAR | 90 | 235 |
3/4 | 19.5 | 26.4 | P0190H | 105BAR/10.5MPA | 210BAR | 150 | 350 |
Product Advantages
Recommend Products
R8 Hose
R7 Hose
Sprayer Paint Hose
Test Hose
Sewer Cleaning Hose
Ultra High Pressure Hose
Company Profile
Shandong Dijieflex Technology Co. Ltd. is a famous company producing high quality full range of thermoplastic hoses. Our company mainly produces Ultra High Pressure Hose, PTFE Hose, Lubricating Hose, Grease Hose, Paint Spray Hose, TPU Hose, Sewer Cleaning Hose, Test Hose, Jack Hose, Nylon Hose, etc. We not only provide customers with high-reliability and cost-effective standard products,but also continuously develop new products according to the latest requirements of customers to meet the special application requirements of various industries. Our strict process and high quality's raw material make it easy to pass ISO9001 and TS16949 quality system certification. Our company has maintained the strongest competitiveness in new material development and new technology applications.
Manufacturer of hydraulic hoses
Our strict process and high quality raw material make it easy to pass ISO 9001 and TS16949 quality system certification.
Product packaging
We have sufficient raw materials to produce all kinds of hydraulic hoses, as well as sufficient stocks of Ultra High Pressure Hose, PTFE Hose, Lubricating Hose, Grease Hose, Paint Spray Hose, TPU Hose, Sewer Cleaning Hose, Test Hose, Jack Hose, Nylon Hose, etc. Fast delivery and good packaging quality.
Quality test: 100% pressure test and leakage test before packing.
Packing details: Standard export packing or according to customer's special requirements.
Delivery Detail: The specific delivery time depends on the items and the quantity.
