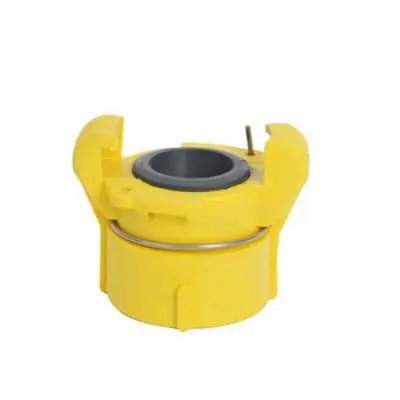

Нейлоновый пластиковый быстрый разъем для пескоструйной обработки карбида сопла муфта
305,44-395,94 ₽
Экранная гибкая труба соединитель фланцевого клапана PTFE линия резиновое расширительное соединение
- Категория: >>>
- Поставщик: Henan Huanzhong Water Supply Material Co. Ltd.Henan Ltd.
Сохранить в закладки 1601226657320:
Описание и отзывы
Характеристики
HUAN ZHONG

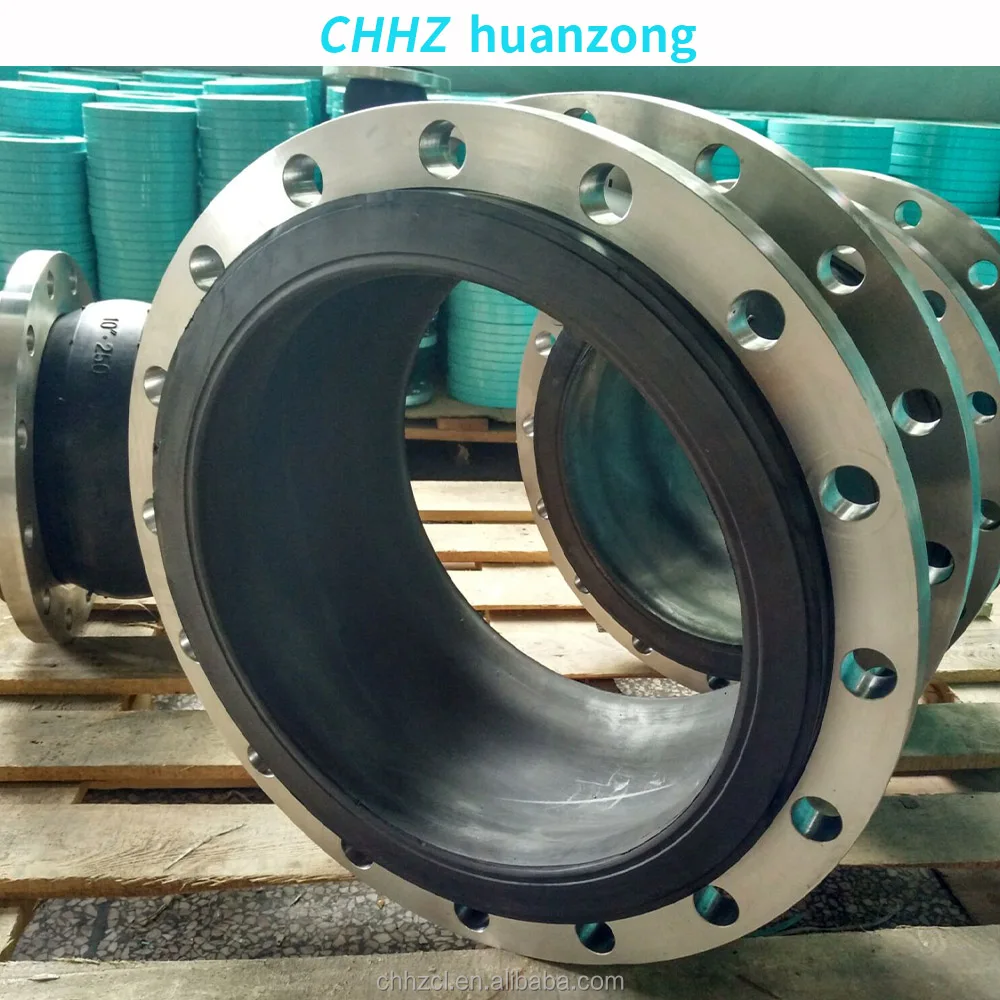

Rubber Expansion Joint

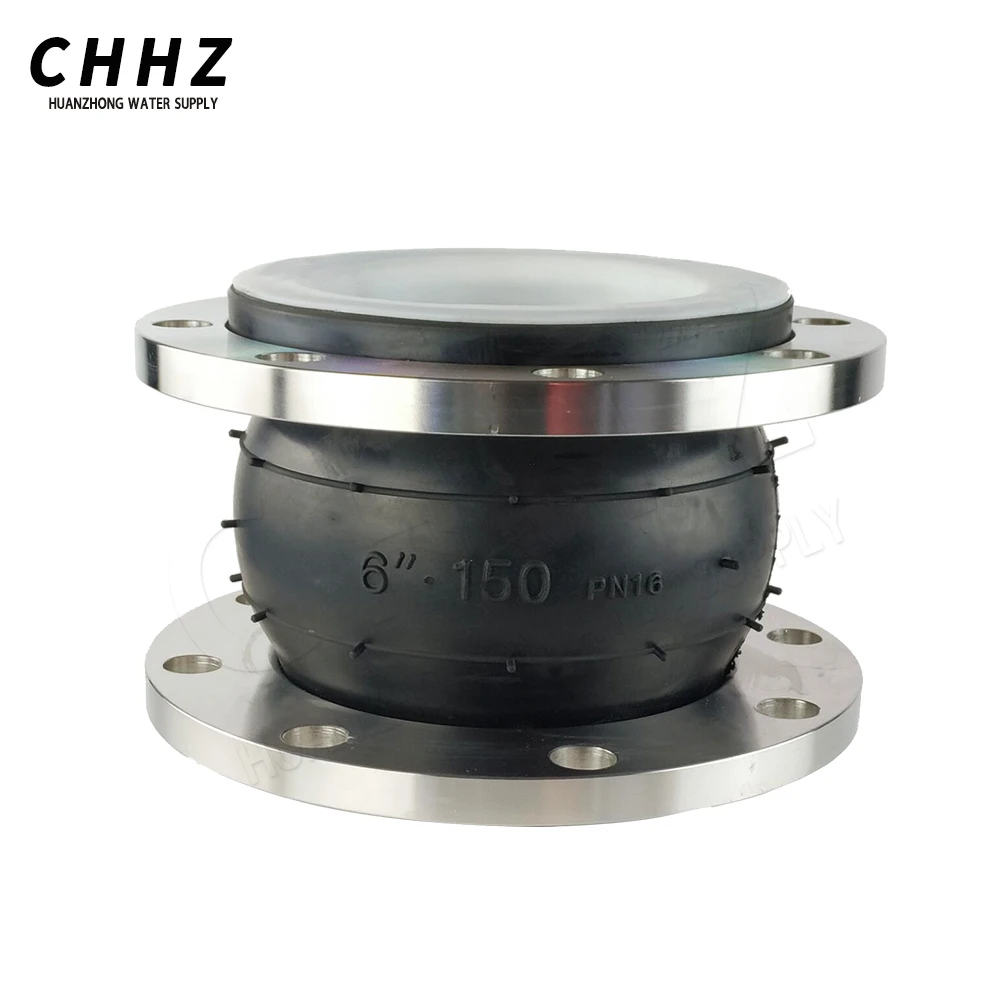

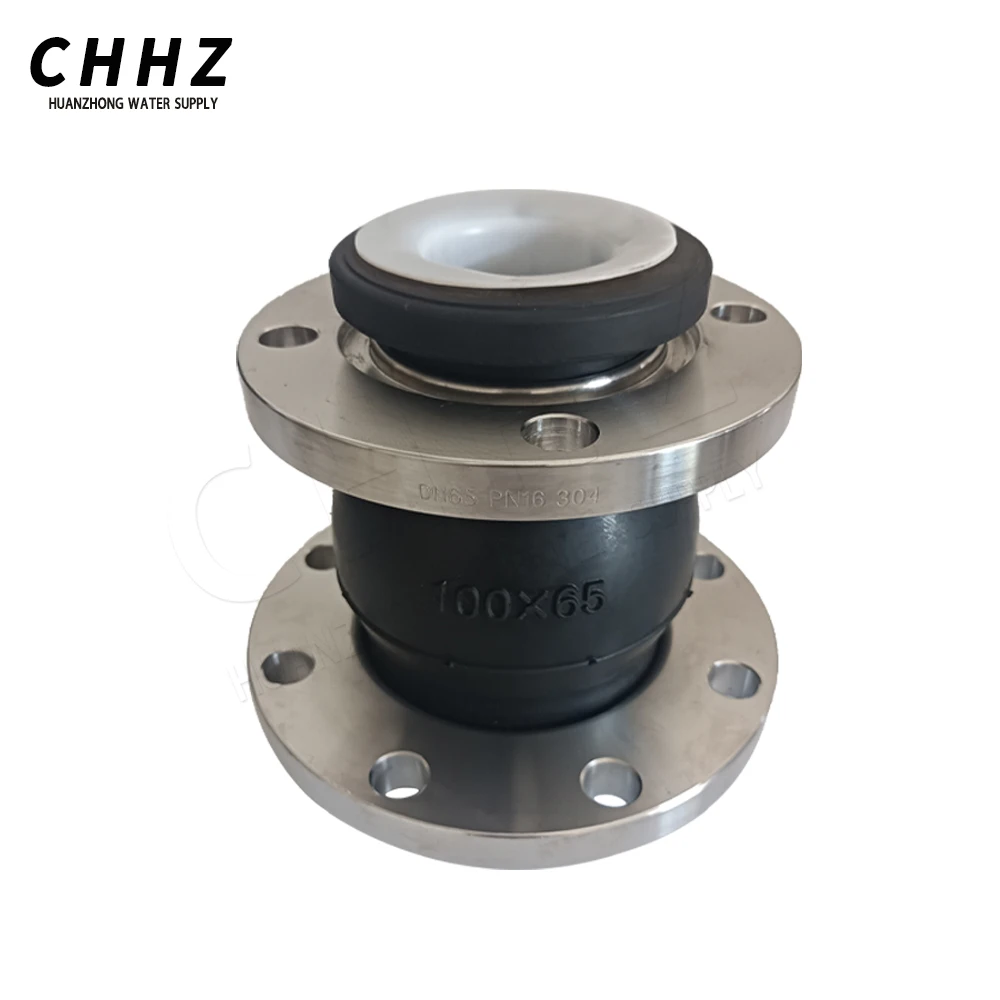

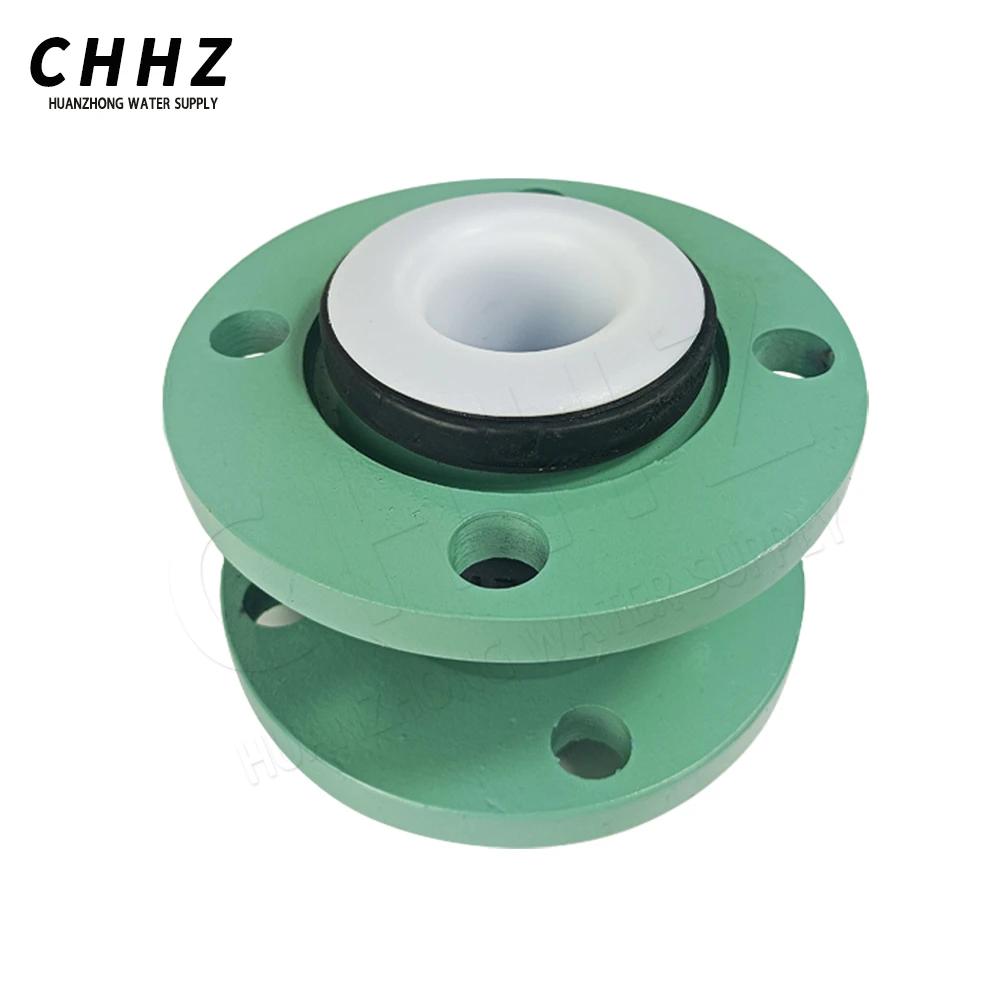

PTFE lined rubber couplings are specially used for cold water, hot water, compressed air, natural gas etc;
INFORMATION
BASIC INFORMATION
| Product Name: | Rubber Expansion Joints |
| Brand Name: | HUANZHONG |
| Product Model: | KXT |
| Pressure: | 0.6/1.0/1.6/2.5Mpa, PN10/16/25, Class 150/300 |
| Applicable Temperature: | -15℃~+115℃(-30℃~+250℃ special) |
| Material: | Water, warm water, seawater, oil, slurry, weak acids, alkalies, etc. |
| Application: | Construction, water supply and drainage, and heavy industry, refrigeration, sanitation, plumbing, fire, electricity, etc. |
 |  | |
 |  |
Good sealing performance It solves the problem of pipe bursting and damage to pipeline connecting equipments due to thermal expansion and contraction with its unique design, novel structure and good sealing performance. |
Excellent material Stainless steel flange, natural rubber, fine surface treatment of the surface of the product without burrs, natural connections, pipe fittings beautiful appearance.Small size, light weight, good elasticity. | |
Reduce Noise, Vibration Effectively reduce noise and mechanical vibrations, extending the lifespan of pipes and equipment, and enhancing system stability. |
Operational Stability greatly optimize the pipeline line operating.especially for some installation environment is relatively harsh environment has good adaptability. |
INSTALLATION INSTRUCTIONS
WE ARE IN ACTION
1 . Installation bolts should be symmetrical and gradually pressurized to prevent local leakage.
2 . 1.6MPa above working pressure, installation bolts should have elastic pad to prevent bolts loosening when working.
3 . Vertical force support should be provided at both ends of the joint pipe during vertical installation, and anti-pull-off device can be adopted to prevent working pressure pull-off.
4. Rubber joints should be installed away from the heat source. Ozone. Strictly prohibit strong radiation light exposure and the use of non-conforming media.
5. Rubber joints shall be strictly prohibited from cutting the surface and sealing surfaces during transportation and handling.
 | |
 |  |
 |
Company Profile
WHO ARE WE?
 | HuanZhong Pipe Henan Huanzhong Water Supply Materials Co., Ltd. is a professional production-oriented enterprise integrating technology research and development, manufacturing, market development, business negotiation and import and export of goods and technologies. |
| Quality-Certified Our company has strong technical force, sophisticated production equipment, advanced production technology and complete product quality testing equipment. |  |
 | Products Lines Our company specializes in producing and selling reinforced flanged COMPENSATORs, flexible single ball COMPENSATORs, double spherical COMPENSATORs, different diameter COMPENSATORs, rubber elbows, rubber compensators, synthetic COMPENSATOR protection devices, anti-drop devices, and stainless steel bellows expansion joints. |
| Our Vision It is our eternal goal to build a famous brand enterprise, develop the international market, and advance to the first-class enterprise management level.Hope we can cooperate sincerely and develop together. |  |
PARAMETER
Technical Conditions of Rubber Expansion Joint
| No. | Name | Material |
| 1 | Body | NR,CR,IIR,NBR,FKM,EPDM |
| 2 | Inner & Outer Rubber | NR ,CR,IIR, NBR,FKM,EPDM,PTFE |
| 3 | Body Carcass | Nylon cord fabric |
| 4 | Reinforcing Ring | Multi-strand coppering steel wire |
| 5 | Flange | Cast and forged carbon steel(Q235),Stainless steel(201,304,316,321), Plastic(CPVC,PVDF,PPH,UPVC,RPP) |
Nominal (mm)
| length | Horizontal Deflection | Angular Deflection | Axial Displacement | ||
(mm) | (mm) | a1+a2) ° | (mm) | |||
| mm | inch | Extension | Compression | |||
| 32 | 1.25 | 95 | 9 | 15 | 6 | 9 |
| 40 | 1.5 | 95 | 9 | 15 | 6 | 10 |
| 50 | 2 | 105 | 10 | 15 | 7 | 10 |
| 65 | 2.5 | 115 | 11 | 15 | 7 | 13 |
| 80 | 3 | 135 | 12 | 15 | 8 | 15 |
| 100 | 4 | 150 | 13 | 15 | 10 | 19 |
| 125 | 5 | 165 | 13 | 15 | 12 | 19 |
| 150 | 6 | 180 | 14 | 15 | 12 | 20 |
| 200 | 8 | 210 | 22 | 15 | 16 | 25 |
| 250 | 10 | 230 | 22 | 15 | 16 | 25 |
| 300 | 12 | 245 | 22 | 15 | 16 | 25 |
| 350 | 14 | 255 | 22 | 15 | 16 | 25 |
| 400 | 16 | 255 | 22 | 15 | 16 | 25 |
| 450 | 18 | 255 | 22 | 15 | 16 | 25 |
| 500 | 20 | 255 | 22 | 15 | 16 | 25 |
| 600 | 24 | 260 | 22 | 15 | 16 | 25 |
| 700 | 28 | 260 | 22 | 15 | 16 | 25 |
| 800 | 32 | 260 | 22 | 15 | 16 | 25 |
| 900 | 36 | 260 | 22 | 15 | 16 | 25 |
| 1000 | 40 | 260 | 24 | 15 | 18 | 26 |
| 1200 | 48 | 260 | 24 | 15 | 18 | 26 |
| 1400 | 56 | 350 | 26 | 15 | 20 | 28 |
| 1500 | 60 | 350 | 26 | 15 | 20 | 28 |
| 1600 | 64 | 350 | 30 | 10 | 25 | 35 |
| 1800 | 72 | 350 | 30 | 10 | 25 | 35 |
| 2000 | 80 | 350 | 30 | 10 | 25 | 35 |
| 2200 | 88 | 400 | 30 | 10 | 25 | 35 |
| 2400 | 96 | 400 | 30 | 10 | 25 | 35 |
| 2600 | 104 | 400 | 30 | 10 | 25 | 35 |
| 2800 | 112 | 400 | 30 | 10 | 25 | 35 |
| 3000 | 120 | 400 | 30 | 10 | 25 | 35 |

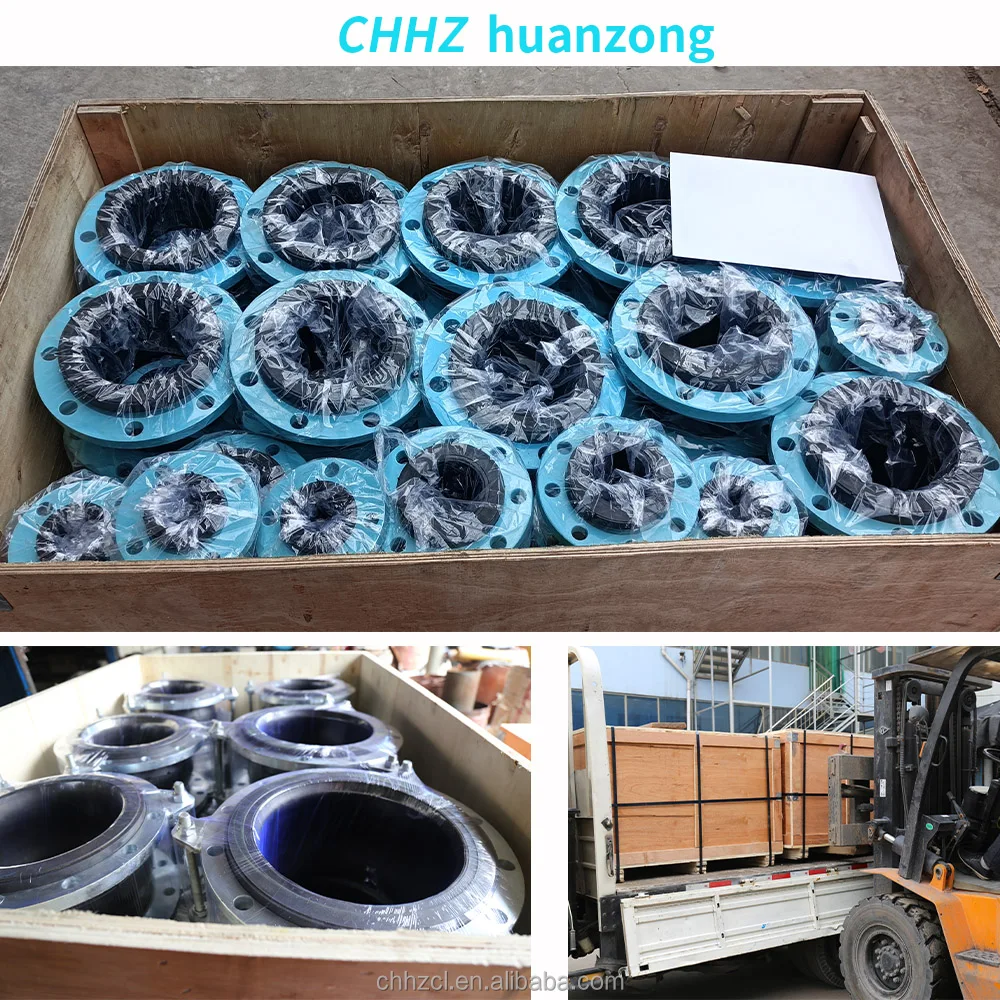

FACTORY STRENGTH
FAQ
Q:What’s your MOQ?
A: Our MOQ is 1 set.
Q: Can you provide the custom service according to the drawing?
A: Yes, we can provide the custom service for our customers.
Q: When will you delivery.
A: We have lots of goods in stock, so once the customers pay us, we can delivery as soon as possible. If the goods we don’t have in stock, we can delivery within 7-15 days.
Q: How can I pay?
A: We accept all kinds of payment methods. Such as T/T, L/C, West Union or Paypal.
Q: How long is your warranty?
A: Usually, our warranty is 12 months.
Похожие товары

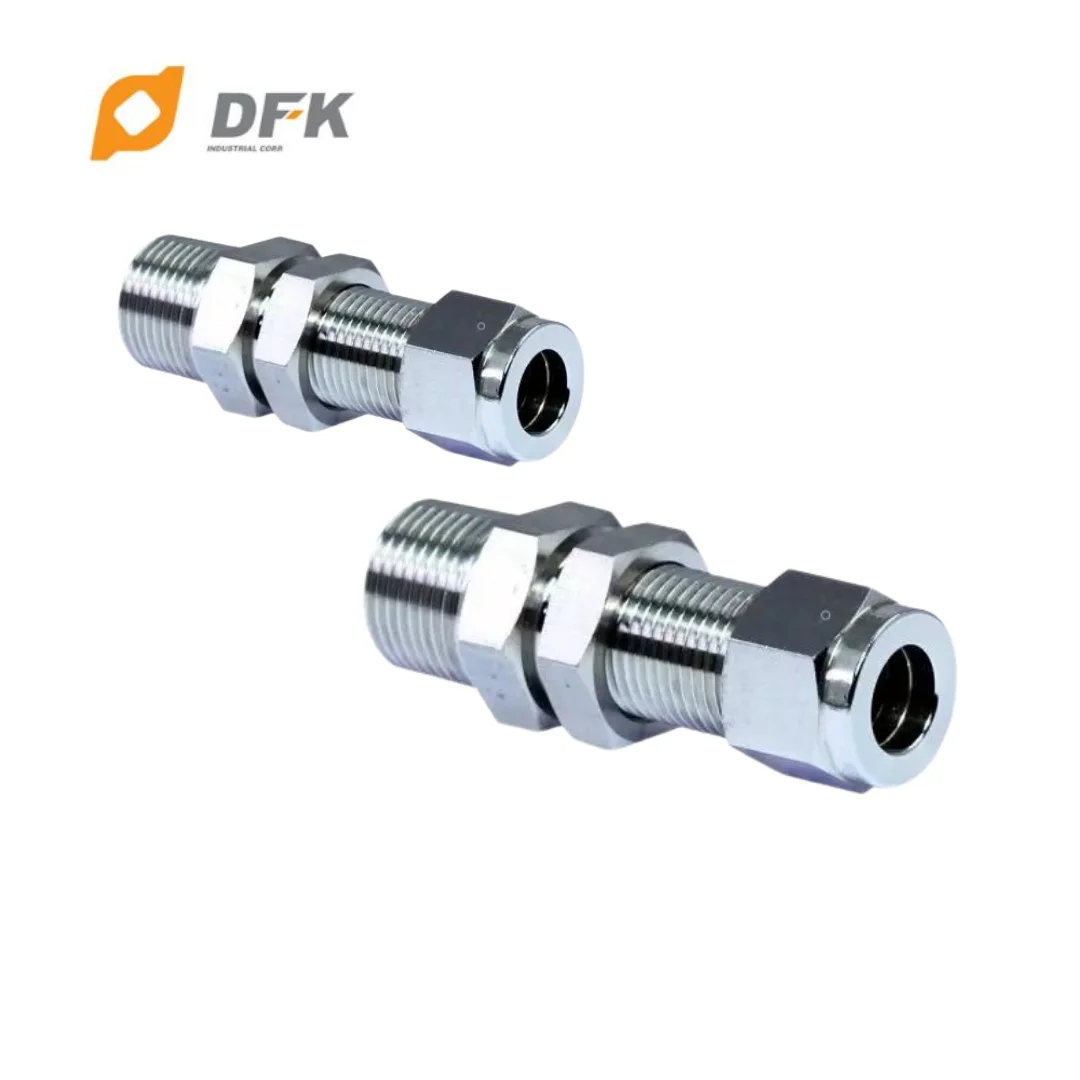

Резьбовые фитинги OEM ODM SUS 316 PT NPT
Бесмасляный подшипник с поддержкой фланцевого соединения из углеродистой стали.
9 615,68-10 181,31 ₽

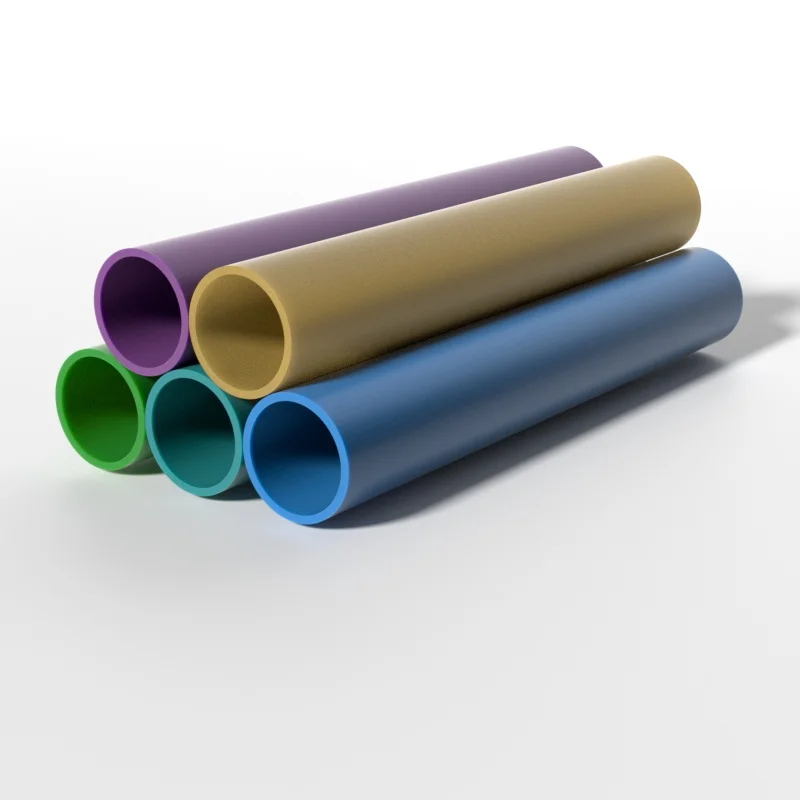

Полипропиленовая пластиковая труба PPR горячая и холодная водопроводная
13,58-40,73 ₽

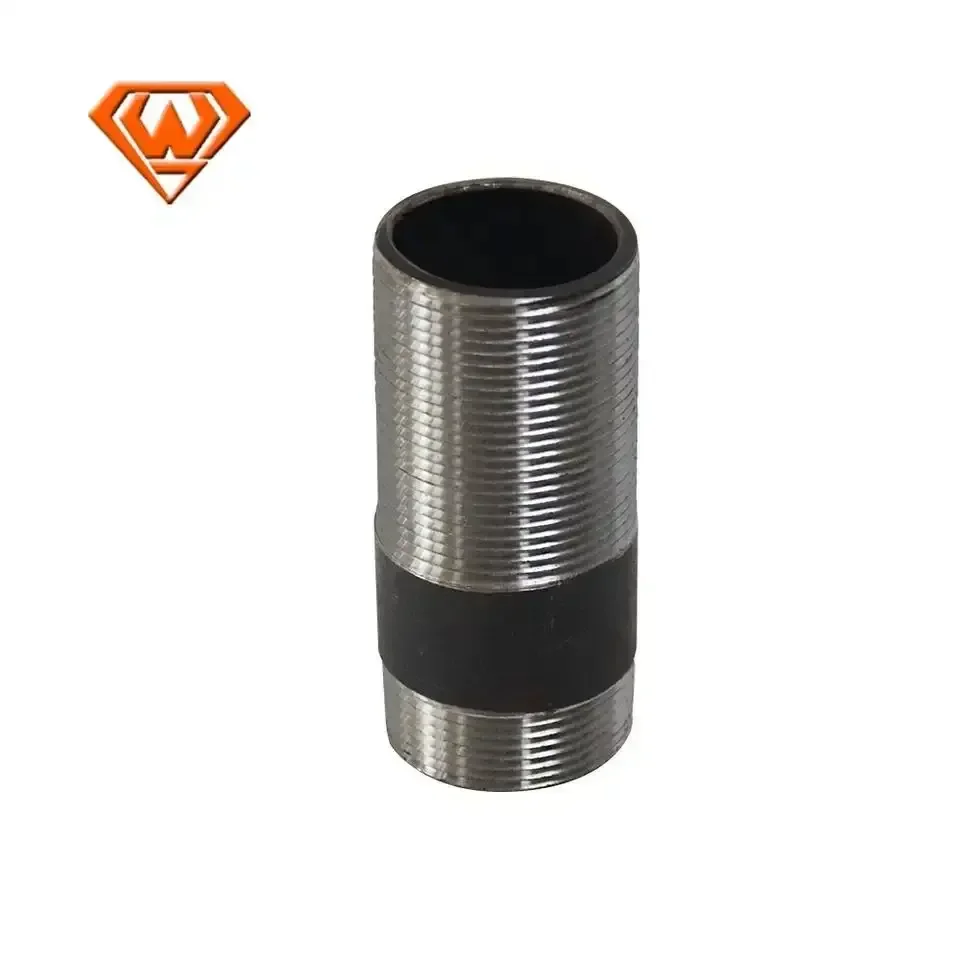

Строительная линия водопровода 1/2 дюймов углеродистая сталь Сварочные соски Threadolet
135,76-169,69 ₽
316/304 из нержавеющей стали 90 градусов сварные фитинги для труб с резьбой Bsp полированная поверхность санитарное использование ASTM/JIS стандарт
113,13-509,07 ₽

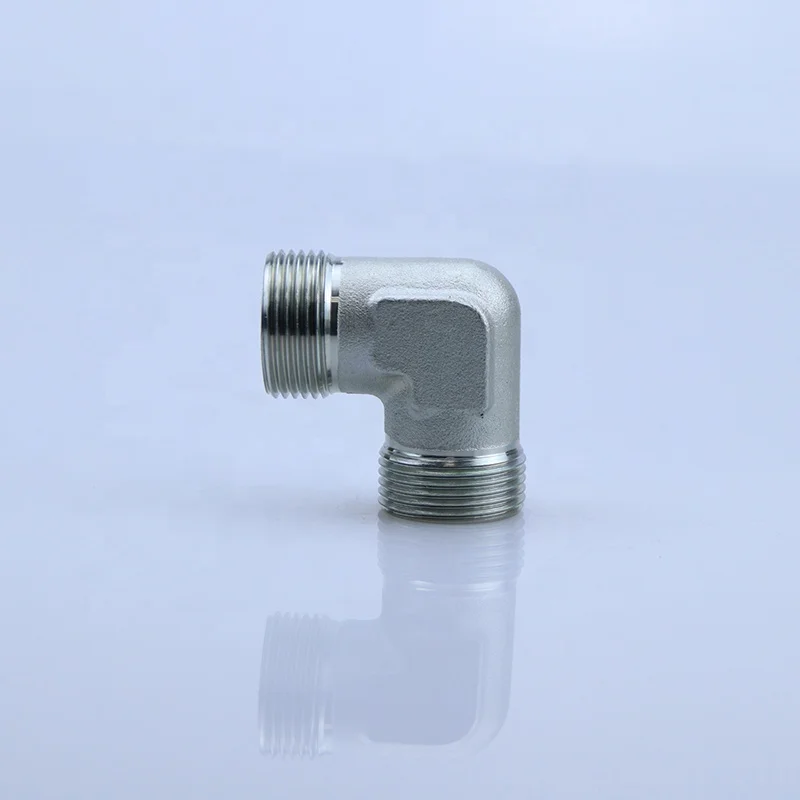

1C9 1D9 фитинги из нержавеющей стали с резьбой на 90 градусов
149,33-171,96 ₽

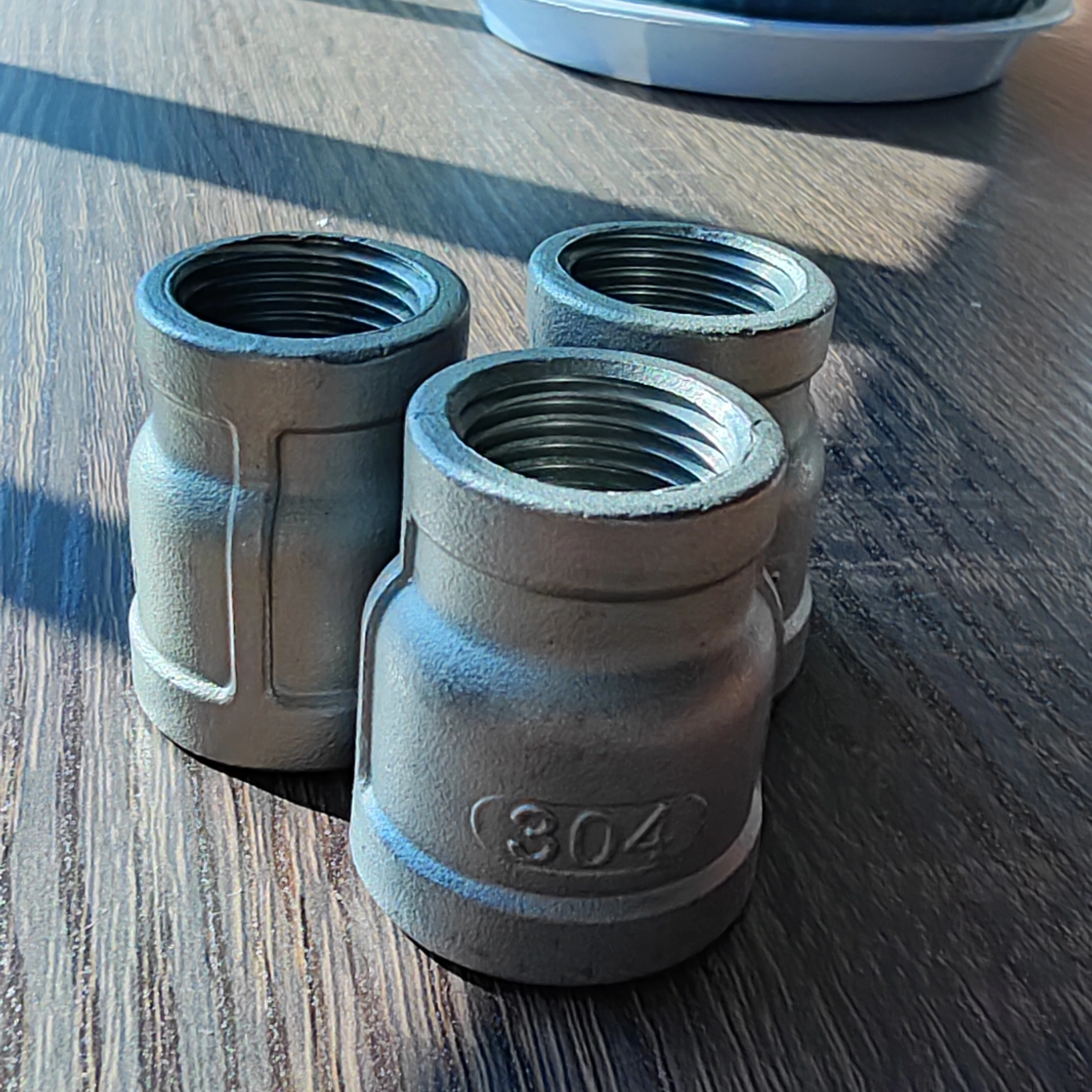

Нержавеющая сталь 304 резьбовые трубы фитинги сантехника нержавеющая труба BSPT Резьбовая муфта
