Rack | Dimenions: 500(L) x 490(W) x 590(H) The height of the rack is 590 millimeters, which supports the installation of approximately 13U of equipment. |
Front Drawer | The front drawer is a hidden compartment that can hold standard-sized devices, such as a keyboard, mouse, and wireless microphone. It helps keep the desktop clean and tidy and comes with a security lock. Dimensions: 475(L) x 275(W) x 45(H) |
Right-side Drawer | The drawer on the right side is used to store a document camera. Has a pull-out large auxiliary panel, measuring 560(L) x 430(H) x 155(H), with a weight capacity of 25kg |
Shelf(Upper) | Q-NEX NMP Gooseneck microphone base Phantom power adapter |
Shelf(Middle) | Computer tower (Optional) |
Shelf(Bottom) | For placing the power supply panels |
Left Slide Lock | Locks the slide to prevent students from opening it |
Display | PD150 Display |
Gooseneck Microphone | QGM100 Gooseneck Microphone |
Touch Panel | CPL10 Touch Panel |
Grooves | 1. Goose-neck microphone holder 2. Pen holder |

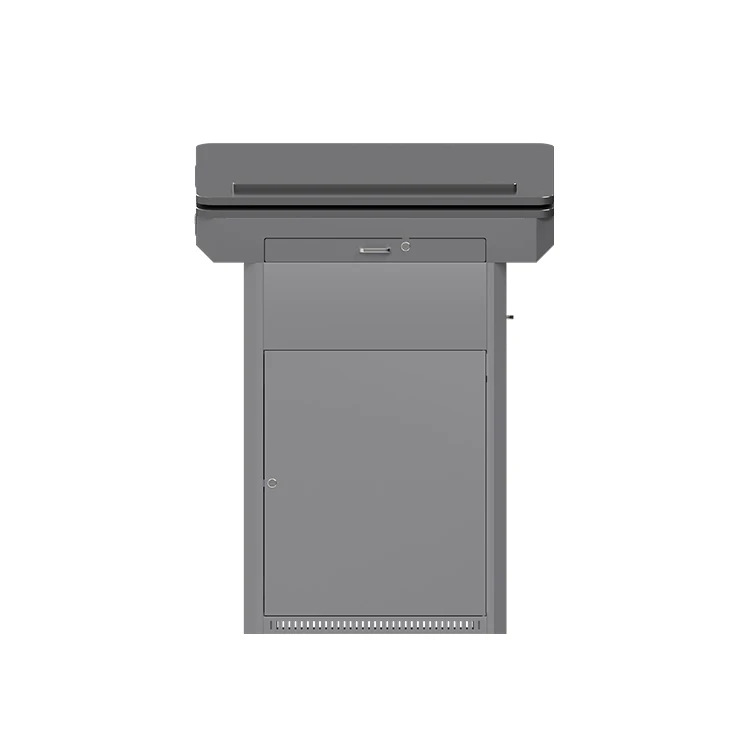

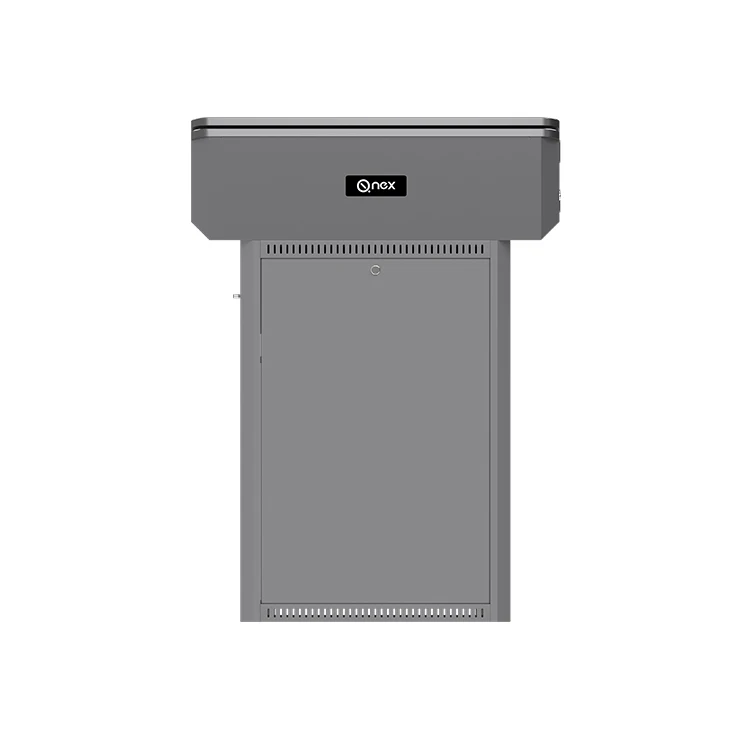

Overall | Dimenions (mm): 820(L) x 611(W) x 1,123(H) Materials: Reinforced steel plate structure with powder-coated anti-rust paint on the metal surface |

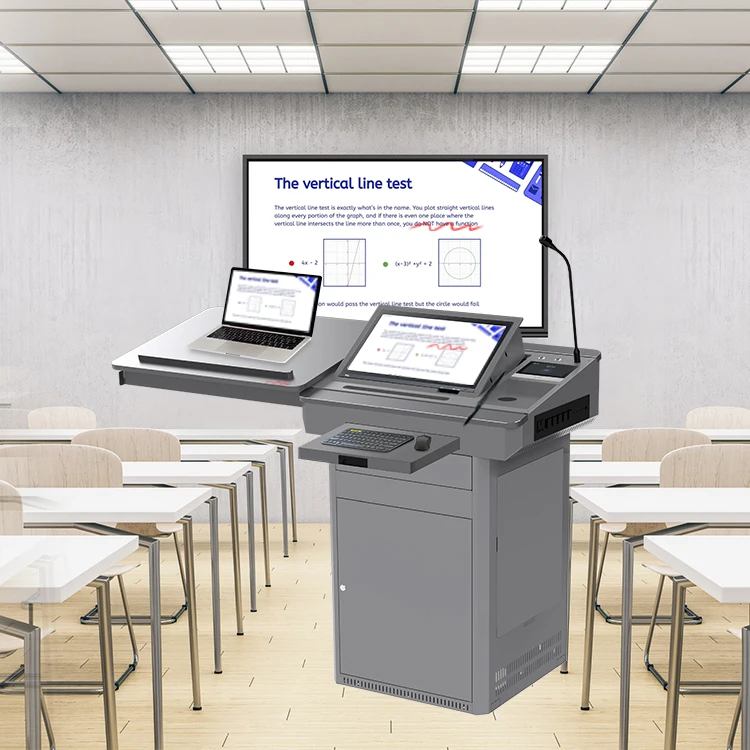

Tabletop | 820(L) x 273(W) x 610(H) (closed) 1620(L) x 273(W) x 610(H) (fully extended) |
Sliding Cover Panel | Dimensions: 820 (L) x 600 (W) x 1.8 (th.) Corner radius: R40 Material: Eco-friendly medium density board Weight Capacity: 30kg |
Up/Down Buttons | Control the automatic up and down movement of IQPodium. Default viewing angle is 12 degrees, with a maximum tilt of 35 degrees when raised |
Interface | 1 * Power outlets(3-prong) (It is used to provide power to external devices, such as the teacher's laptop) 1 * Touch USB(Extension of the NMP's Touch USB 2 - Host, for connecting teacher's laptop) 1 * HDMI-IN (extension of the NMP's HDMI-IN 2,which is used for connecting the teacher's personal laptop as an input source.) 1 * Type C (supports charging and internet connectivity for the teacher's laptop) 1 * USB (Extension of computer power's USB port, enabling connection with external devices such as USB flash driver) 1 * LAN (Used to provide network connectivity for external devices, such as a teacher's laptop, to access network services.) 1 * Goose-neck microphone jack (Provides audio input and amplification for the podium user, such as the teacher.) |
