Устройство для оплаты заказа с сенсорным экраном
1 094,00-1 276,00 $
Киоск для сдачи наличных и снятия монет розничного ресторана
- Категория: >>>
- Поставщик: Shenzhen iTouch Kiosk Technology Co. LtdShenzhen Ltd
Сохранить в закладки 1601227378518:
Описание и отзывы
Характеристики
Hot Selling Products
Products Description
Contact us to obtain the SDK and more information.
Bill Module:
Applications:
Banks, retail stores, shopping malls, transportation hubs, and other self-service locations.
Bill Module:
1000 Notes Cashbox
Recycler Capacity 80 notes With 3 Denomination
Full spectral imaging sensors validate the authenticity of notes
99% first time acceptance of new and street grade notes
Support SSP/ccTalk Protocols
MCBF 100,000
Coin Module:
Combined bulk coin validator, mixed coin hopper & recycle
Validates, discriminates and stores mixed coins
Validates, discriminates and stores mixed coins
Market leading coin hopper capacity, fully audited and efficient refills
Support SSP/ccTalk Protocols
Coin Capacity，1400 (€1) or 1050 (£1) or 1500 (quarters)
Up to 12 coins per second
Support SSP/ccTalk Protocols
Coin Capacity，1400 (€1) or 1050 (£1) or 1500 (quarters)
Up to 12 coins per second
Networking:
Ethernet, Wi-Fi, optional 4G/5G.
Supported protocols (REST API).
Supported protocols (REST API).
Certifications：
Compliance with local and international standards CE, FCC, RoHS.
Software Features：
Pre-installed OS: Android.
Refill: The ability to add Cash Into the Machine.
Empty: The ability to empty or withdraw From the Machine.
Password Management: Functionality to manage and secure administrative passwords.
Transaction System Statistics Export: Ability to export transaction data or statistics from the
system for reporting or analysis.
Home Page Icon Customization: Allowing customization of the icons on the home page of
the interface.
Refill: The ability to add Cash Into the Machine.
Empty: The ability to empty or withdraw From the Machine.
Password Management: Functionality to manage and secure administrative passwords.
Transaction System Statistics Export: Ability to export transaction data or statistics from the
system for reporting or analysis.
Home Page Icon Customization: Allowing customization of the icons on the home page of
the interface.
Power：
Input Voltage: 100V-220V ; Power Consumption: 58W
Input Voltage: 100V-220V ; Power Consumption: 58W
Optional Peripherals：
QR Reader，Thermal Printer， NFC Card Reader， etc.
Key Features:
Supports both cash coin deposits and withdrawals.
Provide a REST API interface to abstract all hardware configurations, enabling rapid secondary development.
Supports both cash coin deposits and withdrawals.
Provide a REST API interface to abstract all hardware configurations, enabling rapid secondary development.
Applications:
Banks, retail stores, shopping malls, transportation hubs, and other self-service locations.

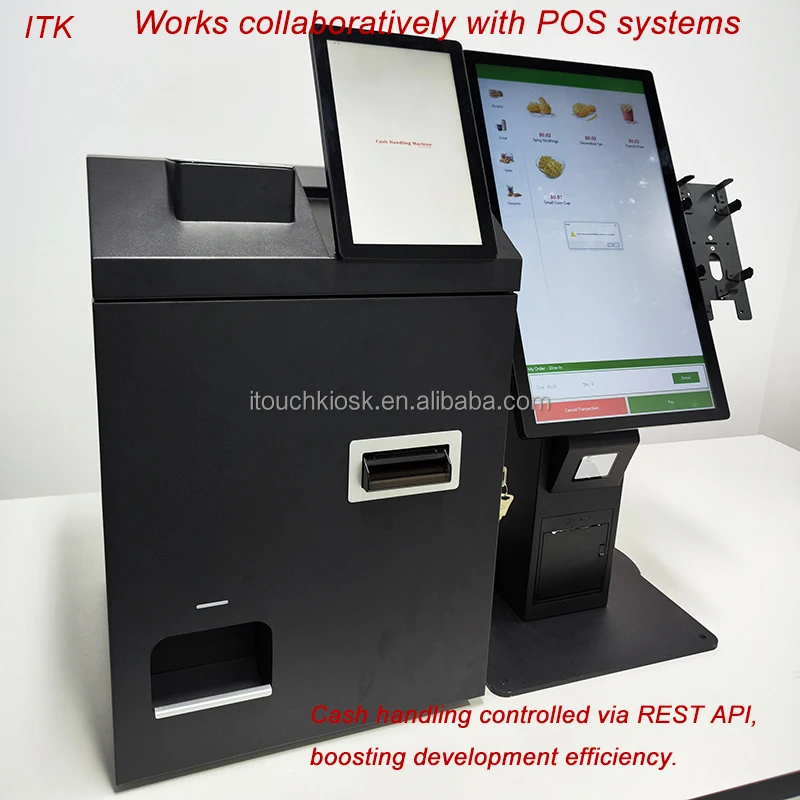

The REST API For Cash Handling Machine
On the left is the process for initiating a payment through the REST API. You only need to specify the amount according to the protocol and then poll to check the status. The machine will automatically dispense change. It is easy to integrate with a POS system for secondary development.
We provide the POSMANT script, which allows for quick testing and development.
Contact us to obtain the SDK and more information.
WhatsApp: 8618318062545

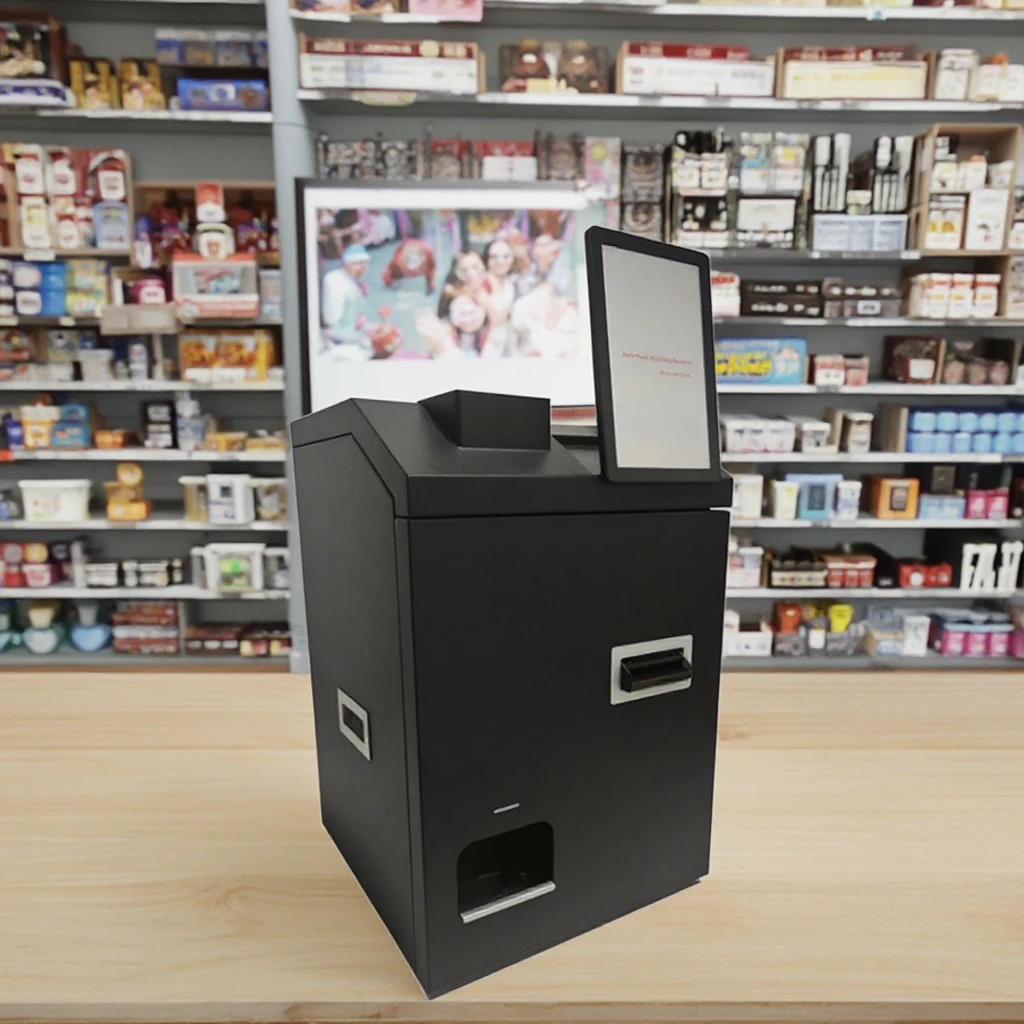

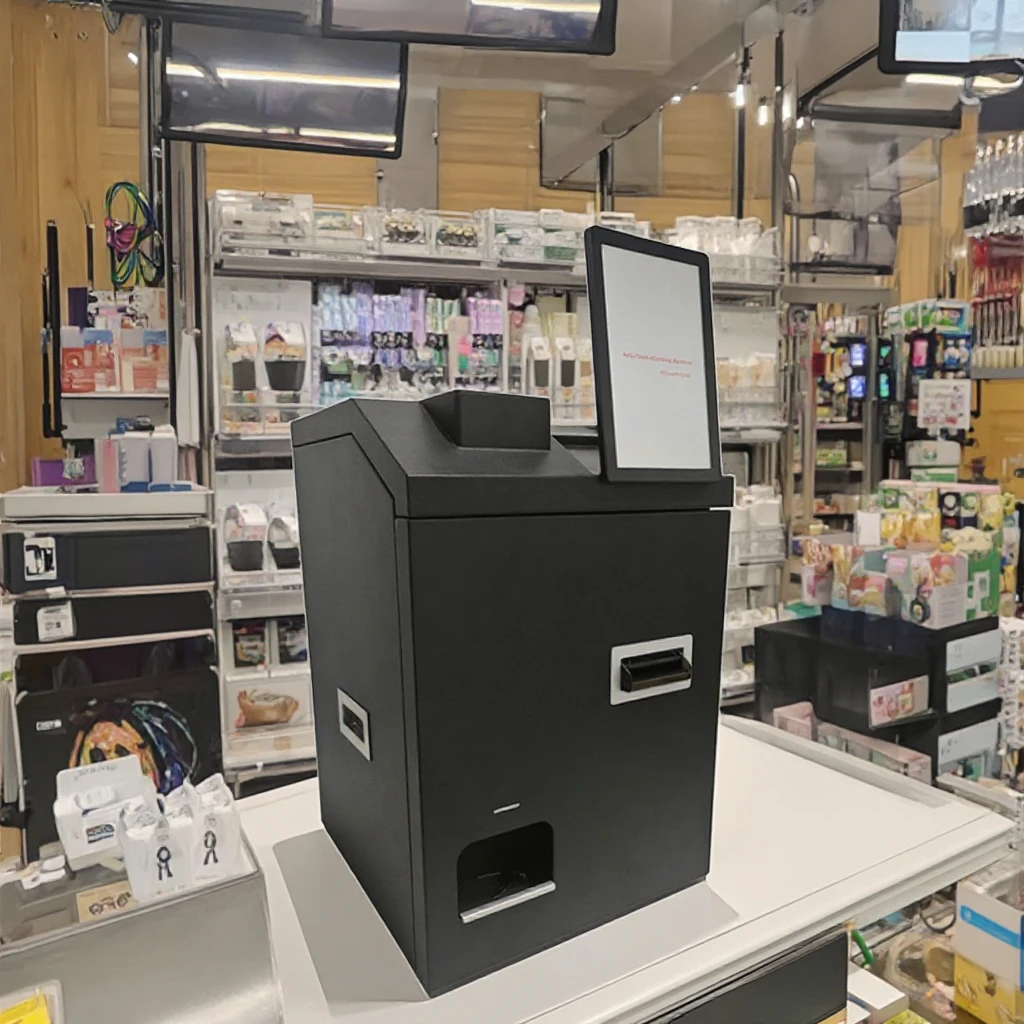

Application Scenario
A self-service kiosk can be used in various scenarios, such as retail stores for quick checkouts, restaurants for ordering food, airports for self-check-in, hospitals for patient registration, and hotels for guest check-in and check-out.
Here are some typical application scenarios.
Product Paramenters
CPU | RK3288 | ||
DDR | 4G | ||
EMMC | 32G | ||
Interface | RS232 Ports;USB Ports,RJ45,WIFI,Bluetooth | ||
Touch Screen | Screen Type | 10 point capacitive screen | |
LCD Panel | Screen Size | 10.1 Inch | |
Brighness | 300cd/m2 | ||
Contrast | 3000:1 | ||
Resolution | 1280*800 | ||
Cabinet | Material | Cold-rolled Metal with1.0mm~1.5mm thickness | |
Coating | Oil painting/Powder coated | ||
Color and Logo | Support customized color or customer LOG | ||
Card Reader | Card Type | Magnetic card/IC Card/RF Card | |
Card Dispenser | Card Capacity | 150 pieces | |
Passport Reader | OCR Processing | ICAO Doc 9303 | |
Bill Acceptor | Brand | ITL | |
Capacity | 1000Pcs Cash Box And 80 Recycle Capacity | ||
Thermal Printer | Print speed | Max:250mm/s | |
Auto-cut | Included | ||
Resolution | 203dpi(8dots/mm) | ||
Width of Paper | 58mm | ||
Barcode scanner | Brand | Newland/Honeywell/ Motorola | |
Type | 1D & 2D | ||
O/S | Android | ||
Package | Standard Export Packing | ||
Other Pripheral Devices | /UPS/WIFI/Webcam，ETC. | ||
Packing And Delivery
Company Profile
Established in 2008, Shenzhen iTouch Kiosk Technology Co., Ltd., specializes in the development and manufacturing of digital signage, self-service kiosks, and customized kiosks. Our comprehensive in-house capabilities, including a sheet metal production line, a hardware and software R&D team, and a rigorous quality control system, enable us to deliver high-quality, cost-effective products to clients worldwide.
Our products are widely used in various industries, including retail, hospitality, transportation, healthcare, and education. With a global presence spanning over 100 countries, including the United States, Spain, Canada,Brazil and Singapore etc, we are committed to providing innovative and tailored solutions that meet the evolving needs of our customers.
Our products are widely used in various industries, including retail, hospitality, transportation, healthcare, and education. With a global presence spanning over 100 countries, including the United States, Spain, Canada,Brazil and Singapore etc, we are committed to providing innovative and tailored solutions that meet the evolving needs of our customers.
Certifications
Feedback From our customer
FAQ
1. Are you a factory or trading company?
2. What's your payment methods?
We accept most of the payment methods,but mainly accept Trade assurance order, T/T, L/C, Western Union and Paypal.
3. What's your product warranty?
1 Year warranty. Lifetime technical support.
4. What's your product lead time?
Product in stock: 1-3 days. Customized sample order: 7-15 days. Bulk order:15-20 days.
5. What's your MOQ?
MOQ is 1pc.
6.Is it possible to have my logo on the product?
yes sure, we can use your logo branding.
We are a factory based company, specialized in all kind of OEM/ODM Kiosk.We have own sheet metal factory.
2. What's your payment methods?
We accept most of the payment methods,but mainly accept Trade assurance order, T/T, L/C, Western Union and Paypal.
3. What's your product warranty?
1 Year warranty. Lifetime technical support.
4. What's your product lead time?
Product in stock: 1-3 days. Customized sample order: 7-15 days. Bulk order:15-20 days.
5. What's your MOQ?
MOQ is 1pc.
6.Is it possible to have my logo on the product?
yes sure, we can use your logo branding.
7. What's the order processes?
Inquiry- >Design Confirmation including technical and design details->Sign a contract->Payment->Production ->Shipping
Inquiry- >Design Confirmation including technical and design details->Sign a contract->Payment->Production ->Shipping
