Product Overview
FSH-Model

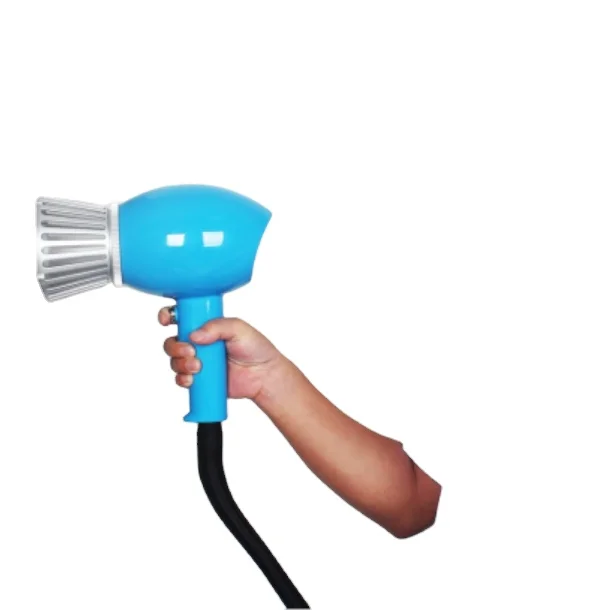

Handheld Smart Laser Marking Machine
Hand-held and portable ,
wireless marking
wireless marking
6 -8 hours long
battery life
battery life
PRODUCT DESCRIPTION

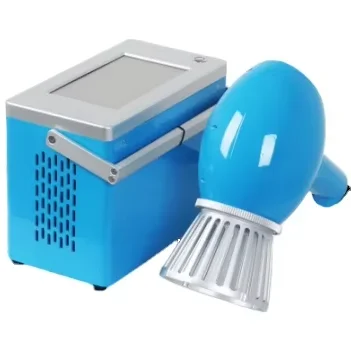

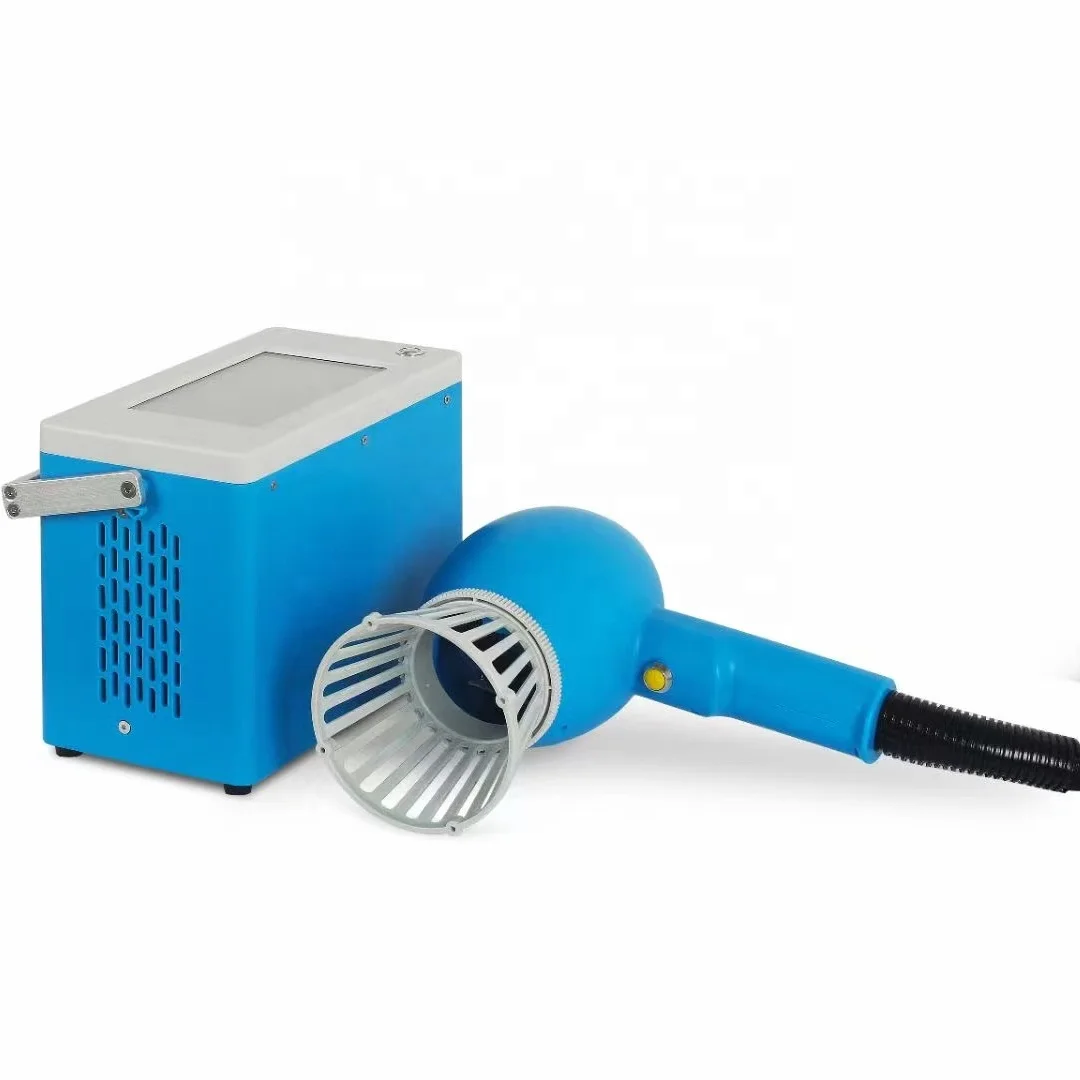

The Q8 handheld intelligent laser machine is a portable, battery powered, and fully autonomous marking machine! Thanks to its powerful 24V rechargeable lithium battery power supply system, it can maintain operation for 6-8 hours under normal use, has strong endurance, and does not have any cable drag, avoiding the embarrassment of sudden power outage during use. Its light weight and versatility make it particularly suitable for perfect marking on large, bulky, or difficult to remove workpieces.
Q8 is powerful and sturdy, with a total weight of 6 kilograms and a marking head of only 1.25 kilograms. It has ergonomic grip strength, making it comfortable to hold and easy to operate. With a rear USB interface, the software supports marking content such as text, patterns, QR codes, barcodes, serial numbers, graphics, etc. In addition, Q8 also has a dedicated box for convenient storage that can be carried to different locations. It is currently one of the smallest rechargeable laser marking machines on the market!

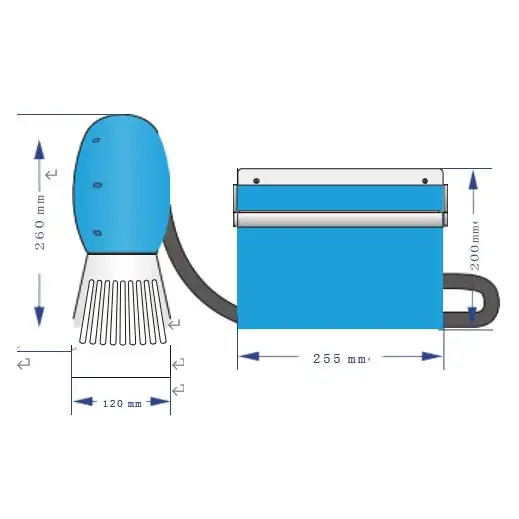

PRODUCT SIZE
FRONT VIEW
END VIEW
VERTICAL VIEW
Laser source circuit 1160 mm
Power charger
Power cable 2000 mm
PRODUCT SPECIFICATIONS
Model series | FSH | ||||||
model | Q8-20 | FSH-20 | FSH-30 | FSH-50 | |||
Laser parameters | Output Power | 19.5w | 26.5w | 50w | |||
3 | Beam QualityM | ≤1.4 | |||||
4 | Pulse Repetition Frequency | 27-60 kHz | |||||
5 | Wavelength | 1064 ±5 | |||||
6 | Output power stability | ＜3% | |||||
Optical Characteristics | Marking scope | 75mm | |||||
8 | Carving depth | ≤1mm(Depending on power and time) | |||||
Carving Speed | ≤10000mm/s | ||||||
Repeat accuracy | ±0.005 | ||||||
Minimum marking line width | 0.1mm | ||||||
Minimum character height | 0.15mm | ||||||
Usage environment | Endurance time | Can maintain operation for 6-8 hours under normal use | |||||
Cooling method | Built-in air cooling | ||||||
System power supply | 500W/ 100-240V/ 50/60Hz | ||||||
other parameters | operating system | linux operating system | |||||
file format | The software supports marking content such as text, patterns, QR codes, bar codes, serial numbers, graphics, etc. (standard USB input) | ||||||
External dimensions | Control cabinet：255X135X200 mm Marking head：260X120X258mm | Control cabinet：275x150x200mm | |||||
Overall weight | Overall weight 6kg， Marking head 1.25kg | Overall weight 6.5kg，Marking head 1.25kg | |||||
PRODUCT ADVANTAGES
1. Wireless marking
* Configure 24V lithium battery to achieve complete wireless
* It can maintain 6 - 8 hours of work under normal use , with strong endurance
* Automatic start-stop design , automatic shutdown after 60 seconds of standby , saving power and reducing consumption .
* It can maintain 6 - 8 hours of work under normal use , with strong endurance
* Automatic start-stop design , automatic shutdown after 60 seconds of standby , saving power and reducing consumption .
2. 100% portable
* The weight of the whole machine is 6KG , the marking head is only 1 . 25KG , it is small and light , and it can be printed on the go
* Especially suitable for marking on large , heavy or difficult to move workpieces
* Special suitcase for easy transportation
* Especially suitable for marking on large , heavy or difficult to move workpieces
* Special suitcase for easy transportation
3. High-quality light source
● The weight of the whole machine is 6KG , the marking head is only 1 . 25KG , it is small and light , and it can be printed on the go
● Especially suitable for marking on large , heavy or difficult to move workpieces
● Special suitcase for easy transportation
● Especially suitable for marking on large , heavy or difficult to move workpieces
● Special suitcase for easy transportation

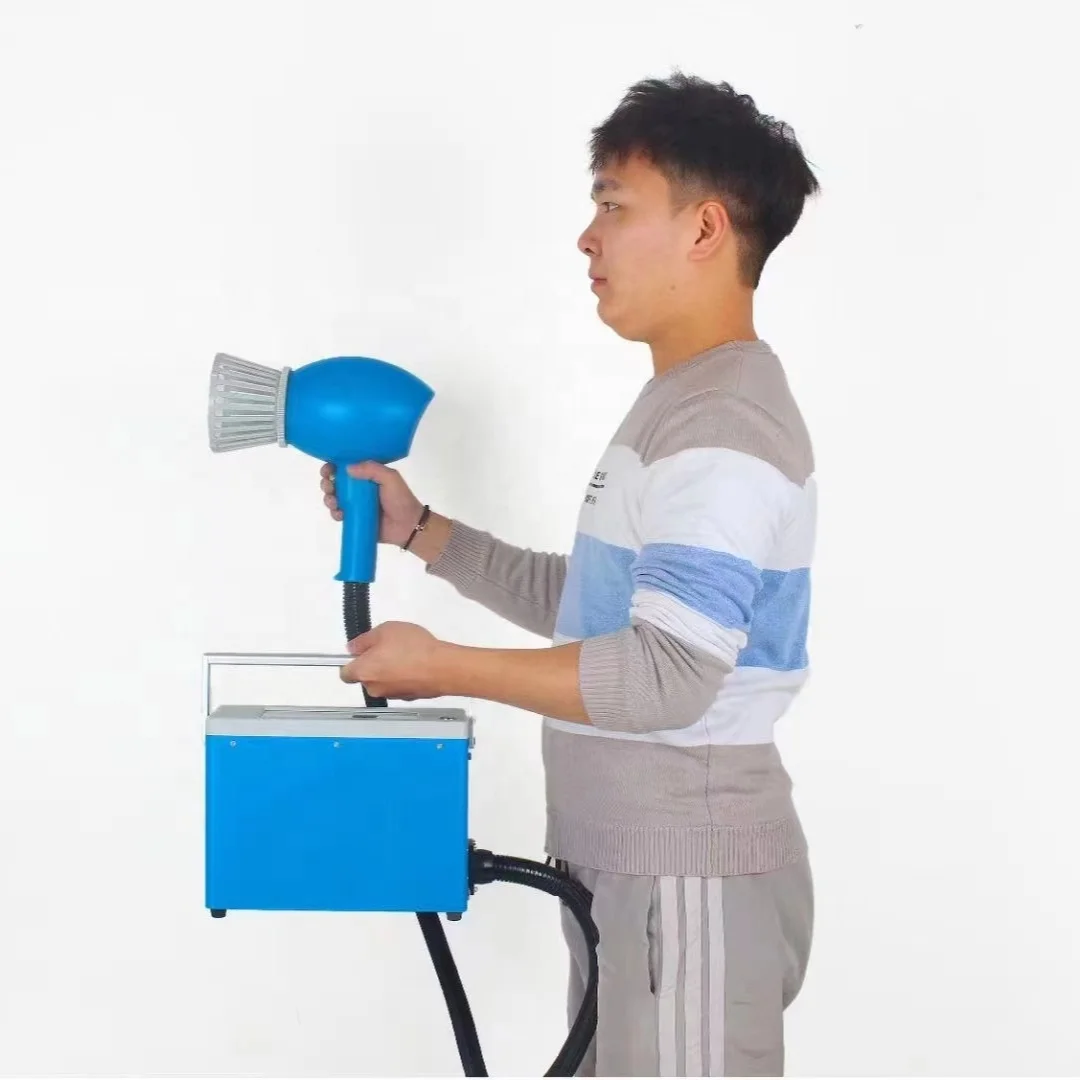

THE WHOLE MACHINE WEIGHS 6KG ,
IT IS LIGHT AND PORTABLE TO MARK ANYWHERE.
Powerful and reliable , the weight of the whole machine is 6 kg , and its
marking head is only 1 . 25 kg. It has an ergonomic grip that comfortable to hold and easy to operate .
marking head is only 1 . 25 kg. It has an ergonomic grip that comfortable to hold and easy to operate .
ADVANCED FIBER 20W LASER
Using 20W fiber laser source , the spot quality is good , the output light
power is stable , and it can be flexibly applied to metal materials and some
non- metal materials .
power is stable , and it can be flexibly applied to metal materials and some
non- metal materials .
LONG BATTERY LIFE , 6 -8 HOURS WORKING TIME
It uses 24V lithium battery to achieve complete wireless , which can maintain work for 6 - 8 hours under normal use .
MARKING WHILE CHARGING ,
THE DEVICE CAN BE CHARGED AND USED AT WORK
Increased power control design , the equipment can be charged during
work , to achieve continuous work and improve processing efficiency
work , to achieve continuous work and improve processing efficiency
AUTOMATIC START AND STOP DESIGN ,
SAVING ELECTRICITY AND REDUCING CONSUMPTION
SAVING ELECTRICITY AND REDUCING CONSUMPTION
Added automatic start-stop design , it will automatically stop after 60
seconds of standby and restart by tapping the screen;The standby time can be customized to effectively save unnecessary power
consumption
seconds of standby and restart by tapping the screen;The standby time can be customized to effectively save unnecessary power
consumption
DIVERSIFIED MARKING CONTENT ,
SUPPORT LANGUAGE CUSTOMIZATION
Rear USB interface , software support: text, pattern, QR code , barcode ,
serial number, graphics and other marking content;It supports operating system language customization .
MARKING EFFECT
* Electroplating paint
* Metal iron
* Metal aluminum
* Metal copper
* Electroplating paint
* Painting material
* Hard plastic
● Wood
SCOPE OF APPLICATION
Automobile manufacturing industry
Aerospace industry
Metal processing industry
Constructionmachinery industry
Household appliance industry
Energy industry
