Индивидуальная высокоточная автоматическая функция позиционирования CNC PCB/FCC прецизионная машина для резки
2 720 066,90 ₽ - 2 937 978,55 ₽
Волоконно лазерная маркировочная машина Raycus JPT 30 Вт 50 60 100
- Категория: >>>
- Поставщик: Jinan Transon CNC Equipment Co. Ltd.
Сохранить в закладки 1601228143917:
Описание и отзывы
Характеристики
Product Description

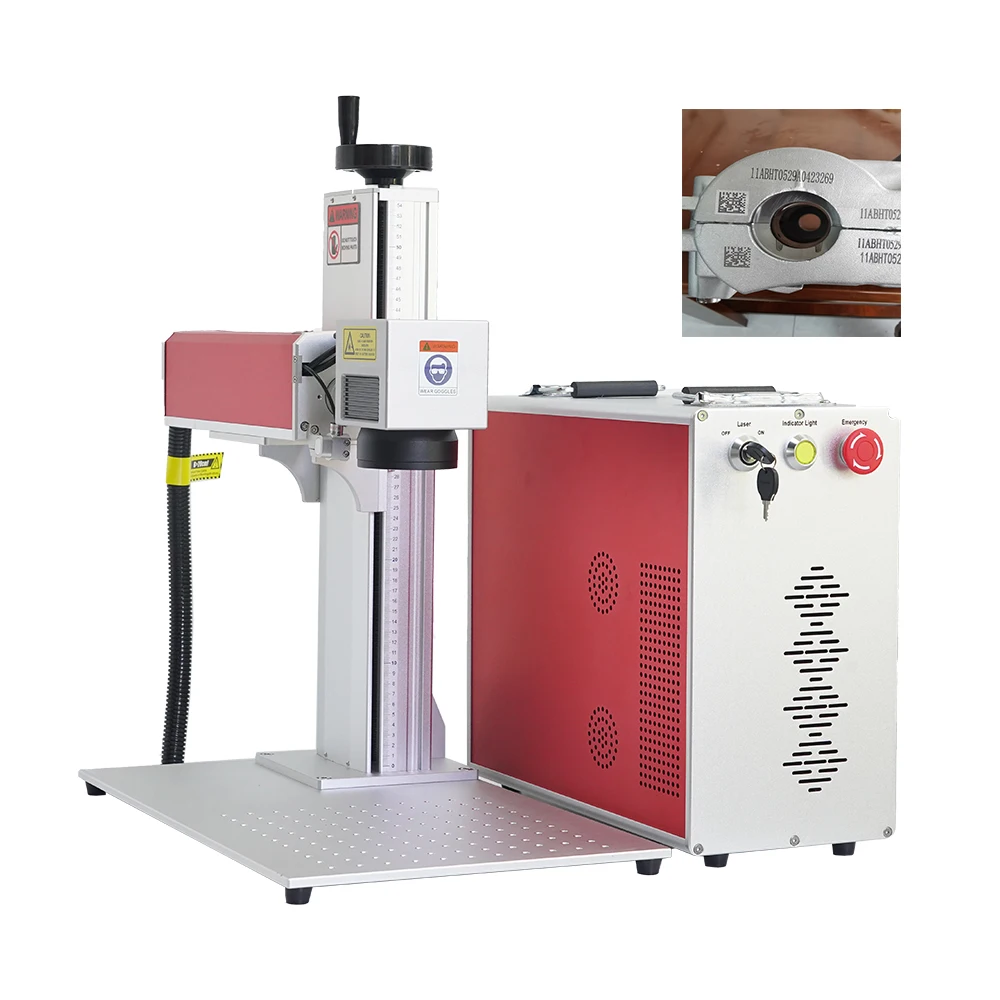

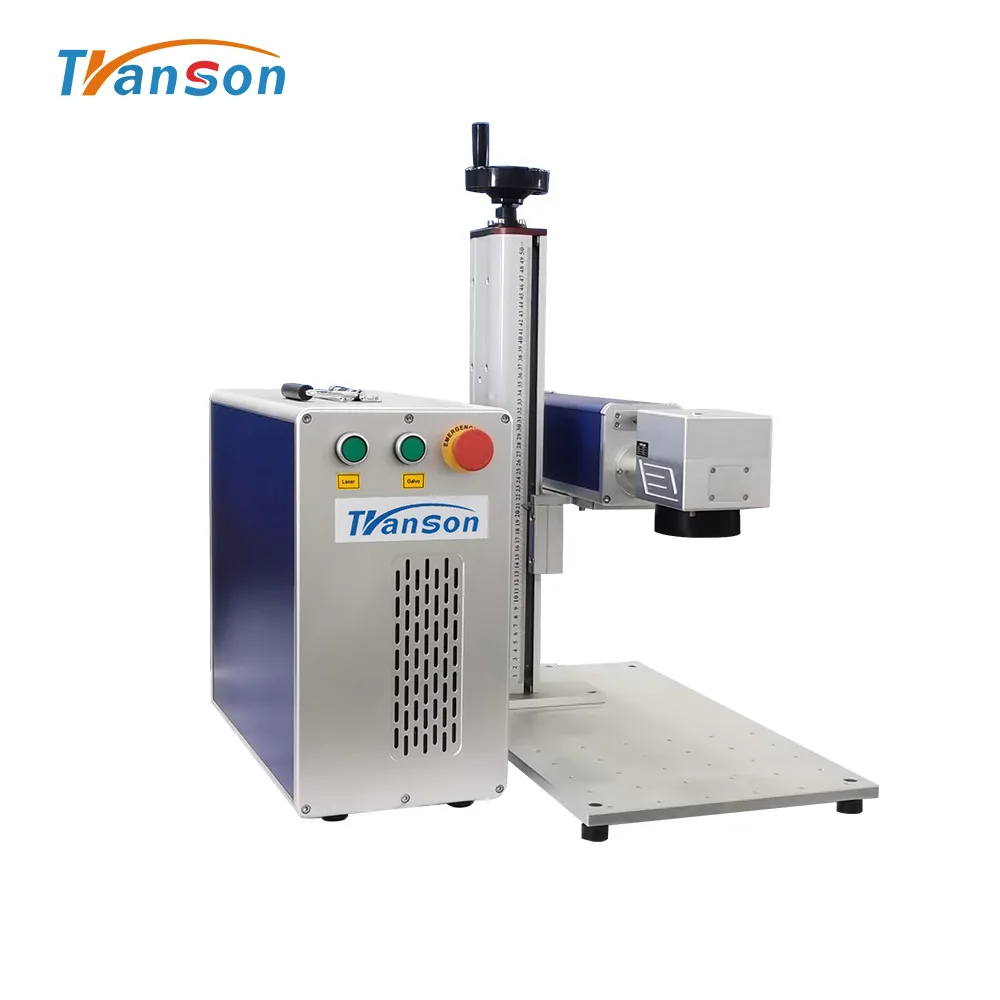

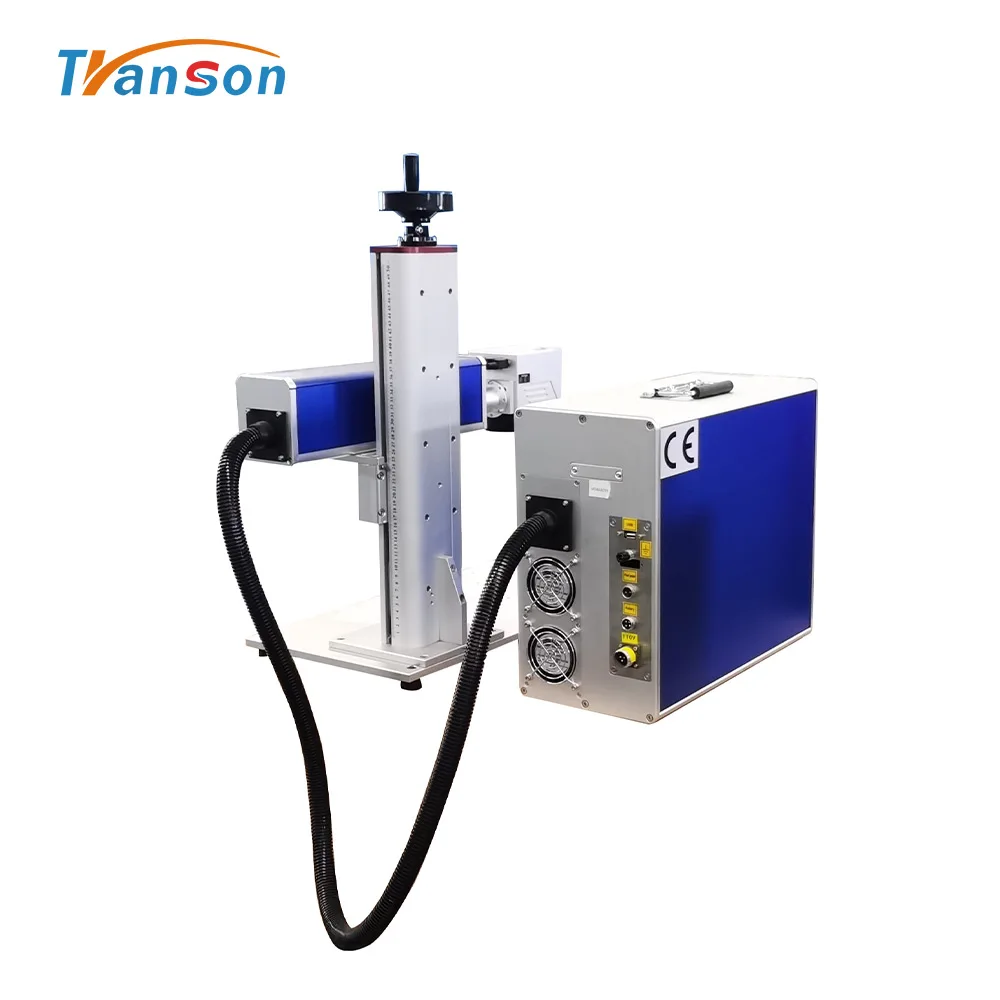

Split type fiber laser marking machine 20w 30w 50w 60w 70w 100w with raycus JPT MAX laser source
Fiber laser marking machine can do fast and permanent mark of text, series numbers, QR code, bar code, pictures, etc. on all kinds of metal material and part nonmetal material. With a small volumn and wide application, fiber laser marking machine are widely use in both industry and DIY customize crafts industry.
Material Transon fiber laser marker can mark:
1.Metal: Aluminum, silver, brass, copper, stainless steel, gold, iron, steel,Titanium,coating material, anodized or treated metal, etc.
2.Nonmetal: Hard plastic, rubber, marble, granite, ceramic, ABS, leather, electroplating materials, coating materials, epoxy,etc. If you have any material not show above, you can send us to test free, we will send you test video and photos for confirm and find the most suitable parameter for you.
1.Metal: Aluminum, silver, brass, copper, stainless steel, gold, iron, steel,Titanium,coating material, anodized or treated metal, etc.
2.Nonmetal: Hard plastic, rubber, marble, granite, ceramic, ABS, leather, electroplating materials, coating materials, epoxy,etc. If you have any material not show above, you can send us to test free, we will send you test video and photos for confirm and find the most suitable parameter for you.
Specification
1. Marking Area: 110*110mm, 175*175mm, 200*200mm, 300*300mm.However, larger workpiece could be marked by our customized electrical XY working table.
2. Best Marking Effect: Owning to the orignal Raycus laser source technology, the laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker is especailly good for large size seamless splicing image marking.
3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.
4. Long lifetime: the lifetime can reach 80,000 - 100,000hours.
5. No consumables except electricity.
6. Free Maintenance.
7. Easy operation: Machine is installed well.We will supply the installation training video for our dear customers to install
laser marking machine.
2. Best Marking Effect: Owning to the orignal Raycus laser source technology, the laser beam is fine and thin to ensure best marking effect. Together with the stable precision slider, the fiber laser marker is especailly good for large size seamless splicing image marking.
3. Higher Accuracy: The fiber laser marking machines can reach up to 0.001mm precision.
4. Long lifetime: the lifetime can reach 80,000 - 100,000hours.
5. No consumables except electricity.
6. Free Maintenance.
7. Easy operation: Machine is installed well.We will supply the installation training video for our dear customers to install
laser marking machine.
Model | TSF-20 /TSF-30 /TSF-50/TSF-100 |
Laser type | Fiber Laser |
Laser power | 20W/30W/50W/100W (Normall and Mopa) |
Beam quality | M2< 1.5 |
Laser wavelength | 1064±1 nm |
Power adjustment range | 10~100% |
Output fiber length | 1~2m |
Frequency of pulse | 20~100KHz |
Power supply | 220V/60Hz /8A (110V/60Hz /15A can choose) |
Cooling system | Air Cooling |
Graphic format supported | AI, PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR, BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF. |
Working area | 110mm*110 mm(Standard) optional 150*150mm/ 200*200mm / 300*300mm |
Marking depth | <1mm |
Marking speed | <5000mm/s |
Min. line width | 0.05mm |
Repeatability accuracy | 0.003mm |
Power Machine | 300-600W |
Operation temperature | 0~40°C |
Operation system | Microsoft Windows system |
Operating environment | Clean and free of dust |
Application
Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, Medical Instruments etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, Gold Silver Brass Jewelry etc.
Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, Medical Instruments etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, Gold Silver Brass Jewelry etc.
Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Marking material:
Fiber laser marking machine could work perfectly for most metal marking applications, such as Gold Silver Brass Jewelry,
Aluminium, Stainless Steel, Iron etc. Especially the 50w and 100w laser marking machine could cut small gold silver brass jewelry, very popular now.
Aluminium, Stainless Steel, Iron etc. Especially the 50w and 100w laser marking machine could cut small gold silver brass jewelry, very popular now.
After Sales Service
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5. Outside is wood package case
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5. Outside is wood package case
Technical support:
1. Technical support by phone, email or WhatsApp/Skype around the clock
2. Friendly English version manual and
operation video CD disk
operation video CD disk
3. Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machine immediately after received machine. Besides, you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/WhatsApp/tel etc.
Certification
Our Advantages
Transon Company
Jinan Transon CNC Equipment Co., Ltd. is a professional manufacturer of Laser marking machine, laser cutting engraving machine and CNC Routers, specialized in researching and studying the application in advertising, woodworking, laser and other fields. Our products are widely used in the following industries: Woodworking, Advertising, Art making, Models, Electrics, CAD/CAM industry, Clothing, Package Printing, Marking and Laser Sealing and so on We guarantee everything is under our inspection and control, including the selection of raw materials, assembly technology, testing, packaging, and fast technical support and good after-sales service. Our machine has exported to Uk, USA, Canada, Brazil, Panama, South Africa, Germany, Poland, Switzerland, Greece, Turkey, Australia, Barlin, India and so on. Our products get good feedback from the agents and users We are still trying our best to produce innovative products to help customers lower their cost. We are a serious supplier. If you are interested in our products, please do not hesitate to contact us for future cooperation. We hope to get mutual benefits with you in the near future.
Why Choose Us
