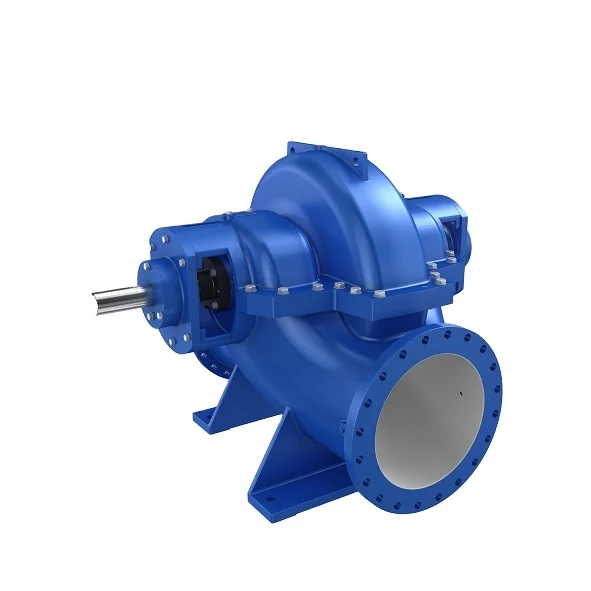

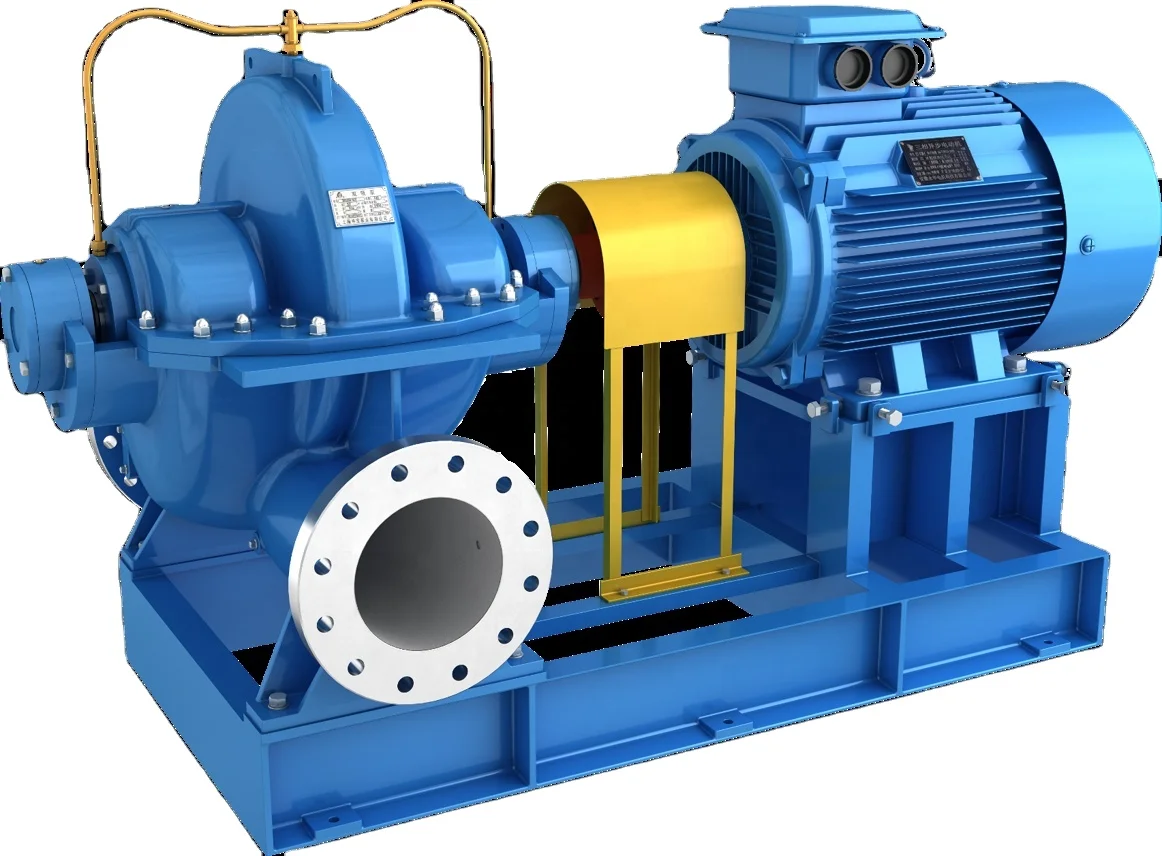

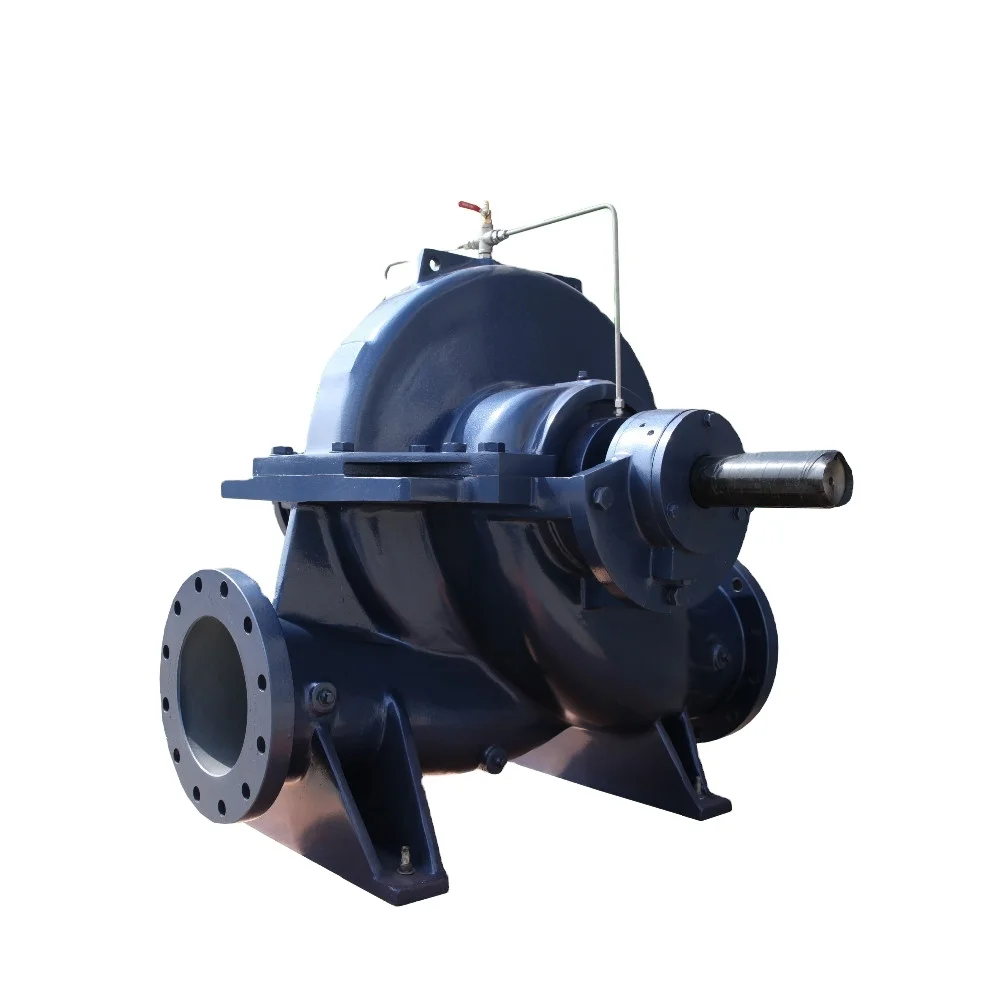

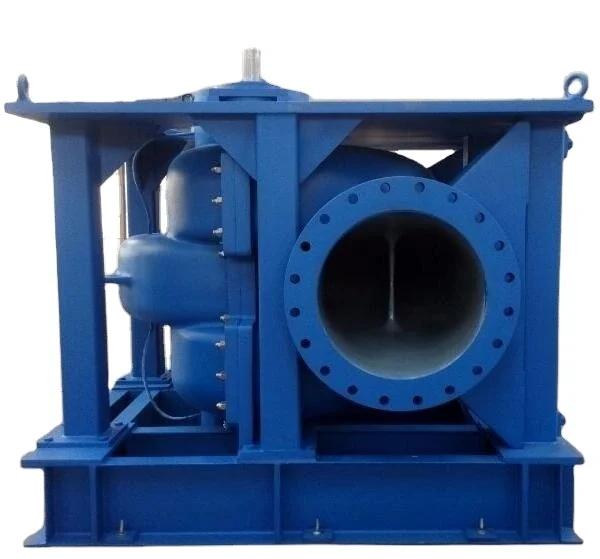

SBS125 365 8 дюймов пожаротушение высокого давления сплит корпус двойной всасывающий дизельный двигатель электрический водяной насос

BRIEF INTRODUCTION

FEATURE

l Design of hydraulic model of casing and impeller adopts modern methods by using advanced      CAD software.It is 2-5% higher than the efficiency of the same pump and keeps higher efficiency of full series by multi – impeller suitable for one casing.

l Wide range charts, detail type classification, reasonable arrangement.

l The pump can operate stable by using reasonable construction design, short distance between the bearings, compact size and good rigidity.

l Two structure of vertical and horizontal, and horizontal pump can operate in clock wise or anti – clock wise, by interchange left and right shaft with more flexible application.

l This product uses the independent integral sealed parts, solving the problem of dynamic and static sealing.

l Optimized double suction impeller, double volute case, keep less vibration and noise.

l Bearing lubrication has two types: grease or flood oil. Shaft sealing can adopt soft – stuffing mechanical seal, for adopting more applications.

l Suction and discharge of the pump are inline, convenient for connection of the pipe.

l Imported famous brand bearing of high quality, special designed mechanical seal or packing staffing ensure lower noise and longer operation life.

Example: SBS 125 – 365E

SBS 125 – 365  E

SBS – type SBS standard horizontal axially split double suction centrifugal pump

        125 - Nominal discharge nozzle diameter(mm)

                365 – Nominal impeller diameter (mm)

                       E - Impeller type

For More information, please contact with us freely:
