Product Description
Solar power systems offer good reliability, safety and ease of use. A power generation system that uses power generation + energy storage to supply power to external loads without relying on the power grid for independent operation. It has the quality of flexible construction, charging the battery pack by solar power generation and supplying power to loads at the same time, and building an integrated solar power system with high efficiency, safety and stability. It solves the problem of energy supply from the root in remote mountainous areas, oceanic islands and other areas with poor infrastructure, where there is no electricity or power supply difficulties.
Product Name | all in one 100w60ah dc 12v output solar power system |
Solar panel | 100w 18v mono solar panel |
Solar panel size | 830*670*30mm |
Solar panel weight | 5.5kg |
Battery type | Ternary lithium polymer battery (inside all-in-one bracket) |
Battery capacity | 12V 60ah |
Max pulse discharge current | 40A |
All-in-one bracket size | 462*170*70mm |
Solar controller type | PWM (inside all-in-one bracket) |
System voltage | 12V |
Package size | 835*675*110mm |
Package weight | 15kg |
PRODUCT DESCRIPTION
1）Modular structure, easy to install
2）This solar kit consists of all-in-one bracket, intelligent solar controller, lithium battery and solar panel
(2) PWM + lithium battery storage and control system, safe and stable, with high-voltage, low-voltage, overload, short-circuit, anti-reverse connection and other various protection functions, long endurance time
3）Equipped with high performance controller, conversion rate 99%.
2）This solar kit consists of all-in-one bracket, intelligent solar controller, lithium battery and solar panel
(2) PWM + lithium battery storage and control system, safe and stable, with high-voltage, low-voltage, overload, short-circuit, anti-reverse connection and other various protection functions, long endurance time
3）Equipped with high performance controller, conversion rate 99%.
HERE ARE WHAT INCLUDED IN THIS KIT | ||
100W solar panel | 1 Piece | |
All-in-one bracket | 1 Set | |
12V 60Ah lithium battery | 1 Piece(Inside bracket) | |
PWM solar controller | 1 Piece(Inside bracket) | |
Mounting climp | 2 Pieces | |
5521 output cable | 1 Piece | |
DC 12V OUTPUT SOLAR SOLUTION
- Long standby tiem for 12V loads
- Suitable for environment without electricity and network
- Low power consumption and long endurance Peak power tracking technology
- High conversion rate of solar controller
- OEM/ODM service supported
- Suitable for environment without electricity and network
- Low power consumption and long endurance Peak power tracking technology
- High conversion rate of solar controller
- OEM/ODM service supported
Product Advantage
This solar kit is IP65 rated waterproof, especially for its external devices such as solar panels and controller housings. The solar power system is suitable for a variety of harsh environments, such as rainy, humid, dusty areas, to ensure that in extreme weather conditions can still maintain normal working conditions, to avoid short-circuit, damage caused by water ingress and other problems.
High-efficiency and durable solar panels, designed to last up to 10 years, ensure long-term stable power supply. High efficiency, long life, environmental protection and energy saving, easy maintenance. The solar panels are made of high quality materials, such as high transmittance tempered glass, high quality EVA film, high efficiency battery cells and weather resistant backsheets, which can withstand all kinds of harsh weather conditions, such as strong winds, torrential rains, hailstorms, etc., to ensure trouble-free long-term use.
Shandong Xiyuan Solar Energy Co., Ltd.Produces solar power systems kit with integrated battery and controller design. This design not only simplifies the system structure and reduces the installation space, but also improves the overall efficiency and reliability of the system by optimising the control strategy. Selection of high-quality battery materials and control technology, multiple safety protection, support for over-charging, over-discharging, over-current, over-temperature, short-circuit protection, the battery can be discharged and used in the environment of -20 ~ 60 ℃, -20 ℃ discharge can reach 80%, -40 ℃ can reach 70%. Ensure the battery in discharge cycle 2500 times.
Product Usage
GEOLOGICAL HAZARD MONITORING
2024.4 Canada
- Power for GNSS
- 7*24h running
-60w 30ah kit
-60w 30ah kit
SMART AGRICULTURE
2023.7 China
- Power for weather station
- 7*24h running
-200w 120ah kit
-200w 120ah kit
FLOWMETER MONITORING
2024.5 Japan
- Power for flowmeter
- Power for PTZ
- Power for PTZ
- Standby 3 rainy days
MINING AREA
2023.10 Israel
- Power for 3 cameras
- Power for Acousto-optic alarm
- Ground mounting

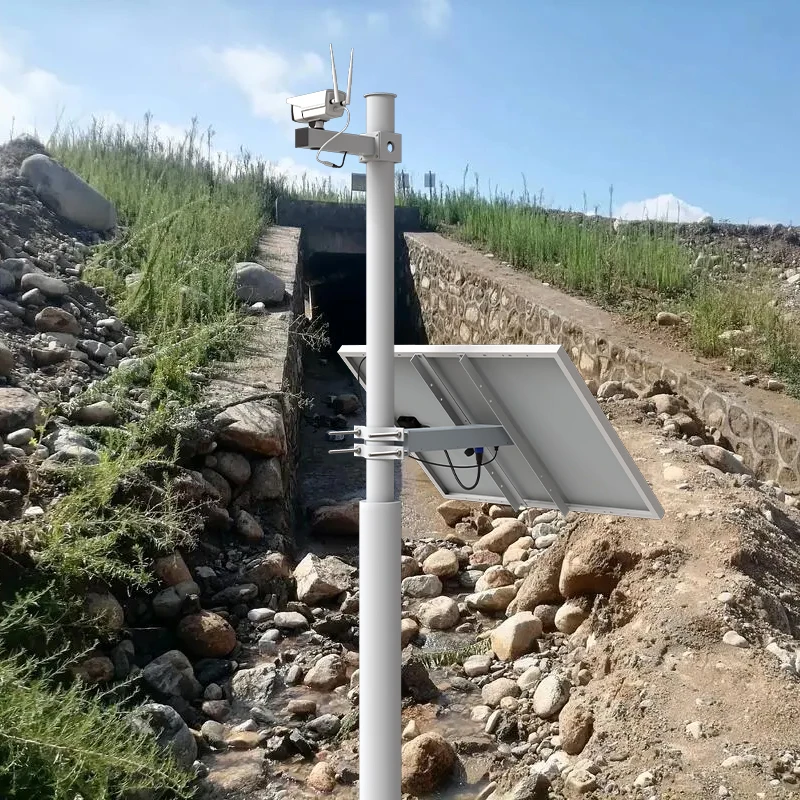

RIVER MONITORING
2024.2 USA
- Power for camera
- Monitor channel condition
- Pole mounting with cabinet
PLANTATION MONITORING
2024.6 Malaysia
- Power for hyetometer
- Power for insecticidal lamp
Power for PTZ
Certifications
Company Introduction
Shandong Xiyuan Solar Energy Co., Ltd. Is a focus on photovoltaic power generation integrated application, the main solar photovoltaic panels, solar power supply system, solar off-grid power generation system product design, research and development, production and sales of high-tech enterprises. For forest fire prevention, hydrology and water conservancy, meteorological monitoring, road monitoring, outdoor security and other equipment to provide power supply and can provide professional photovoltaic technical support (according to the project to provide design drawings, 3D animation, design solutions, remote technical support, etc.) has 15 years of professional experience for 15,000 enterprises to provide project services, the use of fully automated advanced production equipment, precision testing instruments. We use fully automatic advanced production equipment and precise testing instruments to manufacture high quality and reliable products. The company's independent research and development of a number of series of products has obtained the CE certification of the European Union, at the same time, the company has a maritime identification certificate, strict requirements for product quality, focus on technical training, attach importance to after-sales service in Europe, the United States, Southeast Asia, has a wealth of experience in the project!
Packing&Shipping
Good packaging can prevent the system components from being affected by physical shock, vibration, moisture, corrosion and other unfavourable factors, so as to ensure the performance and life of the system after installation. The size of the packing box should be designed according to the actual size and weight of the product, and fixing devices and cushioning materials should be set up inside the package to ensure that the components remain fixed during transport and reduce the damage caused by shaking.
