Высокая концентрация соли сточных вод механический испаритель обратного осмоса вспомогательный распылитель
- Категория: >>>
- Поставщик: Cangzhou Blue Ocean Environmental Protection Equipment Co. Ltd.
Сохранить в закладки 1601228219785:
Описание и отзывы
Характеристики
Product Description

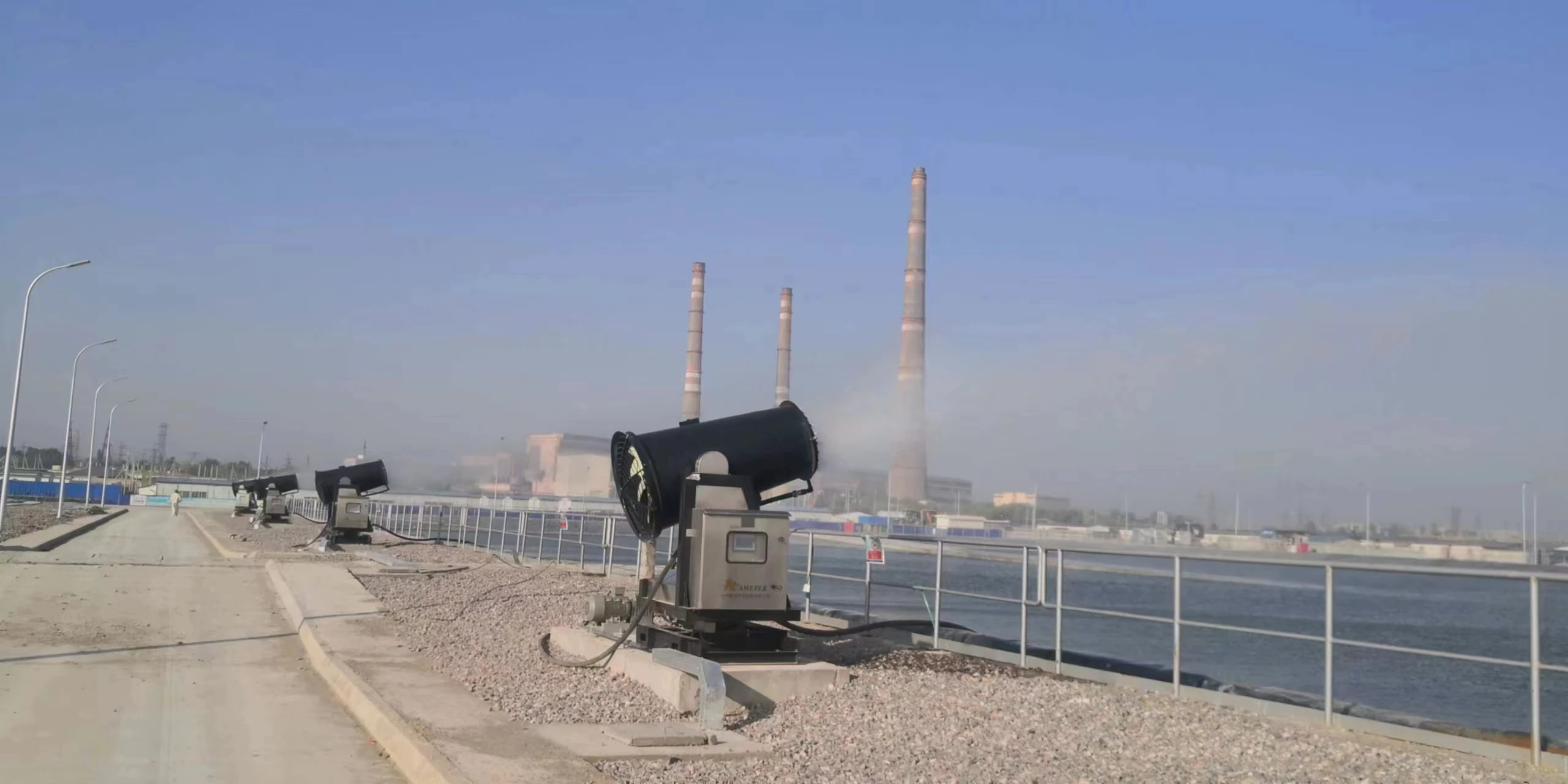

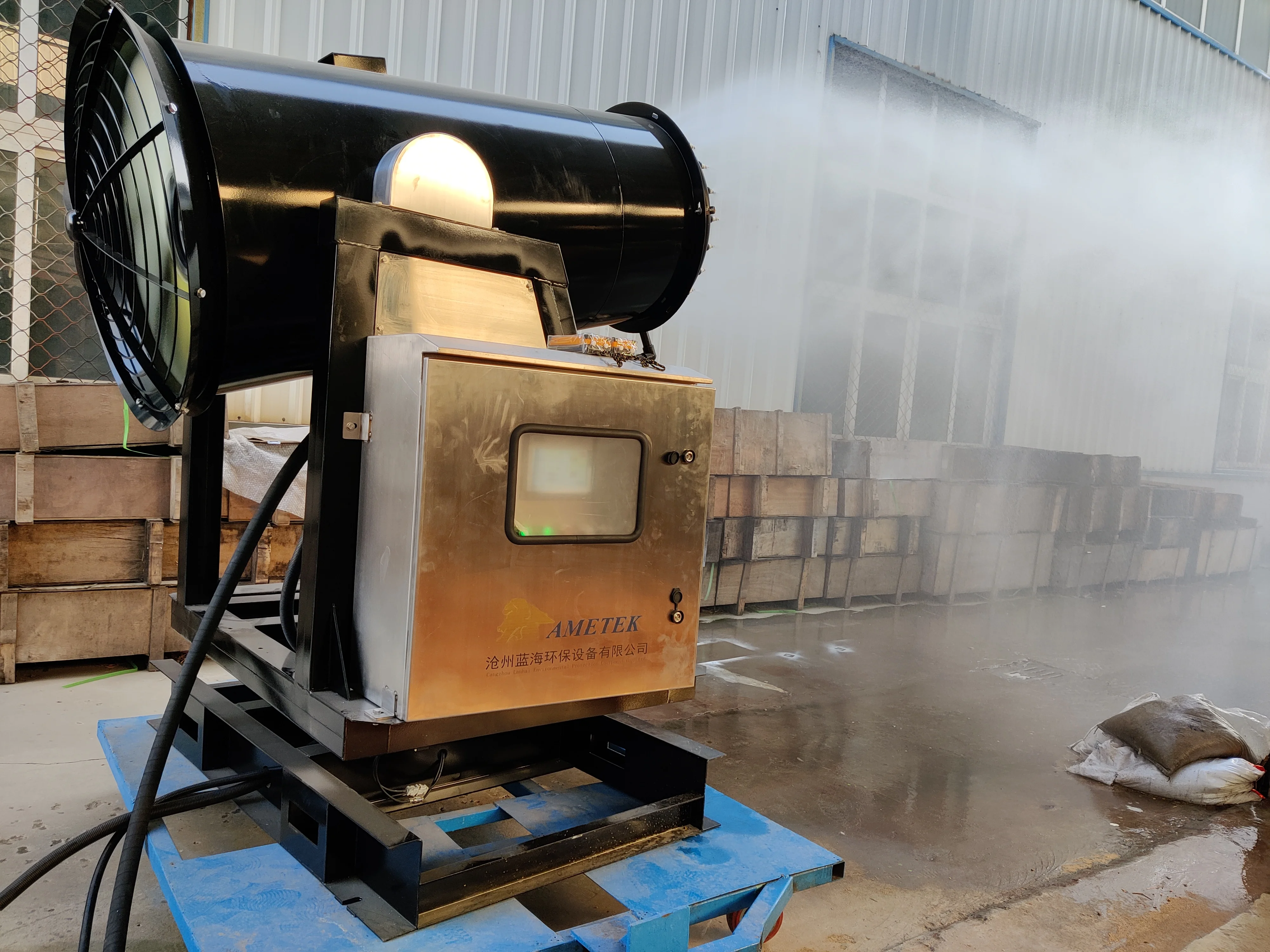

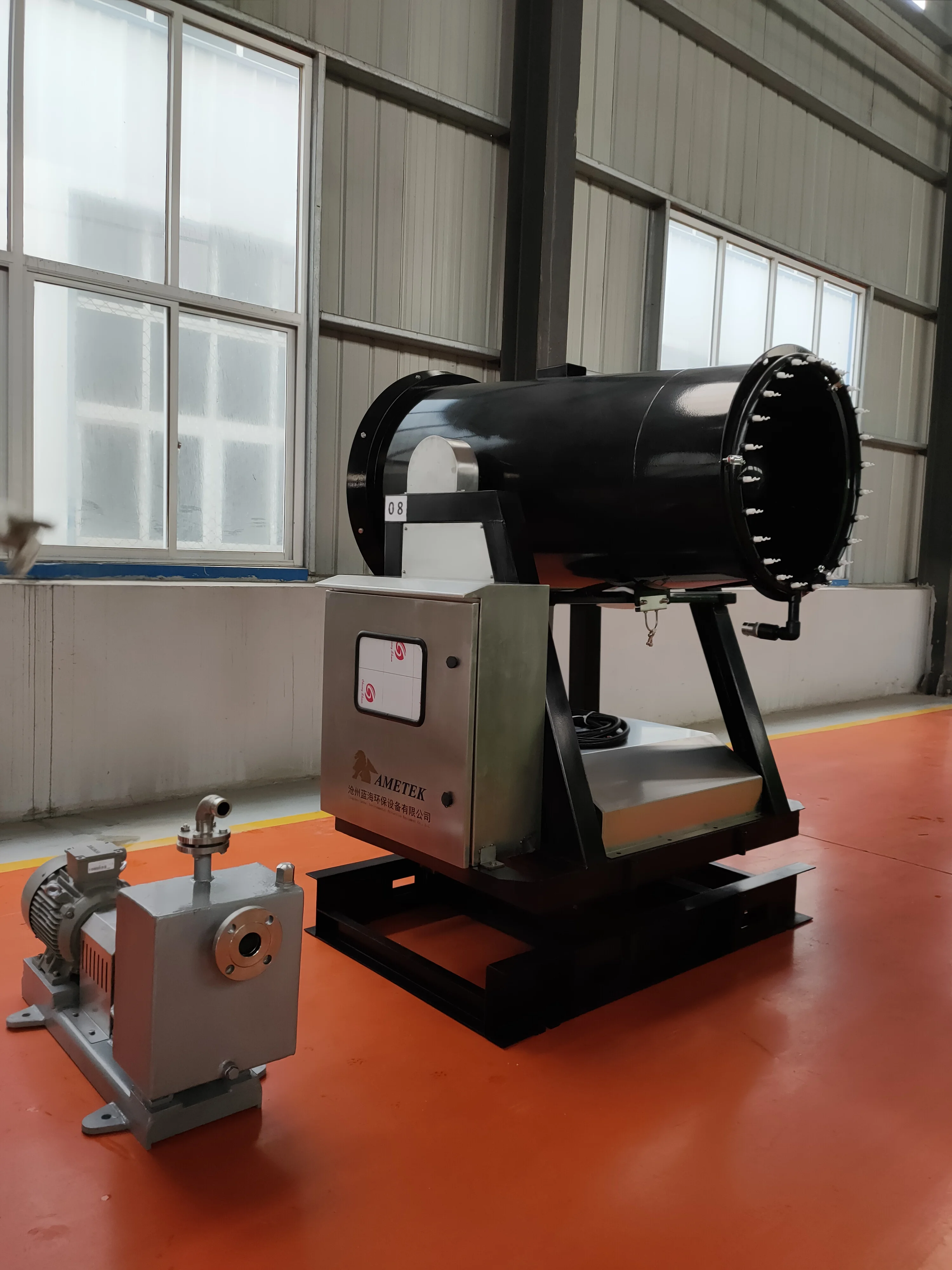

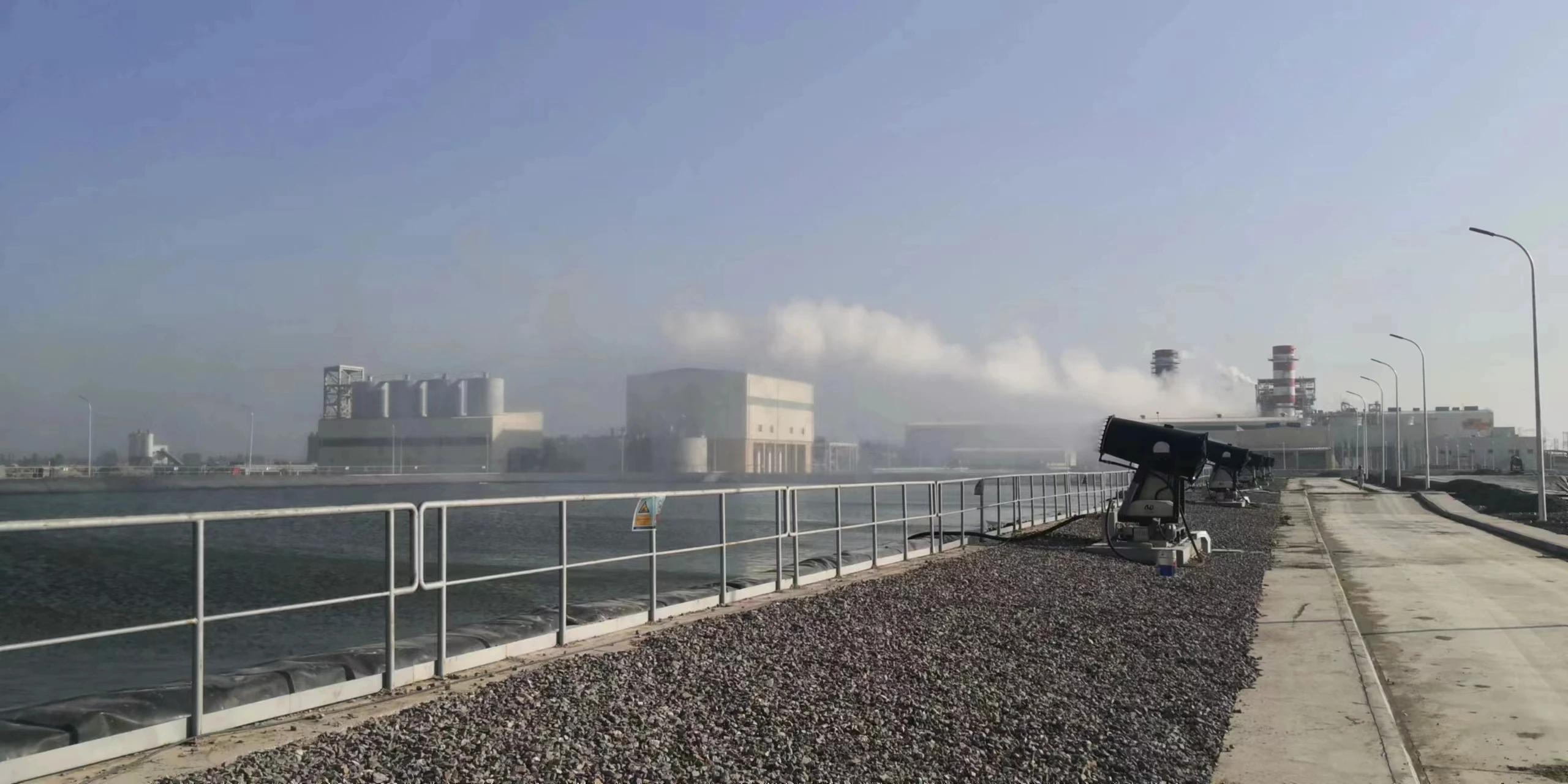

Subgrade mechanical evaporator power plant cold tower sewage desalting concentration treatment sewage atomization evaporator
The principle of high-efficiency mechanical evaporation is to use the mechanical force synthesized by special pressure nozzle and
super strong fan to turn the water mist into micro water droplets and spray them on the target area; at this time, the relative
specific surface area of the droplets increases sharply, resulting in the rapid evaporation of sewage water under natural
conditions. According to the user's evaporation volume requirements and local temperature, humidity, wind speed, water quality and
site conditions, through two years of R & D and design of Cangzhou blue sea environmental protection equipment Co., Ltd. , the
developed equipment can control the particle size, movement speed and movement direction of the water droplets, solved the adverse impact of scaling, suspended solids, salt crystallization and many other factors on the evaporation effect, and avoided salt
dispersion, so as to ensure that on the one hand it can evaporate in large scale, on the other hand, it can prevent environmental
pollution.
super strong fan to turn the water mist into micro water droplets and spray them on the target area; at this time, the relative
specific surface area of the droplets increases sharply, resulting in the rapid evaporation of sewage water under natural
conditions. According to the user's evaporation volume requirements and local temperature, humidity, wind speed, water quality and
site conditions, through two years of R & D and design of Cangzhou blue sea environmental protection equipment Co., Ltd. , the
developed equipment can control the particle size, movement speed and movement direction of the water droplets, solved the adverse impact of scaling, suspended solids, salt crystallization and many other factors on the evaporation effect, and avoided salt
dispersion, so as to ensure that on the one hand it can evaporate in large scale, on the other hand, it can prevent environmental
pollution.
At present, mechanical atomization evaporation is regarded as an alternative process of reverse osmosis and chemical
demineralization in wastewater treatment, and it can also be used for evaporation of high concentration wastewater after reverse
osmosis treatment. Natural evaporation is to use a natural evaporation pond (evaporation rate is slow, evaporation pond area is
large), which is usually limited by the site restriction or the cost of evaporation pond, and also consider the cost of
environmental cleaning and vegetation destruction.
Mechanical atomization evaporation can greatly increase the evaporation rate of high concentration sewage. The mechanical
evaporation rate of the same pool area is more than 10 times that of the ordinary evaporation pool. The mechanical evaporator has
compact structure, high efficiency and stability, and is easy to install and transport. Mechanical evaporation is a low-cost and
efficient evaporation method under the existing evaporation pond conditions, and it can greatly reduce the area of the new
evaporation pond.
demineralization in wastewater treatment, and it can also be used for evaporation of high concentration wastewater after reverse
osmosis treatment. Natural evaporation is to use a natural evaporation pond (evaporation rate is slow, evaporation pond area is
large), which is usually limited by the site restriction or the cost of evaporation pond, and also consider the cost of
environmental cleaning and vegetation destruction.
Mechanical atomization evaporation can greatly increase the evaporation rate of high concentration sewage. The mechanical
evaporation rate of the same pool area is more than 10 times that of the ordinary evaporation pool. The mechanical evaporator has
compact structure, high efficiency and stability, and is easy to install and transport. Mechanical evaporation is a low-cost and
efficient evaporation method under the existing evaporation pond conditions, and it can greatly reduce the area of the new
evaporation pond.
Specification
Total power | 22kw | Nozzle material | Poly tetra fluoroethylene(PTFE) |

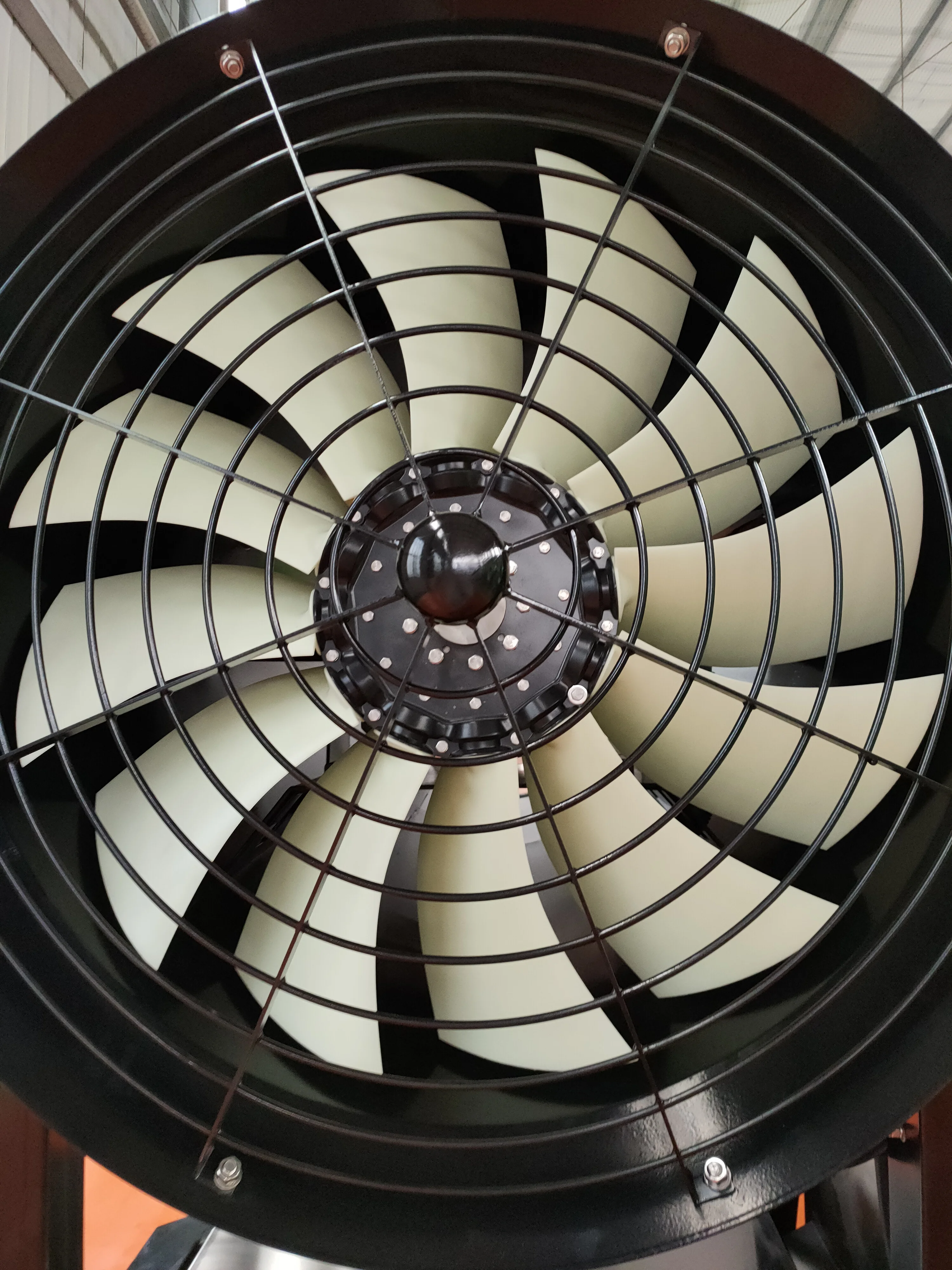

Fan type and power | Jet fan 22kw | Control mode | manual /remote control |
Liquid pump | Centrifugal pump 7.5kw | Control distance | ≤100m |
Hydraulic pump | 2.0kw -3.0kw | Nozzle number | 31 pieces |
Maximum spray range | 40-50m | Machine weight | 1 tons |
Horizontal rotation angle | 80 ℃ | Protection level | IP55 |
Pitch angle | 0 ~40° | Voltage | 380v,50Hz,3phase or as your need |
Mist particle size | 50-150μm | Start mode | Star triangle |
Water flow | 60-150L/min | Type of machine | Subgrade / fixed |
Packing & Delivery
Recommend Products
Contact with us
Похожие товары

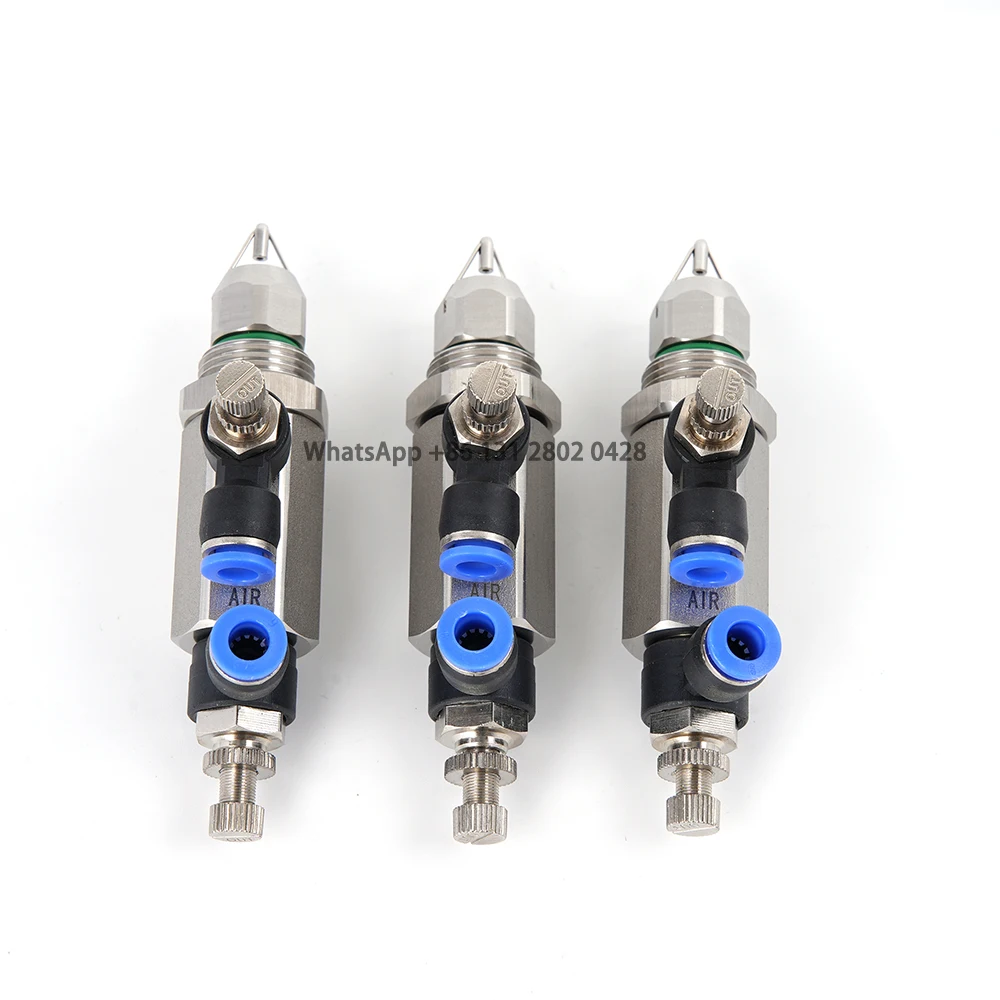

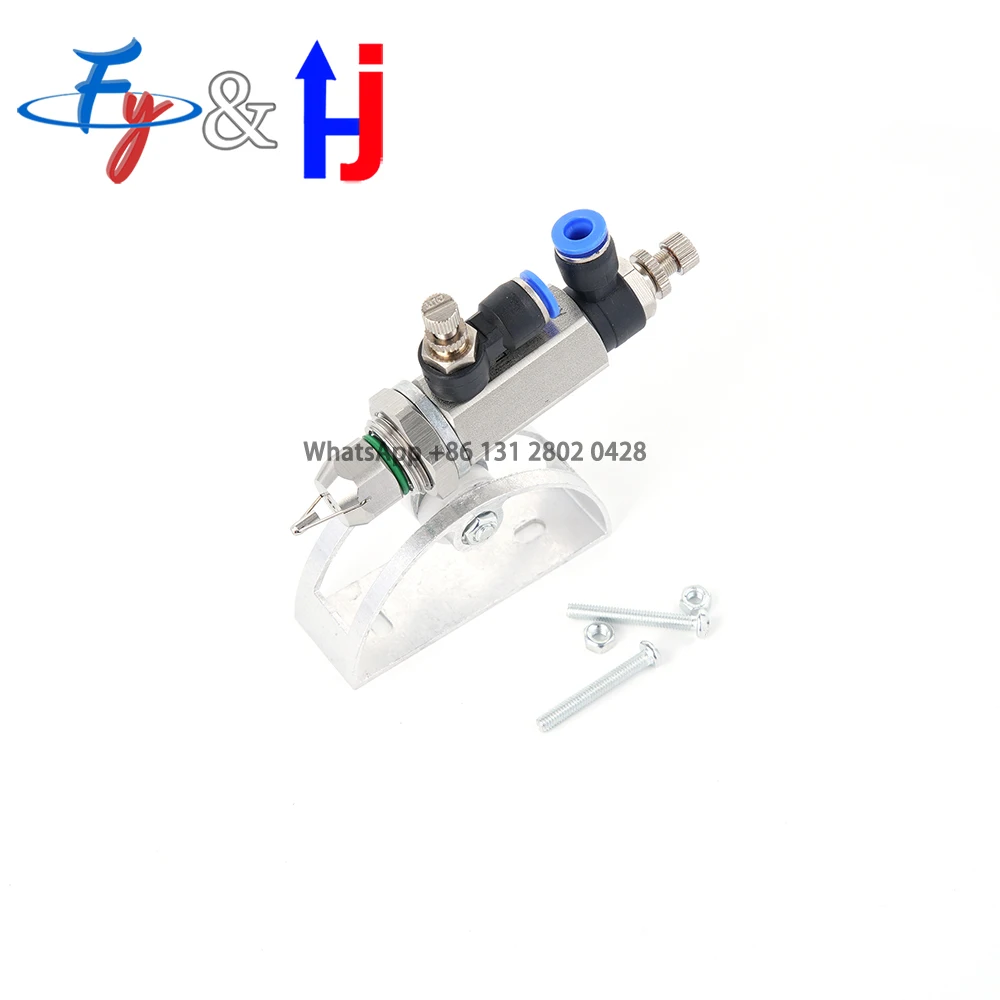

Насадка для распыления воздуха, 30 ° 60 ° 80 °
Горячая продажа 30 ° 60 ° 80 ° ультразвуковой распылитель с воздуха, микро-противотуманная насадка для сухого тумана, пневматический распылитель тумана
Металлическая Насадка для опрыскивателей
43,86 ₽ - 54,83 ₽

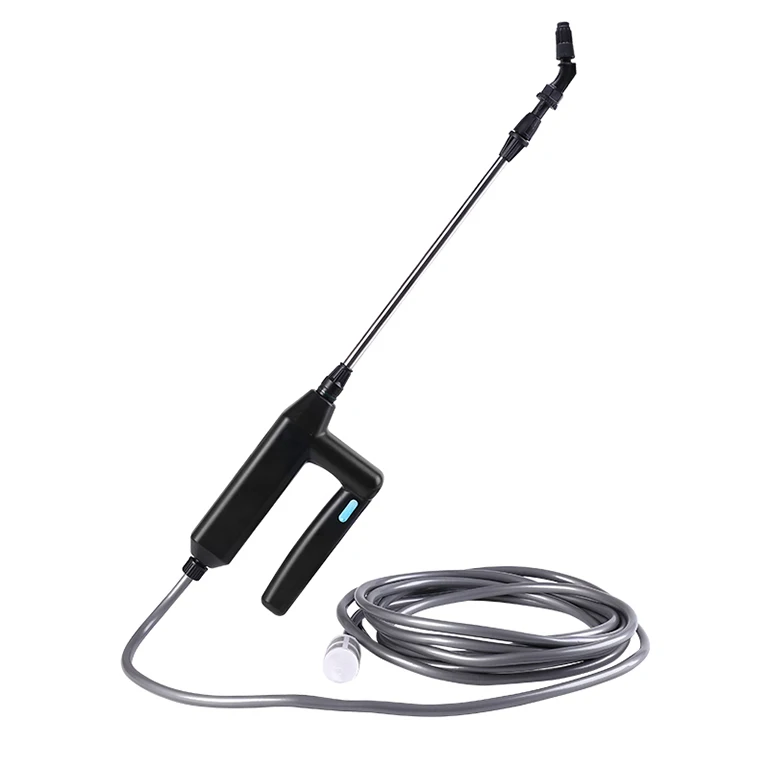

Farmguard 7,4 V садовый литиевый Мощный водяной распылитель с трубкой
