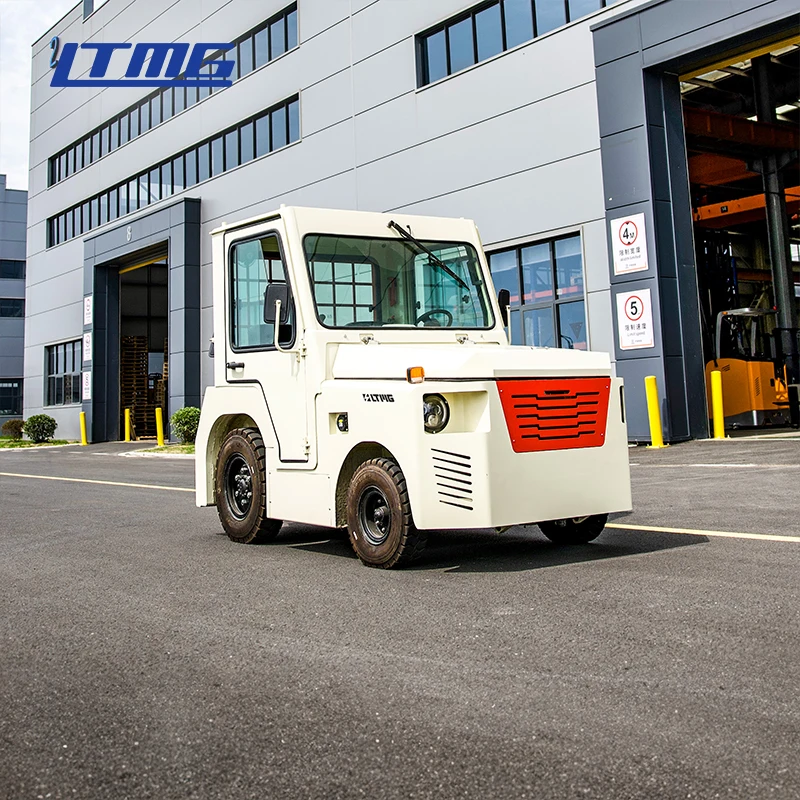

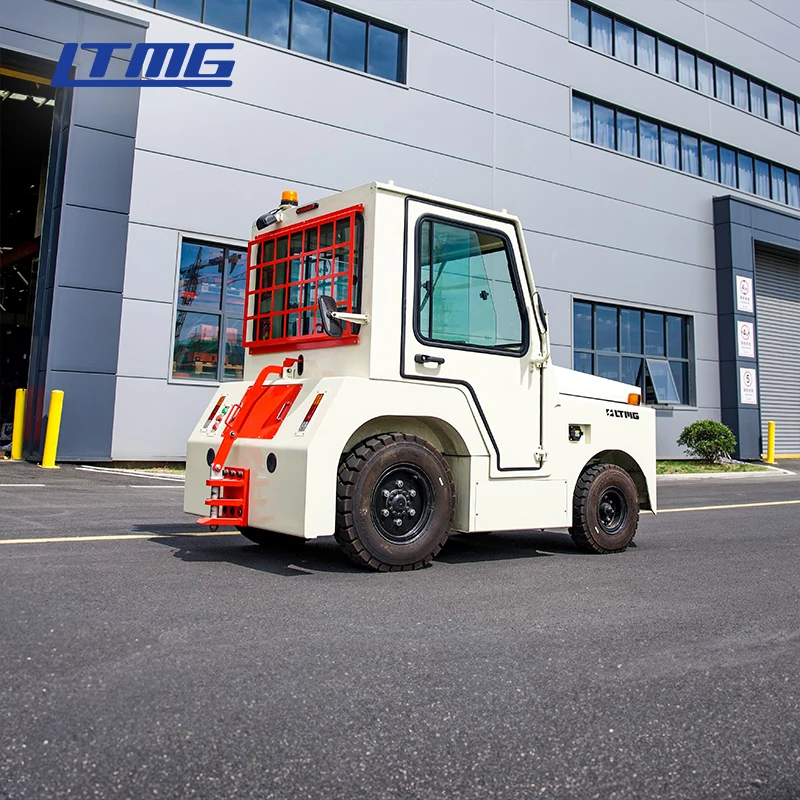

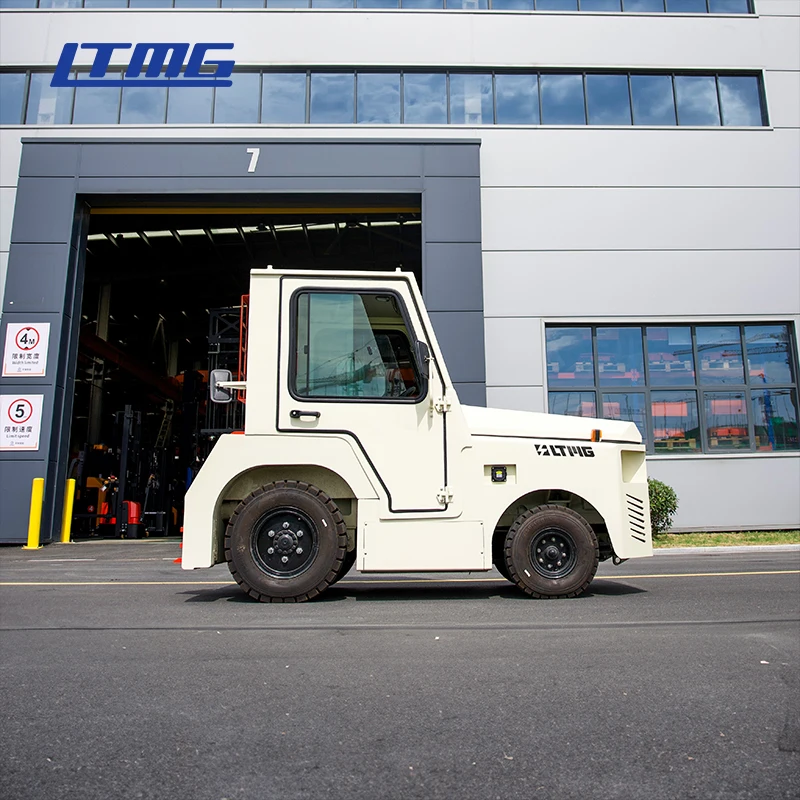

LTMG Electric Airport Towing Tractor
Product Features
Strong power, excellent performance, comfortable driving, beautiful appearance, low labor intensity, high work efficiency and low maintenance rate.
It can be widely used in railway stations, airports, ports, warehouse and other places.
It can be widely used in railway stations, airports, ports, warehouse and other places.
The Product complete safety devices and compact Structure and has a wide view.
Good space design, let the driver feel more suitable and easy to operate.
Ergonomic design,reasonable and easy operation device layout, more comfortable.
Equipped with tiresskid-proofand explosion-proof with longer lifetime providing a stable and labor-saving operation.
peculiarity | Model number | TB06 | |
Dynamic form | Battery | ||
Type of operation | seated type | ||
Rated load | kg | 6000 | |
Tractive effort | N | 1600 | |
wheelbase | mm | 1100 | |
Be self-possessed | kg | 1150 | |
Dimension parameter | Overall length | mm | 1966 |
Overall width | mm | 1010 | |
Total height | mm | 1300 | |
Minimum ground clearance | mm | 60 | |
Turning radius | mm | 1850 | |
wheel | Wheel material | Solid rubber tires | |
Load wheel size | mm | 4.00-8 | |
Driving wheel size | mm | 4.00-8 | |
Number of wheels (X= drive wheels) | 1/2x | ||
Wheel base (rear) | mm | 820 | |
Performance parameter | Travel speed (full load/no load) | km/h | 9.5/10.5 |
Maximum tractive effort | N | 6500 | |
Service brake | Electromagnetic + hydraulic | ||
motor | Drive motor power S2 60min | kW | 6(A/C) |
The battery conforms to DIN43531/35/36A,B,C,no | DIN | ||
Battery voltage, rated capacity K5 | V/Ah | 48/275 | |
Battery weight (+/-5%) | kg | 540 | |
other | Drive control mode | MOSFET | |
Driver's ear noise level | dB(A) | <70 |
Product Shows
OEM/ODM
Shipping Plan
Factory Introduction
Certificate
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only high quality product and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying loaders, forklift
trucks, excavator, articulating boom lift and related attachments. We can also customize non-standard products according to customer's requirements.
trucks, excavator, articulating boom lift and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements,both OEM and ODM are acceptable.
