Products Description
gold melting furnace
Medium Frequency Melting Furnace is used for melting and heating of gold, silver, copper,
aluminium, steel and stainless steel, iron and other responsible metal materials, and it can melt 1-500 kg at a time.The melting furnace can melt gold, silver, copper, aluminium in 2-6 minutes, and stainless steel in 5-10 minutes. With the small crucible, you can change the crucible arbitrarily and quickly, and it is convenient to change the crucible for melting different metals.

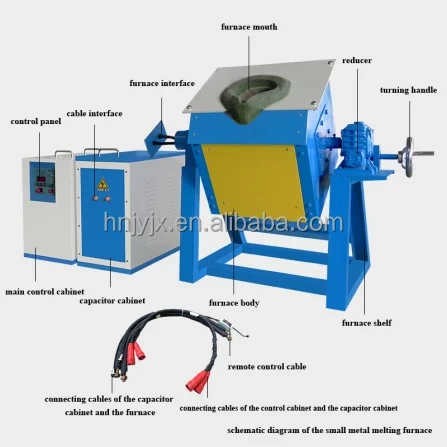

Product Structure
The principle of high frequency induction heating is that apply high frequency alternating current to a conduct that is curled to cyclic (normally copper tube) to produce flux, then put the metal to this area to make the flux to run through it, and eddy current will be generated in the direction of self-capturing with flux(rotary current), the induced current then generates heat under the influence of the eddy current, so this heating method is called induction heating. hence, metal and other objects under heated can be heated without contact. At this moment, the character of the eddy current relies in that the induction heating on the object nearby the coil is outwardly strong but inwardly weak. with this principle. this heating body can be heated where needed to achieve instantly effect, thereby the production output and work capacity are both improved.
Product Parameters
Model | Max Input Power (Kw) | Melting Capacity (Kg) | ||||
Steel, Iron, Stainless Steel | Gold, Silver, Copper, Platinum | Aluminum, Aluminum Alloy, Zinc Alloy | ||||
JY-15 | 15 | 3 | 10 | 3 | ||
JY-25 | 25 | 5 | 20 | 5 | ||
JY-35 | 35 | 10 | 30 | 10 | ||
JY-45 | 45 | 20 | 50 | 20 | ||
JY-70 | 70 | 25 | 100 | 25 | ||
JY-90 | 90 | 40 | 120 | 40 | ||
JY-110 | 110 | 50 | 150 | 50 | ||
JY-160 | 160 | 100 | 250 | 100 | ||
Product Features
1. High power, low frequency, good heat permeability.
2. High efficiency, low power consumption, easy to operate and install.
2. High efficiency, low power consumption, easy to operate and install.
3.24 hours of continuous work ability.
4. All-solid-state IGBT frequency conversion and function adjustment to achieve automatic frequency conversion tracking.
5. Over-current, over-Asian, overheated, water-deficient, lack of equal automatic protection functions to ensure equipment reliability.
4. All-solid-state IGBT frequency conversion and function adjustment to achieve automatic frequency conversion tracking.
5. Over-current, over-Asian, overheated, water-deficient, lack of equal automatic protection functions to ensure equipment reliability.
6. Manually and automatically adjust to improve the heating quality of the work piece and the repeatability and continuity of the heating.

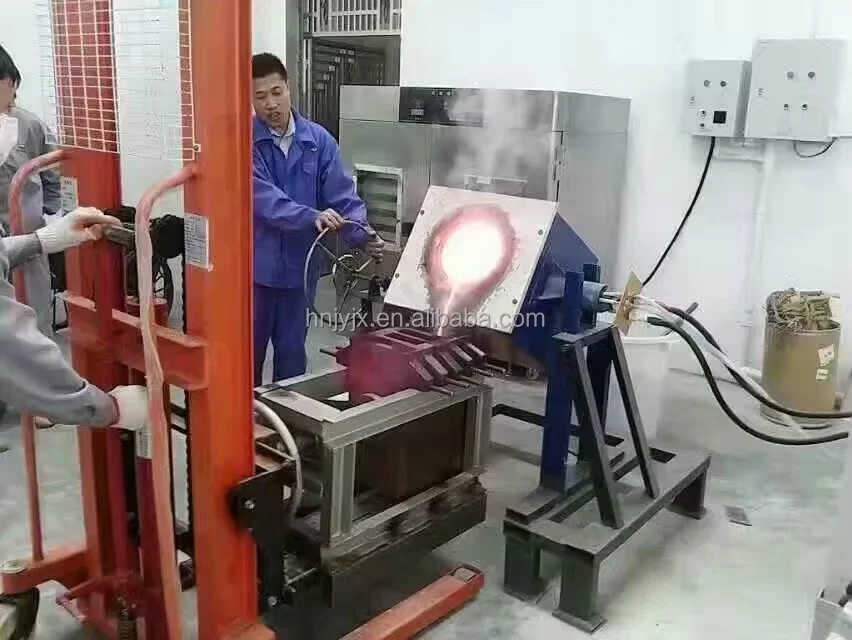

Customer Site
