Product Overview

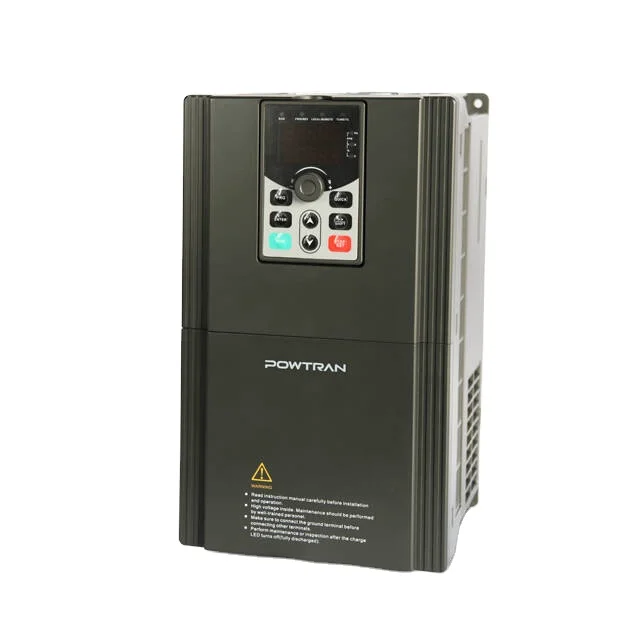

PI550-S/PI500A-S Solar Pump inverter
PI550-S/PI500A-S series solar inverter special for PV water pump adopts the high accuracy fast MPPT algorithms, tracking the PV array output by the maximum power point, driving the pump motor as much as possible to meet various pumping applications. The solar inverter special for PV water pump can support AC input besides support PV array DC input.When the PV array can not drive the motor or does not have output, it can also accept the grid DC input or other AC motor to supply the power to meet various emergency needs.P1550-S/P1500A-S series solar inverter special for PV water pump provides full protection, maximizing the life of motor and pump.
Technical Features
- Built-in high precision PV array maximum power point tracking
- MPPT algorithms
- Dry running protection
- Tank water level control
- Accept DC/AC input
- LED displays the real time situation and the parameter of system
- Based on RS485 real time remote control system
- Fast installation design, no need extra maintenance
- Built-in full protection and diagnostie mechanism
- With AC-DC automatic witching function
- Auto switch between DC and AC can be realized through auto switcher for Pl550-S and Pl500A-S solar inverters only.
- Built in communication function RS485
- External GPRS device optional for remote monitoring and parameter setting
Nameplate
Specification
| Items | Specification | |
| Power Input | Input AC voltage frequency | AC 1PH 220V(-15%)~240V(+10%) AC 3PH 220V(-15%)~240V(+10%) AC 3PH 380V(-15%)~440V(+10%) AC 3PH 480V(-15%)~480V(+10%) |
| Recommend solar input DC voltage range | G1/G2:DC 150~450V; G3:DC 250~800V G4:DC 400~900V | |
| Control system | Control system | High performance vector control inverter based on DSP |
| Control method | V/F control, vector control W/O PG | |
| Over load capability | G type:rated current 150%-1 minute, rated current 180%-2 second | |
| Maximum frequency | 1: Vector control:0~300Hz; 2: V/F control: 0~3200Hz | |
| Protection function | Inverter protection | Overvoltage protection, undervoltage protection, overcurrent protection, overload protection, overheat protection, overcurrent stall protection, overvoltage stall protection, losing phase protection(optional), communication error, PID feedback signal abnormalities, PG failure and short circuit to ground protection |
| Protection degree | IP20 | |
| Display | LED display | Display parameters |
| OLED display | Optional, prompts operational content in Chinese/English text | |
| Communication | RS485 | Build in RS485 communication |
Technical Specification
| Model | Power(kw) | Input Voltage(v) | Current(A) | Dimension (H1*W*D1mm) | Installation Dimension (A*B*dmm) | N.W (kg) |
*PI500A-S 0R4G1 | 0.4 | 1-phase AC 220V±10% DC200~440V | 2.5 | 185*90*154 | 65*174*Ø5 | 1.6 |
*PI500A-S 0R7G1 | 0.75 | 4 | ||||
*PI500A-S 1R5G1 | 1.5 | 7 | 185*90*174 | 65*174*Ø5 | 1.8 | |
*PI500A-S 2R2G1 | 2.2 | 10 | ||||
| *PI500A-S 004G1 | 4 | 16 | 260*120*190 | 90*250*Ø5 | 2.7 | |
| *PI500A-S 5R5G1 | 5.5 | 25 | 300*190*198 | 140*285*Ø6 | 7.2 | |
*PI500A-S7R5G1 | 7.5 | 32 | ||||
PI550-S 011G1 | 11 | 45 | 350*210*198 | 150*335*Ø6 | 9.5 | |
PI550-S 015G1 | 15 | 60 | 400*240*223 | 180*385*Ø7 | 13 | |
PI550-S 018G1 | 18.5 | 75 | ||||
PI550-S 022G1 | 22 | 90 | 520*300*283 | 220*500*Ø10 | 41.2 | |
*PI500A-S 0R4G2 | 0.4 | 3-phase AC 220V±10% DC200~440V | 2.5 | 185*90*154 | 65*174*Ø5 | 1.6 |
*PI500A-S 0R7G2 | 0.75 | 4 | ||||
*PI500A-S 1R5G2 | 1.5 | 7 | ||||
*PI500A-S 2R2G2 | 2.2 | 10 | 185*90*174 | 65*174*Ø5 | 1.8 | |
PI550-S 7R5G2 | 7.5 | 32 | 300*190*198 | 140*285*Ø6 | 7.2 | |
PI550-S 011G2 | 11 | 45 | 350*210*198 | 150*335*Ø6 | 9.5 | |
PI550-S 015G2 | 15 | 60 | 400*240*223 | 180*385*Ø7 | 13 | |
PI550-S 018G2 | 18.5 | 75 | ||||
PI550-S 022G2 | 22 | 90 | 520*300*283 | 220*500*Ø10 | 41.2 | |
PI550-S 030G2 | 30 | 110 | ||||
| PI550-S 037G2 | 37 | 152 | ||||
| PI550-S 045G2 | 45 | 176 | 575/355/328 | 250/555/∅10 | 58 | |
| PI550-S 055G2 | 55 | 210 |

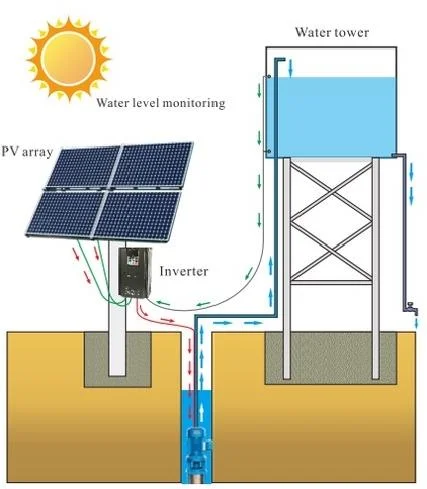

Application
Certification
Company Information
Powtran (Dalian Powtran Technology Co., Ltd., Guangdong Powtran Power Electronics Co., Ltd.) is a high-tech joint-stock enterprise. Centered on Dalian and Dongguan, it has established Wuxi branch and offices in Shandong, Henan, Guangzhou and other places. It has established a nationwide R&D, production, logistics and service network. Combining the advantages of Japan's Toshiba and Taiwan's technologies, relying on Tsinghua University, Dalian University of Technology, Harbin Institute of Technology, Dalian Maritime University and other universities and the company's strong R&D strength, relying on advanced production and inspection equipment to provide customers with automation and drive (A&D) Products, such as: frequency inverter, soft starter, braking units, motor control integrated device, etc. Products are exported to Europe, America and Southeast Asian countries
Exibition
- Canton Fair
- Hannover Messe
FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional frequency inveretrs and soft starter manufacturer, which with 40 years manufacturing experience and 18 years exporting experience.
Q2: Can you provide OEM/ODM service?
A2: Yes. We can provide both OEM and ODM.
Q3: What's your MOQ?
A3: MOQ1 is acceptable and you can get better price for large quatity.
Q4: Can I get sample for test?
A4: Yes, you can. We will prive a doscount for sample order.
Q5: Is there R&D team to provide technical guidance?
A5: Yes, of cource. We have more than professional R&D team and engineers to provide professional technical guidance.
Q6: What about your after-sale service?
A6: Don't worry, we have professional engineers to serve you online 24 hours a day. You can contact us whenever you have any questions.
Q7: What's the payment method?
A7: The recommended methods of payment are Trade Assurance by Alibaba order and T/T via bank. And PayPal or WESTERN UNION or L/C are acceptable as well. If you would like to settle payment by other methods, please feel free to contact us for discussion.
