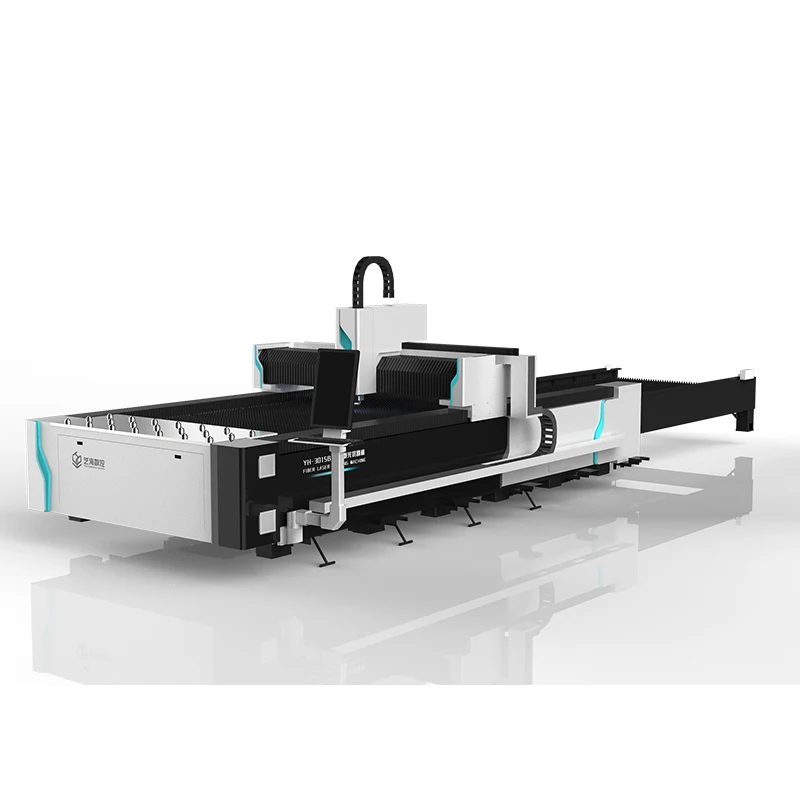

High efficiency 3000W 2000W metal sheets steel coil cutting machine fiber laser cutting machine
Product Description

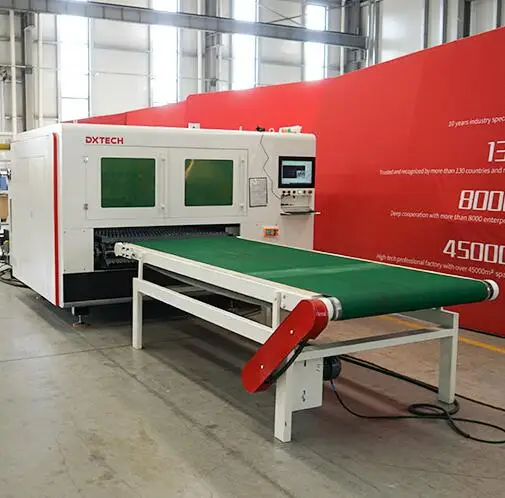

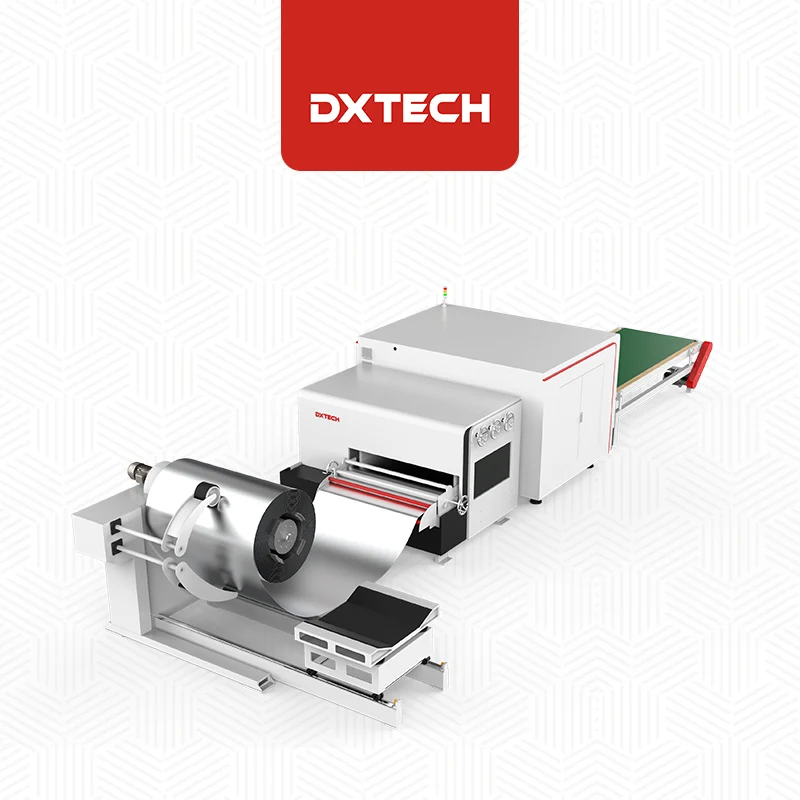

Automatic Loading And Unloading Coil fiber laser cutting machine.

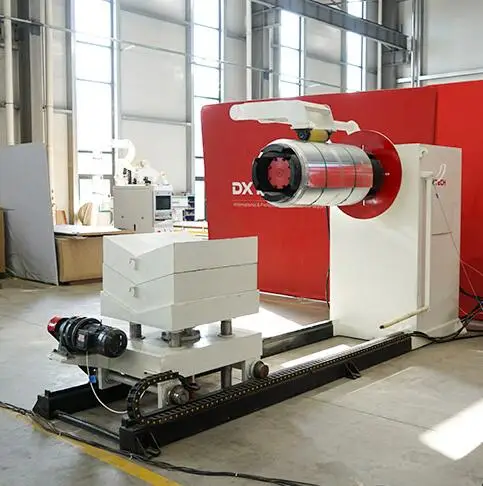

Uncoiler and leveling machine automatically unwind and level the coil material → laser precision cutting → beam-type palletizing table → manipulator automatic palletizing The entire unloading and unloading process realizes intelligence and automation.From coil conveying, material opening and leveling, cutting, waste collection, and finished product palletizing at one time.
Uncoiler and leveling machine automatically unwind and level the coil material → laser precision cutting → beam-type palletizing table → manipulator automatic palletizing The entire unloading and unloading process realizes intelligence and automation.From coil conveying, material opening and leveling, cutting, waste collection, and finished product palletizing at one time.
1. The loading material weight can reach 20T, breaking through the feeding limit of ordinary 3T, which is 6 times the efficiency of ordinary feeding equipment.
2. Stronger stress relief: after the coil is uncoiled, the sheet metal is leveled by the leveling machine, and the stress of the sheet material during the leveling process is eliminated. So the sheet material is flatter and a better cutting experience is obtained.
3. High-precision transmission structure: using ultra-precision transmission system, the transmission accuracy of sheet metal is about ±0.5MM, which can ensure higher accuracy.
4. Fully automatic assembly line: from feeding – uncoiling – leveling – cutting – unloading, the whole process is automated, which can achieve zero waste of coil material and improve the utilization efficiency of sheet materials.
5. Flexibility: this coil production line breaks through the limit of the ordinary laser cutting length, and has subversive significance in some fields.
2. Stronger stress relief: after the coil is uncoiled, the sheet metal is leveled by the leveling machine, and the stress of the sheet material during the leveling process is eliminated. So the sheet material is flatter and a better cutting experience is obtained.
3. High-precision transmission structure: using ultra-precision transmission system, the transmission accuracy of sheet metal is about ±0.5MM, which can ensure higher accuracy.
4. Fully automatic assembly line: from feeding – uncoiling – leveling – cutting – unloading, the whole process is automated, which can achieve zero waste of coil material and improve the utilization efficiency of sheet materials.
5. Flexibility: this coil production line breaks through the limit of the ordinary laser cutting length, and has subversive significance in some fields.
Machine Part

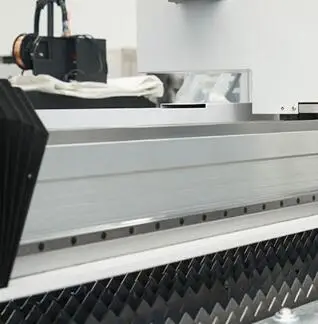

Aviation Aluminum Beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity.which ensures high-speed movement during
laser processing.
laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning anti-deformation, etc, ensuring
higher cutting accuracy.
higher cutting accuracy.
Thick-walled carbon steel pipe welding bed
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress
relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.

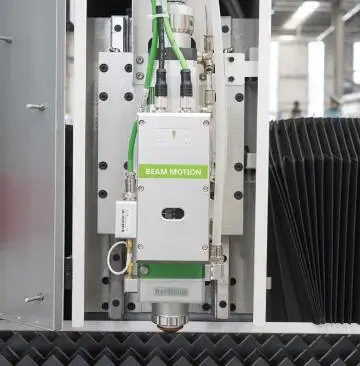

Intelligent focusing laser head
Cooling:
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time. Chasing Aperture:
Through the 35 mm aperture, the interference of stray light is effectively reduced.
Autofocus:
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Technical Parameters
Model | DXTECH-1390QC | DXTECH-9090QC |
Working area | 1310*910 | 910*910 |
Max. acceleration | 1.2G | 1.2G |
Worktable | Rolling blade | Rolling blade |
Positioning Accuracy | ±0.05mm | ±0.05mm |
Repositioning accuracy | ±0.03mm | ±0.03mm |
Laser power | 1kW – 2kW | 1kW – 2kW |
Focusing method | Auto/manual | Auto/manual |
Laser power | 1-3kw | 1-3kw |
Coil sheet thickness | 0.5-3mm | 0.5-3mm |
Foucsing method | Auto/manual | Multiple options |
X/Y-axis max. linkage speed | 100m/min | 100m/min |
Leveling speed | ≤20m/min | ≤20m/min |
Coil weight | ≤10t | ≤10t |
Sample Show
Related Product
Company Introduction
Our strict quality policy ensures thehigh reliability and longevity of DXTECH laser machines.
Quality control in the production process.
Random sample testing by Quality Control.
Traceability for DXTECH laser machines.
Reliable laser machines with long service life.
Laser machine spare parts availability exceeds 96%.
Certificate and Exhibition
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
