Изоляционная плита из стекловолокна звукопоглощающие строительные материалы
165,32 ₽ - 330,64 ₽
25 мм 100 Стекловолоконная изоляционная плита 16 кг/M3 64KG/м3 Толщина акустический теплоизоляционный материал доска
- Категория: >>>
- Поставщик: Langfang Jiuzheng New Building Material Co. Ltd.
Сохранить в закладки 1601228693049:
Описание и отзывы
Характеристики
25MM 100MM Fiber Glass Insulation Board 16KG/M3-64KG/M3 Thickness Acoustical Thermal Insulation Material Glass Wool Board
Product Description
First Class and Quality Raw Material:
Made from Glass piece,feldspar,dolomite,silica Sand and Imported Borax,Etc.

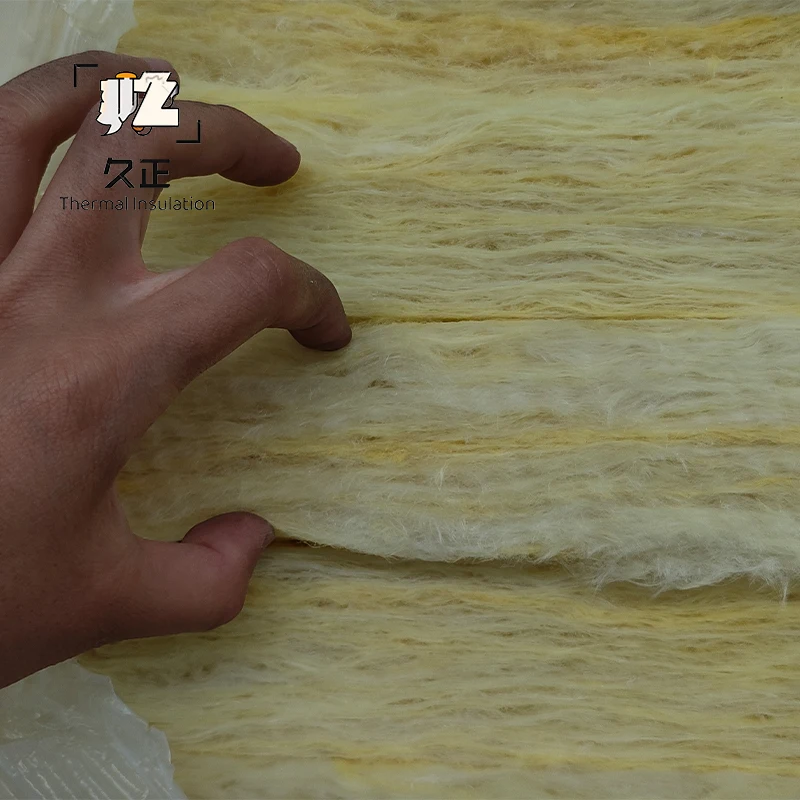

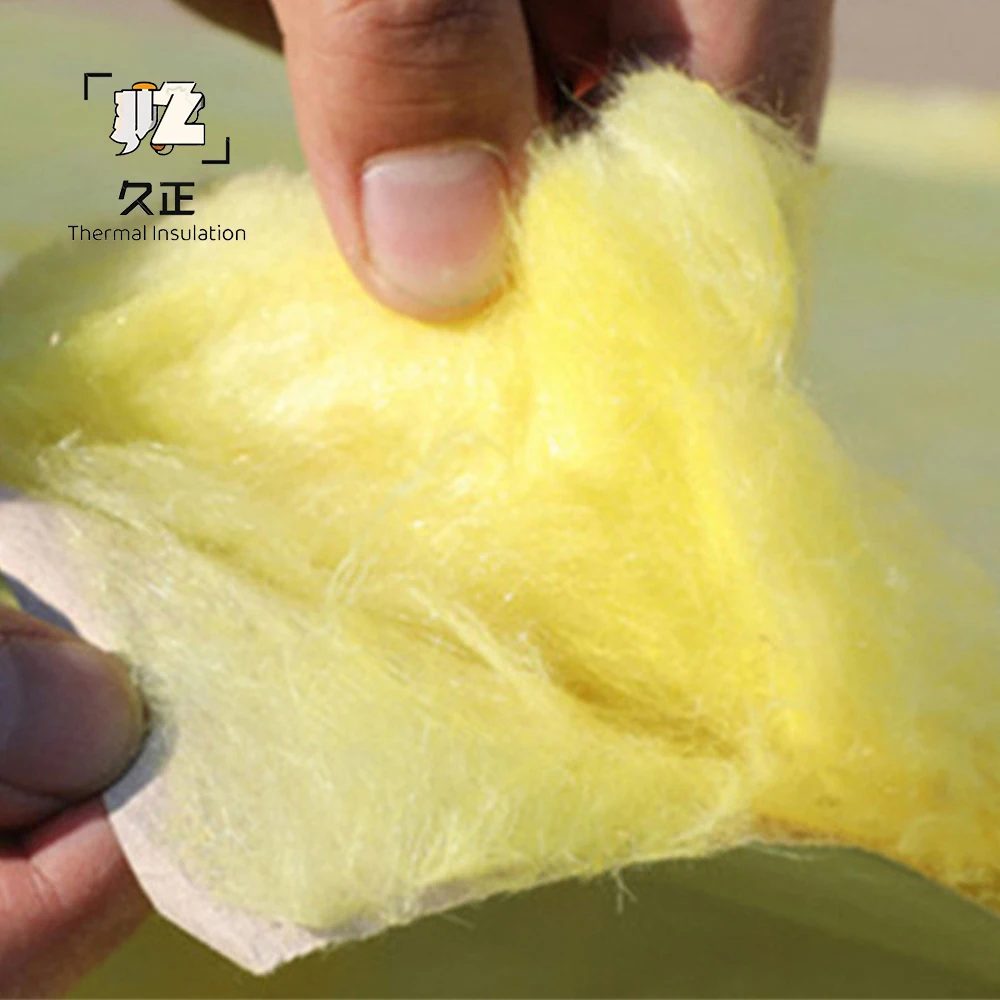

The internal fibers are fluffy and interlaced, and the porous sound-absorbing material quickly attenuates sound when it penetrates through layers, thereby achieving the effect of noise reduction.
rebound degree after compressive packing is up to 99.2%.
Glass Wool Board Low moisture absorption; stable physical properties.
Closed bubble structure, isolates moisture, reduces cold and hot losses, has a long service life, and has excellent insulation and moisture-proof effects
Antisepsis, ageing resistance, and anticorrosion, ensuring a healthy environment.
Specification
Available Size
Density | Thickness | Width | Conductivity | R-Value | Packing | PKG/40HQ |
(kg/m3) | (mm) | (mm) | (W/m.k) | (W/m.k) | (Pcs/PKG | Contact me |
24 | 50 | 600 | 0.037 | 1.35 | 9 | |
24 | 75 | 600 | 0.037 | 2.00 | 6 | |
24 | 100 | 600 | 0.037 | 2.70 | 5 | |
32 | 25 | 600 | 0.035 | 0.65 | 20 | |
32 | 50 | 600 | 0.035 | 1.42 | 9 | |
32 | 75 | 600 | 0.035 | 2.10 | 6 | |
32 | 100 | 600 | 0.035 | 2.80 | 4 | |
48 | 25 | 600 | 0.035 | 0.71 | 20 | |
48 | 50 | 600 | 0.033 | 1.50 | 9 | |
48 | 75 | 600 | 0.033 | 2.25 | 6 | |
48 | 100 | 600 | 0.033 | 3.00 | 5 |
Physical Properties
Tested Content | Tested Method | Tested Value |
Density | ASTM C612 | 32kgs/m3 |
Thickness | GB/T 13350-2208 | 50MM |
Average Diameter of Fiber | GB/T 13350-2208 | 6.8um |
Coefficient of Heat Conductivity | EN12667 | 0.035W/m.K |
Thermal Resistance | ASTMC653 | 1.42M2.K/W |
Average NRC | EN ISO 354 | 1.05 |
Maxmium Service Temperature | ASTM C411 | 400 ℃ |
Corrosion Resistance | ASTM C665 | No Chemical Reaction |
Mold Resistance | ASTM C665 | Mildew Proof |
Moisture Absorption | ASTM C1104 | Less 3% by Weight |
Humidity Veneration Rate | ASTM E96 | Max 0.013g/24 Hours.m2 |
Non-Combustibility | ASTM E84 | Flame Propagation:25;Flame Diddustivity:50 |
What are the common parameters of Glass wool board? What parameters will affect the price?
1. Thickness: generally between 20mm and 100mm. Glass wool boards with different thickness are suitable for different occasions.The larger the thickness, the better the insulation effect, but the corresponding cost also increases.
2. Density: generally at 24kg/m ³~ 64kg/m ³ The higher the density, the better the insulation effect, but it also means higher costs. Generally speaking, the density is at 24kg/m ³~ 32kg/m ³ Glass wool board with a density of 48kg/m is suitable for thermal insulation of general buildings ³~ 64kg/m ³ The Glass wool board is suitable for building insulation with high requirements.
3. Thermal conductivity: the thermal conductivity of Glass wool board determines its thermal insulation effect. The smaller the thermal conductivity, the better the insulation effect. Generally speaking, Glass wool boards with a thermal conductivity of about
0.030W/(m · K) are suitable for building external wall insulation, and Glass wool boards with a thermal conductivity of about 0.040W/(m · K) are suitable for roof and wall internal insulation.
4. Tensile strength: generally 0.05~0.15MPa. The greater the compressive strength, the longer the service life of Glass woolboard.
5. Combustion performance: Glass wool board is generally not easy to burn, but different materials have different combustion
performance. When purchasing, products that meet national standards should be selected.
2. Density: generally at 24kg/m ³~ 64kg/m ³ The higher the density, the better the insulation effect, but it also means higher costs. Generally speaking, the density is at 24kg/m ³~ 32kg/m ³ Glass wool board with a density of 48kg/m is suitable for thermal insulation of general buildings ³~ 64kg/m ³ The Glass wool board is suitable for building insulation with high requirements.
3. Thermal conductivity: the thermal conductivity of Glass wool board determines its thermal insulation effect. The smaller the thermal conductivity, the better the insulation effect. Generally speaking, Glass wool boards with a thermal conductivity of about
0.030W/(m · K) are suitable for building external wall insulation, and Glass wool boards with a thermal conductivity of about 0.040W/(m · K) are suitable for roof and wall internal insulation.
4. Tensile strength: generally 0.05~0.15MPa. The greater the compressive strength, the longer the service life of Glass woolboard.
5. Combustion performance: Glass wool board is generally not easy to burn, but different materials have different combustion
performance. When purchasing, products that meet national standards should be selected.
Application
Glass wool is a multifunctional, cost-effective, and widely used insulation material. With the continuous progress of technology and the expansion of application fields, its application prospects will become increasingly broad.
1、 In the field of construction
The low thermal conductivity, excellent insulation and fire resistance of glass wool make it the preferred insulation material for basketball courts, gyms, swimming pools, cold storage and other places in construction projects. At the same time, glass wool can be cut, compounded, and veneered as needed, making it convenient to use.
The low thermal conductivity, excellent insulation and fire resistance of glass wool make it the preferred insulation material for basketball courts, gyms, swimming pools, cold storage and other places in construction projects. At the same time, glass wool can be cut, compounded, and veneered as needed, making it convenient to use.
2、 In the field of heating and cooling equipment
Glass wool is widely used in heating and cooling equipment such as air conditioning, cold storage, and refrigerated trucks. Due to the unique insulation performance of glass wool, it can effectively reduce the loss of hot and cold air, improve equipment efficiency, and save energy.
Glass wool is widely used in heating and cooling equipment such as air conditioning, cold storage, and refrigerated trucks. Due to the unique insulation performance of glass wool, it can effectively reduce the loss of hot and cold air, improve equipment efficiency, and save energy.

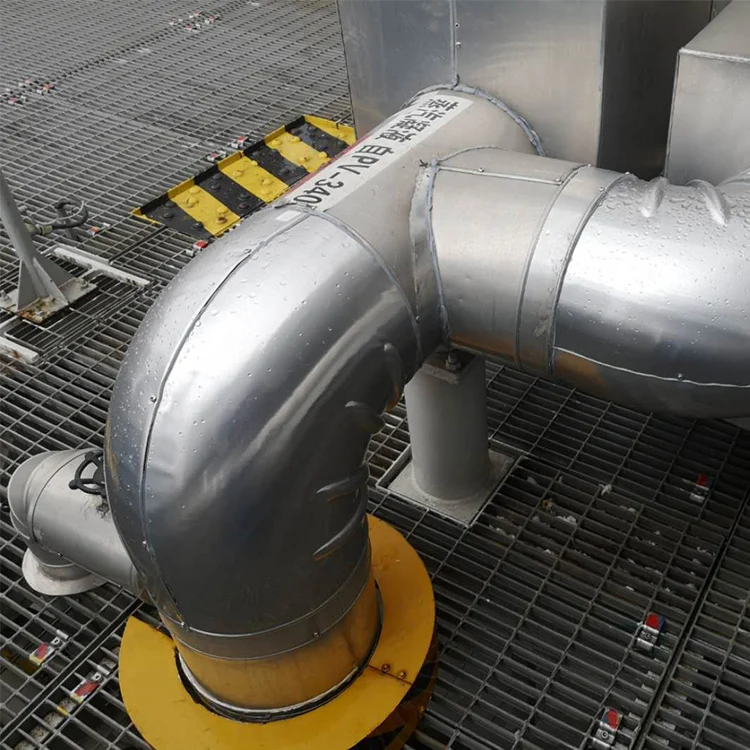

3、 Pipeline field
The excellent sound absorption, thermal insulation, corrosion resistance, and ease of processing of glass wool have been widely used in fields such as pipelines, storage tanks, and containers. It can effectively reduce the operating noise of the system, ensure the temperature stability of the pipeline system, and extend its service life.
The excellent sound absorption, thermal insulation, corrosion resistance, and ease of processing of glass wool have been widely used in fields such as pipelines, storage tanks, and containers. It can effectively reduce the operating noise of the system, ensure the temperature stability of the pipeline system, and extend its service life.
4、 Other fields
In addition to the above-mentioned fields, glass wool is also widely used in fields such as automobiles, trains, airplanes, ships, power equipment, petrochemicals, metallurgy, and fertilizers. It can not only improve the efficiency of equipment work, but also protect equipment and reduce maintenance costs.
In addition to the above-mentioned fields, glass wool is also widely used in fields such as automobiles, trains, airplanes, ships, power equipment, petrochemicals, metallurgy, and fertilizers. It can not only improve the efficiency of equipment work, but also protect equipment and reduce maintenance costs.

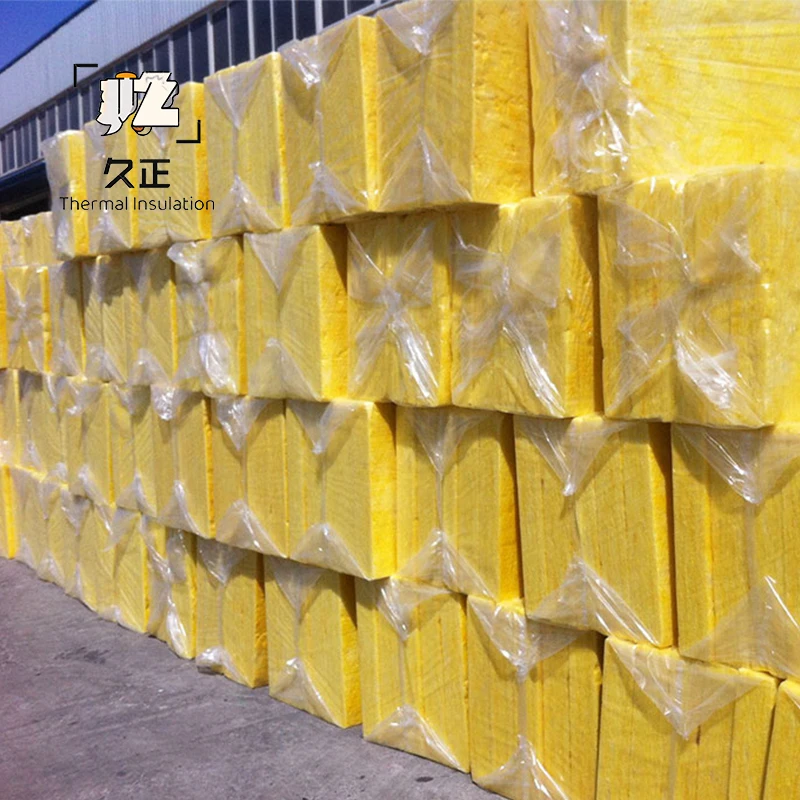

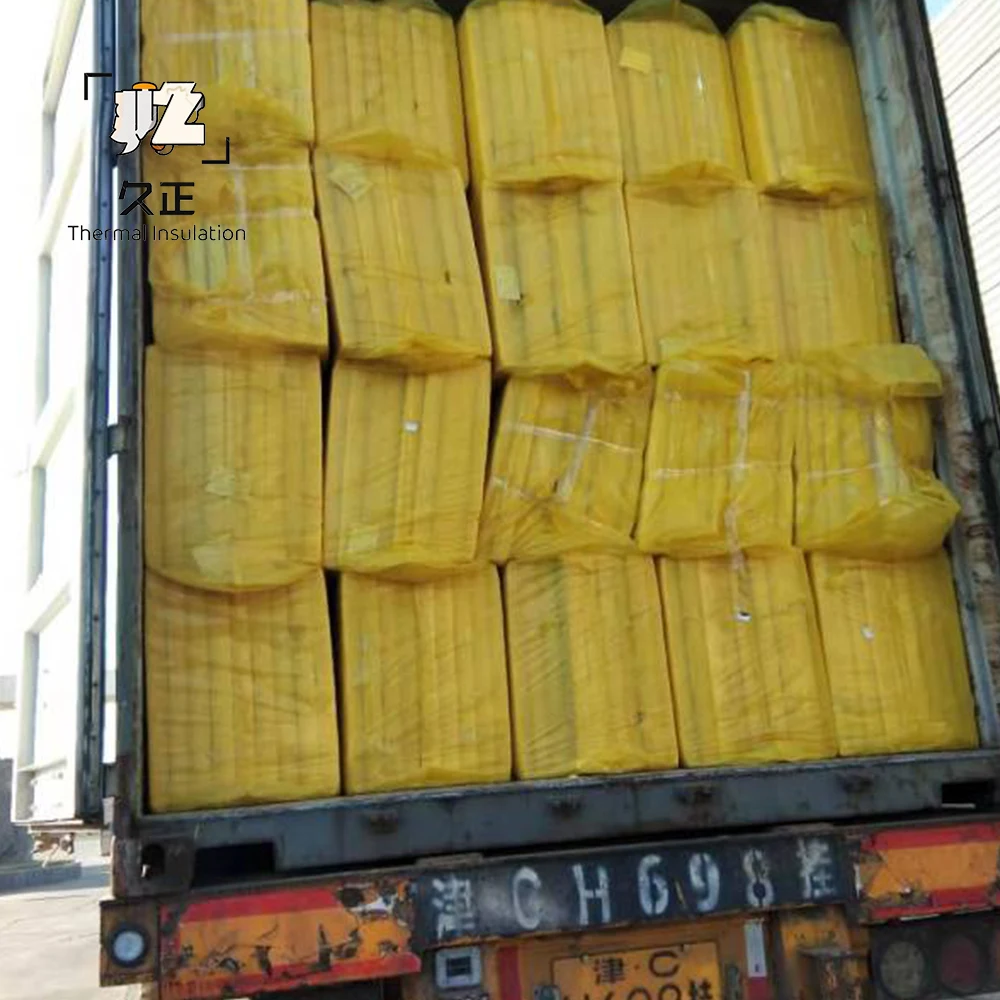

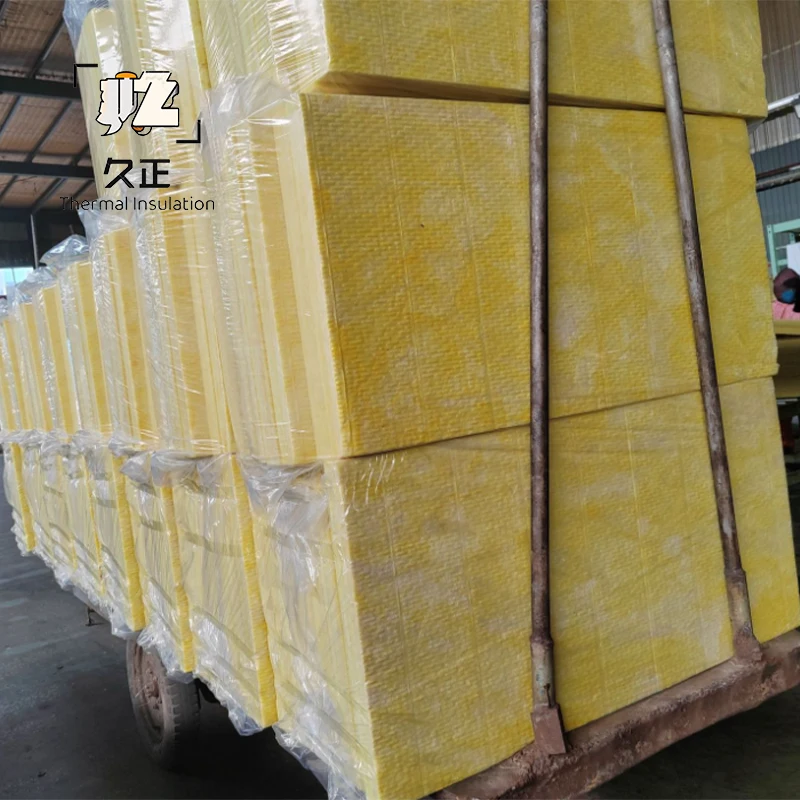

Package And Warehouse
Company Profile
Langfang JiuZheng New Building Materials Co., Ltd is an AAA Credit enterprise with ISO9001:2015 / SGS/ CE certification.was Founded in 2001,located in AnCi District,Langfang City,Hebei Provience.
We are a professional manufacturer and exporter that is concerned with Insulation Material in China,Our Main Products is including First class Glass Wool,Rock Wool,Ceramic Fiber,XPS Board,EPS Foam Board and Also Dealing with the EPS exterior wall decorative lines.
Through continuous Technological innovation and Product upgrading, we have 8 production line of Glass wool,6 Production line of Rock Wool,and 2 line of XPS Board.We have been exporting for over 15 years ,with our products exported to over 60 countries and our products are greatly appreciated in a variety of different markets throughout the world.Our Service Purpose is to Solve yours problems all related with the Insulation Material and Exterior Decoratives.which have the great quality and competitive price.
It is Widely used in the field of Construction,ships,Building areospace sound Insulation and thermal Insulation.Our Perspective:Quality and Service is Our Priority.
We are waiting for your contact.
We are a professional manufacturer and exporter that is concerned with Insulation Material in China,Our Main Products is including First class Glass Wool,Rock Wool,Ceramic Fiber,XPS Board,EPS Foam Board and Also Dealing with the EPS exterior wall decorative lines.
Through continuous Technological innovation and Product upgrading, we have 8 production line of Glass wool,6 Production line of Rock Wool,and 2 line of XPS Board.We have been exporting for over 15 years ,with our products exported to over 60 countries and our products are greatly appreciated in a variety of different markets throughout the world.Our Service Purpose is to Solve yours problems all related with the Insulation Material and Exterior Decoratives.which have the great quality and competitive price.
It is Widely used in the field of Construction,ships,Building areospace sound Insulation and thermal Insulation.Our Perspective:Quality and Service is Our Priority.
We are waiting for your contact.
Exhibition
Why Choose Us
1，Raw material inspection: Raw materials can only be used after passing the inspection upon arrival at the factory;
2，Technical research and development:The company has 11 R&D technicians and no less than 26 production technicians. Decades of technological experience and innovation have kept us in a leading position in the industry.
3，Production equipment:The whole production equipment of Langfang JZ is imported from Italy&Germany. at the forefront of global technology.
4，Multiple production lines:we have 8 production line of Glass wool,6 Production line of Rock Wool,and 2 line of XPS Board.
5，Qualification certification:The company has successively passed the certifications of IS09001 Quality Management System, IS014001 Environmental Management System National Standard GB/T 16400-2015 Thermal Insulation Acid Aluminum and Coproducts,，
6，Competitive Price:Excellent Production Management Controlling makes the Cost Down,so choose use means you choose the quality products with the most best price.,
7，7*24H Online:we have 7*24 online service which can help customers to solve the problems in Time.
2，Technical research and development:The company has 11 R&D technicians and no less than 26 production technicians. Decades of technological experience and innovation have kept us in a leading position in the industry.
3，Production equipment:The whole production equipment of Langfang JZ is imported from Italy&Germany. at the forefront of global technology.
4，Multiple production lines:we have 8 production line of Glass wool,6 Production line of Rock Wool,and 2 line of XPS Board.
5，Qualification certification:The company has successively passed the certifications of IS09001 Quality Management System, IS014001 Environmental Management System National Standard GB/T 16400-2015 Thermal Insulation Acid Aluminum and Coproducts,，
6，Competitive Price:Excellent Production Management Controlling makes the Cost Down,so choose use means you choose the quality products with the most best price.,
7，7*24H Online:we have 7*24 online service which can help customers to solve the problems in Time.
