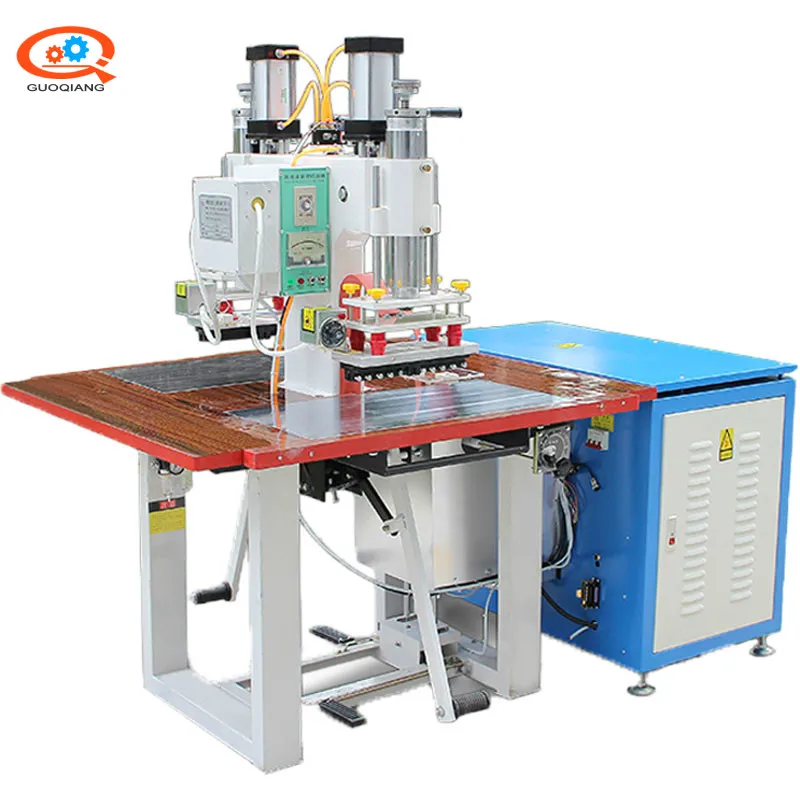

220 В, 5 кВт, высокочастотный сварочный аппарат с двойной головкой, машина для тиснения сиденья мотоцикла из ПВХ кожи
206 139,00 ₽ - 230 261,64 ₽
HONGJINSONIC автоматический ультразвуковой ремешок для ПВХ батареи шнурки сварочного аппарата пластиковые карты плиты мешков с фильтром воды
- Категория: >>>
- Поставщик: Shanghai Hongjin Ultrasonic Electronic Equipment Factory
Сохранить в закладки 1601228705083:
Описание и отзывы
Характеристики
Product Description

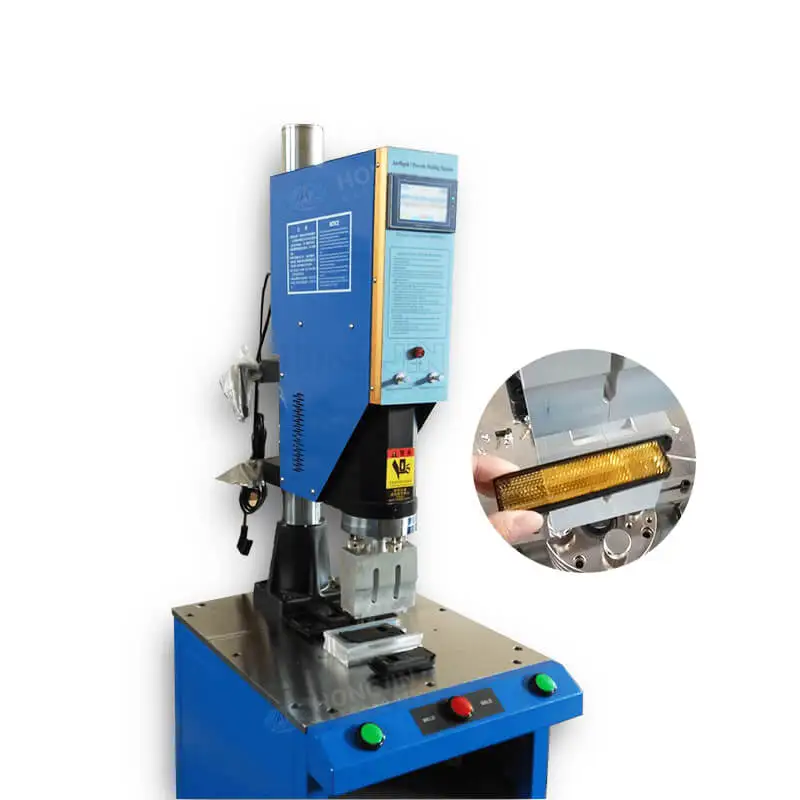

Ultrasound Welding Machine is an ultrasonic plastic welder with high power designed for welding various plastics ( ABS, PP, PS, PC, PE, PVC, PMMA(acrylic), Polyester, Nylon, etc.) and fabrics. It is widely used in welding plastic/fabric products, including cup mask, mobile phone, mobile charger, water box, filter bag, led lampshade, chargers, pipes and other products in large size.
Project Display
e.g. weld filter bag.
Filter Bag Top Weld (plastic neck)
HJ-1532G 15KHZ 3200W Ultrasonic welding machine
The filter bag top area (plastic neck) is usually welded by the 15KHZ 3200W Ultrasonic welding machine.
Ultrasonic welding device
Ultrasonic horn
Sample after welded
Specification
Frequency | 20KHZ/15KHZ |
Power | 2000W/2600W/3200W/4200W |
Power Range | 10%~100% |
Type | Intelligent Digital |
HMI | Touch screen |
Main Features | Automatic frequency tracking and tuning, Intelligent protection systems Fault alarm prompts |
Application | Welding various plastic or fabric products in large size, such as cup mask, led lampshade, pillowcase, electric mosquito swatter, electric meter. |
Model | Frequency | Power | Gross Weight | Line Source |
HJ-2010G | 20KHZ | 2000W | 120KG | AC 110/120/220V |
HJ-1526G | 15KHZ | 2600W | 130KG | AC 110/120/220V |
HJ-1532G | 15KHZ | 3200W | 130KG | AC 110/120/220V |
HJ-1542G | 15KHZ | 4200W | 370KG | AC 110/120/220V |
Face Mask 20KHZ 2000W Ultrasonic Welding Machine
HJ-2010G
Application: small product / small welding area
Welding Size:0-50mm diameter;
0-200mm length with short width;
The specific situation depends on the product material, thickness and welding requirements.
Examples:
mobile charger, small battery case, face mask ear loop, etc.
HJ-1526G/HJ-1532G
Application: small or middle product / small or middle welding area
Welding Size:
Welding Size:
0-120mm diameter;
0-300mm length with short width;
The specific situation depends on the product material, thickness and welding requirements.
Examples:
filter, filter bottle, ice case, bra sponge punching, kitchen sponge pad, electric meter, etc.
0-300mm length with short width;
The specific situation depends on the product material, thickness and welding requirements.
Examples:
filter, filter bottle, ice case, bra sponge punching, kitchen sponge pad, electric meter, etc.
HJ-1542G
Application: middle or big product / middle or big welding area
Welding Size:
Welding Size:
0-250mm diameter;
0-400mm length with short width;
The specific situation depends on the product material, thickness and welding requirements.
Examples:
cup mask, pillowcase, electric mosquito swatter, large electric meter., etc.
0-400mm length with short width;
The specific situation depends on the product material, thickness and welding requirements.
Examples:
cup mask, pillowcase, electric mosquito swatter, large electric meter., etc.
Machine Shapes
Two shapes for your choice.
Details Images
Main Spares of Ultrasonic Welder:
Intelligent & Digital
Ultrasonic Welding System
Auto frequency tracking;
USA DSP chip control circuit;Japan's Panasonic capacitor;
Japan's Toshiba IGBT high power amplifier output.
Quality Ultrasonic Horn
Longer using life
Horn Material: Steel / titanium alloy / Imported Arconic brand 7075 T651 Aluminum Alloy.
20 / 15KHZ Ultrasonic transducer
with booster and horn
Welding Vibrator: Imported from Germany.
Horn Material: Steel / titanium alloy / Imported Arconic brand 7075 T651 Aluminum Alloy.
Horn Material: Steel / titanium alloy / Imported Arconic brand 7075 T651 Aluminum Alloy.
15KHZ 4200W Ultrasonic transducer
with booster and horn1. Double Welding Vibrators;
2. Much Higher Power:
3. Used for welding large product.
Real High Power
More stable performance
The application of the IGBT power module coupled with the structure of the other-excited oscillatory circuit makes the output power more than three times that of the traditional self-excited circuit.
Our Advantages
Ultrasonic Welder Characteristics
1. Frequency automatic tracking tuning, real-time display the current frequency, no need manual tuning, automatic tracking the best working state.
2. Overheating, overloading double protection function.3. Automatically adjust the output power according to load.
6. Frequency automatic scanning, automatic tracking.
4. Adaptive various parameters of the transducer.5. Working mode is digital parameters setting.
7. Equipped with Shanghai Hongjin professional control system;
9.Touch screen: easy to operate and easy to learn.
8. Smart fault alarming system;Packing & Delivery
Company Profile
Company Introduction:
SHANGHAI HONGJIN ULTRASONIC ELECTRONIC EQUIPMENT FACTORY is a professional ultrasonic welding machines manufacturer with more than 16 years experiences, offering ultrasonic plastic welding machine, ultrasonic sewing machine, Ultrasonic spot welding machine, spot welder, ultrasonic metal welding machine, fully automatic face mask body making machine, automatic sponge scrubber making machine, geocell production line, geogrid production line, face mask production, non woven bag making machine, etc.
As a professional manufacturer of ultrasonic machines, HONGJINSONIC is integrated by R&D, manufacturing, distribution and relative service as well. we insist the principle of 'quality the first, customers the highest' and ensure high quality, excellent service and sincere cooperation with customers all over the world. In order to serve our customers much better, our overseas after-sales department can provide fast after sale service all over the world after machines arrive customers' factory. In the past 16 years, we have exported over 19,500 sets ultrasonic machines to different customers around the world, and got great reputation from them. In the face of honor and achievement, HONGJINSONIC people will Keep clear mind and work much harder, we hope HONGJINSONIC can grow up with our customers, welcome to visit and cooperate with us.
As a professional manufacturer of ultrasonic machines, HONGJINSONIC is integrated by R&D, manufacturing, distribution and relative service as well. we insist the principle of 'quality the first, customers the highest' and ensure high quality, excellent service and sincere cooperation with customers all over the world. In order to serve our customers much better, our overseas after-sales department can provide fast after sale service all over the world after machines arrive customers' factory. In the past 16 years, we have exported over 19,500 sets ultrasonic machines to different customers around the world, and got great reputation from them. In the face of honor and achievement, HONGJINSONIC people will Keep clear mind and work much harder, we hope HONGJINSONIC can grow up with our customers, welcome to visit and cooperate with us.
Ultrasonic Welding Machine, Ultrasound Device
Похожие товары

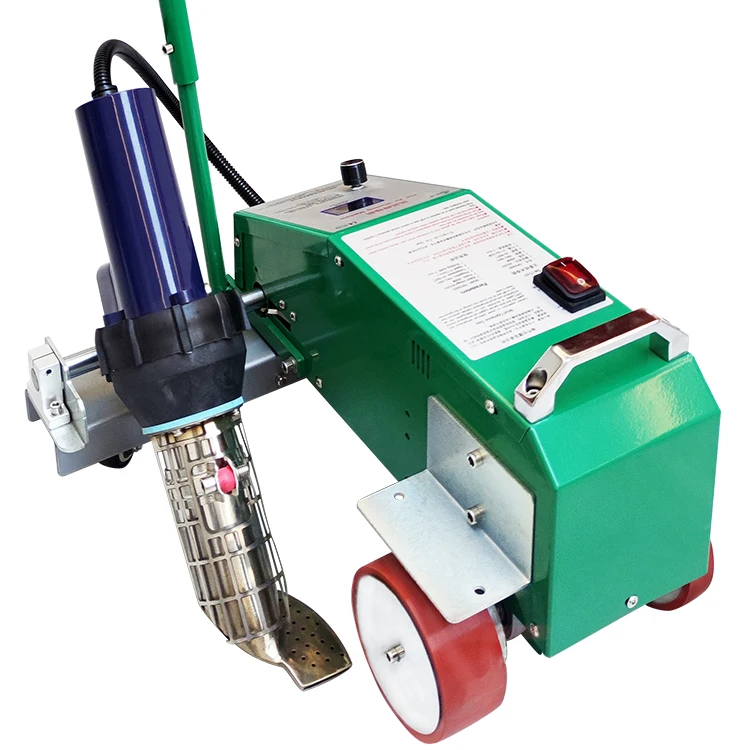

ПВХ палатка баннер перекрытие сварки JM3000D горячий воздух баннер сварочный аппарат
Прямая поставка с завода AODE, ПВХ win-door, многофункциональная режущая пила для пвх win-door
202 849,54 ₽ - 219 296,80 ₽

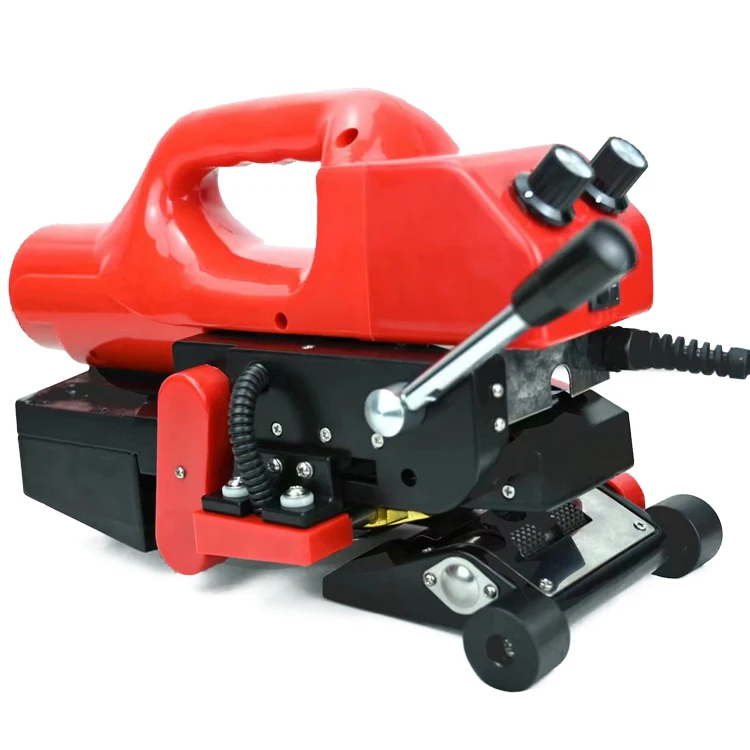

LDPE HDPE геомембран сварщик Клин горячий клин плотина уплотнитель пластиковый сварочный аппарат gw 900
76 753,88 ₽ - 85 525,76 ₽
Tina TOP2000D 2600 Вт баннерный сварочный аппарат с накладками, подолом и подолом с функциями веревки
Высокая мощность и высокая эффективность HDPE PP PE ПВХ материал геомембраны пластиковый сварочный аппарат
42 762,88 ₽ - 43 859,36 ₽
Высокочастотная машина для тиснения логотипа нижнего белья
328 945,20 ₽ - 339 910,04 ₽

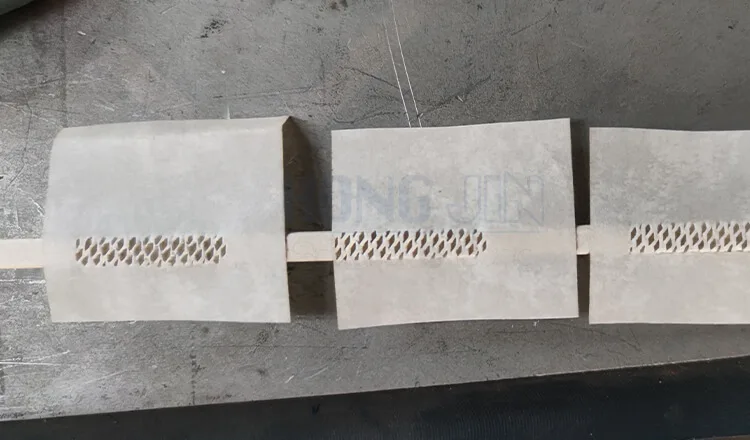

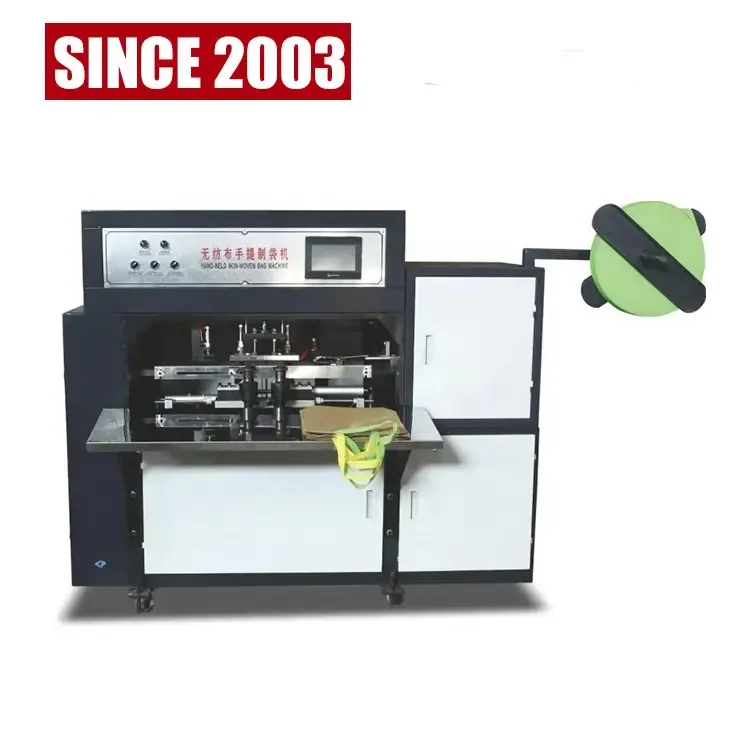

Автоматическая ультразвуковая сварочная машина для точечной сварки лент для изготовления ручек для мешков, экологически чистые мешки, нетканые две сварочные головки, высокая скорость
