Брикетировочная машина для производства губчатой железной руды
198 375,12 ₽ - 218 212,64 ₽
Заводская Поставка биомассы барбекю древесный уголь порошок шариковый Пресс брикетировочный станок роликовый тип машина для изготовления древесного угля
- Категория: >>>
- Поставщик: Henan Cheng Jinlai Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601229884545:
Описание и отзывы
Характеристики
Product Description
Factory Supply Biomass Bbq Charcoal Coal Powder Ball Press Briquette Making Machine Roller Type Charcoal Making Machine
❤️Coal Powder Ball Press Briquette Making Machine can press ore powder, metal powder, coal powder, coke powder and other materials into ball shape.The charcoal or coal briquettes can be different shapes by changing with special molds,such as oval, pillow, round, egg,ball,column and square. We can also customize the shape for our customers.
❤️The raw material of Coal Powder Ball Press Briquette Making Machine comes from small size waste charcoal broken in storage or while transportation, or comes from charcoal chunk after biomass burned. With this machine, the waste charcoal chunk can be made into charcoal briquettes or charcoal stick and recycled for barbecue, room heating etc.
Aplication scope of ball briquette machine :
charcoal, clay, coal powder,coal slime,coke powder, mineral powder, manganese ore powder, iron powder, steel slag, desulfurzation gypsum, fluorite powder, dust removal powder, silico manganese ore powder, etc.
charcoal, clay, coal powder,coal slime,coke powder, mineral powder, manganese ore powder, iron powder, steel slag, desulfurzation gypsum, fluorite powder, dust removal powder, silico manganese ore powder, etc.

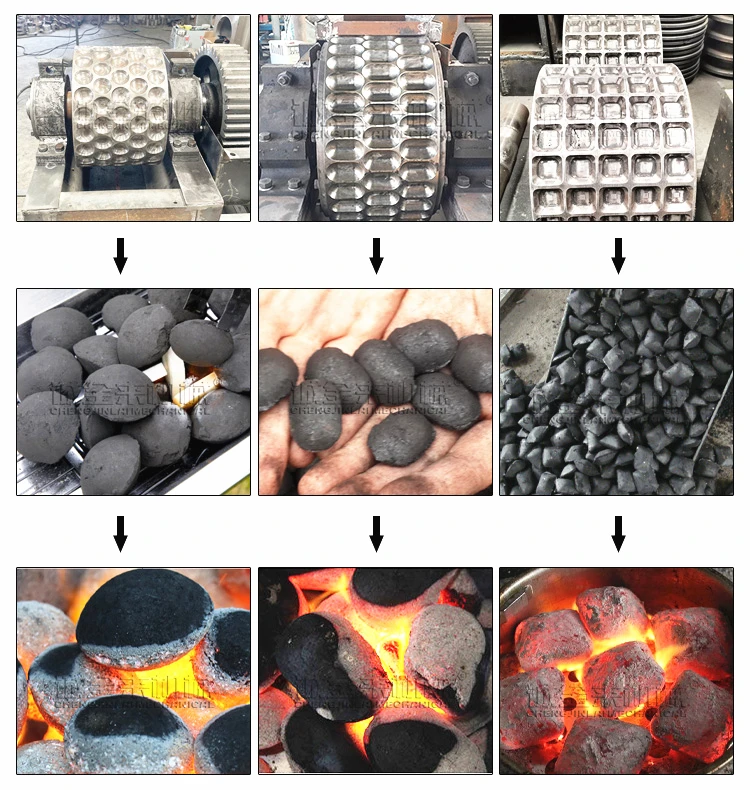

Changing molds for same machine produce different shape and size charcoal briquettes.
1. After changing the mold, the material can be pressed into sheet-like (1.5-50mm) square, rectangular, ring, diamond, triangle,cylindrical and other geometric products.
2. It can also emboss words, trademarks, patterns and various special shapes.
3. Mould shapes can be cubic, round, hexagonal, finger shape on customized. Also one machine can match with different moulds for different shapes of briquettes.
1. After changing the mold, the material can be pressed into sheet-like (1.5-50mm) square, rectangular, ring, diamond, triangle,cylindrical and other geometric products.
2. It can also emboss words, trademarks, patterns and various special shapes.
3. Mould shapes can be cubic, round, hexagonal, finger shape on customized. Also one machine can match with different moulds for different shapes of briquettes.
Working principle of the coal pellet briquette machine:
This series of briquette machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball. mine coal briquette making machine.
This series of briquette machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball. mine coal briquette making machine.
❤️Two Roller Press Machine❤️
This type of briquette press have two larger rollers in a fixed position in the frame, the other two smaller rollers are moveable.As its named implied, it has four rollers and press briquettes for twice times, so it make briquettes stronger and in higher density. This machine is national patent product in China.
The output briquette is in high quality and strong (not easy broken) that would not be broken when dropped from 150-250cm height.Meanwhile, it is easy for combustion, no smell and last longer when burning.
This type of briquette press have two larger rollers in a fixed position in the frame, the other two smaller rollers are moveable.As its named implied, it has four rollers and press briquettes for twice times, so it make briquettes stronger and in higher density. This machine is national patent product in China.
The output briquette is in high quality and strong (not easy broken) that would not be broken when dropped from 150-250cm height.Meanwhile, it is easy for combustion, no smell and last longer when burning.
❤️Four Roller Press Machine❤️
Four-roller machine working principle is that the two vice-roll pre-suppress materials in the form of pipeline to lay a solid foundation for the finished ball. For finished products heroes ball solid foundation. After the main roll for feeding and secondary pressure, the pressure of materials multiplied, squeeze the ball more solid product. Reached a multiplier effect. Loose on the local materials, such as coke, iron skin, dust powder effects of sludge and other materials is very obvious.
Four-roller machine working principle is that the two vice-roll pre-suppress materials in the form of pipeline to lay a solid foundation for the finished ball. For finished products heroes ball solid foundation. After the main roll for feeding and secondary pressure, the pressure of materials multiplied, squeeze the ball more solid product. Reached a multiplier effect. Loose on the local materials, such as coke, iron skin, dust powder effects of sludge and other materials is very obvious.
Main data of the Charcoal Machine Briquette
The capacity is varying from 1 t per hour to 20 t per hour, and this kind of machine has many moulds, this can make different shapes and sizes final products. So, before ordering, tell us which kinds of shapes you prefer. The detailed information about the machine is as belows:
Model | Capacity(t/h) | Motor(kw) | Roller Diameter(mm) | Oversize(m) |
290 | 1-2 | 5.5 | Φ290*200 | 1.5*1.2*1.6 |
360-1 | 2-3 | 7.5 | Φ360*240 | 1.7*1.2*1.6 |
360 | 2-3 | 11 | Φ360*240 | 1.7*1.6*1.8 |
450 | 4-5 | 22 | Φ450*280 | 1.8*1.9*2.2 |
650 | 8-10 | 45 | Φ650*388 | 2.6*2.2*2.5 |
1000 | 25-30 | 110 | Φ1000*500 | 2.9*2.8*3.5 |
High transmission efficiency output twist Large moment low energy consumption suitable forLong-term use, structure Precision and good performance.
Using national standard pure copper motor,Low noise and strong power.The overall operation is stable.
Mould✔
The mold is made of 65 manganese steel castingLong service life, and moldMany kinds, also available on demandcustom made.We have two kinds to make the briquette;

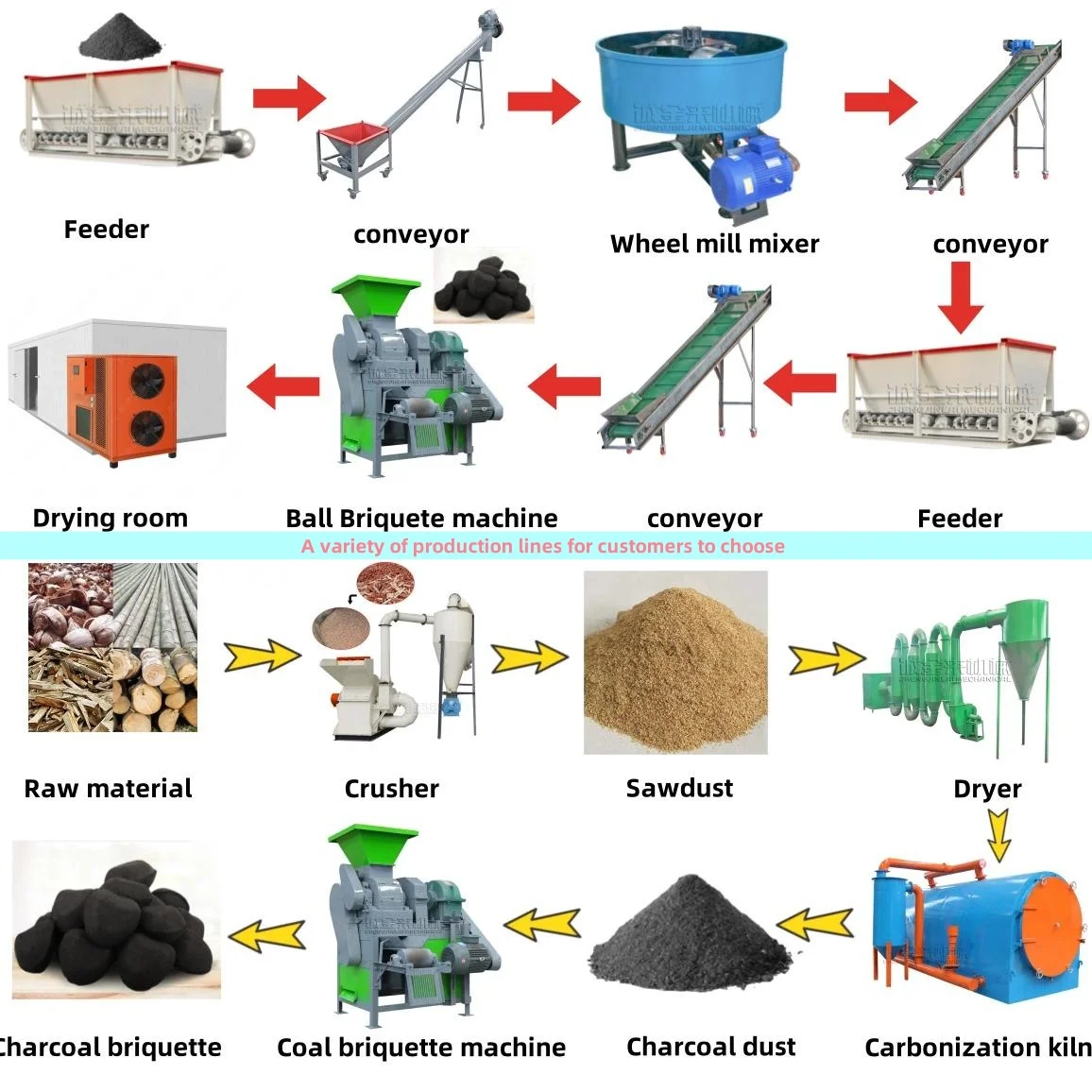

❤️This line is to use the sawdust, rice husk etc to make charcoal first and then use the ball briquette machine to make charcoal ball briquette.
❤️This line is to use the sawdust, rice husk etc to make charcoal first and then use the ball briquette machine to make charcoal ball briquette.
❤️This line is to use the coal pieces or powder to make the coal ball briquette machine.
Customers from Indonesia praise us:
Since purchasing the ball pressing machine from their company, it has saved us about $200,000 in manpower and material resources every year.
Since purchasing the ball pressing machine from their company, it has saved us about $200,000 in manpower and material resources every year.
Packing&Shipping
Factory Supply Biomass Bbq Charcoal Coal Powder Ball Press Briquette Making Machine Roller Type Charcoal Making Machine
Package
We will wrap the machine with film to avoid damp and scattered during transportation, and thicken the export wooden box to surround the machine to protect the machine from impact and friction. The size depends on the machine.
Transportation
We can provide multiple channels of transportation. We guarantee that the freight forwarders we use have more than 5 years of cooperation history, provide you with fast timeliness and economic prices, and ensure the safety and integrity of your machines.
About us
Pre-sales service
1. Provide comprehensive technical and business advisory services;
2. To provide customers with the most suitable solutions and equipment;
3. Design and manufacture targeted products according to customers' special requirements;
4.Provide detailed technical training for customers. It includes the operation process of the equipment, the main faults and the troubleshooting methods of common faults.
After-sales service
1. Strictly check each process of the equipment, quality first;
2.Fast and safe delivery;
3. Provide on-site installation services to ensure the normal operation of the equipment;
4. Provide lifelong maintenance services.
2. To provide customers with the most suitable solutions and equipment;
3. Design and manufacture targeted products according to customers' special requirements;
4.Provide detailed technical training for customers. It includes the operation process of the equipment, the main faults and the troubleshooting methods of common faults.
After-sales service
1. Strictly check each process of the equipment, quality first;
2.Fast and safe delivery;
3. Provide on-site installation services to ensure the normal operation of the equipment;
4. Provide lifelong maintenance services.
