Лезвие алмазной пилы для мокрой и чистой резки 125 мм керамическая плитка шлифовальный диск натурального мрамора

Лезвие алмазной пилы для мокрой и чистой резки 125 мм керамическая плитка шлифовальный диск натурального мрамора

Категория: >>>
Поставщик: Henan Drills-King Mining Technology Ltd.Henan Ltd.

Цена:678,76-712,70 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Diamond mesh turbo saw blade super thin ceramic tile cutting disc
This diamond blade can be cutting and grinding porcelain tile. 4.5"/5" tile saw blade can make straight cuts and grind edge. Hot pressed blades provide long life.

Features:* Continuious Rim Segment
Diamond-bearing bond with a continious rim makes a clean cutting without chipping.

* Cutting & Grinding
25mm segment height make cutting and grinding are both available at the same time. The large plane creates a fulcrum effect,
directing the blade in a straight line. 45-degree cutting is also available.

* Premium Quality:
Hot pressed diamond blade provides long life and enhanced material removal

*Suit With Different Machines:
The stiffening ring can meet the needs of different machines.

Features of thin turbo diamond disc saw blade.

1) Dry or wet cutting,
2) Hot-pressed sintered blades provide long working life.
3) New Design of Mesh turbo rim segment, the mesh turbo help to cooling and bring the dust out, so more efficient, fast and stable in cutting
4) High quality industrial diamond grain was used in segments which can cutting multi materials

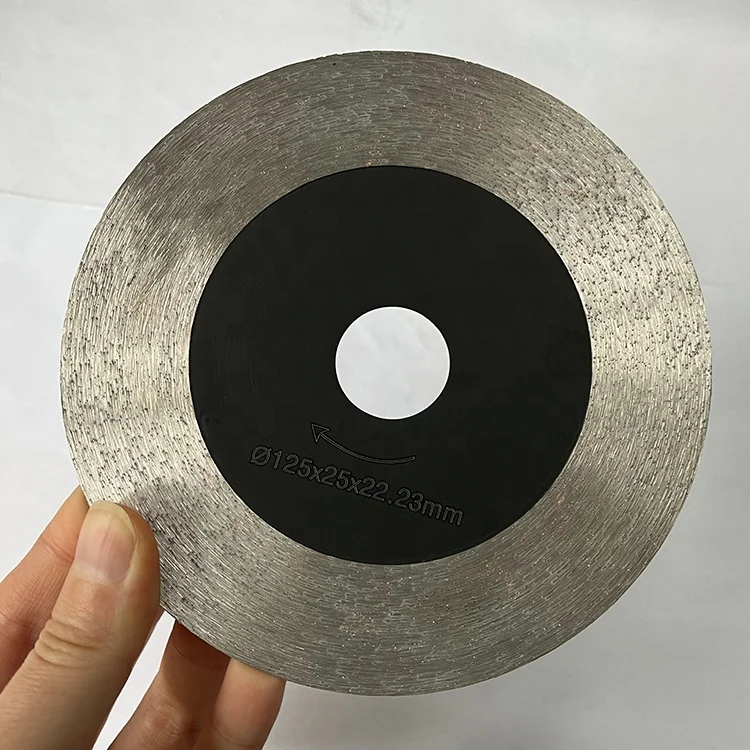

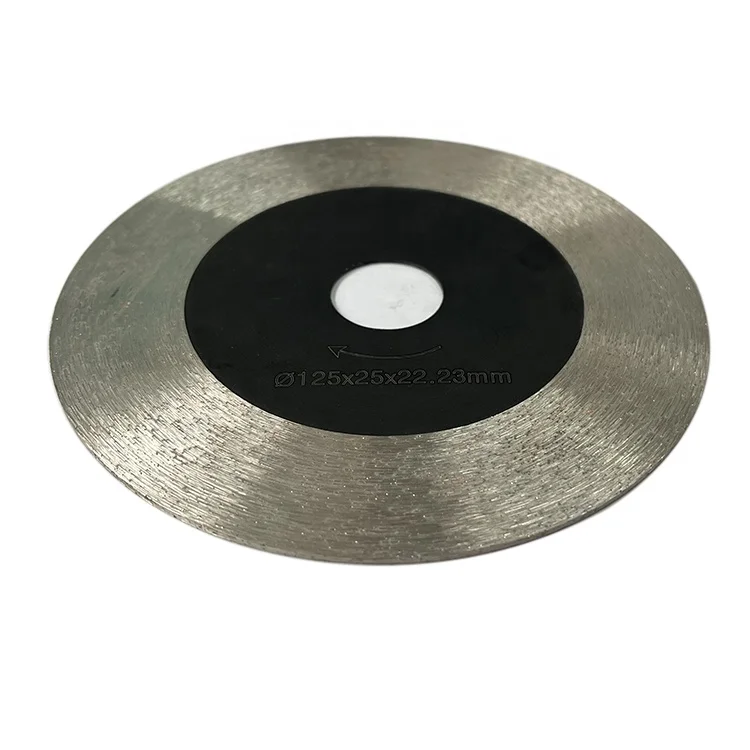

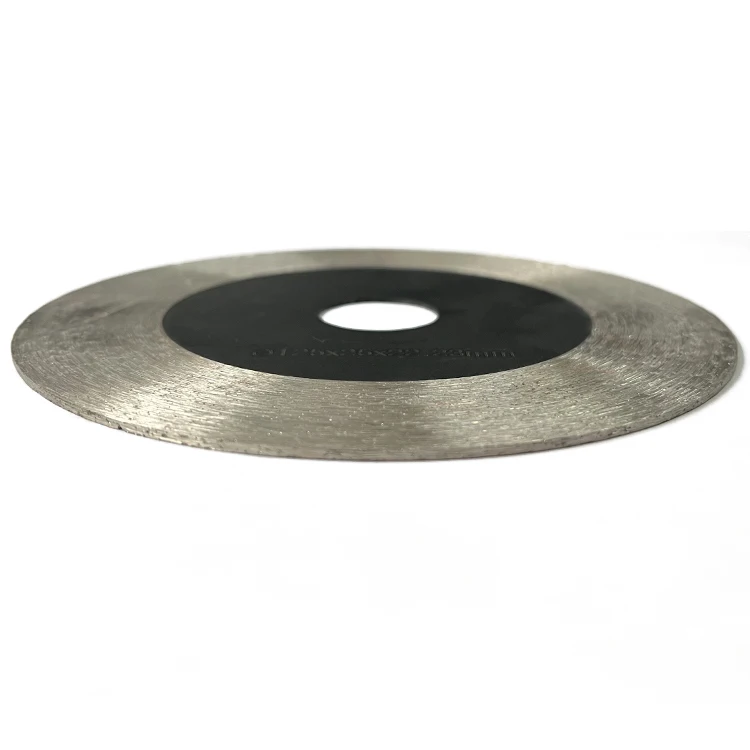

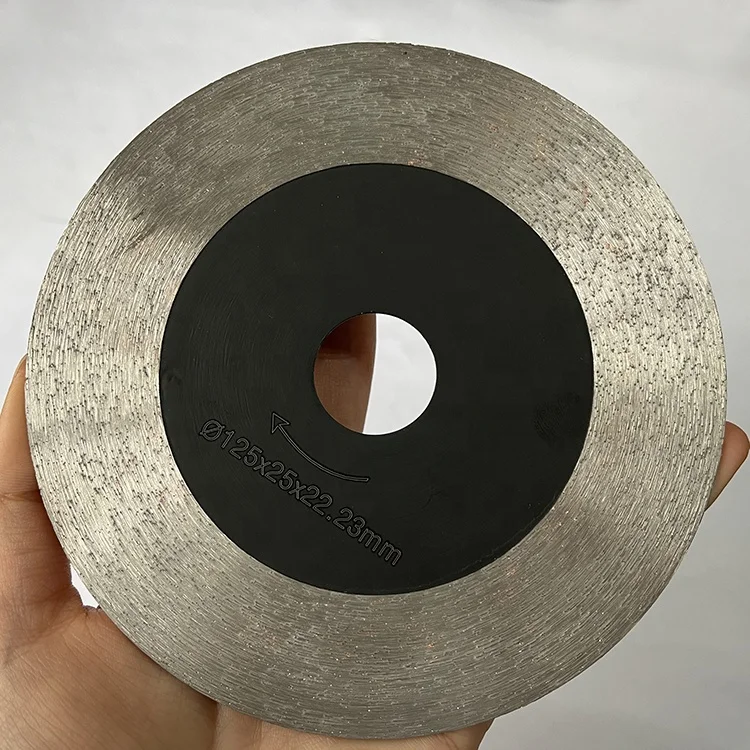

D125*1.4*10.22.23mm small diamond saw blades mainly use for cutting stone, concrete and ceramic, It has the characteristics of long service life and good sharpness.

This kind diamond saw blades standard diameter is 125mm, thickness is 1.4mm, segment height is 10mm and inner hole is 22.23mm.

All of our products have been strictly tested before access to market. Other specifications can be customized according to requirements.

Application

Application Filed of Turbo Diamond Cutting Disc.

The diamond blades are designed for cutting Floor Tiles,Quarry Tiles, Marble Tiles, Granite, Marble, Terrazzo, Slate, Nature stone,General build materials.

Advantages of thin turbo diamond disc saw blade:

1. Smooth&fast cutting without chipping
2. Long life span and stable performance
3. Competitive price and superior quality
4. Safe package and fast delivery
5. Professional&excellent service

Technical Datasheet

Outer Diameter	Bore Diameter	Segment Width	Segment Height
4" (105mm)	4/5" (20mm) / 7/8" (22.23mm)	1.2mm	10mm
4.5" (115mm)	4/5" (20mm) / 7/8" (22.23mm)	1.2mm	10mm
5" (125mm)	4/5" (20mm) / 7/8" (22.23mm)	1.2mm	10mm
6" (150mm)	4/5" (20mm) / 7/8" (22.23mm)	1.4mm	10mm
7" (180mm)	4/5" (20mm) / 7/8" (22.23mm)	1.6mm	10mm

Detailed Images

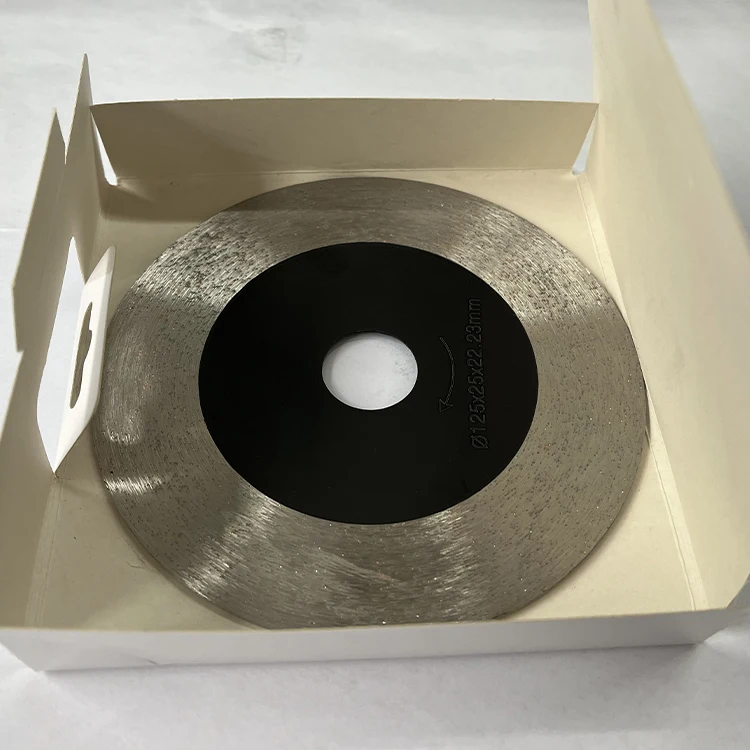

Packing & Delivery

Our Factory

As a leading manufacturer in professional diamond tools,Henan Drills-King Mining Technology Co.,Ltd specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.

As an ISO9001: 2000 certified company, Henan Drills-King Mining Technology Co.,Ltd has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.

Welcome your inquiry about our diamond saw blades with all kinds of sizes!
