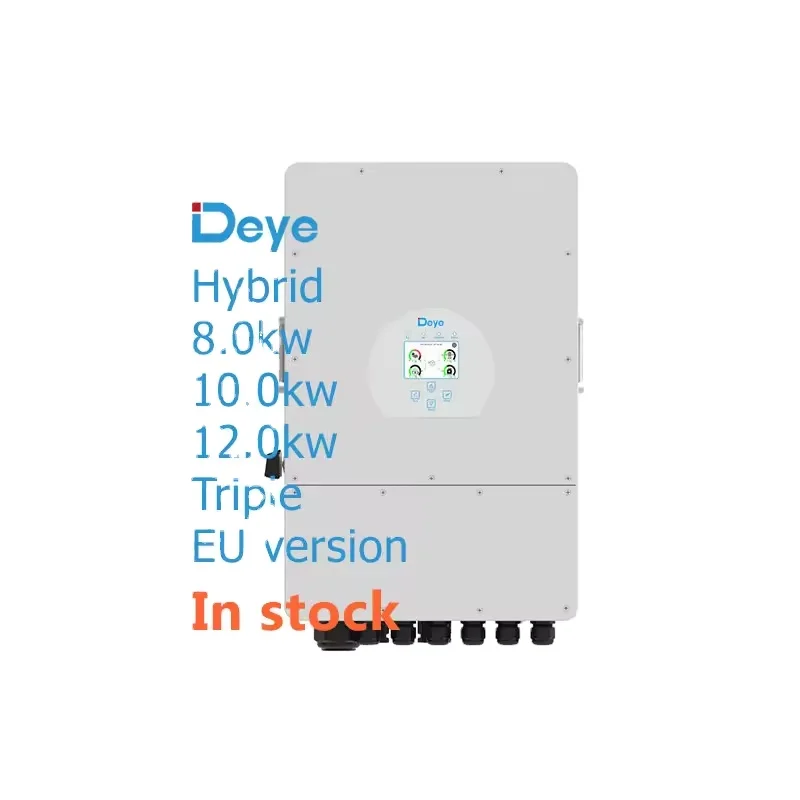

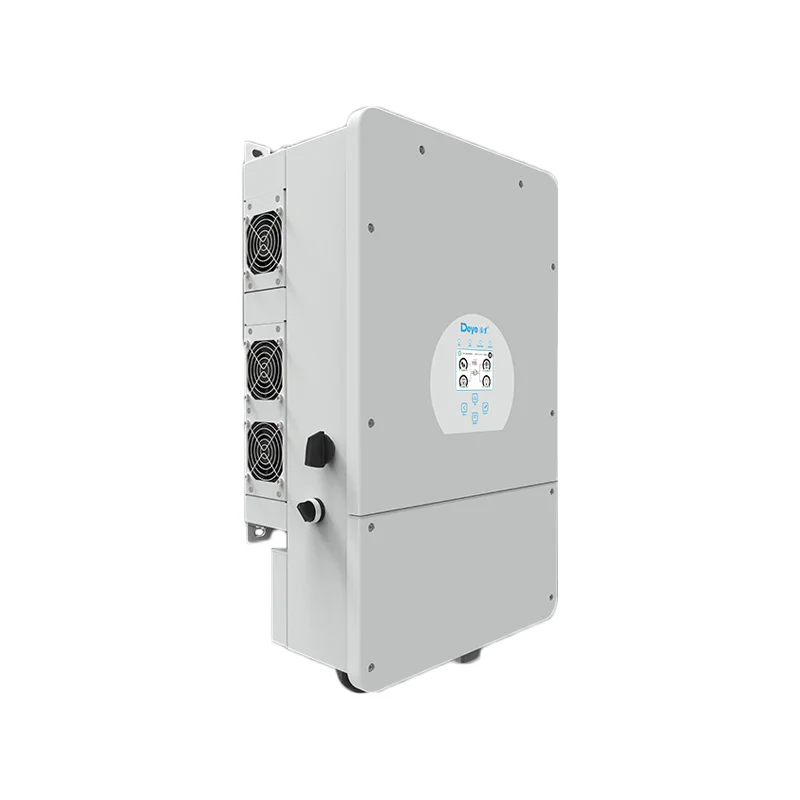

SUN-5/6/8/10/12K-SG04LP3-EU
Deye three phase hybrid inverter is a high efficiency product with 48V low-voltage battery , ensuring system safe and reliable. With compact design and high-power density, it supports one point three times DC/AC ratio, saving device investment. It supports 3 phase unbalanced output, extending the application scenarios. Equipped with 2 CAN port BMS and 1 parallel port. The RS485 port for a BMS, and RS232 port for remotely control DRM port, which makes the system smart and flexible.
It is worth mentioning that the combination of Deye inverter and Sunket low-voltage lithium battery is even more affordable. We have a qualification certificate authorized by Deye and have a large inventory in Europe, which can guarantee fast delivery and make your purchase worry-free.
Product Advantages
Safe
Deye inverter adopts a transformer isolation design, and the battery voltage is stable at 48V, ensuring the stability and safety of the system.
Efficient
This inverter has a compact design, high power density, and supports a DC/AC ratio of 1.3 times. And itsupports three-phase unbalanced output, each phase can achieve an unbalanced output of 100%, and the output rated power is as high as 50%.

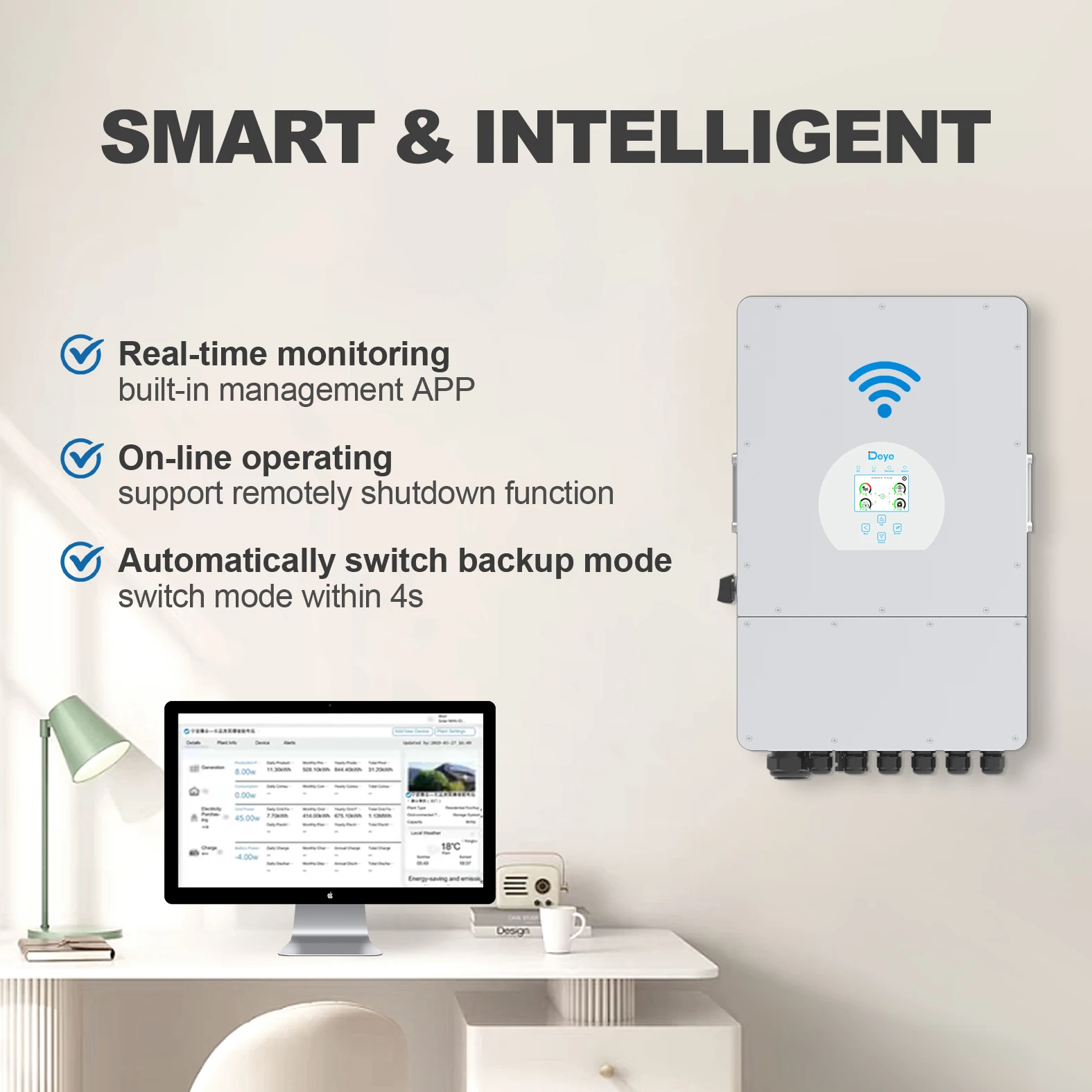

Intelligent
Users can remotely monitor the operating status of the inverter, and realize functions such as immediate remote shutdown, remote setting of parameters, and firmware updates when an accident occurs.
Flexible
Deye inverters are equipped with CAN ports and BMS, and support multiple system operation modes such as grid-connected and off-grid. RS485 port is used for BMS, RS232 port is used for remote control, DRM port makes the system intelligent and flexible.
Money-saving
6 times charging and discharging time periods can be discharged when electricity prices are high and stored when point prices are low.
Powerful
Under extreme challenges, it can even support the parallel connection of 10 pcs on-grid and off-grid, providing strong support for large-scale applications.

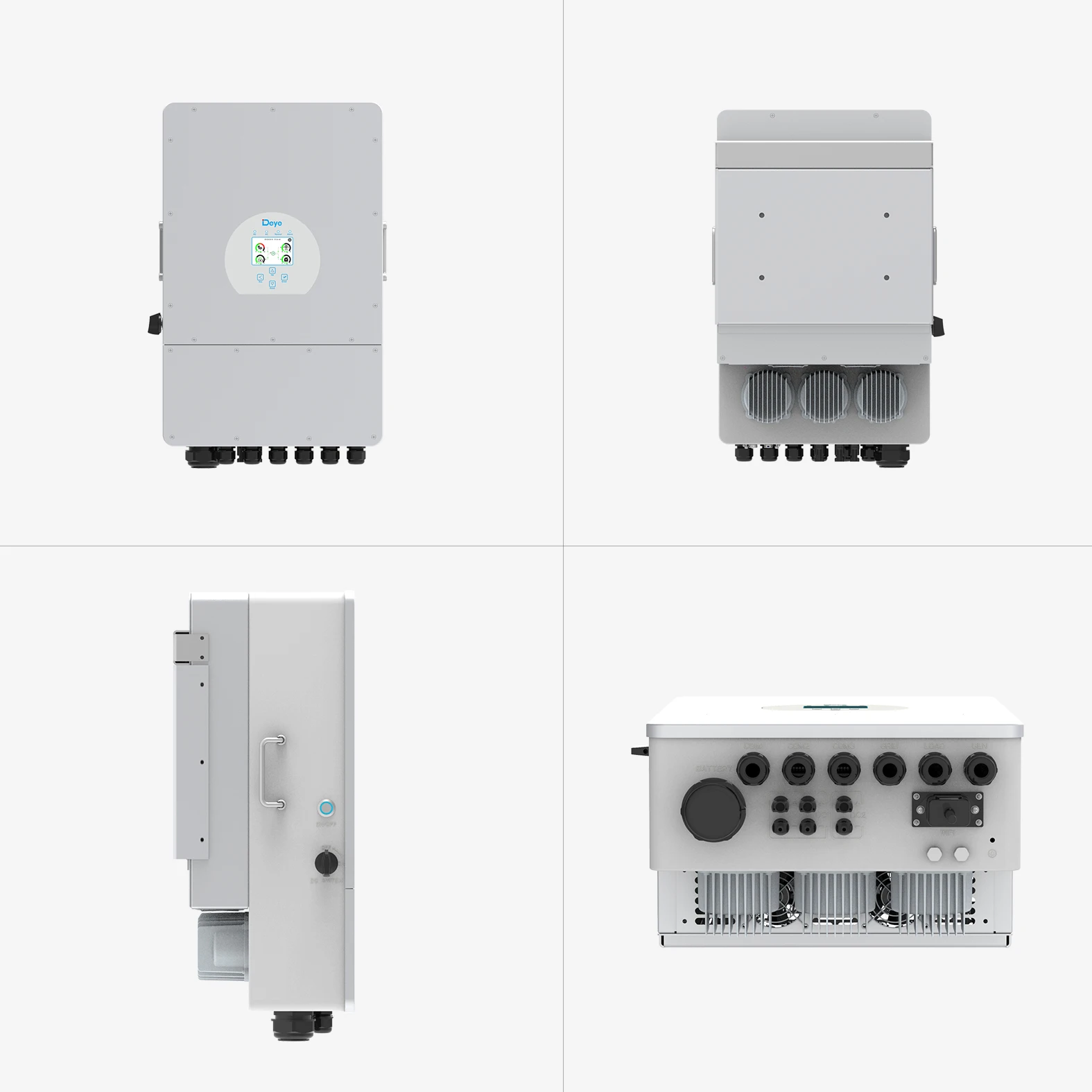

Product Details
Technical Specifications
Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU | ||||
Battery Input Data | |||||||||
Battery Type | Lead-acid or Lithium-ion | ||||||||
Battery Voltage Range(V) | 40-60 | ||||||||
Max.Charging Current(A) | 120 | 150 | 190 | 210 | 240 | ||||
Max.Discharging Current(A) | 120 | 150 | 190 | 210 | 240 | ||||
Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||||||
Number of battery input | 1 | ||||||||
PV String Input Data | |||||||||
Max DC Input Power (W) | 6500 | 7800 | 10400 | 13000 | 15600 | ||||
Max DC Input Voltage (V) | 800 | ||||||||
Start-up Voltage (V) | 160 | ||||||||
MPPT Voltage Range (V) | 200-650 | ||||||||
Rated DC Input Voltage(V) | 550 | ||||||||
Max. Operating PV Input Current (A) | 13+13 | 26+13 | |||||||
Max. Input Short-Circuit Current (A) | 17+17 | 34+17 | |||||||
No.of MPP Trackers/No.of String PerMPP Tracker | 2/1+1 | 2/2+1 | |||||||
AC Input/Output Data | |||||||||
Rated AC Input/Output Active Power(W) | 5000 | 6000 | 8000 | 10000 | 12000 | ||||
Max AC Input/Output Apparent Power(VA) | 5500 | 6600 | 8800 | 11000 | 13200 | ||||
Peak Power (off-grid) (W) | 2 times of rated power, 10s | ||||||||
Rated AC Input/Output Current (A) | 7.6/7.2 | 9.1/8.7 | 12.1/11.615 | 15.2/14.5 | 18.2/17.4 | ||||
Max AC Input/output Current (A) | 8.4/8 | 10/9.6 | 13.4/12.8 | 16.7/15.9 | 20/19.1 | ||||
Max. Three-phase Unbalanced OutputCurrent (A) | 11.4/10.9 | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 | ||||
Max Continuous AC Passthrough grid to load) (A) | 45 | ||||||||
Rated Input/Output Voltage/Range(V) | 220/380V,230/400V 0.85Un-1.1Un | ||||||||
Grid Connection Form | 3L+N+PE | ||||||||
Rated Input/Output Grid Frequency/Range | 50/45-55, 60/55-65 | ||||||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||||||
Total Current Harmonic Distortion THDi | < 3% (of nominal power) | ||||||||
DC Injection Current | <0.5%In | ||||||||
General Data | |||||||||
Operating Temperature Rang | -40 to +60*C, >45*C Derating | ||||||||
Permissible Ambient Humidity | 0-100% | ||||||||
Permissible Altitude | 2000m | ||||||||
Noise | ≤55 dB(A) | ||||||||
Ingress Protection(IP) Rating | IP 65 | ||||||||
Inverter Topology | Non-lsolated | ||||||||
Over Voltage Category | OVC II(DC).OVC I(AC) | ||||||||
Cabinet size (W*H*D) [mm] | 422x658x254 (Excluding connectors and brackets) | ||||||||
Weight[kg] | 38 | ||||||||
Warranty | 5Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More InfoPlease Refer to Warranty Policy | ||||||||
Type Of Cooling | Intelligent air cooling | ||||||||
Grid Regulation | IEC 61727,IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||||||||
Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||||
System Architecture
You May Like

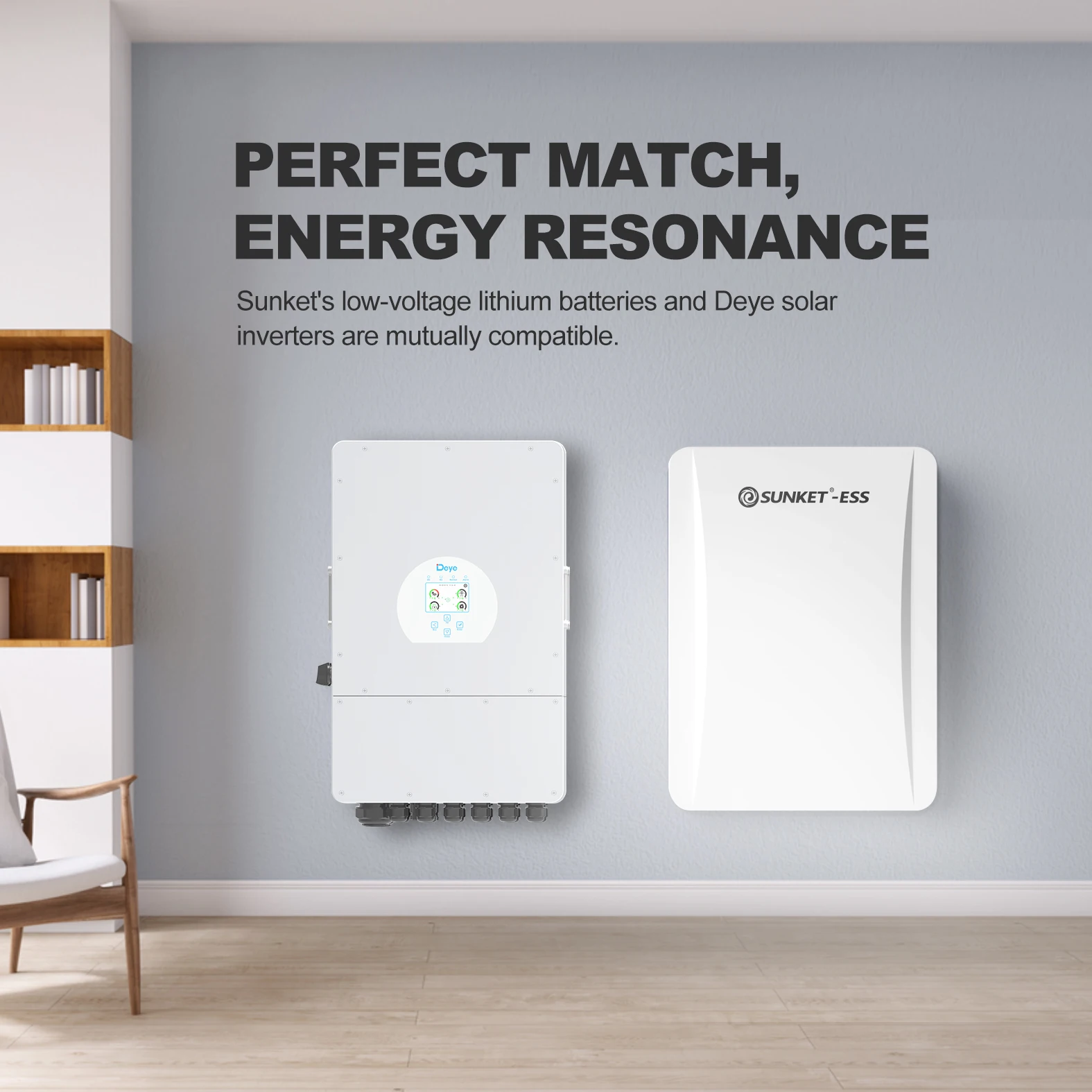

Sunket low-voltage batteries are compatible with DEYE inverters and are licensed under the DEYE brand.
Sunket Lithium Battery with compactdesign, convenient setting buttons, andready-to-install cables and accessories. And Sunket
lifepo4 battery can be installed in parallel with a combiner box to provide protection, and its integrated BMS communication
protection is perfectly suited for hybrid and off-grid inverters!
LFP 9-30kWh/HV
The LFP 9-30kWh/HV home battery is modular in 2.88 kWh increments, providing a capacity range of 8.64kWh-28.8kWh per stack. This
also allows for easy servicing and future expansion. With continuous output at up to 14.4kW, true full-home backup is here. It is
compatible with various inverters.
Hybrid Solar Energy System Also Named On&Off Grid Solar Energy System. It has the feature and function of both on grid and off
grid solar energy system. If you have a set of hybrid solar energy system, you could use electricity from solar panel in the
daytime when sun is good, you could use electricity stored in battery bank in the evening or on rainy days.
Packing&Delivery
About The Factory
Contact Us
Похожие товары
В наличии горячая Распродажа 5 кВт 6 8 10 20 30 50 SUN-12K-SG02LP1-EU-AM3 Гибридный инвертор Deye 12
215 088,43 ₽ - 220 634,80 ₽

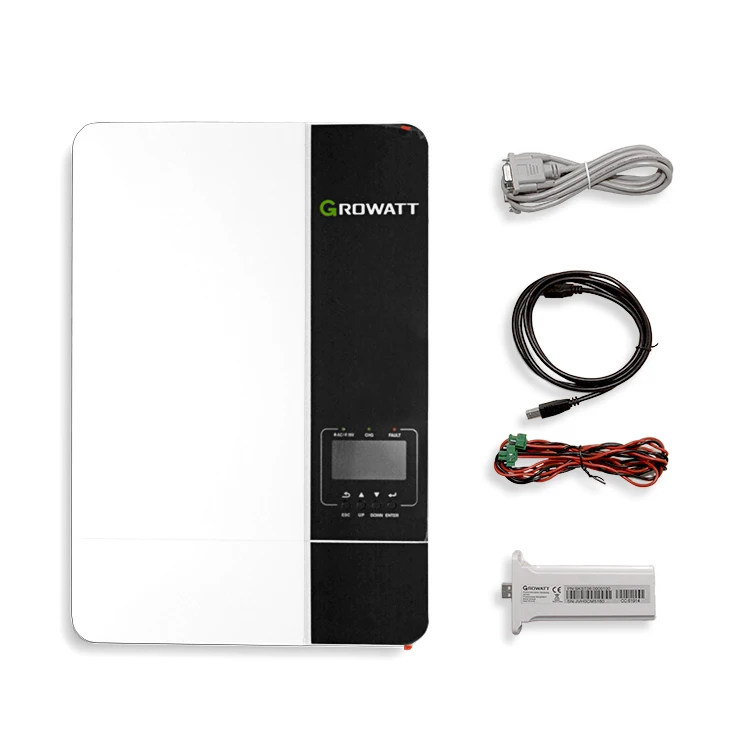

Домашний PV-накопитель 3 кВт 5 6 10 12 15 инвертор RS485 гибридный Growatt SPF 3500 5000 6000 ES
