Литий-ионный аккумулятор мощностью 5 кВт
499,00-549,00 $
48 В Вольт 560Ah 600Ah 640Ah 680Ah вилочный погрузчик глубокий цикл 51 2 LiFePO4 литий ионный аккумулятор для электрического погрузчика с BMS
- Категория: >>>
- Поставщик: Shenzhen Yichen S-Power Tech Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601229957878:
Описание и отзывы
Характеристики
Products Description
48V 48 Volt 560Ah 600Ah 640Ah 680Ah Forklift Deep Cycle 51.2V LiFePO4 Lithium Ion Battery for Electric Forklift with BMS
1. Can charge and discharge cycle more than 4500 times, lithium battery,；
2. Fast charging ability;
3. Good safety, good resistance to overcharge, overdischarge, acupuncture, extrusion, collision are not fire, explosion;
4. High-energy cells ensure that large amount of electric energy can be stored for longer distances;
5. Superior cycle:recharged repeatedly without any loss performance;
6. Shape & capacity : customized;
7. Extremely temperature performance: discharge rate up to 85% at -20℃;
8. Communication protocal: RS485/232/CAN/BMS system;
9. Stable safety performance;
A.) Design security: specific chemical and unique structure system to ensure the cell complete effective heat release without overheating;
B.) Production safety: advanced automatic pro-production line ensure product consistency and eliminate safety hazards.

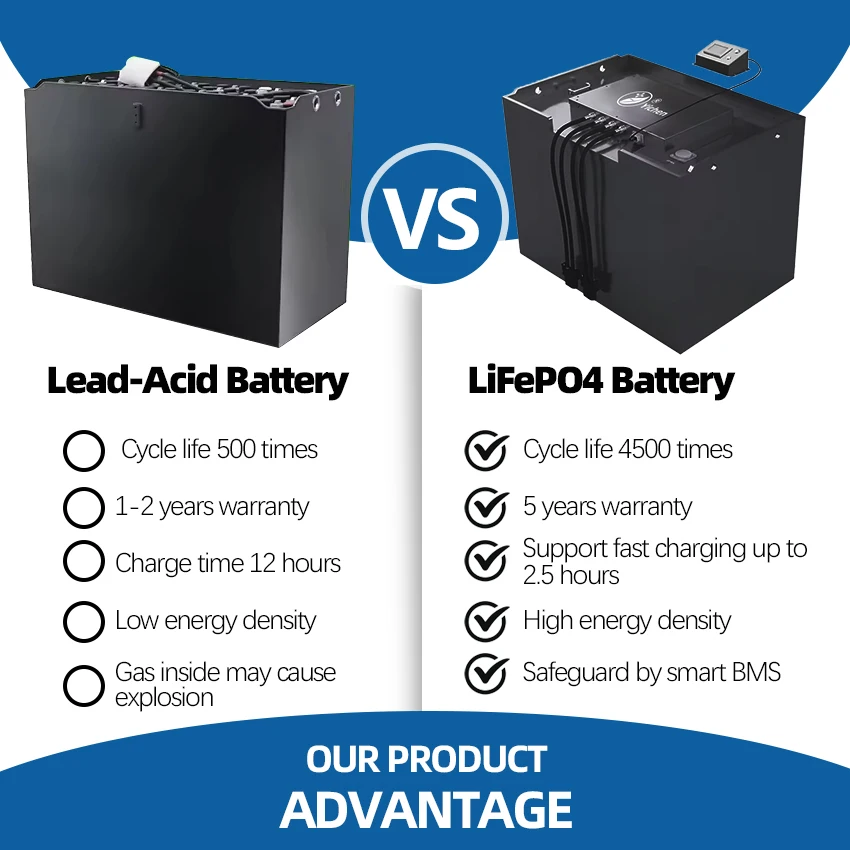

It is the best replacement of the Lead Acid Battery
This battery is designed for electric forklift. 48V 560Ah LiFePO4 Lithium Battery has 10-15 years serve life and more than 4500 cycles usually. We also accept to customize Li-ion battery according to clients’ requirements.
This battery is designed for electric forklift. 48V 560Ah LiFePO4 Lithium Battery has 10-15 years serve life and more than 4500 cycles usually. We also accept to customize Li-ion battery according to clients’ requirements.
1. Model Number: YCST-48560-P
2. Nominal Capacity: 560Ah
3. Nominal Voltage: 51.2V
4. MAX Discharge Current: 200A
5. MAX Charge Current: 200A
6. Dimension: customize
7. Weight: Around 275kg
8. Customization Support: Including voltage, capacity, current, size, appearance, etc.
8. Customization Support: Including voltage, capacity, current, size, appearance, etc.
Features
2. The long service life of 10~15 years;
3. Inbuilt BMS multiple security protection;
4. High-quality lithium iron phosphate batteries, safe and reliable;
5. More rechargeable time, longer lifetime, economic and environmental protection.
Product Paramenters
Electrical Characteristics | Nominal Voltage | 51.2 V |
Nominal capacity | 560Ah | |
Energy | 28.672 KWh | |
Internal Resistance | ≤ 10mΩ | |
Cycle life | ≥4500 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Cut-off Voltage | 58.4±0.2V |
Charge Mode | 0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV) | |
Standard Charge Current | 100A | |
Max. Charge Current | 200A | |
Charge Cut-off voltage | 58.4V±0.2V | |
Standard Discharge | Continuous Current | 200A |
Max. Pulse Current | 600A | |
Discharge Cut-off Voltage | 40V | |

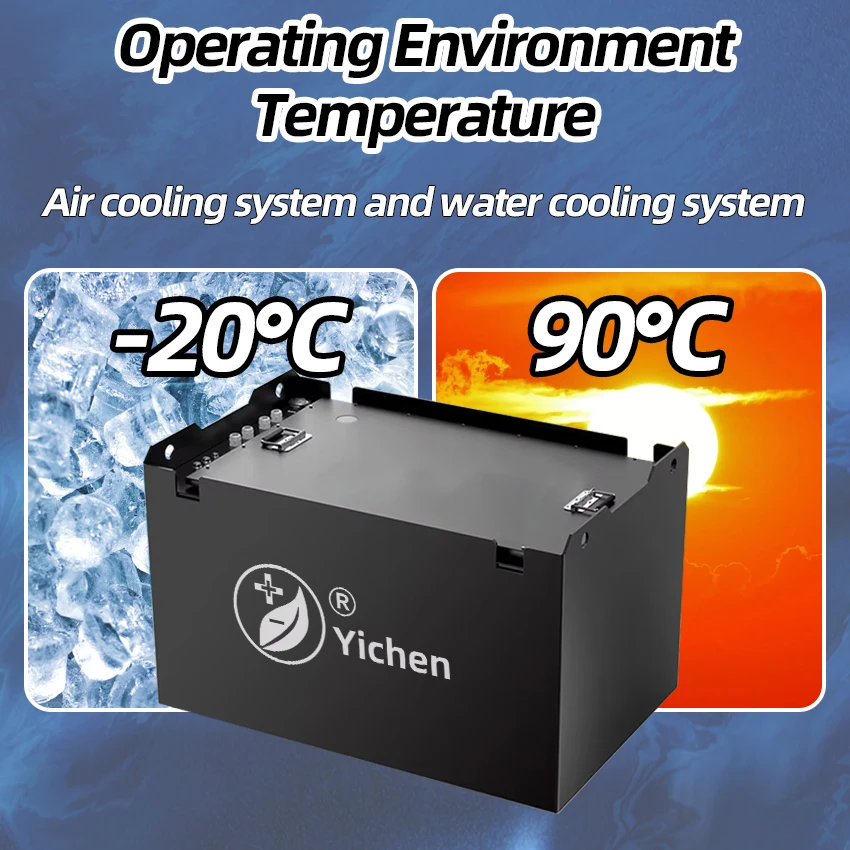

Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP65 | |
Plastic Case | Cold-roll steel sheets | |
Dimensions (mm) | Customize | |
Weight | 275 kg | |
Terminal | Optional | |
Function | Communication | Optional |
Color | Black/Customize |
Your Concerns
As a senior lithium battery manufacturer, we can be said to know the hearts of customers very well. When choosing the right energy storage system for oneself, your concerns may be:
* Too many models in the market make it hard to make a decision;
* Waiting for the installation all the time;
* Difficult to cope with the complex debugging process;
* Worry about the guarantee of the after-sales service;
* ...
Now, please feel free to leave your questions to me. We are professional.
We Can Solve for You and Your Customers
1. Best Quality We can Provide
Lithium Iron Phosphate Battery Cell
>> LiFePO4 is one of the most safe lithium-ion technology.This chemistry is not subject to thermal runaway, is non-flammable and
is considered as non-hazardous by international regulation standards;
>> Lithium batteries charge quickly – allowing you to maximize the potential solar power storage from each day of sunlight;
>> LiFePO4 delivers up more than 10 times longer cycle life than lead-acid. Which helps to minimize the battery replacement costs
of ownership.
is considered as non-hazardous by international regulation standards;
>> Lithium batteries charge quickly – allowing you to maximize the potential solar power storage from each day of sunlight;
>> LiFePO4 delivers up more than 10 times longer cycle life than lead-acid. Which helps to minimize the battery replacement costs
of ownership.
Battery Management System(BMS)
>> Features high and low voltage disconnect functions, avoiding the effects of common battery failures such as overcharge, over-discharge, overload, and short circuits on your device;
>> Supports high-temperature charging or discharging cut-off;
>> Balances each energy cell, ensuring YICHENLFP batteries perform better for longer.
>> Supports high-temperature charging or discharging cut-off;
>> Balances each energy cell, ensuring YICHENLFP batteries perform better for longer.
After-sale Service
YICHENLFP will provide the best technical support and service to customer as well as the best battery and solution. This means that anytime you have a question, concern or are troubleshooting, you’ll have timely access to solar experts that can help you.
You are able to use the Quality Guarantee to ask for a return or replacement if there is any quality problem. And we have engineers provide on-site debugging or remote telephone/ video guidance if there is any technical problem,.
Why Choose YichenLFP Battery?
Active equalization module
Certification support
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
About US
Shenzhen Yichen S-Power Tech Co., Ltd. founded in 2015, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. The founder has more than 12years experience with Lithium battery. We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery, LTO Battery and system, offer global technical support, Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products. Currently, we can support CANBUS / Bt App / Rs485 / Rs232 / solution, and developed battery self-heating and Self-cooling(Water cooling). Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power. These products are used on Solar, Home storage battery, UPS, AGV, RVcar, Telecom Base Station, Golf Trolley Cart, Fishing Boat, Car Start-Stop system battery.
The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
Our Workshop & equipment
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes, we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product, 2~5 days; For customized product, 3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system, Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity, high performance battery packs for 12v / 24v / 48v / 80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V / 460V / 614V Aircraft tractors, heavy truck, Mine train,110v / 220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes, welcome!
Q5: What is the lead time for the mass order?
Generally speaking, about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal, Western union, Escrow; and Mass order by T/T.
Q7: What kind of certificate can offer?
CE, RoHS, UN38.3, MSDS, etc, If need IEC-62133, PSE and others, please consult with us.
Похожие товары

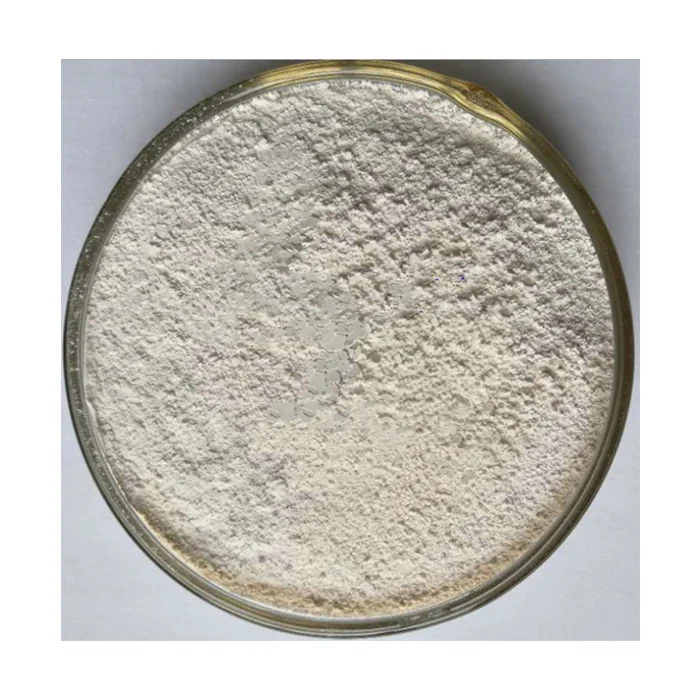

99.99% LLZO порошок как литиевые батареи Твердый электролит твердый Li7La3Zr2O12
3 000,00-3 500,00 $
LiFePO4 48 В 100 А · ч 5 кВтч
789,00-1 149,00 $
Литий-ионный аккумулятор zhejiang tianhong co. Литиевая батарея для солнечной системы 72 в 20 Ач
560,00-620,00 $
Оптовый заказ 12 8 V 100Ah LiFePO4 пакеты морской запускная батарея литий-ионные аккумуляторы для кемпинга на открытом воздухе
140,00-150,00 $

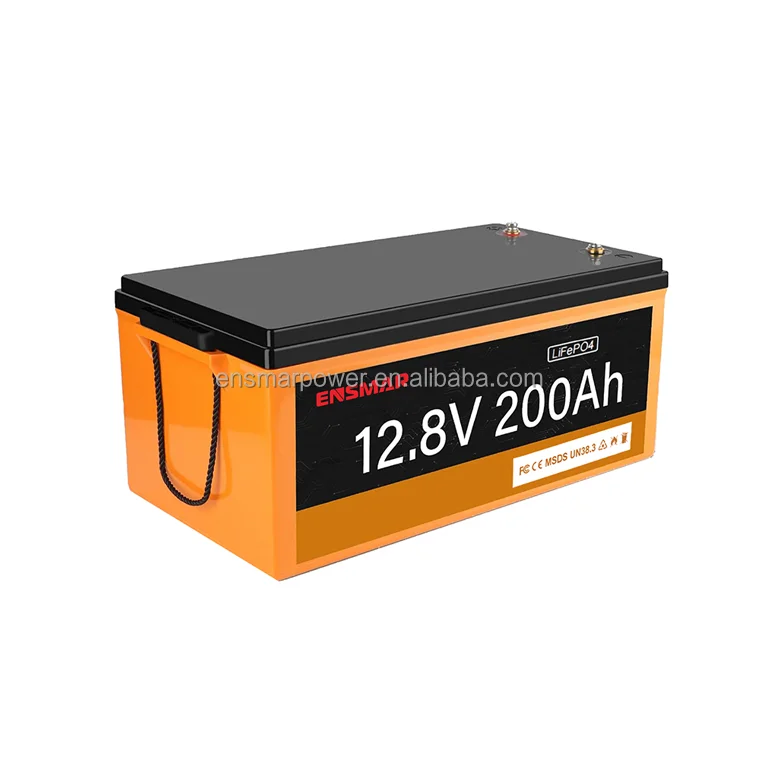

Ensmar купить 300 А/х батарея для отдыха 12 В литий-ионная Солнечная энергетическая система с аккумулятором камбодия
60280 3 2 V 55ah цилиндрическая батарея литий-ионная lifepo4
15,00-18,00 $

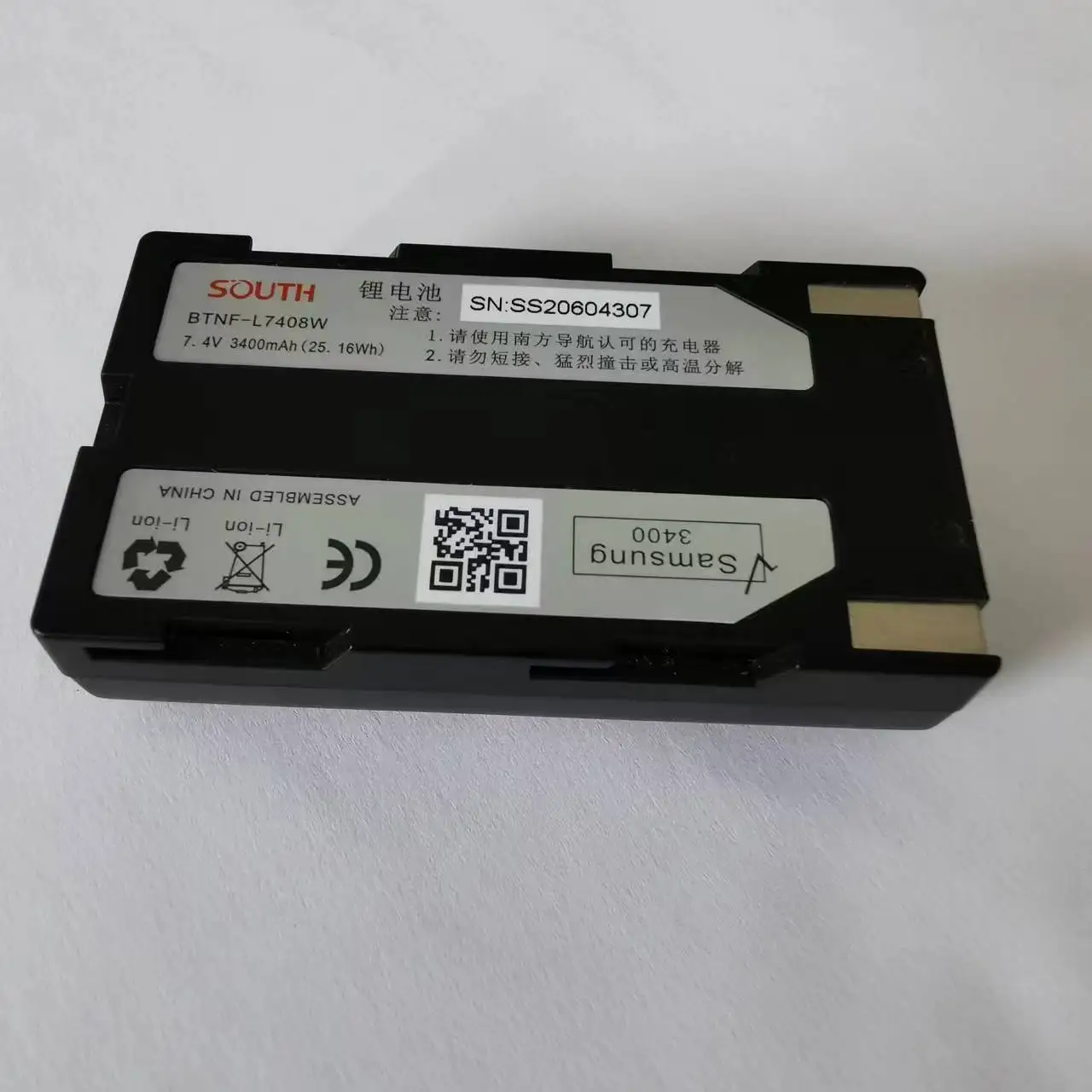

Литий-ионный аккумулятор BTNF-L7408W 7 4 В 3400 мАч для южной части 9600 S82 серии GPS S82-T GNSS
