Products Description
Fullcryo VPSA Oxygen Production Technology and Application

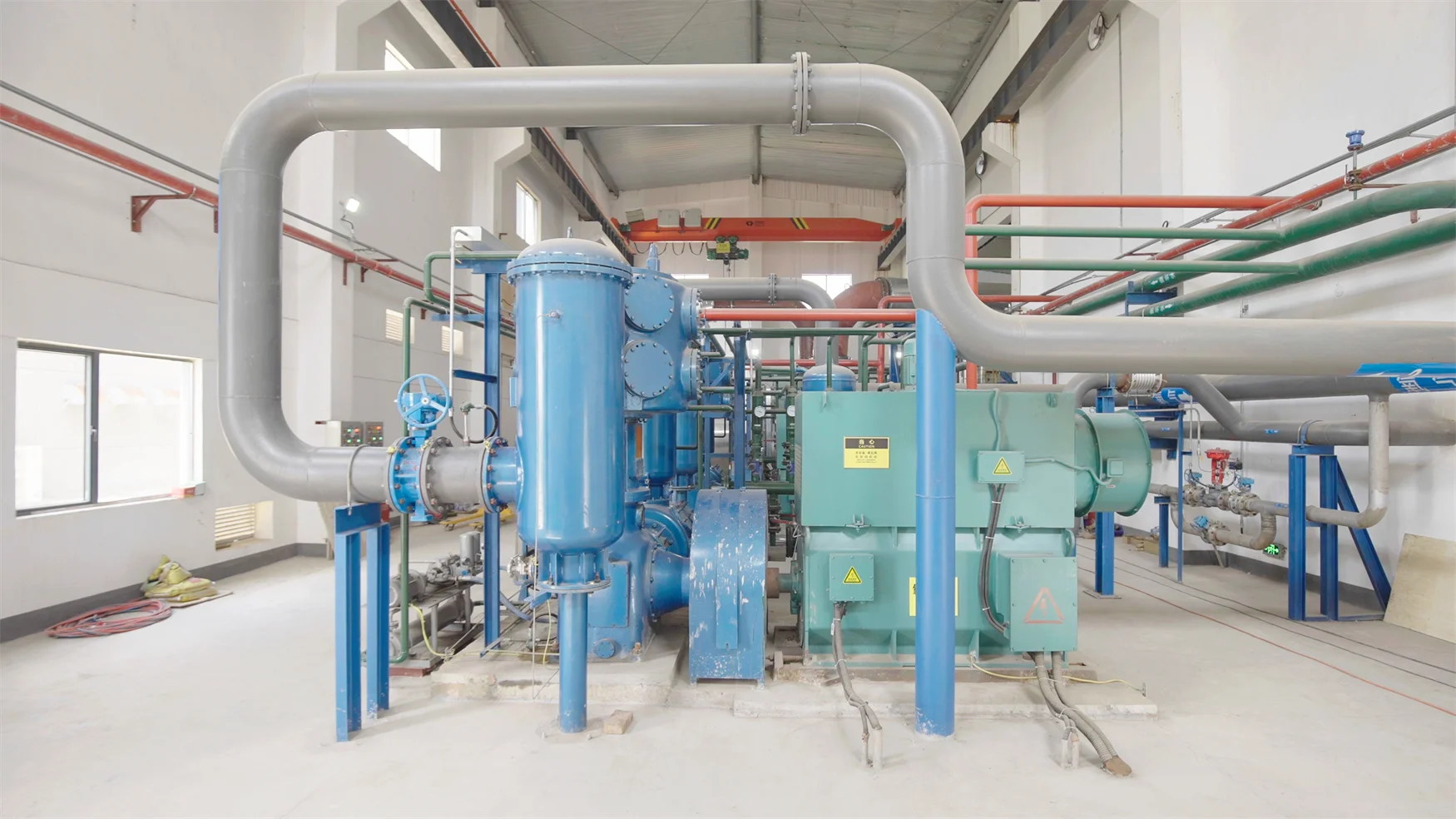

Fullcryo has developed a VPSA process flow suitable for high-speed centrifugal blowers, applying the technology of high-speed direct-connected centrifugal blowers to VPSA oxygen production equipment, reducing equipment wear and effectively extending equipment life.
Fullcryo's VPSA oxygen production equipment is an energy-saving and environmentally friendly product. Compared to traditional technologies, the blower and vacuum pump can save energy by 8-12%, with low noise and intelligent control, reducing the overall cost of equipment oxygen production.

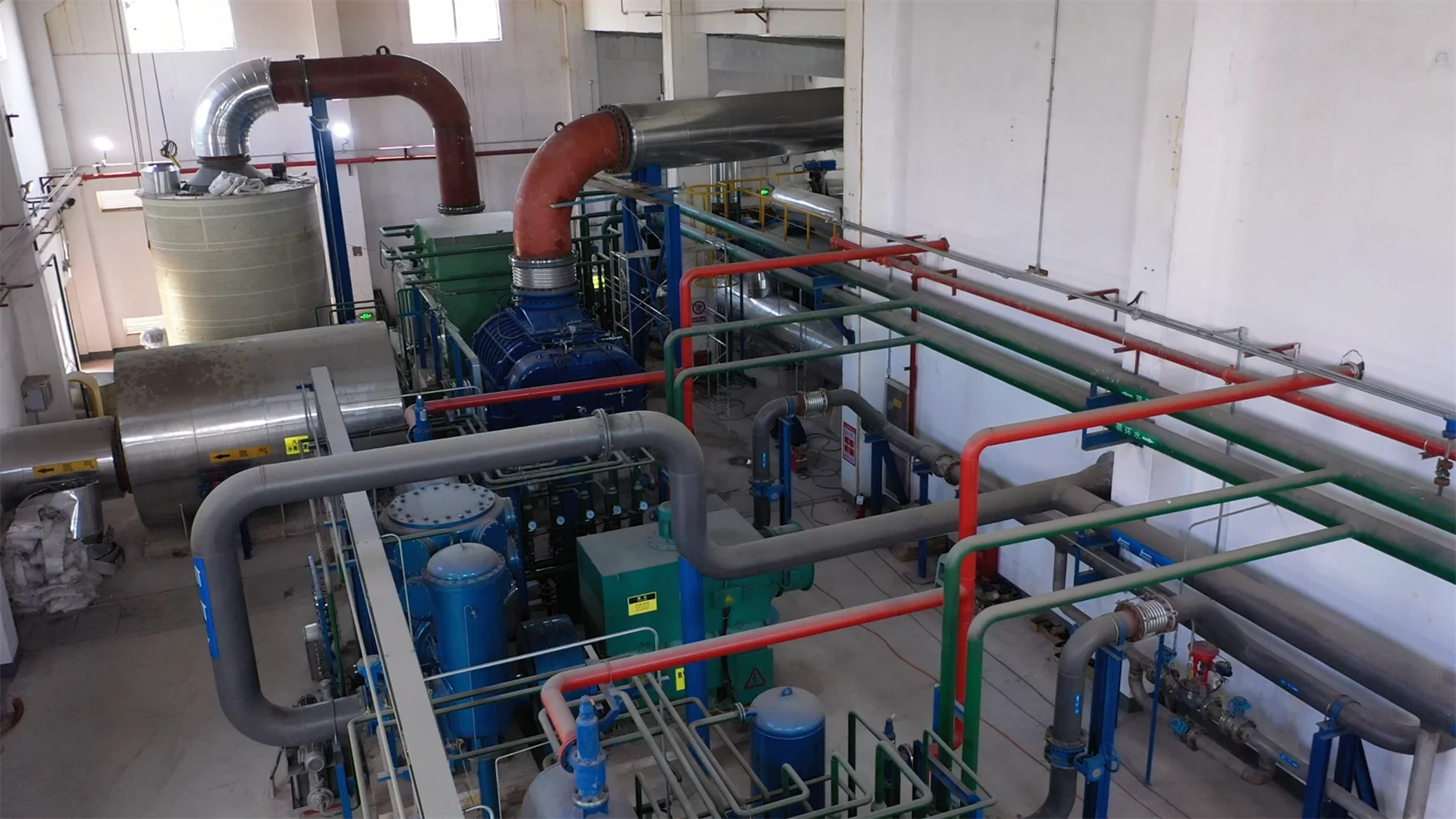

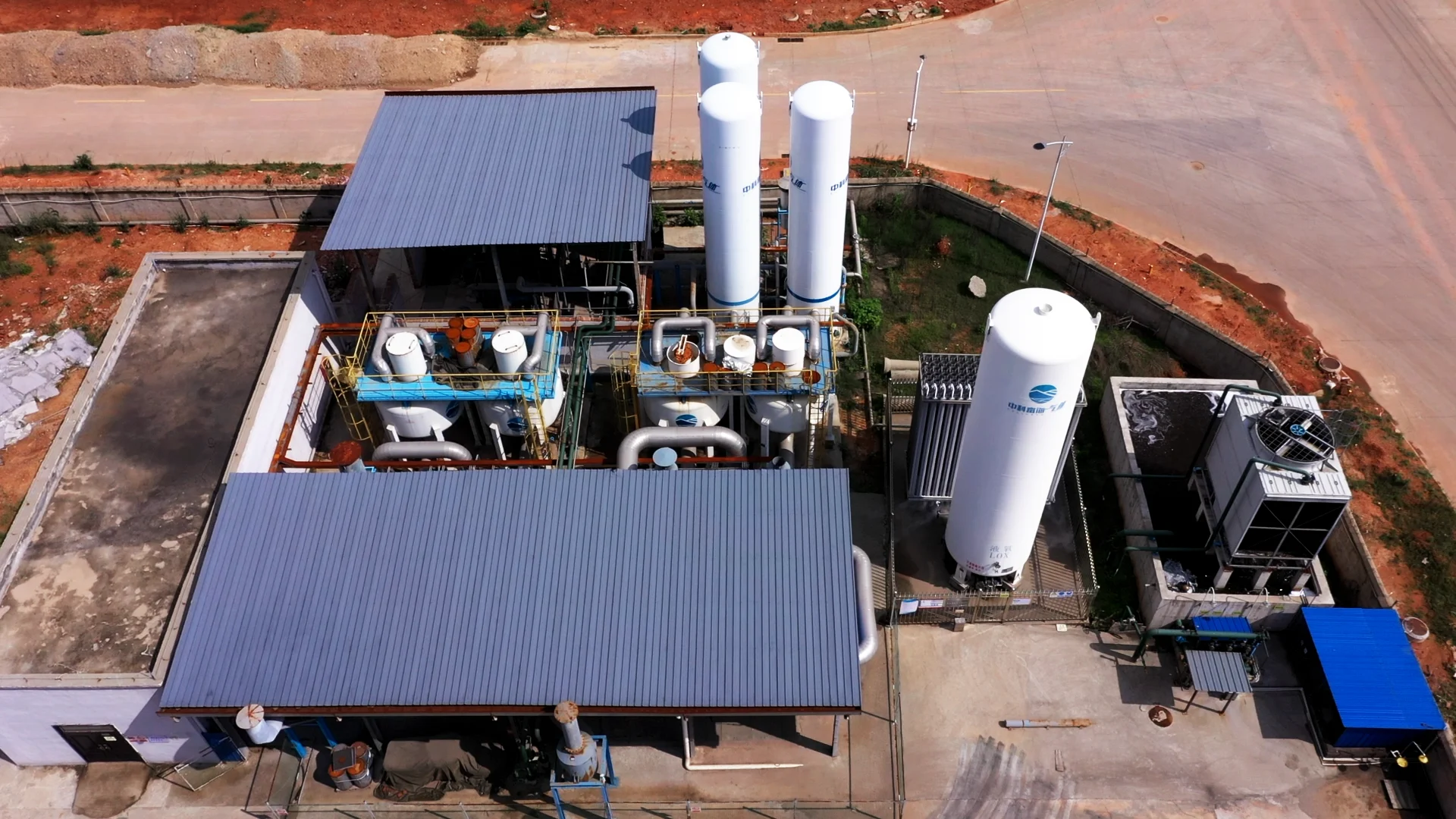

The brief process flow of VPSA oxygen production technology
◆Low-pressure raw air is transported by a blower, and after dust removal through purification, it enters the VPSA system's molecular sieve adsorption tower for separation.
◆The adsorption tower is a two-tower or three-tower system that uses specific molecular sieves to adsorb nitrogen, carbon dioxide,and water vapor, while oxygen is collected in a buffer vessel.
◆Once the adsorption of nitrogen, carbon dioxide, water vapor, and other components in the air reaches a set control value, the adsorbent in the tower is thoroughly desorbed and regenerated through pressure reduction and vacuum pumping to a certain vacuum level.
◆Under the control of an automatic control system such as PLC or DCS, the program automatically controls valve circulation to complete continuous oxygen production.
The VPSA oxygen production process features low oxygen cost, low equipment operation cost, high degree of automation, small footprint,and convenient start-stop operation.
Product Paramenters
MODEL | FHOX-1000~FHOX-15000 |
OXYGEN FLOW | 1000Nm³/h~15000Nm³/h |
OXYGEN PURITY | 80%~95%(adjustable) |
OXYGEN OUTLET PRESSURE | Customized |
DEVICE START-UP TIME | ≤20min |
CONTINUOUS OPERATION CYCLE | ≥2 years |
LOAD ADJUSTMENT RANGE | 30%~100% |
ADSORBENT SERVICE LIFE | ≥10 years |
Company Profile
Beijing Sinoscience Fullcryo Technology Co.,Ltd. was established in 2016 in Beijing, with a registered capital of 45 million USD and a plant area of more than 33000m2 in Guangdong province. Fullcryo is a state-owned enterprise and licenser controlled by the Technical Institute of Physics and Chemistry，Chinese Academy
of Science.
Fullcryo specializes in the R&D and manufacturing of large-scale cryogenic equipment with working temperature below 20K to satisfy the requirements of various large-scale scientific facilities. At present, Fullcryo has 23 holding subsidiaries, including headquarters, engineering and manufacturing facilities, gas sales and project management companies. Our aim is to become a global leading manufacturer of cryogenic equipment and a pioneer of gas processing technological solutions.
of Science.
Fullcryo specializes in the R&D and manufacturing of large-scale cryogenic equipment with working temperature below 20K to satisfy the requirements of various large-scale scientific facilities. At present, Fullcryo has 23 holding subsidiaries, including headquarters, engineering and manufacturing facilities, gas sales and project management companies. Our aim is to become a global leading manufacturer of cryogenic equipment and a pioneer of gas processing technological solutions.
With its core competence of scientific achievement in super-cryogenics, from -100℃ down to -269℃, Fullcryo has become a leading company in turnkey engineering and professional manufacturing business. Our main technical applications and business scope include:Helium Extraction From Natural Gas & LNG，Helium & Hydrogen Liquefier，Helium Refrigerator，Cryogenic Air Separation Unit(Oxygen/Nitrogen/Argon)，Rare Gas Extraction & Rectification Unit (Krypton-Xenon)，Vacuum Nitrogen Generator，PSA/VPSA Generator，as well as Cryogenic Storage and Transportation with ISO, CE and ASME certification.Fullcryo is the world's third corporation with full intellectual property right on large-scale super-cryogenic engineering .
Fullcryo are committed to delivering high-level product services to world class standards.
Certifications
Our Advantages
1. Stable and reliable, ensuring safety.
Fullcryo strictly follows the <<GB50030 Oxygen Plant Design Specifications>> or ASME standard to design and construct oxygen stations.
2. High reliability. Based on the RCM (Reliability-Centered Maintenance) strategy, Fullcryo combines project construction and operational experience to manage the entire process from equipment installation to production operation. Utilizing FMEA (Failure Mode and Effects Analysis) and historical fault data analysis, it carries out preventive and predictive maintenance of equipment.
3. Highly automated control and remote monitoring. Fullcryo's VPSA device can be automatically operated through PLC and configuration systems, with reliability sufficient to support unmanned operation at the operating site. Remote monitoring software is used to achieve remote monitoring and operation of the device, ensuring equipment reliability.
Fullcryo strictly follows the <<GB50030 Oxygen Plant Design Specifications>> or ASME standard to design and construct oxygen stations.
2. High reliability. Based on the RCM (Reliability-Centered Maintenance) strategy, Fullcryo combines project construction and operational experience to manage the entire process from equipment installation to production operation. Utilizing FMEA (Failure Mode and Effects Analysis) and historical fault data analysis, it carries out preventive and predictive maintenance of equipment.
3. Highly automated control and remote monitoring. Fullcryo's VPSA device can be automatically operated through PLC and configuration systems, with reliability sufficient to support unmanned operation at the operating site. Remote monitoring software is used to achieve remote monitoring and operation of the device, ensuring equipment reliability.
4. Liquid backup system supply. For customers who require uninterrupted oxygen supply around the clock, Fullcryo typically equips them with a liquid oxygen backup system to ensure 100% oxygen supply.
5. Mature design. Fullcryo has a professional product technology R&D team, with nearly 50% holding master's or doctoral degrees. The VPSA process used by Fullcryo employs LiSX type molecular sieves (lithium-based molecular sieves), with vacuum pumps configured for regeneration use.
6. High-level project execution capability. The Fullcryo's VPSA team possesses extensive experience in the design, construction, and operation and maintenance of oxygen stations.
5. Mature design. Fullcryo has a professional product technology R&D team, with nearly 50% holding master's or doctoral degrees. The VPSA process used by Fullcryo employs LiSX type molecular sieves (lithium-based molecular sieves), with vacuum pumps configured for regeneration use.
6. High-level project execution capability. The Fullcryo's VPSA team possesses extensive experience in the design, construction, and operation and maintenance of oxygen stations.
Exhibition
FAQ
Q1. What is your main product ?
A1: Oxygen gas plant
Q2. What is your terms of payment?
A2: T/T 30% as deposit, 30% in the middle of manufacturing period，and balance before delivery./To be negotiated.
Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, etc.
Q4: How to get a prompt quotation?
A1: Oxygen gas plant
Q2. What is your terms of payment?
A2: T/T 30% as deposit, 30% in the middle of manufacturing period，and balance before delivery./To be negotiated.
Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF, etc.
Q4: How to get a prompt quotation?
A4:When you send us inquiry, please kindly tell us the below technical information.
1) O2 Production capacity: ____Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Local Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry:_____(industrial use or medical use,etc)
6) Altitude and atmospheric conditions:_____m
Q7: Can you please specifically describe your warranty terms?
A7: The warranty period shall be 12 months from the date of acceptance of the equipment or 18 months after the last batch of equipment is shipped(whichever comes first).
1) O2 Production capacity: ____Nm3/h
2) O2 Purity: ____%
3) O2 Discharge pressure: ____Bar
4) Local Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry:_____(industrial use or medical use,etc)
6) Altitude and atmospheric conditions:_____m
Q5:Standard requirements for special equipment execution?
A5: GB or ASME /Others
Q6: How do you pack the product before delivery?
A6: We packed in accordance with the export standards.
A5: GB or ASME /Others
Q6: How do you pack the product before delivery?
A6: We packed in accordance with the export standards.
Q7: Can you please specifically describe your warranty terms?
A7: The warranty period shall be 12 months from the date of acceptance of the equipment or 18 months after the last batch of equipment is shipped(whichever comes first).
Похожие товары

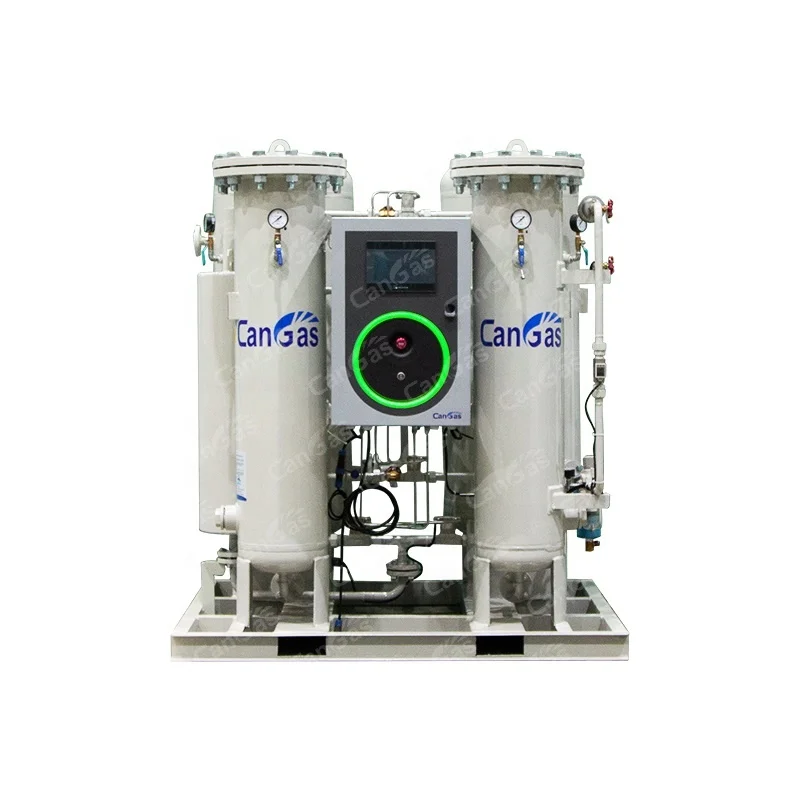

CANGAS дизайн, Китай, заводская цена продаж, генератор азота PSA для фармацевтических применений с бесплатным послепродажным обслуживанием

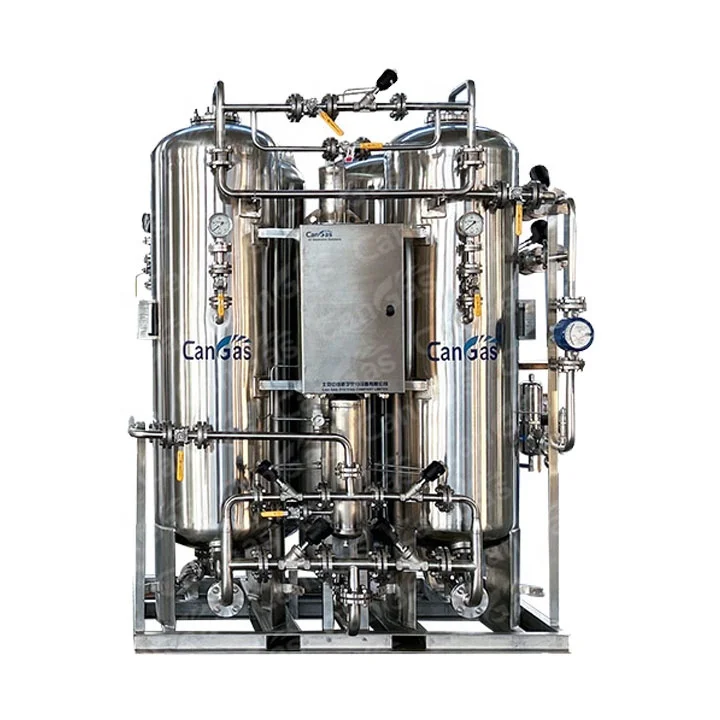

Генератор азота PSA в фармацевтическом производстве, производство Китай CANGAS, Заводская цена продажи с профессиональным послепродажным обслуживанием
2 160 016,00 ₽

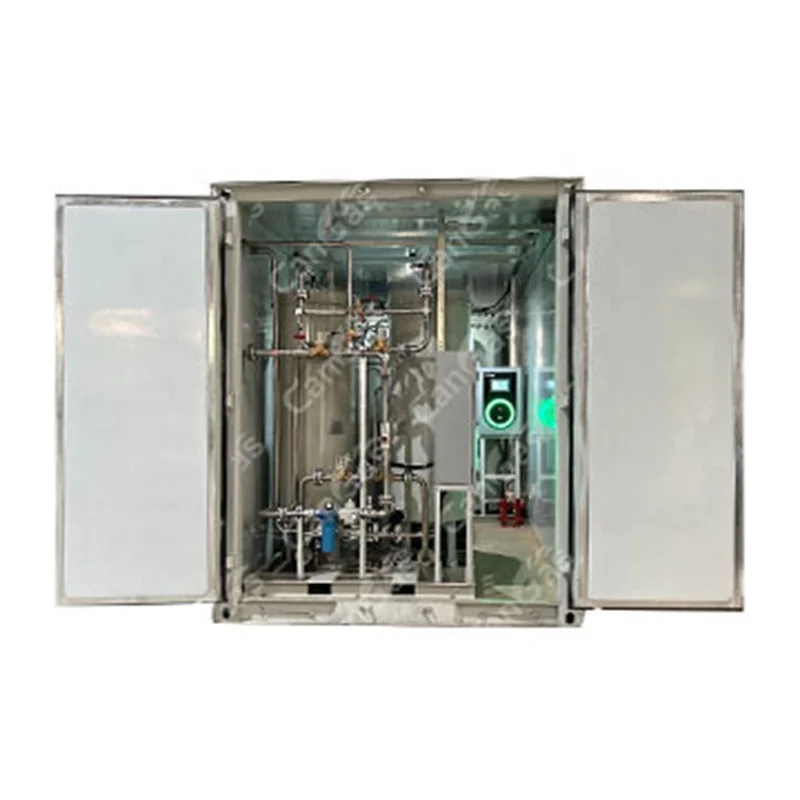

Системы генерации азота PSA высокой чистоты 99.999% азотный генератор для лазерной резки

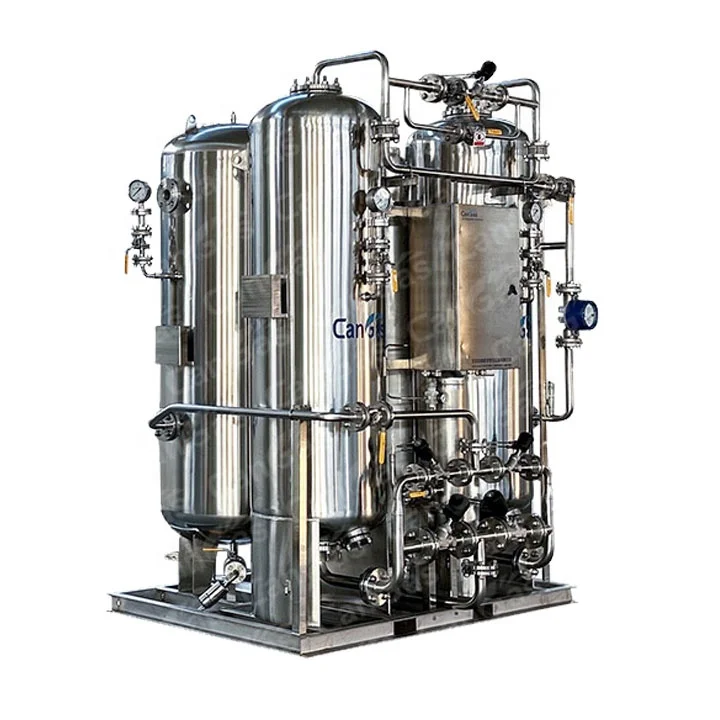

Китайский завод CANGAS 99.999% PSA генератор азота в фармацевтической промышленности применение низкая цена бесплатно после обслуживания CE & ISO
