Заводская цена, полностью автоматическая машина для вырубки гофрированного картона
10 573 984,40 ₽ - 11 652 962,40 ₽
Автоматическая гофрированная картонная коробка 2/3/4/5/6 видов цветов для принтера
- Категория: >>>
- Поставщик: Cangzhou Dession Packaging Machinery Co. Ltd.
Сохранить в закладки 1601230174706:
Описание и отзывы
Характеристики
model | 920 | 924 | 1224 | 1426 |
max speed (pcs/min) | 300 | 280 | 260 | 200 |
max cardboard size(mm) | 2200x900 | 2500x900 | 2500x1400 | 2700x1400 |
min cardboard size (mm) | 300x500 | 300x500 | 340x600 | 400x650 |
skip cardboard size (mm) | 2200x1100 | 2500x1100 | 2500x1400 | 2700x1600 |
min slot distance(mm) positive knife | 130x130x130x130 | 130x130x130x130 | 140x140x140x140 | 150x150x150x150 |
min slot distance(mm) negative knife | 230x65x230x65 | 230x65x230x65 | 240x70x240x70 | 240x75x240x75 |
max slot depth(mm) | 230 | 230 | 300 | 360 |
printing precision(mm) | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
slot precision(mm) | ±1 | ±1 | ±1 | ±1 |
die cutting precision(mm) | ±1 | ±1 | ±1 | ±1 |

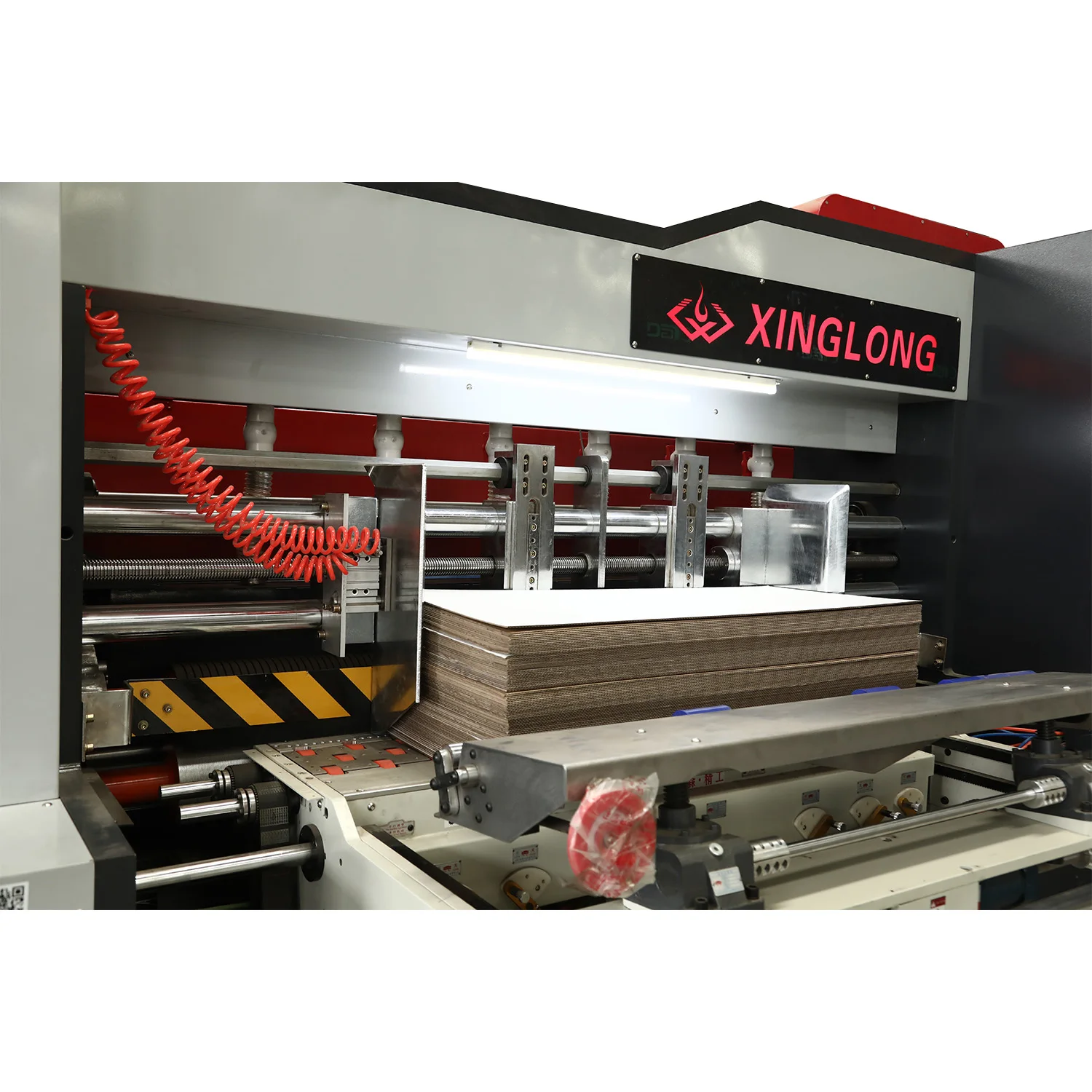

Paper feeding unit
◆The mechanical leading edge paper feeding system is high-speed and precise, with partition type adjustment of air volume to increase the stability and accuracy of cardboard conveying.
◆The paper feeding roller is wrapped with imported soft rubber, which is durable and durable.
◆Suction dust removal system, can remove a large number of cardboard surface dust, improve the printing quality.
◆The paper feeding roller is wrapped with imported soft rubber, which is durable and durable.
◆Suction dust removal system, can remove a large number of cardboard surface dust, improve the printing quality.
Printing Department
◆A new planetary gear phase adjustment system that combines computer control of printing phase, 360 ° electric motor adjustment of printing position, and computer digital setting. The minimum adjustment accuracy is 0.1mm and can be operated during machine operation, with automatic reset and greatly enhanced adjustment accuracy.
◆The rubber roller is made of imported high-quality raw materials, with medium to high special grinding processing, good ink transfer effect, and durability.
◆The rubber roller is made of imported high-quality raw materials, with medium to high special grinding processing, good ink transfer effect, and durability.

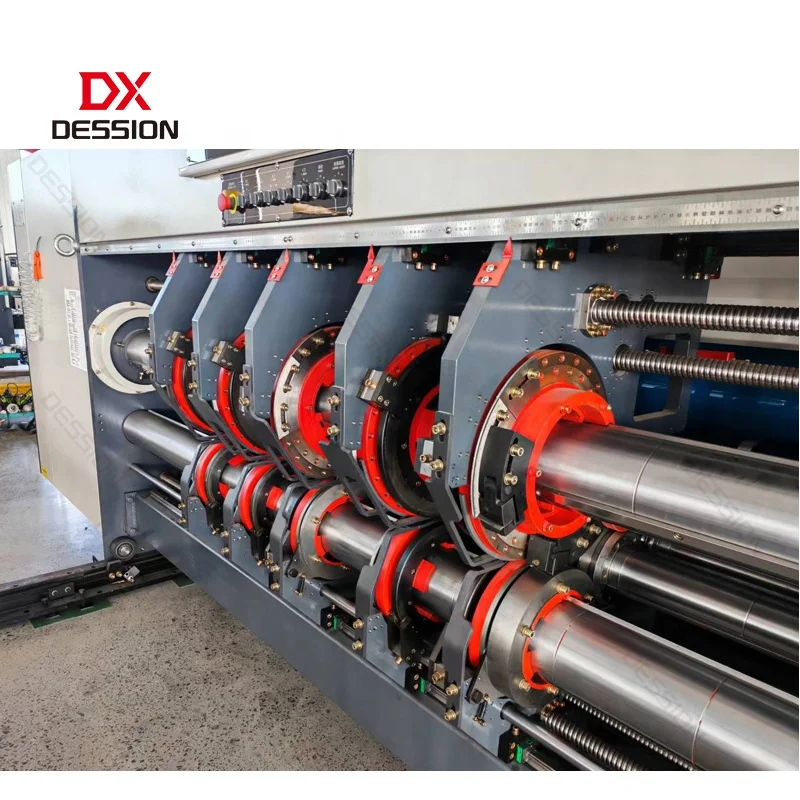

Slotting part
◆Slotting phase, box height, 360 ° electric motor adjustment and computer digital setting are used in the new planetary gear phase adjustment system. The minimum adjustment accuracy is 0.1mm. It can be adjusted during machine operation, automatically reset, and automatically lock and position.
◆Alloy steel material undergoes heat treatment and grinding of serrated slotted blades, providing excellent hardness and toughness.
◆Alloy steel material undergoes heat treatment and grinding of serrated slotted blades, providing excellent hardness and toughness.
Die cutting part
◆Equipped with imported quick change die cutting rubber pad, easy to replace, the service life of up to 8 million times, with one-way clutch for linear speed compensation function, can ensure that the felt sleeve wear out of the die cutting cardboard completely consistent.
◆In the work of rubber pad roller mechanical spiral automatic transverse movement (±20mm), so that the incision mark is not repeated, prolong the service life of rubber pad.
◆In the work of rubber pad roller mechanical spiral automatic transverse movement (±20mm), so that the incision mark is not repeated, prolong the service life of rubber pad.

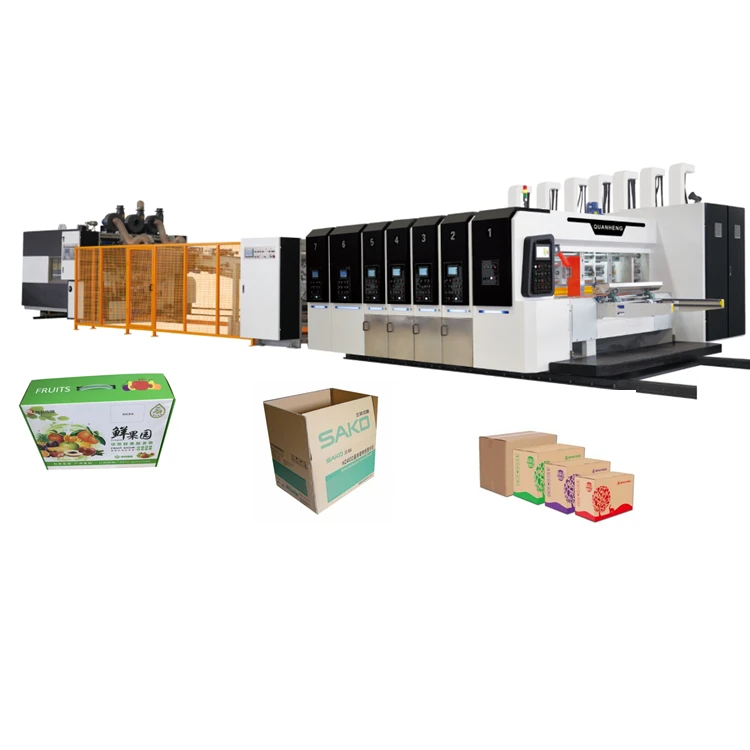

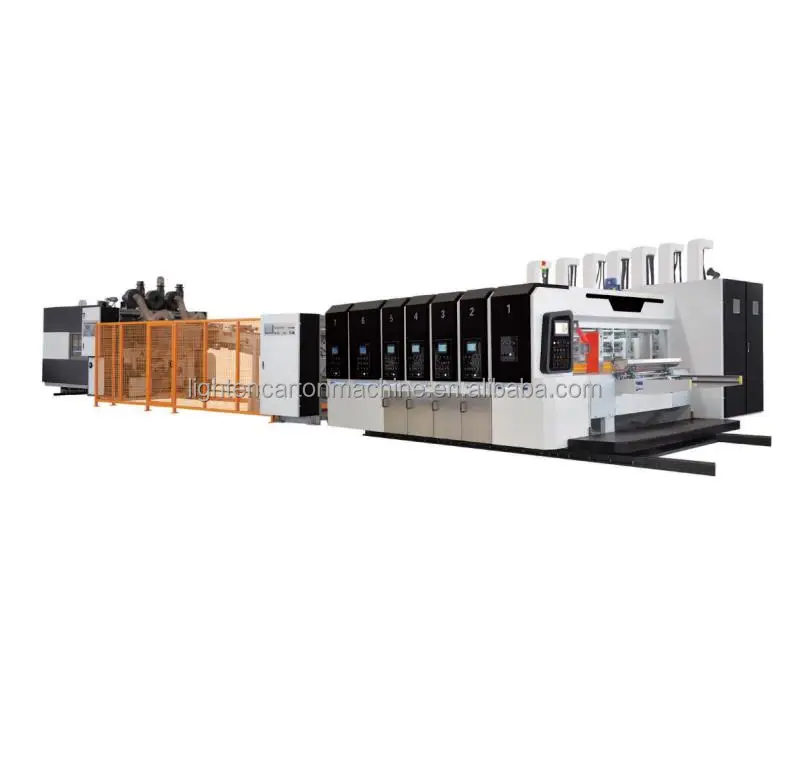

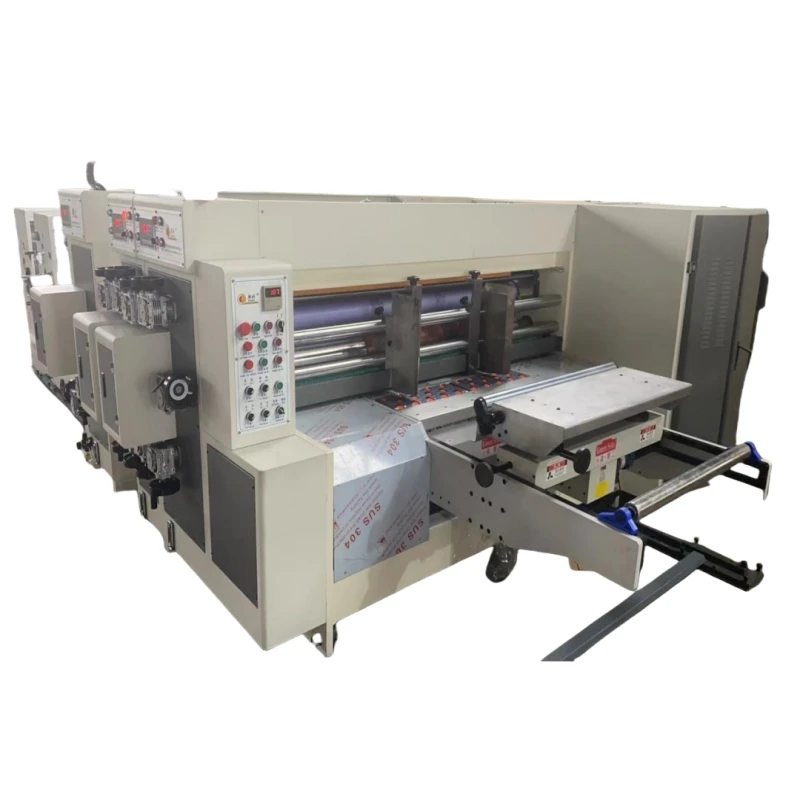

Automatic 2 3 4 5 colors corrugated board carton box flexo printing folder gluer printer slotter die cutter case making machine
This machine is an automatic carton production equipment which integrates the functions of paper feeding, printing, slotting, die cutting, folding, box sticking and bundling. The equipment not onlysaves labor, but also realize the working concept of high speed, high efficiency and low consumption.
The whole machines electrical appliances and equipment spare parts all adopt international famous brands with stable and reliable quality, and adopt man-machine interface, which is simple, efficient, economical and easy to operate.
The whole machines electrical appliances and equipment spare parts all adopt international famous brands with stable and reliable quality, and adopt man-machine interface, which is simple, efficient, economical and easy to operate.
Cangzhou Dession packaging machinery Co.ltd
our factory is a professional carton machinery manufacturer and export enterprises with more than 18 years experience for various carton box making equipment ,such automatic printing slotting die cutting machine ,3/5/7layer corrugated cardboard production line，folder gluer machine ,stitching machine and so on. We are specialized in equipment research, development, design, production, sales, installation and service. The products sold all over the world and got good reputation.
Excellent quality and honest management are our company philosophy. Our equipment has been exported to more than 50 countries and regions, such as Spain, Mexico, Britain,Czech Republic, Romania, Russia，India, Egypt, UAE, Brazil and so on, and has been unanimously recognized and trusted by customers. There are agents in more than 10 countries and have worked together for many years. Therefore, there is a guarantee in terms of equipment quality and after sales.
Excellent quality and honest management are our company philosophy. Our equipment has been exported to more than 50 countries and regions, such as Spain, Mexico, Britain,Czech Republic, Romania, Russia，India, Egypt, UAE, Brazil and so on, and has been unanimously recognized and trusted by customers. There are agents in more than 10 countries and have worked together for many years. Therefore, there is a guarantee in terms of equipment quality and after sales.
Q1.Are you a manufacturer or a trading company?
A: We are a manufacturer & trader , located in Dongguang county, Hebei province, China.Warmly welcome to visit our company.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the delivery time?
A: 20-60days after deposit. Different machines have different production cycles.
Q4. Can your company handle shipping for customers?
A: Yes, just give us destination port .we arrange for you .
Q5. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..
Q6. How about the machine installation and training ?
A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD00/per day.
Q7. Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
Q8. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.
Q9. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material
Q10. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.
Q11. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q12. How many years are you in carton machinery field?
A: Manufacturer of specialized carton machinery with 16 years of manufacturing experience.
Q13. How many clients do you have?
A: We have sold our machines to about 60 countries. Good integrity as well as product quality are acknowledged by the customer.
A: We are a manufacturer & trader , located in Dongguang county, Hebei province, China.Warmly welcome to visit our company.
Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.
Q3. What is the delivery time?
A: 20-60days after deposit. Different machines have different production cycles.
Q4. Can your company handle shipping for customers?
A: Yes, just give us destination port .we arrange for you .
Q5. Does the packing strong?
A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..
Q6. How about the machine installation and training ?
A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD00/per day.
Q7. Do you have machines in stock?
A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
Q8. How can you assure the machines’ quality?
A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.
Q9. Do you inspect machines or test running before packing?
A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material
Q10. What’s the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.
Q11. Do you accept factory visiting?
A: Warmly welcome for your visiting.
Q12. How many years are you in carton machinery field?
A: Manufacturer of specialized carton machinery with 16 years of manufacturing experience.
Q13. How many clients do you have?
A: We have sold our machines to about 60 countries. Good integrity as well as product quality are acknowledged by the customer.
