QBY3 15STFS HICHWAN 0 5 дюймов кислотно коррозионно стойкий полипропиленовый материал инженерный пластиковый диафрагмальный насос
- Категория: >>>
- Поставщик: Hichwan Pump (shandong) Co. Limited
Сохранить в закладки 1601230354554:
Описание и отзывы
Характеристики
Products Description

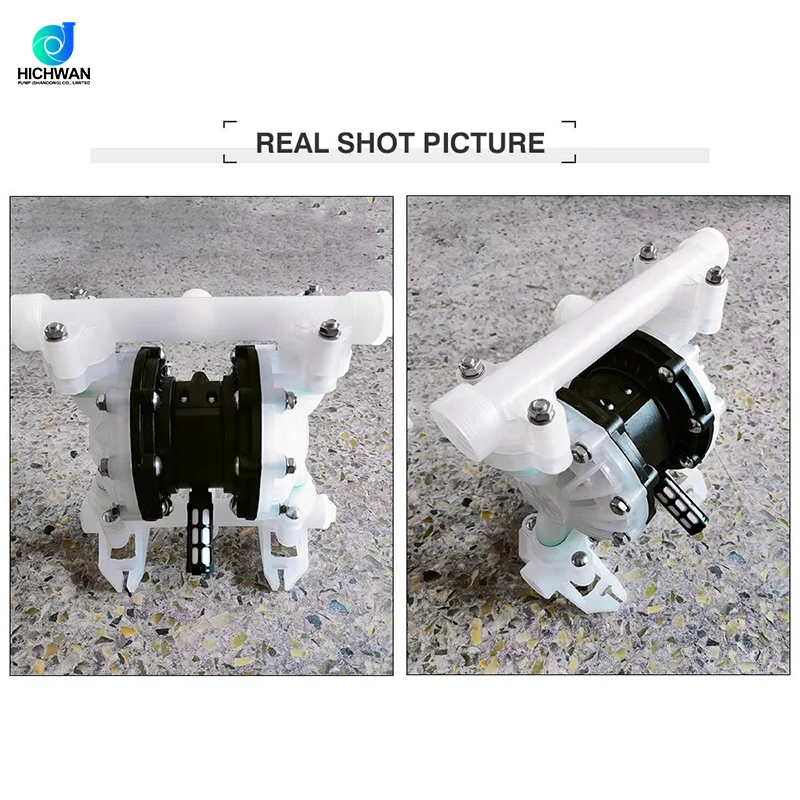

HICHWAN QBY3-15STFS 0.5 inch acid corrosion resistant PP material engineering plastic diaphragme pump
QBY3 GENERATION
The third-generation pneumatic diaphragm pump of QBY3 series uses compressed air asits power source.It is a positive displacement pump that changes the volume caused by the reciprocating deformation of the diaphragm.
SIX ADVANTAGES
Reliable quality, long service life, low noise, low vibration,no crash, and fine workmanship
FUNCTION
lt can not only pump flowing liquids, but also transport some difficult-to-flow media. lt has many advantages of conveying machinery suchas self-priming pumps, submersible pumps,canned pumps, mud pump and impurity pump.
The third-generation pneumatic diaphragm pump of QBY3 series uses compressed air asits power source.It is a positive displacement pump that changes the volume caused by the reciprocating deformation of the diaphragm.
SIX ADVANTAGES
Reliable quality, long service life, low noise, low vibration,no crash, and fine workmanship
FUNCTION
lt can not only pump flowing liquids, but also transport some difficult-to-flow media. lt has many advantages of conveying machinery suchas self-priming pumps, submersible pumps,canned pumps, mud pump and impurity pump.

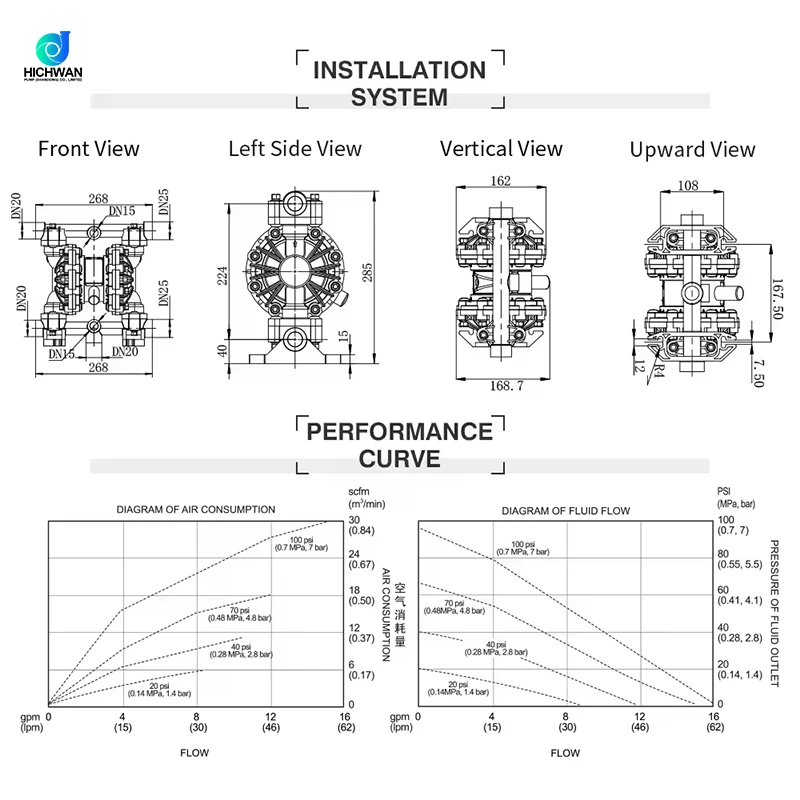

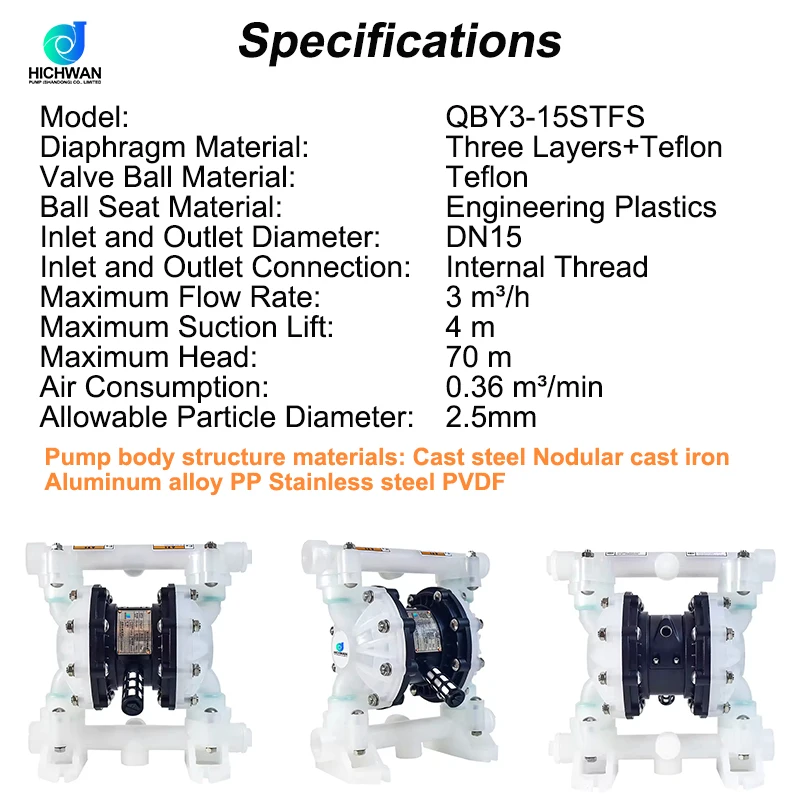

PARAMETERS
Model | QBY3-15STFS |
Diaphragm Material | Three Layers + Teflon |
Valve Ball Material | Teflon |
Ball Seat Material | Engineering Plastics |
Inlet and Outlet Diameter | DN15 |
Inlet and Outlet Connection | Internal Thread |
Maximum Flow Rate | 3 m³/h |
Maximum Suction Lift | 4 m |
Maximum Head | 70 m |
Air Consumption | 0.36 m³/min |
Allowable Particle Diameter | 2.5 mm |
Model
1.Diaphragm Model 2.Intake Port 3.Fluid Contact Parts 4.Diaphragm Materials 5. Valve Ball 6.Valve Seat
Fluid Contact Parts | ||||||||||||||
Cast steel | Nodular cast iron | Aluminum alloy | Engineering plastics | Stainless steel 304 | Stainless steel 316 | Stainlesssteel 316L | PVDF | |||||||
G | Q | L | S | P | P316 | P316L | F | |||||||
Diaphragm Materials | ||||||||
Butyronitrile | Santoprene | Polyether | Teflon | Super Teflon | ||||
D | A | M | T | N | ||||
EPDM | Santoprene +Teflon | Santoprene +Super Teflon | Polyether +Teflon | Polyether +Super Teflon | ||||
S | T | N | K | H | ||||
Valve Ball/Valve Seat | ||||||||||||
Butyronitrile | Santoprene | PTFE | Stainless steel 304 | Stainless steel 316 | Stainlesssteel 316L | Engineering plastics | ||||||
D | A | F | P | P316 | P316L | S | ||||||
Model | Max. flow ( L/min ) | Max. lift (m) | Max. suction height (m) | Outlet pressure (Kg) | Inlet/outlet diameter ( DN ) | Air inlet size (in ) | Particle diameter (mm ) |
QBY3/4-10 | 22 | 70 | 4.0 | 7 | 10 | 1/4 | 1.5 |
QBY3/4-15 | 22 | 70 | 4.0 | 7 | 15 | 1/4 | 1.5 |
QBY3-20 | 57 | 70 | 4.5 | 7 | 20 | 1/4 | 2.5 |
QBY3-25 | 57 | 70 | 4.5 | 7 | 25 | 1/4 | 2.5 |
QBY3-32 | 151 | 84 | 5.48 | 8.4 | 32 | 1/2 | 3.2 |
QBY3-40 | 151 | 84 | 5.48 | 8.4 | 40 | 1/2 | 3.2 |
QBY3-50 | 378.5 | 84 | 5.48 | 8.4 | 50 | 1/2 | 4.8 |
QBY3-65 | 378.5 | 84 | 5.48 | 8.4 | 65 | 1/2 | 4.8 |
QBY3-80 | 568 | 84 | 5.48 | 8.4 | 80 | 1/2 | 6.4 |
QBY3-100 | 568 | 84 | 5.48 | 8.4 | 100 | 1/2 | 6.4 |
QBY3-125 | 1041 | 84 | 5.48 | 8.4 | 125 | 3/4 | 9.4 |
BFQ-25 | 116 | 84 | 5.48 | 8.4 | 25 | 1/2 | 3.2 |
BFQ-40 | 378.5 | 84 | 5.48 | 8.4 | 40 | 1/2 | 4.8 |
BFQ-50 | 568 | 84 | 5.48 | 8.4 | 50 | 1/2 | 6.4 |
BFQ-80 | 1041 | 84 | 5.48 | 8.4 | 80 | 3/4 | 9.4 |
AIR COMPRESSOR SELECTION | ||||
Model | Air consumption ( m3/min ) | Air compressor power | ||
QBY4-10/15 | 0.18 | 2.2 | ||
QBY3-20/25 | 0.36 | 3 | ||
BFQ-25 | 0.67 | 5.5 | ||
QBY3-32/40 | 0.67 | 5.5 | ||
BFQ-40 | 0.9 | 7.5 | ||
QBY3-50/65 | 0.9 | 7.5 | ||
BFQ-50 | 1.5-2.0 | 11-15 | ||
QBY3-80/100 | 1.5-2.0 | 11-15 | ||
BFQ-80 | 3.0 | 18.5-22 | ||
QBY3-125 | 3.0 | 18.5-22 | ||
FILTER PRESS SELECTION | ||
Model | Filter press size (㎡) | |
BFQ-25 | 10-20 | |
QBY3-32/40 | 30-40 | |
BFQ-40 | 50-65 | |
QBY3-50/65 | 50-65 | |
BFQ-50 | 60-100 | |
QBY3-80/100 | 60-100 | |
BFQ-80 | 100-120 | |
QBY3-125 | 100-120 | |
Details Images
1.No need to guide water, the maxi-mum self-priming is 4.5 meters, the lift height is 70 meters
2.The inner wall of fluid contact parts is very smooth,the maxi-mum particle diameter allowed to pass is 1.5 mm. When pumping mud and impurities, there is little wear on the pump
3.The head and flow can be adjusted freely through the valve opening
5.There is no need to use electricity, and it is safe and reliable to use inflammable and explosive places
6.Easy to use, reliable in work, just simply open and close the air supply valve when starting and stopping.Even if there is no medium running or sudden shutdown, it will not be damaged. With self-protection performance, once overloaded, the pump will automatically stop, when the load returns to normal, it can automati.cally start
7.The pump does not need to be lubricated with oil, even if it is idling it will not have any effect on the pump
8.Simple structure, few wearing parts convenient installation and maintenance.The medium conveyed by the pump will not touch the moving parts such as valve,connecting rod, etc., unlike other pumps due to the wear of rotors, pistons, gears, blades and other parts to decrease performance gradually
9.It can transport liquid with high erviscosity (viscosity below 10,000centipoise), please consult customer service for details.
Company Profile
Established in 2008, our factory has become a famous enterprise in the Chinese market, and our products are exported to Europe, America, Asia and Africa.We integrate design, manufacturing, and service, with various large mold bases and advanced aluminum alloy molds to meet the special requirements of casting, OEM, and processing.
FAQ
Q:When will the product be shipped?
A:In most cases, we guarantee delivery within 2 weeks, but if you need to customize, the delivery time needs to be negotiated.
Q:What is the packing method?
A:We offer standard export carton or plywood wooden case for package.
Q:What can you buy from us?
A:In most cases, we guarantee delivery within 2 weeks, but if you need to customize, the delivery time needs to be negotiated.
Q:What is the packing method?
A:We offer standard export carton or plywood wooden case for package.
Q:What can you buy from us?
A:Kinds of Diaphragm Pumps.
Q:How long is the warranty period?
A:We provide 1-year warranty of the pump body.
Q:What are the terms of payment?
A:TT,L/C,Western Union,Paypal,Ali-pay,Cash,Credit Card.
Q:How long is the warranty period?
A:We provide 1-year warranty of the pump body.
Q:What are the terms of payment?
A:TT,L/C,Western Union,Paypal,Ali-pay,Cash,Credit Card.
Packing & Delivery
Contact Us
Похожие товары

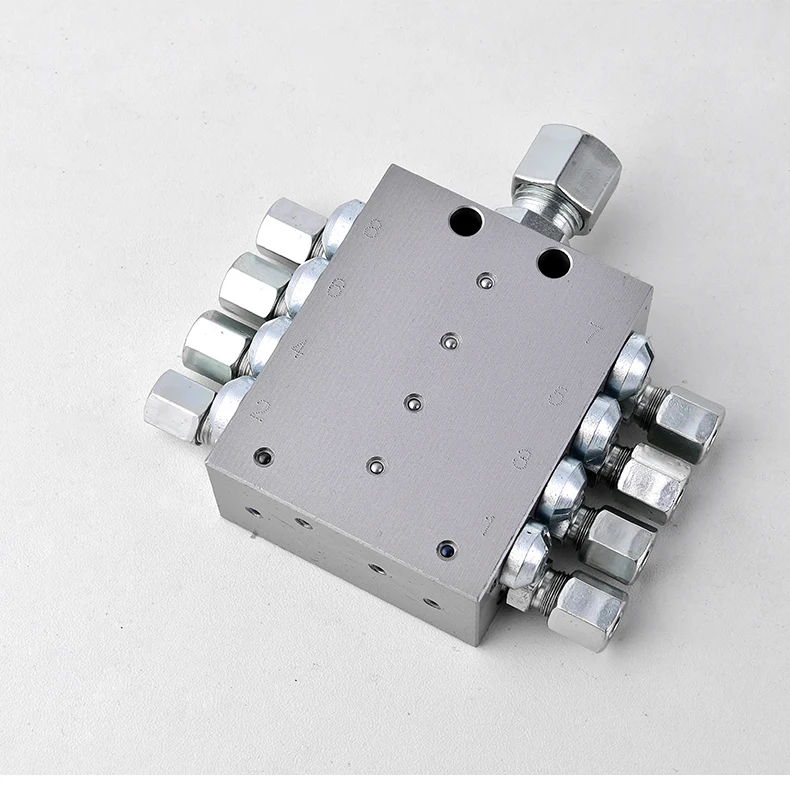

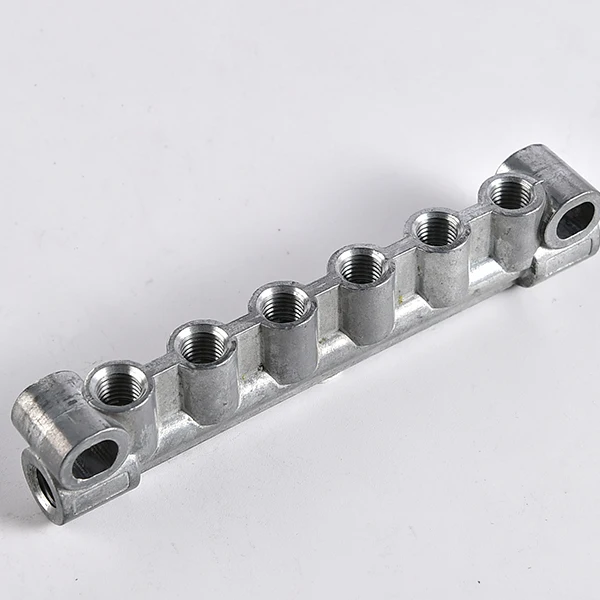

Диспенсер для смазки MVB, блок дистрибьютора смазки, прогрессивный дистрибьютор системы смазки
3 306,26 ₽ - 7 163,55 ₽

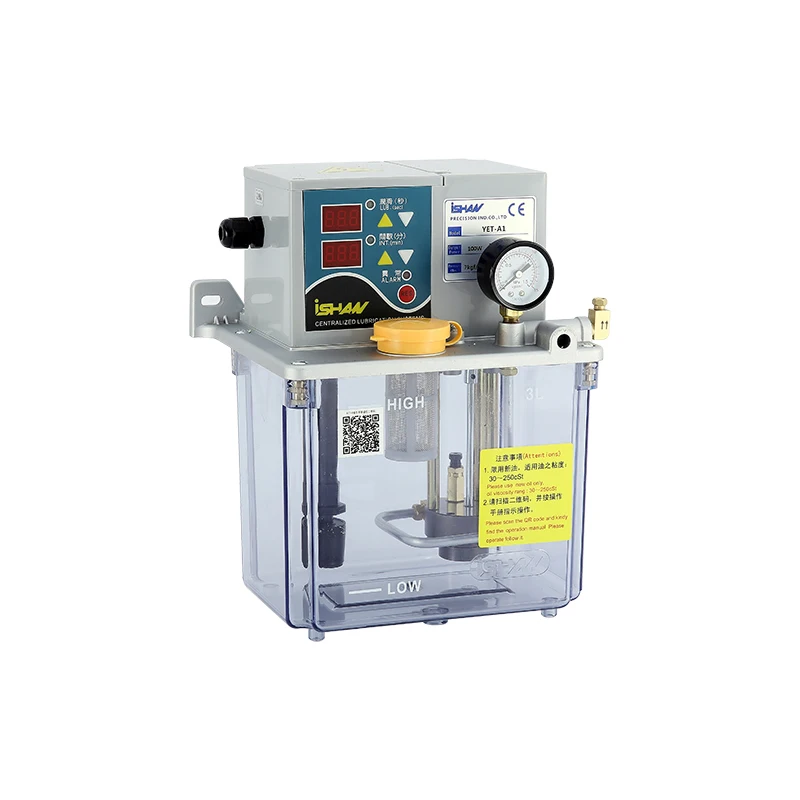

Электрический смазочный масляный смазочный насос YET-A1 3L устойчивая смазка системы электросмазывания
9 367,72 ₽ - 13 555,64 ₽
Горяч-продавая мульти-Технические характеристики система смазки аксессуары для маленьких детей в возрасте от 2 до 12 way алюминиевый PVS Тип компонентов
165,32 ₽ - 220,42 ₽

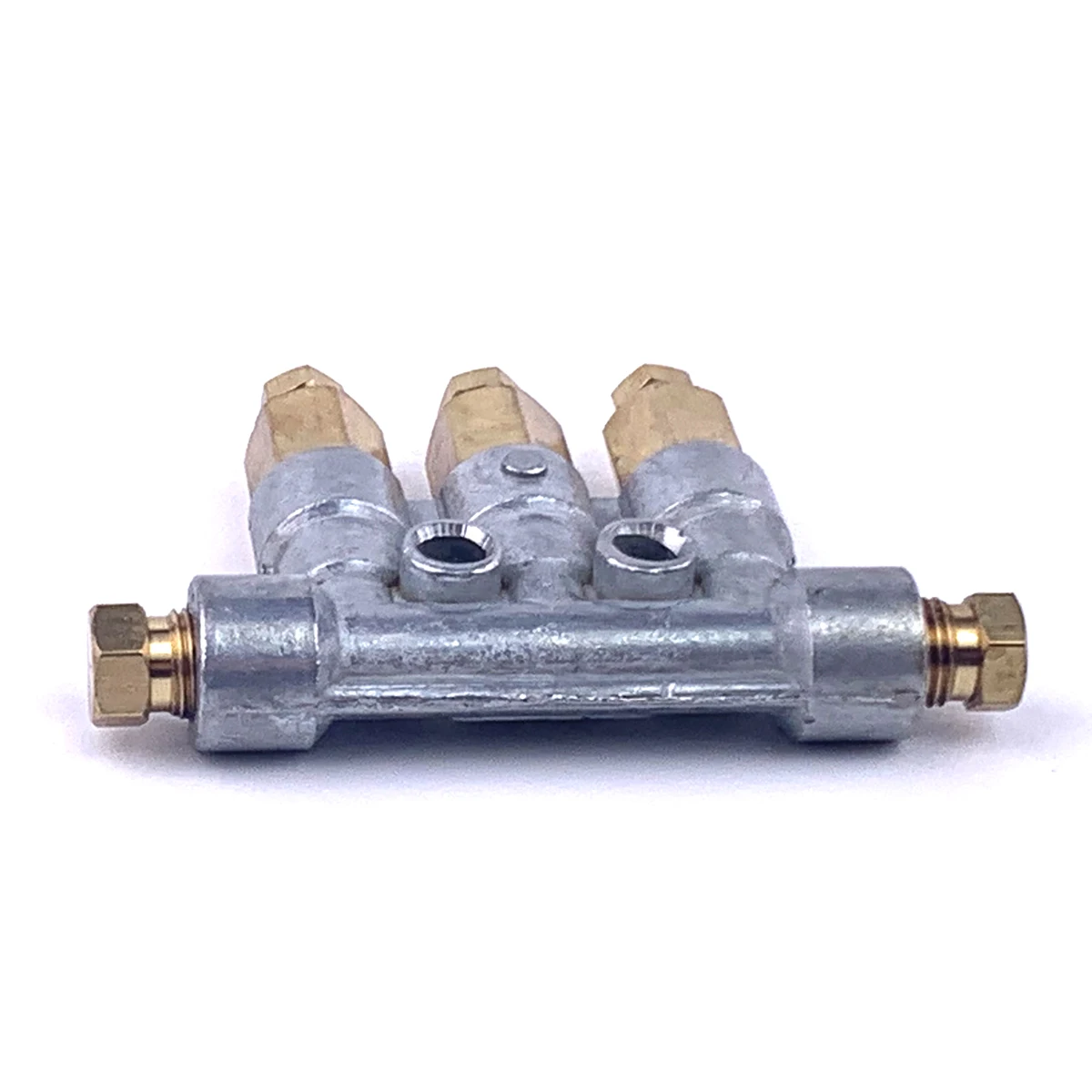

Miran LH3 распределитель смазки под давлением для смазки насоса

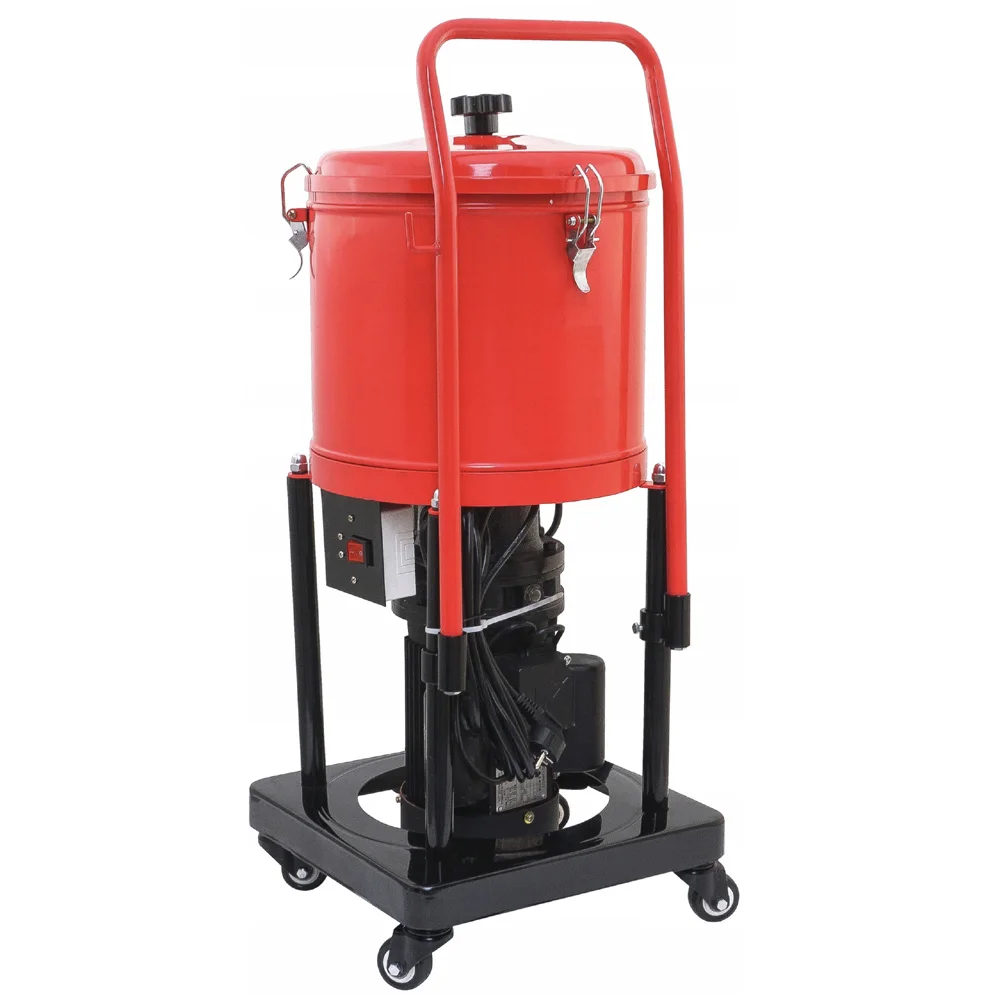

Мобильная смазка высокого давления с электрическим насосом и емкостью 25 л 220 В/380 В для механического обслуживания электроинструментов
40 226,07 ₽

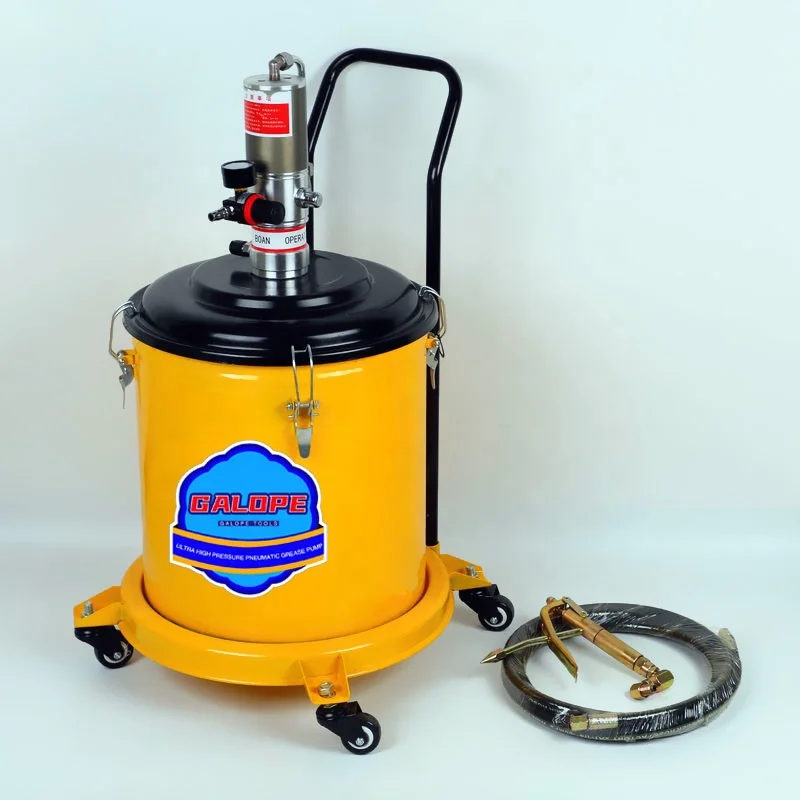

Пневматический смазочный пистолет с 9,5 галлонами, 35 л, пневматический смазочный насос высокого давления, 18 кг/20 кг
