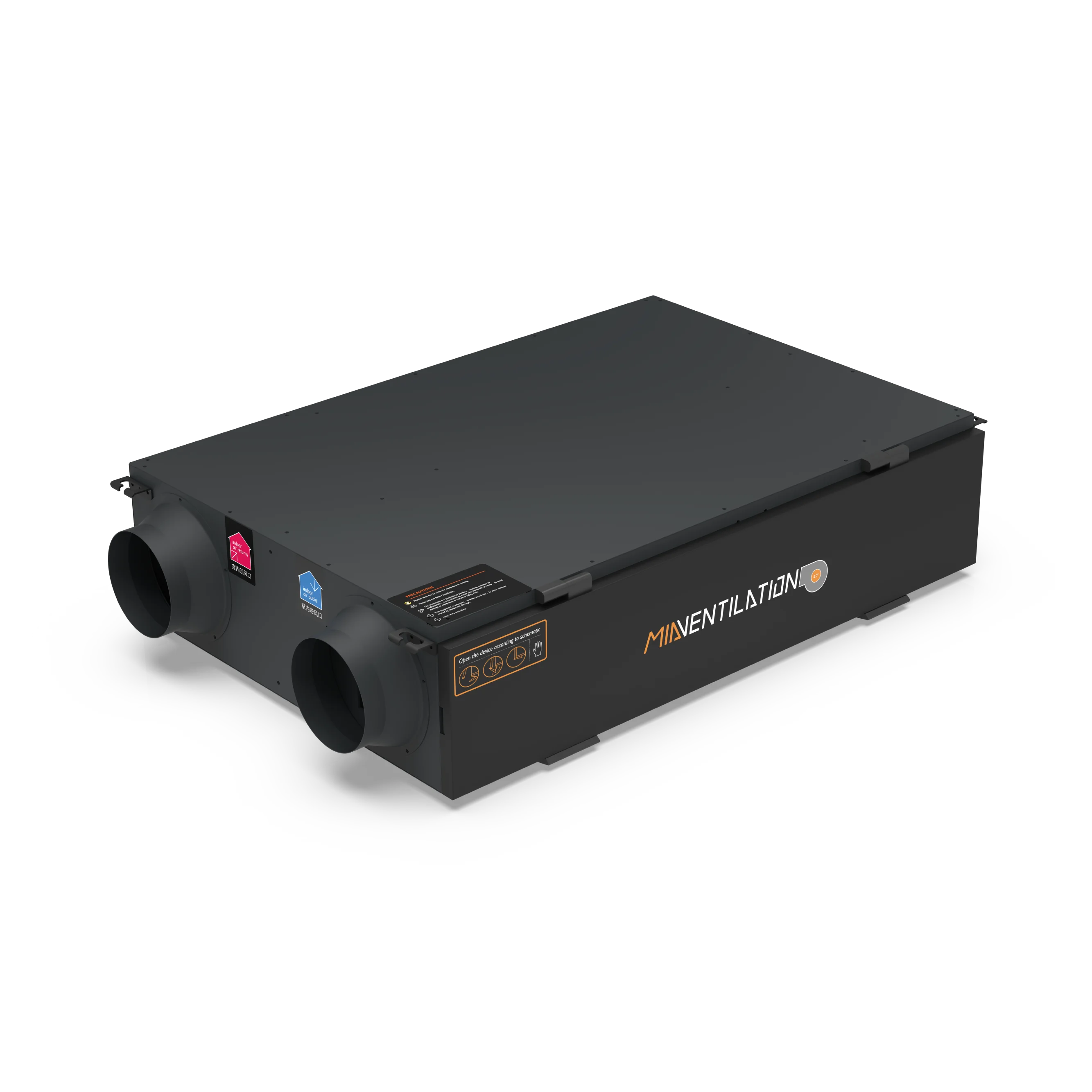

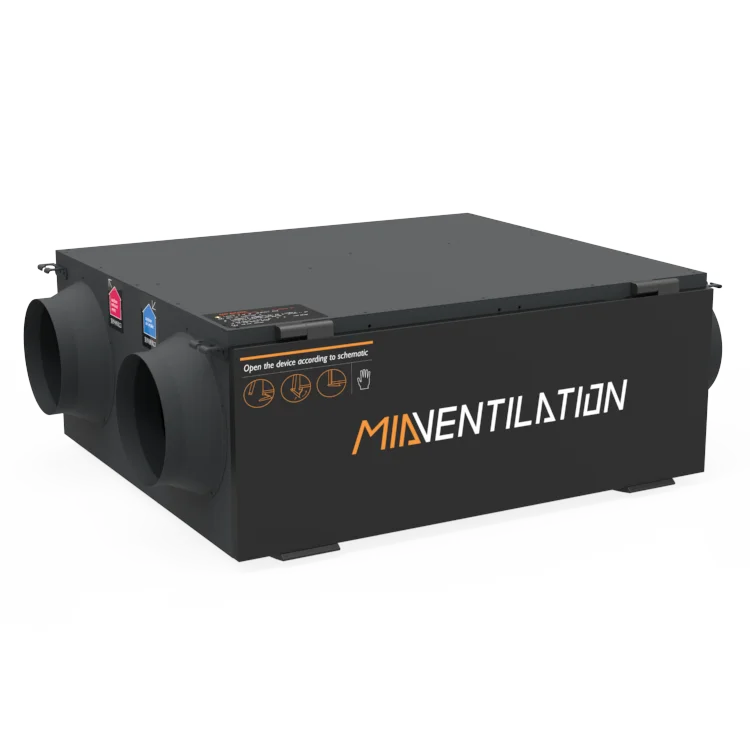

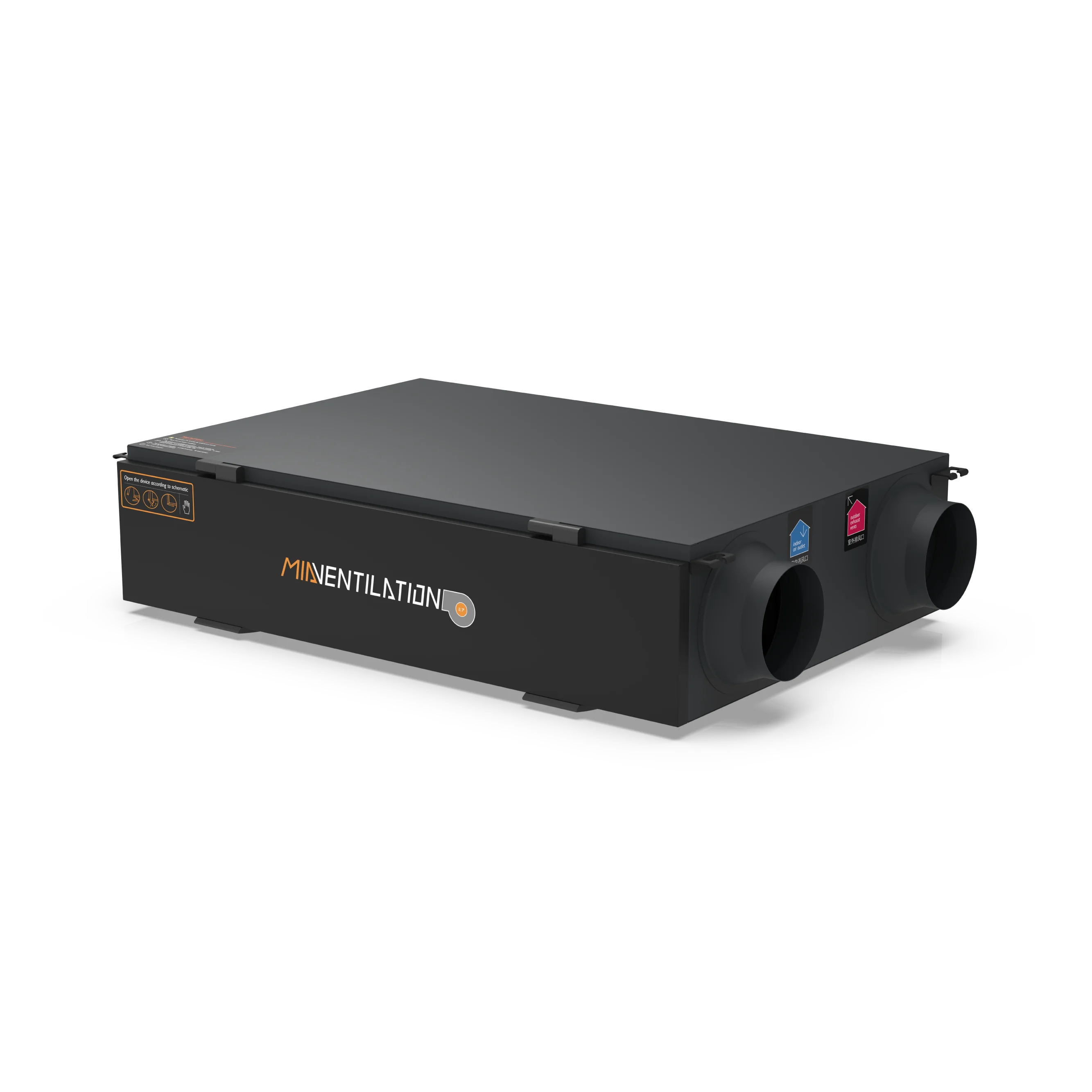

Теплообменник высокая эффективность 350 м3/ч рекуператор энергии переменного тока потолочный коммерческий Hrv Erv

Теплообменник высокая эффективность 350 м3/ч рекуператор энергии переменного тока потолочный коммерческий Hrv Erv

Категория: >>>
Поставщик: Suzhou MIA Intelligent Technology Co. Ltd.Suzhou Ltd.

Цена:34 328,32 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

NOTE

Please contact us to confirm the total payment before you put the order!All price listed is EXW term, without package fee, national delivery fee etc.

Name: Belle Wang
Email: belle.miaventilation@miachina.net

Phone/WA:86 15705206685
Website: //www.miachina.net

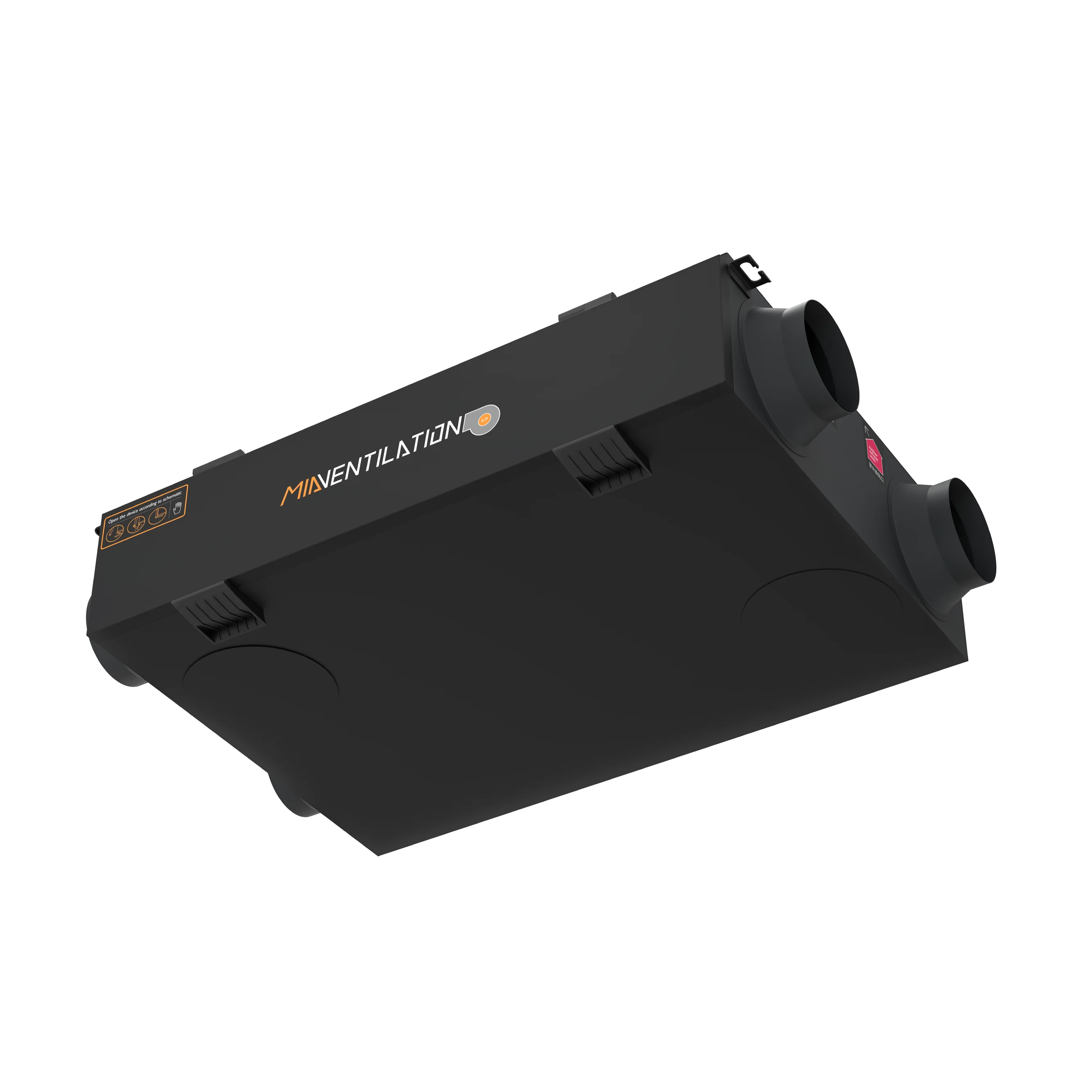

Residential High-pressure Ceiling type ERV Series

Energy Recovery Ventilator 150m3/h-500m3/h

Household High-Pressure Ceiling Type Energy Recovery Ventilator ERV Series

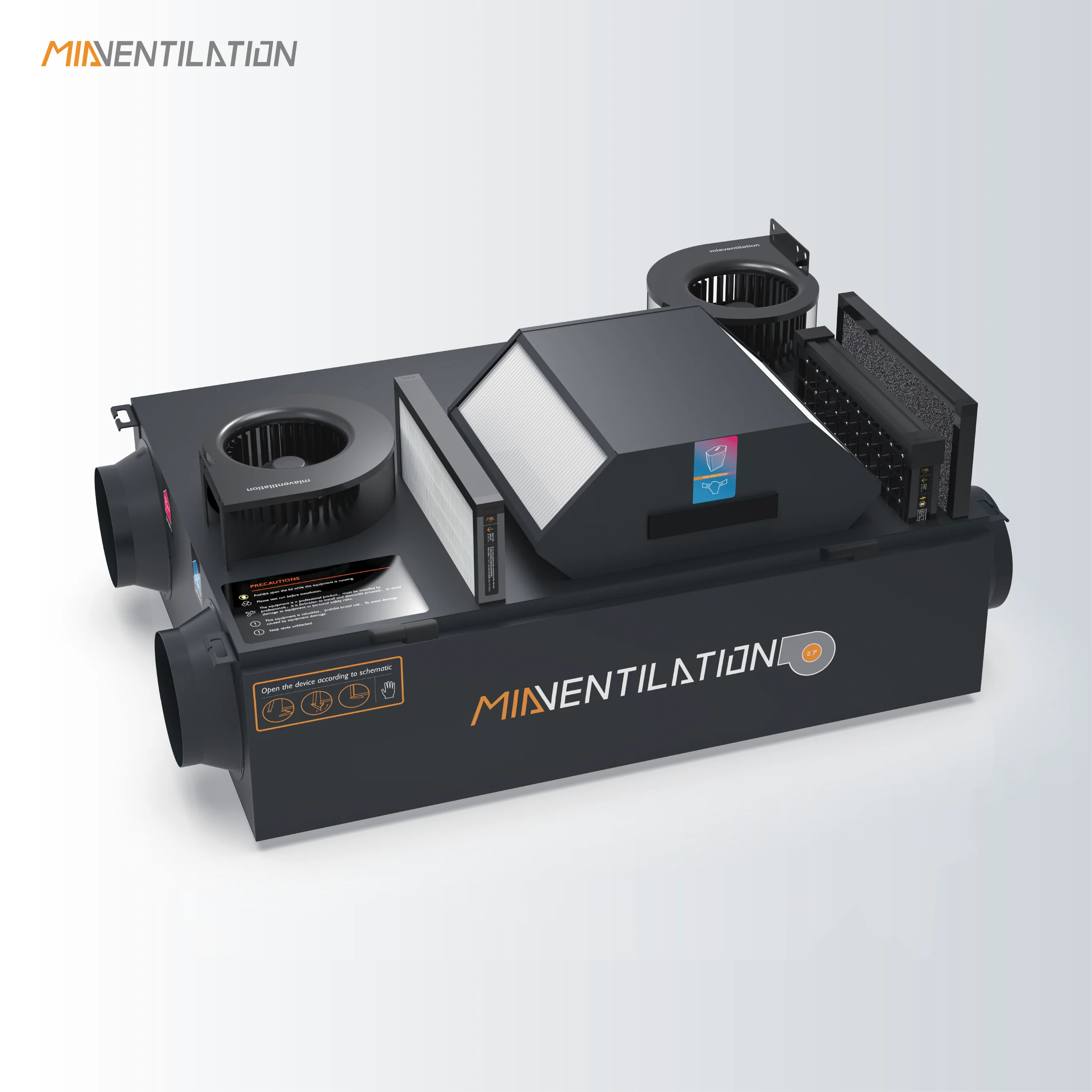

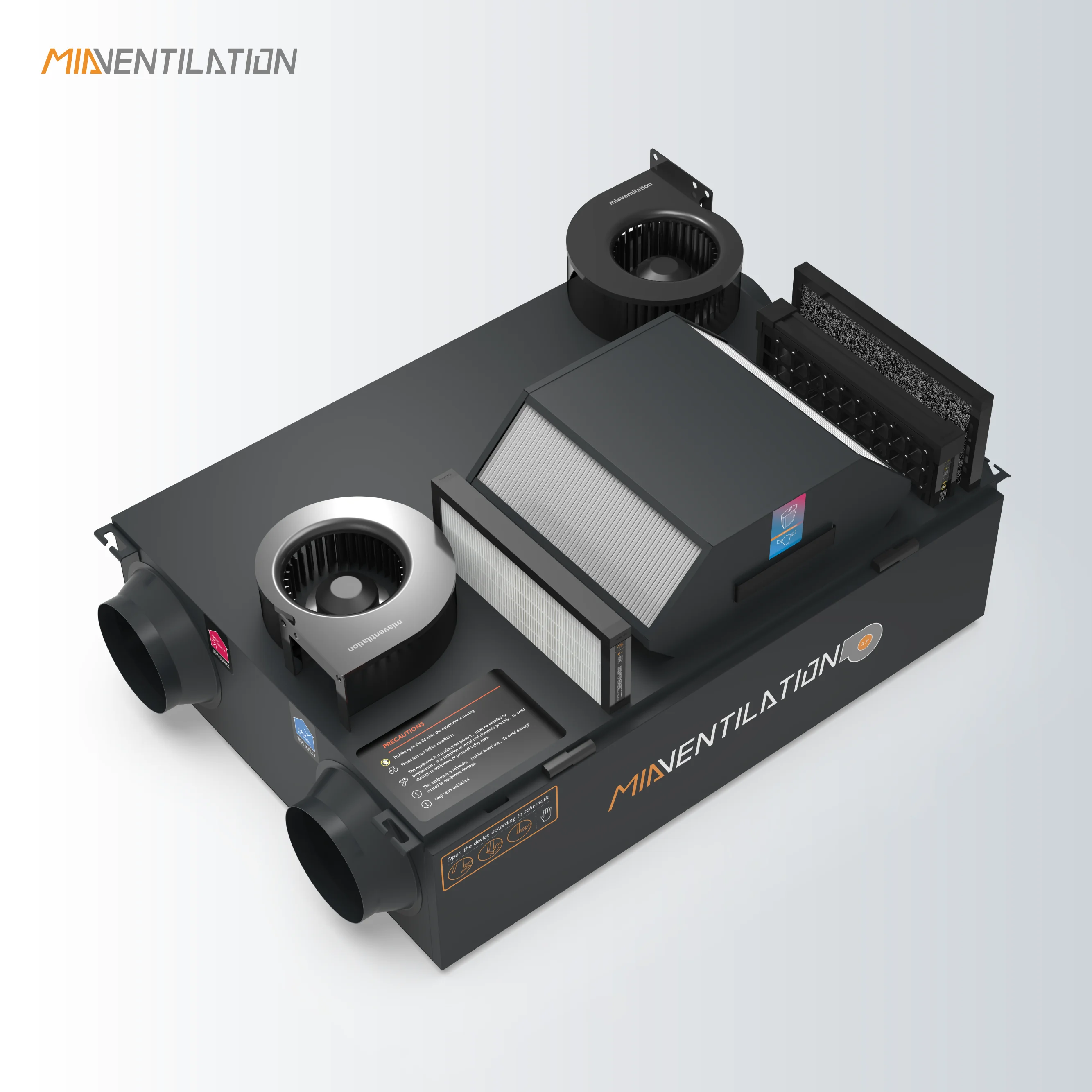

Energy Recovery Exchanger
The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange;with the washable material, also can avoid the problem of bacteria and molds production.

Filter Details

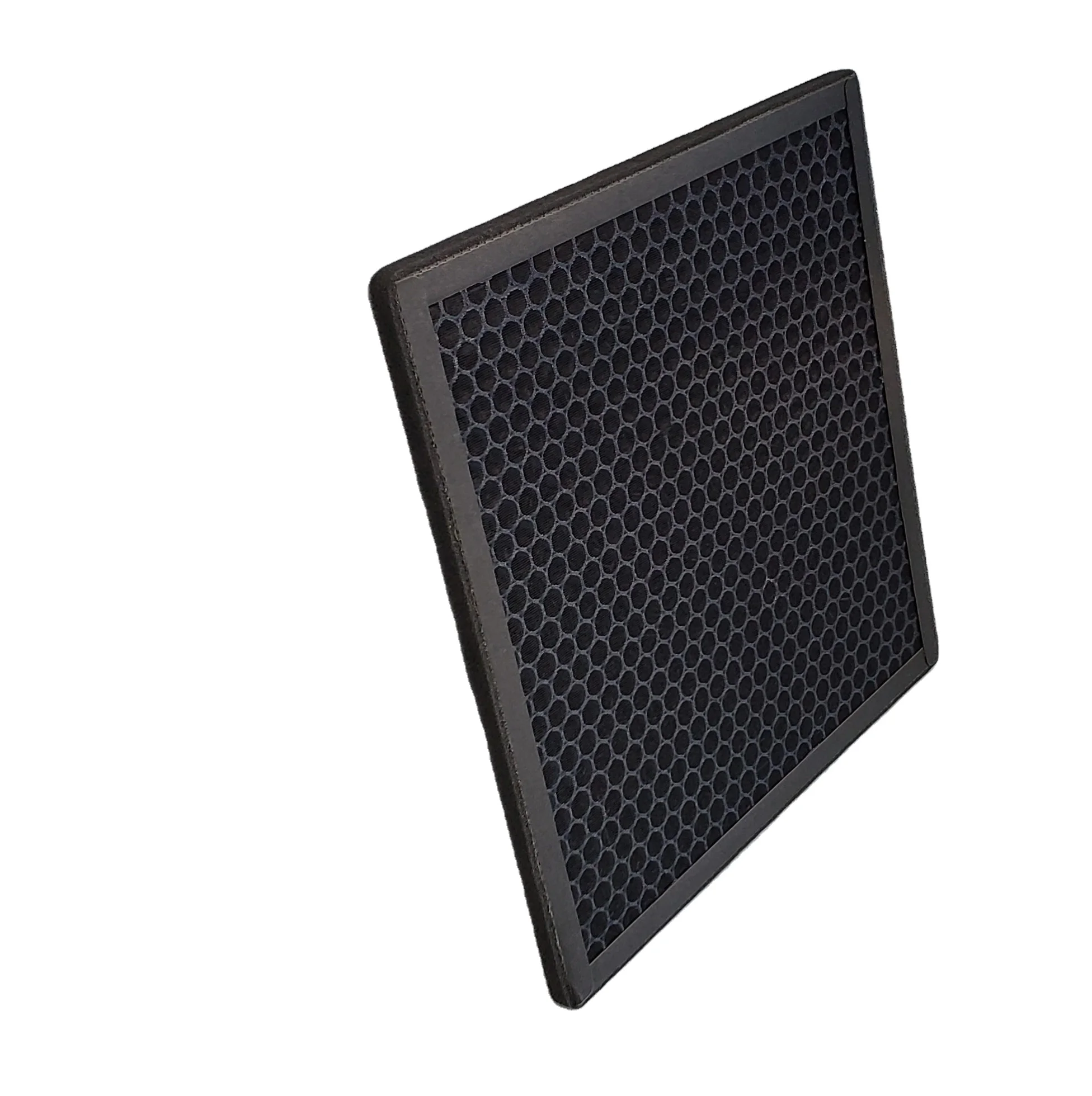

Early Effect+ Activated Carbon
The sealing property is far more than paper border with using the plastic margin. The filter with the composite fiber, sprayed with activated carbon powder, can filter duct particle efficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.

High efficiency Particulate Air Filter
The sealing property is far more than paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

High-voltage Electrostatic Dust
With pin type electric discharge way,the high-voltage electrostatic dust can replace the traditional tungsten filament
high-voltage electrostatic dust collection. It's thickness is only 4 cm, can be suitable for all kinds of models. The removal rate of PM2.5 is high to 98%, so that can effectively kill the bacteria and prevent the infection. It's washable, also can be cleaned with brush, ans will not increase the using cost.

Intelligent Controller

Model and corresponding configuration instruction

MIA-AHE· N:Ceiling Energy recovery ventilator equipped with activated carbon and AC inner rotor fan

MIA-AHE· NB:Ceiling Energy recovery ventilator equipped with activated carbon and AC outer rotor fan
MIA-AHE· NB/C:Ceiling Energy recovery ventilator equipped with activated carbon and DC brushless fan
MIA-AHE· GL:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC inner rotor fan
MIA-AHE· GLB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC outer rotor fan
MIA-AHE· GLB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and DC brushless fan
MIA-AHE· JDN:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC inner rotor fan.
MIA-AHE· JDNB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC outer rotor fan
MIA-AHE· JDNB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and DC brushless fan

Technical Parameters & Dimensions

Model	Voltage	Power	Air Volume	Pressure	Efficiency	Noise	Motor
MIA-AHE15N	220V	70W	150m3/h	115Pa	88%-96%	26dB(A)	AC
MIA-AHE15NB	220V	92W	150m3/h	290Pa	86%-92%	30dB(A)	BLDC
MIA-AHE15NB/C	220V	92W	150m3/h	290Pa	86%-92%	30dB(A)	BLDC
MIA-AHE25N	220V	78W	250m3/h	132Pa	87%-95%	28dB(A)	AC
MIA-AHE25NB	220V	116W	250m3/h	370Pa	86%-89%	32dB(A)	BLDC
MIA-AHE25NB/C	220V	116W	250m3/h	370Pa	86%-89%	32dB(A)	BLDC
MIA-AHE35N	220V	88W	350m3/h	140Pa	86%-94%	29dB(A)	AC
MIA-AHE35NB	220V	233W	350m3/h	392Pa	85%-88%	35dB(A)	BLDC
MIA-AHE35NB/C	220V	233W	350m3/h	392Pa	85%-88%	35dB(A)	BLDC
MIA-AHE50N	220V	120W	500m3/h	160Pa	86%-94%	30dB(A)	AC
MIA-AHE50NB	220V	288W	500m3/h	425Pa	84%-87%	37dB(A)	BLDC
MIA-AHE50NB/C	220V	288W	500m3/h	425Pa	84%-87%	37dB(A)	BLDC

Model	Voltage	Power	Air Volume	Pressure	Efficiency	Noise	Motor
MIA-AHE15GL	220V	73W	150m3/h	115Pa	88%-96%	26dB(A)	AC
MIA-AHE15GLB	220V	98W	150m3/h	285Pa	86%-92%	31dB(A)	BLDC
MIA-AHE15GLB/C	220V	98W	150m3/h	285Pa	86%-92%	31dB(A)	BLDC
MIA-AHE25GL	220V	82W	250m3/h	132Pa	87%-95%	28dB(A)	AC
MIA-AHE25GLB	220V	176W	250m3/h	360Pa	86%-89%	33dB(A)	BLDC
MIA-AHE25GLB/C	220V	176W	250m3/h	360Pa	86%-89%	33dB(A)	BLDC
MIA-AHE35GL	220V	96W	350m3/h	140Pa	86%-94%	29dB(A)	AC
MIA-AHE35GLB	220V	241W	350m3/h	385Pa	85%-88%	36dB(A)	BLDC
MIA-AHE35GLB/C	220V	241W	350m3/h	385Pa	85%-88%	36dB(A)	BLDC
MIA-AHE50GL	220V	128W	500m3/h	160Pa	86%-94%	30dB(A)	AC
MIA-AHE50GLB	220V	306W	500m3/h	420Pa	84%-87%	38dB(A)	BLDC
MIA-AHE50GLB/C	220V	306W	500m3/h	420Pa	84%-87%	38dB(A)	BLDC

Model	Voltage	Power	Air Volume	Pressure	Efficiency	Noise	Motor
MIA-AHE15JDN	220V	73W	150m3/h	115Pa	88%-96%	26dB(A)	AC
MIA-AHE15JDB	220V	98W	150m3/h	285Pa	86%-92%	31dB(A)	AC
MIA-AHE15JDB/C	220V	98W	150m3/h	285Pa	86%-92%	31dB(A)	BLDC
MIA-AHE25JDN	220V	82W	250m3/h	132Pa	87%-95%	28dB(A)	AC
MIA-AHE25JDB	220V	176W	250m3/h	360Pa	86%-89%	33dB(A)	AC
MIA-AHE25JDB/C	220V	176W	250m3/h	360Pa	86%-89%	33dB(A)	BLDC
MIA-AHE35JDN	220V	96W	350m3/h	140Pa	86%-94%	29dB(A)	AC
MIA-AHE35JDB	220V	241W	350m3/h	385Pa	85%-88%	36dB(A)	BLDC
MIA-AHE35JDB/C	220V	241W	350m3/h	385Pa	85%-88%	36dB(A)	BLDC
MIA-AHE50JDN	220V	128W	500m3/h	160Pa	86%-94%	30dB(A)	AC
MIA-AHE50JDB	220V	306W	500m3/h	420Pa	84%-87%	38dB(A)	BLDC
MIA-AHE50JDB/C	220V	306W	500m3/h	420Pa	84%-87%	38dB(A)	BLDC
