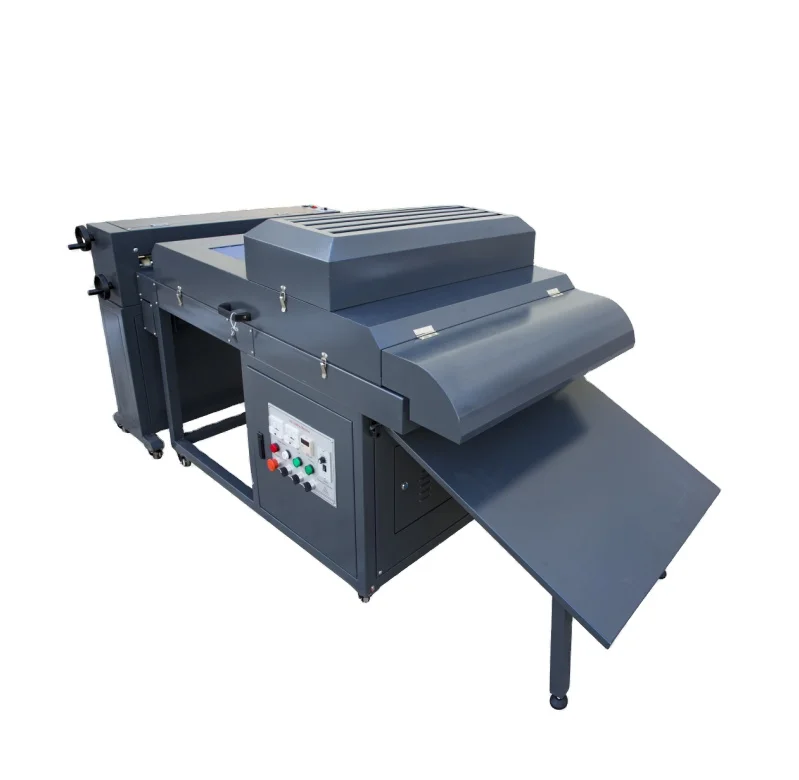

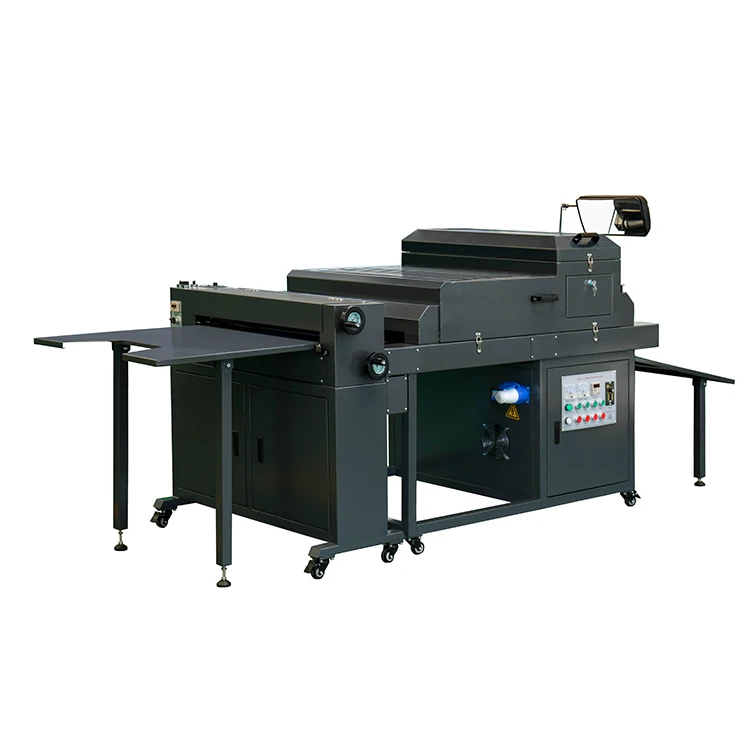

Двойная 100 машина для нанесения УФ-роликовых покрытий, широкий коврик, машина для нанесения УФ-покрытия для печати чернилами
678 239,08 ₽ - 743 875,12 ₽
Настраиваемая автоматическая промышленная машина для складывания крафт бумаги разного размера с механическим крестовым ножом
- Категория: >>>
- Поставщик: Guangdong Speed Machinery Technology Co. Ltd.
Сохранить в закладки 1601231394627:
Описание и отзывы
Характеристики
Product Overview
T520/12H6W-F (Folding Machine)
Industry-specific Attributes
Type: Paper Folding Machine
Production Capacity: 180m/min
Max. Workable Width:490mm*1000mm
SPPED Group -Buckle Folding Machines SPEED buckle folding machine As aninternationally active global market leaderin the field of post-press finishing, we canalso fulfill individual requirements andthus make an important contribution tothe optimization of your folding processes.
Industry-specific Attributes
Type: Paper Folding Machine
Production Capacity: 180m/min
Max. Workable Width:490mm*1000mm
SPPED Group -Buckle Folding Machines SPEED buckle folding machine As aninternationally active global market leaderin the field of post-press finishing, we canalso fulfill individual requirements andthus make an important contribution tothe optimization of your folding processes.
Product Configuration

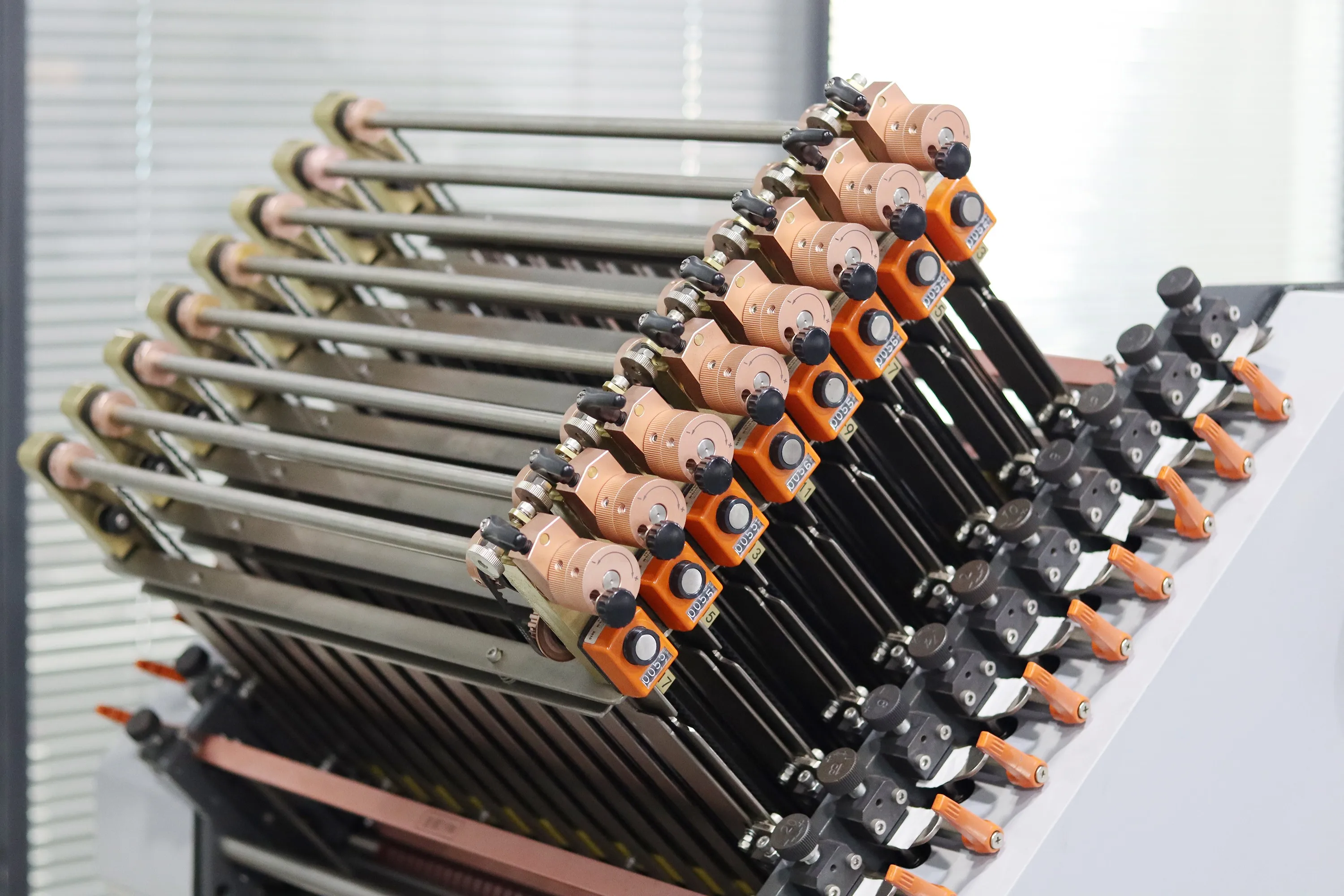

beautiful buckles
gear

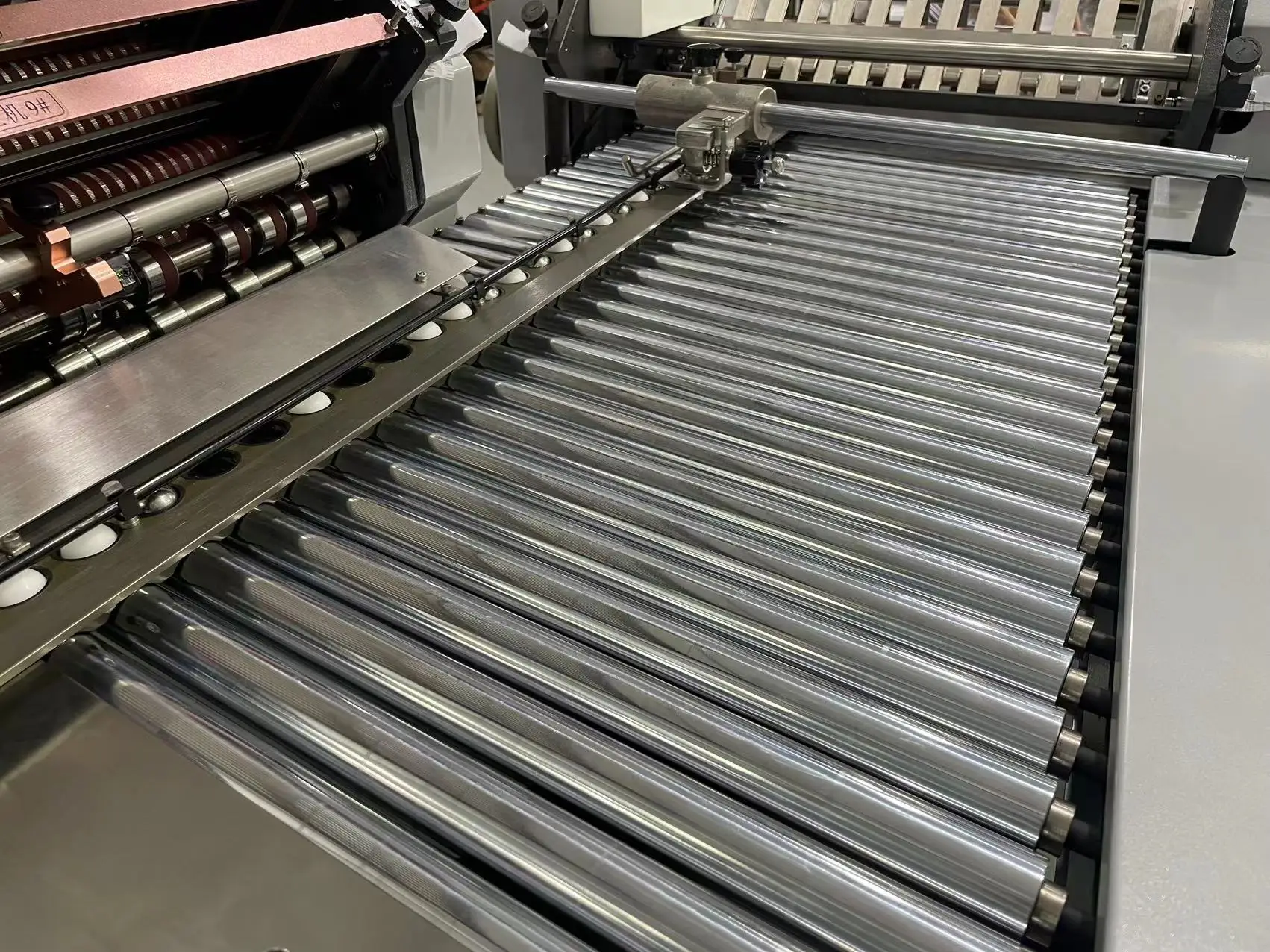

vertical stacker
durable feeder
advanced box
gear box free maintenance
Device parameters
Item | Parameter |
Folding Machine Type | T520(optional) |
Min.sheet size | 60mm*100mm |
Max.sheet size | 520 * 1000mm |
Max.height of paper pile | 550mm |
Sheet range | 35-200g |
Min.size offence | 20mm |
Max.folding roller speed | 180m/min |
Machine power | 3.5kw（According to model） |
Voltage | 380V |
Overall dimensions(Lx Wx H) | 4650mm*1100mm*1500mm |
Machine net weight | 990kg（According to model） |
Company Profile
FAQ
Q1: Are you a manufacturer?
answer： Yes，We are a professional manufacturer of machine for more than 10 years
Q2: How many years for free exchange components?
answer：one years for parts and whole life for tech support
Q3: Can your machine be customized?
answer：Yes, almost all of our products can be customized,including the sizes, colorlogo, package and so on
Q4: How about your package?
answer：Our machines are well wrapped by plastic film to be water proof first, then loading and fixing
in apply wood case, if by CL(full container loading) we might use the wooden case
Q5: What's the delivery time?
answer：Within 15-35 days after get the payment
Q6: What is your after sale service?
answer： Any questions will be responded within 24 hours by e-mail, Skype, call or Whatsapp/Wechat. ln addition,we have professional engineer available for overseas service
Q7: lf the machines spare parts broken , where can l get?
answer：We will qive you the spare parts which is vulnerable and some critical parts like gear box our quality is good in case it broken within one year we will sent you for free
Q8: Can you take care of the shipping?
answer：Yes, please tell me the destination port or address, we have rich experience in shipping
answer： Yes，We are a professional manufacturer of machine for more than 10 years
Q2: How many years for free exchange components?
answer：one years for parts and whole life for tech support
Q3: Can your machine be customized?
answer：Yes, almost all of our products can be customized,including the sizes, colorlogo, package and so on
Q4: How about your package?
answer：Our machines are well wrapped by plastic film to be water proof first, then loading and fixing
in apply wood case, if by CL(full container loading) we might use the wooden case
Q5: What's the delivery time?
answer：Within 15-35 days after get the payment
Q6: What is your after sale service?
answer： Any questions will be responded within 24 hours by e-mail, Skype, call or Whatsapp/Wechat. ln addition,we have professional engineer available for overseas service
Q7: lf the machines spare parts broken , where can l get?
answer：We will qive you the spare parts which is vulnerable and some critical parts like gear box our quality is good in case it broken within one year we will sent you for free
Q8: Can you take care of the shipping?
answer：Yes, please tell me the destination port or address, we have rich experience in shipping
SPEED Group exhibits
Folding machine packaging and shipping
Product configuration advantages
High-performance electronic feeder
The microcomputer-controlled feeder has sophisticated Paper separation function, controllable negative pressure function, light Loosens paper of various sizes.
The industry's first exclusive patented technology: gear coupling transmission + self-lubrication system
Compared with the belt drive, the gear transmission has a stronger torque, there is no slippage, the speed difference of the origami roller, etc., when the thicker paper or more folded work, the gear transmission can still maintain excellent performance and achieve perfect operation (When the belt drive is working on multi-fold or thicker paper, the performance will be greatly reduced, and there will be slippage, poor speed of the origami roller, etc.)
gear coupling transmission + self-lubrication system
The gear lubrication box designed by the exclusive research and development can seal the grease in the oil shell, and when the equipment is running, the gear drives the grease to make it fully lubricate the gear repeatedly, which solves the trouble of frequent maintenance of the equipment and reduces the maintenance cost.
Under the sealing protection of the oil shell, it ensures that the grease will not fly everywhere, effectively solves the problem of cleanliness and hygiene of the equipment, and is the preferred model for pharmaceutical companies and pharmaceutical package manufacturers
Under the sealing protection of the oil shell, it ensures that the grease will not fly everywhere, effectively solves the problem of cleanliness and hygiene of the equipment, and is the preferred model for pharmaceutical companies and pharmaceutical package manufacturers
gear coupling transmission + self-lubrication system
With the blessing of the lubrication system, the equipment can maintain excellent folding accuracy and excellent performance even when running at high speed or full speed, and can also maintain low noise.
It is worth mentioning that not only the gears do not need to be maintained, but the bearings also do not need to be lubricated, which is truly maintenance-free.
It is worth mentioning that not only the gears do not need to be maintained, but the bearings also do not need to be lubricated, which is truly maintenance-free.

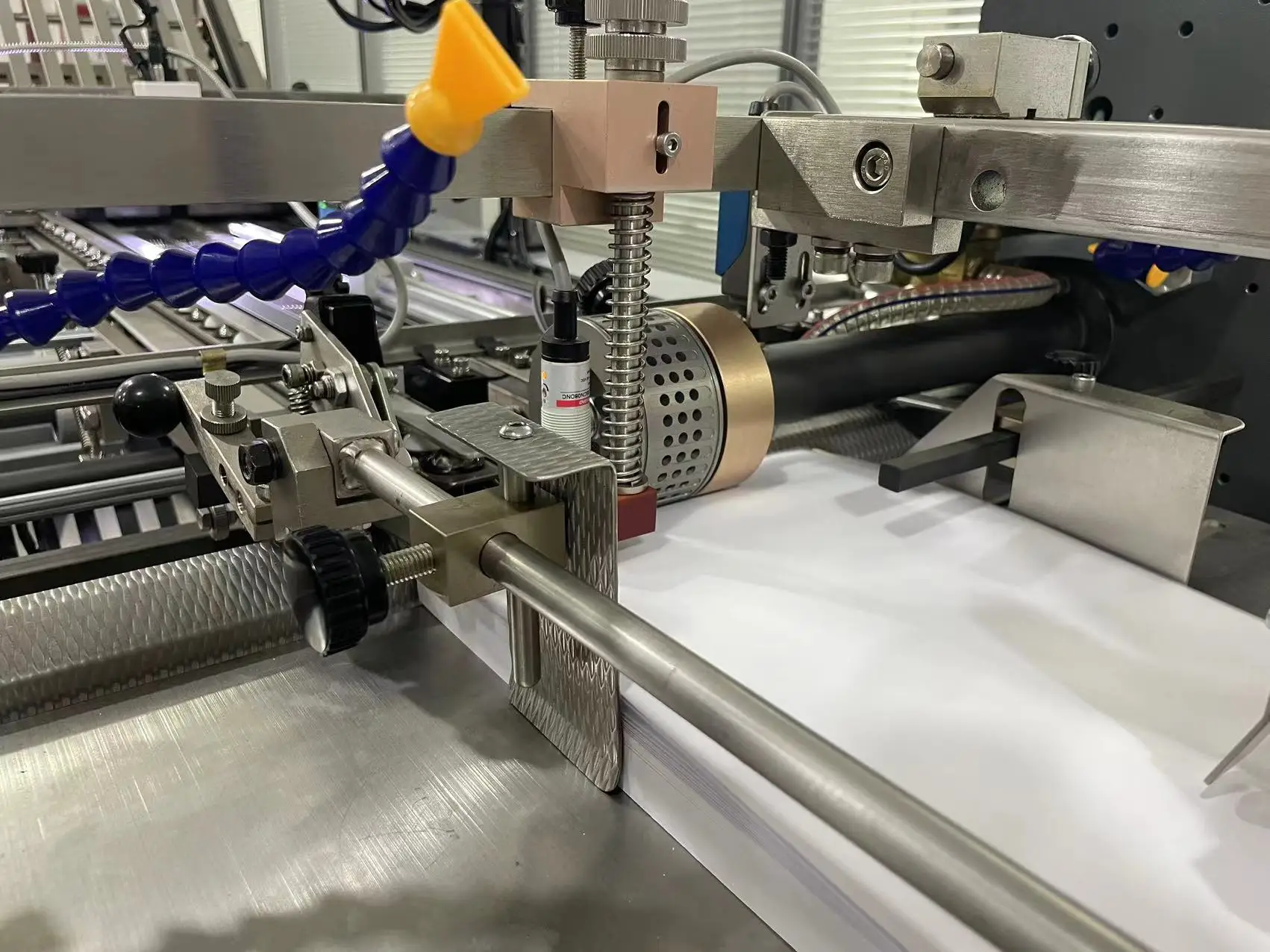

Origami fence
Xikong digital position display, accurate position display, adjusting the fence more efficient, convenient and fast
The special wire drawing process and anti-static coating treatment on the surface make the folding more stable
The plate is hardened to make the fence not easy to deform, and the higher hardness is not easy to be bruised
The special wire drawing process and anti-static coating treatment on the surface make the folding more stable
The plate is hardened to make the fence not easy to deform, and the higher hardness is not easy to be bruised

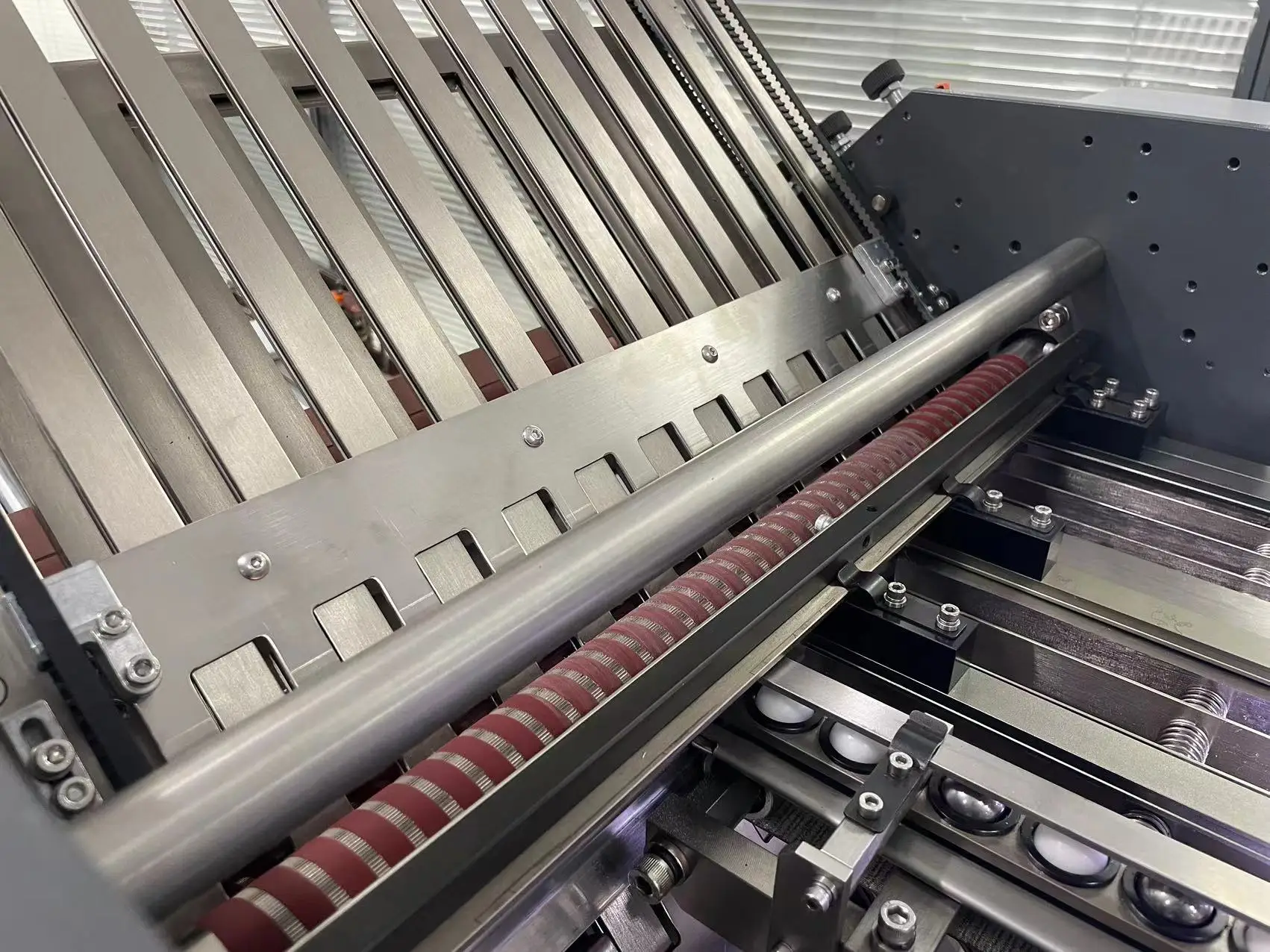

Origami sticks
Spiral structure, 76% of the colloidal area, has a larger colloidal area than the traditional straight-grained roller, has excellent paper gripping strength, more close to the paper, makes the folding more accurate and not easy to wrinkle, imported polyurethane colloid, anti-slip and wear-resistant, and the service life is greatly increased
Three advantages of fast transfer device
The design that can be extended into the second unit, the unique angle design, More stable transmission method, so that the utilization rate of origami rollers is increased by 70%
Exclusive patented design, the first of its kind in the industry, drawer-type fast transfer device The movable structure does not need to be disassembled frequently, which is safe and efficientDrawer-type transfer device, when adjusting the indentation device, only need to drag out the quick transfer device, The indentation shaft can be quickly adjusted, saving 80% of time
BECKER
Core suppliers, ranked in no particular order
