Низкие цены пневматическая буровая машина для бурения камней на глубине 350 м буровые установки скважин
16 447 260,00 ₽ - 21 381 438,00 ₽
Брендовый портативный воздушный компрессор шестиколесная буровая установка для водяных скважин новый грузовик установленный
- Категория: >>>
- Поставщик: Jinzhou City Tongshun Drilling Machine Co. Ltd.
Сохранить в закладки 1601231597910:
Описание и отзывы
Характеристики
Product Specifications
Drilling depth | 350m |
Drilling diameter | 140-350mm |
Drilling rod diameter | 89mm/102mm |
Drilling rod length | 3.0m; 6.0m |
One-time propulsion length | 6600mm |
Dimensions(L×W×H) | 8050×2400×3300 (mm) |
Weight | 15000kg/set |
Walking speed | 80 km/h |
Working Pressure | 1.7-3.5Mpa |
Drilling Machine Engine | 95KW |
Lifting force | 24T |
Air consumption | 18-35 m3/min |
Rotary torque | 6200-8500 N.M |
Swing speed | 55-120rpm |
Truck | Dong Feng Car |
Car engine power | 125 Cummins Engine |
Drive form | 4×2 |
Car carrying capacity | Front axle 3.5 tons, rear axle 9 tons |
Tire specifications | 9.00 R20 |
Steering wheel | Left Side |
Mud Pump Model | BW250-5 |
Products Detail

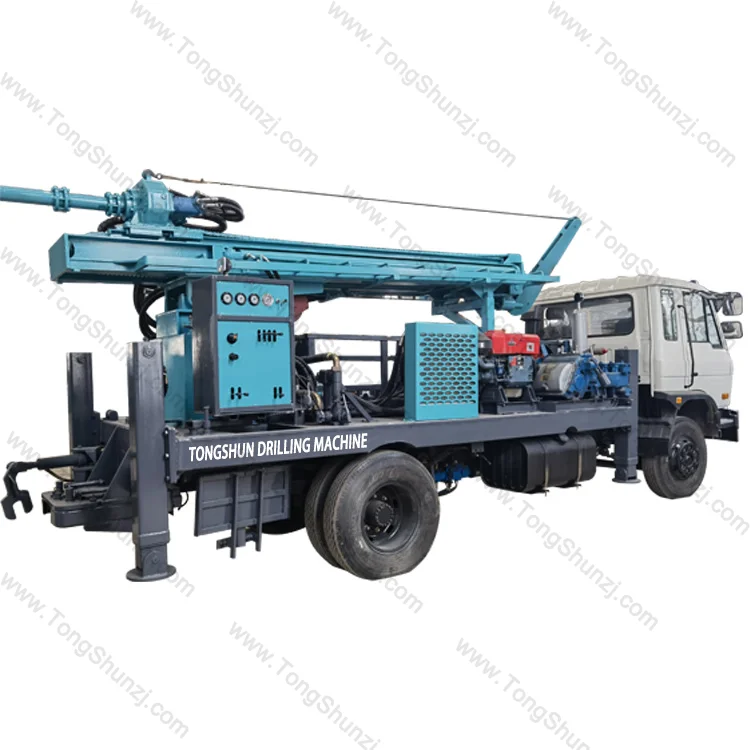

Brand Portable Air Compressor Six-Wheeled DTH Water Well Drilling Rig New Truck Mounted For Water Well
Products Description
TSHY-350 truck mounted drilling machine can drilling in all kinds formations by mud drilling in soft formation and air DTH hammer in rock drilling, DTH Hammer is applied in rock drilling, slag is discharged by air pressure and the offstage efficiency is ten times than traditional rotary drilling.
TSHY-350 truck mounted deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.
Drilling Machine More :
1, It is a high efficiency and multi-functional down the hole water well drilling equipment, It can be used to drill water well,agrecultural irrigation well, geothermal well and other type well holes. It is sepcial suitable for mountain area and rock stratum water sourcing project.
2, This machine can drill in different stratum, The maximum bore diameter can be 350mm.
3, This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.
4,Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
5,This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.
6, Two gears rotation and feeding speed makes it work in soil and rock layers.
2, This machine can drill in different stratum, The maximum bore diameter can be 350mm.
3, This machine adopts big torque hydraulic motor for power head and brand diesel, big diameter hydraulic cylinders for the hydraulic control system. The brand diesel is protected by 2 levels air filtration systems and also can directly use the clean air from the air compressor.
4,Unique bump set design and centralize controlled operation system is easy to maintain and convenient for machine operation.
5,This machine adopts excavator crawler chassis and make the machine a high off-road performance, It also can be mounted on a truck to make it more maneuverability.
6, Two gears rotation and feeding speed makes it work in soil and rock layers.
Customers Feedback
Recommend Products
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling.
Q: If the tool joint the buckle, the screw is not how to do?
A: You can tap and screw, this tool joint is not easy to take over tripping in use.
Q: How about the delivery terms?
A: 1.Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer has 32 years of history we offer prompt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: Where is your factory located in?
A: Our factory is located in JIN ZHOU city, HEBEI province, China.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, our always make a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001.
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling.
Q: If the tool joint the buckle, the screw is not how to do?
A: You can tap and screw, this tool joint is not easy to take over tripping in use.
Q: How about the delivery terms?
A: 1.Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer has 32 years of history we offer prompt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: Where is your factory located in?
A: Our factory is located in JIN ZHOU city, HEBEI province, China.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, our always make a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001.
Contact Us&Our Services
Our Services:
1. Drill pipe strictly according to ISO9001 standard
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
2. If you found to quality problems within one month of the package returned.
3. All strictly according to the contract and fulfill the obligations and responsibilities
4. 24 hours online customer service,feel free contact us.
