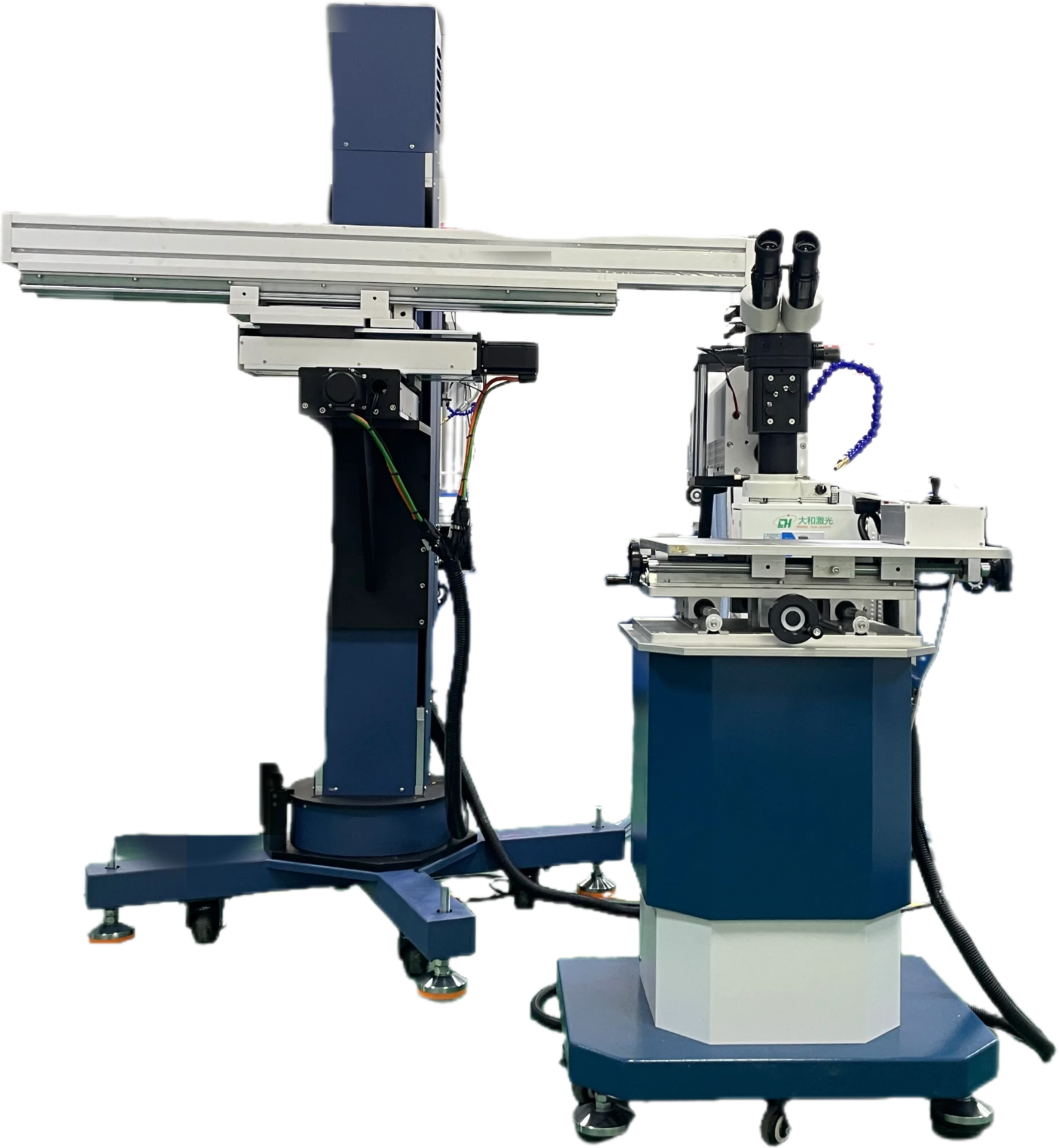

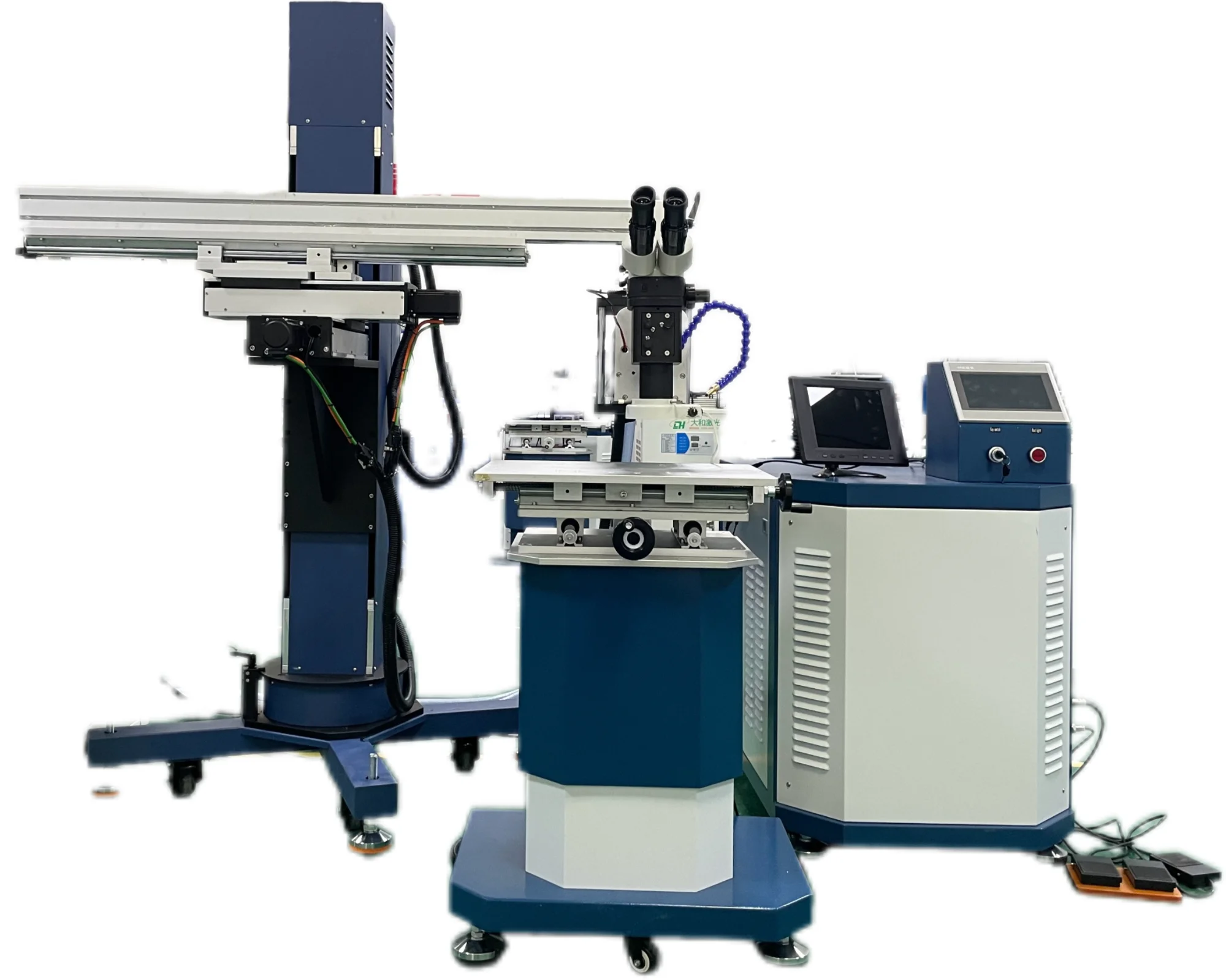

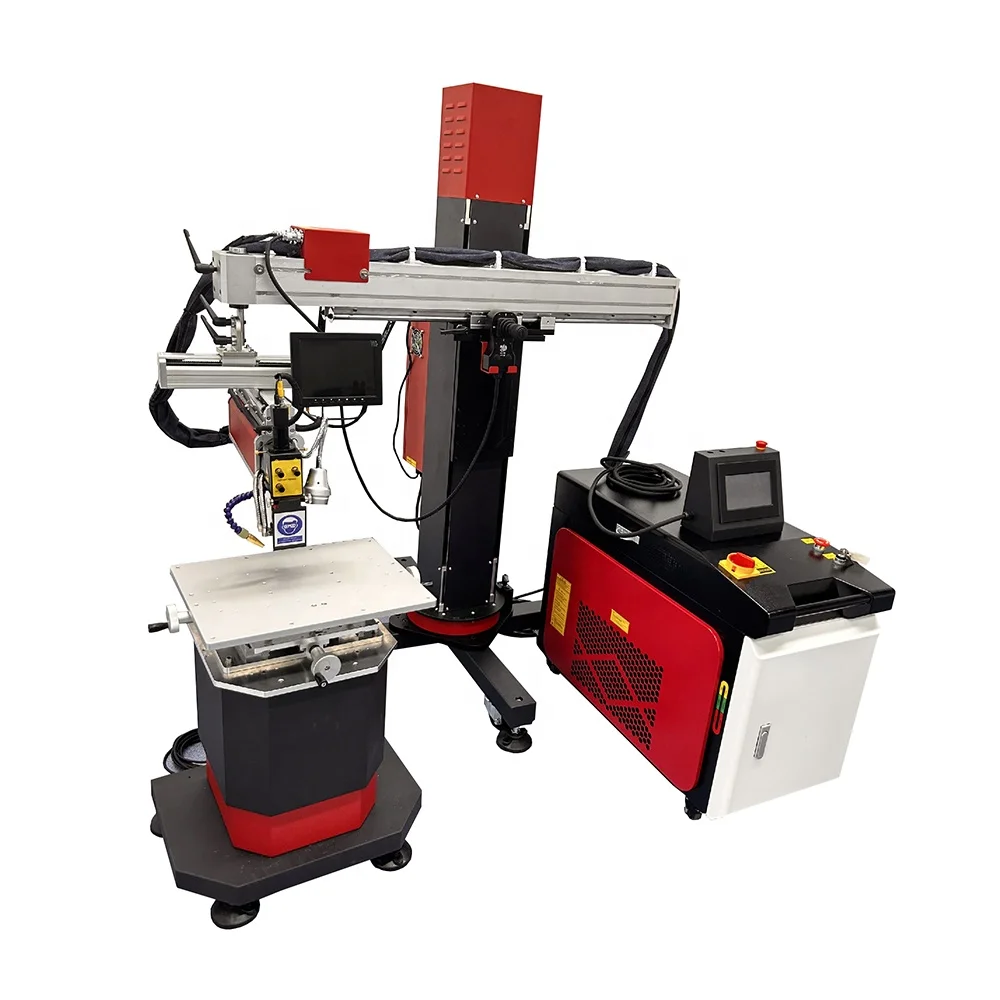

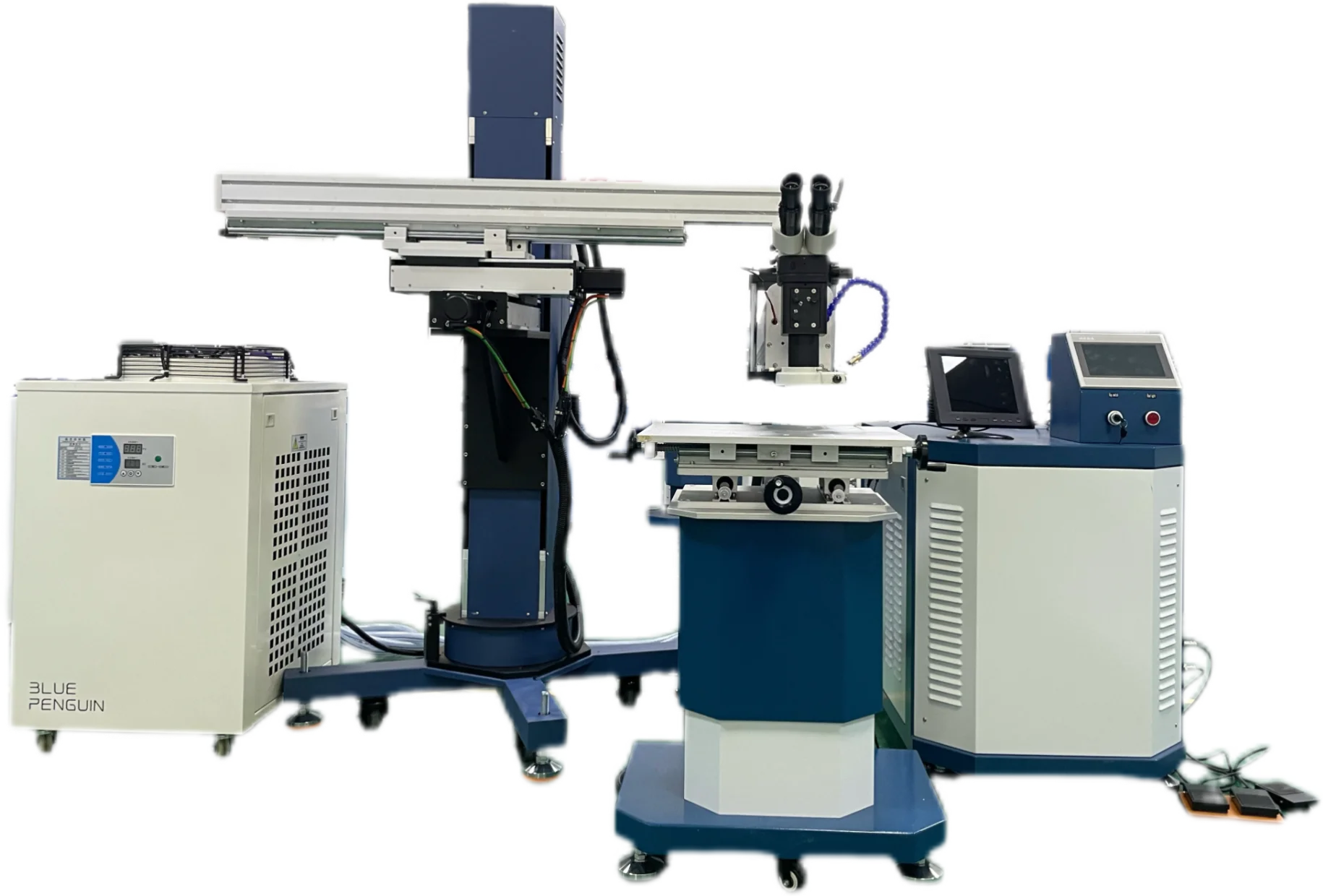

Машина для лазерной сварки прессформы волоконного типа автоматическая лазерная сварочная машина для большой прессформы и сварки металлических деталей
820 847,12 ₽ - 885 650,84 ₽
Оптовая продажа лазерная сварочная пресс форма с ручным припоем ручная пайка для ремонта пресс форм сделано в Китае
- Категория: >>>
- Поставщик: Dongguan Daiwa Laser Equipment Co. Ltd.
Сохранить в закладки 1601231729786:
Описание и отзывы
Характеристики
Product Description
Specification
Model No. | BK-WY200B | BK-WY400B | |
Laser Power | 200W | 400W | |
Power Stability | ±5%, ±2% | ||
Standard:±5%, optional energy negative-feedback power:±2% | |||
Laser Wavelength | 1064nm | ||
Pulse Width | ≤20ms | ||
Pulse Frequency | ≤100Hz | ||
Welding Spot Diameter | 0.2-1.5mm | ||
Max Welding Depth | ≤1.2mm | ||
Filler Wires Diameter | 0.4~1.0mm | ||
Power Consumption | 8KW | 15KW | |
Power Supply | AC220V | AC380V | |
Bench Load | ≤100kg | ||

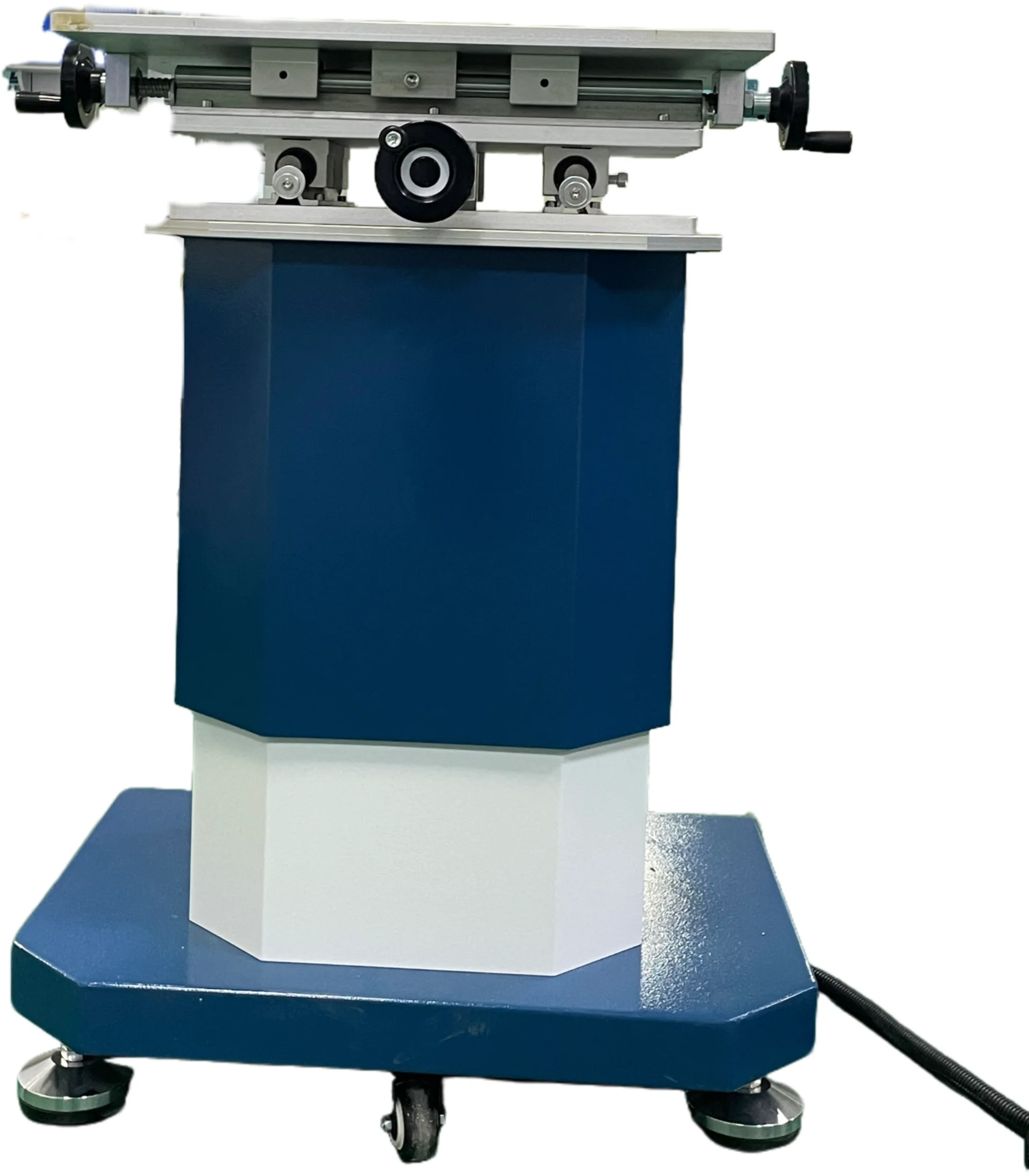

Bench Stroke | 250*150mm | ||
Arm Stroke | 200*200mm, optional: 200*200mm, arm rotates for 360° horizontally | ||
Operation Interface | 7” LED touch control interface, Chinese/English available | ||
Lifting Stroke | Electrical lifting 250mm | ||
Repeating Accuracy | ±0.01mm | ||
Positioning Accuracy | ±0.02mm | ||

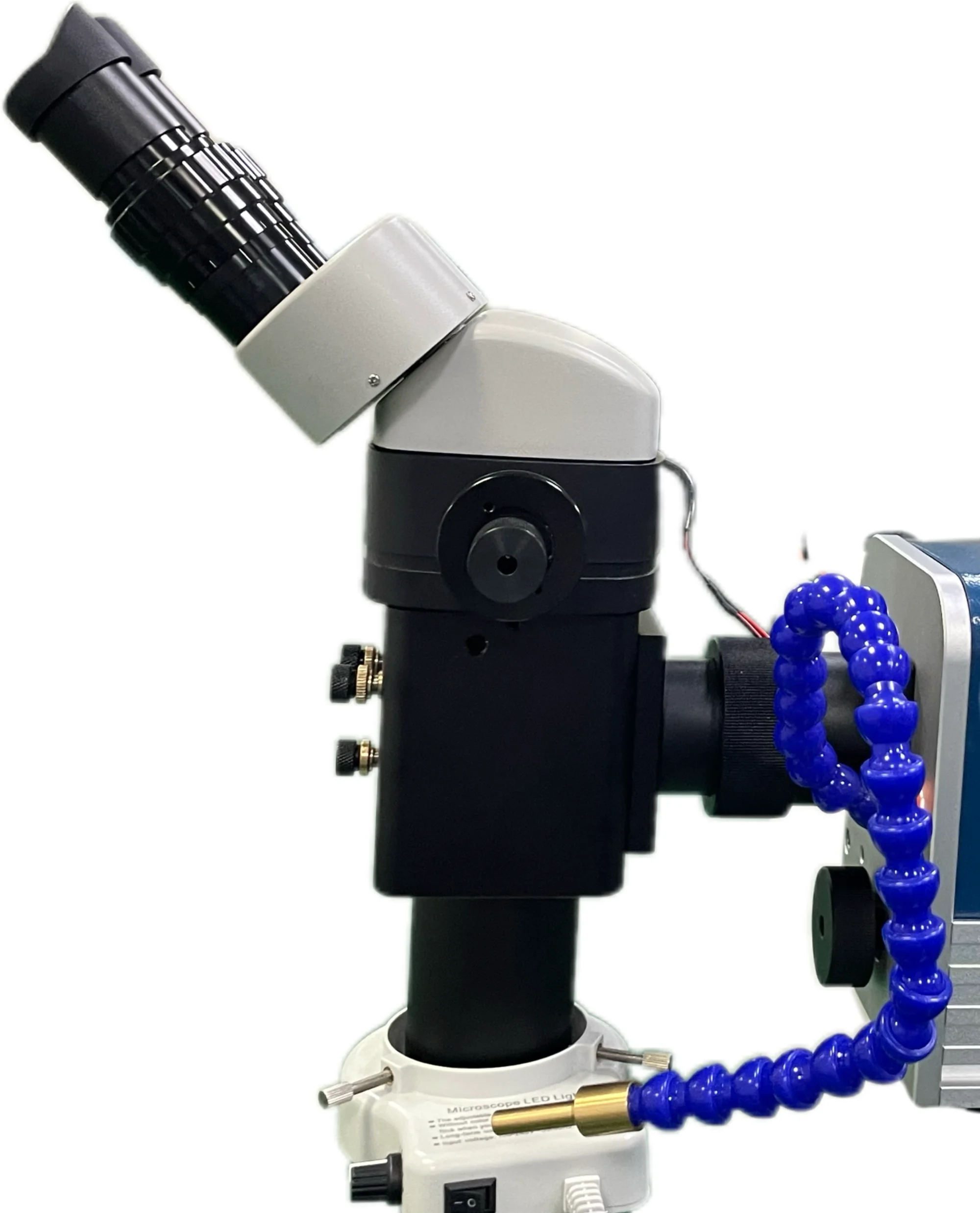

Locating System | Red laser, CCD monitor system, optional fixture | ||
Cooling Method | water cooling 1HP chiller | water cooling 2HP chiller | |
Ambient Environment | 5℃-30℃, 5%-75% humidity | ||
Details Images
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Domestic Market(50.00%),Mid East(20.00%),North America(15.00%),South
Asia(15.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser marking machine,Laser welding machine,Laser cutting machine
4. why should you buy from us not from other suppliers?
1\\For over 15 years,experienced R&D team and independent technology; 2\\Best price; 3\\Qucik delivery; 4\\Best after sales service;
5\\Products are suitable for al over the world, exported to Europe, America, Southeast Asia and other countries.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2018,sell to Domestic Market(50.00%),Mid East(20.00%),North America(15.00%),South
Asia(15.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Laser marking machine,Laser welding machine,Laser cutting machine
4. why should you buy from us not from other suppliers?
1\\For over 15 years,experienced R&D team and independent technology; 2\\Best price; 3\\Qucik delivery; 4\\Best after sales service;
5\\Products are suitable for al over the world, exported to Europe, America, Southeast Asia and other countries.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken:English,Chinese
Company Profile
About us.
Dongguan Dahe Laser Equipment Co., Ltd., as one of the earliest enterprises in China engaged in the manufacturing of laser marking equipment, has been dedicated to the application and research and development of laser marking for fifteen years. With the vigorous development of China's manufacturing industry, the application of laser marking technology in various industries is becoming more and more comprehensive. We have always been market-oriented, with technological innovation as our core competitiveness, and independently developed a series of laser application automation equipment, Widely used in various industries such as hardware, machinery, electronics, plastics, textiles, packaging, etc., and providing systematic customized solutions for customers, we have gained widespread recognition and sustained cooperation from customers.
After years of research and development and upgrading, we not only have the leading production capacity of fiber laser marking, laser welding machines, and laser cutting machines, but also the ability to provide professional solutions according to customer production environments and personalized needs. We also have the unique advantages of providing customers with forward-looking design planning and technological iteration upgrades, efficient delivery, and comprehensive after-sales support, Provide professional and reliable guarantee for customer production.
Our company's main products include a full range of laser marking machines, laser welding machines, laser engraving and cutting machines, and a series of accessories. We support non-standard customization and have customers in various provinces across the country, exported to Southeast Asia, Europe and America, and other parts of the world.
The company adheres to the corporate tenet of "winning with quality and establishing with sincerity", wins domestic and foreign markets with excellent services, and establishes long-term friendly cooperative relationships with users. We sincerely welcome friends from all walks of life at home and abroad to cooperate extensively with us in the fields of technology and business, achieve mutual benefit, achieve win-win results, and progress together!
After years of research and development and upgrading, we not only have the leading production capacity of fiber laser marking, laser welding machines, and laser cutting machines, but also the ability to provide professional solutions according to customer production environments and personalized needs. We also have the unique advantages of providing customers with forward-looking design planning and technological iteration upgrades, efficient delivery, and comprehensive after-sales support, Provide professional and reliable guarantee for customer production.
Our company's main products include a full range of laser marking machines, laser welding machines, laser engraving and cutting machines, and a series of accessories. We support non-standard customization and have customers in various provinces across the country, exported to Southeast Asia, Europe and America, and other parts of the world.
The company adheres to the corporate tenet of "winning with quality and establishing with sincerity", wins domestic and foreign markets with excellent services, and establishes long-term friendly cooperative relationships with users. We sincerely welcome friends from all walks of life at home and abroad to cooperate extensively with us in the fields of technology and business, achieve mutual benefit, achieve win-win results, and progress together!
Похожие товары
Высокобезопасная металлическая форма Raycus 1,5 кВт 3000 Вт 2 кВт 4 в 1 волоконно-лазерная сварочная машина очиститель резак из Китая для продажи
697 396,04 ₽ - 708 196,66 ₽
Лазерная сварочная машина Небольшая Ручная нержавеющая сталь ручная сварка алюминиевая оцинкованная пластина воздухонепроницаемая аппаратная точечная Сварка
289 456,62 ₽ - 302 417,36 ₽

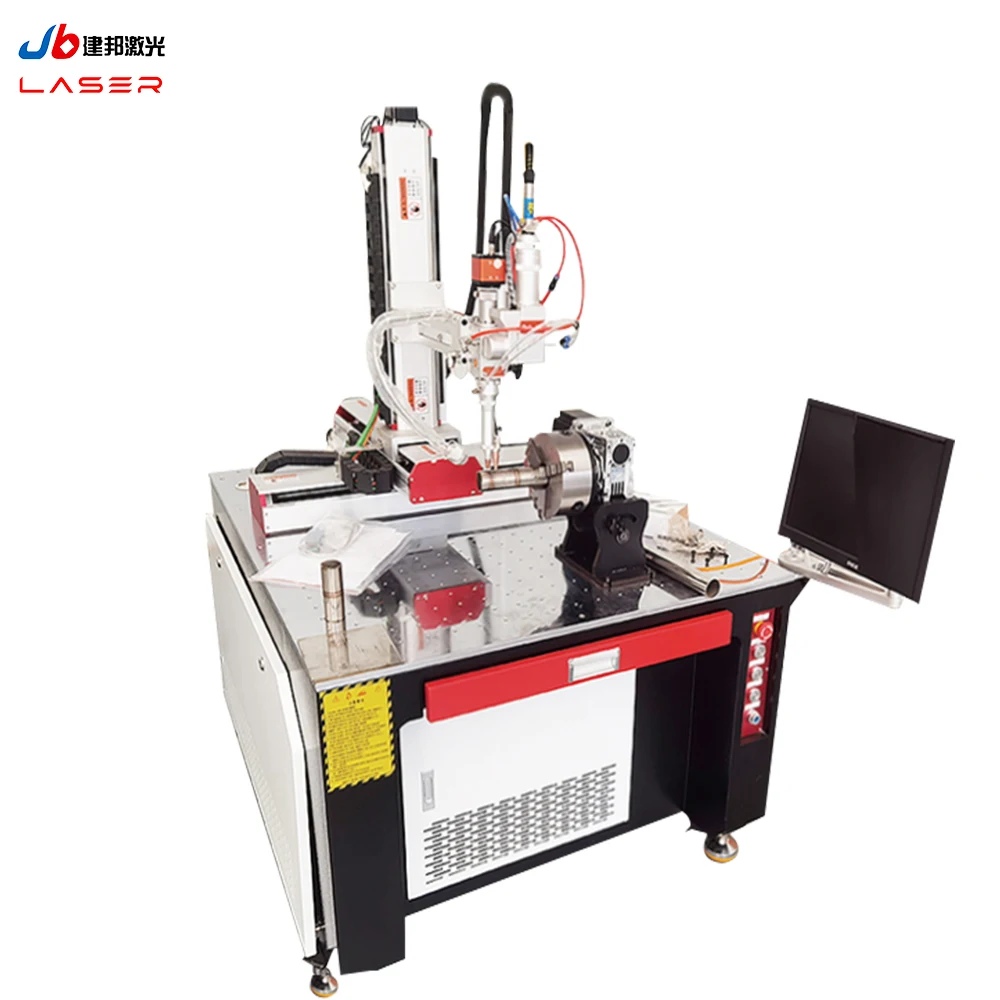

Автоматическая лазерная сварочная машина волоконно-оптическая металлическая платформа CNC 4-осевая сварочная машина
624 167,83 ₽ - 755 935,40 ₽
Заводской заказ ручной лазерный сварщик волоконно-сварочный автоматический аппарат 1000 Вт 1500 Вт
194 411,16 ₽

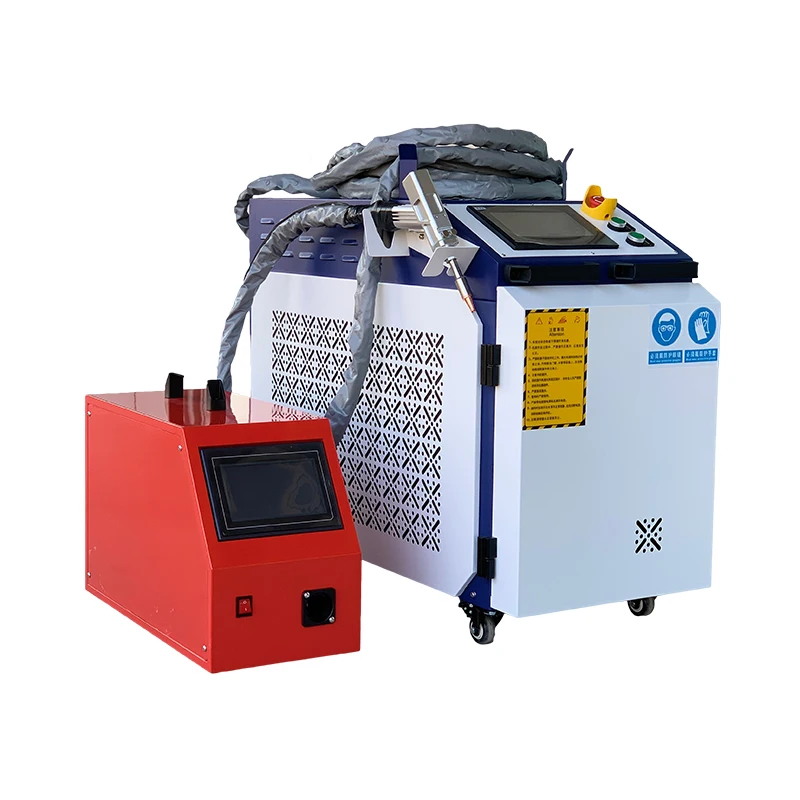

Портативный лазерный сварочный аппарат 4 в 1, 3000 Вт
410 423,56 ₽ - 432 024,80 ₽

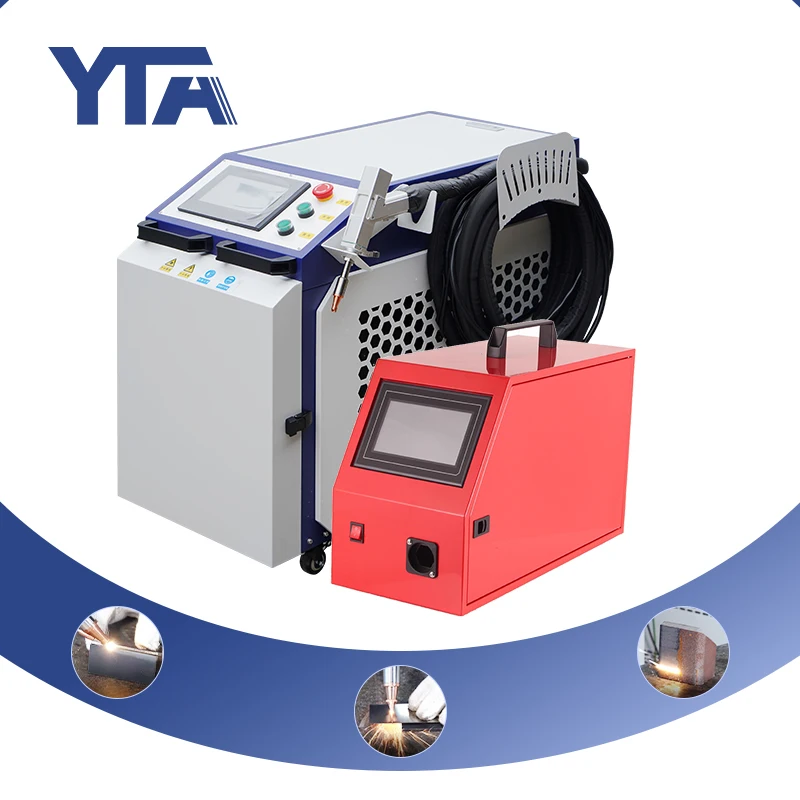

YTA автоматическая лазерная сварочная 1500w/2000w/3000w машина лазерная волоконная Сварка Ручной Волоконно-лазерный сварочный аппарат
