Многослойное порошковое ультразвуковое вращающееся вибрационное сито из нержавеющей стали
- Категория: >>>
- Поставщик: Dayong Vibration Equipment Limited Liability Co
Сохранить в закладки 1601232461487:
Описание и отзывы
Характеристики

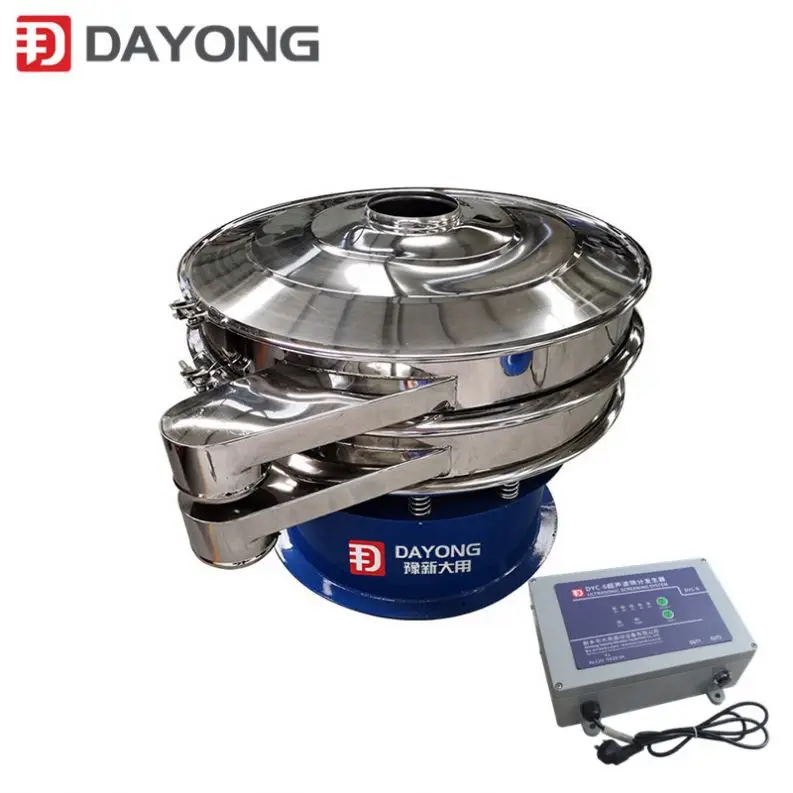

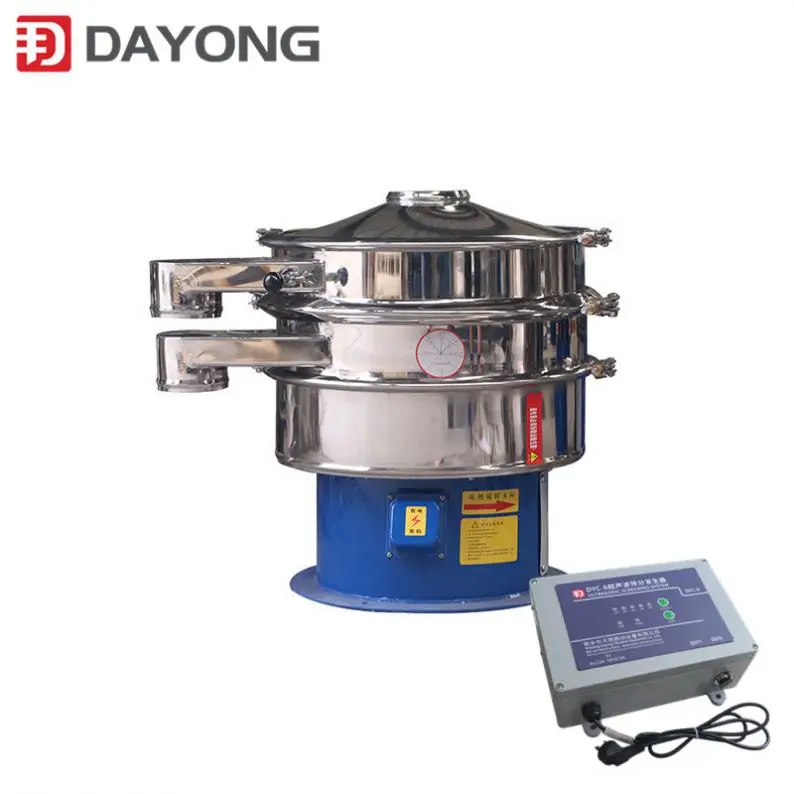

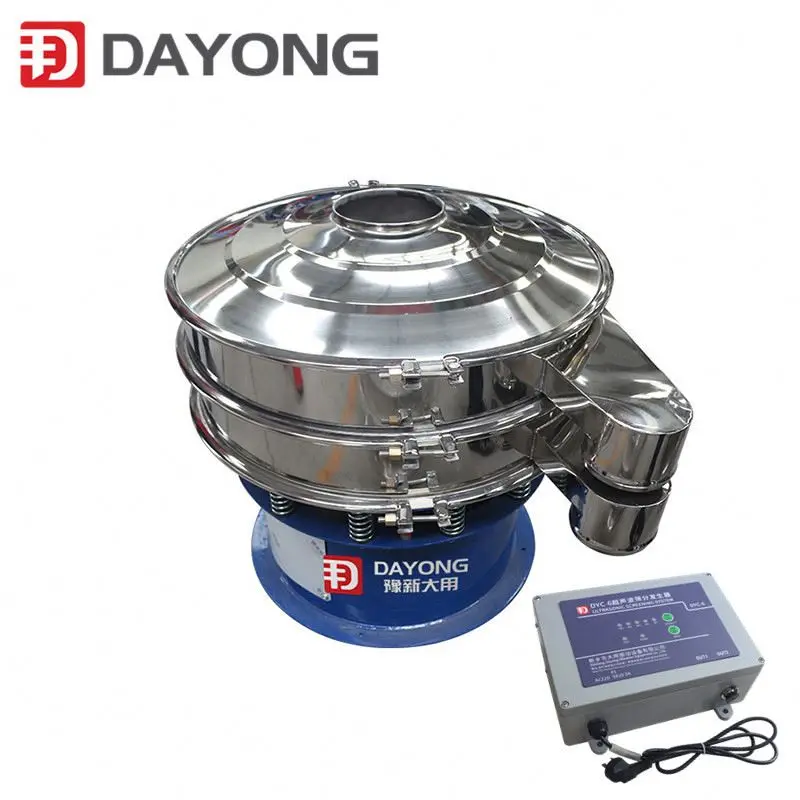

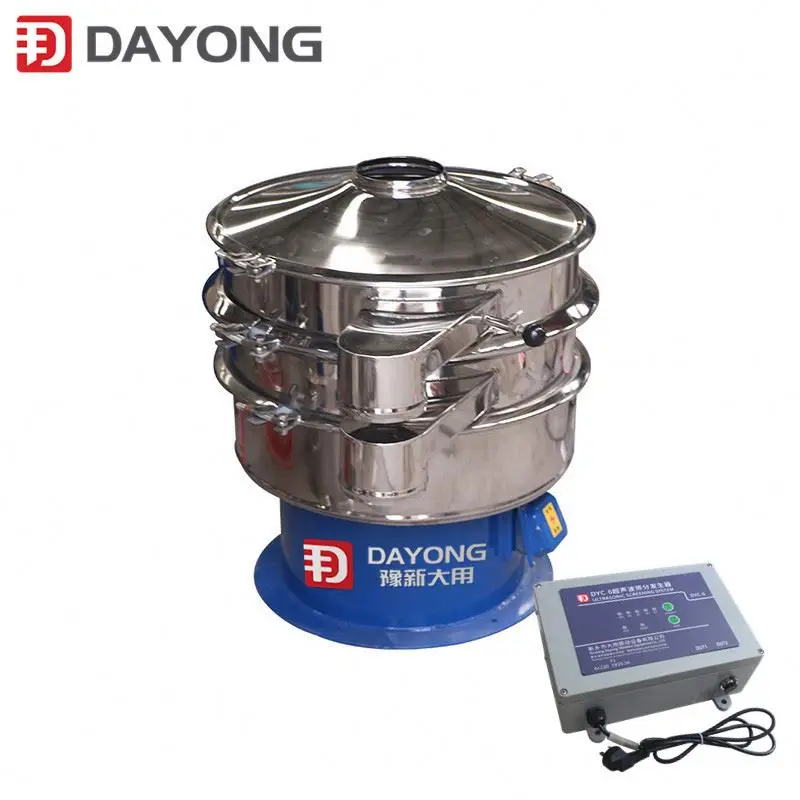

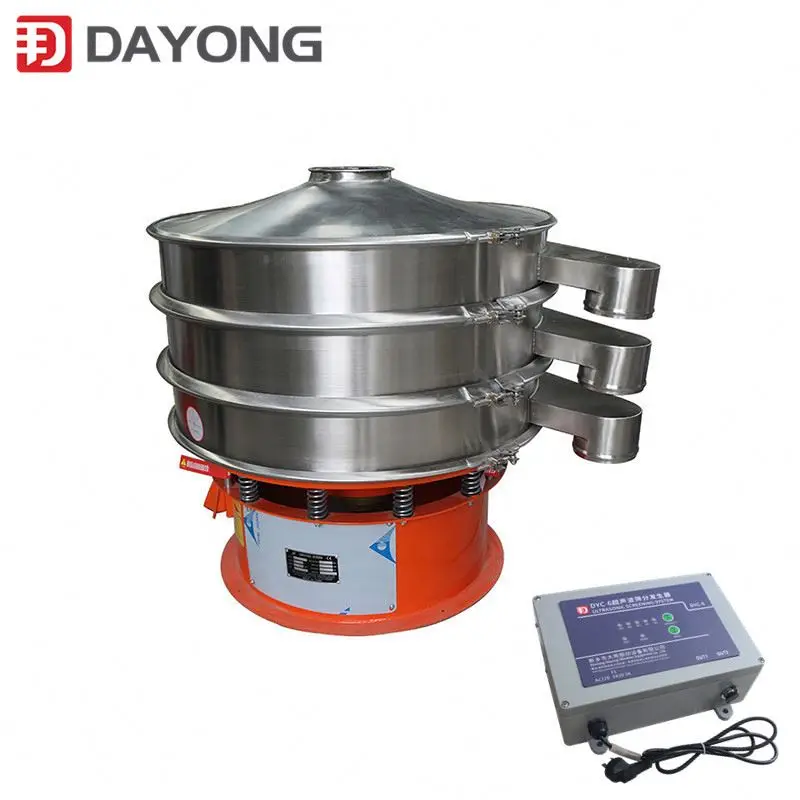

Stainless Steel Multi-layer Powder Ultrasonic Rotary Vibrating Sieve
Product Display
Product Introduction of Ultrasonic Vibrating Screen
The ultrasonic round rotary vibrating screen is consisit of the ultrasonic generator, transducer, resonant ring, vibration motor, screen body. The ultrasonic generator creates high frequency oscillation, and transducer will convert it to the high frequency sine shaped longitudinal oscillatory wave, then the oscillatory will be transmissed to the resonant ring and creates the sympathetic vibration, and the resonant ring will transmissed the vibration to the screen surface evenly. In this case, based onthe low frequency three dimensionl movement and supersonic vibration wave, the machine can not only keep off the screen mesh jam but also can improve the sieving capacity and quality.
Product Parameters
Model | Power (kw) | Valid Diameter (mm) | Layer (s) |
DYC-600 | 0.55 | 550 | 1-3 layers |
DYC-800 | 0.75 | 750 | |
DYC-1000 | 1.1 | 950 | |
DYC-1200 | 1.5 | 1150 | |
DYC-1500 | 2.2 | 1450 | |
DYC-1800 | 3 | 1750 |
Customer Case
Product Description
Advantages
1.Small size, light weight, saving space.
2.The direction of the discharge port can be adjusted, coarse and fine material automatically discharged.
3.No mesh plug, no powder flying, the smallest screen can be up to 500 mesh (28 microns), the smallest filter up to 5 microns.
4.Single layer rotary vibration screen with unique grid design, long-term use of screen, easy to change screen mesh, only 3-5 minutes, simple operation, easy to clean.
5.No mechanical action, easy maintenance, can be single or multi-layer, contact part of the material is made of stainless steel (except for medical use).
6.Any solid, liquid, powder, granules, slurry materials within a certain range can be screened.
2.The direction of the discharge port can be adjusted, coarse and fine material automatically discharged.
3.No mesh plug, no powder flying, the smallest screen can be up to 500 mesh (28 microns), the smallest filter up to 5 microns.
4.Single layer rotary vibration screen with unique grid design, long-term use of screen, easy to change screen mesh, only 3-5 minutes, simple operation, easy to clean.
5.No mechanical action, easy maintenance, can be single or multi-layer, contact part of the material is made of stainless steel (except for medical use).
6.Any solid, liquid, powder, granules, slurry materials within a certain range can be screened.
Using Scope
1. Food industry
Our circular vibrating screen can be used for processing starch powder, sugar powder, sale, rice flour, milk powder, soybean mile, sauce, fruit juice, condiment, and so on.
2. Chemical industry
This rotary vibrating sieve is widely used for handling resin powder, paint, industrial chemicals, detergent powder, cosmetic, Chinese medicine powder.
3. Metallurgy industry
In metal processing industry, this rotary vibrating screen can sift aluminum powder, lead powder, copper powder, alloy metal powder.
4. Pollution abatement
Our circular vibrating screen is also suitable for treating waste oil, sewage, accessory ingredient, activated carbon.
Our circular vibrating screen can be used for processing starch powder, sugar powder, sale, rice flour, milk powder, soybean mile, sauce, fruit juice, condiment, and so on.
2. Chemical industry
This rotary vibrating sieve is widely used for handling resin powder, paint, industrial chemicals, detergent powder, cosmetic, Chinese medicine powder.
3. Metallurgy industry
In metal processing industry, this rotary vibrating screen can sift aluminum powder, lead powder, copper powder, alloy metal powder.
4. Pollution abatement
Our circular vibrating screen is also suitable for treating waste oil, sewage, accessory ingredient, activated carbon.
Recommend Products
Company Profile
Xinxiang Dayong Vibration Equipment Co., Ltd. CE certified enterprise, specializes in manufacturing series of vibrating screen and vibrating machine and we could design, develop and produce by ourselves.
At present, the main range of products include kinds of series of vibrating screens, vibrating separator and filter, ultrasonic vibrating screens, sifting machines, filtering machines, linear vibrating screens, testing screens, vibrating conveyors, etc.
These products are highly suitable to the purpose of screening grains and powders and filtering serous fluids. Other uses include the sifting and sorting dry powders, liquids and solids in industries such as Chemicals, Food processing, Pharmaceuticals, Metallurgy, pigments, Ceramics and Abrasives, etc. Our products have seven national patents. CE and ISO certification. The quality and technology of our products have reached the international advanced standard.
At present, the main range of products include kinds of series of vibrating screens, vibrating separator and filter, ultrasonic vibrating screens, sifting machines, filtering machines, linear vibrating screens, testing screens, vibrating conveyors, etc.
These products are highly suitable to the purpose of screening grains and powders and filtering serous fluids. Other uses include the sifting and sorting dry powders, liquids and solids in industries such as Chemicals, Food processing, Pharmaceuticals, Metallurgy, pigments, Ceramics and Abrasives, etc. Our products have seven national patents. CE and ISO certification. The quality and technology of our products have reached the international advanced standard.
Product packaging
FAQ
1).MOQ require?
Our moq is 1 set.(If you need the spare parts,it is also ok).
2).Payment method?
Usually,we accept T/T,Western Union and others, we can't accept D/P,D/A
3).How to guarantee the quality?
If any machine quality problems, we accept return cargos.
Our warrantity is 18 months, promise your 0 risks purchasing
Our warrantity is 18 months, promise your 0 risks purchasing
Похожие товары
Горизонтальное центробежное воздушное сито для просеивания света с удельным весом
164 472,60 ₽ - 767 429,16 ₽
Ситечко высокой емкости для обследования и сортировки слюды карбоната кальция бентонита каолин
DZJX высокое качество 10 дюймов древесные опилки
271 928,04 ₽ - 285 085,84 ₽

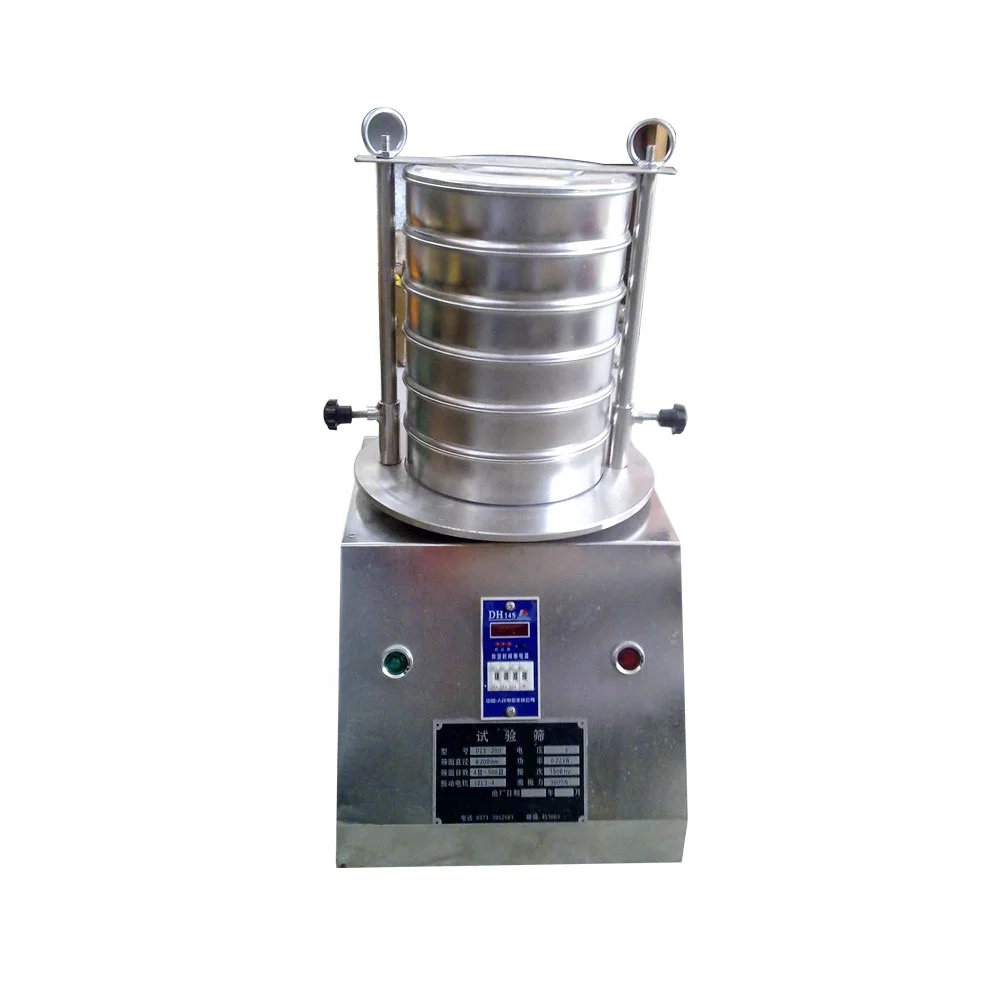

Вибрационный вибрационный сито для лабораторных лабораторий 200 мм
38 376,94 ₽ - 54 385,61 ₽
Сито для просеивания разного размера лабораторное тестовое сито порошка Сывороточного Белка
32 894,52 ₽ - 38 376,94 ₽

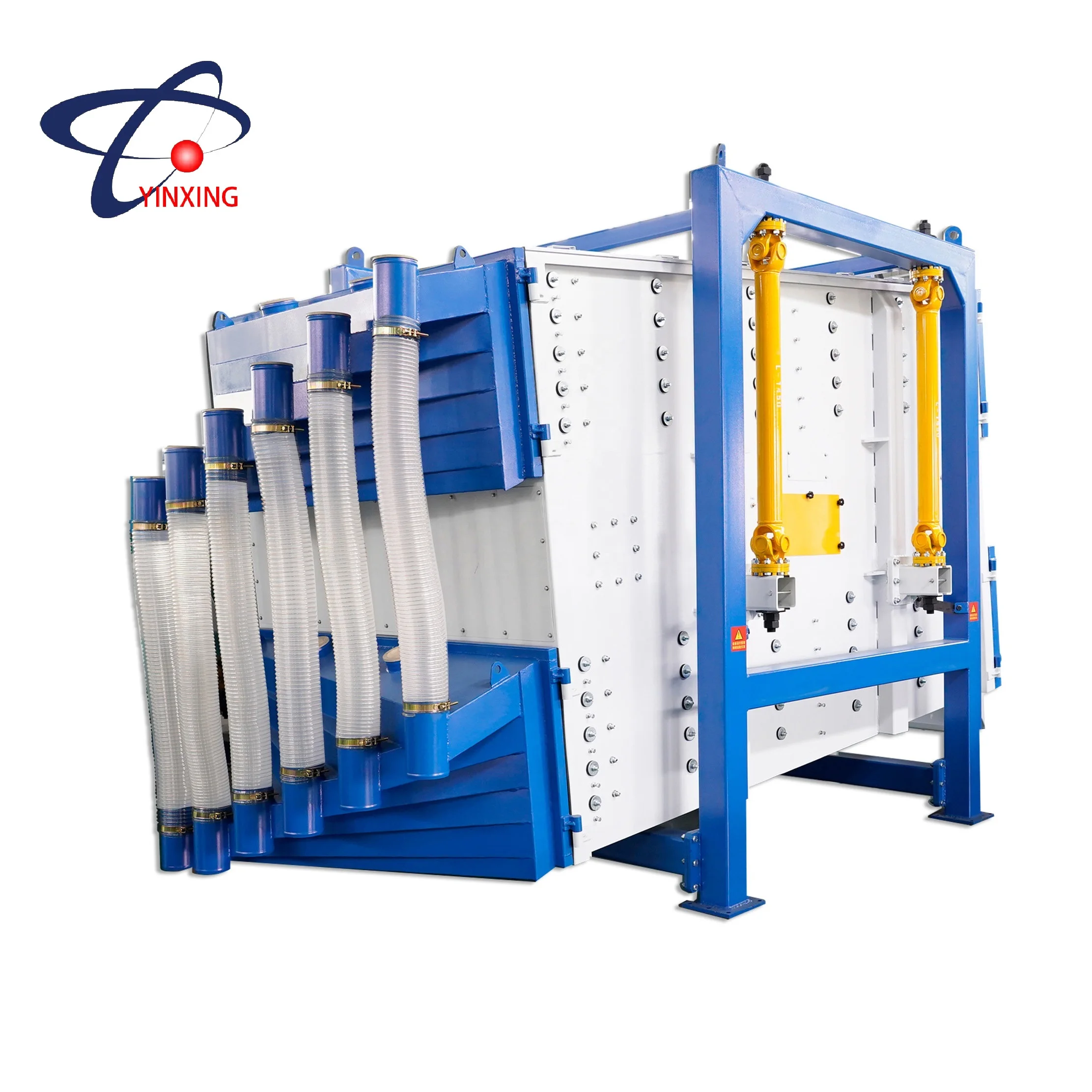

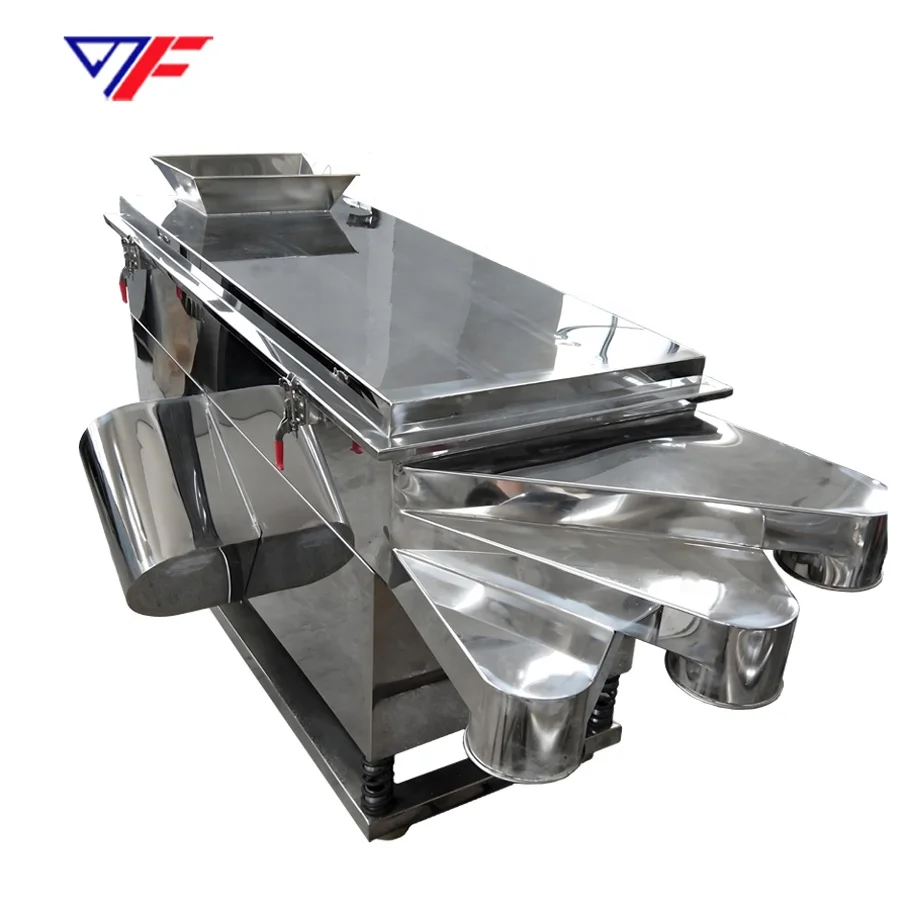

Квадратный вибрирующий сито
701 749,76 ₽ - 712 714,60 ₽

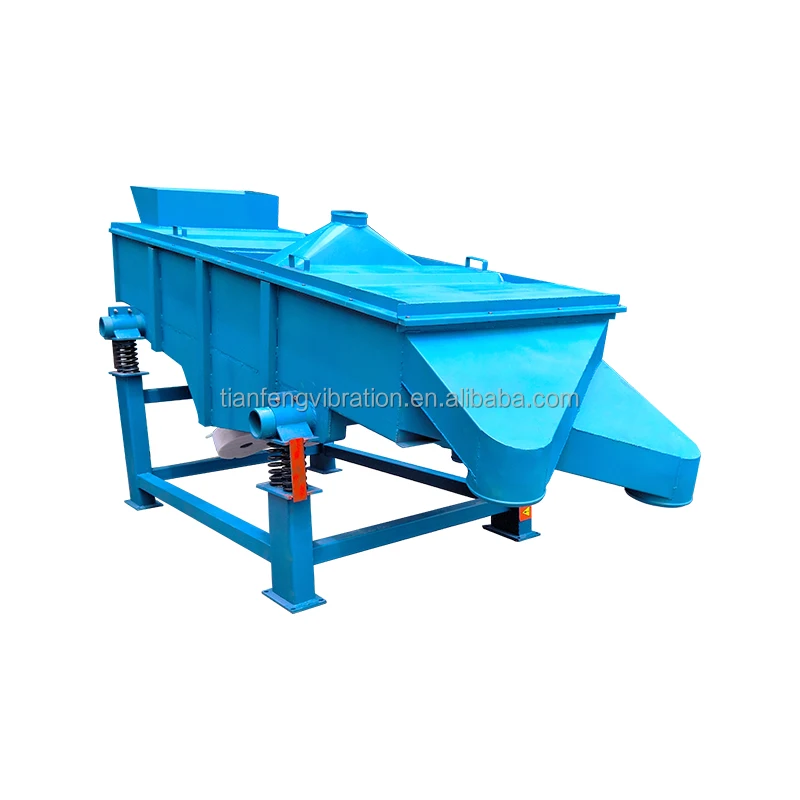

Эффективный сепаратор материала сито кальцинированная сода линейная вибрационная сортировочная машина
