Products Description
HICHWAN TMC32-25-200P 3.2m3/h High Temperature Chemical Pump For Chemical liquid transfer
TMC series Stainless steel Magnetic pump is suitable for transferring various chemical media, especially for Transferring acidic solution, alkaline solution and corrosive liquids.
SS304,SS316,SS304L,SS316L material
Core Advantages:
1. Stainless steel castings adopt silica sol pickling passivation process, no sand hole, no leakage, most castings on the market use water glass process, resulting in later repair welding of castings.
2. The hydraulic design of the pump adopts CFD finite element analysis to obtain the optimal efficiency solution, which is 10% higher than most on the market, that is, save electricity, the more the use of electricity, and greatly reduce the operating cost.
3. The shaft sleeve is up to 35mm, stable operation, very wear-resistant, longer life, about 10mm longer than other manufacturers.
4. Improvement of push-pull magnetic circuit.
5. Stable dynamic balance process, vibration frequency is less than 2mm/s, equivalent to a national standard.
6. Both internal and external magnetic NdFeb permanent magnet, magnetic properties are about 10 times that of ferrite, is about 5 times that of cobalt magnetic, magnetic properties in the current market the strongest.

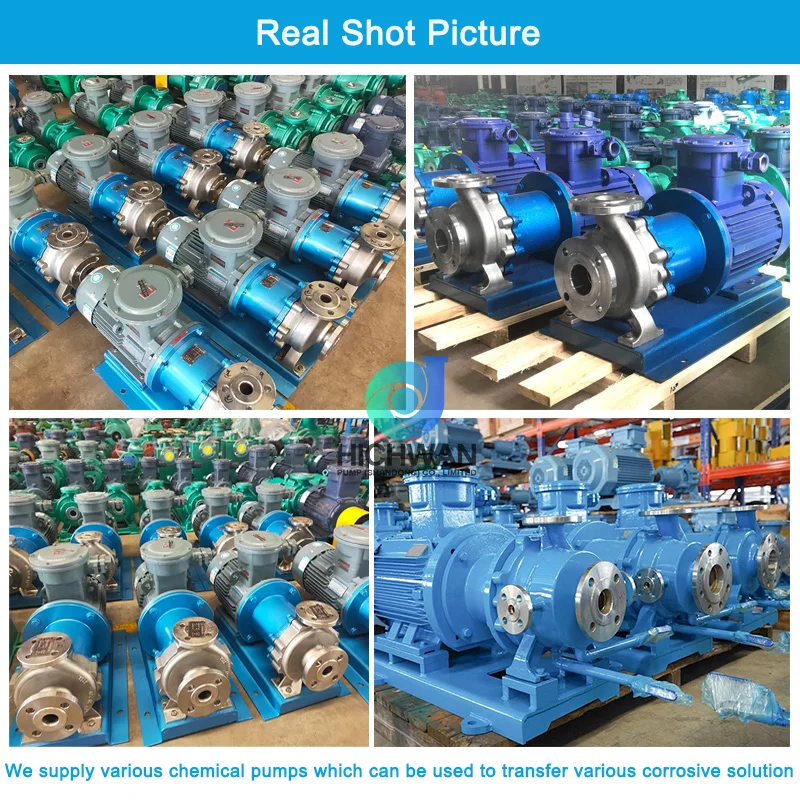

We supply various chemical pumps which can be used to transfer various corrosive solution

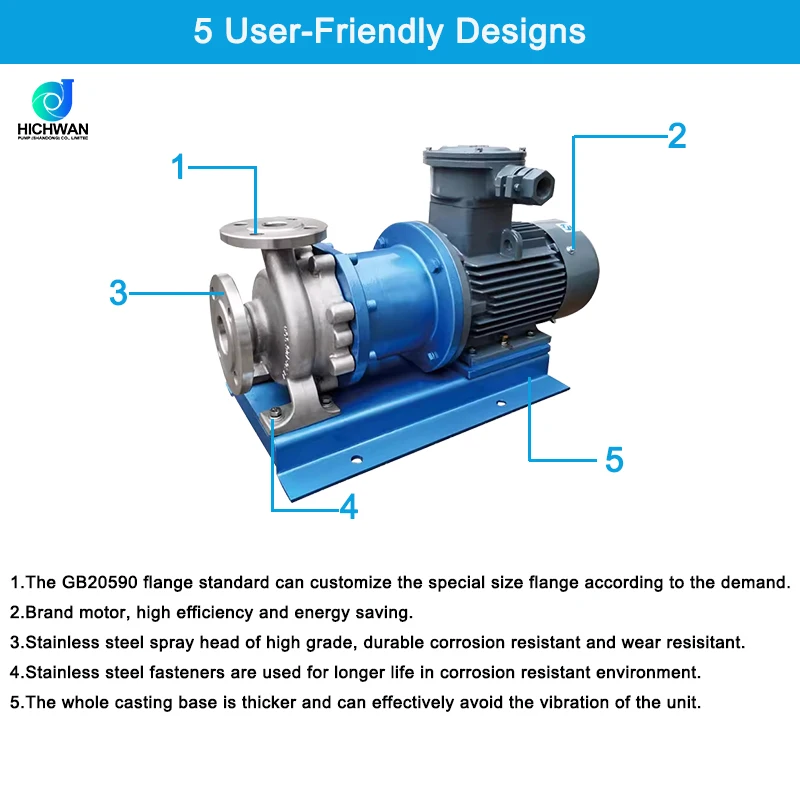

1.The GB20590 flange standard can customize the special size flange according to the demand.
2.Brand motor, high efficiency and energy saving.
3.Stainless steel spray head of high grade, durable corrosion resistant and wear resisitant.
4.Stainless steel fasteners are used for longer life in corrosion resistant environment.
5.The whole casting base is thicker and can effectively avoid the vibration of the unit.

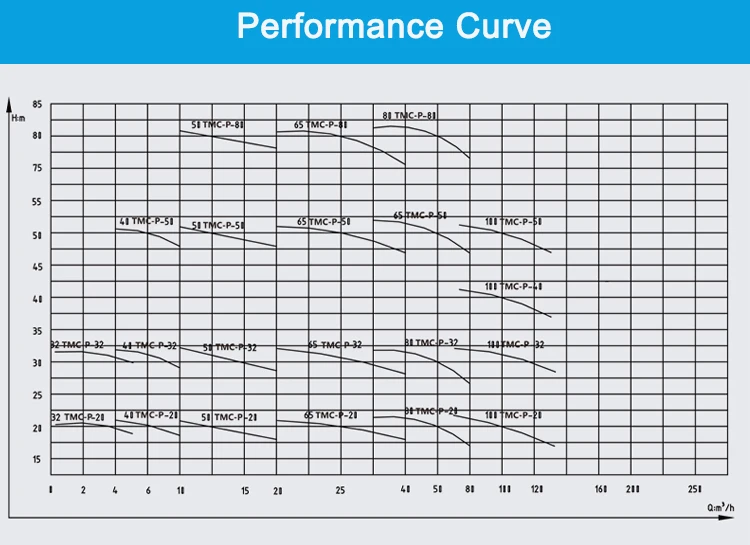

Perfomance Parameter
The following is the data used by the 50HZ motor, can be customized 60HZ electrial model, please contact us.
Model
NO. | Type | Flow m³/h | Head m | EFF % | Inlet mm | Outlet mm | Speed r/min | Power kW |
1 | TMC32-25-125P | 3.2 | 20 | 22 | 32 | 25 | 2900 | 1.1 |
2 | TMC32-25-160P | 3.2 | 32 | 19 | 32 | 25 | 2900 | 1.5 |
3 | TMC32-25-200P | 3.2 | 50 | 19 | 32 | 25 | 2900 | 5.5 |
4 | TMC40-25-125P | 6 | 20 | 27 | 40 | 25 | 2900 | 2.2 |
5 | TMC40-25-160P | 6 | 32 | 28 | 40 | 25 | 2900 | 3 |
6 | TMC40-25-200P | 6 | 50 | 19 | 40 | 25 | 2900 | 5.5 |
7 | TMC50-32-125P | 12.5 | 20 | 42 | 50 | 32 | 2900 | 3 |
8 | TMC50-32-160P | 12.5 | 32 | 48 | 50 | 32 | 2900 | 4 |
9 | TMC50-32-200P | 12.5 | 50 | 29 | 50 | 32 | 2900 | 7.5 |
10 | TMC50-32-250P | 12.5 | 80 | 23 | 50 | 32 | 2900 | 15 |
11 | TMC65-50-125P | 25 | 20 | 45 | 65 | 50 | 2900 | 4 |
12 | TMC65-50-160P | 25 | 32 | 42 | 65 | 50 | 2900 | 7.5 |
13 | TMC65-40-200P | 25 | 50 | 34 | 65 | 40 | 2900 | 15 |
14 | TMC65-40-250P | 25 | 80 | 37 | 65 | 40 | 2900 | 18.5 |
15 | TMC80-65-125P | 50 | 20 | 50 | 80 | 65 | 2900 | 7.5 |
16 | TMC80-65-160P | 50 | 32 | 47 | 80 | 65 | 2900 | 15 |
17 | TMC80-50-200P | 50 | 50 | 44 | 80 | 50 | 2900 | 18.5 |
18 | TMC80-50-250P | 50 | 80 | 45 | 80 | 50 | 2900 | 37 |
19 | TMC100-80-125P | 100 | 20 | 53 | 100 | 80 | 2900 | 15 |
20 | TMC100-80-160P | 100 | 32 | 51 | 100 | 80 | 2900 | 18.5 |
21 | TMC100-65-200P | 100 | 50 | 50 | 100 | 65 | 2900 | 37 |
22 | TMC100-65-250P | 100 | 80 | 46 | 100 | 65 | 2900 | 55 |
1.Casing | 2.Impeller | 3.Dynamic Ring | 4.Fore Bearing |
5.Shaft Sleeve | 6.Spindle | 7.Rear Cover | 8.Shaft Sleeve |
9.Rear bearing | 10.Dynamic Ring | 11.Rotor | 12.Isolation Sheel |
13.Outer Magnetic | 14.Support | 15.Motor | 16.Base Plate |
Details Images
Pump body with foot, in line with API685 standard chemical pump design, can withstand pipeline pressure, no need to disassemble the pipeline during maintenance.
External magnetic dynamic balance correction, to maintain lasting and stable operation, extend service life.
High grade NdFeb magnet, material optional 38EH(temperature 180°C), 38AH(temperature 260°C).
4.Stainless steel pump shaft, high temperature quenching process, more uniform density, toughness and strength.
The bushings are available in a variety of materials (cemented carbide, SIC and SSIC) to correspond to different working conditions.
The accuracy difference of each pump shaft is < 0.001mm
Stainless steel available: 304/316L/2205 Hastelloy /TA2/904
Stainless steel available: 304/316L/2205 Hastelloy /TA2/904
Application Occasion
Petrochemical Industry
Paper Industry
Biological Medicine
Wastewater Treatment
Environmental Protection
Metallurgy
Company Profile
Established in 2008, our factory has become a famous enterprise in the Chinese market, and our products are exported to Europe, America, Asia and Africa.We integrate design, manufacturing, and service, with various large mold bases and advanced aluminum alloy molds to meet the special requirements of casting, OEM, and processing.
FAQ
Q:When will the product be shipped?
A:In most cases, we guarantee delivery within 2 weeks, but if you need to customize, the delivery time needs to be negotiated.
Q:What is the packing method?
A:We offer standard export carton or plywood wooden case for package.
Q:What can you buy from us?
A:In most cases, we guarantee delivery within 2 weeks, but if you need to customize, the delivery time needs to be negotiated.
Q:What is the packing method?
A:We offer standard export carton or plywood wooden case for package.
Q:What can you buy from us?
A:Kinds of Centrifugal Chemical Pumps.
Q:How long is the warranty period?
A:We provide 1-year warranty of the pump body.
Q:What are the terms of payment?
A:TT,L/C,Western Union,Paypal,Ali-pay,Cash,Credit Card.
Q:How long is the warranty period?
A:We provide 1-year warranty of the pump body.
Q:What are the terms of payment?
A:TT,L/C,Western Union,Paypal,Ali-pay,Cash,Credit Card.
Packing & Delivery
