Автомобильная мастерская LX3 Автомобильное оборудование индивидуальная покрасочная камера

Автомобильная мастерская LX3 Автомобильное оборудование индивидуальная покрасочная камера

Категория: >>>
Поставщик: Shandong Longxiang Machinery Co. Ltd.

Цена:592 101,36 ₽ - 646 925,56 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

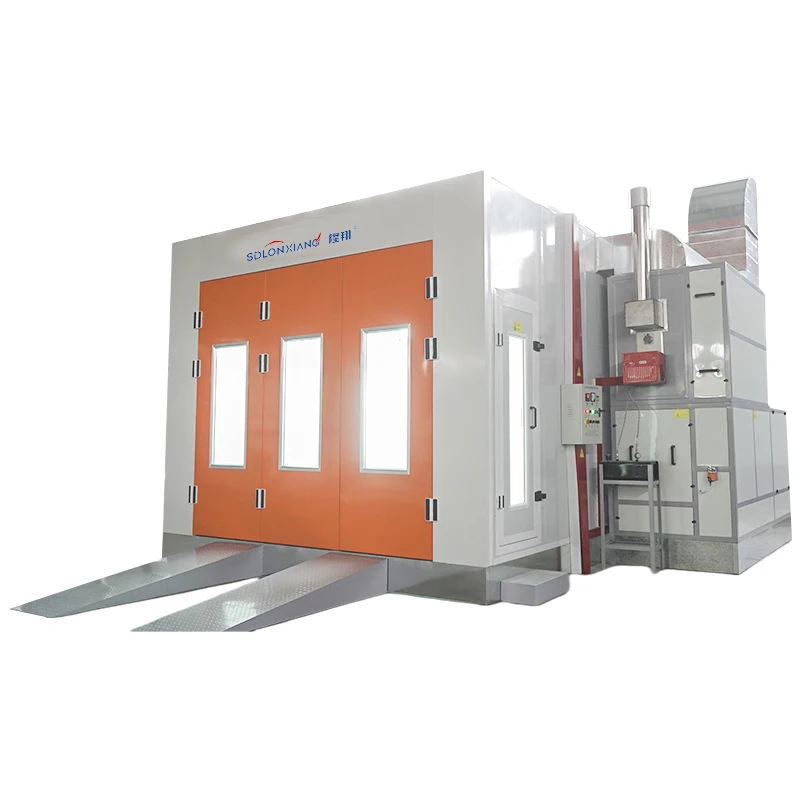

LX3
Outside size	7000×5200×3400mm(L×W×H)
Inside size	6900×3900×2650mm(L×W×H)
Entrance door	3 folds，3000x2600 mm(W×H), bending steel door,cast aluminum hinge, tempered glass window
Emergency door	6502000mm(WH),with pressure lock，with glass window，with step
Main System
Main System	Wall panel	-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel.
Main System		Basement	-Galvanized steel assemble,280mm high,quadrate steel support,3 rows of grills,2 rows of indented plates. -2 ramps,external setting,6202000mm(WL)/pc
Ventilation system	Inlet fan	2*3kw double-intake centrifugal fans, air capacity:10000m³/h for each set
		Outlet fan	1*5.5kw double-intake centrifugal fans, air capacity:15000m³/h for each set
		Cabinet setting type	-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful . -Cabinet for the fan1unit ,910mm air duct 2units, -Elbow:90°*1 unit
Heating system	Burner	Italy RIELLO G10 oil burner, heating capacity: 1 00000Kcal/h, heating time:6-8 min(20-60℃),fuel consumption is 5-8kg/vehicle,with pneumatic damper
		Heat Exchanger	1.2mm thickness SUS304 stainless steel
		Cabinet	Rock wool interlayer, thermal insulation, flame retardant
Lighting system	Ceiling lights	84pcs16w LED lighting
Lighting system		Side lights	82pcs16w LED lighting.
Filtering system	Primary filter	Grade G2 plate type , filtering rate＞83%
		Ceiling filter	EU5 grade high efficient filter,filtering rate＞98%
		Floor filter	Multi-layer fiberglass filter,filtering rate＞70%
Control system	Control panel	Intelligent control system
Control system		Function	Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc
Total power	12KW
Voltage/Frequency	380V,50HZ,3 phase

Details Images

Why Choose Us

Product Process

Company Profile

Exhibition

Packaging&Shipping

FAQ

1. who are we?
We are based in Shandong, China, start from 2008,sell to Domestic Market(27.00%),Southeast Asia(20.00%),Africa(17.00%),Mid East(10.00%),Eastern Asia(5.00%),Oceania(5.00%),South Asia(3.00%),Eastern Europe(3.00%),North America(2.00%),South America(2.00%),Western Europe(2.00%),Central America(2.00%),Southern Europe(1.00%),Northern Europe(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Spray Booth, Furniture Spray Booth, Prep-station, Truck Spray Booth, Water Curtain Spray Booth, Car Lift, Car Bench, Powder Coating Oven, Powder Coating Machine, Dust Collector, Air Compressor, Wheel Balancer

4. why should you buy from us not from other suppliers?
Focus on spray booth designing and producing for ten years and export for more than 40 countries from the world.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,JPY,AUD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
