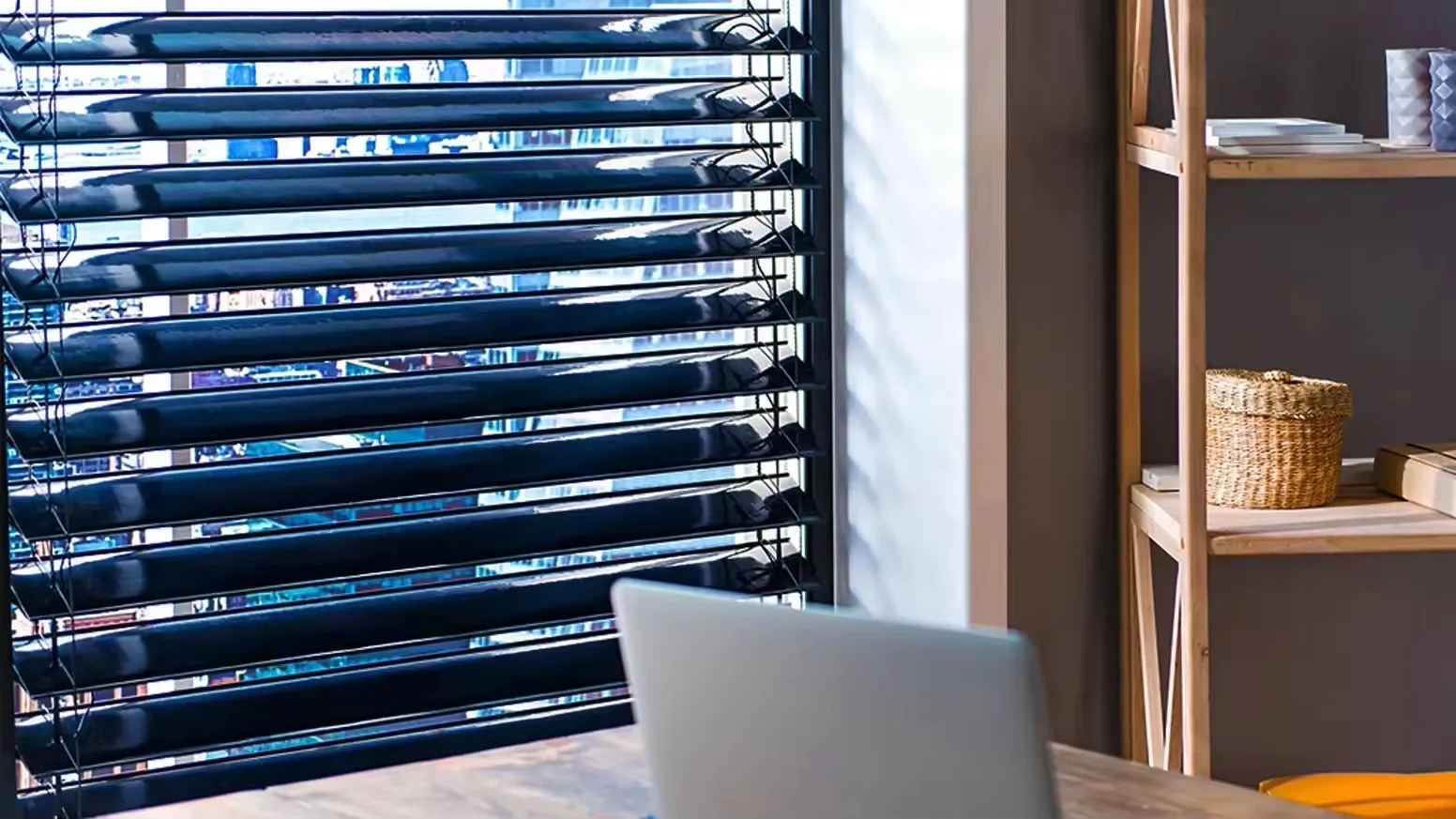

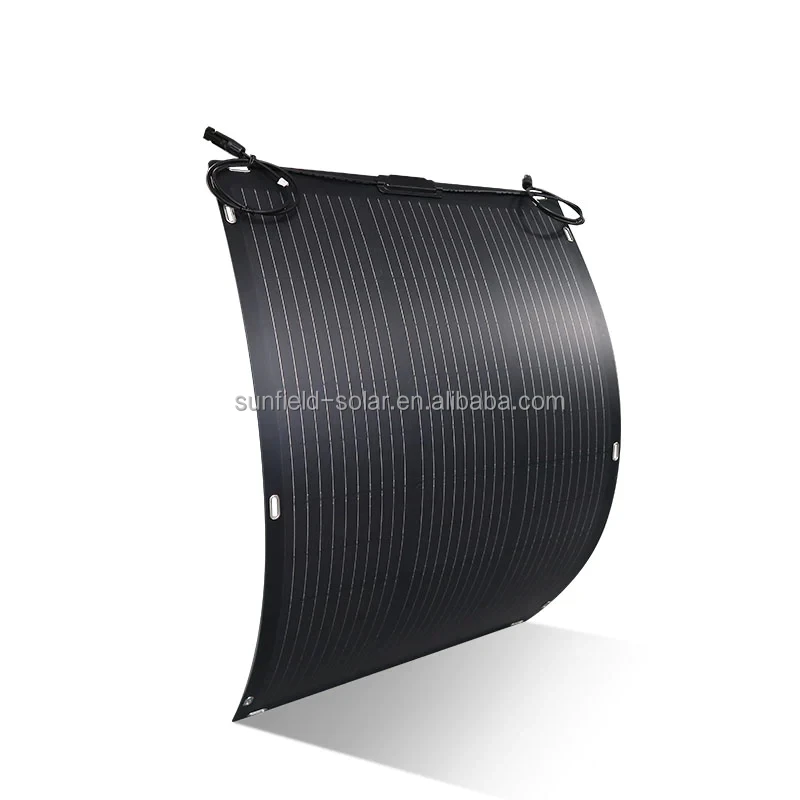

Полная черная узкая полоска тонкая ETFE 12 Вт 18 В Гибкая полугибкая моно солнечная панель 1950*50*2 мм для оконной глухой беседки

Сохранить в закладки 1601232812930:


Цена:712,72 ₽ - 932,02 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description



Specification



MONO/POLY
MONO
Item No.
SFED-F12M
Maximum power (Wp)
12
Maximum power voltage (V)
18
Maximum power current (A)
0.67
Open circuit voltage (V)
21.6
Short circuit current (A)
0.73
Cell efficiency (%)
≥21
Number of cells (Pcs)
36
Size of cell (mm)
156.75*156.75
Size of module (mm)
1950*50*2mm
Laminated materials
ETFE+Polymer Composite
Inside Material
Polymer composite
Junction Box Type
Optional
Cables length
100mm
Grommets
Optional
Connector
NO
Maximum System Voltage
100V
Maximum Series Fuse Rating
5A
Temperature Range
-40---+85℃
Power guarantee
5 years for the whole products, 90% power for 5 years, 80% power for 10 years.

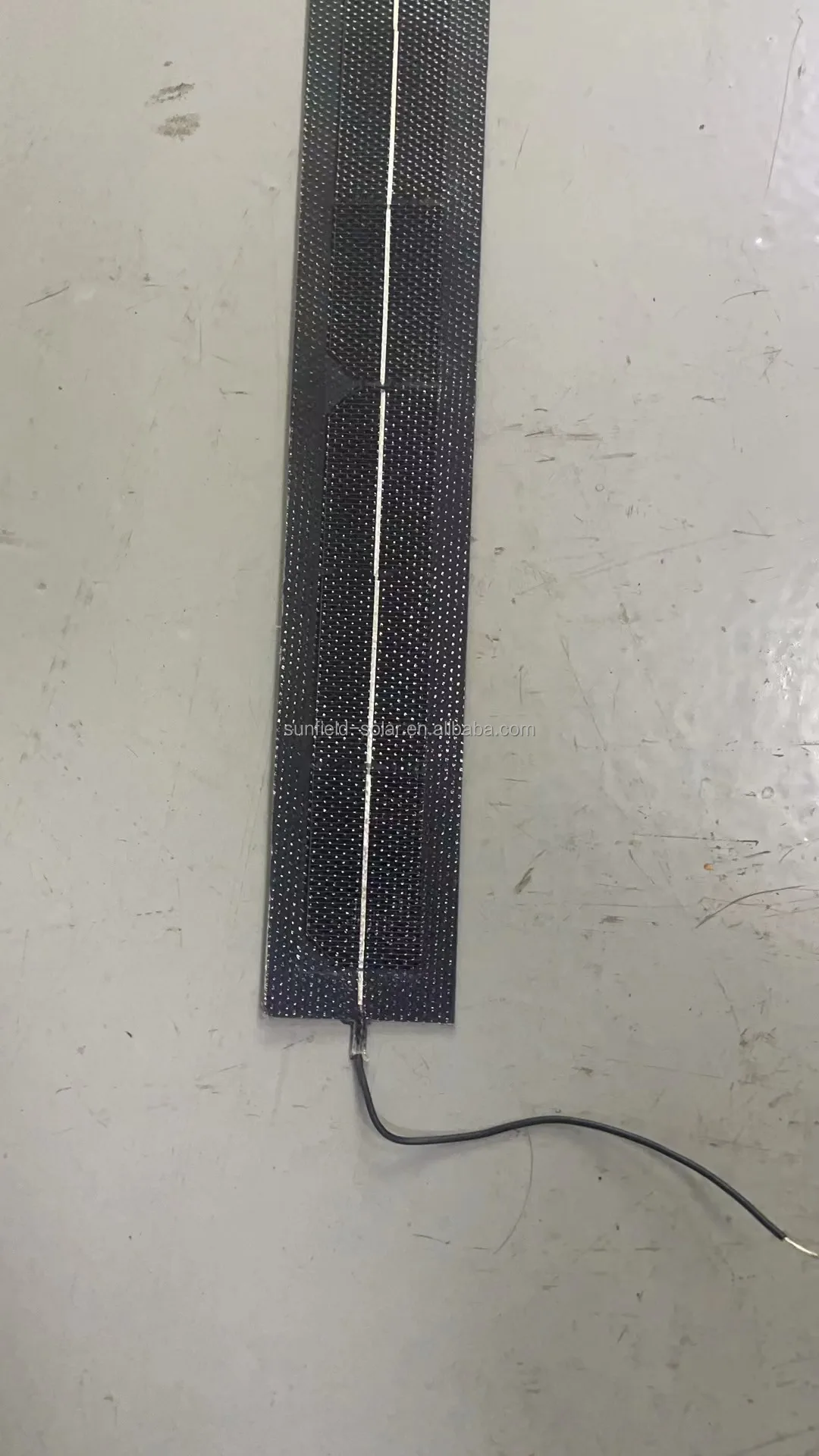

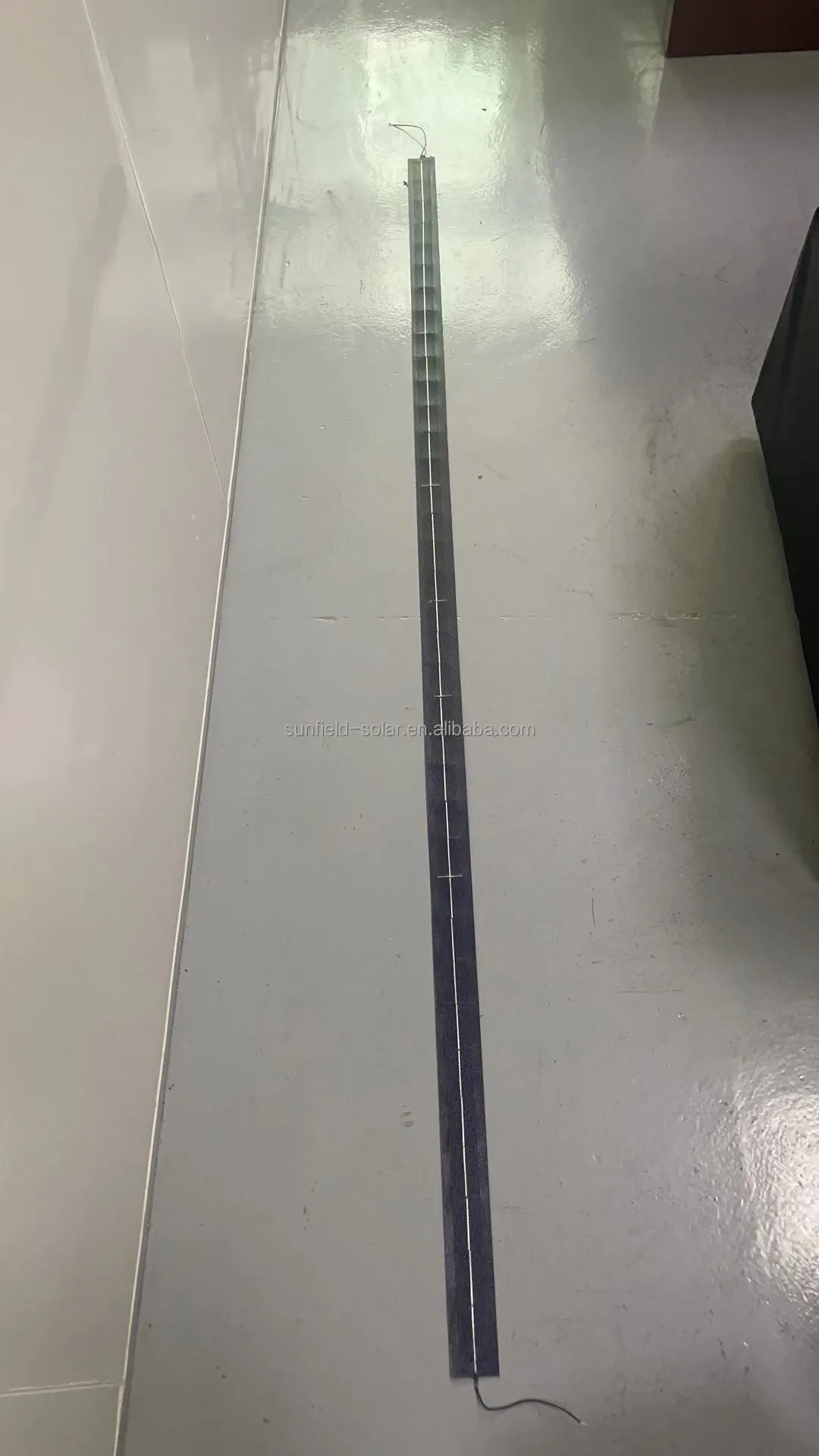

Product Details











Product Features

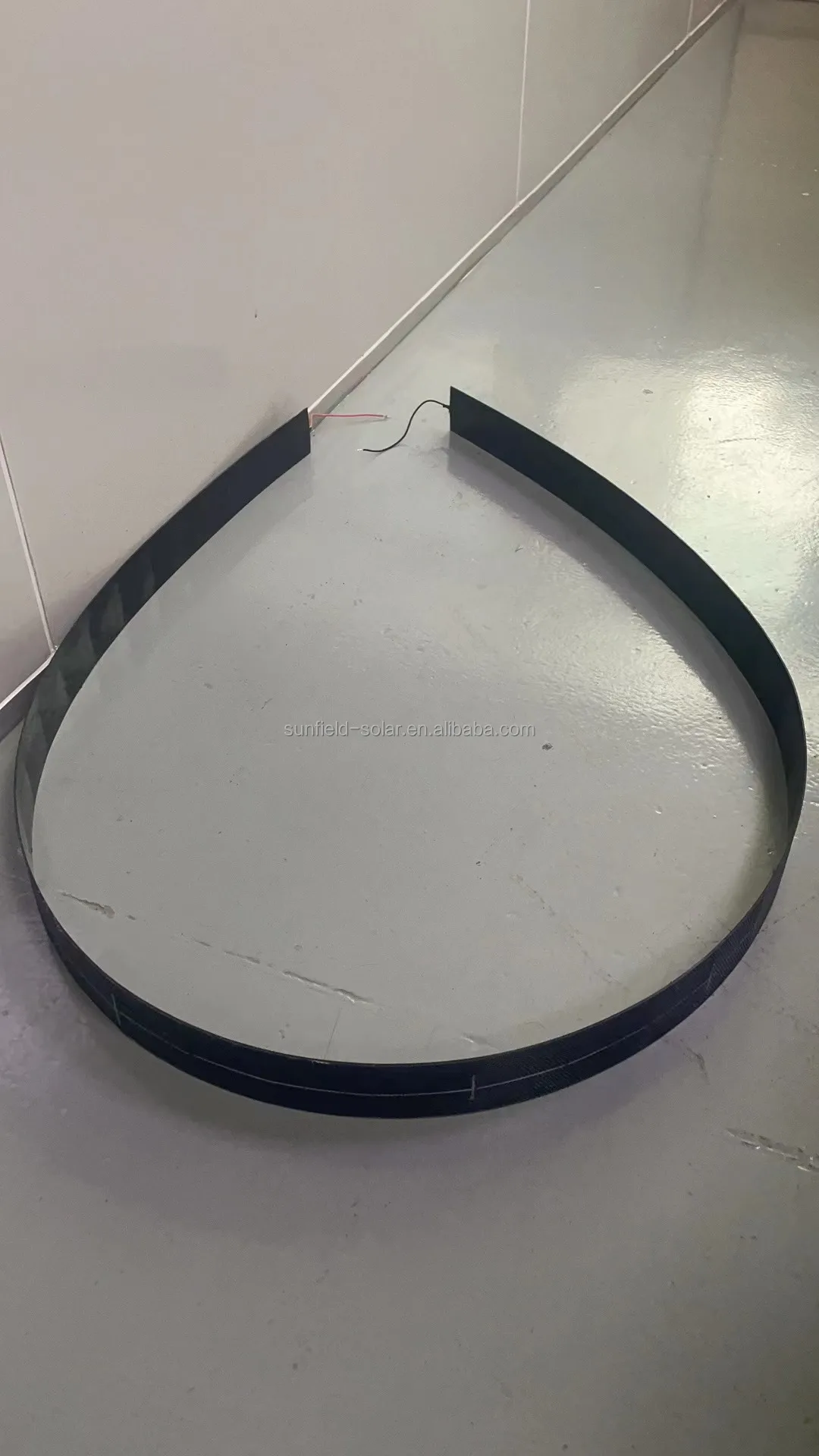

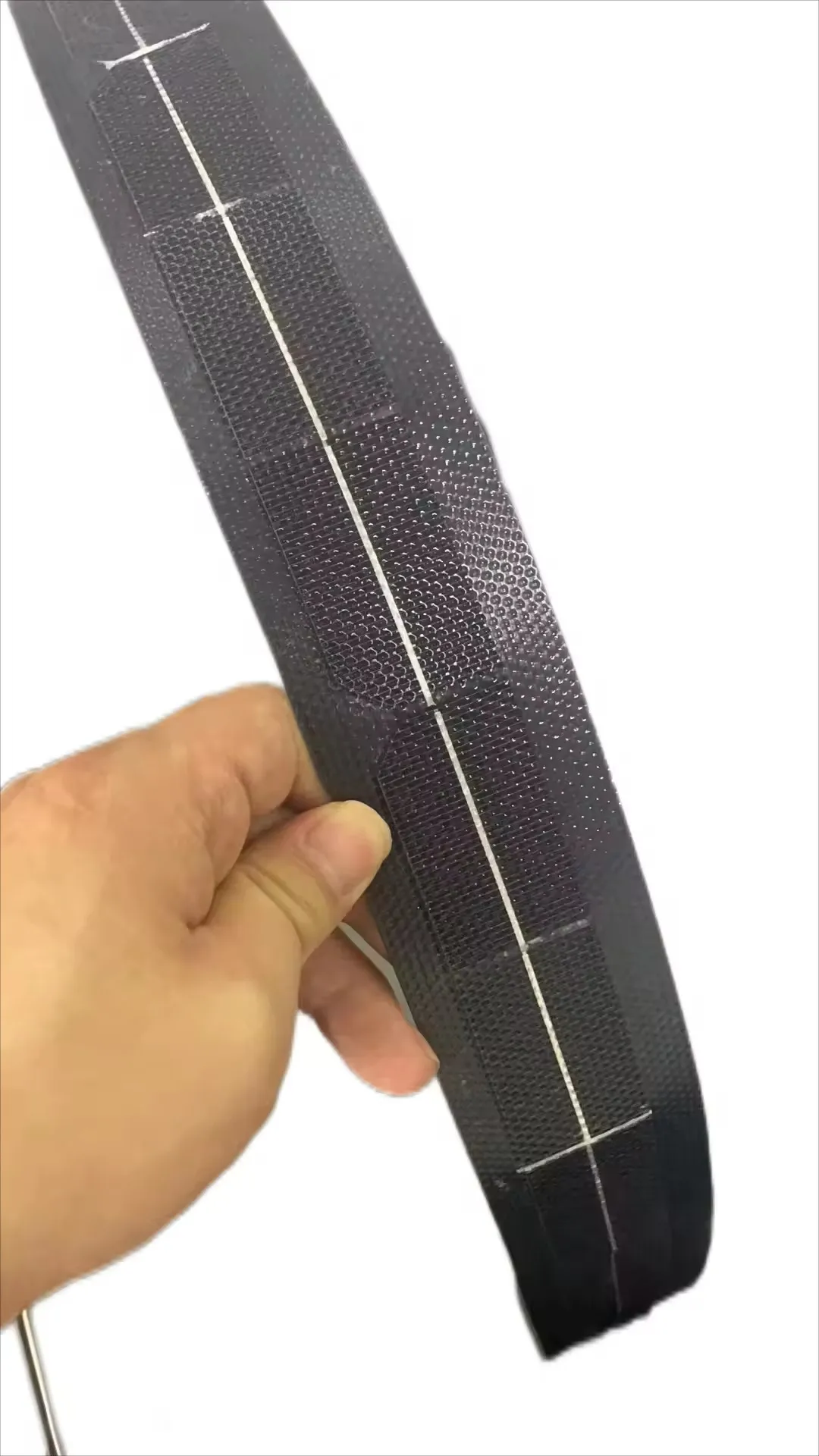

1) Better flexibility: can be bending angle up to 40-50 degrees.

2) Durable with TPT back sheet, no glass, no frame.

3) Light weight for easy carrying&shipment and installation, 83% lighter than normal rigid panel.

4) Thin: the thickness is only 2.0-2.5mm, which is more suitable to your yacht or RV roof , boat etc...

5) Can be stepped on it with soft soled shoes.

6) Made by double-side mono Hetero-junction solar cells, the efficiency can reach 25% max.

7) 30% high power output than market solar panels, steady perfect generate power performance.

8) Rounding corners to prevent from being scratched.

9) Hardening process surface prevent from scratched.

10) Can be installed with clue, adhesive, screws, or grommets at the corners.

11) Widely used: golf cars, yachts, boats, caravans, electric cars, travel tourism cars, patrol cars, roofs, camping, roof power generations, tents, portable bags, backpacks, portable generator kits etc..





Installation Instructions




Product Applications


Applications

Flexible solar panels can be widely used in car, electric vehicles, RVs, yachts, backpacks, tents, lamps, bus stations and other fields as long as there is sunshine, you can use it.




Company Profile


About Us

Shenzhen Sunfield New Energy Technology Co., Ltd

Established: Year 2015
Type of company: Factory/Manufacturer
Main Products: Glass type mono and poly solar panels, flexible solar panels, portable folding solar chargers, PET laminated solar panels, small solar generators.
Solar cells used: USA SunPower back contact solar cells, Hetero-junction cells, Perc cells...
Certificates: ISO, CE, ROHS, UCKA.
Address: 201, No. 33-5, Gong Keng Lang Industrial Park, Xintian Community, Guanhu Street, Longhua District, Shenzhen, China.






Our Certifications





Production Process




Packing & Delivery


Packing

Your goods will be treated well before shipment. Packed by Carton box and wooden pallet, or wooden case.




Delivery

-For big amount of quantity, your goods will be shipped by Sea.

-For small quantity or sample, your goods will be shipped by Courier.
