High quality 2024 Hengwang drilling machine well rotary drilling rig Compact Soil Boring Machine for Geotechnical Investigations
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
Product Description
Foundation Pile Rotary Drilling Rig
The machine lock bar rotary drilling rig uses hydraulic crawler-type telescopic chassis,self-lifting and folding collapsible drilling mast, telescopic drilling rod and many other technical applications. It is a construction machine suitable for hole formation in building foundation engineering. Mainly suitable for the construction of soil layers such as sandy soil, cohesive soil, silty soil, etc., it is widely used in various foundation constructions such as cast-in-situ piles, continuous walls, and foundation reinforcement.
Compared with ordinary rotary drilling rigs, machine-locked rod rotary drilling rigs have many objective advantages, such as the ability to drill through special grounds such as cement ground, hard sandy soil layers, and rock layers. It is suitable for large-scale engineering construction, buildings, high-speed, high-speed rail 3. Railway engineering construction. The machine construction runs fast, has high efficiency, good drilling quality, and is fuel-efficient and durable.
Compared with ordinary rotary drilling rigs, machine-locked rod rotary drilling rigs have many objective advantages, such as the ability to drill through special grounds such as cement ground, hard sandy soil layers, and rock layers. It is suitable for large-scale engineering construction, buildings, high-speed, high-speed rail 3. Railway engineering construction. The machine construction runs fast, has high efficiency, good drilling quality, and is fuel-efficient and durable.

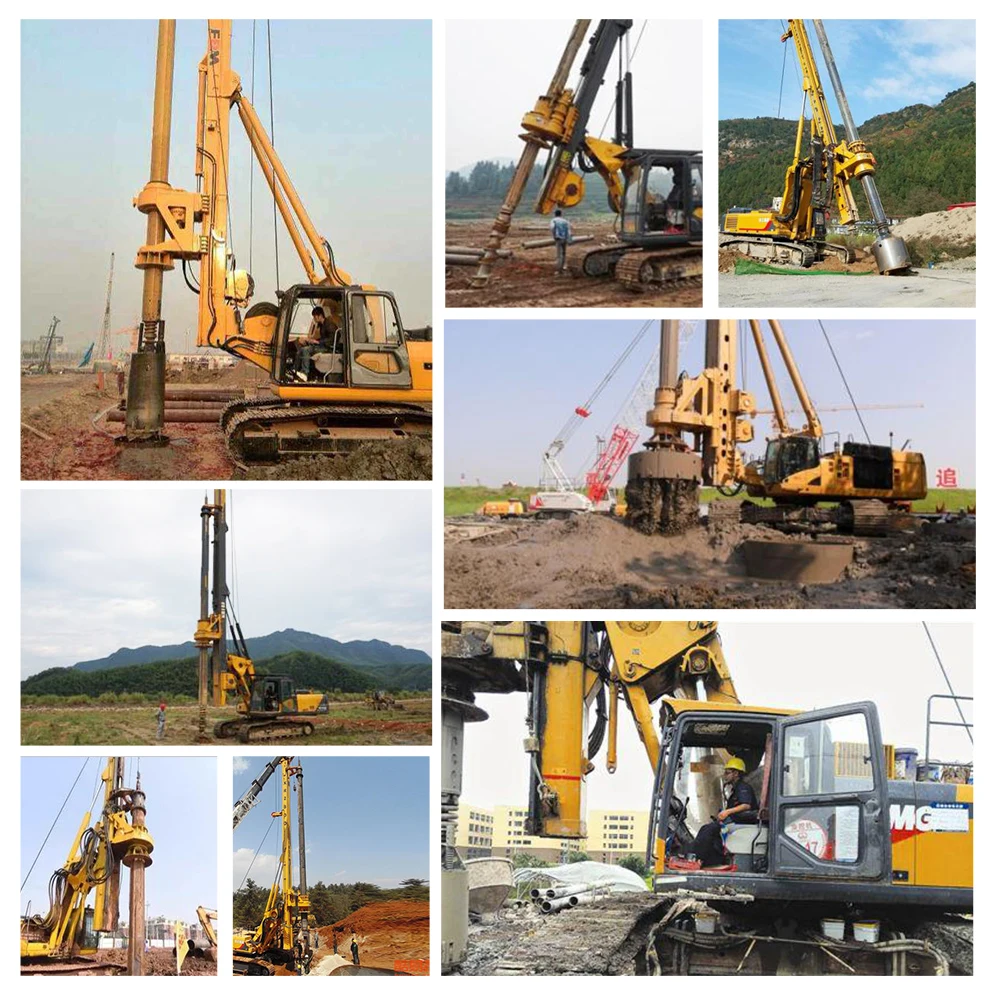

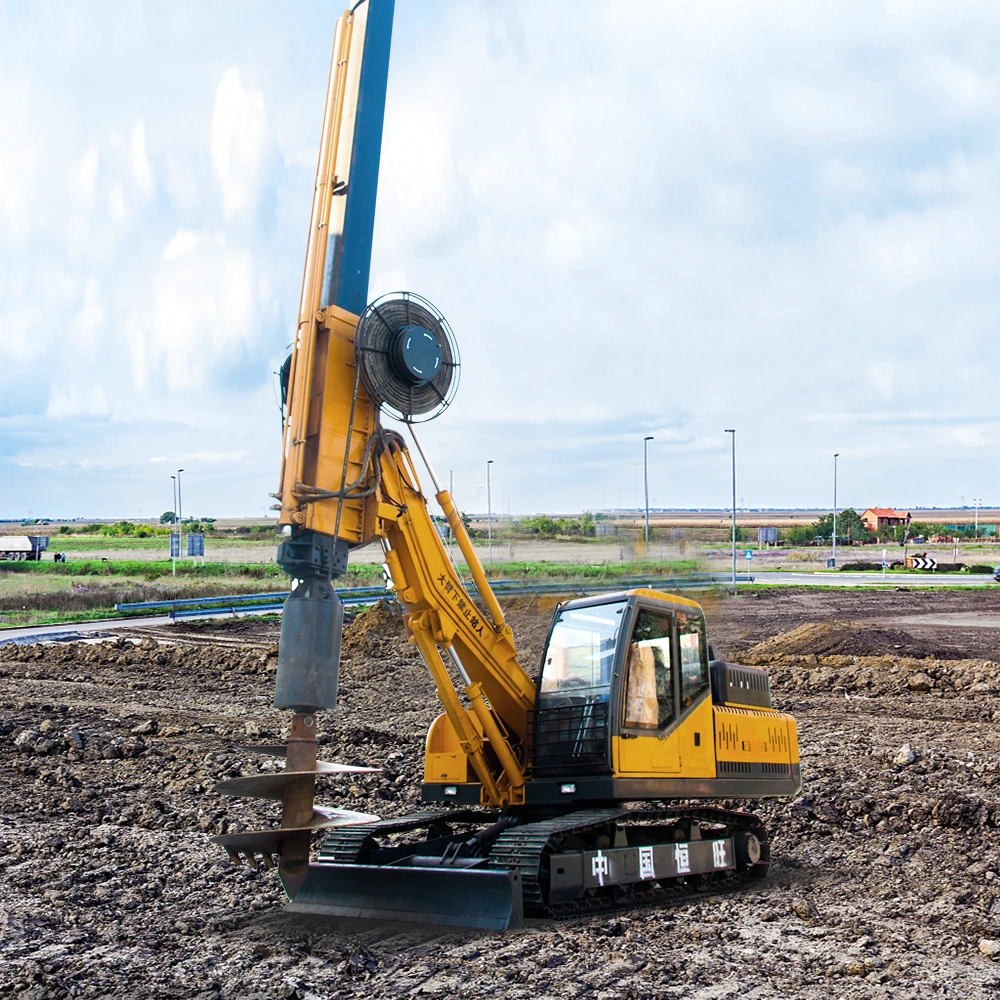

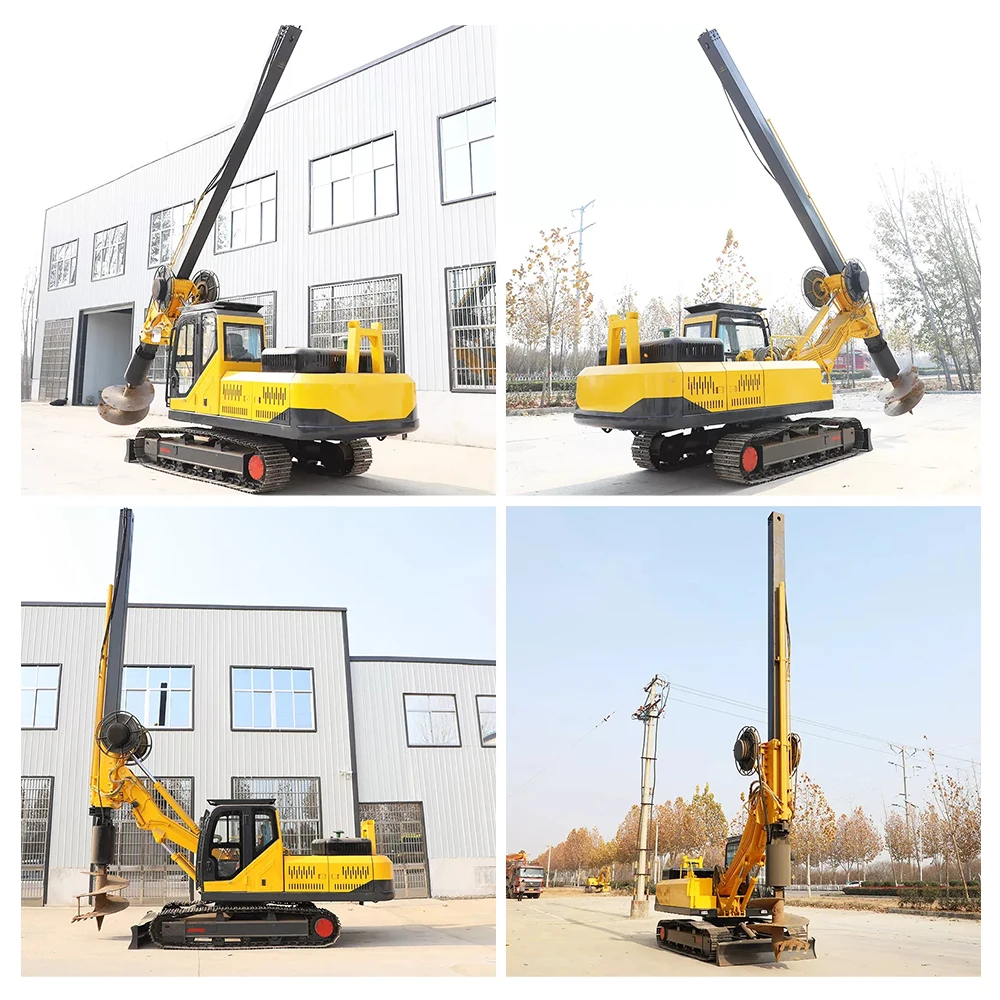

Details Images
High quality 2024 Hengwang drilling machine well rotary drilling rig Compact Soil Boring Machine for Geotechnical Investigations
Product Paramenters
Product Type | HWDR-120 | HWDR-150 |
Chassis length.(mm) | 4200 | 4800 |
Track width.(mm) | 600 | 600 |
Machine weight.(t) | 30 | 35 |
Maximum drilling depth.(m) | 30 | 40 |
drilling diameter.(mm) | 500-1800 | 500-1800 |
Engine brand | Yuchai/Weichai/Cummins | Weichai/Cummins |
(Optional) | (Optional) | |
Engine rated power.(KW/rpm) | 151KW-176KW | 158KW-176KW |
Maximum torque of power head.(KN.m) | 120 | 150 |
Power head speed.(rpm) | 10-50 | 10-50 |
Maximum working pressure of hydraulic system main pump.(MPa) | 30 | 30 |
Maximum working pressure of hydraulic system auxiliary pump.(MPa) | 12 | 12 |
Maximum bow rate of the main pump hydraulic systen.(L/min) | 112*2(Optional) | 112*2(Optional) |
Maximum bow rate of the auxiliary pump hydraulic systen.(L/min) | 16 | 16 |
Maximum pressure of the pressurization system.(KN) | 100 | 100 |
Maximum lifting force of the pressurization system.(KN) | 80 | 80 |
Maximum travel pressure system.(mm) | 3000 | 3000 |
Maximum lifting force of the main winch.(KN) | 150 | 150 |
Maximum pull-up speed of the main winch. (m/min) | 50 | 50 |
Maximum lifting force of the auxiliary winch.(KN) | 15 | 15 |
Maximum pull-up speed of the auxiliary winch.(m/min) | 50 | 50 |
Left and right inclination angle of drilling mast(°) | ±5 | ±5 |
Forward and backward inclination angle of the drilling mast. (°) | 5/90 | 5/90 |
Maximum driving speed(KM/h) | 1.5 | 1.5 |
Maximum climbing angle.(°) | 25 | 25 |
Maximum Driving torque.(KN.m) | 45000 | 45000 |
Overall width of working state.(mm) | 4200 | 4200 |
Overall length of transport status.(mm) | 13000 | 13000 |
Overall width of transport status.(mm) | 2800 | 2800 |
Overall height of transport status.(mm) | 3500 | 3550 |
Drill rod type | Machine Lock | Machine Lock |
Drill rod whether to provide custom | Yes | Yes |

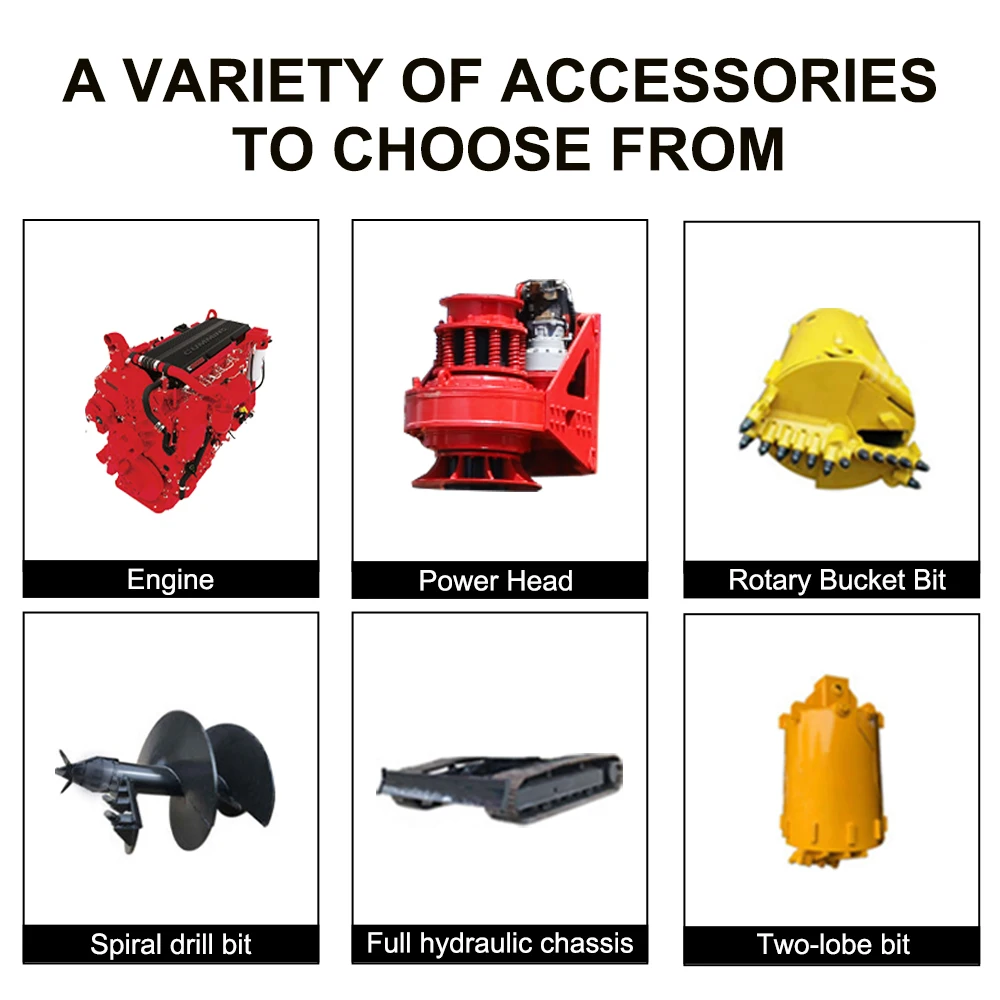

drill tools | 500-2000mm drilling bit,Drlling Barrel,Coring drill,Reaming drilling bit | 500-3000mm drilling bit,Drlling Barrel,Coring drill,Reaming drilling bit |
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
Packing & Delivery
In terms of transportation, we generally provide sea freight and support a variety of payment methods. You can receive this pneumatic drilling rig you like at the port. We guarantee that we will not charge any intermediate fees and additional fees that exceed the shipping cost. We only hope that you will be faster and more efficient. Get Your Favorite well water drilling machine at a Discount
Company Profile
High quality 2024 Hengwang drilling machine well rotary drilling rig Compact Soil Boring Machine for Geotechnical Investigations
Похожие товары

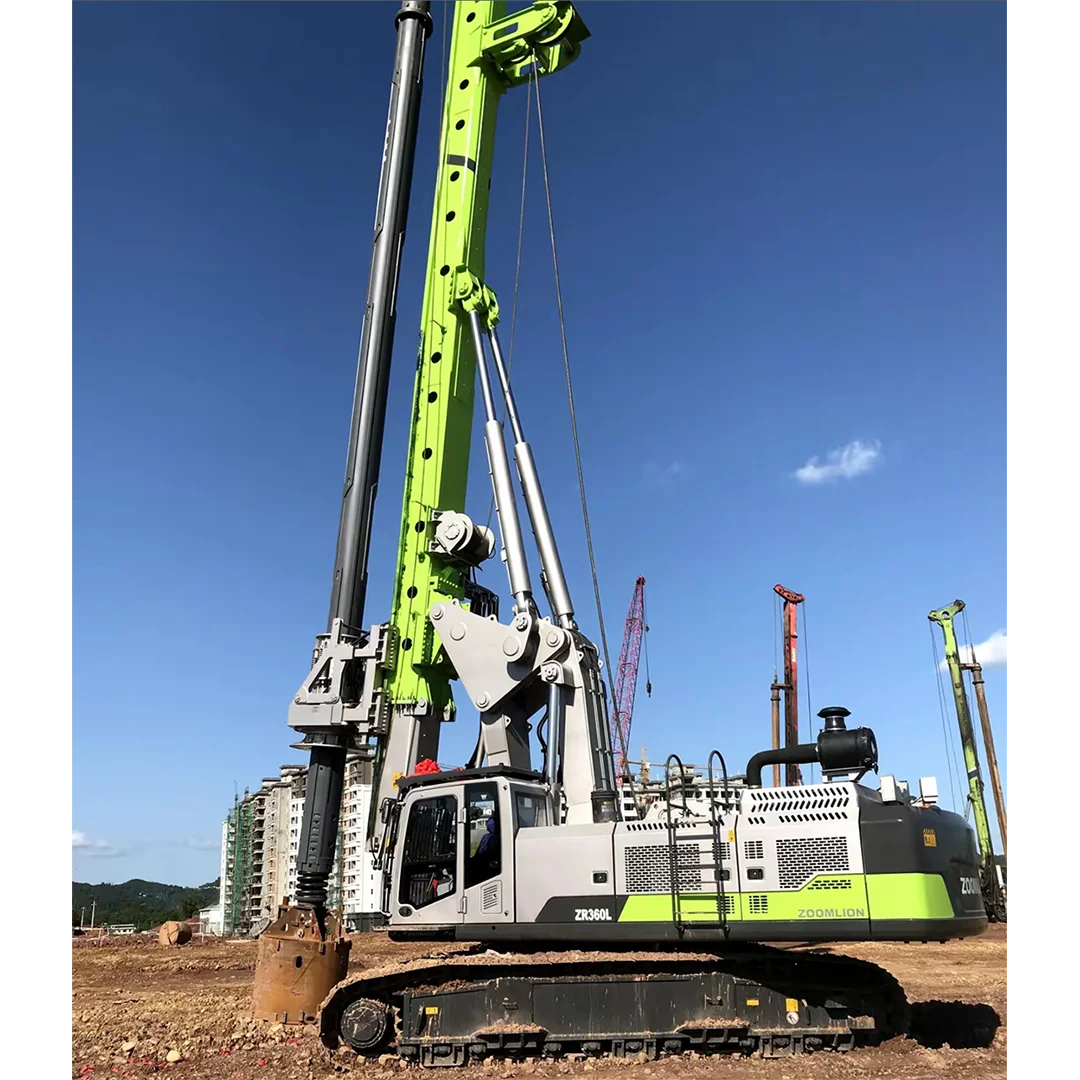

Китай высокая производительность Топ бренд роторная буровая установка Zr360 с дешевой ценой
23 721 700,00-26 805 521,00 ₽

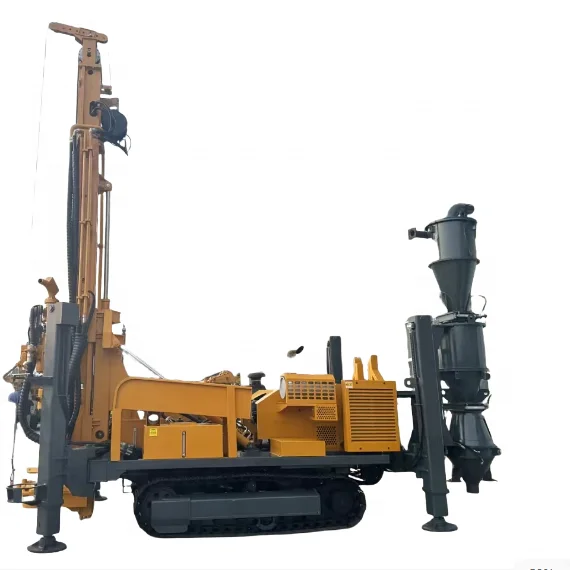

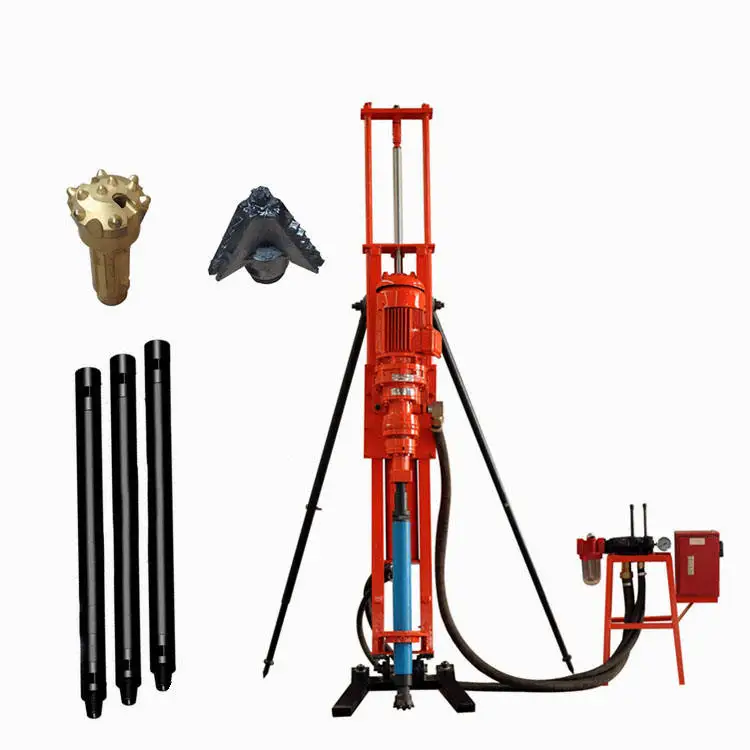

180 м глубокий портативный 22 л.с. дизельная гидравлическая водяная скважина роторная буровая установка/подземный буровой станок для скважин
183 843,18-219 425,73 ₽
Заводская Прямая продажа с завода роторная буровая установка 400 м модель Sr285Rc10
1 174 224,15-2 253 561,50 ₽
Буровая установка Berserk по конкурентной цене новый продукт буровая 2022 Dth для Добычи Руды
330 917,72-341 592,48 ₽

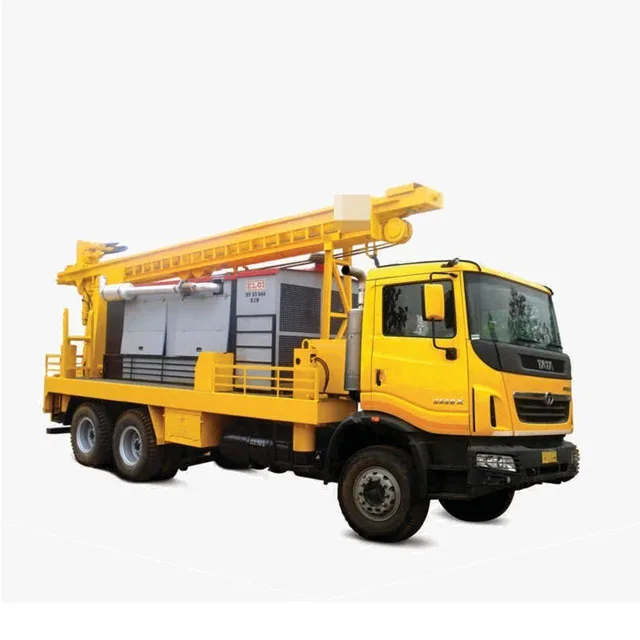

1000 м 1300 1500 Заказная гидравлическая большая буровая установка для бурения скважин
5 453 500,23-5 455 872,40 ₽
Guter Preis unterirdische Einzel ausleger bohrung мини-Джамбо-туннель bohrmaschine
579 758,35-1 185 966,40 ₽

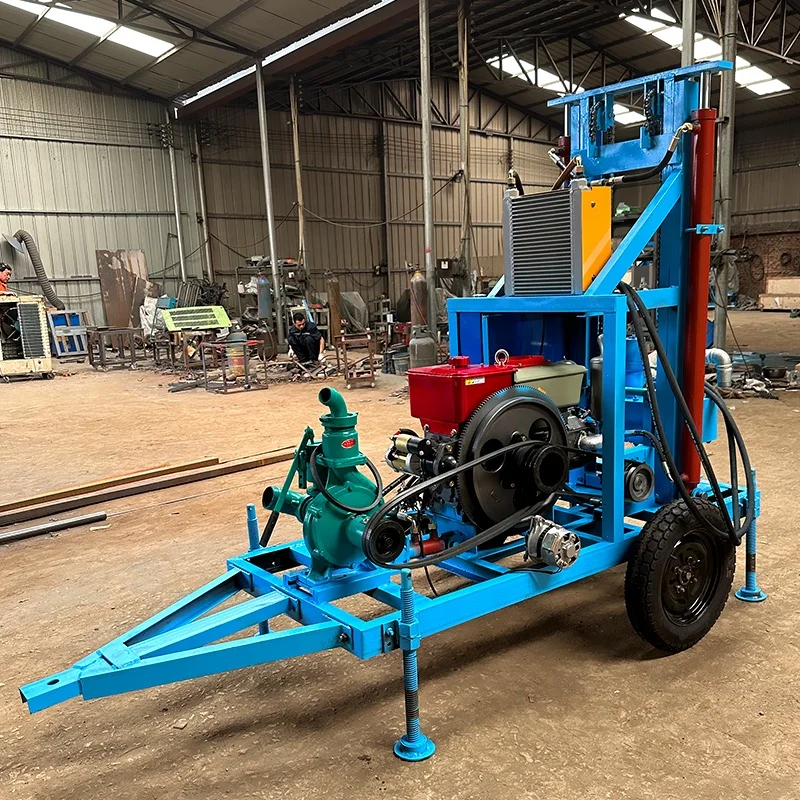

Электродвигатель дизельный простой гидравлический бензиновый двигатель 80 100 150 200 метр буровая установка для воды
