Автоматизированная лазерная сварочная машина с Роботизированной рукой 2000 мм 1 кВт 2 кВт 3 кВт 6 кВт латунная алюминиевая дуговая металлическая сталь cobot robtoic лазерные сварочные аппараты
1 052 624,64 ₽ - 1 425 429,20 ₽

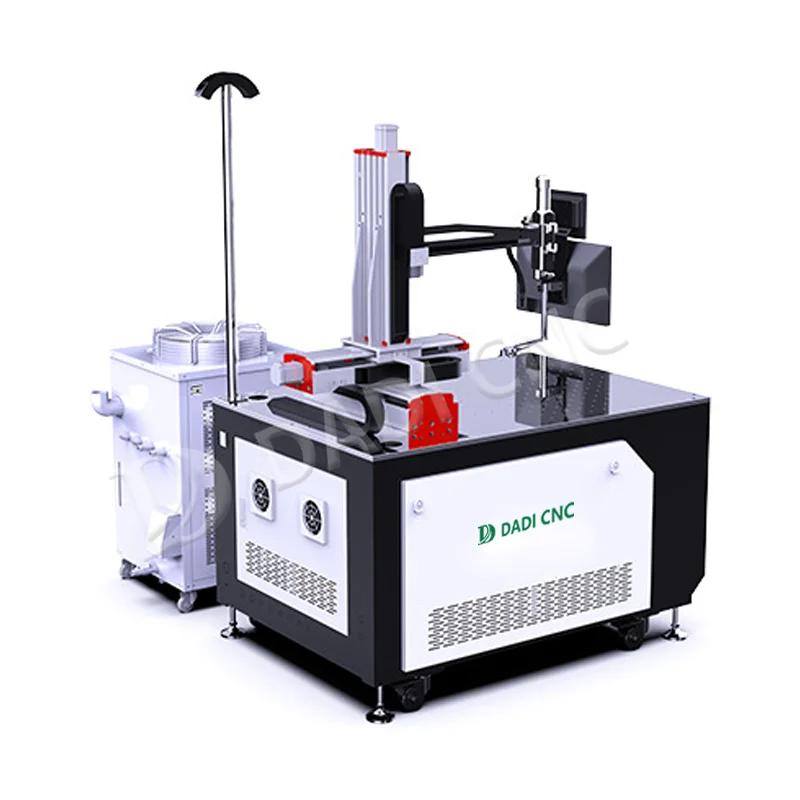

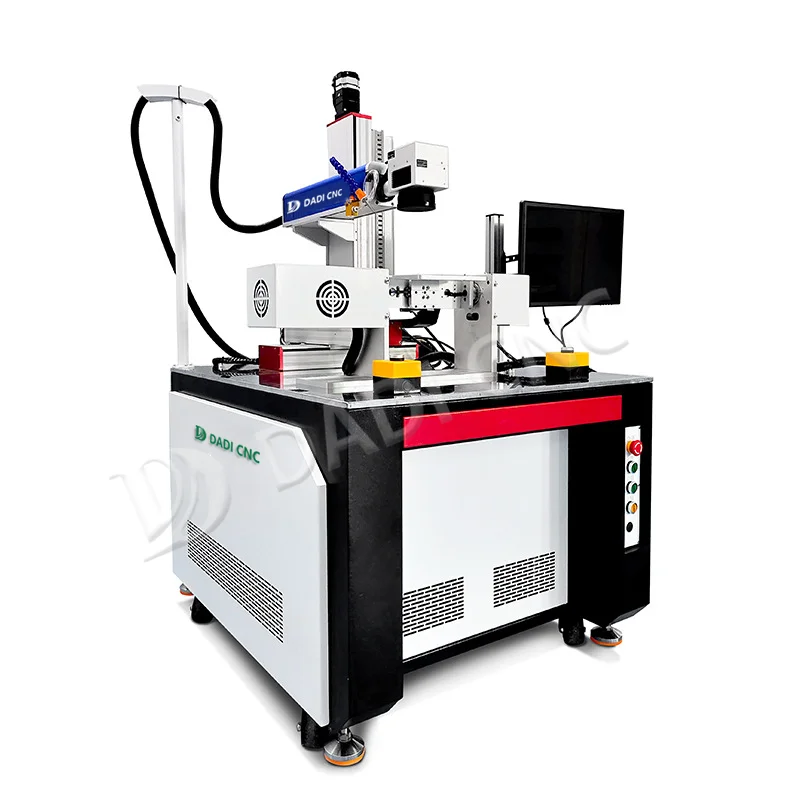

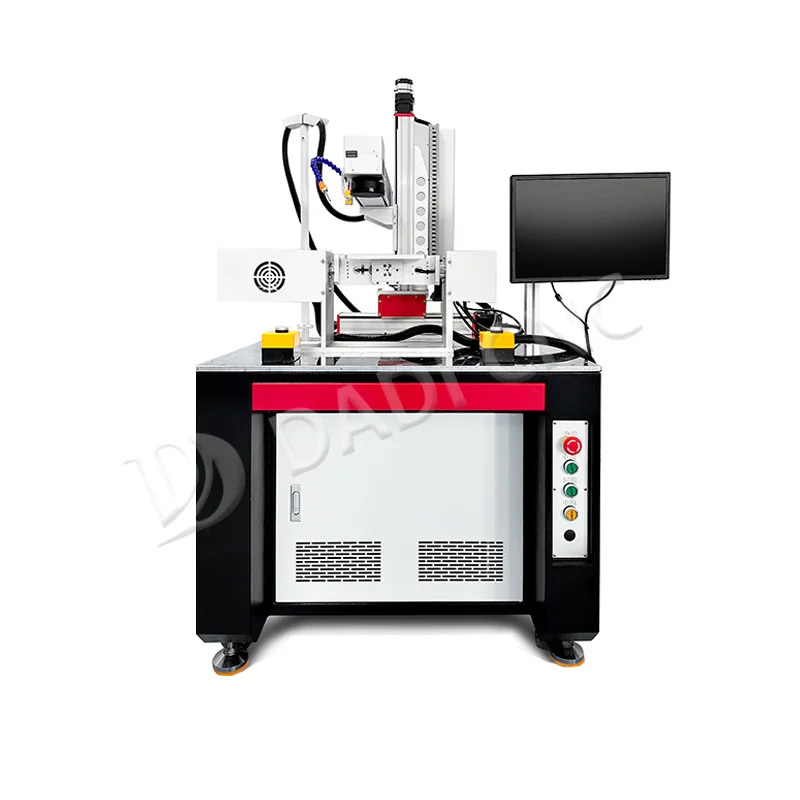

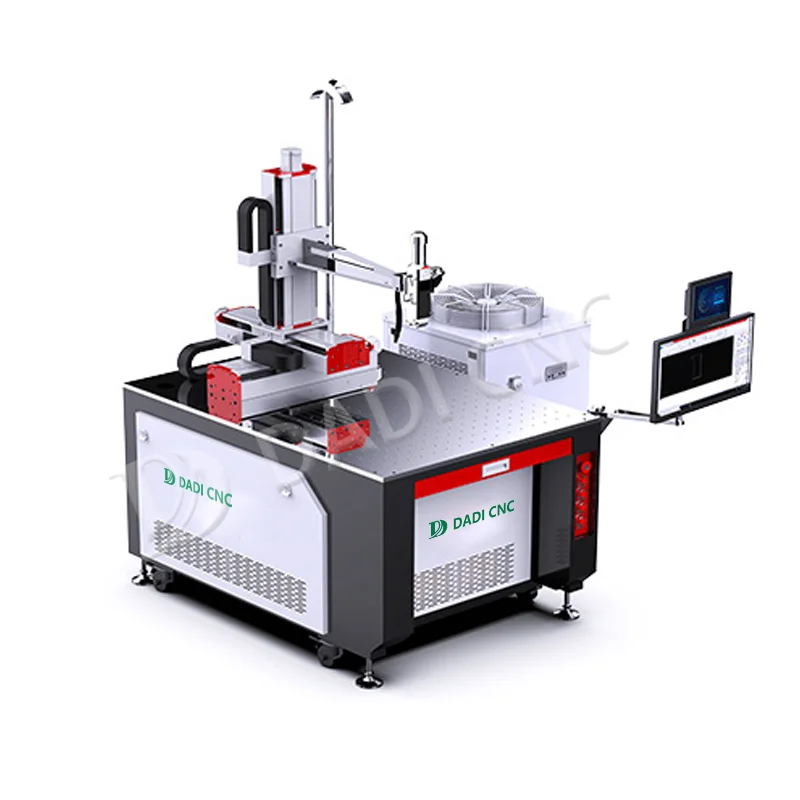

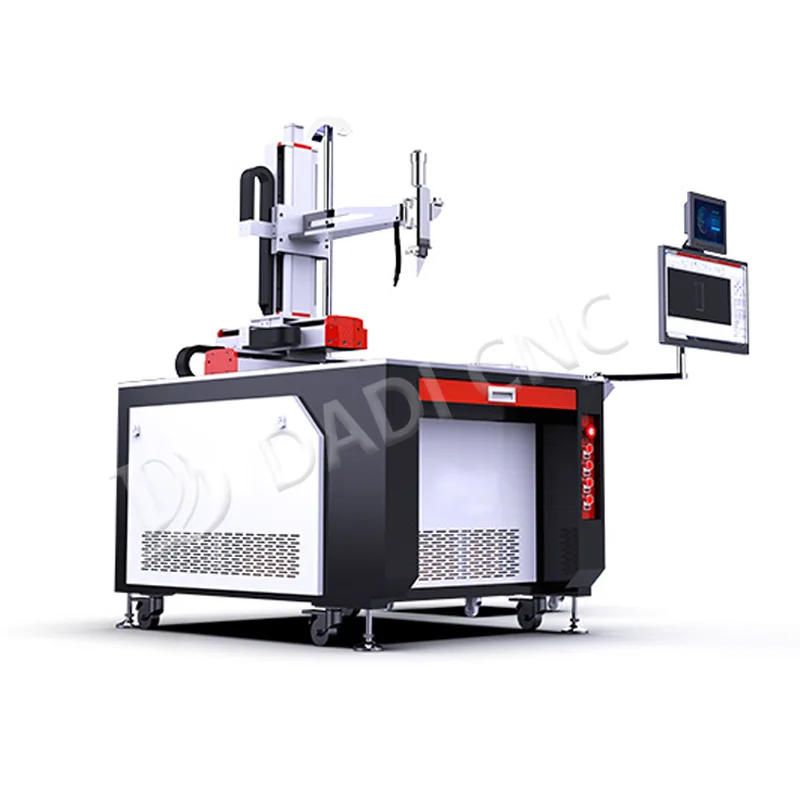

Аппарат для вертикальной сварки бесконтактного литья ручной лазерный сварочный аппарат платформа
- Категория: >>>
- Поставщик: Shandong Dadi Cnc Mechanical Equipment Co. Ltd.
Сохранить в закладки 1601233183989:
Описание и отзывы
Характеристики
Product Description

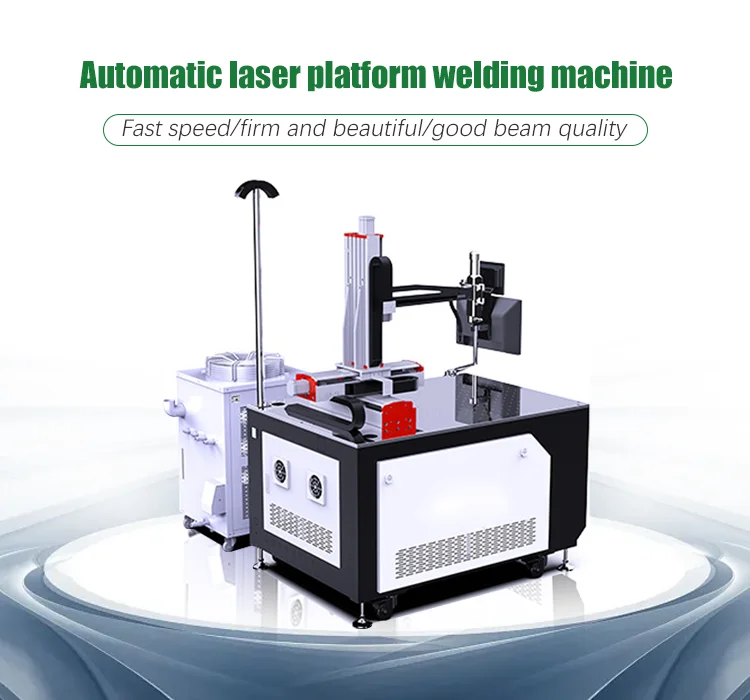

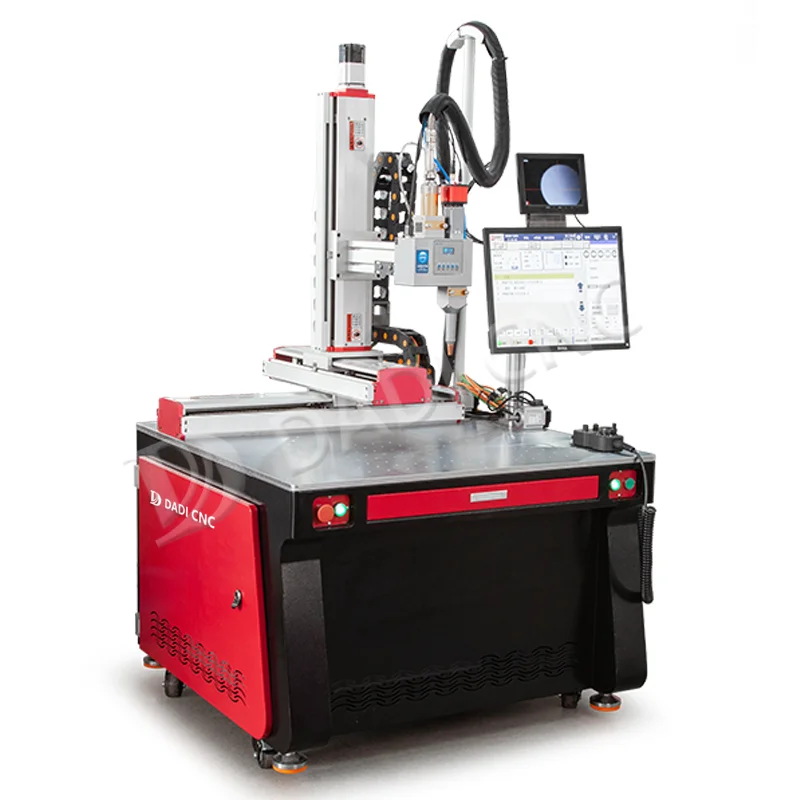

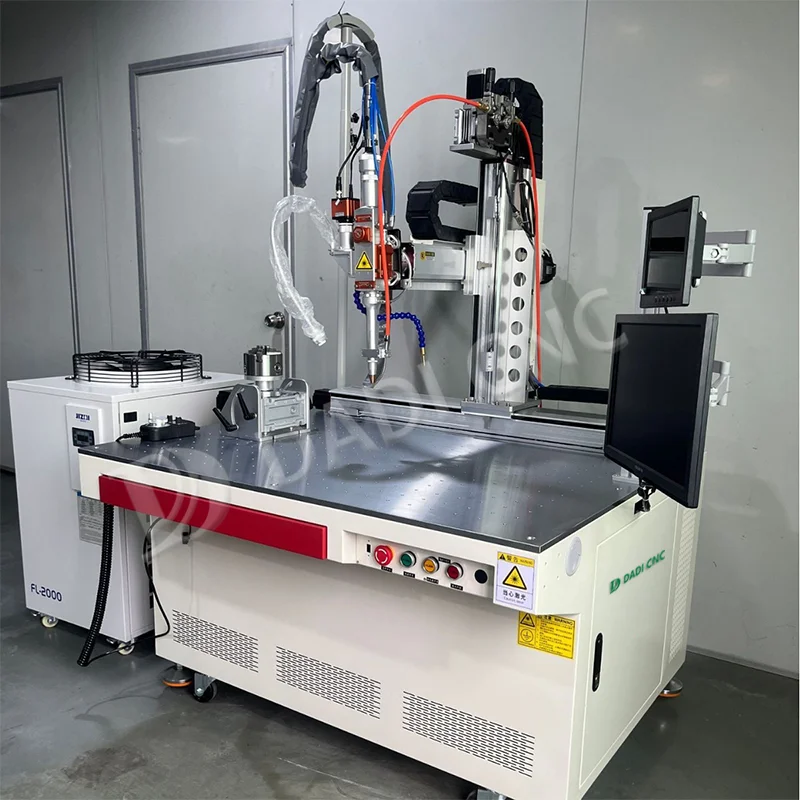

robot laser welding machine
automated welding workstation
laser welding work station
automated welding workstation
laser welding work station
robot laser welding machine,automated welding workstation,laser welding work station
Product Advantage
1. The laser beam quality is good, the welding speed is fast, and the welds are strong and beautiful, providing users with efficient welding solutions;
2. Industrial PC control, the workpiece can move in a plane trajectory, and can weld any plane graphics composed of points, straight lines, circles, squares, or straight lines and arcs;
3. High electro-optical conversion rate and low energy consumption, long-term use can save users a lot of processing costs;
4. The equipment has high reliability and can perform continuous and stable processing 24 hours a day, meeting the needs of industrial mass production and processing;
5. We have strong customization capabilities for special aircraft and can tailor-make exclusive models according to customer needs.
2. Industrial PC control, the workpiece can move in a plane trajectory, and can weld any plane graphics composed of points, straight lines, circles, squares, or straight lines and arcs;
3. High electro-optical conversion rate and low energy consumption, long-term use can save users a lot of processing costs;
4. The equipment has high reliability and can perform continuous and stable processing 24 hours a day, meeting the needs of industrial mass production and processing;
5. We have strong customization capabilities for special aircraft and can tailor-make exclusive models according to customer needs.
Technical Parameters
Model Series | MQHJ Series |
Model | MQHJ-1000HY/MQHJ-1500HY/MQHJ-2000HY/MQHJ-3000HY |
Laser power | 1000W/1500W/2000W/3000W（optional） |
Laser wavelength | 1064nm |
Power stability | 3%/8H |
Armor cable length | 10M/15M |
Laser | MAX/Raycus/BWT |
Service life | 100000H |
Laser frequency | 50-50000HZ |
Laser control system | Earain |
Motor | Leadshine servo motor 400W |
Power adjustment range | 10%-100% |
Total power | 4.5KW/6KW/8KW |
Electricity demand | AC220V/30A AC220V/30A AC220V/60A |
Weight | 400kg |
System protection level | IP54 |
Laser safety level | Class IV |
Cooling method | Water cooling |
Model size | 120cm*90cm*170cm |
Operating environment requirements | Temperature 0-40℃ Humidity 20%-80% |
Laser System
Laser Source
Brand:Raycus (MAX/JPT/BWT Optional)
Power:1000W/1500W/2000W/3000WContinuous fiber laser adopts modulardesign.Highlyintegrated system,mainte-nance-free,and high reliability. The laserpower is continuously adjustable, withhigh beam quality and high laser stabili-ty.lt is an ideallaser source for laser finecutting, precision welding and other.

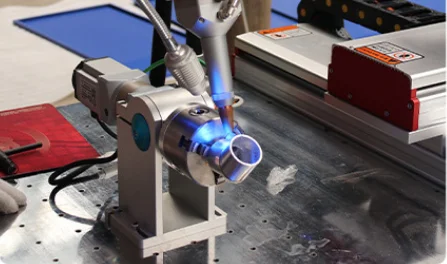

Laser Head
Multiple swing modes, economical and efficient, long-term high-speed welding
Control System
The newly developed control system, set a number of safety alarms, smaller volume, flexible operation, more stable, all parameters can be seen, welding quality is more perfect, deformation is small, high penetration, real-time monitoring of the state of the whole machine, avoid problems in advance.

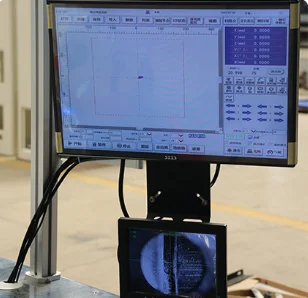

Control Panel
Touch screen makes you change the parameters quickly when wearing gloves and easy to set up and operate. Multiple sets of parameter can be saved, and there is no need to adjust again for multiple welding times in the future after one test.

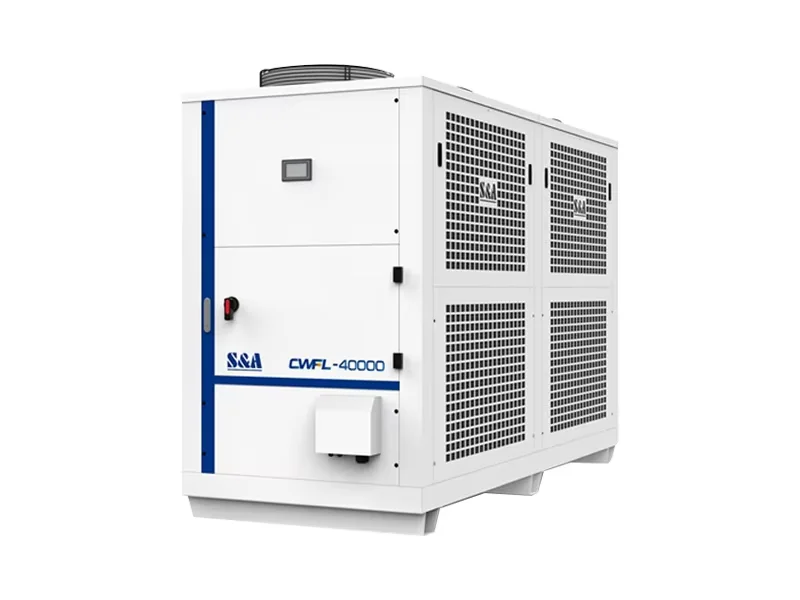

Chiller
Provides a constant temperature, constant current, and constant pressure cooling solution for the laser cutting machine, which can promptly remove the generated heat, accurately control the temperature required by the laser equipment, and stabilize the laser's
light output rate.
light output rate.

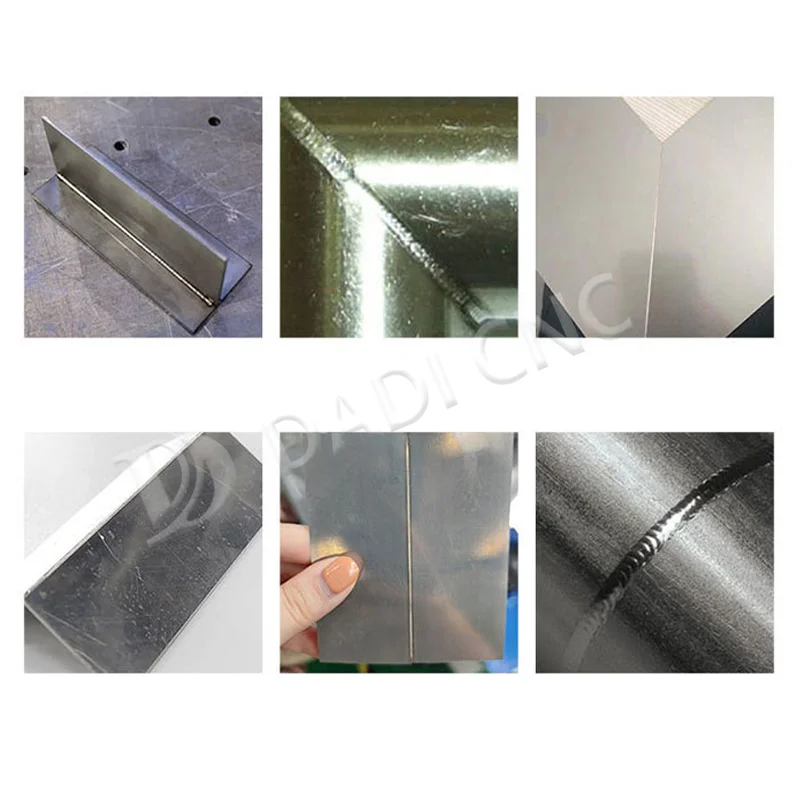

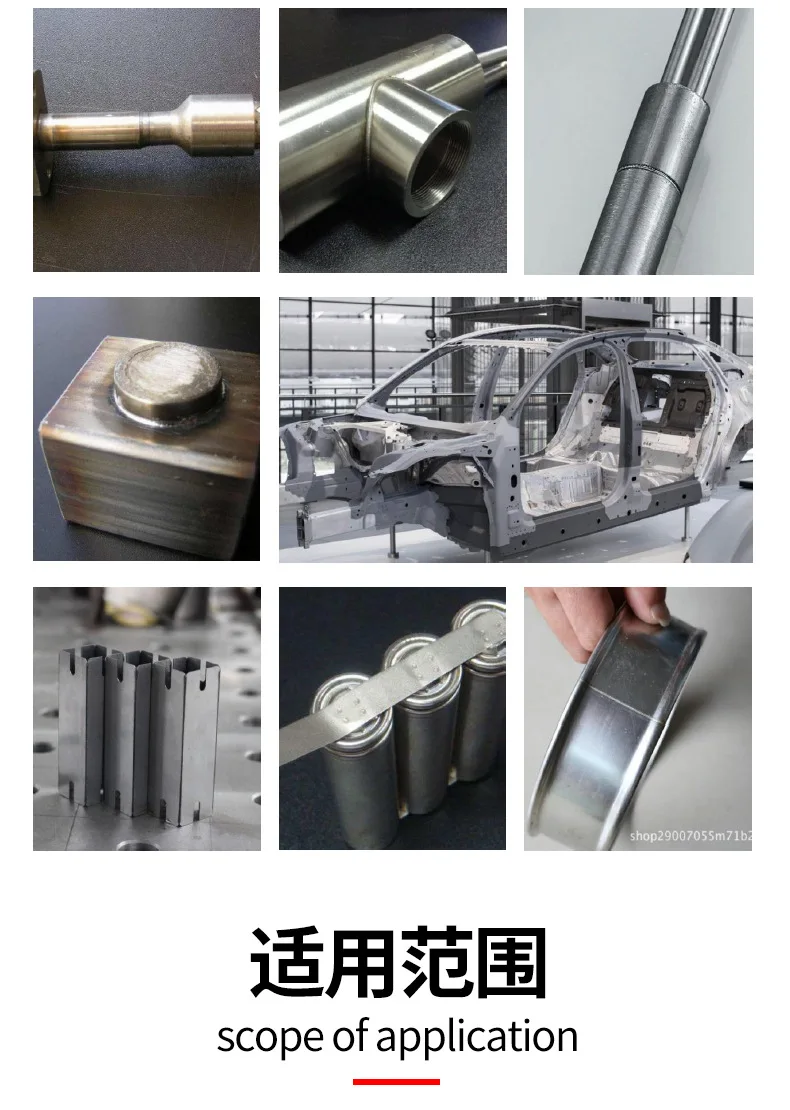

Application industries and samples

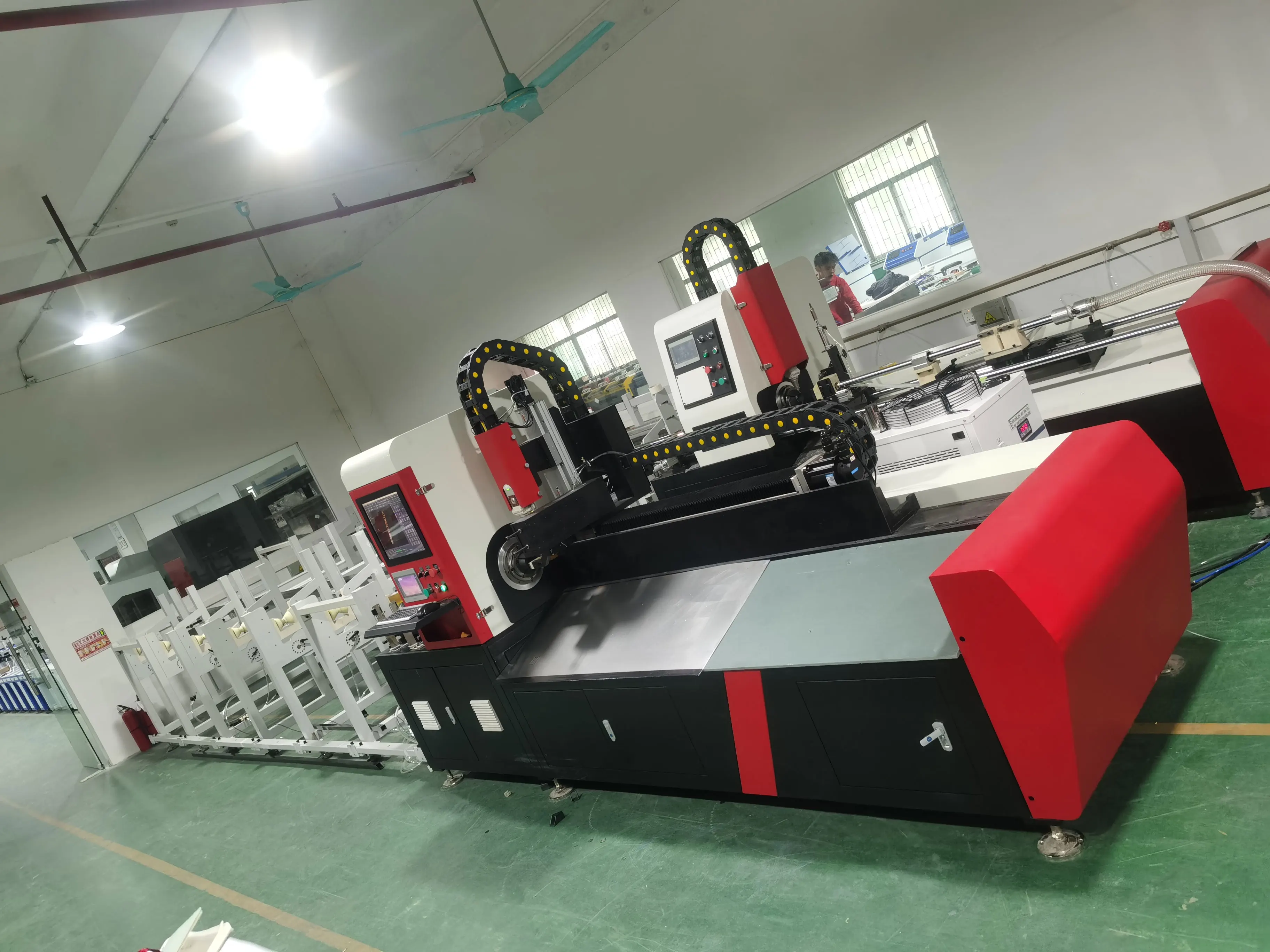

About Us

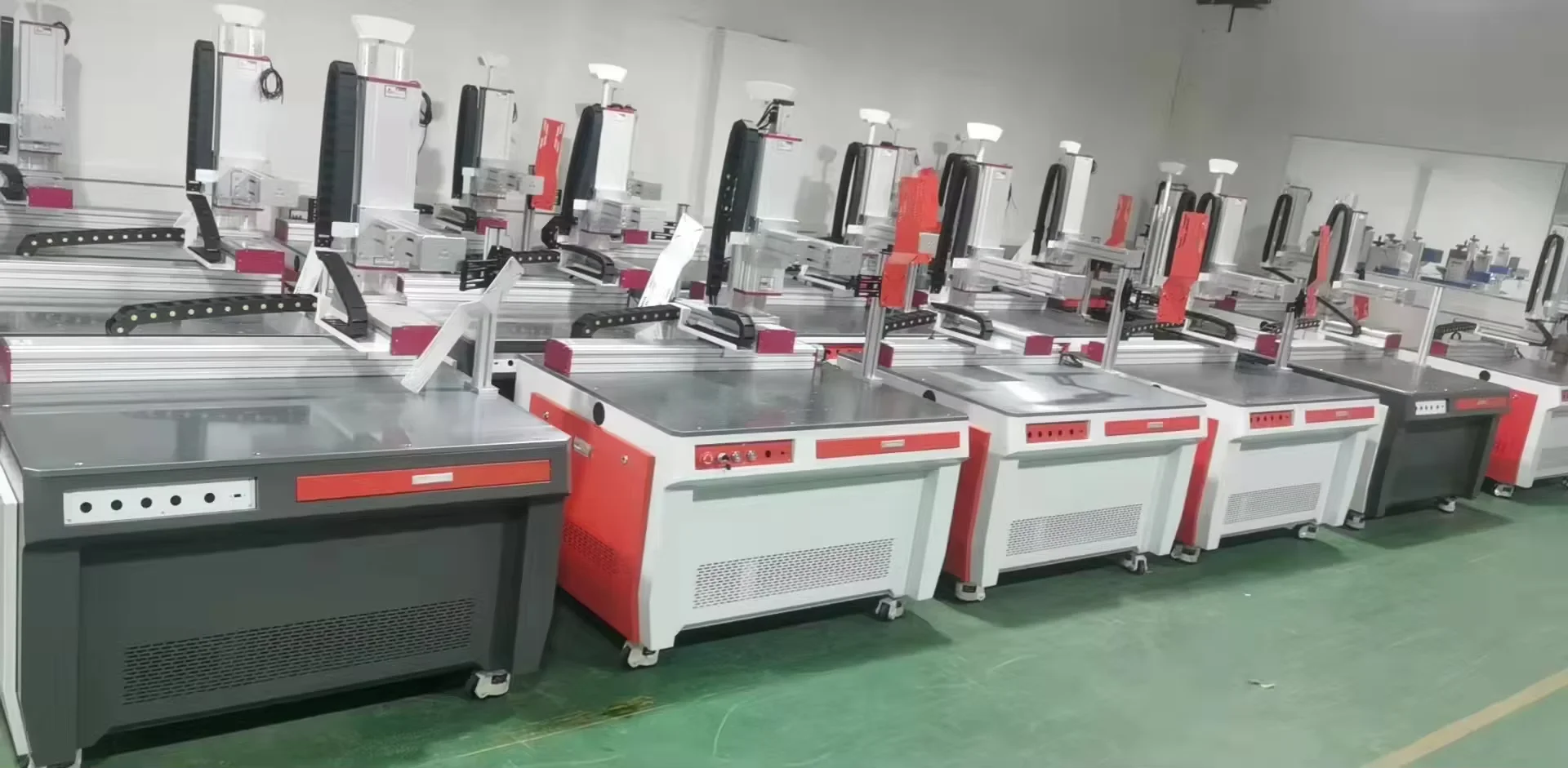

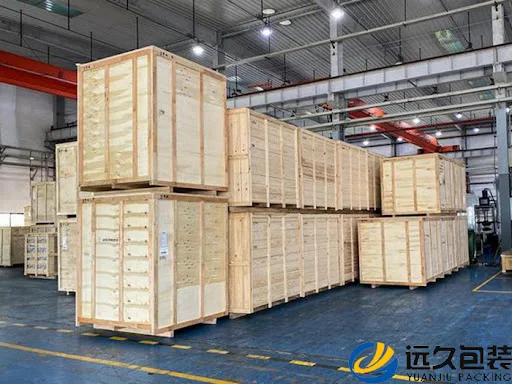

Product Shipment
Shipment Method | Sea freight, land freight, air freight, international express, etc. | ||
Package Method | Wooden Case | ||
Noted | If you need to ship by air, please let us know before purchase, and you need to empty the gas in the water cooler before shipment. | ||
FQA
1. What is the MOQ?
The minimum order is 1 unit. For customers who need to customize the logo, the MOQ is also 1 unit, and for customers who need to modify the exterior color, the MOQ is 5 units.
2. What terms of trade are offered?
DADI CNC can provide suitable terms according to your specific needs, including: EXW, FOB, CFR, CIF, DAP, DDP, etc.
3. What payment methods are accepted?
We accept: credit card, debit card, bank transfer, L/C, etc. You are welcome to pay us through Alibaba's "Trade Assurance Order", which can guarantee your rights and interests.
4. How to get sample testing service?
We provide three options for sample testing service.
① If you don't need us to mail the tested samples to your address, and we have the metal materials you need to tested in stock, then we offer free testing service. Simply contact us with your specific needs. We will send you the test pictures and videos within 5 working days.
② if you need us to send the tested samples by post, please pay the express fee.
③ If you need special samples for testing, please mail the samples to our address or pay us the cost of purchasing metal materials.
5. How to confirm the most suitable model of equipment for me?
We suggest you can contact us, DADI CNC will provide you 1 to 1 VIP service, professional sales staff will recommend the most suitable equipment for you.
For faster communication, we recommend that you confirm the following information before contacting us:
① which metal material you need to weld
② the maximum thickness of each metal material
③ the voltage of your local factory
④ the trade terms you required
⑤ required Time
The minimum order is 1 unit. For customers who need to customize the logo, the MOQ is also 1 unit, and for customers who need to modify the exterior color, the MOQ is 5 units.
2. What terms of trade are offered?
DADI CNC can provide suitable terms according to your specific needs, including: EXW, FOB, CFR, CIF, DAP, DDP, etc.
3. What payment methods are accepted?
We accept: credit card, debit card, bank transfer, L/C, etc. You are welcome to pay us through Alibaba's "Trade Assurance Order", which can guarantee your rights and interests.
4. How to get sample testing service?
We provide three options for sample testing service.
① If you don't need us to mail the tested samples to your address, and we have the metal materials you need to tested in stock, then we offer free testing service. Simply contact us with your specific needs. We will send you the test pictures and videos within 5 working days.
② if you need us to send the tested samples by post, please pay the express fee.
③ If you need special samples for testing, please mail the samples to our address or pay us the cost of purchasing metal materials.
5. How to confirm the most suitable model of equipment for me?
We suggest you can contact us, DADI CNC will provide you 1 to 1 VIP service, professional sales staff will recommend the most suitable equipment for you.
For faster communication, we recommend that you confirm the following information before contacting us:
① which metal material you need to weld
② the maximum thickness of each metal material
③ the voltage of your local factory
④ the trade terms you required
⑤ required Time
Похожие товары
KL 4 в 1 лазерный сварочный аппарат 1500 Вт охладитель воды в ручной лазерный сварочный аппарат волоконно-лазерная сварочная машина для алюминия
Ручной лазерный сварочный аппарат 1500 Вт 1080nm сварочный аппарат для сварки металла из углеродистой нержавеющей стали
252 191,32 ₽ - 253 287,81 ₽
Ручной лазерный сварочный аппарат 1500 Вт цена
328 945,20 ₽ - 339 910,04 ₽
3 в 1 ручной лазерный сварочный аппарат 1500 Вт водяное охлаждение волоконно-лазерный сварочный аппарат из нержавеющей стали алюминиевая медная сварка
570 367,96 ₽ - 915 454,50 ₽
Cnc небольшой Raycus 1500W/20000W/3000W 4 в 1 портативный лазерный сварочный аппарат ручной лазерный сварочный аппарат для металла алюминиевая медь

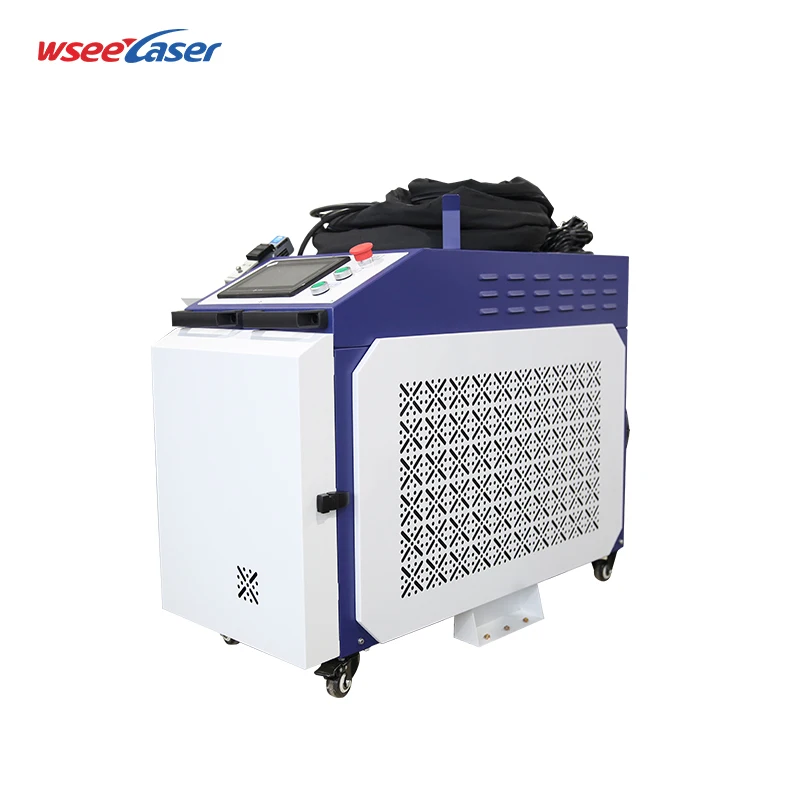

Лазерные сварочные аппараты WSEE ручной волоконный лазер для непрерывной сварки металла нержавеющей стали лазерный сварочный
