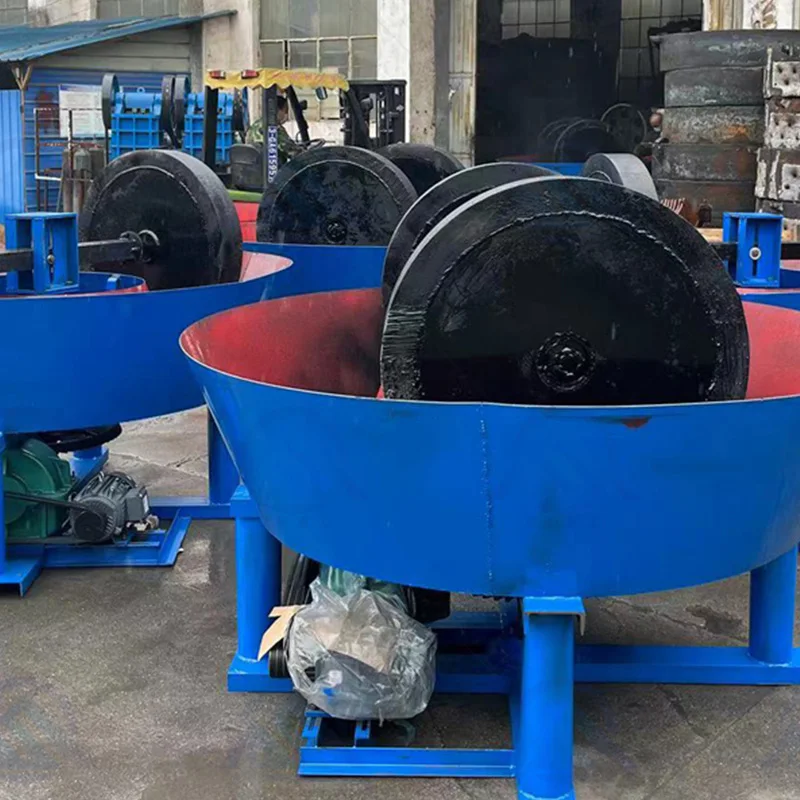

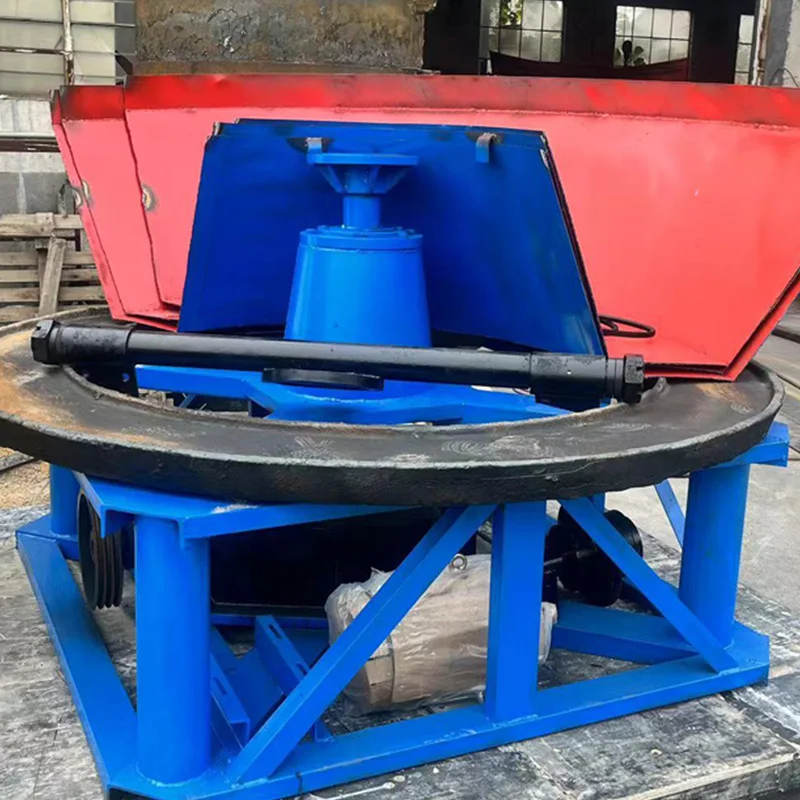

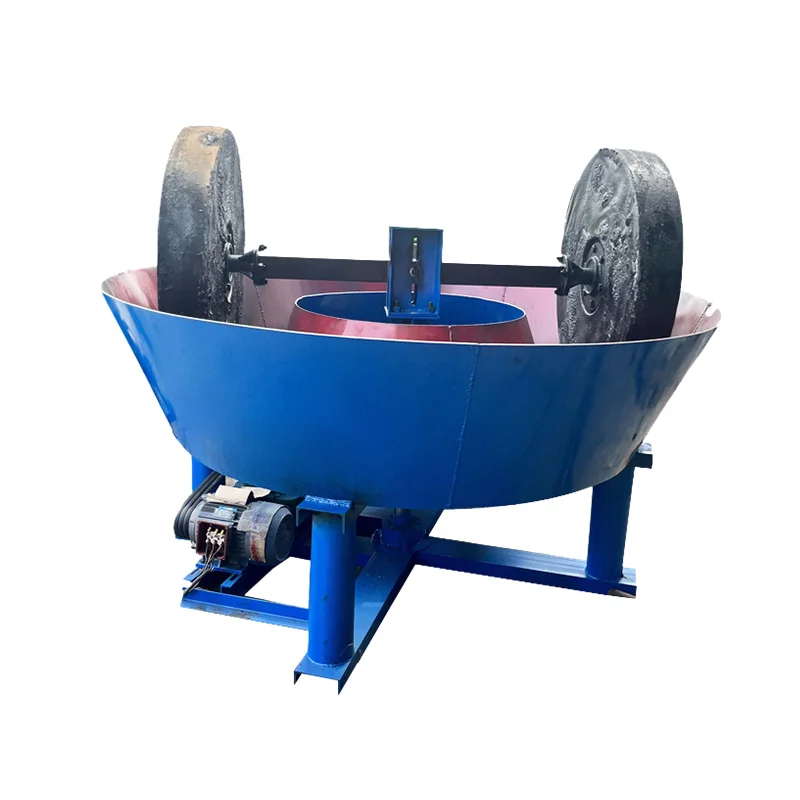

Высокопроизводительный фрезерный станок для мокрой 900/1000/1200/1400 Золотая Руда
- Категория: >>>
- Поставщик: Zhengzhou Sinoma Engineering Technology Co. Ltd
Сохранить в закладки 1601233351908:
Описание и отзывы
Характеристики
Product Description

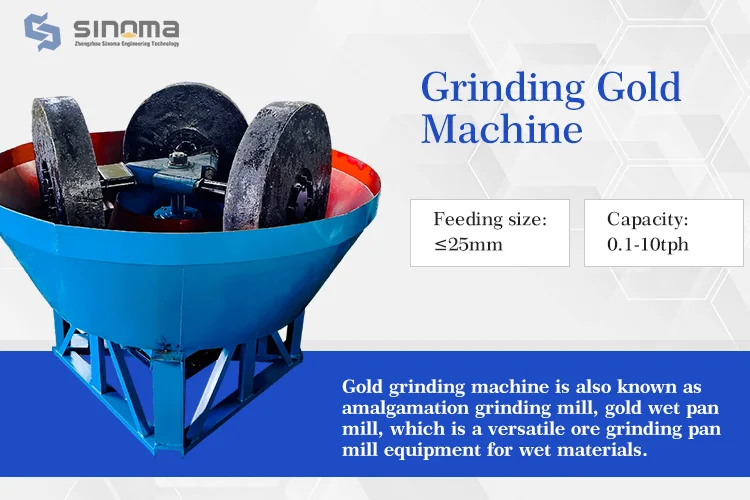

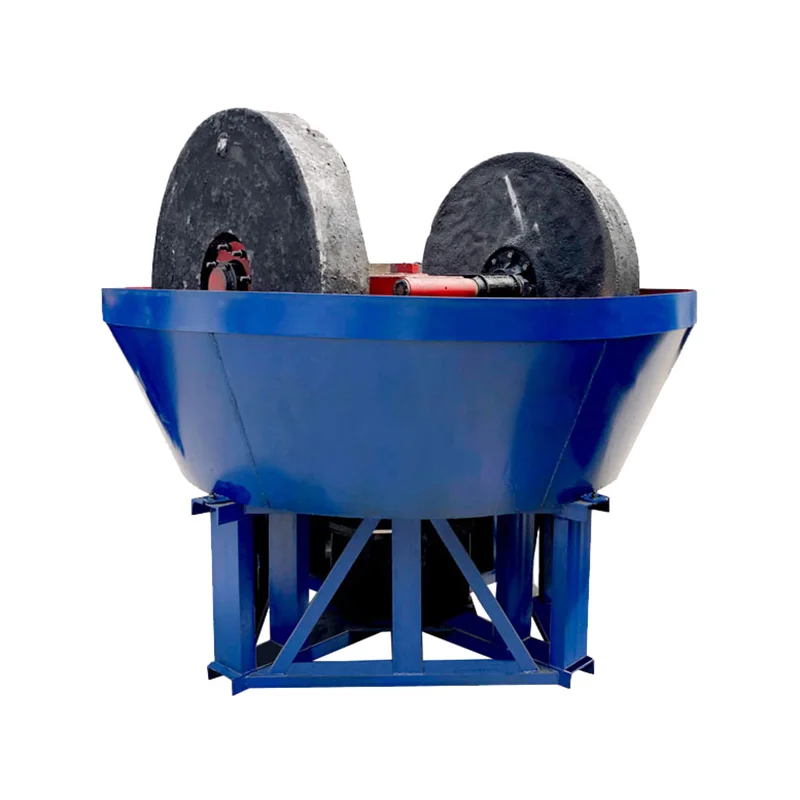

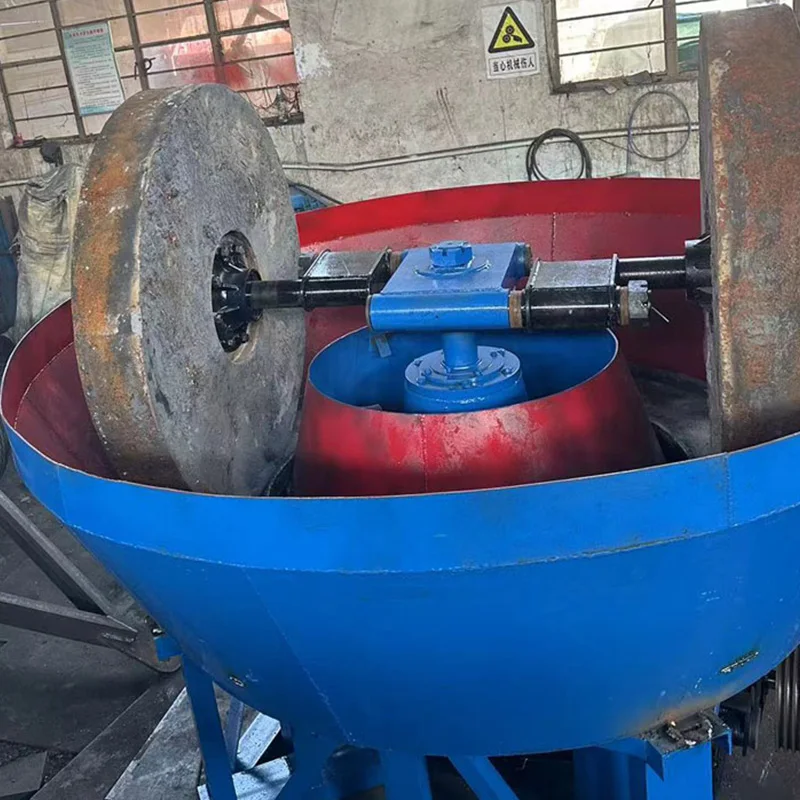

Pan Mill/Gold Grinding Mill is an equipment that grinds ore into powder. All materials that can be ground by ball mills also can be ground by gold mills. It's usually used as gold-stone grinding machine, which also widely used in mining, cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal mineral processing.Wet pan mill is an ideal equipment for mineral processing by small and medium-sized enterprises in mining areas.

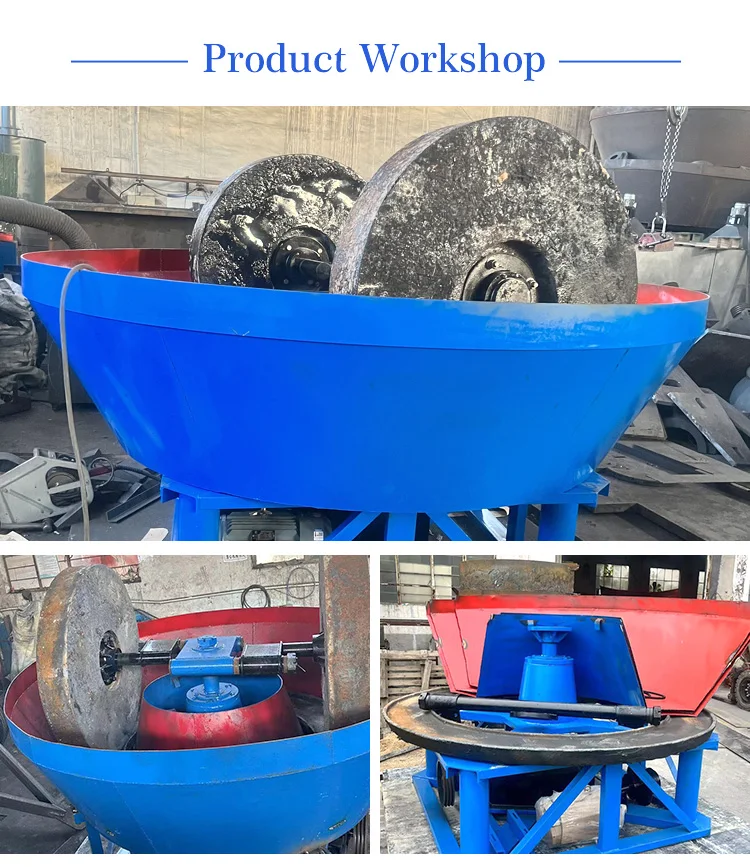

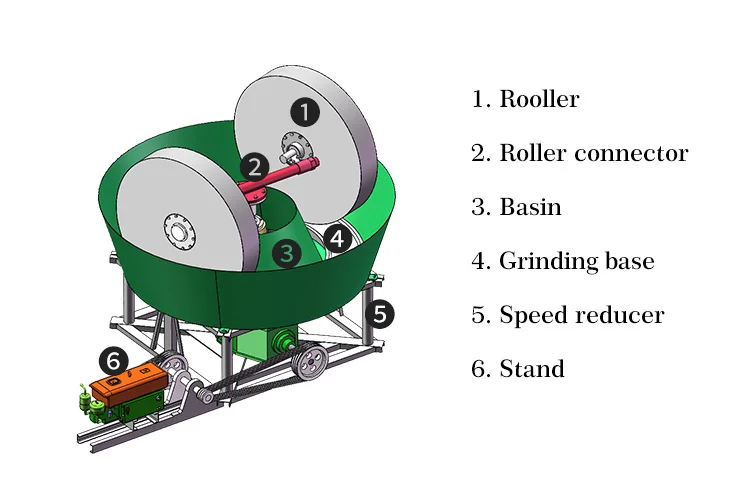

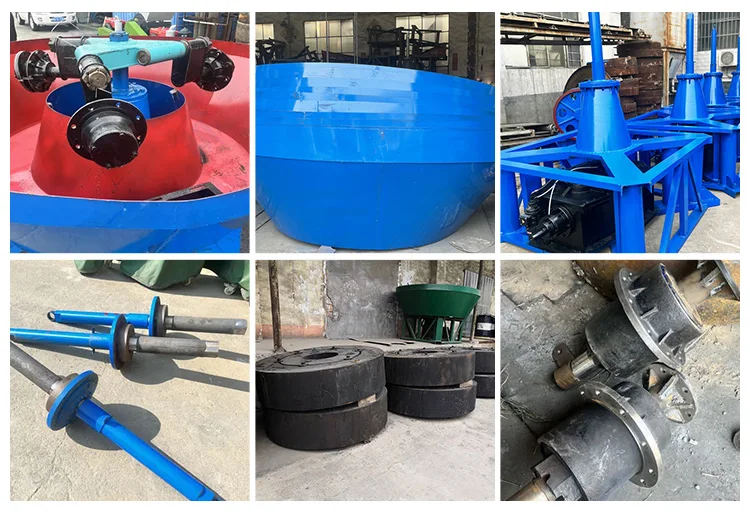

Details Images
Features:
1. The wheels and chassis are thick, and alloy elements are added to make the machine more wear-resistant and extend its service life.2. For mercury amalgamation gold selection process, the mercury is fully mixed, the mercury loss is small.3. The grinding is uniform, the material discharge is ideal, and the particle size can be arbitrary.4. Low investment. Single or multiple wet pan mill machine can be used depending on your need.
5. Simple structure, small volume, small footprint and large production capacity.
Product Paramenters
Model | Max input size (mm) | Speed (r/Min.) | Motor Power (kw) | Capacity (t/h) | Weight (t) | Roller Diameters (mm) |
Ф850 | ≤25mm | 13-18 | 4.5 | 0.2 | 3.5 | 850±10 |
Ф900 | ≤25mm | 13-18 | 4.5 | 0.3 | 4 | 900±10 |
Ф1000 | ≤25mm | 13-18 | 4.5 | 0.5 | 4.5 | 1000±10 |
Ф1100 | ≤25mm | 17-19 | 5.5 | 0.8 | 5 | 1100±20 |
Ф1200 | ≤25mm | 20-23 | 7.5 | 1-2 | 5.5 | 1200±20 |
Ф1400 | ≤30mm | 20-23 | 15 | 4-6 | 8.5 | 1400±20 |
Ф1500 | ≤30mm | 20-25 | 22 | 6-8 | 11.5 | 1500±20 |
Ф1600 | ≤30mm | 20-25 | 30 | 8-10 | 13.5 | 1600±20 |
Application Areas&Materials
Pan Mill/Gold Grinding Mill is widely used in grinding operations of various vein gold mines, rock gold mines, placer gold mines, and associated gold mines. They are applicable to a wide range of minerals (natural gold, wrapped gold, fine-grained gold, and particulate gold). It can achieve very good grinding indicators, providing favorable conditions for subsequent gold dressing operations. It has high grinding efficiency and a large crushing ratio. The ratio of -200 mesh can reach more than 95%.

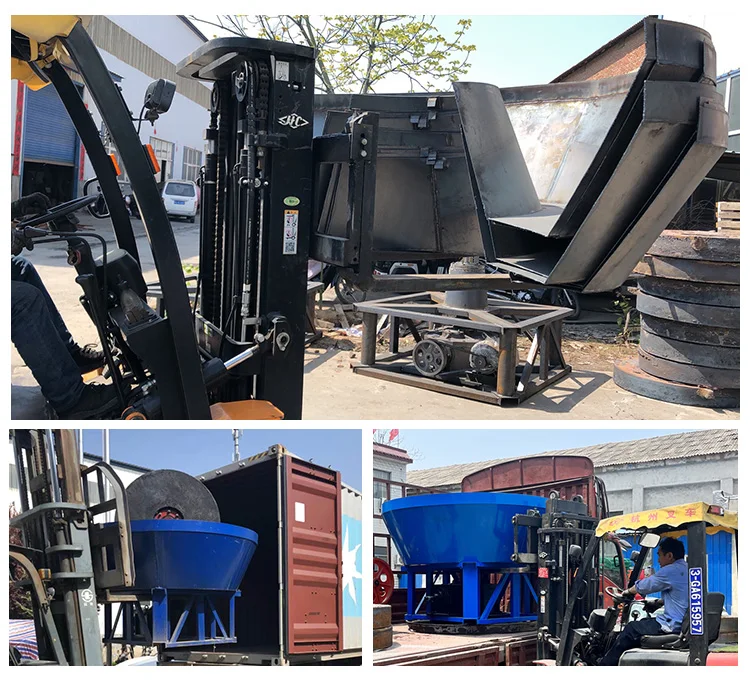

Packing & Delivery
Company Profile
Zhengzhou Sinoma Engineering Technology Co., Ltd. is a large-scale equipment manufacturer that integrates researching & development, production and sales together. Our equipment includes stone crusher, grinding mill machine, VSI sand maker, vibrating screen, ball-mill and cement mill and is widely used in building,mining, cement making, construction area, etc. We are the largest EPC supplier for new aggregate production-line in China.
FAQ
1. What is your payment method?
30% TT in advance, and the rest amount to be paid before goods leave factory by T/T. The other payment methods can also be discussed with our sales manager.
2. How is the device packaged and shipped?
The package is suitable for both land and sea. We can also choose a special package depending on your needs.
3. How long is the production time?
7-10 days for the stock, 15-30 days for immediately production.
4. How long is the warranty? Does your company supply the spare parts?
One year. We supply spare parts for you with lowest price.
5. If I need the complete crushing plant, can you help us to build it?
Yes, we can help you set up a complete production line and give you the best professional design. We had already build many big quarry projects in China & Overseas.
6. What can you buy from us?
Jaw Crusher/Cone Crusher/Vibrating Screen/Sand Making Machine/Mobile Stone Crusher Plant/Vibrating Feeder/Sand Washer Machine/Impact Crusher/Vertical Shaft Impact Crusher/Hammer Crusher/Belt Conveyor/Stone Crushing Plant/Mobile Stone Crusher/Cement making machine/Rotary Kiln /Concrete Mixing Station/Spare parts.
30% TT in advance, and the rest amount to be paid before goods leave factory by T/T. The other payment methods can also be discussed with our sales manager.
2. How is the device packaged and shipped?
The package is suitable for both land and sea. We can also choose a special package depending on your needs.
3. How long is the production time?
7-10 days for the stock, 15-30 days for immediately production.
4. How long is the warranty? Does your company supply the spare parts?
One year. We supply spare parts for you with lowest price.
5. If I need the complete crushing plant, can you help us to build it?
Yes, we can help you set up a complete production line and give you the best professional design. We had already build many big quarry projects in China & Overseas.
6. What can you buy from us?
Jaw Crusher/Cone Crusher/Vibrating Screen/Sand Making Machine/Mobile Stone Crusher Plant/Vibrating Feeder/Sand Washer Machine/Impact Crusher/Vertical Shaft Impact Crusher/Hammer Crusher/Belt Conveyor/Stone Crushing Plant/Mobile Stone Crusher/Cement making machine/Rotary Kiln /Concrete Mixing Station/Spare parts.
Похожие товары

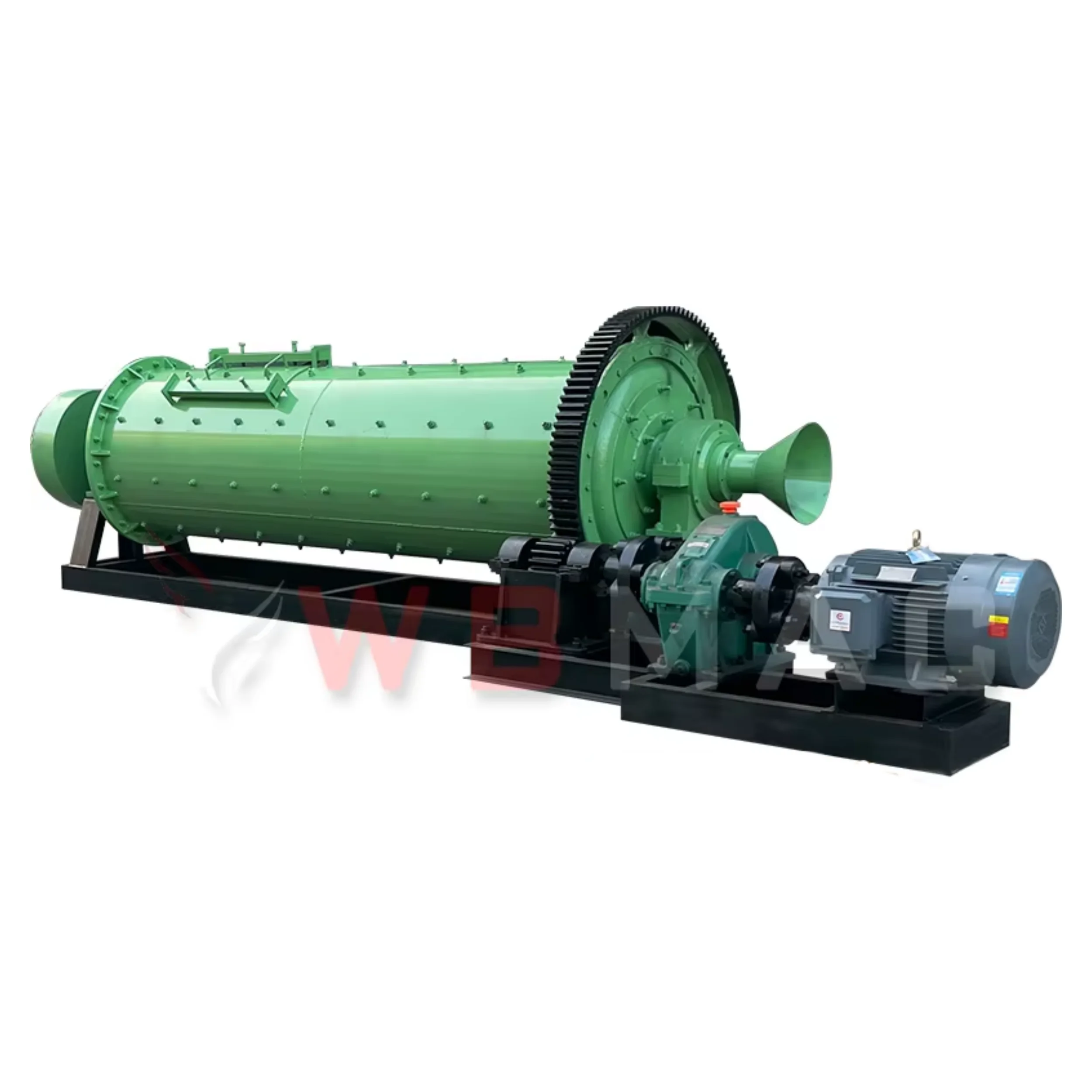

Шаровая мельница двигатель переменного тока настраиваемый поставщик горное оборудование золотой шаровой фрезерный станок для продажи
491 296,02 ₽ - 535 457,46 ₽

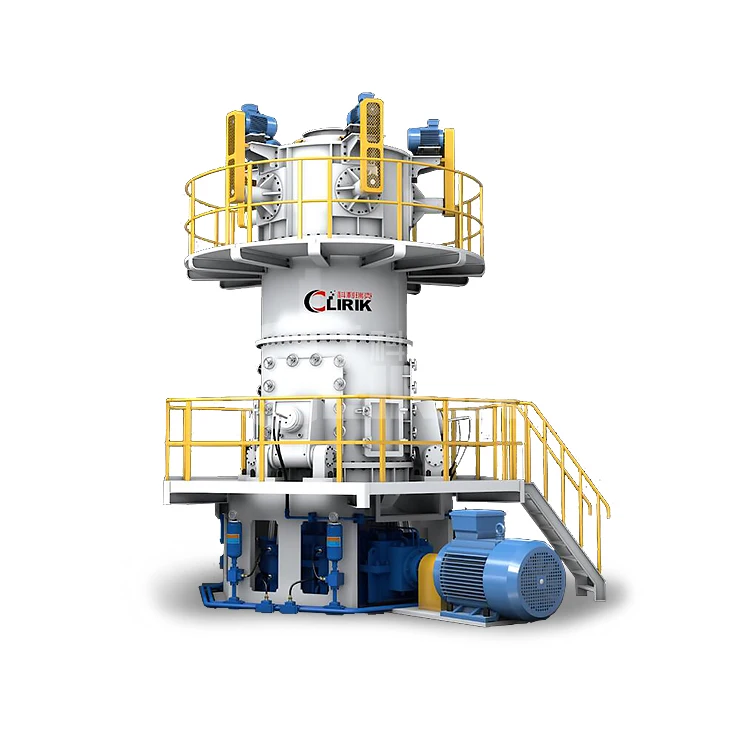

Поставщик Китай графитовый порошок цементный Plang угольная Вертикальная ультратонкая шлифовальная мельница
5 520 180,00 ₽

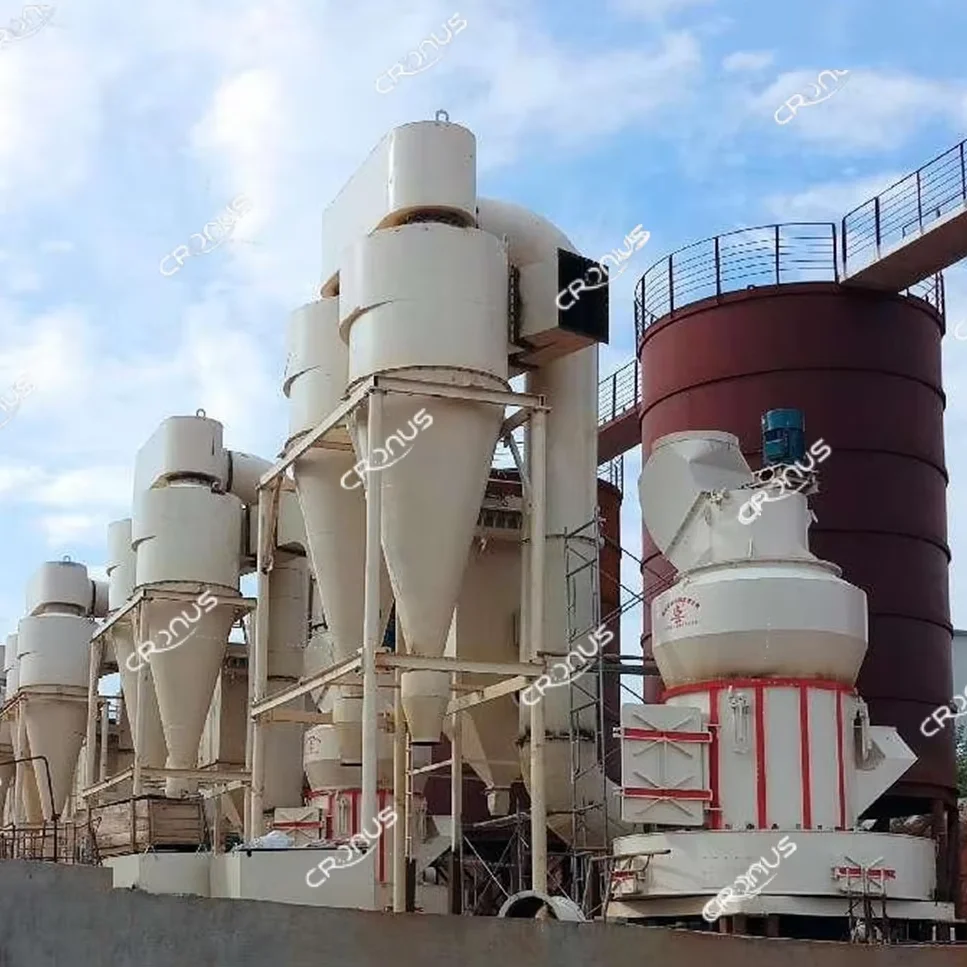

35-420 т/ч горнодобывающая Цементная Мельница Raymond или карбонат кальция гипс известняк кварцевый графит кальцитовая
3 201 704,40 ₽
100% низкая цена Золотая графитовая руда медная железная цементная Известняковая пудра сухого влажного типа 900x1800 900x3000 вращающаяся шаровая мельница для горнодобывающей промышленности
695 542,68 ₽ - 761 784,84 ₽
35-420 т/ч горнодобывающая Вертикальная Цементная Мельница или карбонатная кальциевая гипсовая Известняковая кварцевая графитовая мельница
13 690 046,40 ₽ - 16 560 540,00 ₽

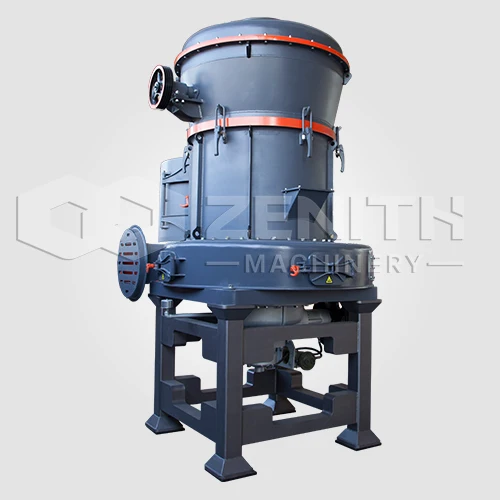

Заводская поставка Графитовая мельница Raymond поддержка по индивидуальному заказу 105 кВт цементная
