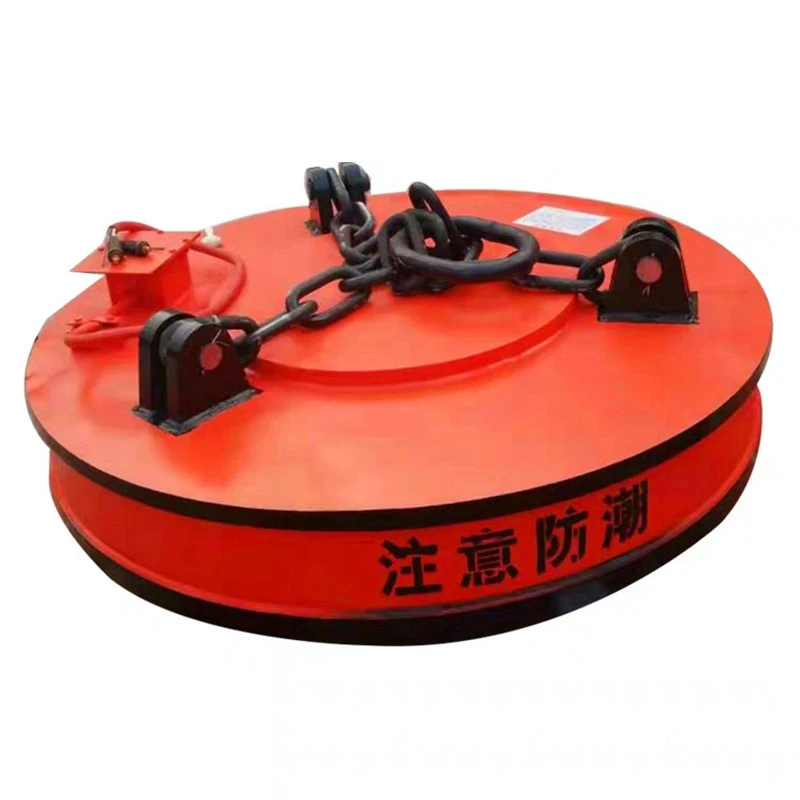

Промышленный Электромагнит GEB небольшие мощные магниты для кранового экскаватора подъема стального стержня промышленный
66 024,00 ₽ - 165 060,00 ₽
GEB подъемный электромагнитный лом
- Категория: >>>
- Поставщик: Henan Geb Machinery Equipment Co. Ltd.
Сохранить в закладки 1601233442612:
Описание и отзывы
Характеристики
Product Description

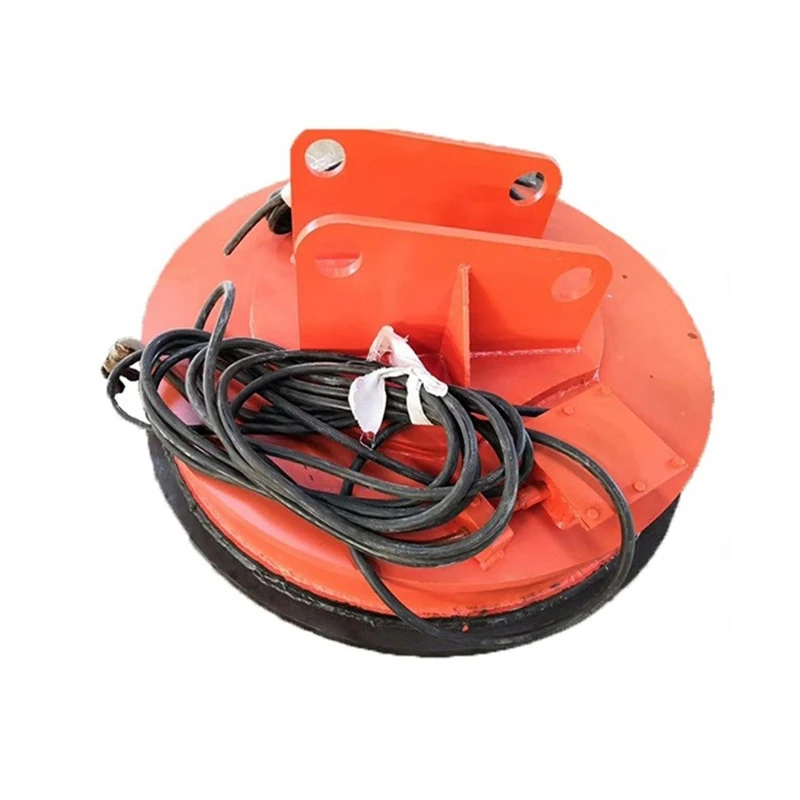

Lifting Electromagnet Scrap Square Billets Lifting Magnet
Crane industrial lifting magnet is generally used for industrial purposes. Lifting electromagnets are easy to operate, can be used for handling situations in factories involving steel and magnetic metals. Load lifting magnets are of robust cast and bolted or fabricated construction designed for handling solid slabs, steel ingots, bloom billets. Pig iron, light finished parts, scrap and gives maximum reliable, efficient and economical performance in the most arduous service condition.
Specification
Main techincal data | ||||||||||||||||
Model | Cold-state power | Current A (cold/hot state) | Overall dimension A | Overall dimension C | Overall dimension F | Overall dimension E | Overall dimension G | |||||||||
GEB5-50L/1-75 | 2.0 | 9.1/6 | 500 | 700 | 160 | 90 | 25 | |||||||||
GEB5-60L/1-75 | 2.32 | 10.6/6.9 | 600 | 750 | 160 | 90 | 25 | |||||||||
GEB5-70L/1-75 | 2.55 | 11.6/7.6 | 700 | 800 | 160 | 90 | 30 | |||||||||
GEB5-80L/1-75 | 3.1 | 14.1/9.2 | 800 | 850 | 160 | 90 | 30 | |||||||||
GEB5-90L/1-75 | 4.6 | 21/13.6 | 900 | 1160 | 200 | 125 | 40 | |||||||||
GEB5-110L/1-75 | 6.1 | 27.7/18 | 1100 | 1270 | 220 | 150 | 45 | |||||||||
GEB5-120L/1 | 10 | 45.5/29.5 | 1200 | 1100 | 220 | 150 | 45 | |||||||||
GEB5-130L/1 | 12 | 54.5/35.5 | 1300 | 1240 | 250 | 175 | 50 | |||||||||
Features
Main Features of Lifting Electromagnet Scrap Square Billets Lifting Magnet
1, using a fully sealed structure, good moisture resistance.
2, optimized by computer design, reasonable structure, light weight, large suction, low energy consumption.
3. Excitation coils are treated by a special process to improve the electrical and mechanical properties of the coils. The
heat-resistance grade of the insulation material is up to Class C, the overall insulation of the suction cups is H-class and the service life is long.
4. The rated electrification continuation rate of ordinary electromagnets has been increased from the previous 50% to 60%, which has increased the use efficiency of electromagnets.
5. The high-temperature type electromagnet adopts a unique heat insulation method. The temperature of the sucked object is increased from the previous 600°C to 700°C, which expands the adaptability of the electromagnet.
6, easy installation, operation and maintenance.
2, optimized by computer design, reasonable structure, light weight, large suction, low energy consumption.
3. Excitation coils are treated by a special process to improve the electrical and mechanical properties of the coils. The
heat-resistance grade of the insulation material is up to Class C, the overall insulation of the suction cups is H-class and the service life is long.
4. The rated electrification continuation rate of ordinary electromagnets has been increased from the previous 50% to 60%, which has increased the use efficiency of electromagnets.
5. The high-temperature type electromagnet adopts a unique heat insulation method. The temperature of the sucked object is increased from the previous 600°C to 700°C, which expands the adaptability of the electromagnet.
6, easy installation, operation and maintenance.

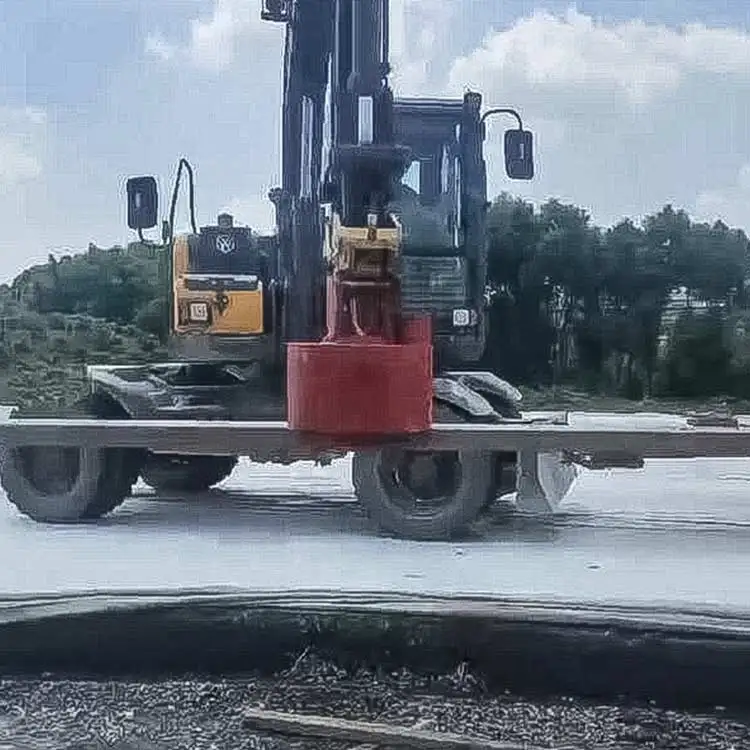

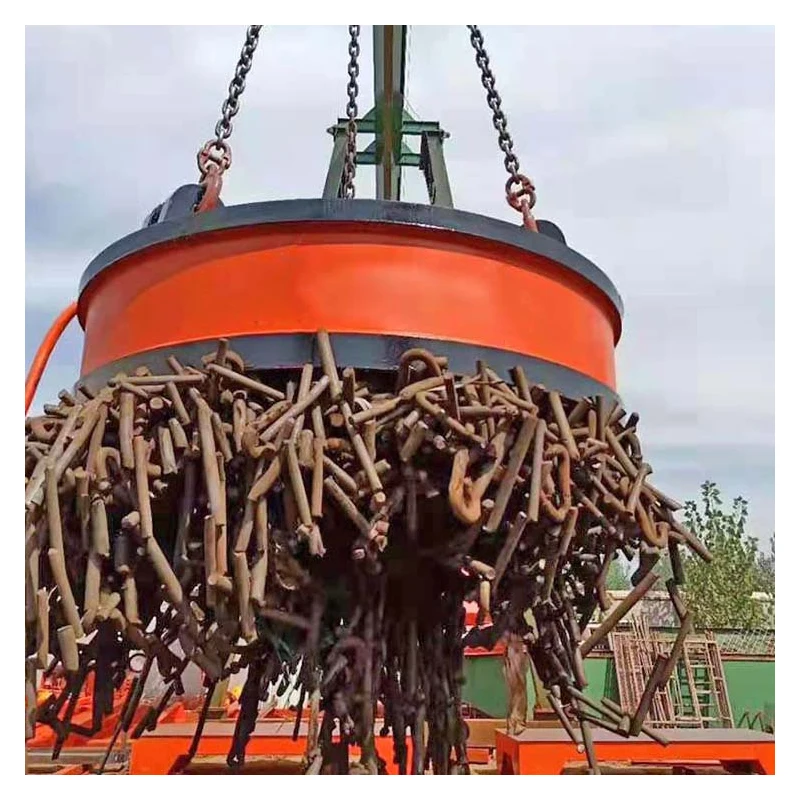

Application

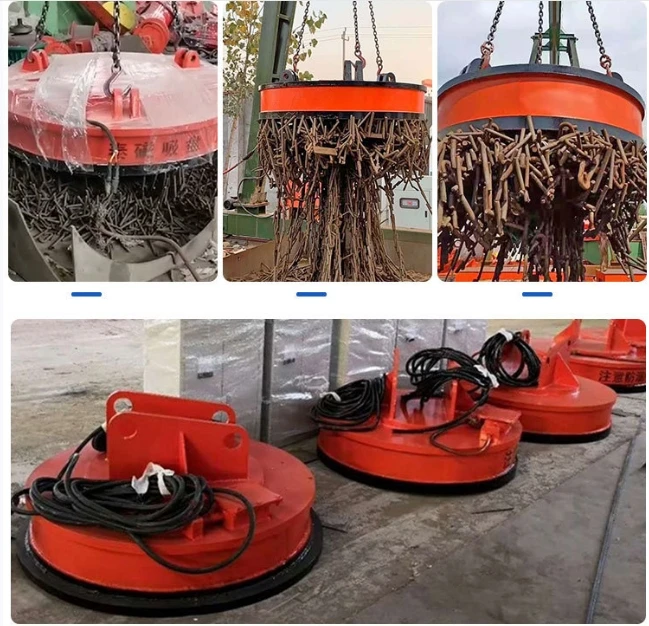

Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1. One year warranty.
2. Accept OEM/ODM
3. Payment Terms :T/T ,L/C,Western Union ,MoneyGram,Trade assurance.......
4. Delivery Time : Normal within 7 days (According to the order)
5. Because electromagnetic chuck is customized according to customer's requirements ,
Please kindly provide your requirements for most suitable scheme and precise price :
1). What is the material ?
2). Material temperature ?
3). Power supply

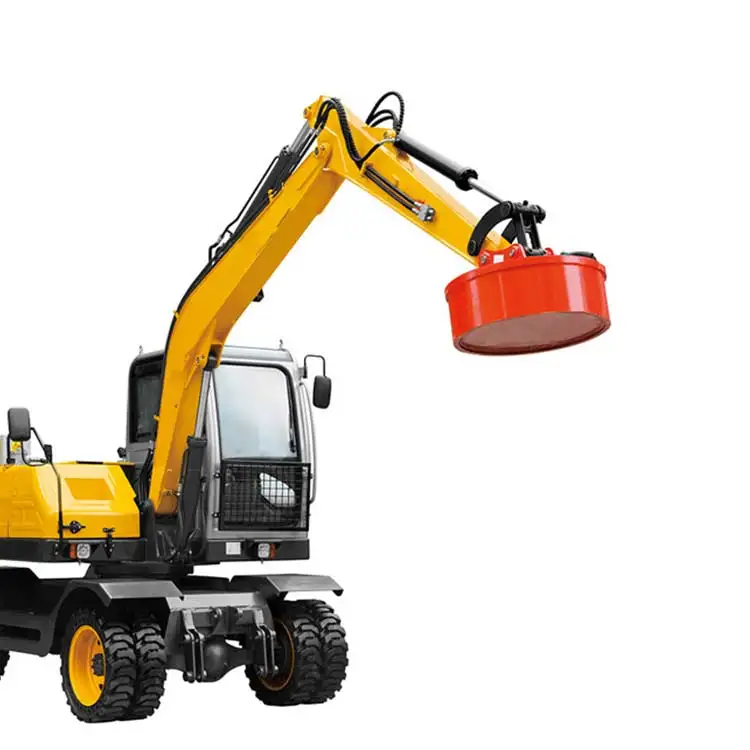

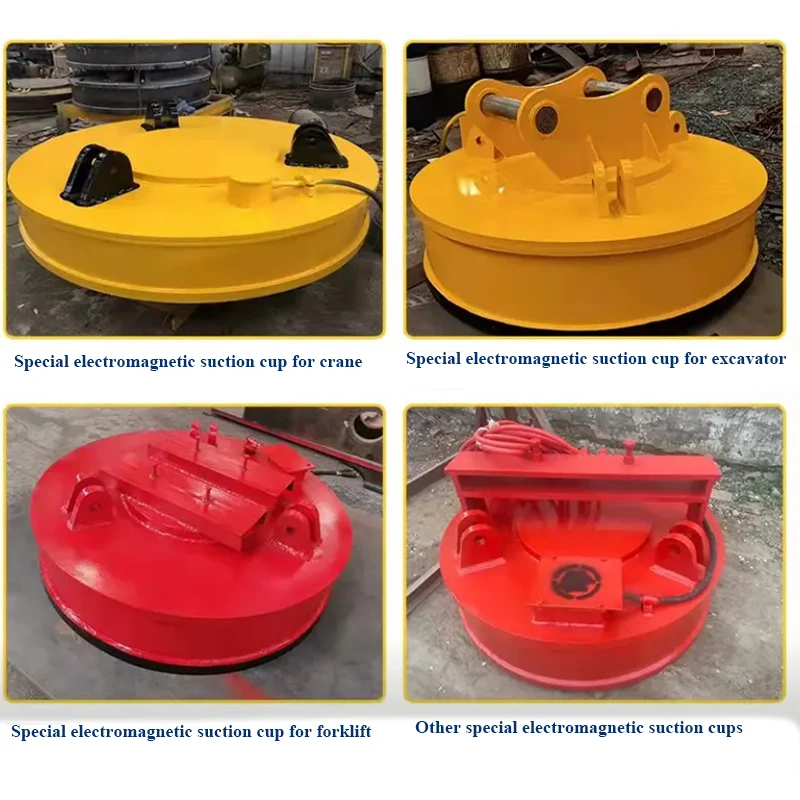

4). Where will use the electromagnetic chuck ,for overhead crane ,gantry crane ,excavator
or others ?
5). Size of Lifting electromagnet handing magnet round scrap magnets
2. Accept OEM/ODM
3. Payment Terms :T/T ,L/C,Western Union ,MoneyGram,Trade assurance.......
4. Delivery Time : Normal within 7 days (According to the order)
5. Because electromagnetic chuck is customized according to customer's requirements ,
Please kindly provide your requirements for most suitable scheme and precise price :
1). What is the material ?
2). Material temperature ?
3). Power supply
4). Where will use the electromagnetic chuck ,for overhead crane ,gantry crane ,excavator
or others ?
5). Size of Lifting electromagnet handing magnet round scrap magnets
Похожие товары
RSBM 1 метр в диаметре высокоэффективный железный магнитный патрон электромагнитный
143 052,00 ₽ - 172 762,80 ₽
Электромагнитный патрон прямые продажи с завода
110 040,00 ₽

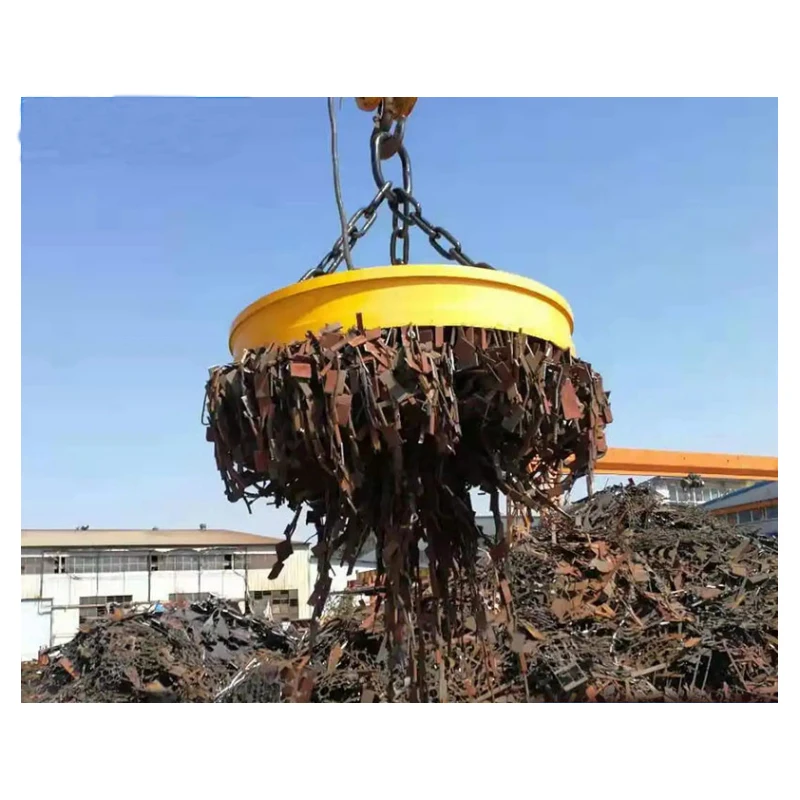

Магнитный подъемник магнитный кран для металлолома 3 тонны изготовленные на заказ электромагнитные магниты продажи
313 614,00 ₽ - 348 716,76 ₽

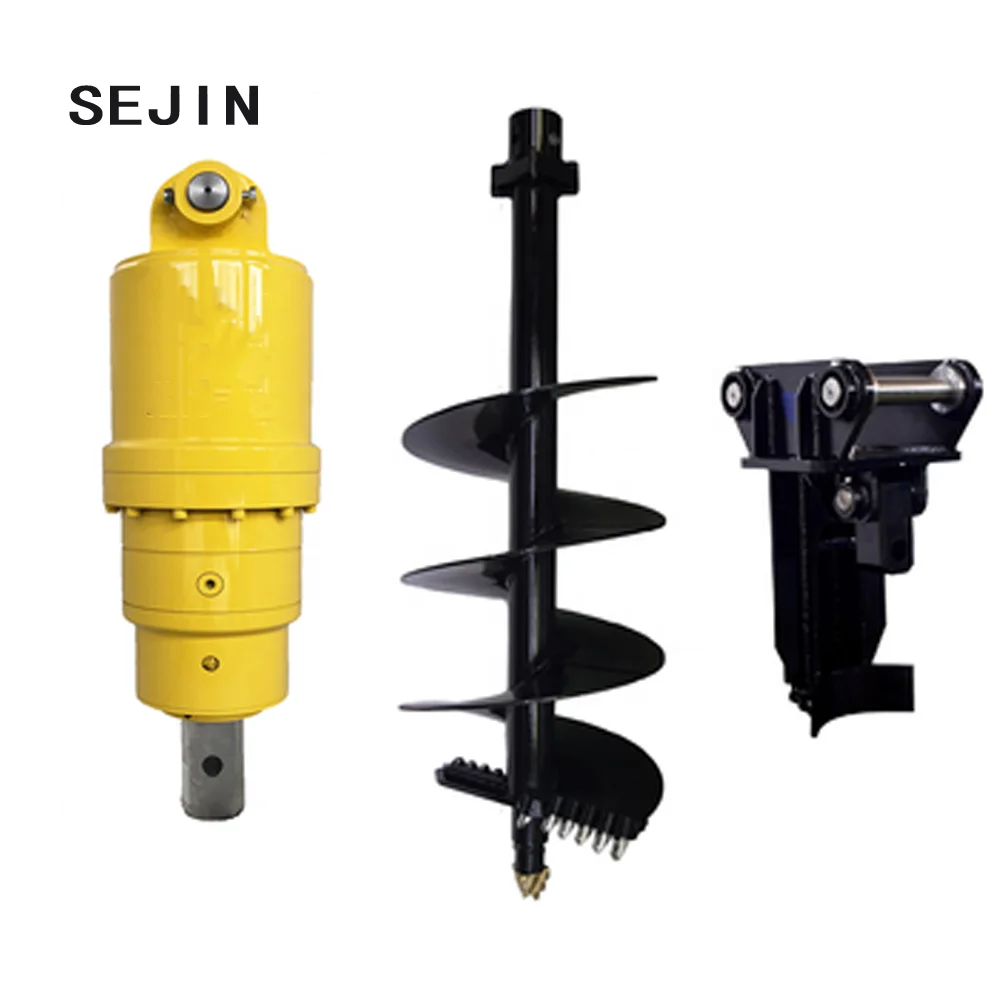

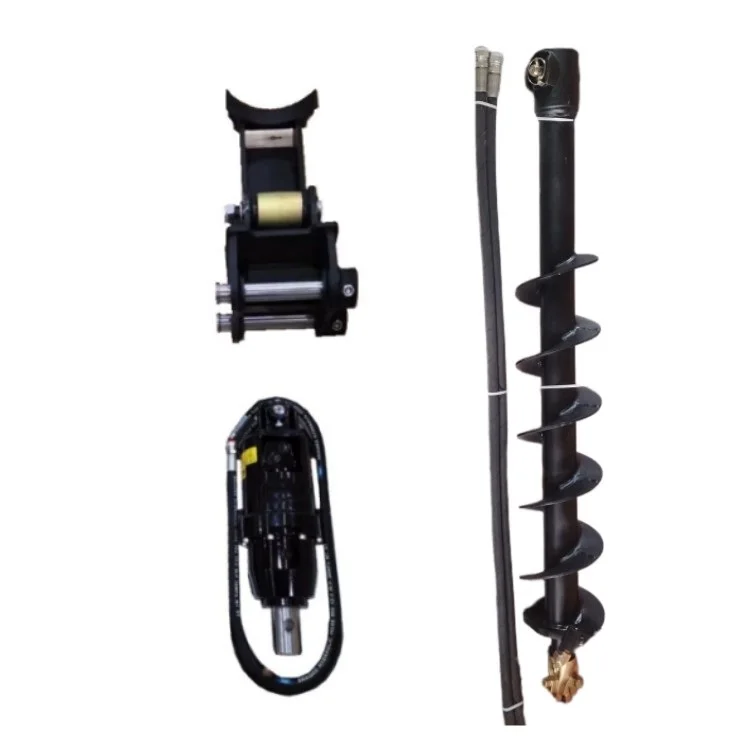

Мини-экскаватор копающая техника гидравлический сверлильный станок земляной шнек цена
SJ2500 мини-экскаватор с крепежным отверстием для землеройного бурения
Шнек с отверстиями мини-шнек-погрузчик шнек 100-600 мм диаметр 1000
65 913,96 ₽ - 87 921,96 ₽

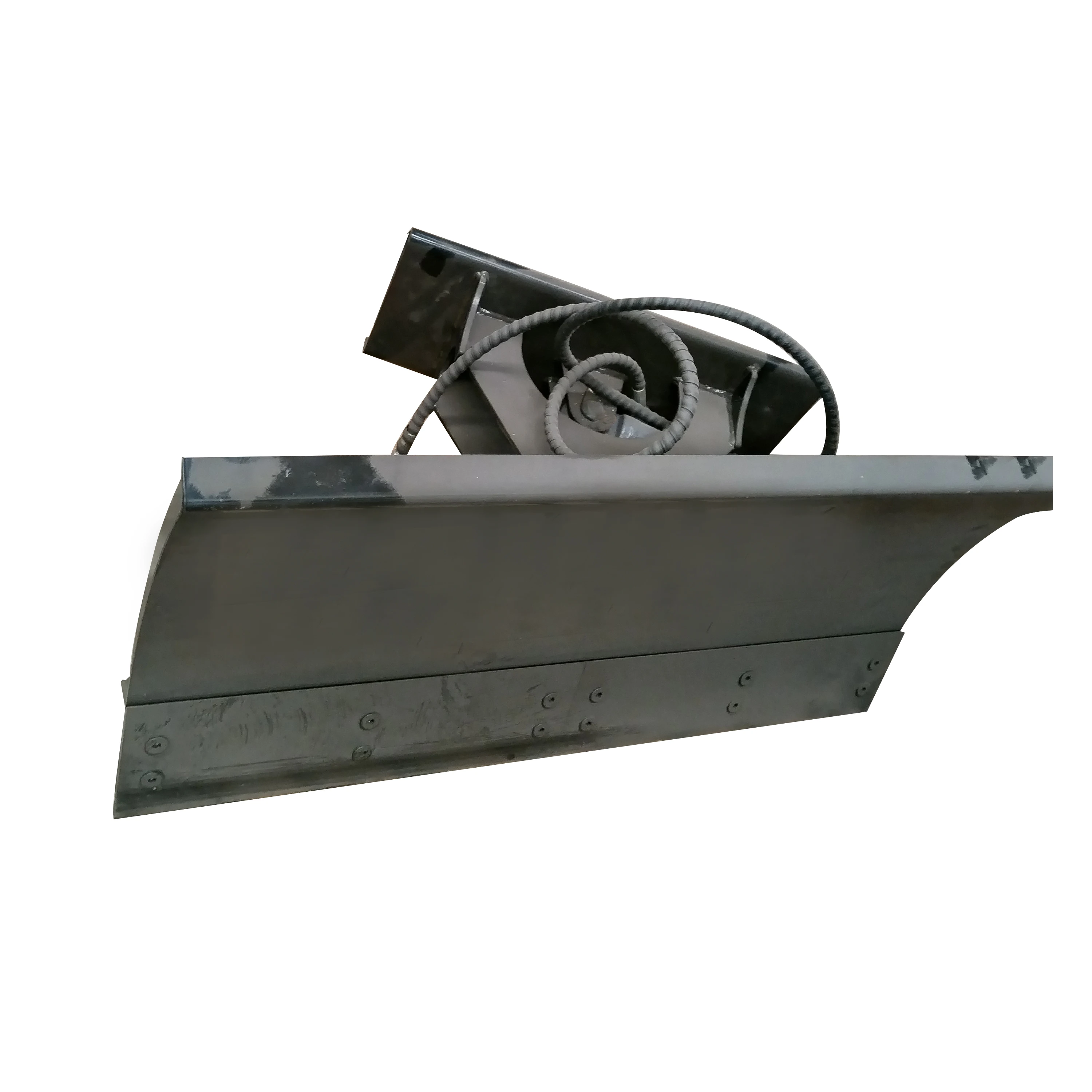

Насадка с угловым лезвием для мини-погрузчика
