Новый 15 тонный однобалочный козловой кран с электродвигателем
- Категория: >>>
- Поставщик: Henan Huasui Heavy Industry Machinery Equipment Co. Ltd.
Сохранить в закладки 1601233549152:
Описание и отзывы
Характеристики
Products Description

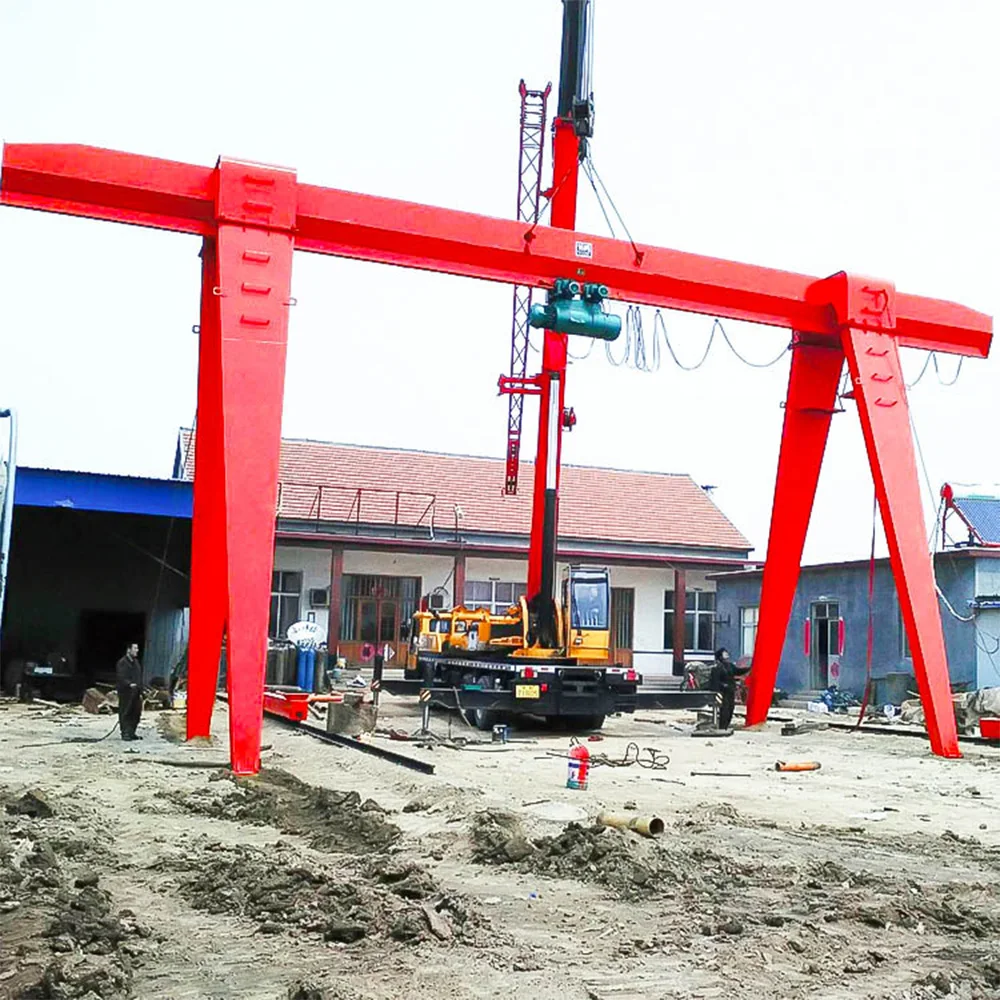

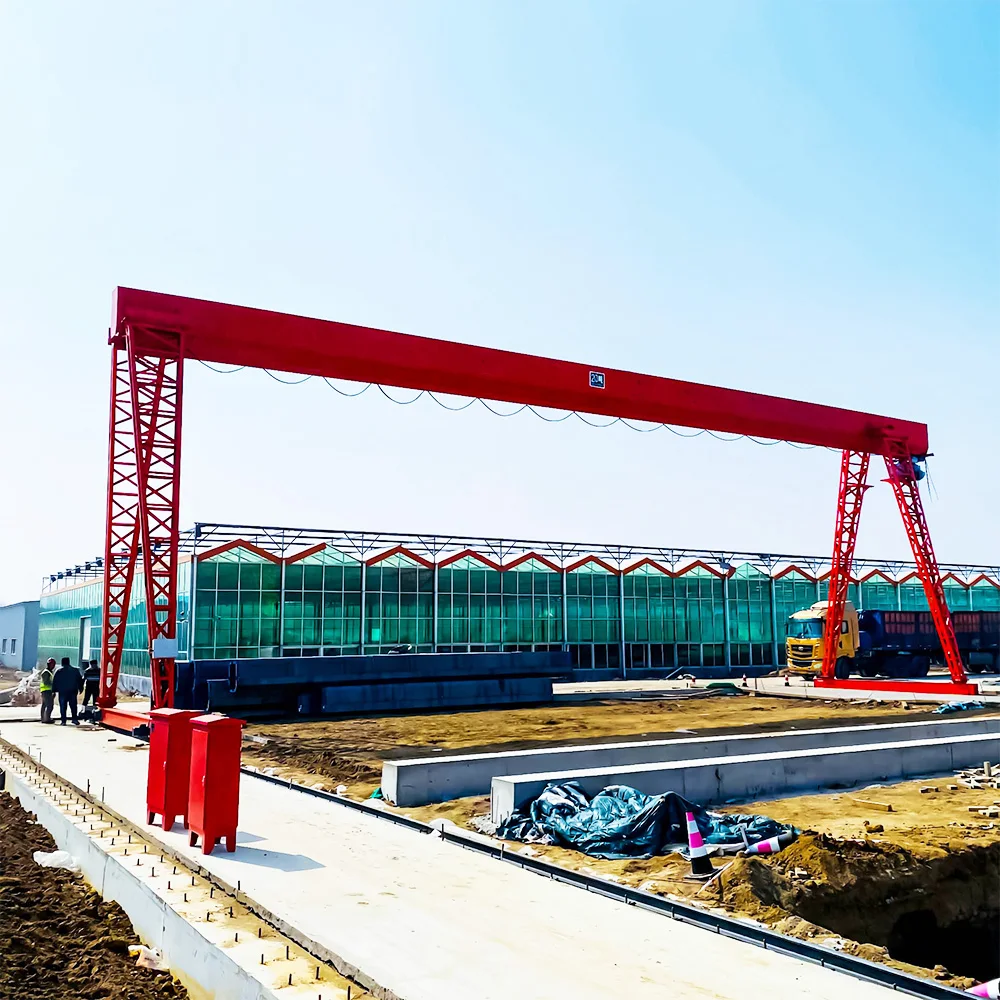

New 15 Ton Single Girder Gantry Crane with Electric Hoist Motor Engine is a versatile and cost-effective lifting solution designed for various industrial and construction environments. With its simple yet robust design, this crane is ideal for handling medium to heavy loads in outdoor or indoor settings where overhead crane systems may not be feasible. Its portability and ease of installation make it a popular choice for facilities requiring flexible material handling capabilities.
Gantry crane from Huasui company is a practical and versatile lifting solution that offers exceptional value for a wide range of industries. Its straightforward design, combined with customizable options and essential safety features, makes it an indispensable tool for efficient and safe material handling. Whether in construction, manufacturing, or warehousing, investing in a single girder gantry crane ensures operational flexibility and reliability.
Features
Single Girder Design: The solid horizontal girder supports the hoist and trolley system. This streamlined design offers a balance between cost efficiency and functionality, making it suitable for a wide range of applications.
Customizable Span and Height: The span lengths and lifting heights can be customized to ensure it meets the specific needs of different projects and work environments.
Efficient Load Handling: Capable of lifting loads typically ranging from 1 to 20 tons, the single girder gantry crane is designed to handle a variety of materials and equipment with ease.
Ease of Installation: Installing the crane only necessitates minor adjustments to the current structure. For facilities wishing to swiftly adopt material handling systems, this makes it perfect.
Flexibility: Its portability and adaptability make the single girder gantry crane suitable for a variety of environments, including workshops, warehouses, and outdoor yards.
Space Efficiency: Due to its space-efficient design, the crane is appropriate for locations where overhead cranes cannot be built or where headroom is limited.
Safety Features: The crane is equipped with essential safety mechanisms such as overload protection, emergency stop systems, and limit switches. These features ensure safe operation and protect both the equipment and personnel.
Detailed Images
Wire Rope Hoist
The hoist, mounted on a trolley, travels along the length of the girder. It is responsible for lifting, lowering, and positioning the load with precision. The trolley's smooth movement ensures efficient load handling.
Main Girder
The central girder is constructed from high-strength steel, providing the primary support for the crane's load. It is designed to minimize deflection and ensure stability during lifting operations.
Legs
Well-designed legs provide the necessary stability and mobility for the crane, allowing it to move smoothly along its designated path.
Control System
Operators can control the crane via a pendant control, radio remote control, or an onboard control cabin, depending on the configuration. The control system is designed for ease of use, allowing for precise maneuvering of the load.
Technical Parameter
Capacity (T) | 3 | 5 | 10 | 16 | 20 | ||||||||
Span (m) | 12/16/20/24 | 12/16/20/24/30 | 12/16/20/24/30 | 12/16/20/24/30 | 12/16/20/24/30 | ||||||||
Lifting Height (m) | 6/9 | 6/9 | 6/9 | 6/9 | 6/9 | ||||||||
Travelling Unit (m/min) | Speed | Remote Type | 20 | 20 | 20 | 20 | 20 | ||||||
Cabin Type | 20/30/45 | 20/30 | 20/30 | 20/30 | 20/30 | ||||||||
Motor | Remote Type | 0.8kW*2/1.5kW*2 | 0.8kW*2/2.5kW*2 | 1.5kW*2 | 4/6.3kW*2 | 6.3/8.5kW*2 | |||||||
Cabin Type | 1.5kW*2/2.1kW*2 | 1.5kW*2/2.5kW*2 | 2.1kW*2/4kW*2 | ||||||||||
Wheel Dia. | ɸ270 | ɸ300/500 | ɸ400/600 | ɸ600 | ɸ600 | ||||||||
Lifting Unit (m/min) | Lifting Speed | 0.8/8 | 0.8/8 | 0.7/7 | 3.5 | 3.5 | |||||||
Travelling Speed | 20 | 20 | 20 | 20 | 20 | ||||||||
Motor (kW) | Lifting | 0.4/4.5 | 0.8/7.5 | 4/13 1.5/4.5 | 4/13 | 4/18.5 | |||||||
Travelling | 4/0.4 | 4/0.8 | 0.8*2 | 0.8*2 | 0.8*4 | ||||||||
Working Grade | A3 | A3 | A3 | A3 | A5 | ||||||||
Rec. Steel Rail | P24/P38 | P24/P38 | P38/P43 | P38/P43 | P43/P50 | ||||||||
Power Supply | 380V 50Hz 3 Phase/Customization | ||||||||||||
Crane Weight (kg) | Remote Type | 6646~13931 | 8324~19830 | 12238~32700 | 15217~32753 | 16850~39170 | |||||||
Cabin Type | 6996~14281 | 1584~25500 | 12750~33200 | 15667~33208 | 17850~40170 | ||||||||
Max. Wheel Pressure (kN) | 37~54 | 54~96 | 97~149 | 143~190 | 198~310 | ||||||||
Basic Dime. (mm) | L1 | 2000~5000 | 3000~7500 | 3000~7500 | 3000~6000 | 3000~7000 | |||||||
L2 | 2000~5000 | ||||||||||||
H1 | 960 | 1160 | 1350 | 2300 | 6000~9000 | ||||||||
H2 | 650~900 | 800~1300 | 1000~1600 | 1100~1600 | 2725 | ||||||||
H3 | 7635~10885 | 760~11460 | 8350~12250 | 9500~9900 | 1400~2200 | ||||||||
B | 4500~6500 | 4500~6500 | 4500~6500 | 5500~7500 | 5500~7500 | ||||||||
B1 | 5000~7000 | 5500~7500 | 5500~7500 | 6500~8500 | 6500~8500 | ||||||||
B2 | 5400~7500 | 6000~8100 | 6000~8100 | 7000~9200 | 7000~9200 | ||||||||
B3 | 1500 | 1500 | 1600 | 1600/1700 | 1600/1700 | ||||||||
Application
Construction Sites
Warehousing and Logistics
Manufacturing Facilities
Recommend Products
About Our Factory
Henan Huasui Heavy Industry Machinery Equipment Co., Ltd. was established in 1998 as a leading manufacturer of bridge construction lifting equipment. Our company has participated in numerous major road and bridge construction projects in China, where we have gained invaluable technical knowledge and experience. This has enabled us to develop a highly skilled engineering and installation service team. In response to market demand for general lifting equipment in the second decade of the 21st century, Huasui has established a brand-new factory and equipment. The company is committed to providing excellent products and one-stop service to more customers.
Through the integration of technology and optimization of manufacturing process, Huasui has gained a firm foothold in the manufacturing of overhead cranes, gantry cranes, wire rope electric hoists, straddle carriers and beam launcher in compliance with FEM standards.
Packing & Delivery
