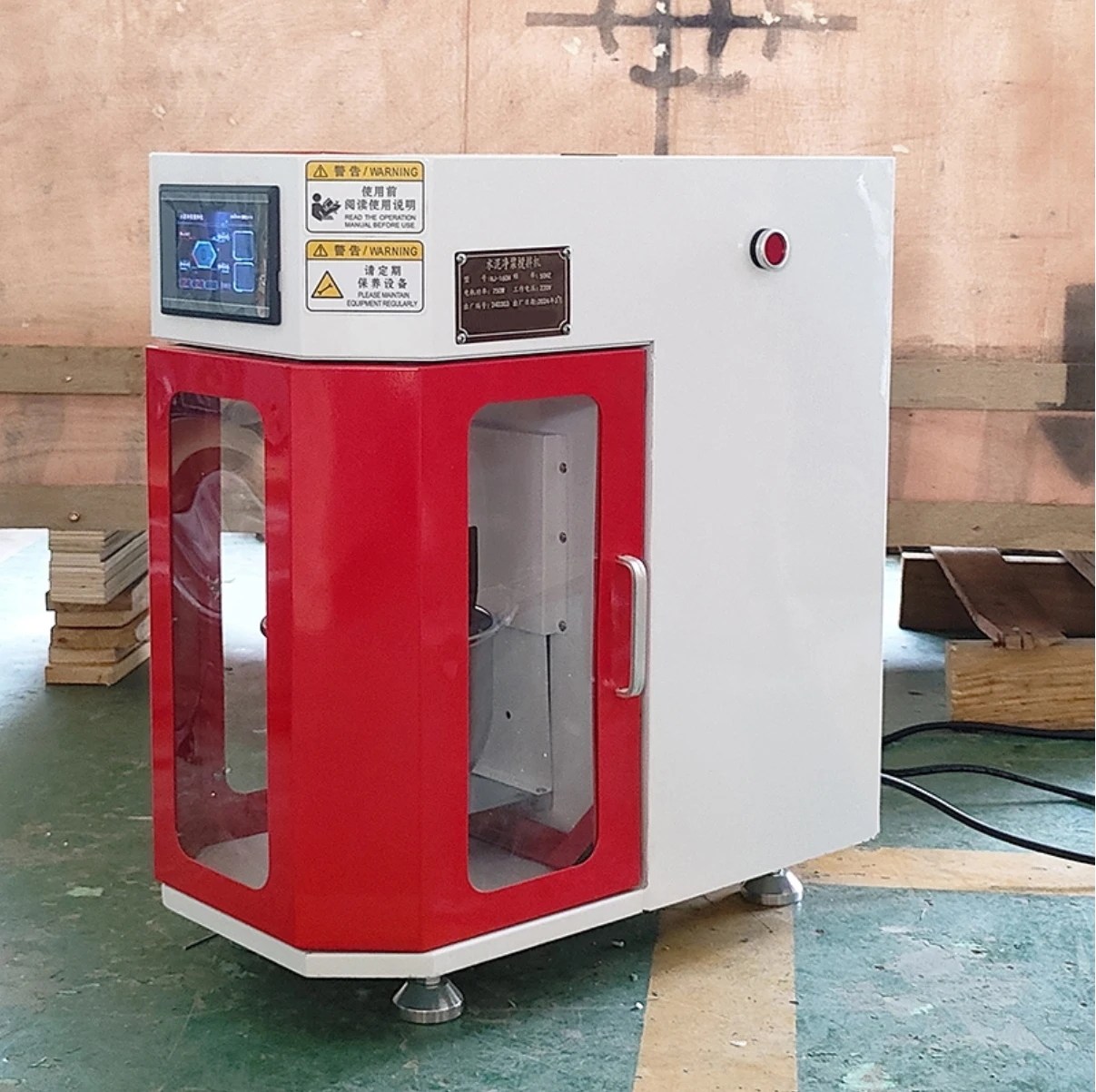

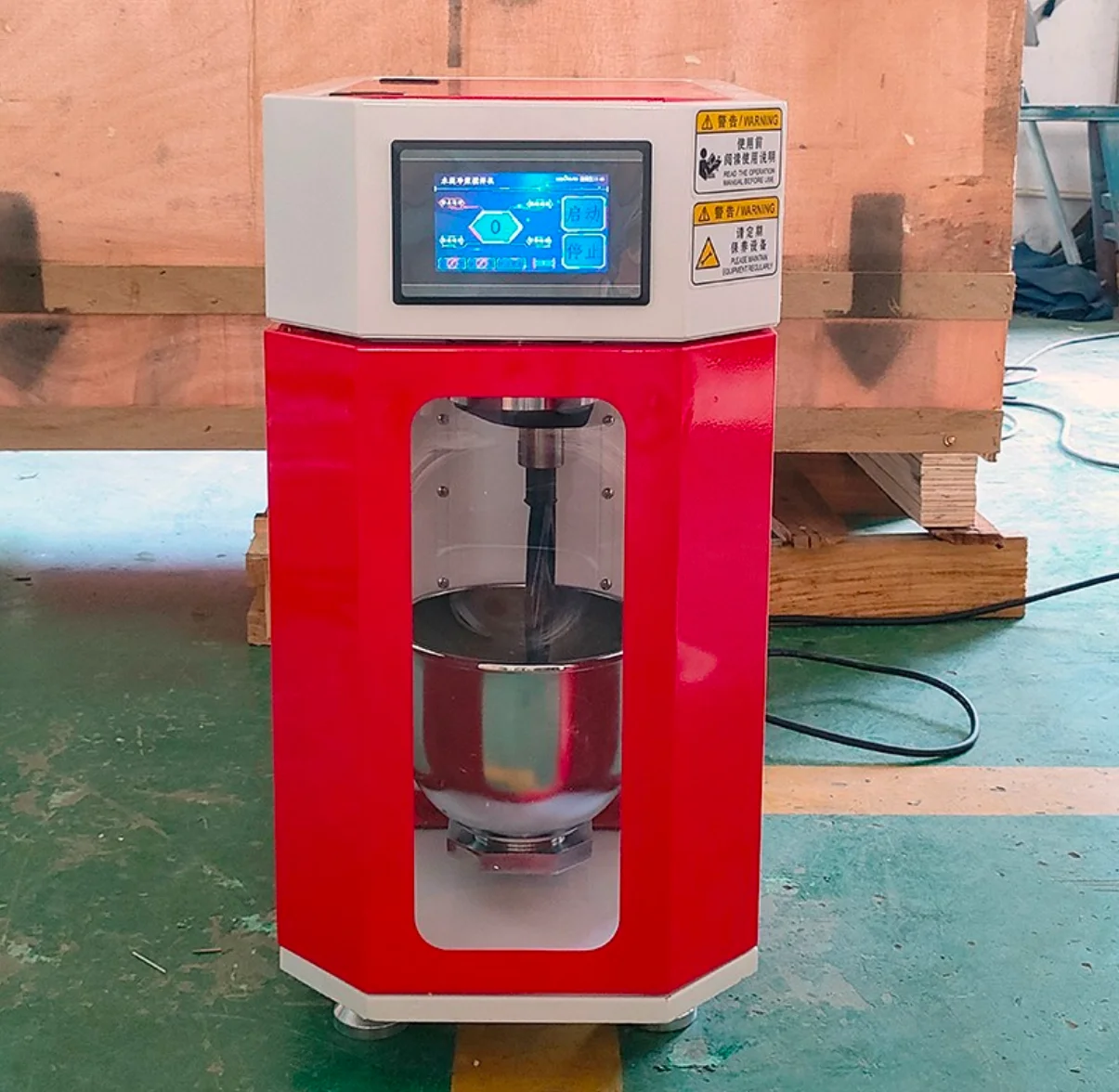

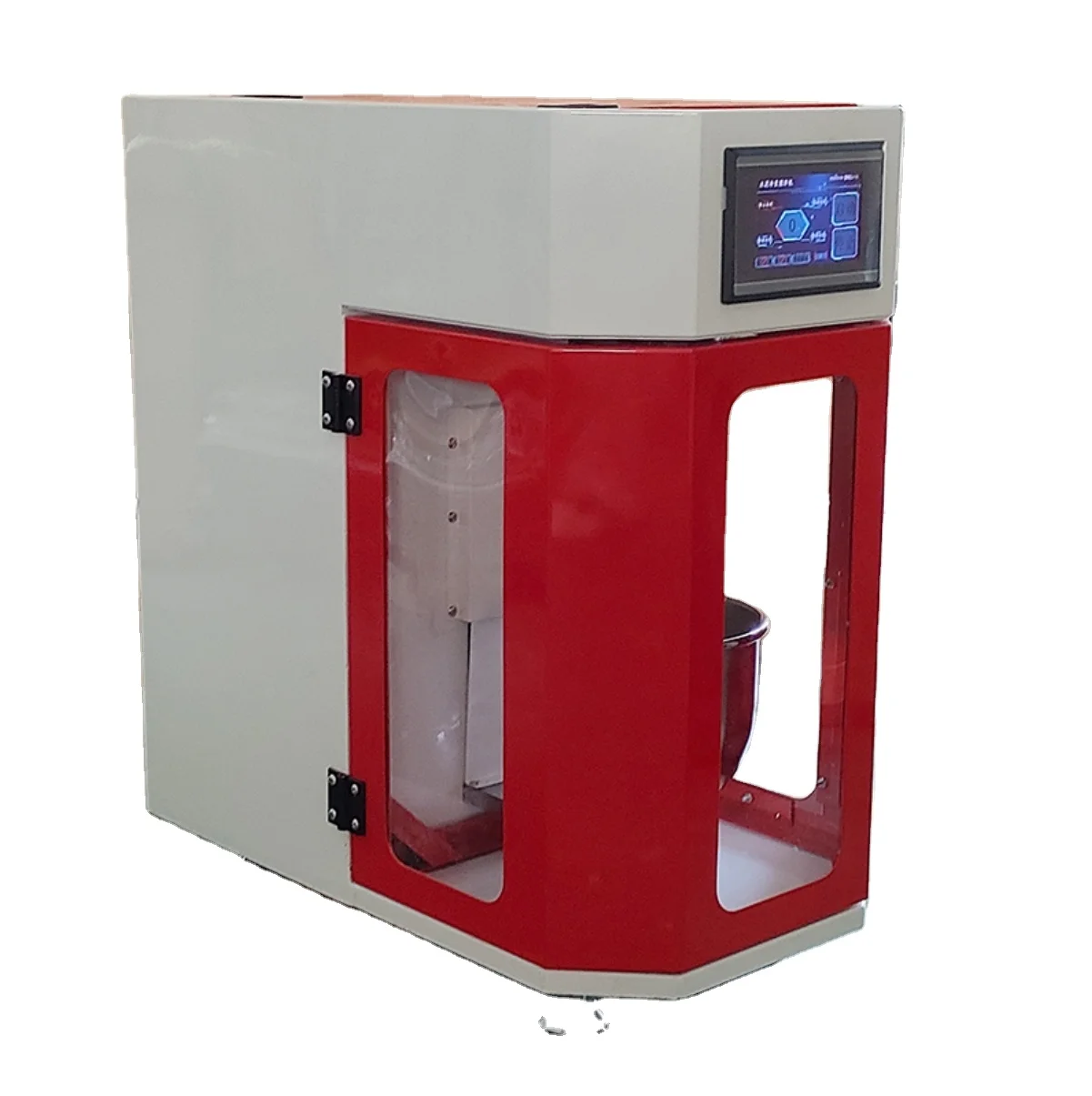

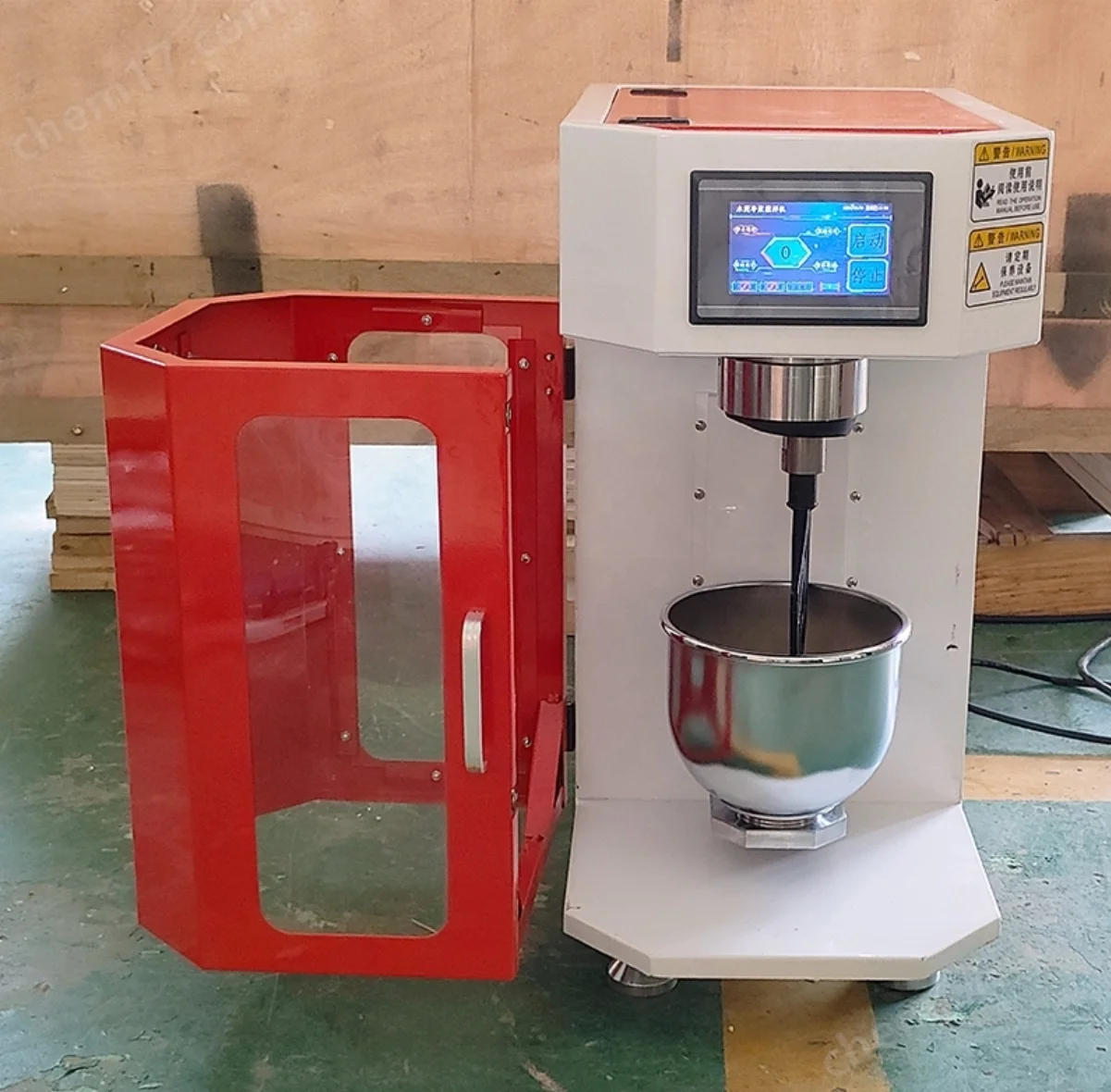

NJ 160 небольшой Бетономешалка для лабораторного использования
- Категория: >>>
- Поставщик: AM (Shanghai) Construction Technology Co. Ltd.
Сохранить в закладки 1601233643191:
Описание и отзывы
Характеристики
Product Description
Product details and advantages
Planetary cement slurry mixer Product introduction: cement and water are mixed according to the standard to stir into a uniform test slurry, for the determination of cement standard consistency, setting time and the production of safety test block, is a production plant, construction units, relevant universities and scientific research units laboratory equipment.

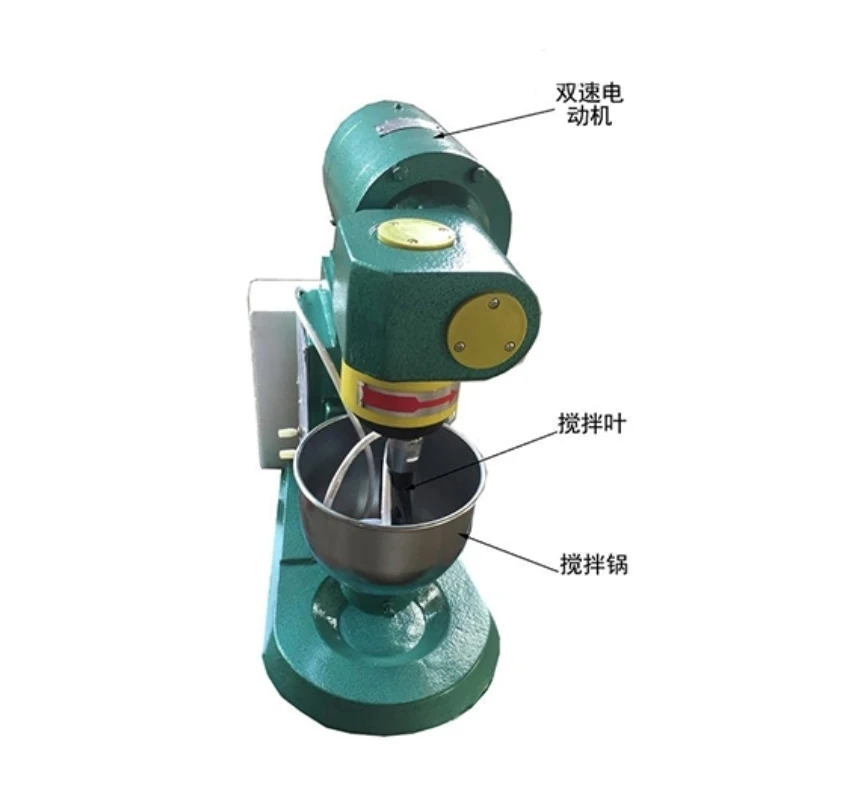

Planetary cement paste mixer working principle:
The shaft of the two-speed motor is connected by the connecting flange and the worm shaft in the reducer box. The worm wheel is decelerated so that the spiral wheel shaft drives the planetary positioning sleeve to rotate synchronously, and the blade shaft fixed in the eccentric position on the planetary positioning sleeve drives the blade to rotate. The planetary gear fixed on the upper end of the blade axis rotates around the fixed inner gear ring. The two-speed motor is controlled by the time controller to automatically complete the prescribed working procedure of one slow stop and one fast turn. Mixing pan and skateboard with the core groove rotary lock.
Planetary cement paste mixer working principle:
The shaft of the two-speed motor is connected by the connecting flange and the worm shaft in the reducer box. The worm wheel is decelerated so that the spiral wheel shaft drives the planetary positioning sleeve to rotate synchronously, and the blade shaft fixed in the eccentric position on the planetary positioning sleeve drives the blade to rotate. The planetary gear fixed on the upper end of the blade axis rotates around the fixed inner gear ring. The two-speed motor is controlled by the time controller to automatically complete the prescribed working procedure of one slow stop and one fast turn. Mixing pan and skateboard with the core groove rotary lock.
Product Paramenters
Project | unit | NJ-160 |
Power source | V | 380V 50HZ |
Motor power | W | Fast: 370 , slow: 170 |
Net weight | kg | 70 |
Stir the blades slowly | r/min | 62±5 |
Mixing blade male turn fast | r/min | 125±10 |
The stirring blade rotates slowly | r/min | 140±5 |
The stirring blade rotates rapidly | r/min | 258±10 |
Stirring blade width | mm | 111 |
Mixing blade and blade shaft connection thread | M16 | 1 |
Thickness of pan wall | mm | 5 |
Clearance between leaf and pan | mm | 2 |
Stirring pot capacity | L | 2.5 |
Dimensions (length * width * height) | mm | 472×280×466 |
Working site
Recommend Products
Other products for sale display
Company information
Who We Are?
AMCT is professional working in the international trade of construction machinery for more than 20 years and has be
one of the largest construction machinery trading companies in Shanghai. Thousands of visitors from all over the world have been received by us every year. The manufacture factory of AMCT is vision to build a first-class enterprise, to foster first-class employees, and to make first-class contributions to society has never wavered. We have focused on delivering value to customers, employees, shareholders, and the public by offering high-quality products and services, providing a work environment full of opportunities, releasing financial reports to meet investor expectations, and exerting our own influence to help those in need. People of action need to identify their core beliefs and hold to them with integrity, even in the face of hardship. Organizations must also have strong beliefs and strong core values At AMCT you are encouraged to be a difference-maker. We consider your ideas, experiences, and values to be our greatest assets for realizing our aspirations. Together with AMCT, you can work with the sharpest minds in the industry and experience exciting diversity and inclusion through AMCT is growing worldwide business presence. Here, you can build the future with your own meaningful work.
one of the largest construction machinery trading companies in Shanghai. Thousands of visitors from all over the world have been received by us every year. The manufacture factory of AMCT is vision to build a first-class enterprise, to foster first-class employees, and to make first-class contributions to society has never wavered. We have focused on delivering value to customers, employees, shareholders, and the public by offering high-quality products and services, providing a work environment full of opportunities, releasing financial reports to meet investor expectations, and exerting our own influence to help those in need. People of action need to identify their core beliefs and hold to them with integrity, even in the face of hardship. Organizations must also have strong beliefs and strong core values At AMCT you are encouraged to be a difference-maker. We consider your ideas, experiences, and values to be our greatest assets for realizing our aspirations. Together with AMCT, you can work with the sharpest minds in the industry and experience exciting diversity and inclusion through AMCT is growing worldwide business presence. Here, you can build the future with your own meaningful work.
Some customers took a group photo
company's certificate
FAQ
1. How to buy products from your company?
You can choose the model from our website, you can also tell your specific
requirements to our sales manger and we will recommend the suitable model for you. After confirming the model and price, we can sign the contract.
2、How to ensure product quality?
Firstly,our company has the international quality system certification.Secondly, Made in China Group has conducted field
certification of our factory. Finally,You can entrust third party individuals or organizations to inspect our products before
delivery.
3、How to visit your factory?
After you arrive at China, you can fly to Shanghai. Shanghai airport is located in SHANGHAI City. We will contact you and our company driver will pick you up at Shanghai airport and take you to our factory by car.
4、What are your advantages compared with other suppliers and manufacturers?
High Quality:As a professional and reliable supplier, we are experienced in The Quality Inspection and Control. Every product is strictly inspected before it is delivered to our customers. Market Competitive Price: We are so glad to provide you the most favorable prices for our customers. And the prices are negotiable,so both parties can achieve a win-win result. Logistics: adequate equipment, professional logistics, clear division of labor, timely delivery.
5、Which payment terms are available to us ?
T/T terms or other. On T/T term, at least 30%—50%down payment is required in advance, and 70% balance shall be settled before.
requirements to our sales manger and we will recommend the suitable model for you. After confirming the model and price, we can sign the contract.
2、How to ensure product quality?
Firstly,our company has the international quality system certification.Secondly, Made in China Group has conducted field
certification of our factory. Finally,You can entrust third party individuals or organizations to inspect our products before
delivery.
3、How to visit your factory?
After you arrive at China, you can fly to Shanghai. Shanghai airport is located in SHANGHAI City. We will contact you and our company driver will pick you up at Shanghai airport and take you to our factory by car.
4、What are your advantages compared with other suppliers and manufacturers?
High Quality:As a professional and reliable supplier, we are experienced in The Quality Inspection and Control. Every product is strictly inspected before it is delivered to our customers. Market Competitive Price: We are so glad to provide you the most favorable prices for our customers. And the prices are negotiable,so both parties can achieve a win-win result. Logistics: adequate equipment, professional logistics, clear division of labor, timely delivery.
5、Which payment terms are available to us ?
T/T terms or other. On T/T term, at least 30%—50%down payment is required in advance, and 70% balance shall be settled before.
Contact us
Email: amct@am-ct.cn
Mobile/Wechat: +86 15618583661
Company website: cnamct.en.alibaba.com
Похожие товары

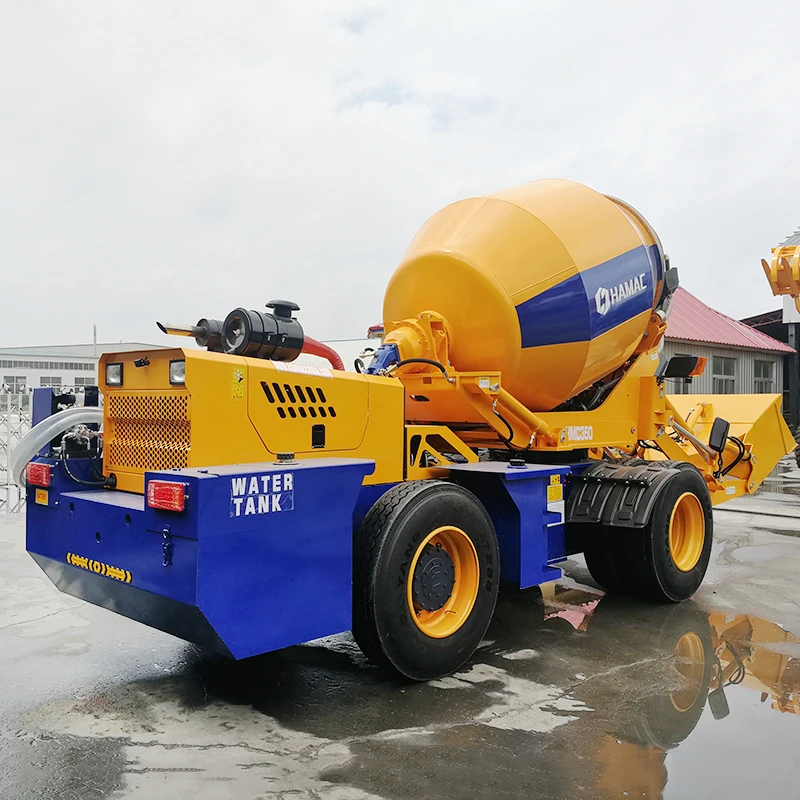

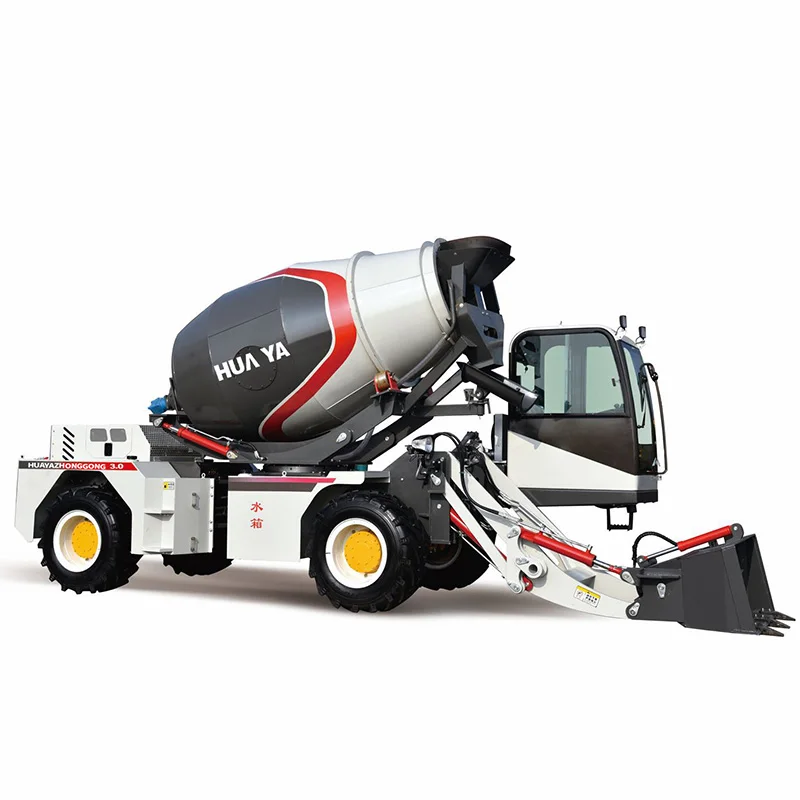

Горячая продажа самозагружающая Мобильная Бетономешалка 1 5 м3 2 6 3 4 Автоматическая
517 979,48 ₽ - 551 042,00 ₽

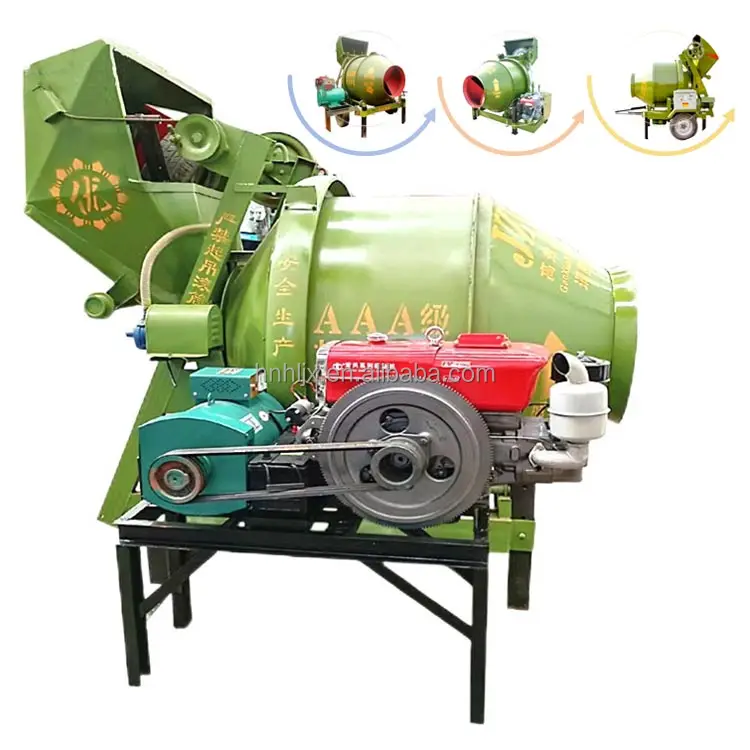

Автомобильная Бетономешалка JZC
