Zat2000 200 тонный кран 72 м со стрелой вездеходный гидравлические колесные мобильные краны для продажи
- Категория: >>>
- Поставщик: Zhengzhou Komatco Industrial Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601233783611:
Описание и отзывы
Характеристики
Overview
Contact Person
Products Description

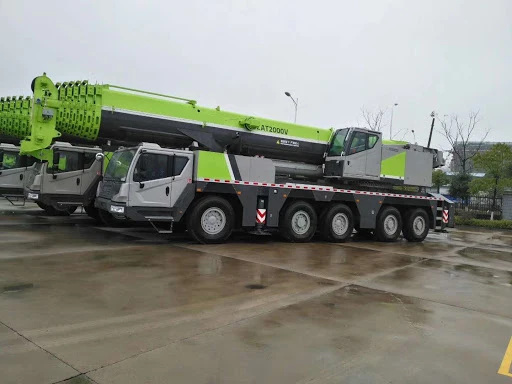

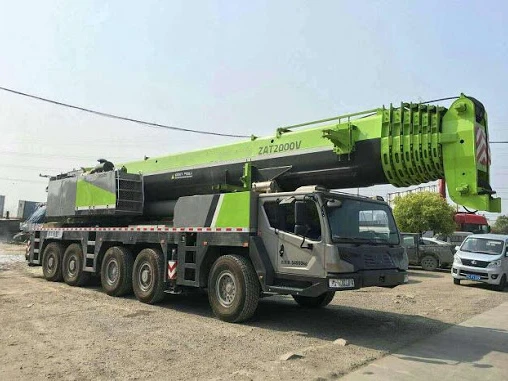

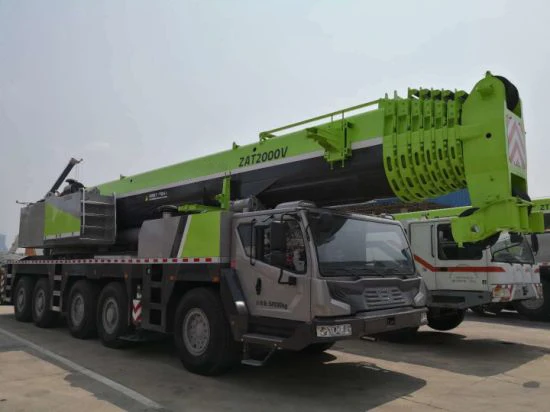

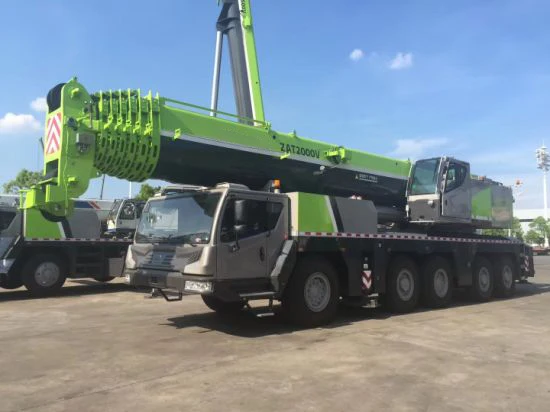

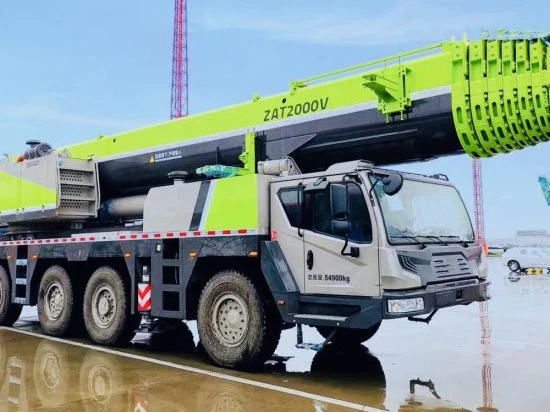

Zat2000 200 Ton Crane 72M Boom All Terrain Crane Hydraulic Wheeled Mobile Cranes For Sale
1.This high-tech product, combining mechanical and hydraulic systems as a whole, has so many advantages, such as good control performance, excellent micro-positioning performance, great lifting capacity and super lifting height, that it is active in various fields.
2.The 5-axle (3 axles driven and all axles steered) full-width special purpose chassis is manufactured by , providing wide vision, spacious cab and luxurious decoration.
3.The latest electro-hydraulic proportional directional control value with load sensing function, multiple plunger variable system pumps and open/closed variable system ensure that each executive mechanism makes full use of its work capability.
4.The safety devices, such as relief value, balance value, hydraulic lock and brake value, etc. in the hydraulic system, are
against rupture of pipes and hoses.
1.This high-tech product, combining mechanical and hydraulic systems as a whole, has so many advantages, such as good control performance, excellent micro-positioning performance, great lifting capacity and super lifting height, that it is active in various fields.
2.The 5-axle (3 axles driven and all axles steered) full-width special purpose chassis is manufactured by , providing wide vision, spacious cab and luxurious decoration.
3.The latest electro-hydraulic proportional directional control value with load sensing function, multiple plunger variable system pumps and open/closed variable system ensure that each executive mechanism makes full use of its work capability.
4.The safety devices, such as relief value, balance value, hydraulic lock and brake value, etc. in the hydraulic system, are
against rupture of pipes and hoses.
Product Paramenters
Item | Value | Remarks | ||||||
Work performance | Max. rated lifting capacity | kg | 200000 | / | ||||
Max. load moment of basic boom | kN.m | 6664 | At 8 m radius | |||||
Max. lifting height of main boom | m | 72 | The parameters do not include deflection of main boom and jib. The value in the brackets is the value with extensions installed. | |||||
Max. lifting height of jib | m | 95/(103) | ||||||
Work speeds | Max. hoist rope speed (Main winch) | m/min | 120 | At the 4th layer | ||||
Max. hoist rope speed (Auxiliary winch) | m/min | 70 | At the 4th layer | |||||
Boom extending time | min | 12 | Affected by the temperature and engine RPM | |||||
Boom derricking up time | s | 97 | / | |||||
Slewing speed | r/min | 0 – 1.4 | / | |||||
Driving | Max. height above sea level | m | 2000 | / | ||||
Max. driving speed | km/h | 75 | / | |||||
Max. gradeability | % | 40 | / | |||||
Min. turning diameter | m | 20 | / | |||||
Min. ground clearance | mm | 305 | / | |||||
Fuel consumption per hundred kilometers | L | 78 | / | |||||
Mass | Deadweight in driving condition | kg | 60000 | Remove the hook, the movable counterweight, the jib, the rooster sheave, the tip boom, the outrigger pads, sliding beams, main and auxiliary winches, wire ropes reeving on winches and the spare tire, and drain off hydraulic oil of superstructure before vehicle driving. | ||||
Dimensions | Overall dimensions | mm | 15660 × 3000 × 4000 | / | ||||
Outrigger spread (L) | m | 8.9 | / | |||||
Outrigger spread (W) | m | 8.3 | / | |||||
Main boom length | m | 13.4 – 72 | / | |||||
Boom angle | ° | - 0.5 – 83 | / | |||||
Jib length | m | 12, 20, 28 | / | |||||
Jib + extension length | m | 36 | Optional | |||||
Offset | ° | 0, 15, 30 | / | |||||
Chassis | Model | ZLJ5603JQZV4 | / | |||||
Type | V | / | ||||||
Engine | Model | WP13.530E40 | / | |||||
Max. rated power | kW/r/min | 390 | At 2100 r/min. | |||||
Max. net power | kW/r/min | 385 | At 2100 r/min. | |||||
Max. output torque | N.m/r/min | 2220 | At 1200~1500 r/min. | |||||
Details Images
Our Advantages
Company Profile
Похожие товары
40-метровые краны для пересеченной местности XCR40 35-метровый подъемный кран с 2 осями продажи
16 968 840,00-18 100 096,00 ₽
Высокое качество Лучшая цена гусеничный кран 150 тонн гидравлический XGC150 из Китая
18 100 096,00-20 362 608,00 ₽

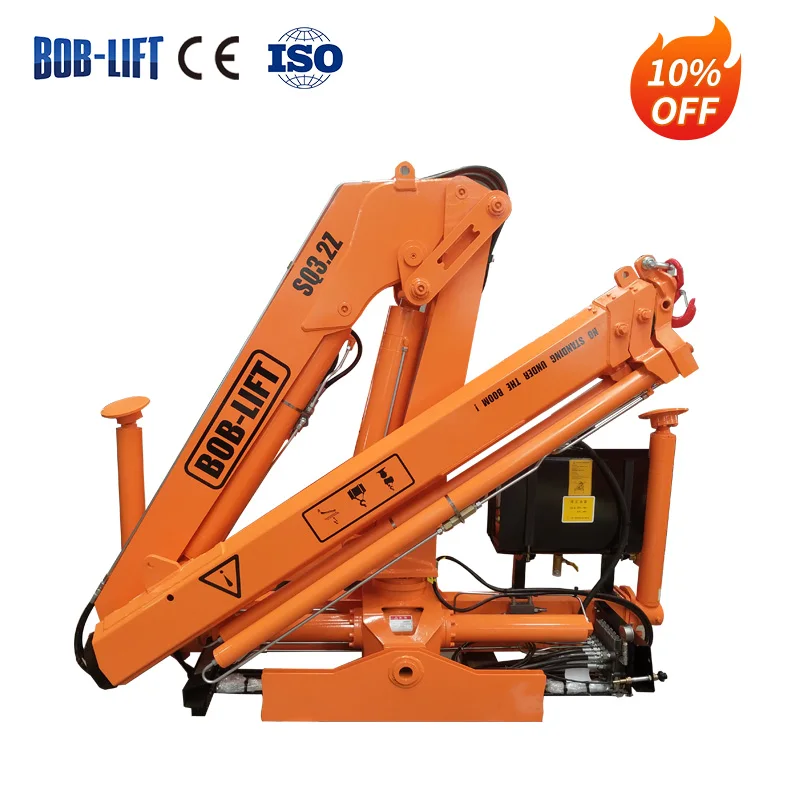

3 тонны мини-кран костяшки стреловых кранов шарнирный кран для продажи
961 567,60 ₽
Прочный недорогой Портальный Кран
565 514,88-1 018 017,28 ₽
Высокое качество 60 тонн пересеченной местности кран RT60 по хорошей цене
6 583 909,92-9 615 676,00 ₽

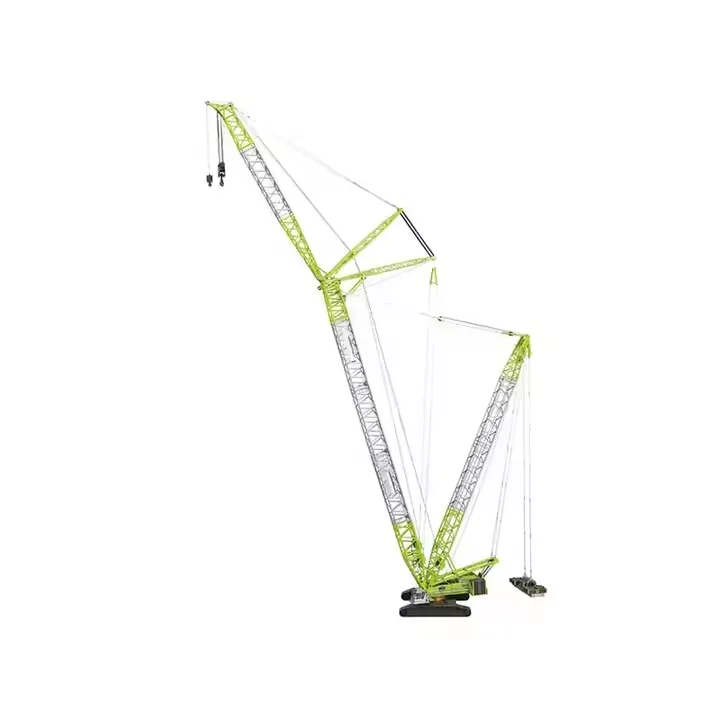

Китай лучший бренд гусеничный кран 800 тонн ZCC11800 с решетчатой стрелой для продажи
