Product Description

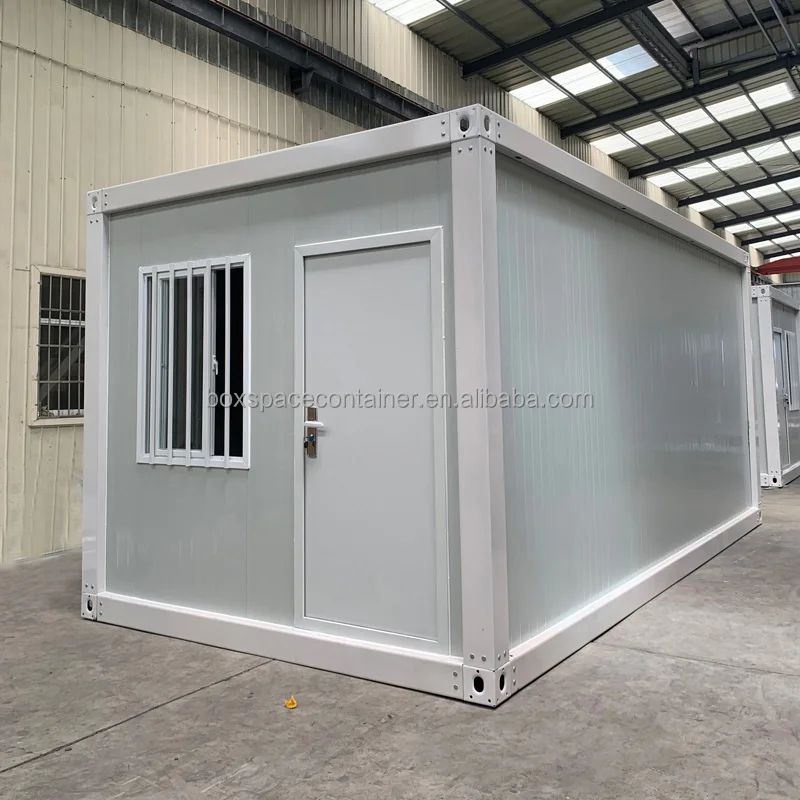

BOX SPACE Flat pack container is a modular house with the top and bottom prefabricated in factory, which will help you save a lot of time and labour on installation. At the same time, its efficient internal drainage system, and stronger frame, gives it greater safety and durability.
It features a flat roof, insulation sandwich panel walls, a steel door and two windows,and it's customizable in size and color. Installation is easy and fast, making it the perfect choice for worker dormitory, hotel, site office, school, personal apartment, and even for rental business.
Features
Project cases

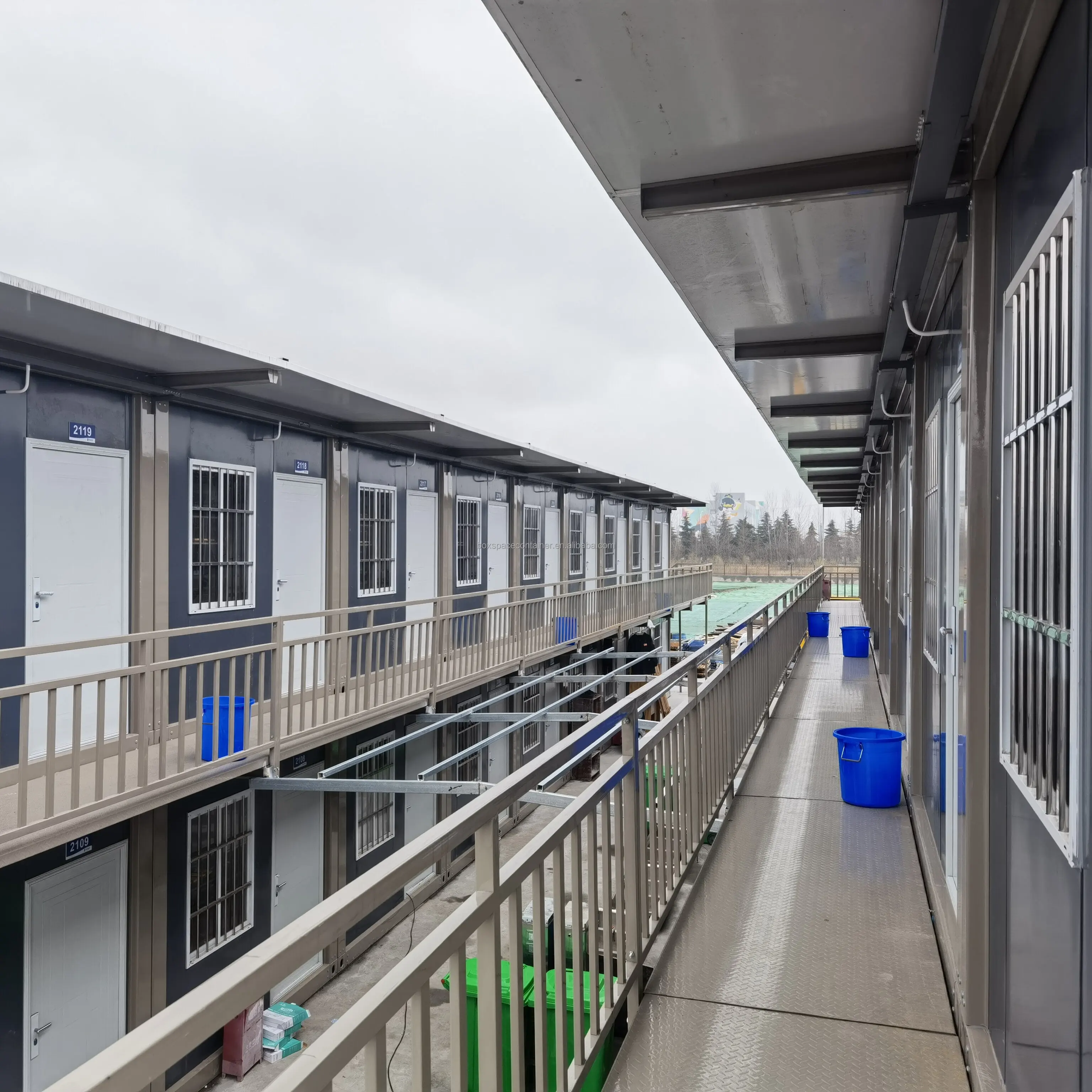

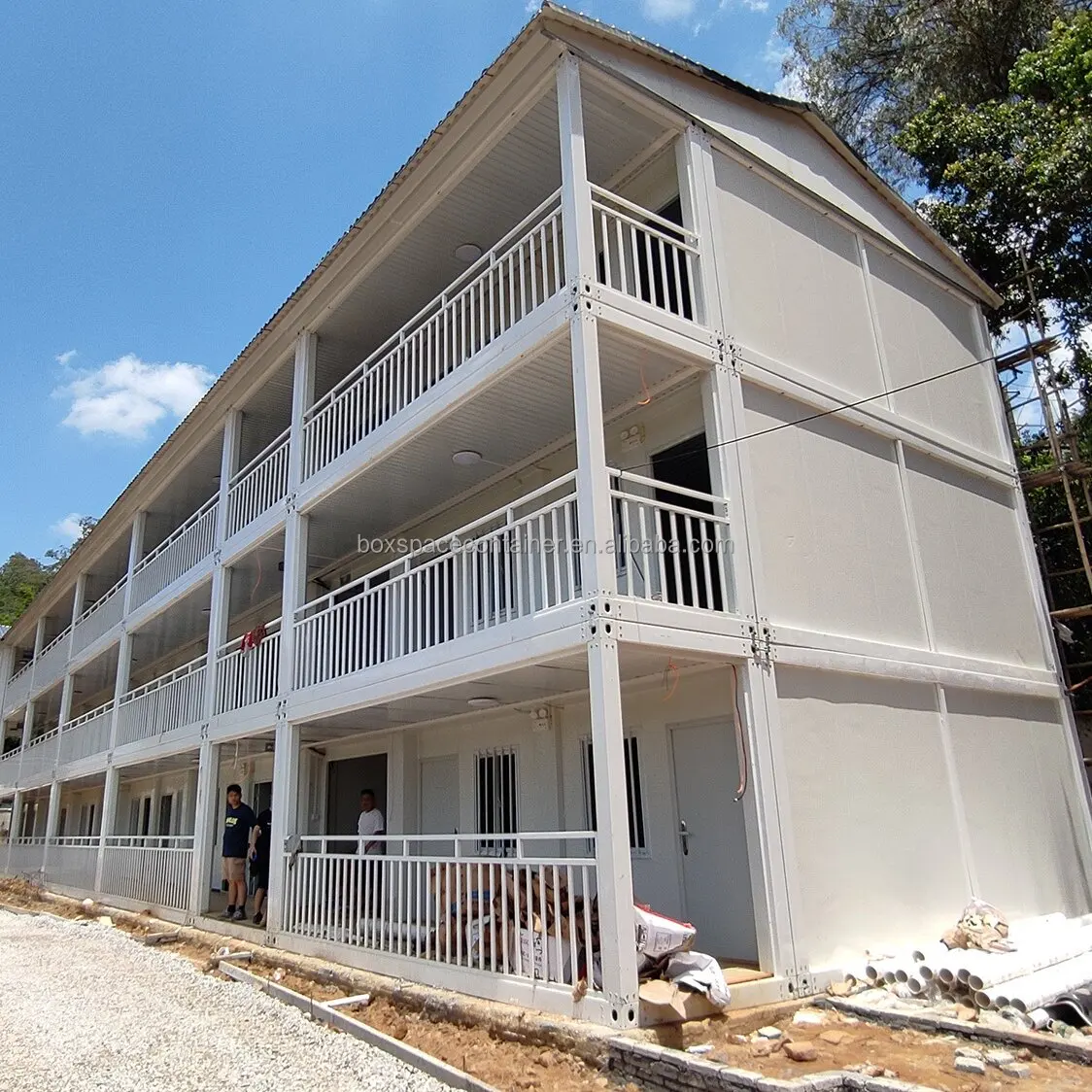

CONTAINER WORKER DORMITORY
Flat Pack Container House mostly would be used as worker dormitory, cause its low cost, easy installation, movable, and reusable.They will be put in construction sites as a temporary housing for workers, after the project done, these container house can be moved to another site and reuse again.
Room size: 5800L*2400W*2896H mm
Capacity: Each room suitable for 4 people living(can put 2 bunk beds)
Maximum can stack up 3 floors
Room size: 5800L*2400W*2896H mm
Capacity: Each room suitable for 4 people living(can put 2 bunk beds)
Maximum can stack up 3 floors

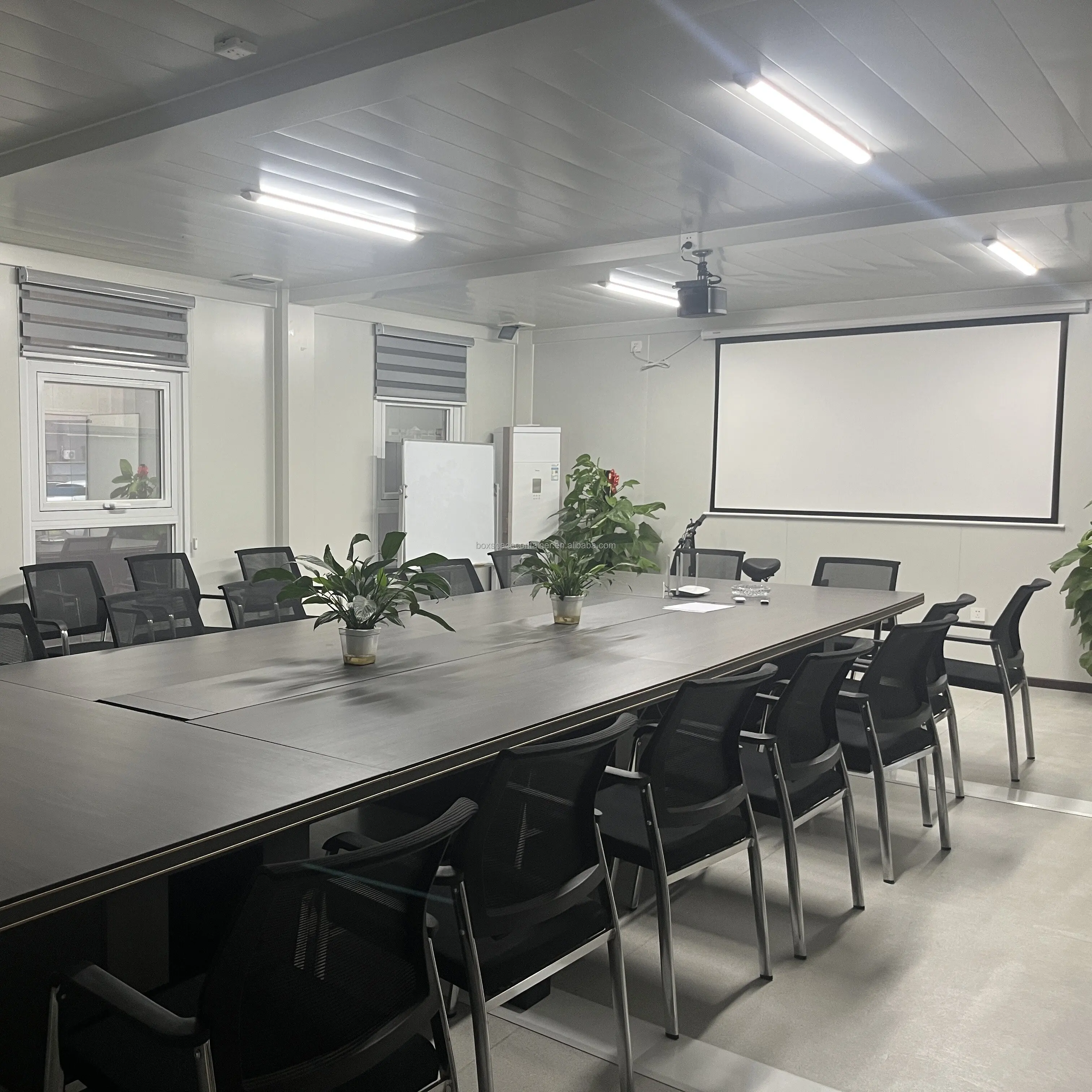

CONTAINER SITE OFFICE
Flat Pack Container House can be used as a construction site office, or personal backyard tiny office. Cause its low cost, easy installation, movable, and reusable.They will be alway put in construction sites as a temperary office for project managements. After the project done, these container office can be moved to another site and reuse again. And in order to create a bigger space for meeting rooms, receptions, we can even connect several units containers together. It's very flexible and modular. Besides, you can also add glass walls for the corridor like above pictures, which will make the whole building looks modern.
Standard container size: 5800L*2400W*2896H mm
Layout: Can be customized base on your needs, and divided into different functional areas.
Maximum can stack up 3 floors
Standard container size: 5800L*2400W*2896H mm
Layout: Can be customized base on your needs, and divided into different functional areas.
Maximum can stack up 3 floors
CONTAINER ISOLATION HOSPITAL
COVID-19 suffered all over China in 2019. Container house was used to build up a lot a isolation hospital at that time, in order to stop the virus from spreading. We are so honored to be one of the supplier to build up over 3 hospitals. A 500 beds hospital, will only need about 10 days to build up. This event brings out the best in the fast construction of container house.

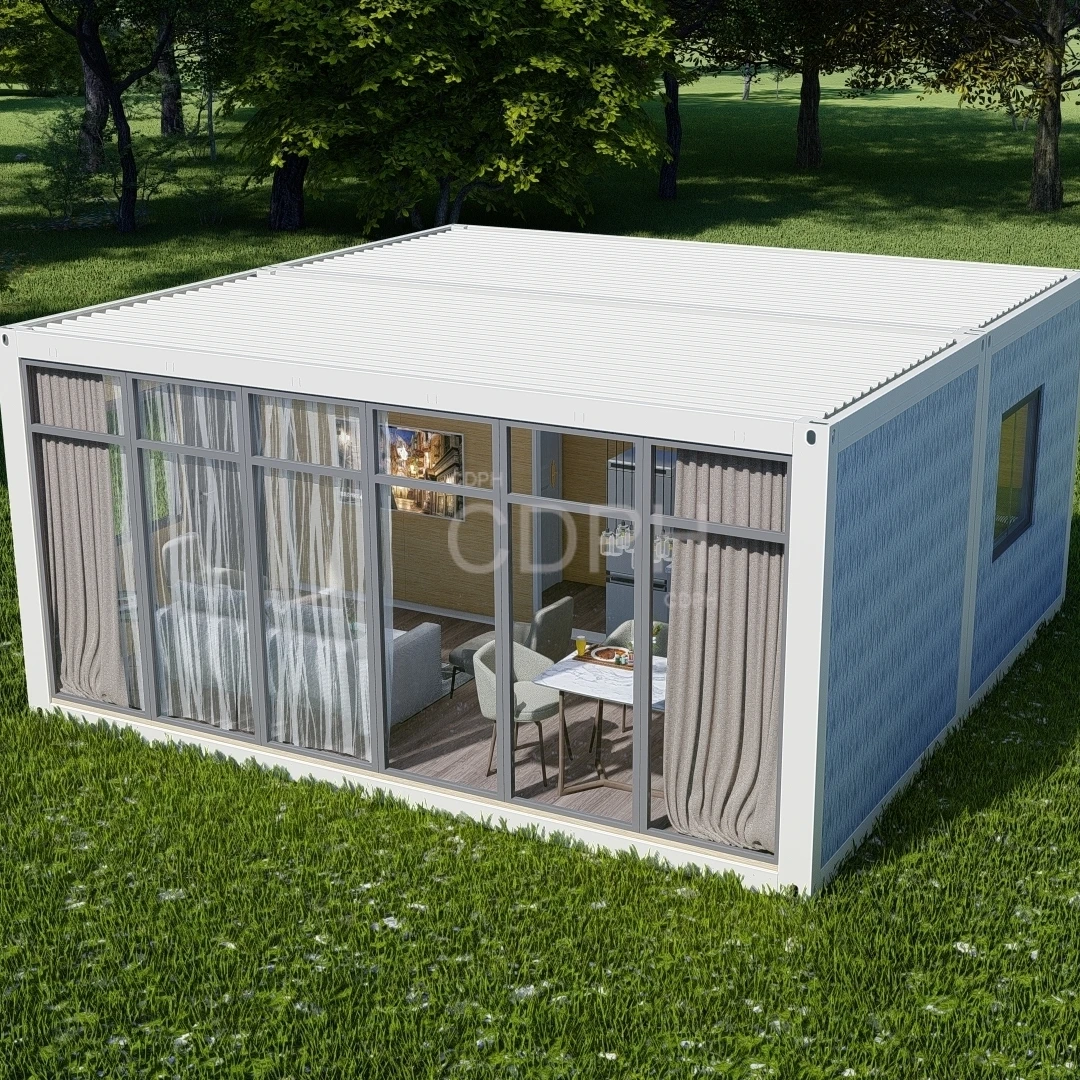

CONTAINER RESORT/HOTEL
Except to use in construction sites, now container house are very popular to be used as a countryside resort, motel or a backyard tiny house. It's a modular structure, so you can place them with a special design. And also you can add some glass walls, cladding, interior decoration boards to decorate your house. Trust me it would be a very nice space no matter for your personal, or for your family. Let's escape the city together and enjoy the nature of the countryside and beach.
ADDITIONAL OPTIONS FOR YOUR CONTAINER HOUSE
Packing & Delivery
Packing:
1. Each container house would be packed independently like a "Sandwich".
2. Both sides stick protective films on all panel surfaces.
Loading:
One 40HQ can load 6 standard units(75mm thickness wall)
One 40HQ can load 8 standard units(50mm thickness wall)
Details Images
Company Profile
Specification
Flat pack container specifications | ||||||||||||||
Specification | Length * width * height (mm) | Exterior Size:5800L ×2400W× 2896H mm | ||||||||||||
Roof form | Flat roof, drainage within the organization | |||||||||||||
The layer number | ≤3layer | |||||||||||||
Datas | Life time | 20years | ||||||||||||
Floor live load | 2.0KN/㎡ | |||||||||||||
Roof live load | 1.0KN/㎡ | |||||||||||||
Wind load | 120KM/H | |||||||||||||
Anti earthquake standard | Grade 8 | |||||||||||||
Item | Name | Specification | Qty | Unit | ||||||||||
Top frame system | Top frame main beam | 2.3mm thick, SGC440 hot-dip galvanized steel, 110g/m2 galvanized | 4 | pc | ||||||||||
Top frame secondary beam A | Q345B galvanized steel, 110g/m2 galvanized ; C shape steel, 100×40x12mm, Thickness: 1.2mm; | 5 | pc | |||||||||||
Corner pieces | 2.3mm thick, SGC440 hot-dip galvanized steel, 110g/m2 galvanized , 210x150x200mm | 4 | pc | |||||||||||
Skin board | 0.45mm thick | 1 | set | |||||||||||
Ceilling panel | 0.326mm thick pressed steel plate | 6 | pc | |||||||||||
Column | 2.3mm thick, SGC440 hot-dip galvanized steel, 110g/m2 galvanized , 210x150mm | 4 | pc | |||||||||||
Rain water pipe | d=50mm, UPVC, L=2610mm | 4 | pc | |||||||||||
Hexagon bolts | M12×40 Hexagon bolts | 48 | set | |||||||||||
Bottom frame main beam | 2.3mm thick, SGC440 hot-dip galvanized steel, 110g/m2 galvanized | 4 | pc | |||||||||||
bottom frame secondary beam | Q345B galvanized steel, 110g/m2 galvanized , C section steel, 120*50mm, Thickness: 1.2mm; | 9 | pc | |||||||||||
corner pieces | 2.3mm thick, SGC440 hot-dip galvanized steel, 110g/m2 galvanized , 210x150x165mm | 4 | pc | |||||||||||
flume | t=1mm; galvanized | 4 | pc | |||||||||||
Cement board | 18mm Cement fiber board | 6 | pc | |||||||||||
PVC carpet | 1.6mmPVC flooring | 14 | square meters | |||||||||||
Column cover | Column cover, 0.5mm color steel plate | 4 | pc | |||||||||||
Distribution box | including air opening, leakage protection | 1 | set | |||||||||||
Industrial outlet | (including plug) 16A, including cable charge | 1 | set | |||||||||||
Wires | 220V wirings, 6㎡ input, 4㎡ for AC, 2.5㎡ for socket, 1.5㎡ for lights | 1 | set | |||||||||||
Light | LED lights | 4 | set | |||||||||||
Wall panel | 0.326mm steel skins, 75mm rock wool sandwich panel, 80kg/m³ volume-weight | 41 | square meters | |||||||||||
Door | size: 840*2035mm Steel door | 1 | set | |||||||||||
Windows | size: 800*1130mm UPVC windows,4mm double glass | 2 | set | |||||||||||
Why work with us
Support and Services:
BOX SPACE will offer a range of technical support and service options to ensure that your product is running at its peak
performance. Our technical team experts are available to provide advice and assistance with any technical issues you may
experience. And our customer service team is also available to answer any questions or concerns you may have regarding your purchase.
performance. Our technical team experts are available to provide advice and assistance with any technical issues you may
experience. And our customer service team is also available to answer any questions or concerns you may have regarding your purchase.
