Specification


Brand Name
Chisung
Model Number
CY306
Main Material
ABS
Rated Voltage
AC/DC 9V~36V/1A
Working temperature
-10℃~+60℃
Storage temperature
-20℃~+60℃
Relative humidity
10-90%, No condensation
Related Voltage of the Output Relay
3A/240V AC
SIM Card
Nano type
Wired Switch
Supports
Dimension
48*45*16.5mm
Packing dimension
108*68*41mm
weight
0.15kg
Work frequency
global GSM/3G/4G frequency (For network format, please check the sticker mark)


Product Description


Instructions of usage
Mini GSM 3G 4G gate controller, With internal and External antennas, Support AC DC 9-36V power supply. Based on GSM 3G 4G communication frequency, support 1000 users,authorized users can remote control the devices that connect with GSM 3G 4G CY306 gate controller by sms or calling and the control result will feedback to users by SMS, no distance limited.
The device is widely used in access control systems, garage doors, swing doors ,folding doors, parking systems,
Industrial control systems, farmland irrigation systems, motor control, remote control of electronic switches,and other electric euipments ,the device will send notifications to users (via SMS) of the remote control results.(such as the opening and closing status of doors)




Features
Support AC DC 9-36V power supply, double antennas ,with internal carrier antenna and external antennas.
1. support to add 1000 authorized users
2. support to inquiry all users by one command
3. Free calling to remote control ,SMS control ,app control
4. support relay keep on, no time limited
5. relay close time 0-9999s(CY306)
6. Multiple applications:gates, bollards, barriers, garage doors, shutters ,parking system and access doors or
machines
7. real autorization protect, unknown callers are ignored
8. No distance limited, Can be operated from anywhere
9. One output with relay (3A/240VAC)for connecting the switch of the door or machines
10. Based on GSM/3G/4G communication frequency , applied to many applications




Custom

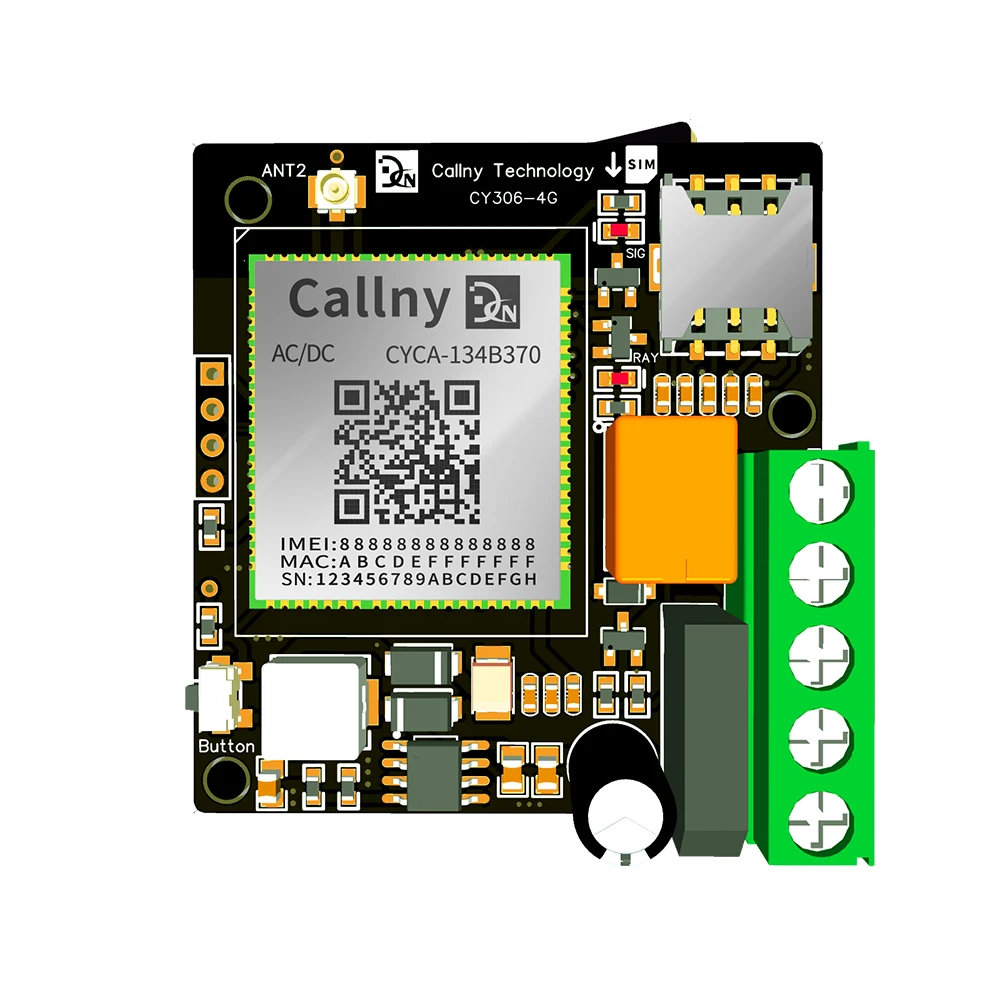

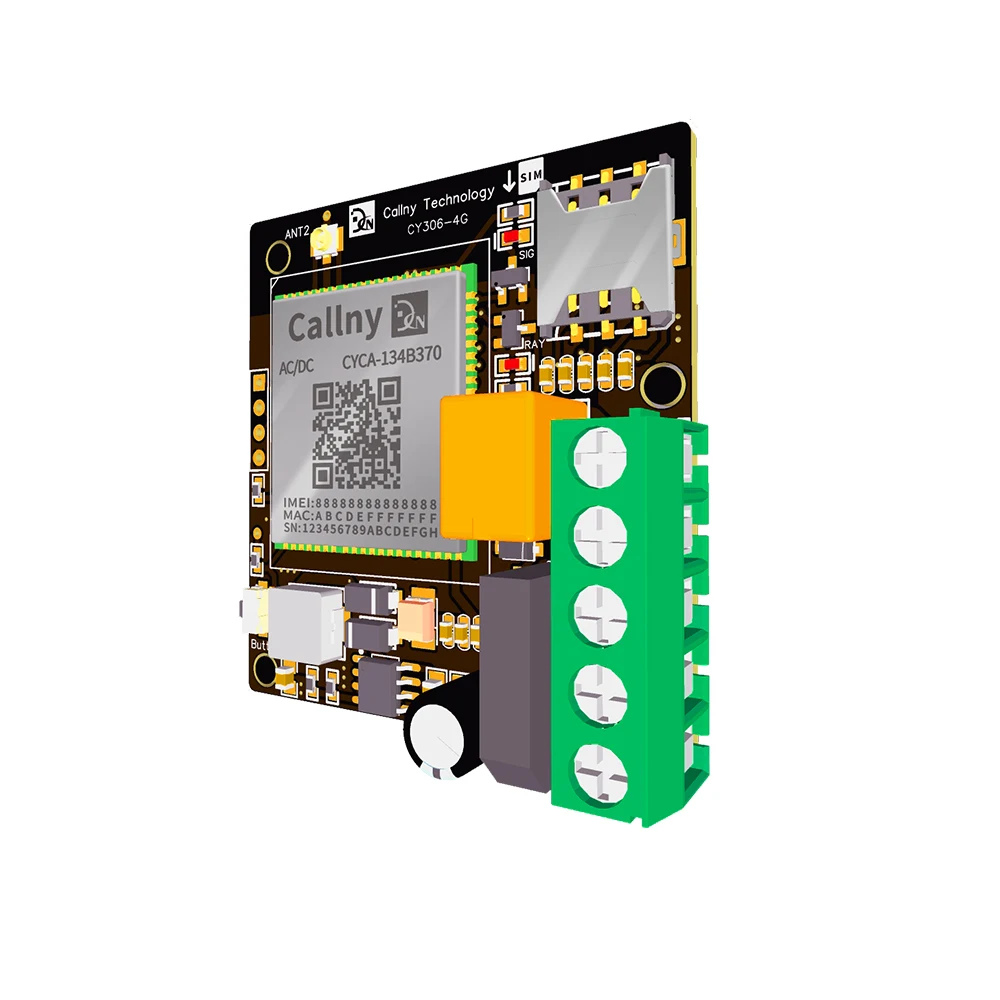

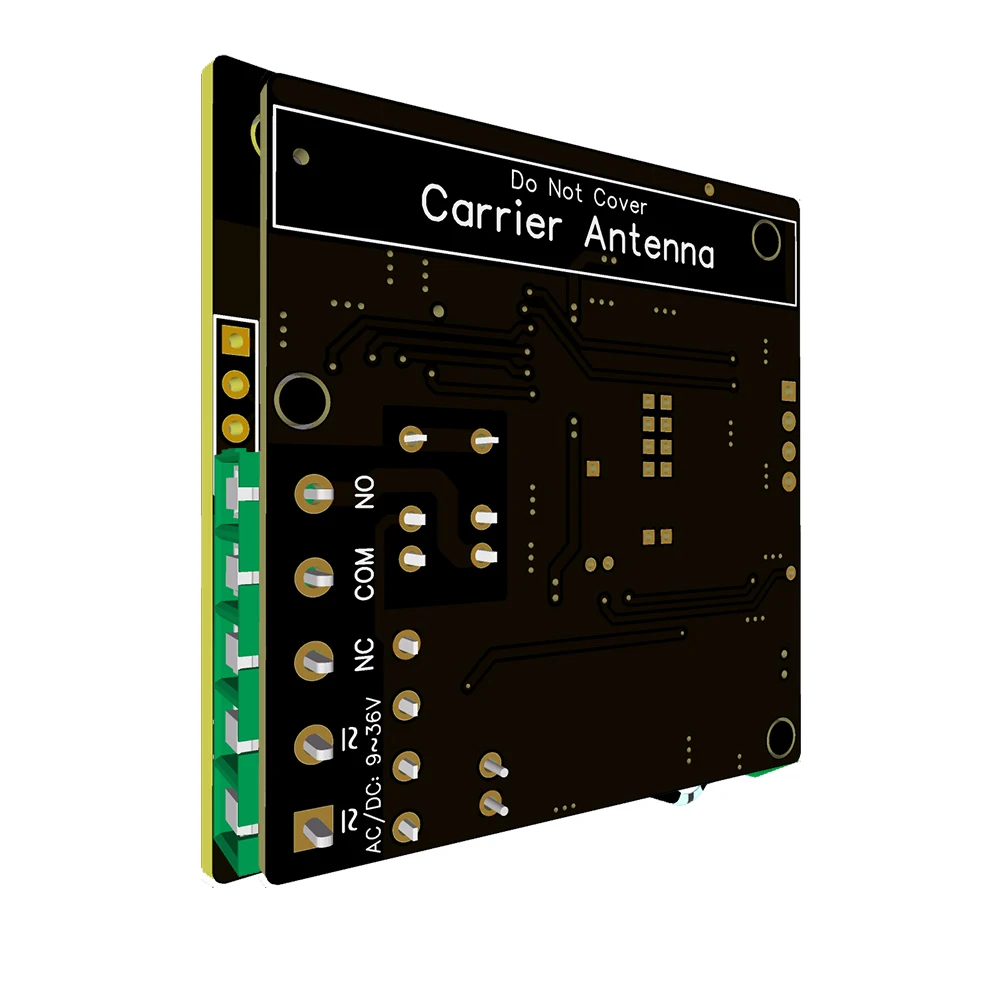

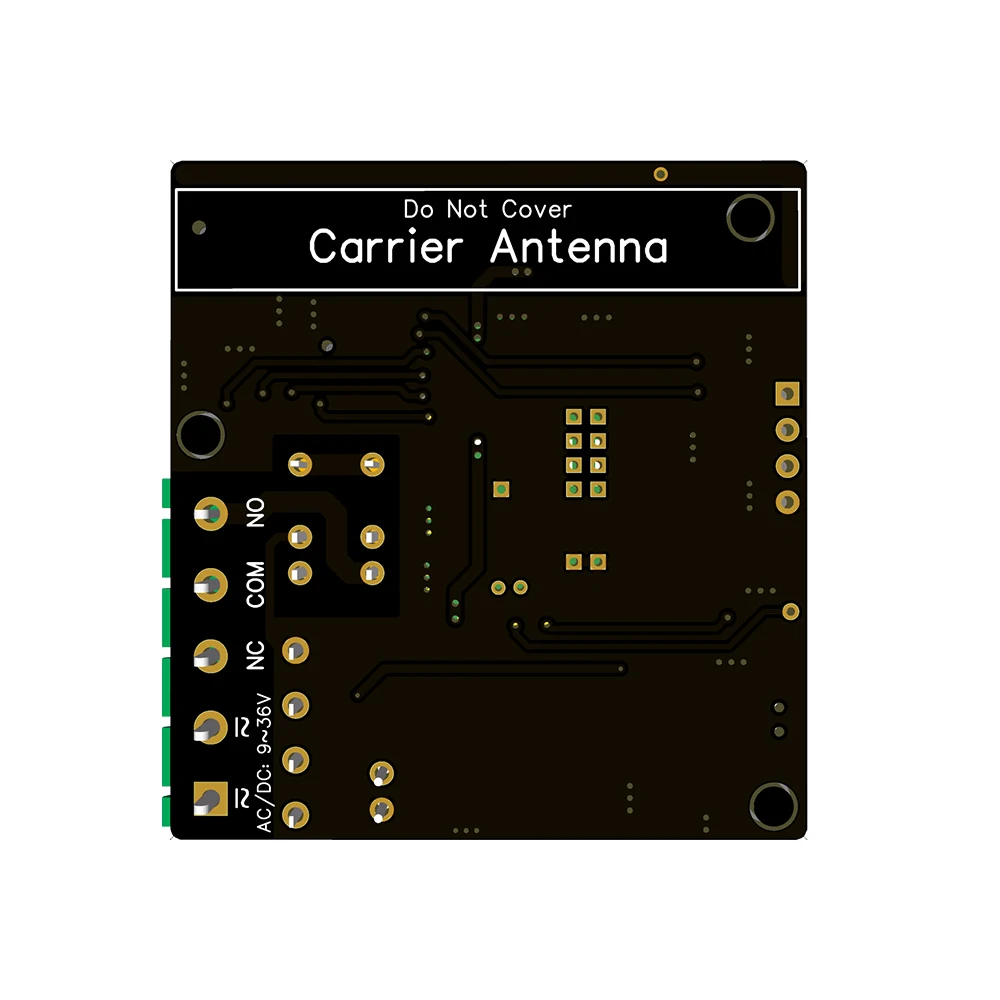

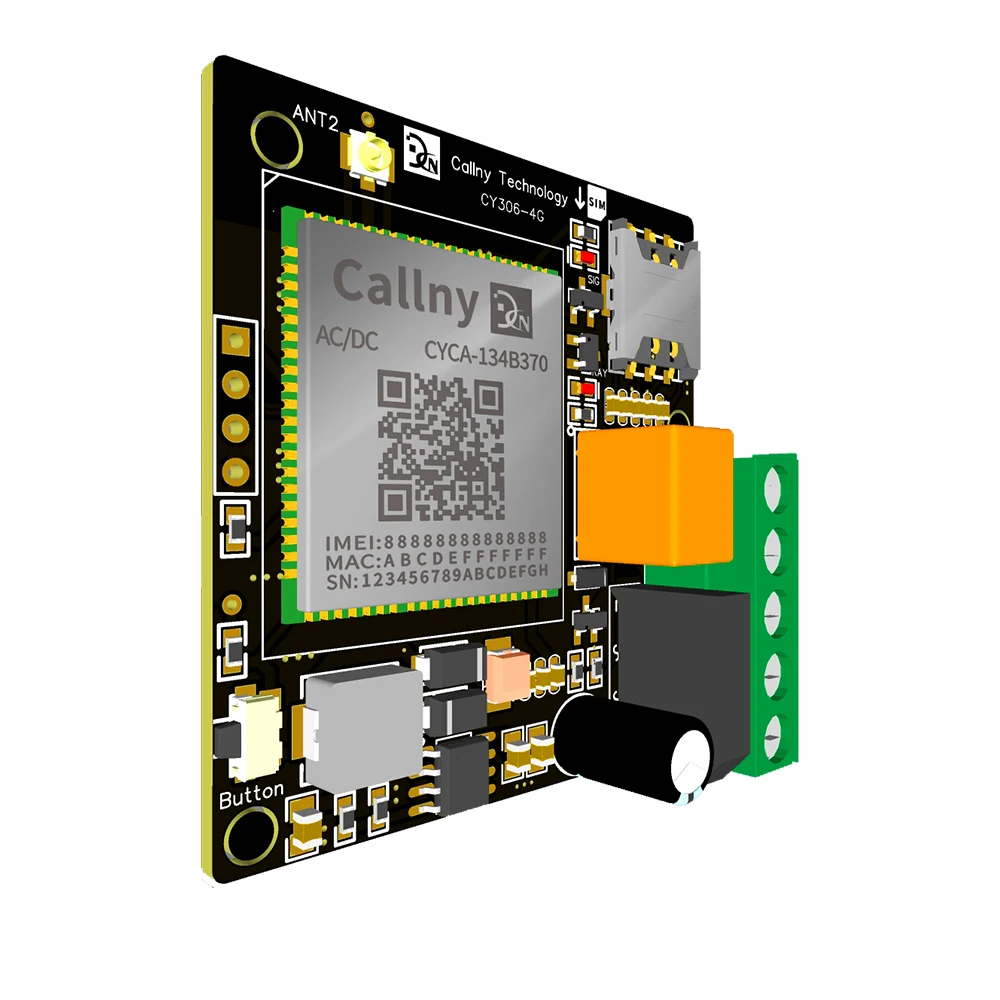

CY306 is an internal chip circuit board, and its casing can be customized according to our existing styles or your needs.
This Our existing styles
