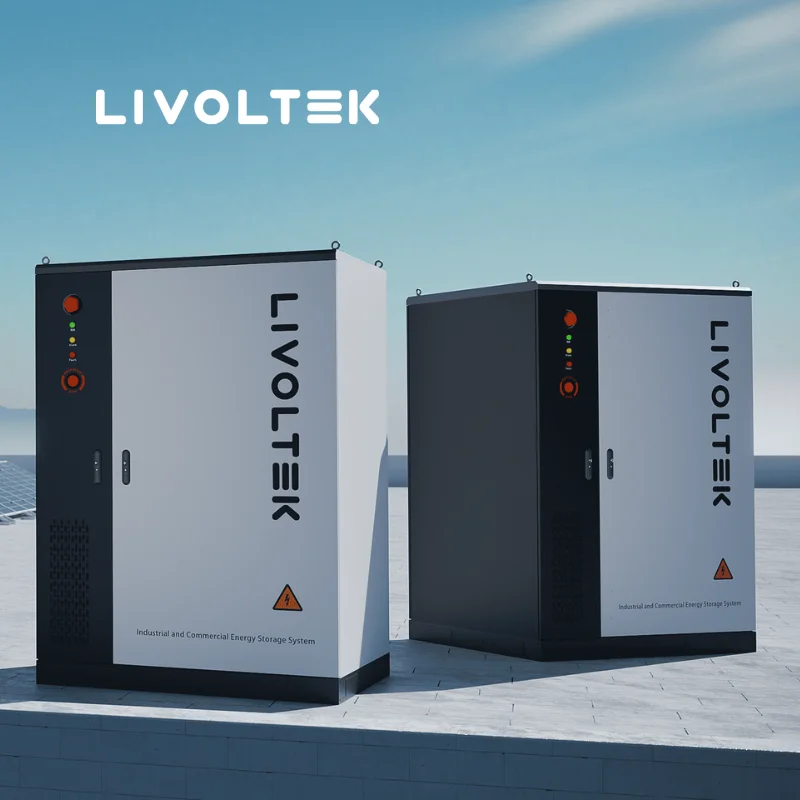

LIVOLTEK новые промышленные и коммерческие шкафы для хранения энергии с инвертором батареей все в одной системе аккумуляторная электростанция
62,22-96,16 ₽
Солнечная электростанция мощностью 200 кВт для зарядки с аккумулятором 300 кВтч высокоэффективная система хранения энергии постоянного/постоянного тока зарядное устройство 180
- Категория: >>>
- Поставщик: Sicon Chat Union Electric Co. Ltd.Sicon Ltd.
Сохранить в закладки 1601234647573:
Описание и отзывы
Характеристики
Product Description
200kW Solar Power Station for EV Charging With 300kWh Battery Energy Storage System High Efficiency DC/DC Charger 180kW

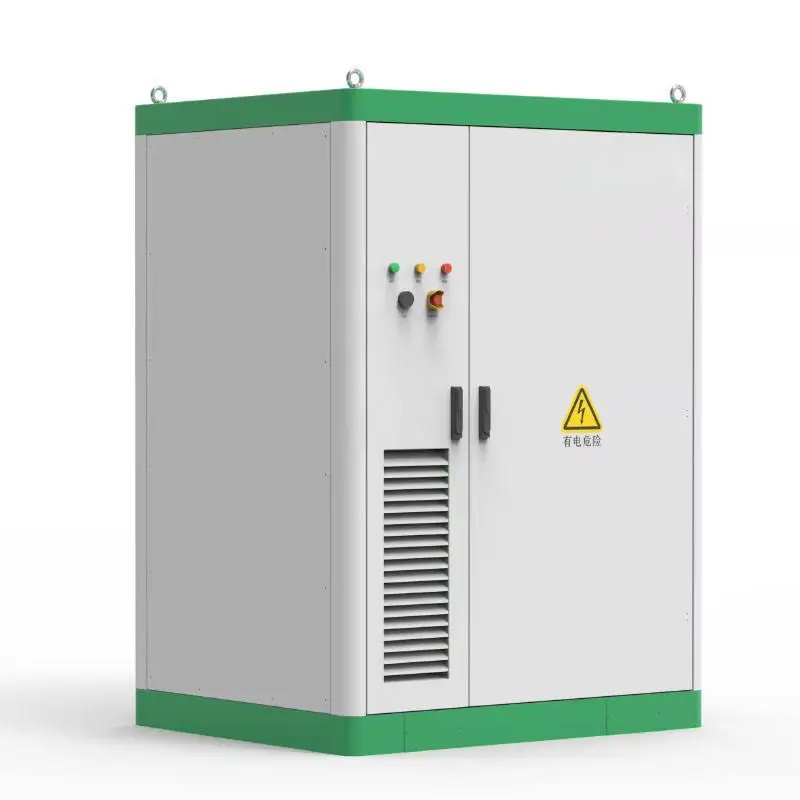

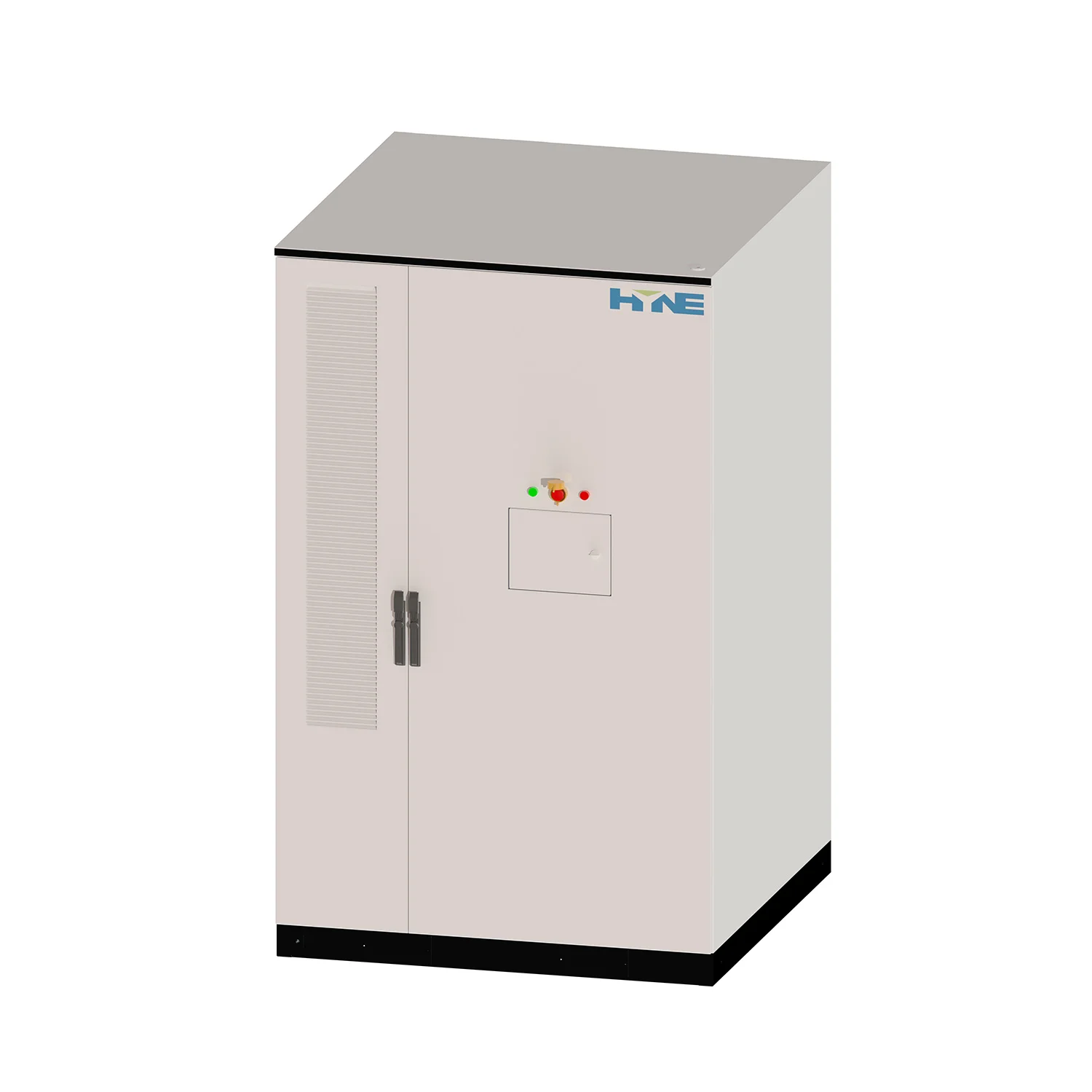

GRES is an intelligent and modular power supply equipment integrating lithium battery and MPCS. According to different application scenarios, lithium battery, bidirectional DC / AC converter, bidirectional DC / DC converter, Static switch and Power management system can be arbitrarily combined to realize grid connected power supply, off grid power supply and off grid uninterrupted power supply power supply, static reactive power compensation, harmonic suppression and other functions. The system can have access to new energy, power grid, diesel generator and to reasonable configuration, scientific utilization, to provide users with green, environmental protection, noise free, high reliability and high security power services.
LiFePO4 Battery Energy Storage System
Using Lithium-ion phosphate battery cell, long life cycle and high safety;
Each battery module is with 5.12kWh, the pack has a built-in BMU system, which can collect the voltage and temperature of each cell, and manage the cell balance, so as to ensure the normal operation of the whole pack safely and efficiently.
15 modules are connected in series to form one cluster, with control box and second level BMS(BCU);
Several clusters connected in parallel to be different capacity.
Multifunctional PCS
Bidirectional AC / DC converter can realize the bidirectional conversion from DC to AC and AC to DC. It can not only convert AC to DC to charge battery, but also convert DC to AC to supply power to load or feed back to power grid.
PV Control Module (MPPT)
The function of DC / DC module is to filter the power from photovoltaic panel, increase its voltage for bidirectional DC / AC converter or store energy for lithium battery.
Static Transfer Switch
Seamless on/off grid automatically switch.
The function of DC / DC module is to filter the power from photovoltaic panel, increase its voltage for bidirectional DC / AC converter or store energy for lithium battery.
Static Transfer Switch
Seamless on/off grid automatically switch.
HVAC
The battery compartment integrates 1200W industrial air conditioner to meet the stable operation of the system in different environments and prolong the service life of the system.
PMS(Power Management System)
System operation data monitoring, operation strategy management, historical data record, system status record, etc.
Specification
200kW Solar Power Station for EV Charging With 300kWh Battery Energy Storage System High Efficiency DC/DC Charger 180kW
1. LiFePO4 Battery system
2. Bidirectional DC/AC converter
3. MPPT solar controller
4. STS for on/off grid auto switch
5. Air conditioner
6. IP54 outdoor cabinet
7. PMS
2. Bidirectional DC/AC converter
3. MPPT solar controller
4. STS for on/off grid auto switch
5. Air conditioner
6. IP54 outdoor cabinet
7. PMS
333
Parameter | GRES-75-50 | GRES-150-100 | GRES-225-150 | GRES-300-150 | ||||
PV parameters (Optional) | ||||||||
MPPT voltage range | DC200V～DC700V | |||||||
Full power MPPT voltage range | DC370V～DC700V | |||||||
MPPT channel Qty | 1/2/3 | |||||||
Single-circuit MPPT maximum current(A) | 135A | |||||||
AC parameters (grid connected) | ||||||||
Rated output power (kW) | 50 | 100 | 150 | 150 | ||||
Max output power (kW) | 55 | 110 | 165 | 165 | ||||
Rated grid voltage (V) | 3W+N+PE, 380 | |||||||
Grid voltage range | ±15% | |||||||
Rated grid frequency (Hz) | 50 | |||||||
Grid frequency range (Hz) | ±2 | |||||||
Current waveform distortion rate | <3%(Rated voltage) | |||||||
DC component | <0.5%In | |||||||
Power factor | >0.99(Rated voltage) | |||||||
Power factor adjustable range | 1(lead)～1(lag) | |||||||
Overload capacity | 110% Long term | |||||||
AC parameters (off grid) | ||||||||
Rated output power (kW) | 50 | 100 | 150 | 150 | ||||
Max output power (kW) | 55 | 110 | 165 | 165 | ||||
Rated grid voltage (V) | 3W+N+PE, 380 | |||||||
Current waveform distortion rate | <3%(Linear Load) | |||||||
Rated frequency（Hz) | 50 | |||||||
Overload capacity | 110% Long term | |||||||
Battery | ||||||||
Battery type | Lithium iron phosphate | |||||||
Energy of each module(kWh) | 5.12 | |||||||
Module qty | 15 | 30 | 45 | 60 | ||||
Total power (kWh) | 76.8 | 153.6 | 230.4 | 307.2 | ||||
Running Time (h) | 1.5(Optional by Changing module qty) | |||||||
Cyclelife | 25℃0.5C/0.5C100%DODEOL80%≥4000s | |||||||
System efficiency | ||||||||
Max efficiency | 95% | |||||||
Protection | ||||||||
DC Switch | YES | |||||||
AC switch | YES | |||||||
Grid monitoring | YES | |||||||
Surge protection | DC /AC 2nd level | |||||||
Basic Parameters | ||||||||
Dimension（W*D*H）(mm) | 1680*1500*1700 | 1680*2270*1700 | 1680*3050*1700 | 1680*3830*1700 | ||||
Weight (kg) | 1395 | 2470 | 3545 | 4620 | ||||
Isolated transformer | NO | |||||||
On/off grid switching | STS | |||||||
Protection | Outdoor IP54 | |||||||
Working temperature | -20～55℃(>45℃derating) | |||||||
Relative humidity | 0～95% ( (no condensing) | |||||||
Cooling | Intelligent air cooling (intelligent heating optional ) | |||||||
Max working altitude(m) | 4000(>2000 derating) | |||||||
Display | Touch screen | |||||||
Communication | RS485、CAN、LAN | |||||||
Communication Protocol | Modbus-RTU、Modbus-TCP、CAN2.0B | |||||||

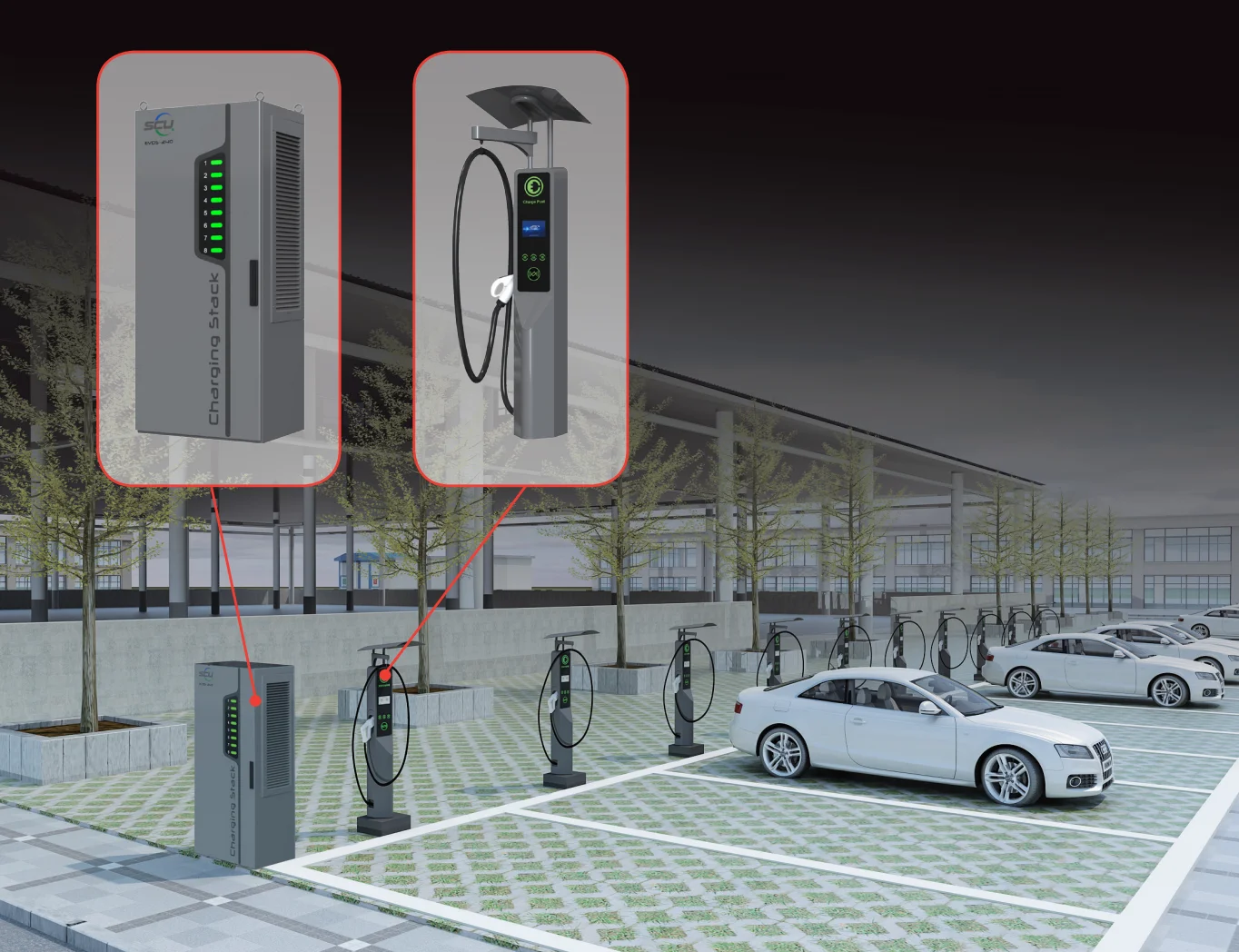

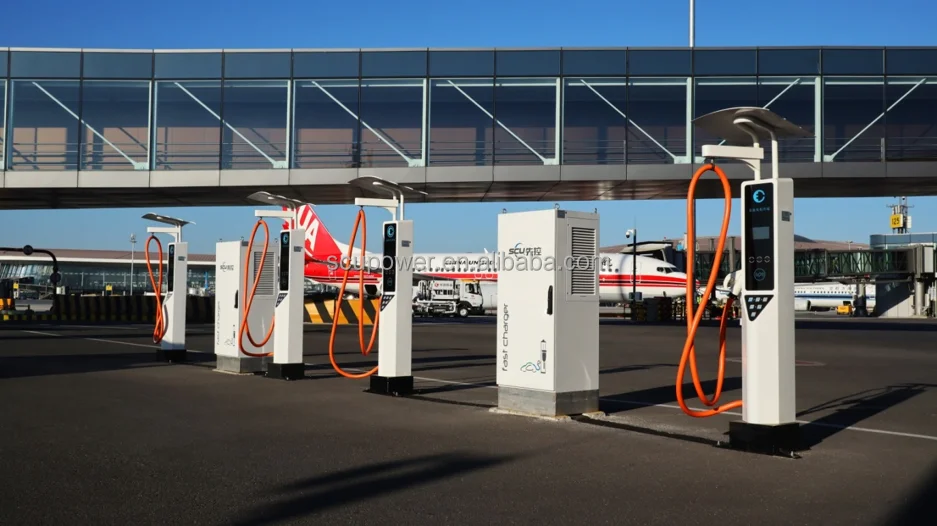

EV Charging Station
EVMS series European standard DC fast charging stations can charge all charging vehicles with CCS, CHAdeMO, GB/T, AC Type 2. The equipment covers the specification requirements of 60KW-180KW, and can be equipped with single, double or three sockets to meet the changing charging needs of customers.
Applications: public operations such as highway rest stops, petrol stations, airport, etc.. private operations such as EV dealers, EV fleets etc.
Compatible vehicles: SCU European standard charging products have been connected to a variety of mainstream brands of European standard vehicles, and the charging service can be carried out smoothly. Mainly including Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Mercedes, etc.
Applications: public operations such as highway rest stops, petrol stations, airport, etc.. private operations such as EV dealers, EV fleets etc.
Compatible vehicles: SCU European standard charging products have been connected to a variety of mainstream brands of European standard vehicles, and the charging service can be carried out smoothly. Mainly including Volkswagen, GM, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroen, Kia, Renault, Daimler, Tesla, Mercedes, etc.
EV Charging Station, DC Fast EV Charger
Characteristics
Multi-channel output: DC output power up to 180KW, AC output power up to 43KW;Support any two kinds of standard DC output combination to form a dual gun device, and can choose the dual gun charging, dual gun alternate charging mode;
Supports the open communication protocol OCPP;
The interface is clear and supports multi-language operations;
Wide temperature range: Working temperature -35ºC-60ºC(-20ºC to -35ºC, heating is needed)
Machine efficiency ≥ 95%, low energy consumption;
The equipment adopts modular structure, with higher reliability and flexibility;
Simple installation and convenient operation
Use a readable touch screen display;
Low running noise, almost no impact on the surrounding environment;
Customizable to meet the diverse needs of different customers.
Model | EVMS-180 | |||
Dimension | 1000*500*2000 | |||
Input | ||||
Rated input voltage | 380Vac/400Vac/415Vac | |||
Range of inputvoltage | 304V~456V | |||
Input AC limiting voltage | 600V | |||
Input frequency | 50/60Hz; Range:45Hz~65Hz | |||
Input PF | ≥0.99 | |||
Output | DC | |||
Interface | CCS2 | |||
Output voltage | 150-1000Vdc | |||
Output current | 250A max | |||
Charging modes | Mode 4; | |||
Display | 10.4’’ touch screen | |||
Card reader | Type A 、Type B 、MF1 、PSAM 、ESAM | |||
Network interface | StandardConfiguration: | LAN | ||
Optional: | 4G/Wifi | |||
Communication protocol | OCPP1.6J | |||
Environment | Indoor/Outdoor | |||
Operating temperature | -20℃~+60℃ | |||
Relative humidity | ≤95%, Non-condensation | |||
Altitude | 2000m | |||
Noise | <55 dB | |||
Protection degree | IP54 IK10 | |||
Application
200kW Solar Power Station for EV Charging With 300kWh Battery Energy Storage System High Efficiency DC/DC Charger 180kW
Peak and frequency regulation, smoothing new energy generation;
Industrial and commercial demand management, peak shaving;
Power quality improving, and backpower supply at user side;
Mobile energy storage, electric rescue;
Mobile energy storage, electric rescue;
Building microgrid system.
200kW Solar Power Station for EV Charging With 300kWh Battery Energy Storage System High Efficiency DC/DC Charger 180kW

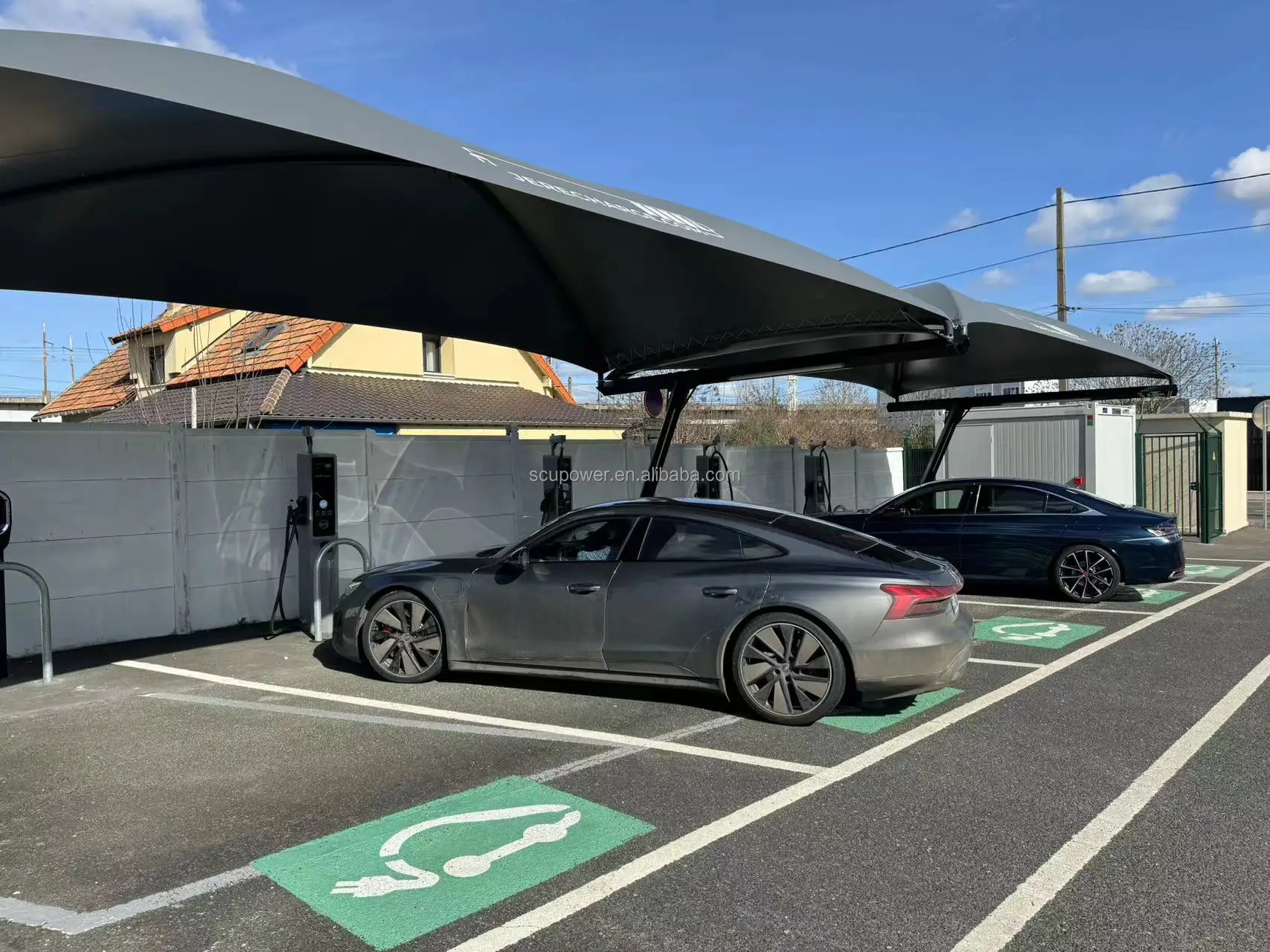

Our GRES integrated BESS has been sold to Europe (Germany, Italy, Netherland, Poland, UK, Bulgaria, Czech, Spain etc), Asia (Thailand, Indonesia, Singapore etc), Africa (Ethiopia, South Africa, Zambia, Chad etc)

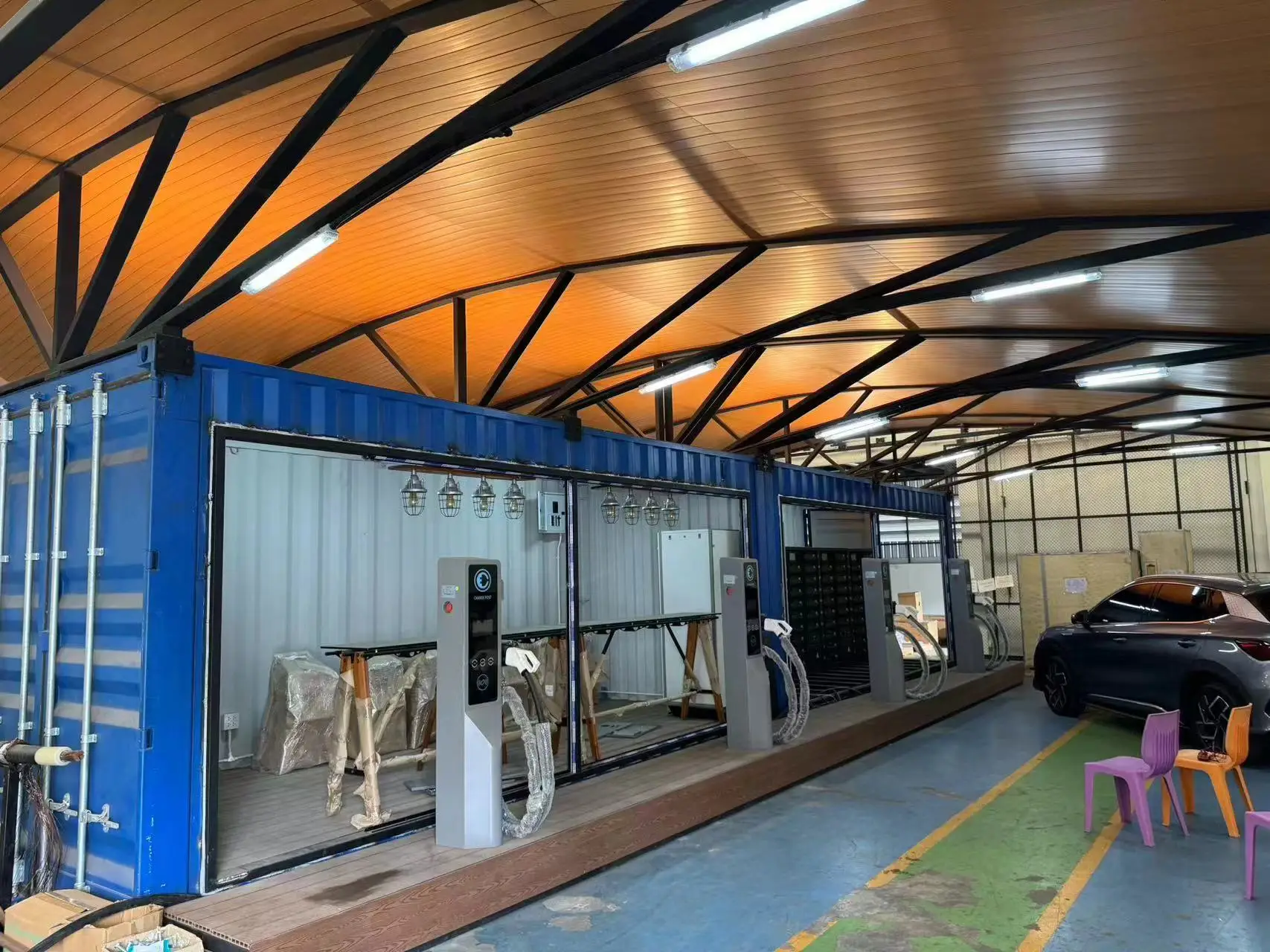

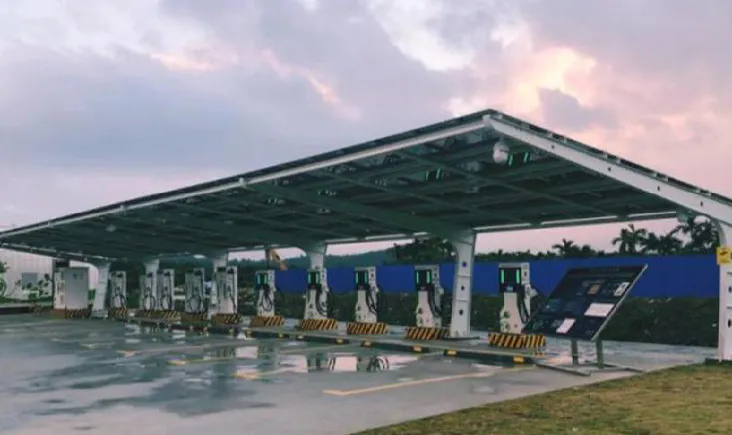

Successful Cases
Certification
Packing & Delivery
UN38.3 cartons
Company Profile
Sicon Chat Union (SCU) was founded in 2003 with a vision of building a sustainable future. We are focused on the development and application of power electronic technology, the core vision is to implementing the concept of sustainable product development on a global scale. We help our clients alter industries and markets, utilizing clean energy on the daily lives of billions of people. Uninterruptible power supply, Electric vehicle fast charger and Energy storage system are the three key products of us. SCU's success is driven by excellent groups of people, spreading business more than 50 countries and regions around the world.
Tel: 86 311 85903762
Tel: 86 311 85903762
FAQ
Solar Energy Storage 200kW/300kWh BESS 180kW EV Charging Station Zero Carbon Electric Vehicle Charging Infrastructure
What is AC Coupling BESS?
The DC energy generated by solar panels is converted into AC through an inverter, which is directly supply to the load or sent to the power grid. The power grid can also charge the battery through a bidirectional DC-AC bidirectional converter. The convergence point of energy is at the AC side.The working principle of AC coupling: including solar power supply system and battery power supply system. The solar system consists of solar panels and on grid inverter; The battery system consists of batteries and a bidirectional power conversion system. These two systems can operate independently without interfering with each other, or they can form a microgrid system independent of the large power grid.
What is DC Coupling BESS?
The DC energy generated by solar panels is stored in the batteries through the controller, and the power grid can also charge the battery through a bidirectional DC-AC converter. The convergence point of energy is at the DC battery end.The working principle of DC coupling: When the solar system is running, the MPPT controller is used to charge the battery; When there is a demand for electrical load, the battery will release electricity, and the magnitude of the current is determined by the load. The energy storage system is connected to the power grid, and if the load is small and the battery is fully charged, the solar system can supply power to the grid. When the load power is greater than the solar generation power, the power grid and solar can simultaneously supply power to the load. Because solar power generation and load electricity consumption are not stable, they rely on battery balancing system energy.
1. who are we?
We are based in Hebei, China, start from 2003,sell to Domestic Market(45.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),South Asia(10.00%),Eastern Europe(8.00%),Northern Europe(6.00%),Southern Europe(5.00%),Western Europe(3.00%),North America(1.00%),South America(1.00%),Mid East(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
energy storage system, PCS, Lithium battery, UPS, EV charger.
4. why should you buy from us not from other suppliers?
Top manufacturer of energy storage system in China;
Rich products such as BESS, PCS, Lithium ion battery, EV charging station, UPS;
OEM for IPO companies;
One-stop solution of power energy supply.
20years experience.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
We are based in Hebei, China, start from 2003,sell to Domestic Market(45.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),South Asia(10.00%),Eastern Europe(8.00%),Northern Europe(6.00%),Southern Europe(5.00%),Western Europe(3.00%),North America(1.00%),South America(1.00%),Mid East(1.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
energy storage system, PCS, Lithium battery, UPS, EV charger.
4. why should you buy from us not from other suppliers?
Top manufacturer of energy storage system in China;
Rich products such as BESS, PCS, Lithium ion battery, EV charging station, UPS;
OEM for IPO companies;
One-stop solution of power energy supply.
20years experience.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
Похожие товары

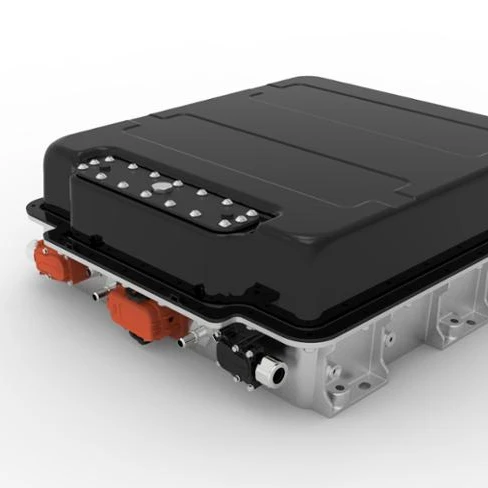

Литий-ионная Автомобильная батарея для быстрой зарядки 400 В LTO Аккумуляторы коммерческих автомобилей
3 109 822,75-3 273 515,49 ₽
Электрическая 60 кВт 100 200
5 350 840,88-5 788 636,96 ₽

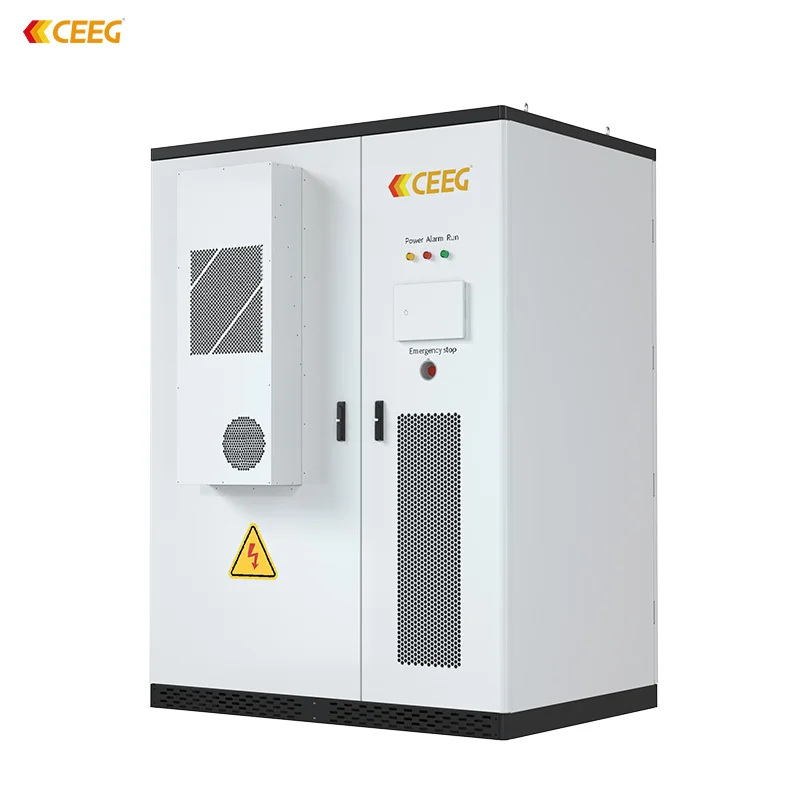

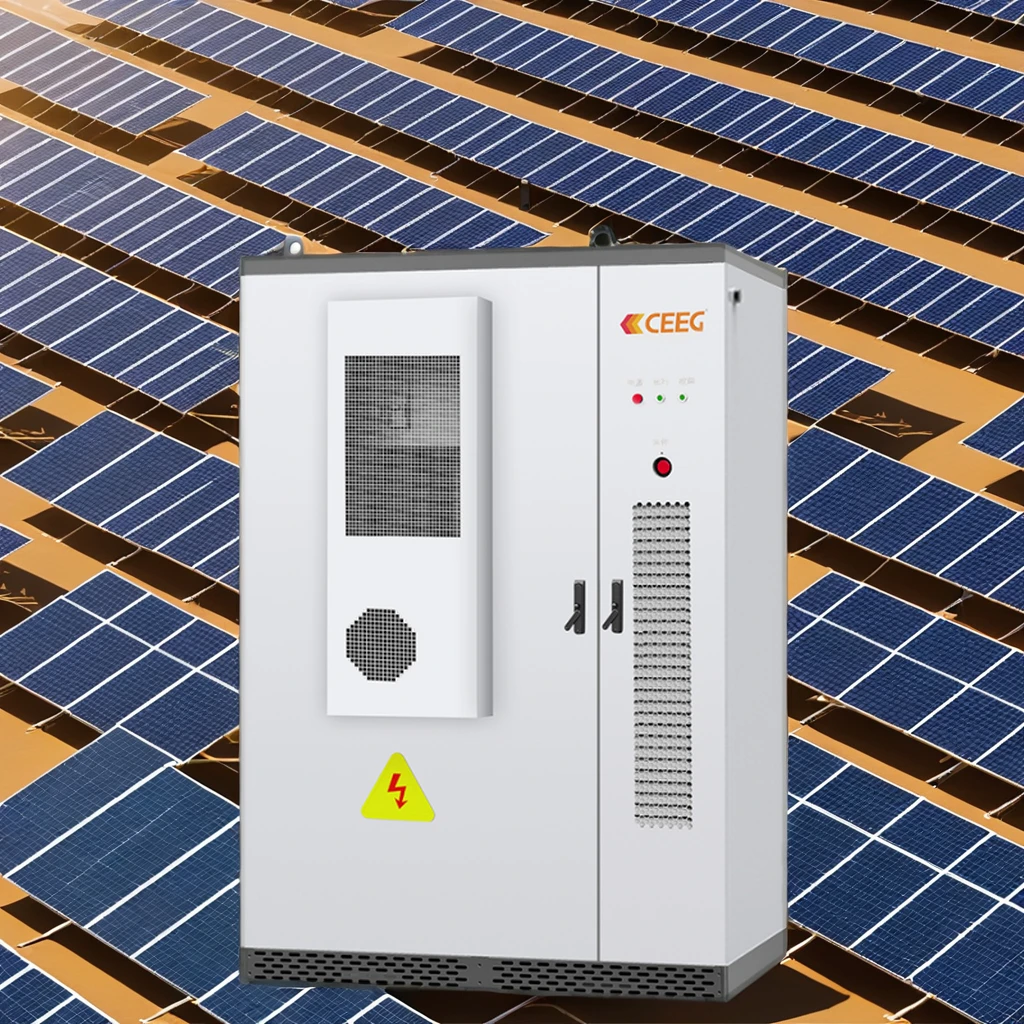

CEEG 215KWh литиевая батарея система хранения энергии контейнер для Заводская солнечной батареи
1 131 256,00-2 375 637,60 ₽
Промышленный и коммерческий аккумулятор 50 кВт 100 кВтч BESS контейнер MPMC 200 все-в-одном решение энергетической системы с воздушным охлаждением
1 018 130,40-2 375 637,60 ₽
1P260S-280 232kWh 280Ah литий-ионный аккумулятор интегрированная коммерческая и промышленная система хранения энергии
3 882 842,78 ₽

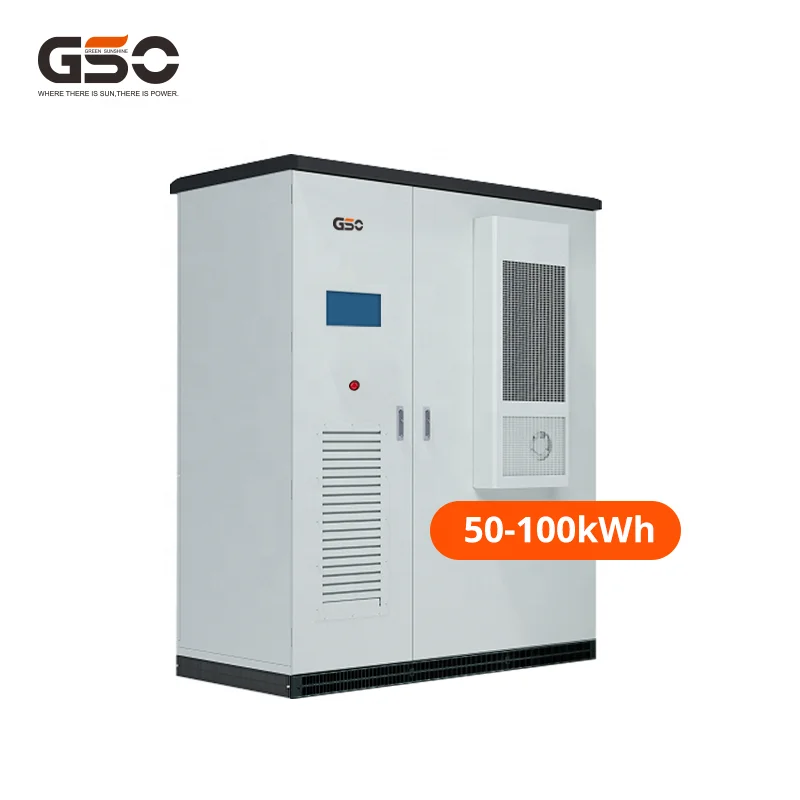

Высоковольтная батарея GSO 100 кВтч 200 промышленная и коммерческая система хранения энергии открытый Гибридный шкаф для
