Ручной лазерный сварочный аппарат Tuosheng, 1500 Вт, 2000 Вт, 3000 Вт, 3 в 1
3 580,00 $ - 3 980,00 $
Профессиональная команда дизайнеров 6 осевая лазерная сварочная система роботизированная рука волоконно лазерная машина автоматический сварочный робот
- Категория: >>>
- Поставщик: Jinan Leapion Machinery Co. ltd
Сохранить в закладки 1601234806737:
Описание и отзывы
Характеристики
Products Description

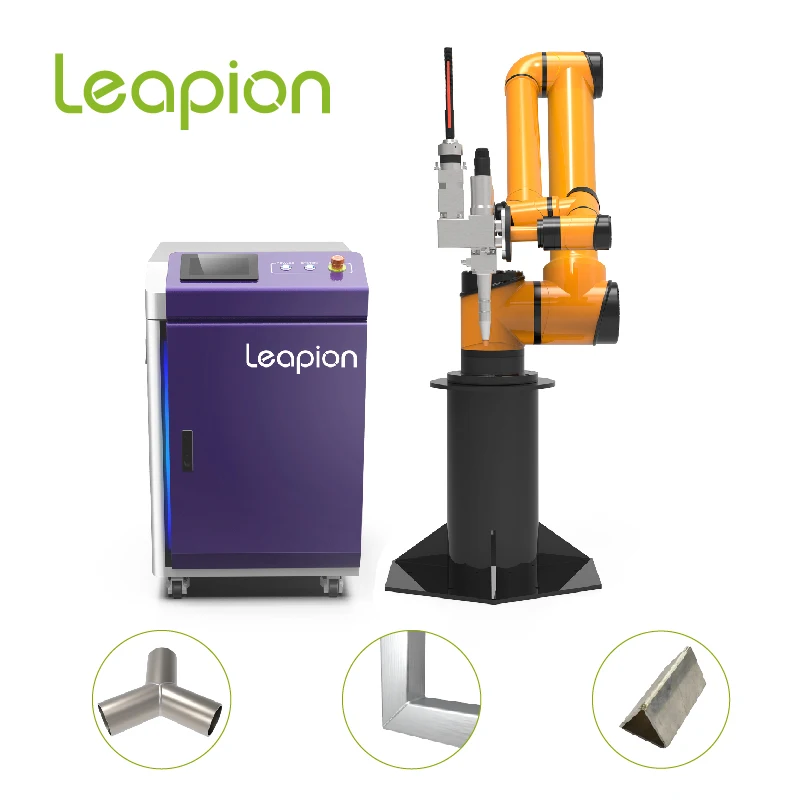

LW-R-N aNon-Contact Laser Welding Robot 1500W
Non-contact laser welding robots are currently Leapion's advanced research products, combining the automation advantages of laser welding robots, oscillating welding allows the workpiece to have irregular welding, larger gaps and other processing parameters can significantly improve the quality of welding. The machine can be checked in real time during the welding process and has a variety of oscillating modes for easier, faster and smarter work, which can greatly improve work efficiency and save labour costs.

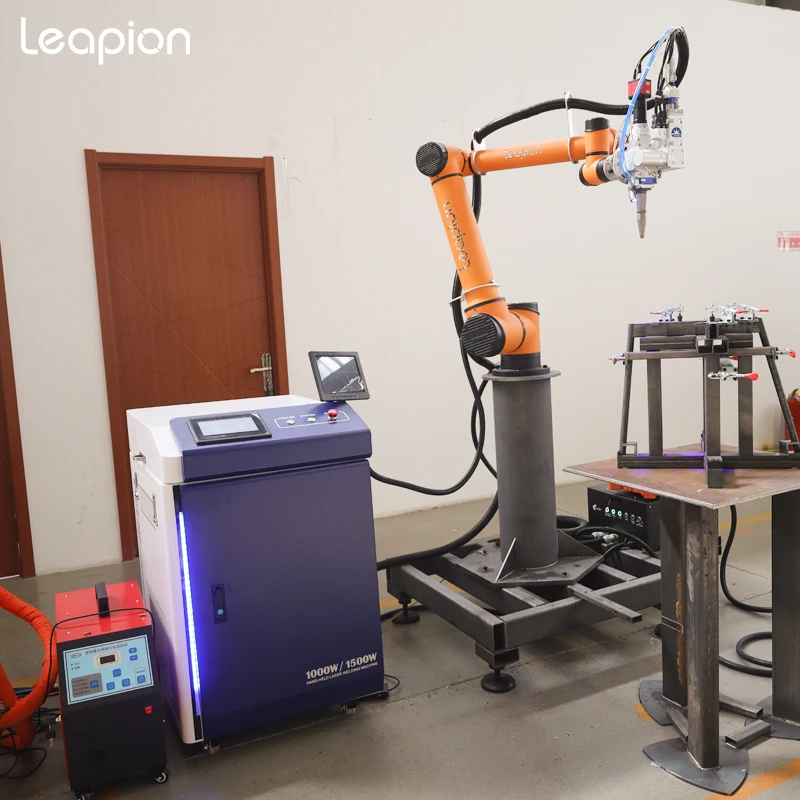

Machine Videos and Pictures
Non-Contact Weld VS Traditional Weld | ||||
Weld Method | Non Contact Weld with CCD camera | Contact Weld with 2 more functions | ||
Weld Angle | Any Angle | Angle more than 60° | ||
Checking Method | CCD Camera | Human eye check | ||
Welding Size | Any Size | Hard to weld too small product | ||
Other Advantages | Does not touch the surface of the welding object and will not cause damage to the surface | Can change to Cutting or Cleaning function | ||
Machine Feature
6-axis Robotic Arm Flexible Welding Collaborative robots can effectively cope with laser welding operations, helping to achieve flexible, efficient and free welding processes. |
Stable Welding Quality Welding stability and consistency are higher, and product quality is easier tcontrol, Active automating the welding process |
Reduce Labor Consumption. Solving the shortage of skilled welders increases production capacity , profits and save working cost. |
Product Paramenters
Model | LW-R-N Non-Contact 6 Axis Laser Welding Robot |
Laser Power | 1500w (Option: 1000w, 2000w, 3000w) |
Laser Fiber Wire Length | 10 m |
Laser Source | MAX (Option: Raycus, IPG, BWT, Reci) |
Control System | Raytools (Option: Relfar, Gefasst) |
Control Panel | Touch Screen 7 inch |
Support Languages | 18: Chinese Simplified, Chinese Traditional, English, Polish, Turkish, Arabic, Japanese, Korean, German, Spanish, Russian, French, Portuguese, Italian, Hungarian, Czech, Finnish, Vietnamese |
Welding speed | 0-120MM/S |
Robotic arm weighing | 10kg |
Welding thickness range | ＜10MM |
Welding line requirements | ≤0.5MM |
Auxiliary Gas | Nitrogen or Argon gasNote: Cleaning mode can use compressed air |
Voltage | 380V 3PH 50HZ/60HZ (Option: 440V) |
Package Dimension | 1460*1260*860mm (Table and Robot) 160*960*1360mm (Welding Machine) |
Package Weight | Total 1050KG (800kg and 250kg) |
Main Configuration
Laser Source
Professional welding laser source, small in size, light in weight, and easy to move. The light emitting mode is more conducive to achieve a good welding effect. Support laser powers from 1kw to 3kw.

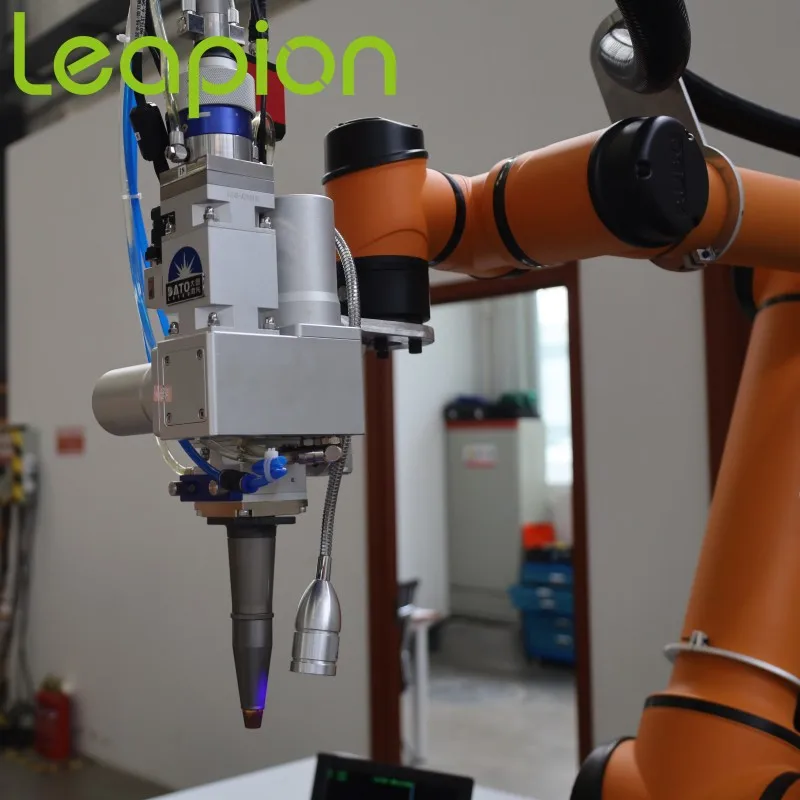

Laser Head
Equipped with lightweight welding head, can support multi-point temperature measurement real-time monitoring, dust resistance and anti-interference performance is excellent, work efficiency to a higher level, and efficient and convenient, focusing mirror, protection mirror drawer, easy to replace
Control System
The newly developed control system, set a number of safety alarms, smaller volume, flexible operation, more stable, all parameters can be seen, welding quality is more perfect, deformation is small, high penetration, real-time monitoring of the state of the whole machine, avoid problems in advance,
Control Panel
Touch screen makes you change the parameters quickly when wearing gloves and easy to set up and operate. Multiple sets of parameter can be saved, and there is no need to adjust again for multiple welding times in the future after one test.
CCD screen
The welding head is equipped with a fill light and CCD Camera, so there is no need to check the welding effect with the naked eye. During welding, you can check the welding effect of the weld through the inspection screen.
Wire Feeder
With Standard automatic wire feeding system and dual motors, The forward and reverse and the speed of wire feeding can be adjusted through the control panel.Note: Standard is Single Feeder
Consumables
Nozzles
Different shapes of nozzles are suitable for different jobs. It needs to choose the right wire material when used with a wire feeder. When switching to cutting mode, the replacement of a special welding nozzle is very important for the welding effect.
Lens
There are Protective Lens, Focal Lens and Reflective Lens inside the Laser Head. Normally, Protective Lens are the wearing parts, when working after a long time, the user may need to change new lens to continue to work.

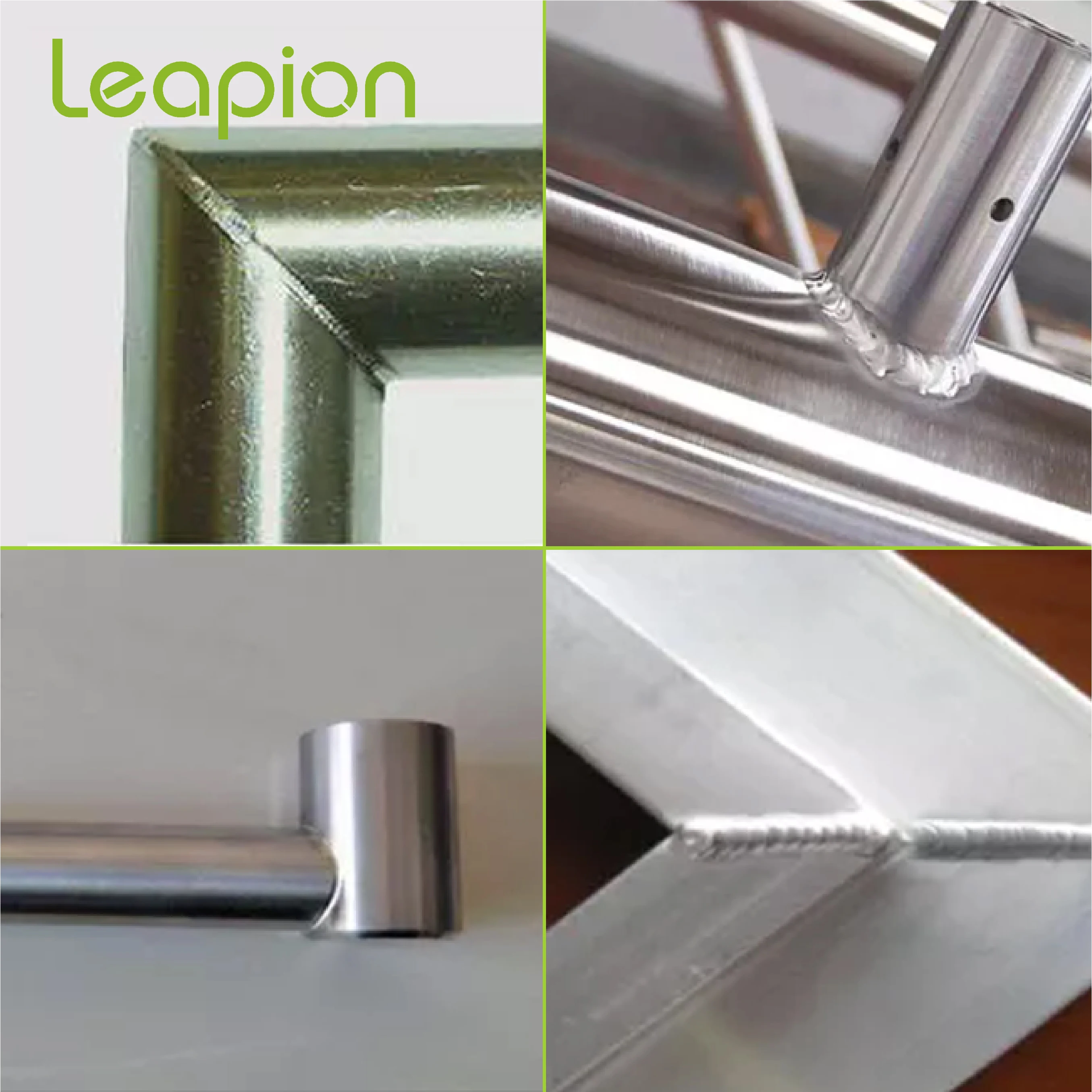

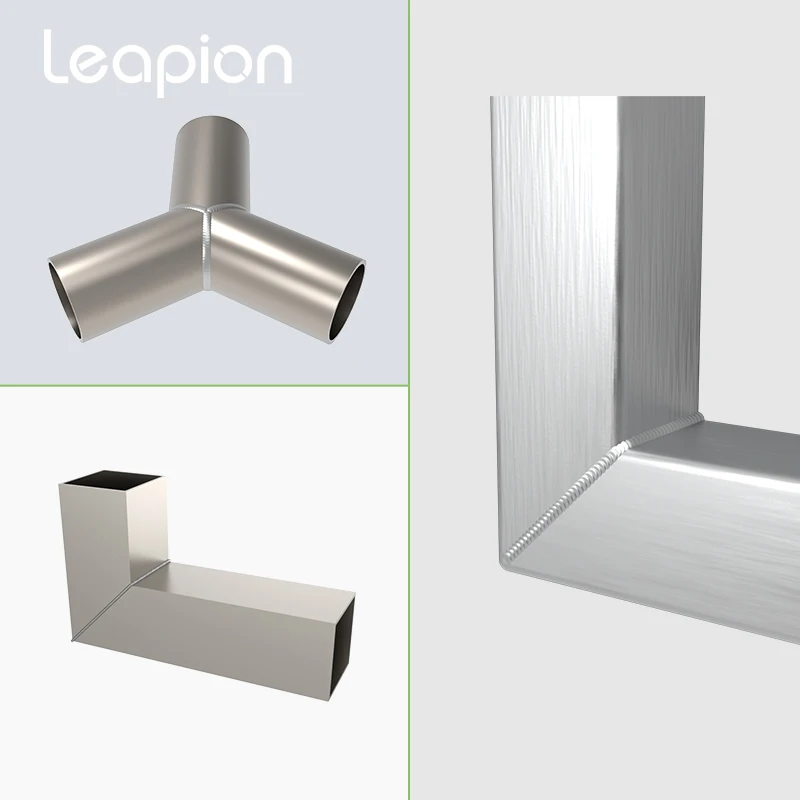

Application & Samples
Application Industry
Kitchen and bathroom industry, advertising industry, door and window industry, mold industry, stainless steel products industry, handicraft industry, furniture industry, home appliance industry, auto parts industry, etc.
Company Introduction
Leapion Machinery Co., Ltd.
Leapion Machinery Co., Ltd. from Jinan, Shandong Province has more than 10 years of rich experience in the production of laser machines, the factory covers an area of more than 30,000 square meters, the products are sold to more than 150 countries and regions, such as Russia, Egypt, Europe, America, Asia, Africa, etc., the leader of the laser focus on technological innovation, product quality, as well as technical service support, and has a rigorous quality control system, with special quality inspection department to ensure that the performance and quality of the laser products. We have strict quality control system and special quality inspection department to ensure the performance and quality of laser products. The company firmly credibility first, service to the service purpose, is steadily forward, sustainable development.
Quality Test
Warm Tips
If you need us to make the corresponding certification. Please inform Leapion's sales staff and we will do our best to cooperate and provide maximum support to you.
Why Choose Leapion Laser?
Precision Engineering & Operational Efficiency: Leapion's laser welding technology combines power and precision. With settings from 1000W to 3000W, it achieves up to 0.5mm accuracy. Fast speeds, up to 120 mm/s, enhance productivity without sacrificing quality.
Reliability, Longevity & Quality Materials: Leapion's welding machines are robust and long-lasting, crafted from high-quality stainless steel. They promise a lengthy lifespan with minimal upkeep. These machines run quietly, creating a better work atmosphere.
Ease of Use & Intuitive Design: Leapion delivers a user-friendly welding tool. The welder gun is lightweight and ergonomic. Its touchscreen is intuitive, making the setup quick. Operators can master it with just a little training. It also ensures comfort for the user during long-term use.
Cost-Effectiveness & Comprehensive Service: Leapion offers competitive prices. The operating costs are low. Its machines include safety features like overheat protection and emergency stops. We provide comprehensive after-sales services. These include training, maintenance, and technical support. This gives our customers confidence.
Safety Standards & Environmental Considerations: Leapion prioritizes safety. Each machine has key safety features to safeguard users and the environment. laser welding machine by Leapion cut down on waste and emissions. This supports eco-friendly operations.
Ease of Use & Intuitive Design: Leapion delivers a user-friendly welding tool. The welder gun is lightweight and ergonomic. Its touchscreen is intuitive, making the setup quick. Operators can master it with just a little training. It also ensures comfort for the user during long-term use.
Cost-Effectiveness & Comprehensive Service: Leapion offers competitive prices. The operating costs are low. Its machines include safety features like overheat protection and emergency stops. We provide comprehensive after-sales services. These include training, maintenance, and technical support. This gives our customers confidence.
Safety Standards & Environmental Considerations: Leapion prioritizes safety. Each machine has key safety features to safeguard users and the environment. laser welding machine by Leapion cut down on waste and emissions. This supports eco-friendly operations.
Customer Satisfaction & Innovation Leadership: Leapion earns praise across sectors for its focus on quality and efficiency. Leading in innovation, Leapion keeps improving its laser welding technology. It strives to meet modern manufacturing's changing needs.
Professional Aftersale Team
Customer Service and Support
1. Pre-Sales Service
Expert Consultation: The Leapion team specializes in detailed consultations. We guide you through our high-quality laser welders. Our goal is to understand your needs and suggest ways to boost your efficiency.
Expert Consultation: The Leapion team specializes in detailed consultations. We guide you through our high-quality laser welders. Our goal is to understand your needs and suggest ways to boost your efficiency.
Hands-On Demos: See Leapion's laser welding excellence yourself. Our demos show off our welders' advanced features. You'll see the quality and precision that distinguish our products.
2.During Sales Service
Customized Setups: We work with you to design laser welding solutions tailored to your workflow. This ensures your Leapion welder delivers optimal performance and quality.
Customized Setups: We work with you to design laser welding solutions tailored to your workflow. This ensures your Leapion welder delivers optimal performance and quality.
In-Depth Training: Unlock the potential of our laser welders. Our training programs aim to make your team experts in cutting-edge welding techniques for peak productivity.
3.After-Sales Service
24/7 Technical Support: Leapion's outstanding service includes all-day support. We keep your operations smooth, without interruptions.
3.After-Sales Service
24/7 Technical Support: Leapion's outstanding service includes all-day support. We keep your operations smooth, without interruptions.
Maintenance and Repairs: Extend your welder's life with our regular maintenance and prompt repair services. We minimize downtime and protect your investment.
Customer Feedbacks & Exhibition
Product Shipment | ||
Shipment Method | Sea freight, land freight, air freight, international express, etc. | |
Package Method | Wooden Case | |
Noted | If you need to ship by air, please let us know before purchase, and you need to empty the gas in the water cooler before shipment. | |
FAQ
1. What is the MOQ?
The minimum order is 1 unit. For customers who need to customize the logo, the MOQ is also 1 unit, and for customers who need to modify the exterior color, the MOQ is 5 units.
2. What terms of trade are offered?
Leapion can provide suitable terms according to your specific needs, including: EXW, FOB, CFR, CIF, DAP, DDP, etc.3. What payment methods are accepted?
We accept: credit card, debit card, bank transfer, L/C, etc. You are welcome to pay us through Alibaba's "Trade Assurance Order", which can guarantee your rights and interests.
4. How to get sample testing service?
We provide three options for sample testing service.① If you don't need us to mail the tested samples to your address, and we have the metal materials you need to tested in stock, then we offer free testing service. Simply contact us with your specific needs. We will send you the test pictures and videos within 5 working days.
② if you need us to send the tested samples by post, please pay the express fee.
③ If you need special samples for testing, please mail the samples to our address or pay us the cost of purchasing metal materials.
5. How to confirm the most suitable model of equipment for me?
We suggest you can contact us, Leapion will provide you 1 to 1 VIP service, professional sales staff will recommend the most suitable equipment for you.For faster communication, we recommend that you confirm the following information before contacting us:
① which metal material you need to weld
② the maximum thickness of each metal material
③ the voltage of your local factory
④ the trade terms you required
⑤ required Time
