Китайский завод лидер продаж высокоточная система управления веб направляющей оптоэлектронный датчик края
- Категория: >>>
- Поставщик: Wuxi Galy Co. Ltd.Wuxi Ltd.
Сохранить в закладки 1601234828481:
Описание и отзывы
Характеристики
Product Overview
CCD image sensor SG-300E
Ultrasonic sensor SG-200E
Infrared sensor SG-100E
CCD image sensor SG-300E
Features:
This image sensor scans the material surface light contrast in real time through linear array CCD image sensing, which can realize non-contact scanning of materials .
1. Use high-speed linear array CCD image sensor elements to accurately track printing lines, printing edges or material edges;
1. Use high-speed linear array CCD image sensor elements to accurately track printing lines, printing edges or material edges;
2. Use full-color light-emitting diodes as background lighting sources. Different colors of lighting sources can be selected according to the reflective properties of the material surface to achieve the optimal lighting effect;
3. Adopt fully laminated glass capacitive touch panel, IPS high-bright color screen, menu-based operation interface, simple and intuitive;
4. Laser line-assisted positioning;
5. Configure USB storage interface to facilitate on-site tracking algorithm firmware upgrade;
6. Equipped with two output interfaces, analog and CAN communication, to facilitate integration into different correction systems;
5. Configure USB storage interface to facilitate on-site tracking algorithm firmware upgrade;
6. Equipped with two output interfaces, analog and CAN communication, to facilitate integration into different correction systems;
Technical Parameters:
1. Power supply voltage: 12~30Vdc
2. Current consumption: 120mA/24Vdc
3. Output interface: analog (2~8mA) or CAN bus (system configurable)
4. Ambient temperature: 0~50°C
5. Measuring range: ±10mm
6. Resolution: 0.05mm
7. Focus distance/format spacing: 25~30mm
8. Scan rate: 500~2000Hz
9. Protection level: IP54
10. Dimensions (length x width x height): 100x68x49mm
1. Power supply voltage: 12~30Vdc
2. Current consumption: 120mA/24Vdc
3. Output interface: analog (2~8mA) or CAN bus (system configurable)
4. Ambient temperature: 0~50°C
5. Measuring range: ±10mm
6. Resolution: 0.05mm
7. Focus distance/format spacing: 25~30mm
8. Scan rate: 500~2000Hz
9. Protection level: IP54
10. Dimensions (length x width x height): 100x68x49mm

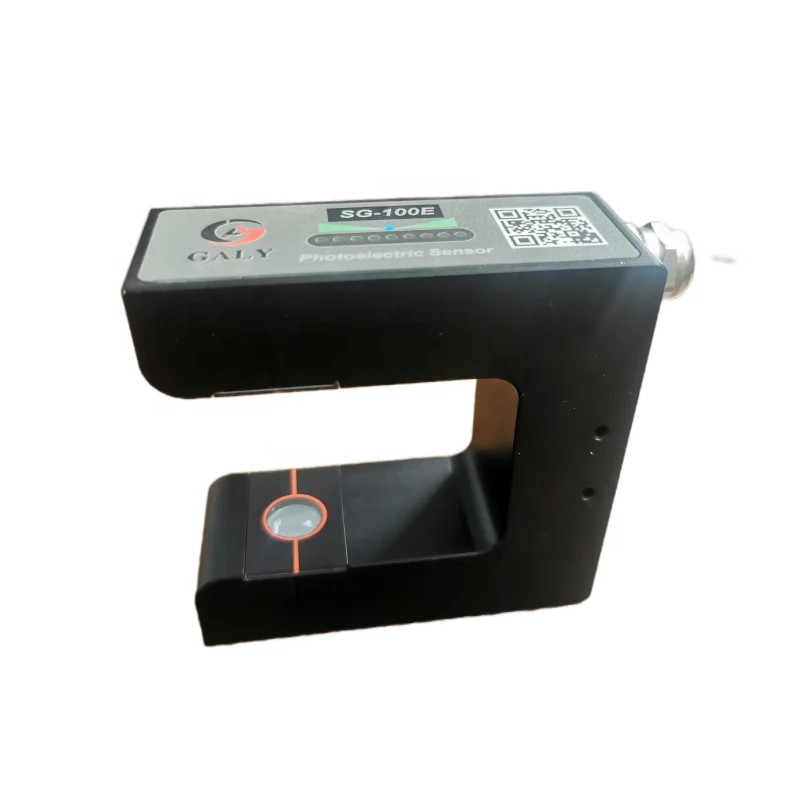

Ultrasonic sensor SG-200E / Infrared sensor SG-100E
Features :
⊙ It can track the edges of various materials;
⊙High-precision detection, fast response
⊙Strong anti-interference ability design;
⊙ Different opening sizes and detection ranges can be customized
⊙High-precision detection, fast response
⊙Strong anti-interference ability design;
⊙ Different opening sizes and detection ranges can be customized
Parameters
⊙ Detection accuracy 0.01mm
⊙ Detection range 7mm
⊙Response time 2ms
⊙Anti-light interference (infrared) sunlight 10000Lu×, fluorescent lamp/3000Lus
⊙ Opening size 40mm
⊙ 24V input
⊙ Detection range 7mm
⊙Response time 2ms
⊙Anti-light interference (infrared) sunlight 10000Lu×, fluorescent lamp/3000Lus
⊙ Opening size 40mm
⊙ 24V input
How to choose sensor ?
Coiled Material | Ultrasonic Sensor | Photosensor / Infrared Sensor |
Transparent film | ok | Transparence less than 90% |
Untransparent film | ok | ok |
Paper | ok | ok |
Chaff | ok | ok |
Metal sheet | ok | ok |
Cloth | ok | |
Cloth/permeability materials | ok |
Main Hot Products
Applications
Company Profile
FAQ

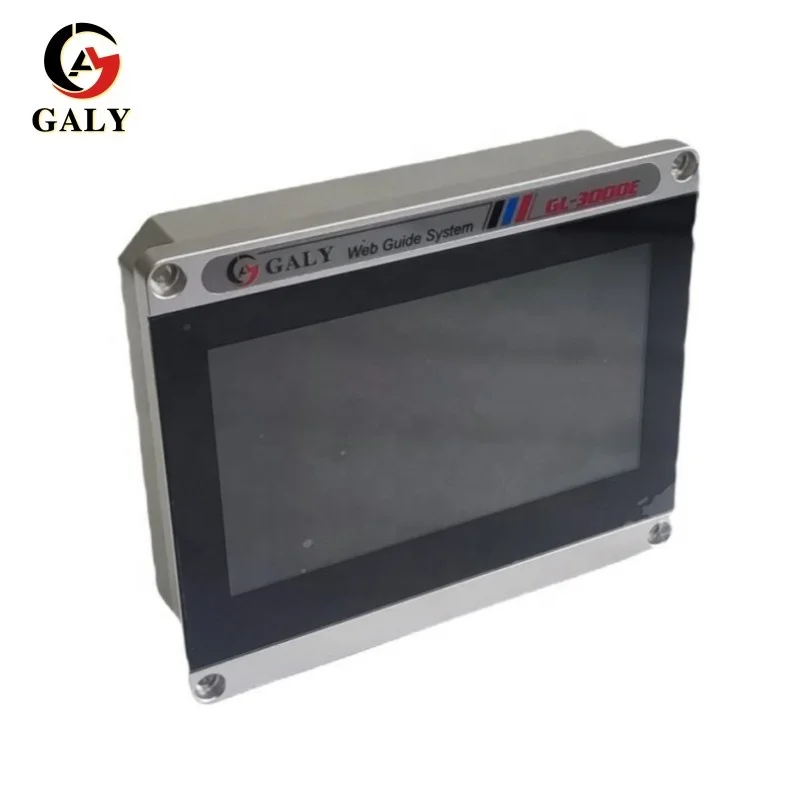

Web Guiding System with CCD image sensor For center and for edge CCD Sensor SG-300E

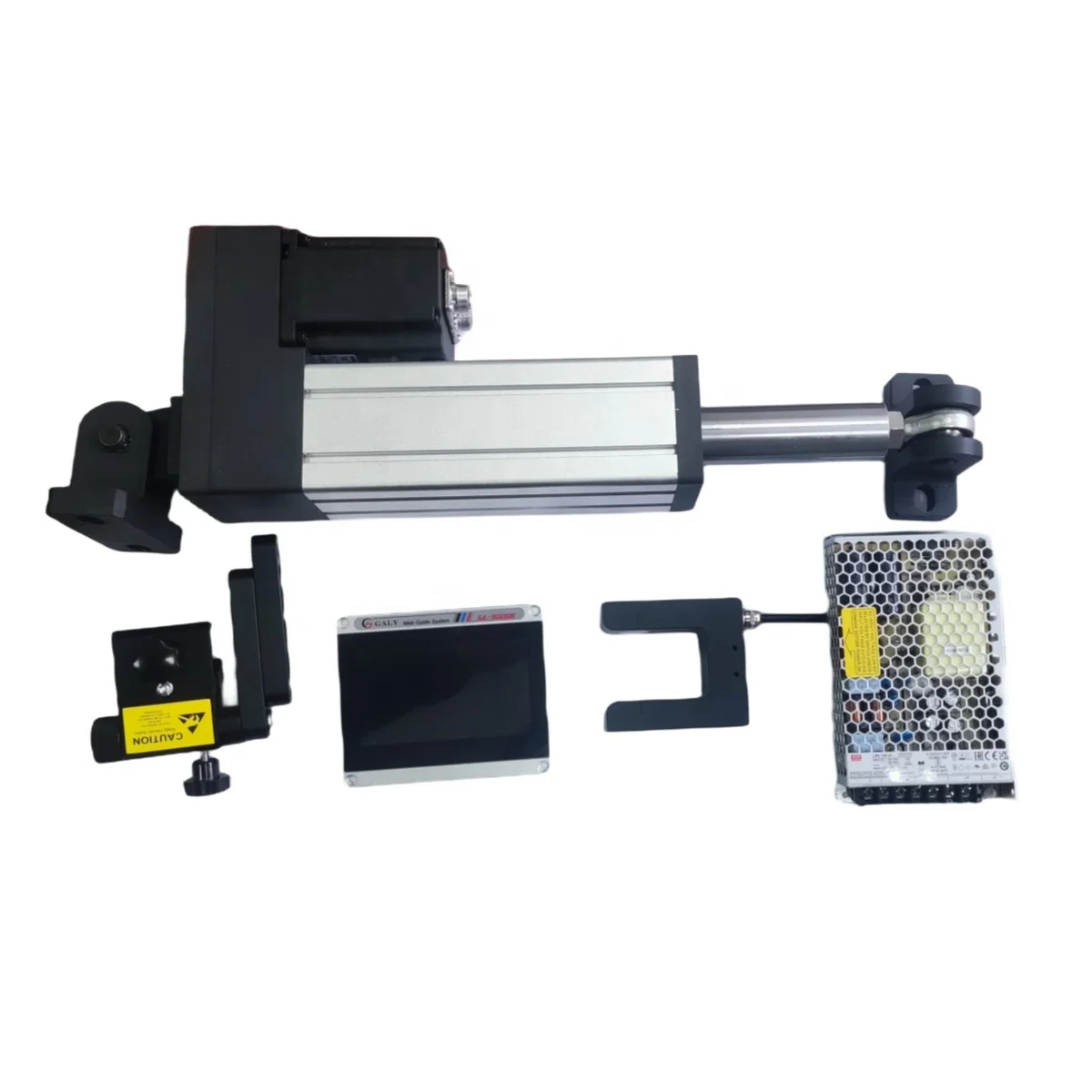

1. What parts are included of one whole set?

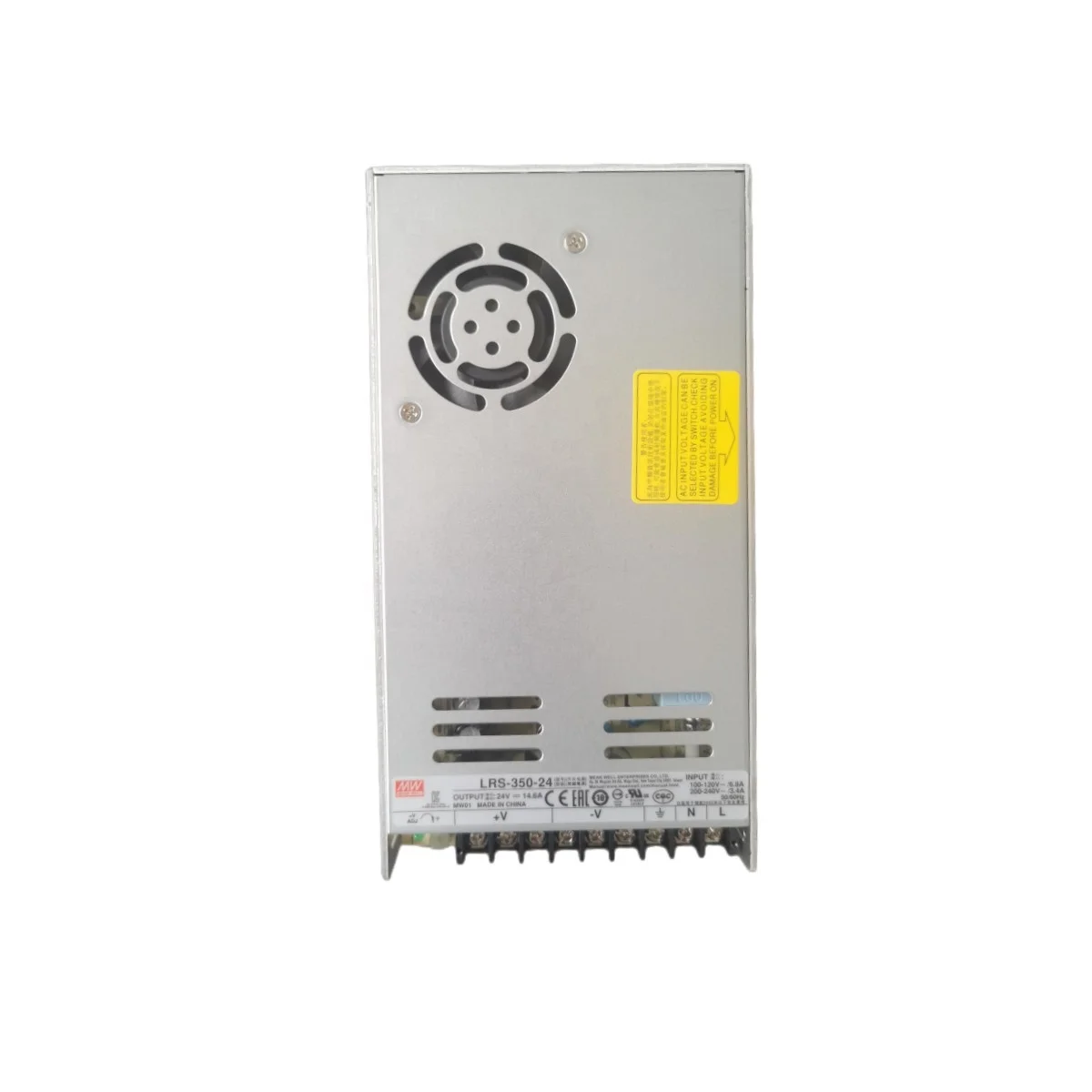

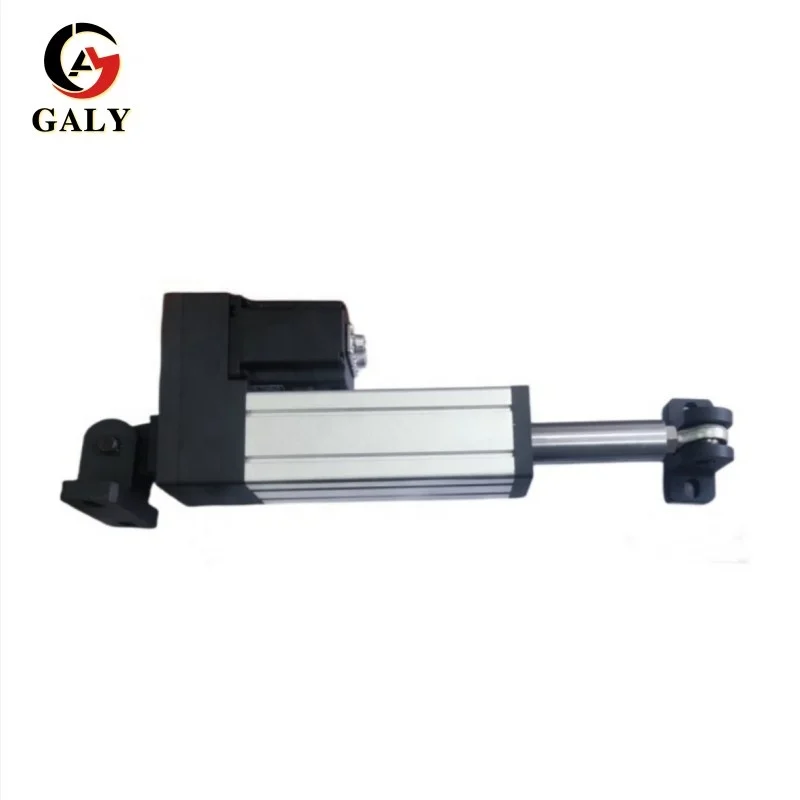

Web guide controller, ccd image sensor, web guide actuator, support, wire, switching power supply.
2. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
usin your email, so that we can regard your inquiry priority.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Usually we have in stock and can ship within 3 days after payment.If it is customized or the quantity is relatively large, it
generally takes 10-15 days to ship.
Web guide controller, ccd image sensor, web guide actuator, support, wire, switching power supply.
2. When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
usin your email, so that we can regard your inquiry priority.
3. What’s your MOQ basis?
Normally, we don’t have MOQ request, except the rollers.
4. What about the lead time for production?
Usually we have in stock and can ship within 3 days after payment.If it is customized or the quantity is relatively large, it
generally takes 10-15 days to ship.
5. What is the term of delivery?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
Похожие товары

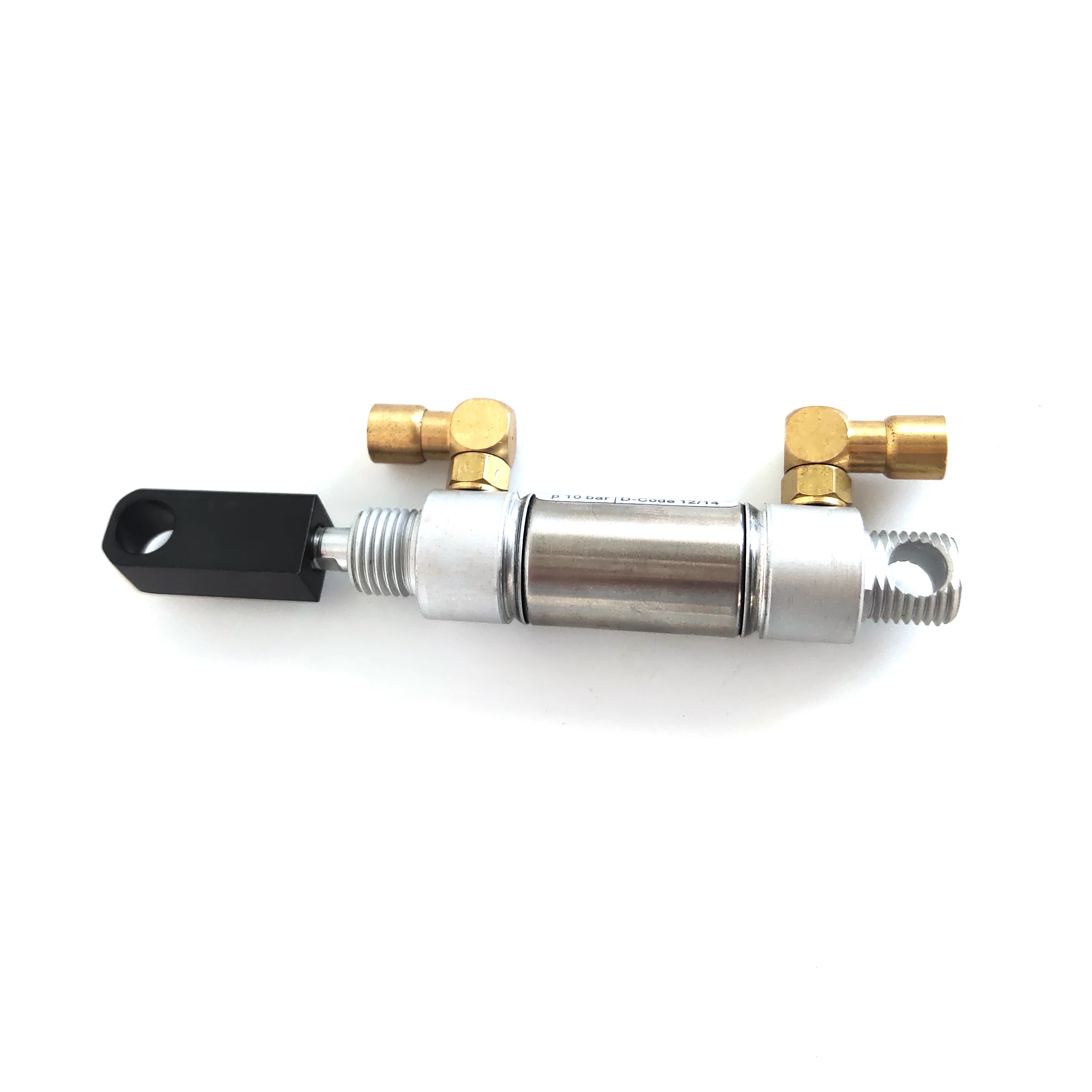

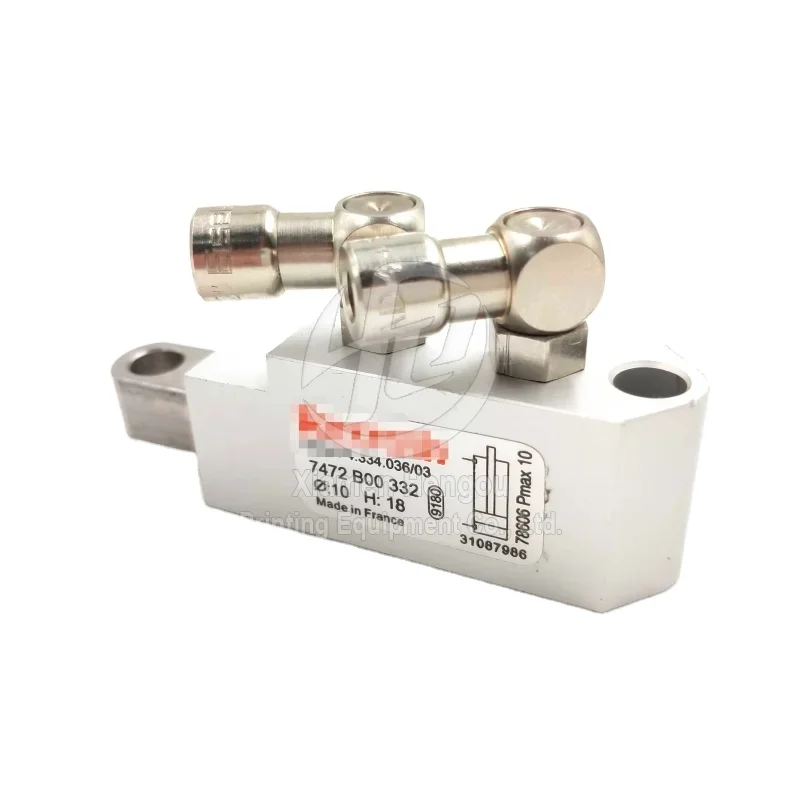

L2.334.030 части печатной машины для пневматического цилиндра CD74 XL75

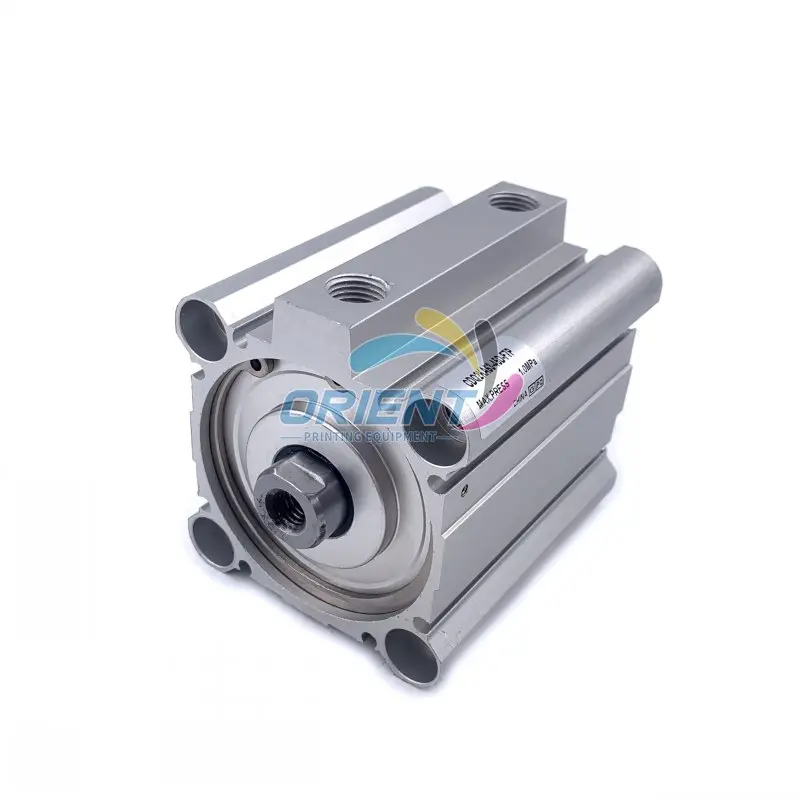

Высококачественный пневматический цилиндр CDQ2KA6345DF7P компактный CDQ2KA63-45D-F7P воздушный для печатной машины Shinohara 75
11 991,32-12 330,70 ₽

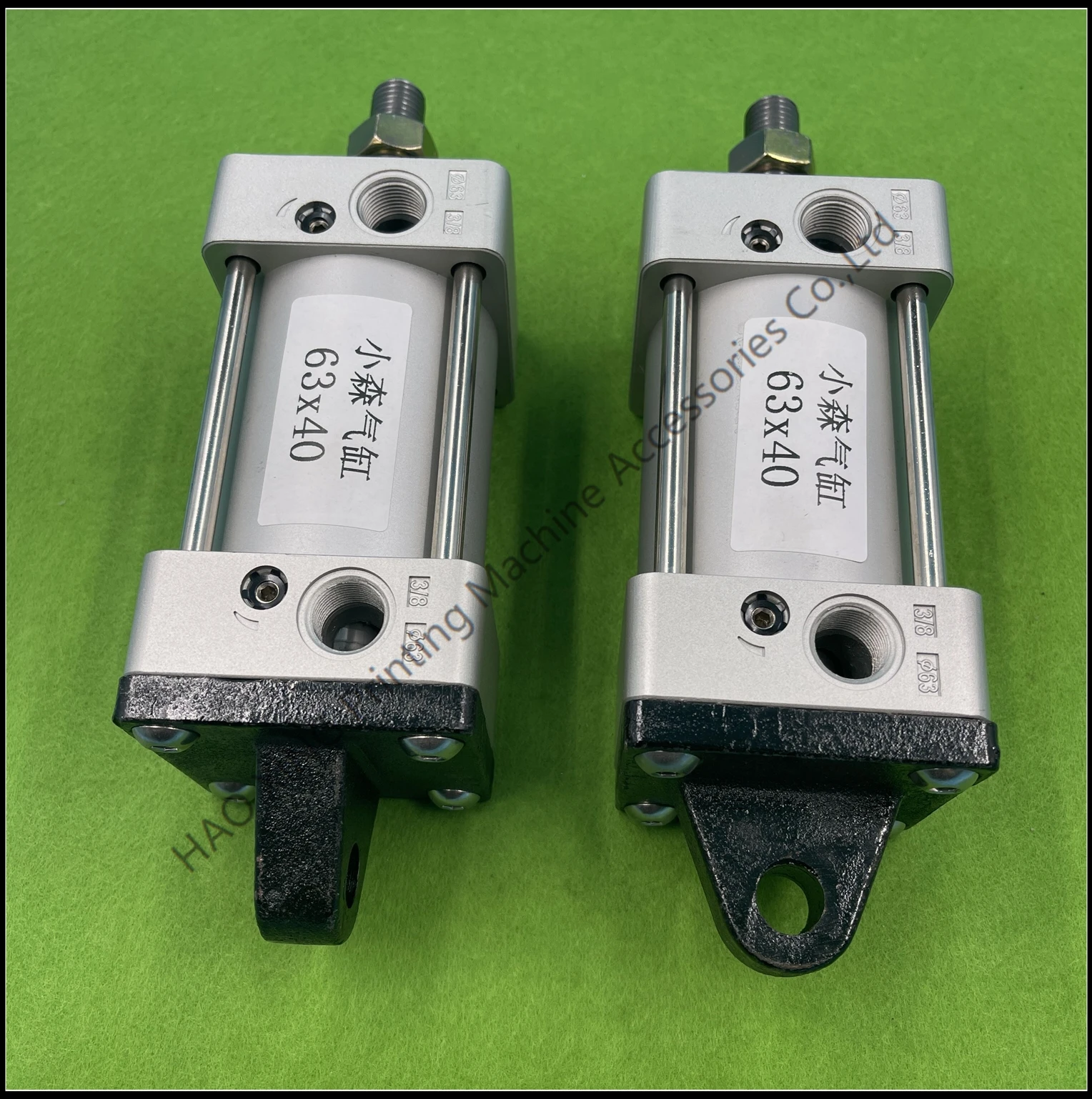

Хорошее качество пневматический цилиндр для Komori печатный пресс аксессуары 63*40 Стандартный Воздушный
4 525,03 ₽

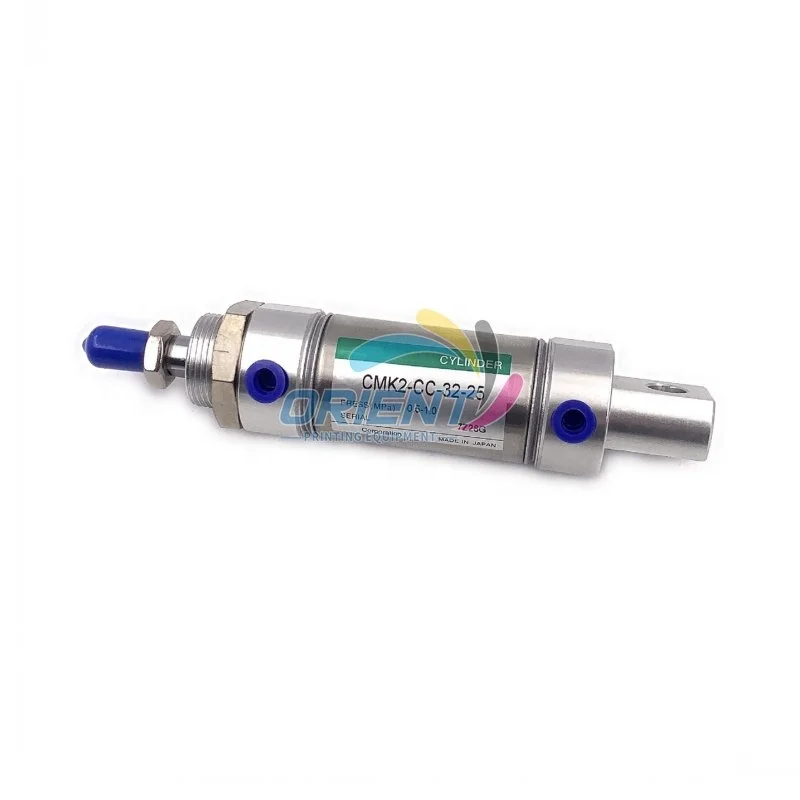

Лучшее качество CMK2-CC-32-25 CMK2CC3225 пневматический цилиндр для Ryobi детали машин печати на цилиндрах
7 375,79-7 635,98 ₽

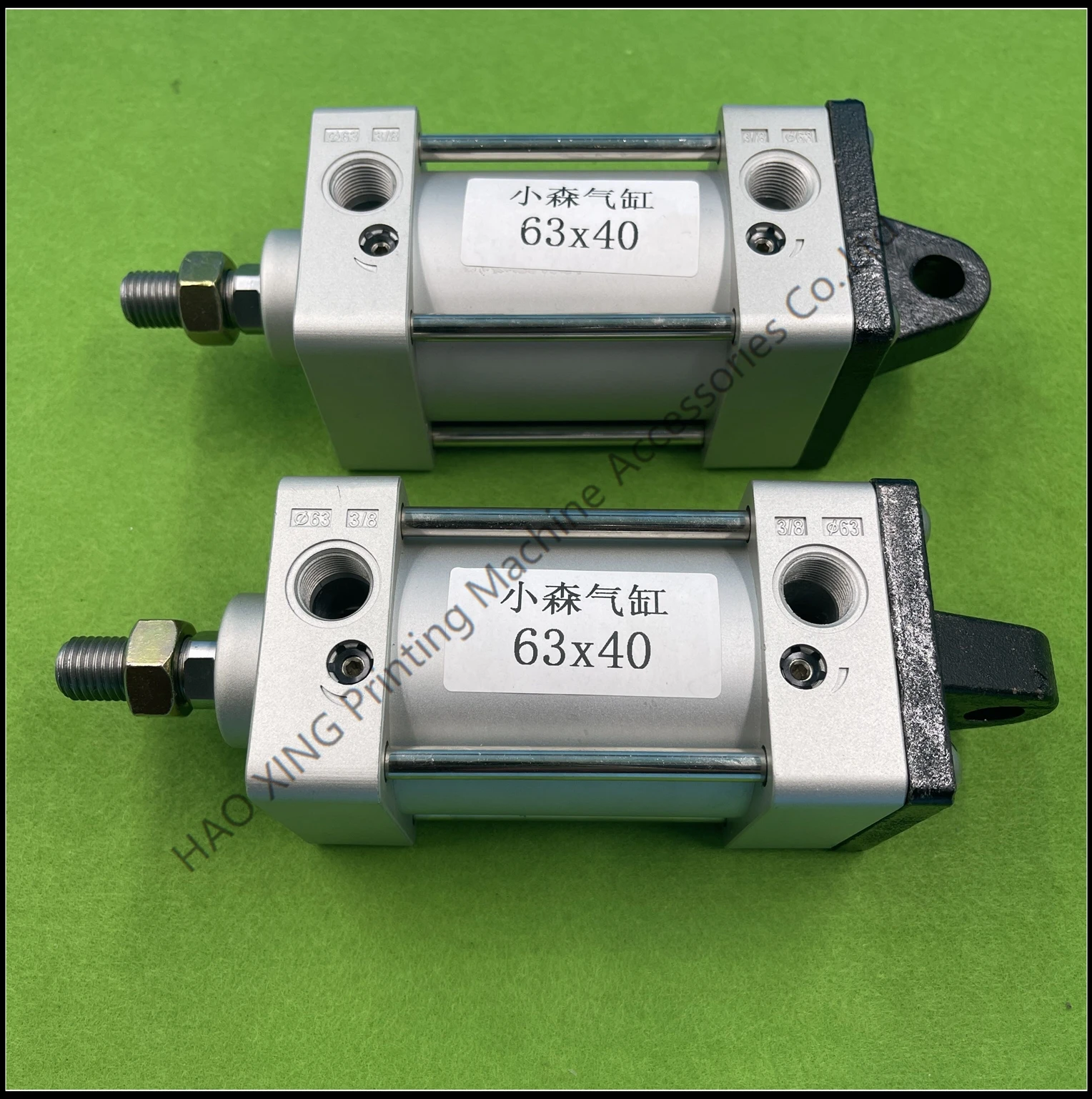

Запасные части для печатного оборудования Воздушный пневматический цилиндр Komori печатное оборудование 63*40
3 733,15-4 298,78 ₽

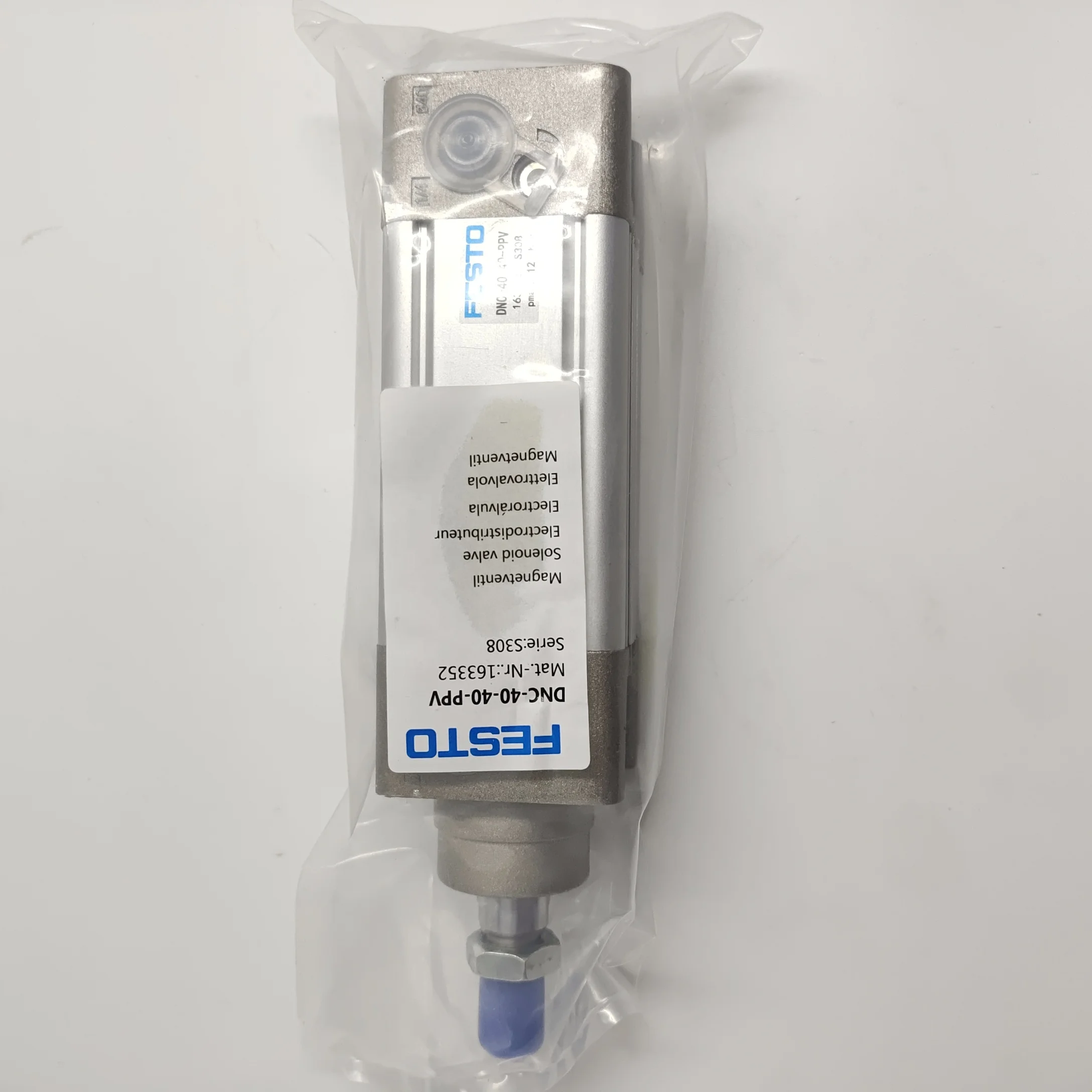

1 шт. пневматический цилиндр DNC-40-40-PPV для KBA печатной машины
