Высококачественный 8-дюймовый насос для дизельного двигателя вертикальный самовсасывающий центробежный сточных вод
1 219 849,38 ₽ - 1 351 781,68 ₽
Насос для подачи горизонтального фильтра под давлением Китай
- Категория: >>>
- Поставщик: Shijiazhuang Industrial And Mining Pump Technology Co. Ltd.
Сохранить в закладки 1601234890181:
Описание и отзывы
Характеристики
Products Description

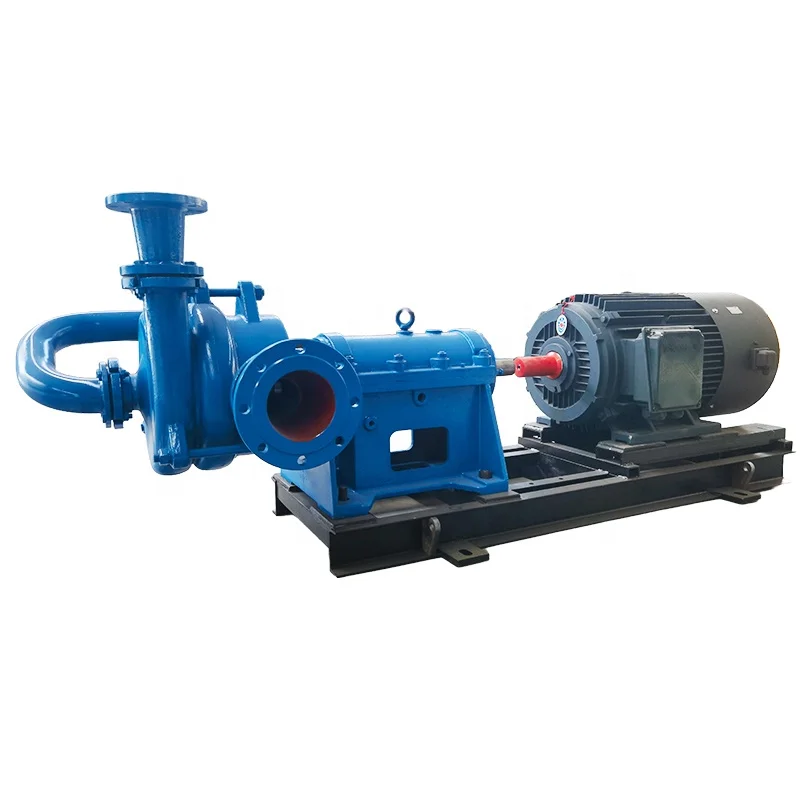

1 | Connecting bent pipes |
2 | Water outlet |
3 | Feeding room |
4 | Bracket components |
5 | Protection cover |
6 | All copper motor |
7 | Junction box |
8 | Base |
9 | Water inlet |
10 | Primary pump body |
11 | Secondary pump body |
widely used in industries such as petroleum, chemical, starch pharmaceuticals, pesticides, dyes, paints, leather, papermaking, and food. This pump has the following characteristics:
1. * * Structural Design * *: The feed pump of the filter press adopts a semi open impeller, which has a wide flow channel and good passability. It can transport slurry containing particles without blockage, and the particles will not get stuck between the impeller, pump body, and pump cover.
2. * * Maintainability * *: Simple structure, easy maintenance, and no need to disassemble pipelines when replacing vulnerable parts such as impellers, seals, and bearings.
3. * * Hydraulic Design * *: Adopting a unique hydraulic design and impeller installation method, it ensures a steep performance curve and is suitable for changes in resistance during feeding of the filter press, achieving high flow rate, low pressure feeding and low flow rate, high pressure filtration.
4. * * Adaptability * *: The special hydraulic performance is consistent with the gradual process of the filter press from cavity filling to filtration drying, effectively avoiding motor overload and filter plate damage.
5. * * Sealing performance * *: During the later pressing period, under the high pressure operation of the pump, the unique impeller installation method and auxiliary impeller function ensure that there is basically no leakage at the shaft seal.
6. * * Diversity of Selection * *: According to the requirements of the medium, packing seals, single face containerized mechanical seals, and double face containerized (with built-in water tank) mechanical seals can be selected.
7. * * Diverse Models * *: There are various models of filter press feed pumps on the market, such as the ZJE model, which have different flow rates, heads, matching powers, and inlet and outlet sizes to meet different application needs.
8. * * Easy maintenance * *: The maintenance of the pump includes keeping the equipment clean, checking the oil level, preventing empty operation, and checking for leaks.
9. * * Installation Notes * *: Before installation, check if the equipment model, parameters, and components are complete, and follow the "User Manual" to ensure correct installation.
10. * * Purchasing channels * *: Multiple brands and models of filter press feed pumps can be found on platforms such as Alibaba, providing prices, pictures, rankings, and other information to facilitate user selection.
The design and performance of the feed pump for the filter press make it an indispensable equipment in the filtration process. The correct selection and use of this pump can significantly improve production efficiency and filtration efficiency.
1. * * Structural Design * *: The feed pump of the filter press adopts a semi open impeller, which has a wide flow channel and good passability. It can transport slurry containing particles without blockage, and the particles will not get stuck between the impeller, pump body, and pump cover.
2. * * Maintainability * *: Simple structure, easy maintenance, and no need to disassemble pipelines when replacing vulnerable parts such as impellers, seals, and bearings.
3. * * Hydraulic Design * *: Adopting a unique hydraulic design and impeller installation method, it ensures a steep performance curve and is suitable for changes in resistance during feeding of the filter press, achieving high flow rate, low pressure feeding and low flow rate, high pressure filtration.
4. * * Adaptability * *: The special hydraulic performance is consistent with the gradual process of the filter press from cavity filling to filtration drying, effectively avoiding motor overload and filter plate damage.
5. * * Sealing performance * *: During the later pressing period, under the high pressure operation of the pump, the unique impeller installation method and auxiliary impeller function ensure that there is basically no leakage at the shaft seal.
6. * * Diversity of Selection * *: According to the requirements of the medium, packing seals, single face containerized mechanical seals, and double face containerized (with built-in water tank) mechanical seals can be selected.
7. * * Diverse Models * *: There are various models of filter press feed pumps on the market, such as the ZJE model, which have different flow rates, heads, matching powers, and inlet and outlet sizes to meet different application needs.
8. * * Easy maintenance * *: The maintenance of the pump includes keeping the equipment clean, checking the oil level, preventing empty operation, and checking for leaks.
9. * * Installation Notes * *: Before installation, check if the equipment model, parameters, and components are complete, and follow the "User Manual" to ensure correct installation.
10. * * Purchasing channels * *: Multiple brands and models of filter press feed pumps can be found on platforms such as Alibaba, providing prices, pictures, rankings, and other information to facilitate user selection.
The design and performance of the feed pump for the filter press make it an indispensable equipment in the filtration process. The correct selection and use of this pump can significantly improve production efficiency and filtration efficiency.
NO. | Speed (r/min) | Flow (m3/h) | Head (m) | max shaft power (kw) | Motor | ||
NO. | Power (kw) | ||||||
50ZJE-II | 1480 | 30 40 50 58 70 | 76.0 72.2 66.1 56.0 43.5 | 15 | Y180L-4 | 22 | |
Y200L-4 | 30 | ||||||
65ZJE-II | 1480 | 41.4 55.2 69.0 80.0 100 | 76.0 72.2 66.1 56.0 43.5 | 22.3 | Y225S-4 | 30 | |
Y200L-4 | 37 | ||||||
80ZJE-II | 1480 | 60.0 80.0 100 115 135 | 76.0 72.2 66.1 56.0 43.5 | 32 | Y225S-4 | 37 | |
Y225M-4 | 45 | ||||||
100ZJE-II | 1480 | 85.0 113 150 169 175 | 73.3 69.0 62.5 51.2 44.0 | 49 | Y225M-4 | 45 | |
Y250M-4 | 55 | ||||||
125ZJE-II | 1480 | 105 140 186 245 265 | 73.5 71.6 68.6 61.9 48.5 | 62.5 | Y250M-4 | 55 | |
Y280S-4 | 75 | ||||||
125ZJE-II | 1480 | 119 159 211 279 305 | 80.0 78.0 74.8 67.5 52.9 | 78.2 | Y280S-4 | 75 90 | |
Y280M-4 | |||||||
125ZJE-II | 1480 | 87.0 116 154 203 215 | 91.8 89.1 85.7 77.3 60.6 | 64.7 | Y280S-4 | 75 | |
Y280M-4 | 90 | ||||||
Specification
item | value |
Application | Industrial Boilers, Mining industry, Commercial Buildings, Other |
Pressure | High Pressure |
Customized support | OEM, ODM, OBM |
Place of Origin | China |
Hebei | |
Power Source | Electric |
Structure | Other |
Voltage | 380V/Customized |
Outlet Size | Customized |
Power | Customized |
motor | Customized |
Product name | Filter press feed pump |
Theory | Centrifugal Pump |
Material | Cast Iron |
Usage | Multi-purpose |
Color | Customer Specifications |
MOQ | 1 Set |
Company Profile
Certifications
Exhibition
Packing&Delivery
FAQ
A1. What is the main working principle of a centrifugal pump?
Q1. The electric motor drives the impeller to rotate at high speed, generating centrifugal force on the liquid. The liquid is thrown into the side channel and discharged outside the pump, or enters the next stage impeller, thereby reducing the pressure at the inlet of the impeller and forming a pressure difference with the pressure acting on the suction liquid. The pressure difference acts inside the liquid suction pump, and due to the continuous rotation of the centrifugal pump, the liquid is continuously sucked in or discharged.
A2. How many types of transmission connections are there between pumps and motors?
Q2. There are three types: belt drive, gearbox drive, and direct motor linkage.
A3. What is the phenomenon of voids?
Q3. The cavitation phenomenon is the formation of vapor chambers ("bubbles" or "voids") in liquid, which is the result of the inlet pipe diameter being smaller than the flow rate of the pump. These cavities are formed by the fluid characteristics and physical properties of the pump system (such as available pressure, temperature, pump speed, etc.). The cavitation phenomenon is prone to generate noise and premature wear of the pump.
A4. What is gear pump internal leakage?
Q4. Internal leakage of a gear pump refers to the situation where some fluid on the pressure side flows back to the inlet side through the gear clearance, affecting efficiency. Internal leakage is a common problem among all gear pumps. Precision grade micro gear pumps have relatively small internal leakage, making it easier for low viscosity fluids to pass through these small gaps. Therefore, pumps are more efficient in thicker or viscous fluids.
-The starting ability varies depending on the pump and depends on various factors, including fluid viscosity, pipeline size, steam pressure, speed, and whether the pump is operating wet or dry.
What affects the lifespan of pumps and motors?
-Many factors can affect the service life. The key issues to consider are the number of on/off cycles, operating speed, load (pressure), and fluid contamination.
What is the noise level of the pump?
-The noise level depends on the installation of the pump, the speed of the motor, and the type of fluid. When the pressure difference is 3 bar and the speed is 3000 rpm, the reference value of the gear pump at 1 meter is 55 dB.
Q1. The electric motor drives the impeller to rotate at high speed, generating centrifugal force on the liquid. The liquid is thrown into the side channel and discharged outside the pump, or enters the next stage impeller, thereby reducing the pressure at the inlet of the impeller and forming a pressure difference with the pressure acting on the suction liquid. The pressure difference acts inside the liquid suction pump, and due to the continuous rotation of the centrifugal pump, the liquid is continuously sucked in or discharged.
A2. How many types of transmission connections are there between pumps and motors?
Q2. There are three types: belt drive, gearbox drive, and direct motor linkage.
A3. What is the phenomenon of voids?
Q3. The cavitation phenomenon is the formation of vapor chambers ("bubbles" or "voids") in liquid, which is the result of the inlet pipe diameter being smaller than the flow rate of the pump. These cavities are formed by the fluid characteristics and physical properties of the pump system (such as available pressure, temperature, pump speed, etc.). The cavitation phenomenon is prone to generate noise and premature wear of the pump.
A4. What is gear pump internal leakage?
Q4. Internal leakage of a gear pump refers to the situation where some fluid on the pressure side flows back to the inlet side through the gear clearance, affecting efficiency. Internal leakage is a common problem among all gear pumps. Precision grade micro gear pumps have relatively small internal leakage, making it easier for low viscosity fluids to pass through these small gaps. Therefore, pumps are more efficient in thicker or viscous fluids.
-The starting ability varies depending on the pump and depends on various factors, including fluid viscosity, pipeline size, steam pressure, speed, and whether the pump is operating wet or dry.
What affects the lifespan of pumps and motors?
-Many factors can affect the service life. The key issues to consider are the number of on/off cycles, operating speed, load (pressure), and fluid contamination.
What is the noise level of the pump?
-The noise level depends on the installation of the pump, the speed of the motor, and the type of fluid. When the pressure difference is 3 bar and the speed is 3000 rpm, the reference value of the gear pump at 1 meter is 55 dB.
