Product Details

A skilled worker opens a vacuum furnace. A batch of single crystal blades have just been cast in the furnace. In the photo, the blades are still in the ceramic mold and have not yet been removed. These molds have a cooling plate beneath them that controls the temperature of the molten metal flowing into the mold—temperature is a crucial secret that determines whether the molten metal can condense into a single crystal that is no longer separated by many crystal lattices. Such leaves naturally possess the indestructible body.

This spiral thing is the "spiral crystal selector" in the manufacturing of single crystal turbine blades. It is part of the mold, and the molten metal enters the part-shaped cavity of the mold through this spiral channel - this spiral maze ultimately only allows a single crystal to reach the top and continue to grow, and finally grows into a single crystal blade, waiting for technicians to come "Harvest". Each harvested single crystal blade will have a spiral tail, which is called "pigtail" in English. This tail is cut off to produce the rough blade, as shown in this photo. Engineers have cleaned its surface with acid to reveal the grain structure and direction of the metal. At the bottom of the tail, we will see that many grains grow from bottom to top, and at the upper part of the spiral channel, the veins of multiple grains disappear, leaving only one grain that continues to grow upward, eventually forming a single grain at the top. Crystal turbine blades (already cut away and cannot be seen).

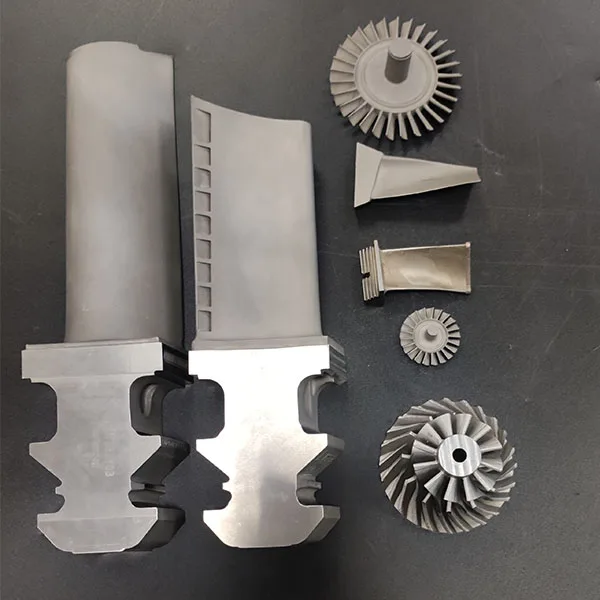

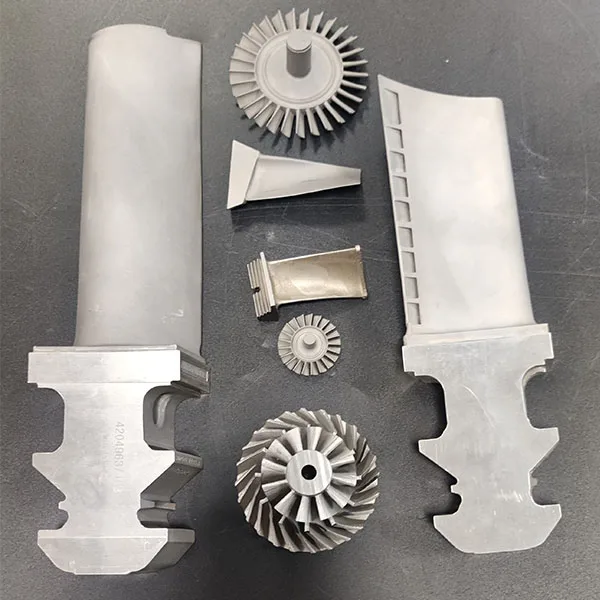

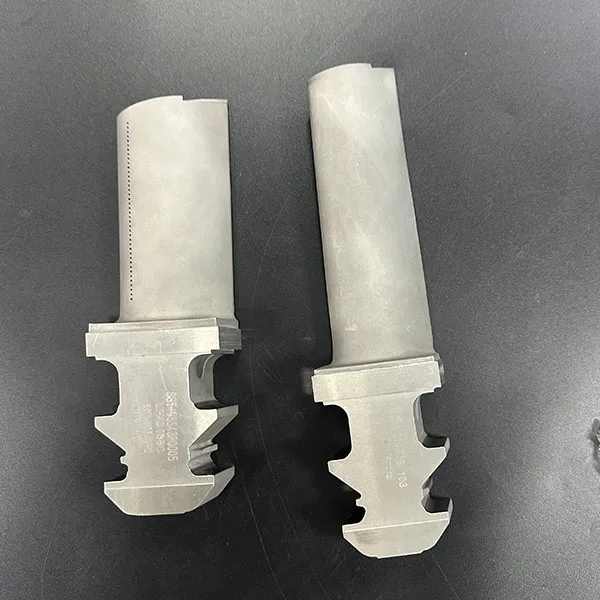

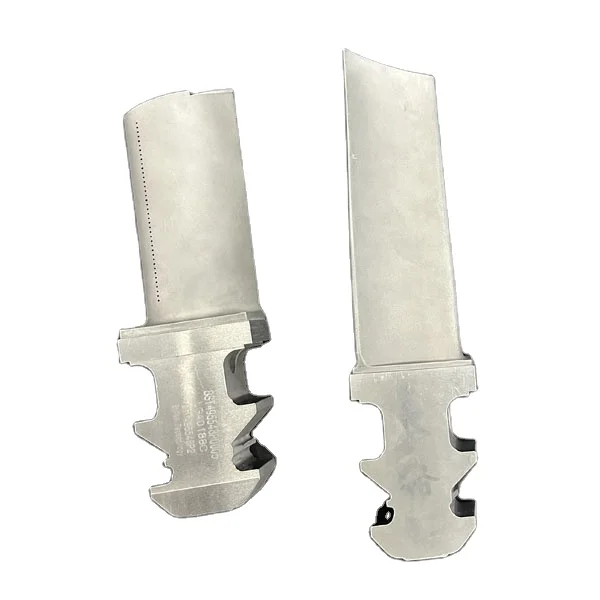

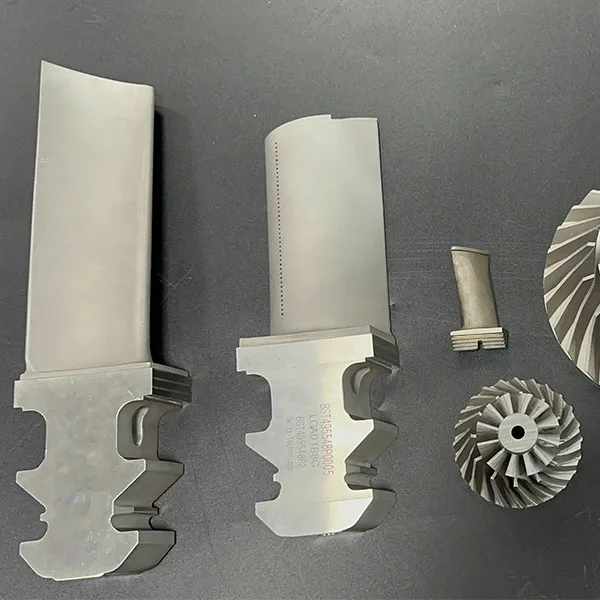

Product Name	Hastelloy C-4 turbine blade forging stainless steel turbine blades jet engine stator blades
Tolerance	CNC Machining ±0.004mm/Casting ±0.1mm
Place of Origin	Qingdao, Shandong, China
Processing Craft	Sand Casting/Lost Wax Casting/Investment Casting/Vacuum Casting/Forging/CNC Machining/etc
Surface Treatment	A variety of surface treatments and coatings can be produced and customized according to your requirements.
Type	OEM; Customized
Certification	ISO9001:2015 Certified, UL Certification,GE,SGS,TUV,etc
Packing	Carton/Wooden box
Inspection	1.Foundry in-house: 100% inspection on critical dimension; 100% on appea rance.
		2.Third Party inspection available upon requirement.
		3.Optional X-ray detection
		4.Fluorescence detection
Service	Drawing Custom
Mainly Testing Facility	Spectrometer,CMM, Tensile testing machine, Impact tester,Hardness tester,X-Ray,Salt spray test box, Pneumatic detection,UV accelerated weathering tester,dynamic balancing, high-temperature tensile testing,fluorescence test,room temperature mechanical property testing and other testing.
Quality Guarantee	2 Years
Features & Advantage	1.High machining accuracy, the flatness within 0.001mm
		2.High finish appearance, smooth surface roughness is Ra0.6 after machining.
		3.The machining precision is high and the assembly structure is seamless.
		4.Smooth appearance, corrosion resistance.
		5.Pass Salt Spray Test with 144 Hours.
Standard	ISO , DIN, AISI, ASTM, BS, JIS, etc.
Standard		GB/T 14992 GJB 5512.1 HB 7763 HB/Z 140
Payment	L/C,D/A,D/P,T/T，Western Union，Money Gram

Surface Coating Technology

Name	Inner Cavity Cooling Channel Coating	External Surface Coating
Nickel Aluminum Diffusion Coating	MTK-NAI	MTK-WAI
Aluminum Silicon Diffusion Coating	MTK-NAISi	MTK-JAISi
Chrome Aluminum Diffusion Coating	MTK-NAICr	MTK-WAICr
Diamond Aluminum Diffusion Coating	MTK-NAICo	MTK-WAICo
Platinum Aluminum Diffusion Coating		MTK-WPtAl
Aluminum Diffusion Coating	MTK-NAITi	MTK-WAITi
Q Salt Electroplating Platinum		MTK-WPt
Compressor Inorganic Phosphate Coating		MTK-WAI
MCrAIY Coating Technology		MTK-RZ
TBC		MTK-TBC
CVD Vapor Phase Aluminizing
Chromated Aluminum Coating Technology

Main materials：

Alloy Type	Alloy	US
Equiaxed Crystal Blades	K438	Inconel 738
	K438G	K38G
	K435
	K488
	K418	Inconel 713C
	FSX-414
Oriented crystal blades	DZ38G
	DZ411
	DZ466
Single crystal blade	DD8
	DD83
	DD5

Company Profile

FAQ

Q1.Are you trading company or manufacturer?
A:OBT was established in 2003,specializing in the production of casting, CNC machining, forged titanium alloys, high temperature alloys, brass products and one-stop technical solutions for more than 20 years.
Q2. Do you customize products according to our design drawings ?
A:Yes, we are a professional metal manufacturing factory with an experienced engineering team that can make customized products according to customer drawings. We can also reverse-engineer drawings based on samples to produce large quantities of goods.
Q3.Will my design drawings be safe when you get it ?
A:Yes, we will not publish your design to a third party unless your permission is obtained. We can sign NDA before you send the drawings.

Q4:How to avoid mass order quality problems?

A:Strengthen prior prevention and inspection of the production and processing process, regard important processes as the focus of quality control, and track inspection and defense throughout the process. It can provide Spectrometer,CMM, Tensile testing machine, Impact tester,Hardness tester,X-Ray,Salt spray test box, Pneumatic detection,UV accelerated weathering tester,dynamic balancing, high-temperature tensile testing,fluorescence test,room temperature mechanical property testing and other testing.
Q5.What's your delivery time?
A:In general,the delivery time is within 15-90 days after payment.

Q6.What is the speed of the impeller? What's the highest temperature it can withstand?

A:The impeller speed can reach 12,000 rpm, and the high temperature resistance can reach 1,200 degrees Celsius. Depending on the material, the high temperature resistance of the product is different.
