5 лет гарантии светодиод с регулируемой яркостью 120 Вт 12 В источник питания постоянного напряжения
2 036,27-2 262,52 ₽
Светодиодный драйвер светового триака 0 10 В 1 10 с регулируемой яркостью 30 Вт 60 80 96 100 120 150 180 200 300 320 360 световой
- Категория: >>>
- Поставщик: TUNERSYS INTELLIGENT CONTROL LIMITEDTUNERSYS LIMITED
Сохранить в закладки 1601234989883:
Описание и отзывы
Характеристики
Specification
item | value |
Warranty(Year) | 5-Year |
Lighting solutions service | Lighting and circuitry design |
Product Weight（kg） | 0.9 |
Place of Origin | China |
Guangdong | |
Brand Name | TUNERSYS |
Model Number | TNS SDL-36024 |
Output Power | 30W-380W |
Output Type | Multiple & Single |
Input Voltage | 100-277VAC |
Output Frequency | 47-63Hz |
Output Current | Other |
Product Name | triac dimming 0-10vdimming led driver mirror 24v led strip driver |
Type | Constant Voltage |
Certification | UL cUL FCC ROHS |
Efficiency | 86% |
Power Factor | 0.99 |
IP Rate | IP66 |
Size | 220*94.5*40mm |
Price | EXW |
Weight | 1.37kg |
Application | LED Lighting |
Product Description

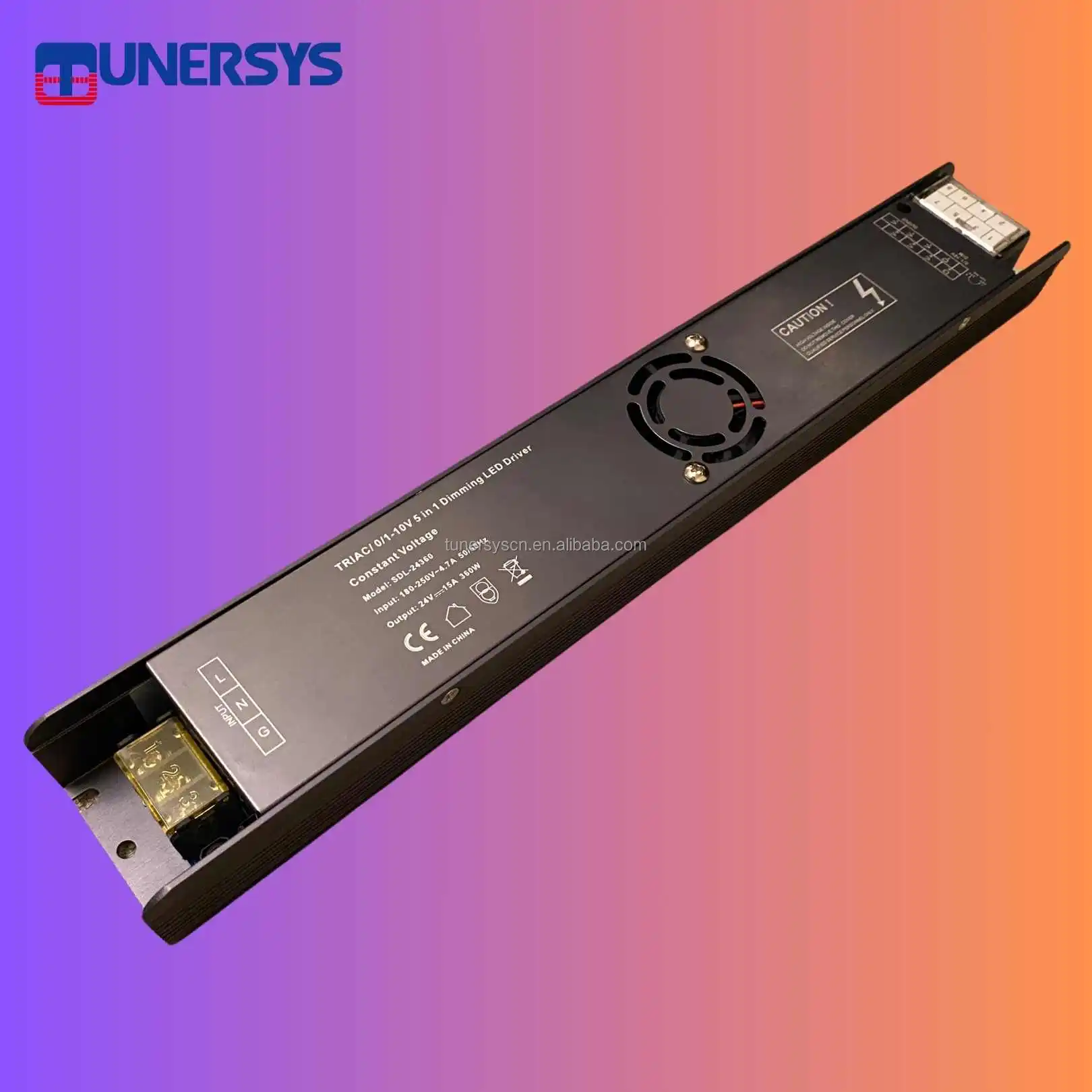

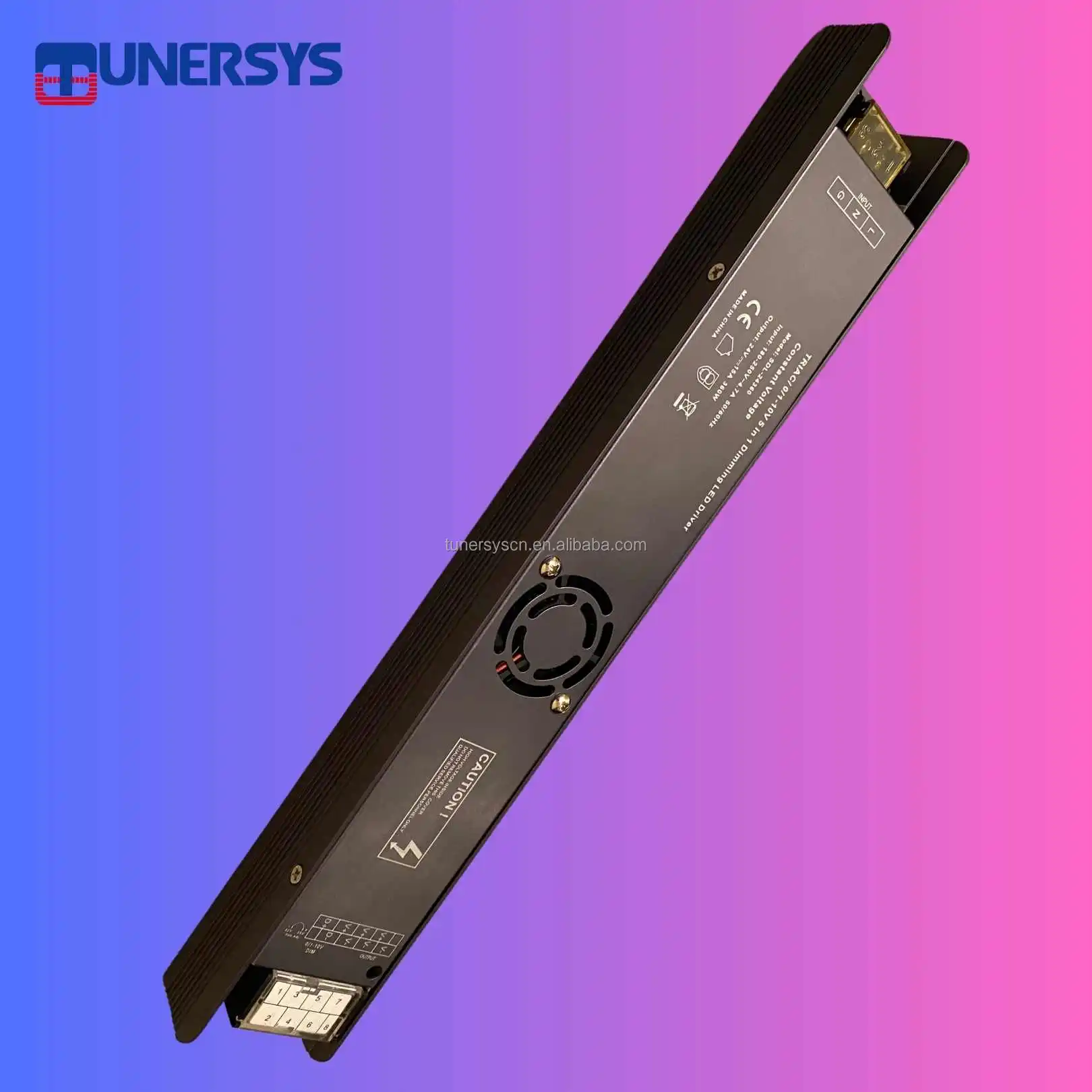

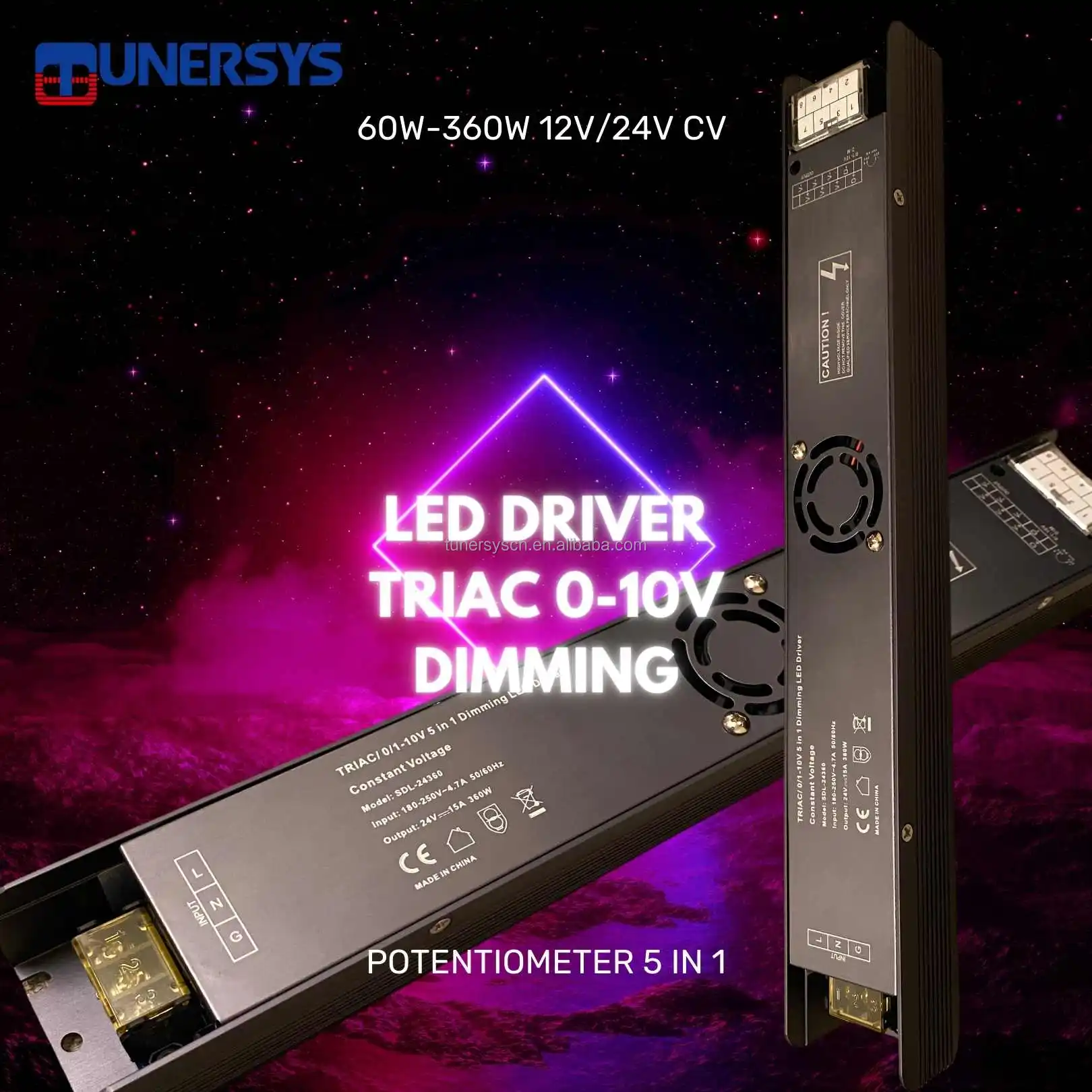

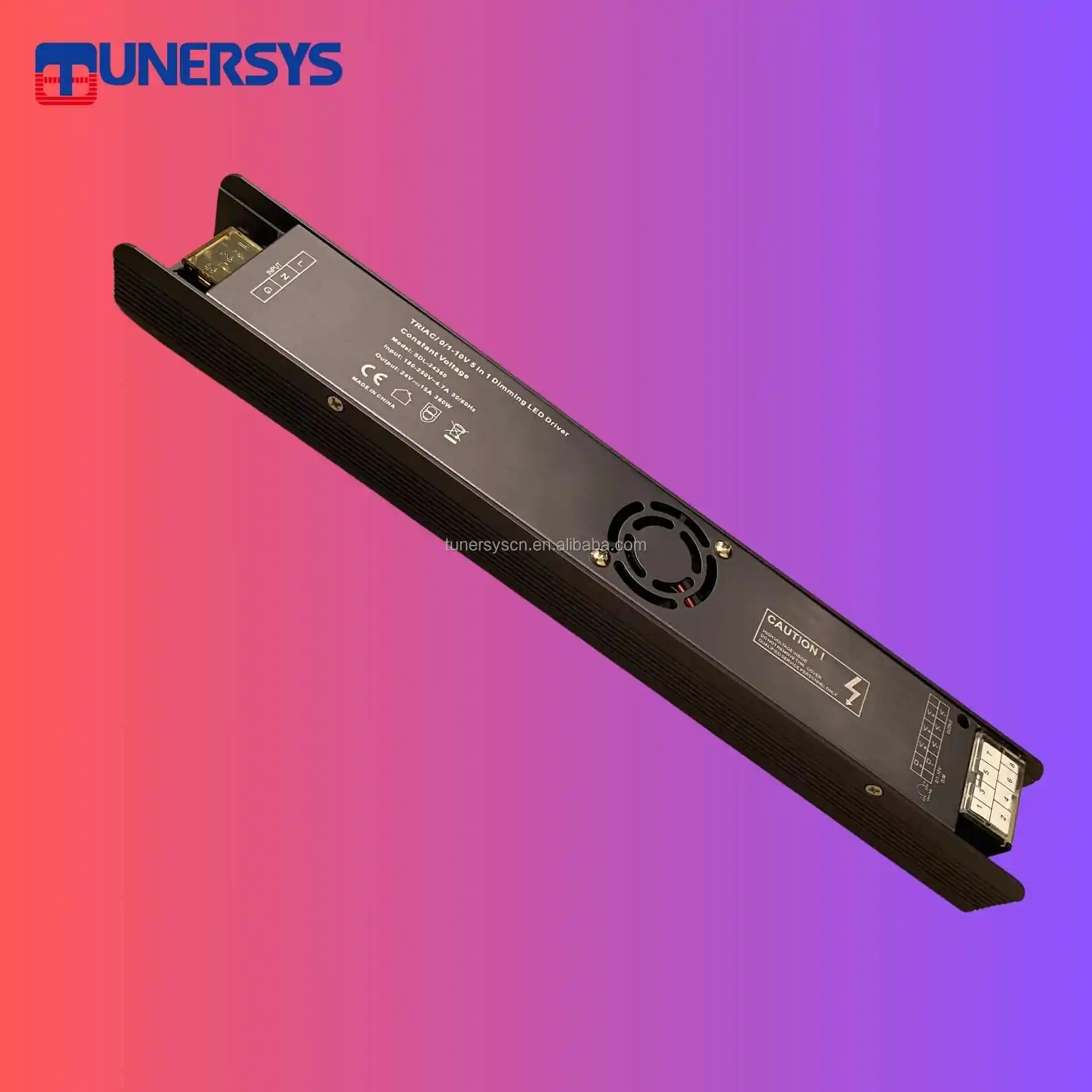

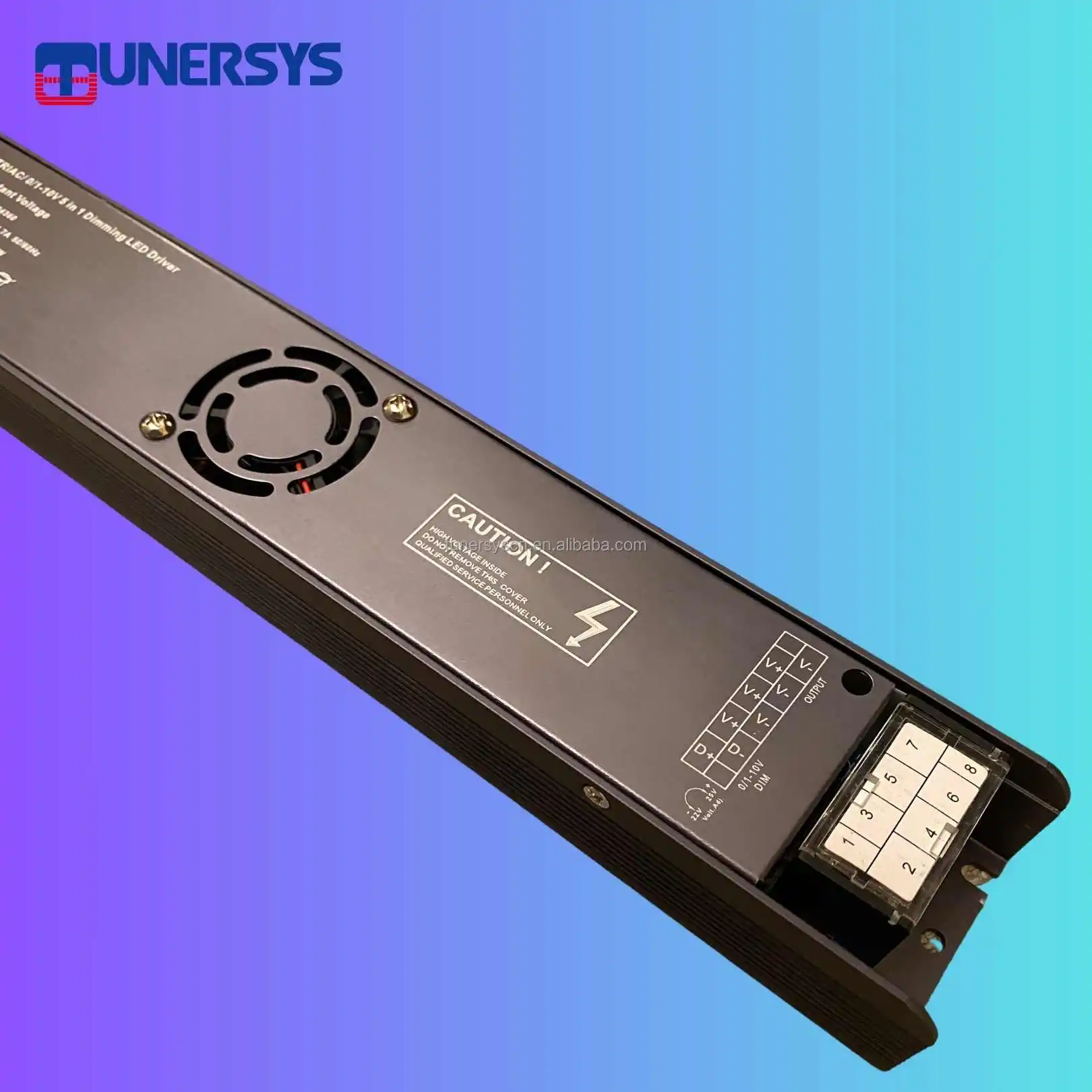

LED Drivers Light Triac 0-10v 1-10v dimmable driver 30w 60w 80w 96w 100w 120w 150w 180w 200w 300w 320w 360wLED lighting driver
·Output constant voltage
·UL, cUL listed, Class 2 unit, Type HL rated. FCC
·Universal AC input: 100-277VAC
·Power Factor: up to 0.99
·High efficiency : up to 90%
·Load: 10-100%
·Protection:short circuit/over loading/ Over temperature
·PWM output, does not change the color index
·Full protection metal case, for dry, damp, wet location
·Flicker-free
·Dimming function: Phase dimming: work with forward phase / leading edge, MLV and Reverse phase / trailing edge ,ELV, TRIAC
dimmers 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Dimming range: 0-100%
·Suitable for LED lighting and moving sign applications
·UL, cUL listed, Class 2 unit, Type HL rated. FCC
·Universal AC input: 100-277VAC
·Power Factor: up to 0.99
·High efficiency : up to 90%
·Load: 10-100%
·Protection:short circuit/over loading/ Over temperature
·PWM output, does not change the color index
·Full protection metal case, for dry, damp, wet location
·Flicker-free
·Dimming function: Phase dimming: work with forward phase / leading edge, MLV and Reverse phase / trailing edge ,ELV, TRIAC
dimmers 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Dimming range: 0-100%
·Suitable for LED lighting and moving sign applications
Packing & Delivery
0-10v 1-10v dimmable driver 30w 60w 80w 96w 100w 120w LED Drivers Light Triac150w 180w 200w 300w 320w 360wLED lighting driver
Company Profile
Tunersys company specializes in R&D
Focus Dimmable & non-dimmable LED driver and LED controller.
Tunersys offer mainstream dimmable LED driver, which includes DALI-1/DALI-2dimming, Push dimming, Triac/Phase-cut dimming,0/1-10V dimming, DMX512 dimming, BLE dimming, ZigBee dimming, Wi-Fi Dimming,etc.
Tunersys's products have been exported to numerous oversea market s with ENEC, TUV-CE, CB, SAA, DALI-2, RoHS,CCC, UL, cUL, ETL, cETL, FCC, and other cetificates.
Focus Dimmable & non-dimmable LED driver and LED controller.
Tunersys offer mainstream dimmable LED driver, which includes DALI-1/DALI-2dimming, Push dimming, Triac/Phase-cut dimming,0/1-10V dimming, DMX512 dimming, BLE dimming, ZigBee dimming, Wi-Fi Dimming,etc.
Tunersys's products have been exported to numerous oversea market s with ENEC, TUV-CE, CB, SAA, DALI-2, RoHS,CCC, UL, cUL, ETL, cETL, FCC, and other cetificates.
FAQ
1. who are we?
We are based in Hong Kong S.A.R., start from 2024,sell to Eastern Europe(25.00%),Northern Europe(25.00%),Southeast Asia(15.00%),South America(10.00%),Mid East(10.00%),Eastern Asia(10.00%),South Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LED driver,LED controller,Smart power supplies,Dimmable Driver,DALI-2 Driver
4. why should you buy from us not from other suppliers?
TUNERSYS INTELLIGENT CONTROL LIMITED specializes in R&D
Focus on Dimmable & non-dimmable LED driver and LED controller.
Tunersys offer mainstream dimmable LED driver, which includes DALI1/ DALI-2 dimming, Push dimming, Triac/Phase-cut, 0/1-10V dimming
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Hong Kong S.A.R., start from 2024,sell to Eastern Europe(25.00%),Northern Europe(25.00%),Southeast Asia(15.00%),South America(10.00%),Mid East(10.00%),Eastern Asia(10.00%),South Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
LED driver,LED controller,Smart power supplies,Dimmable Driver,DALI-2 Driver
4. why should you buy from us not from other suppliers?
TUNERSYS INTELLIGENT CONTROL LIMITED specializes in R&D
Focus on Dimmable & non-dimmable LED driver and LED controller.
Tunersys offer mainstream dimmable LED driver, which includes DALI1/ DALI-2 dimming, Push dimming, Triac/Phase-cut, 0/1-10V dimming
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Похожие товары
Meanwell HLG-120H-48AB C.C + C.V режим 120 Вт светодиодный драйвер 48 В функция регулировки яркости 3 в 1
3 727,49-5 135,91 ₽
Бренд Mean Well представляет LPF-25-24 25 Вт 24В светодиодный драйвер
Адаптер питания серии UL TUV MAL WELL GST 60 Вт 120 160 220 280 настольный промышленный светодиодный адаптер импульсный источник
Универсальный настенный переключатель питания для путешествий 12 В 3 А зарядное устройство постоянного и переменного тока Вилка портативный бытовой адаптер Великобритании ЕС США
83,72-171,96 ₽
2 1x5 5 мм разъем постоянного тока штекер 4*1.5AA В 6 держатель батареи корпус с переключателем и крышкой для светодиоды неоновый
90,51-101,82 ₽

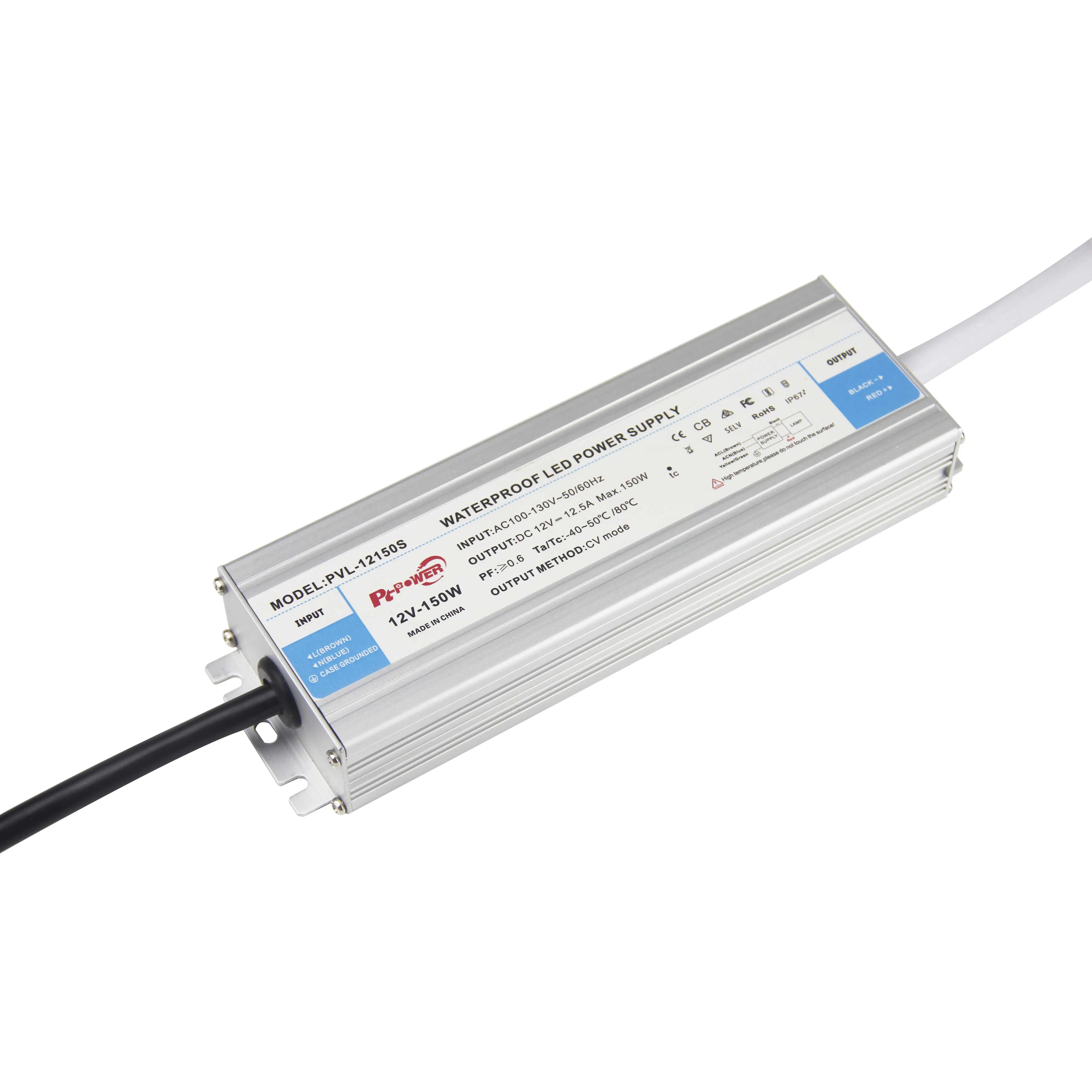

Светодиодный источник питания 12 В 150 Вт ультратонкий преобразователь низкого напряжения водонепроницаемый светодиодный драйвер IP67
1 199,14-1 323,57 ₽

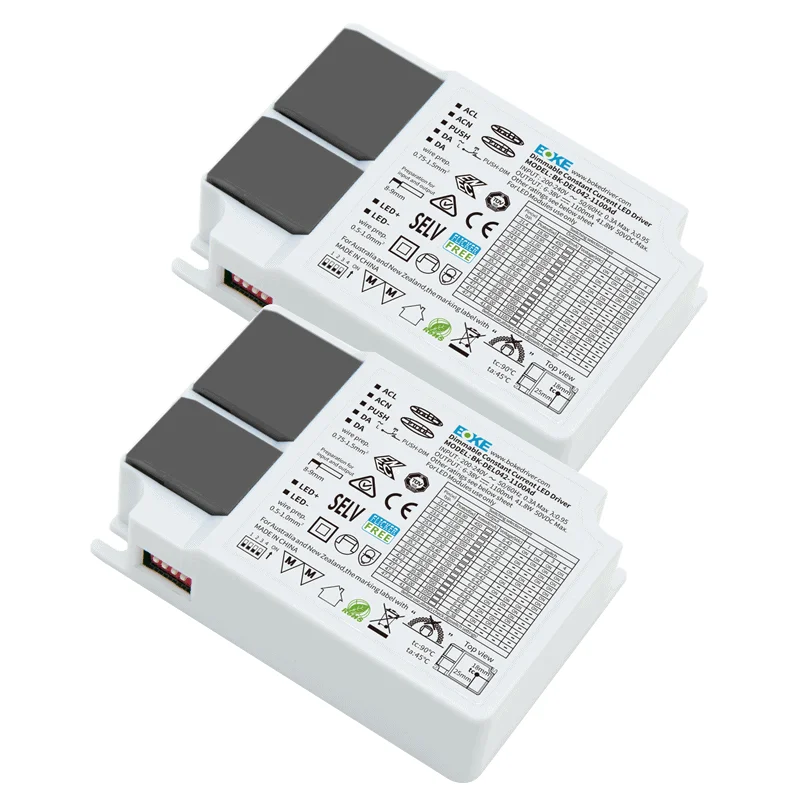

Диммируемый драйвер постоянного тока BOKE 28 5 Вт 6-42VDC 0 30-0.75A DALI2 + PUSH (переключатель Диммируемый)
