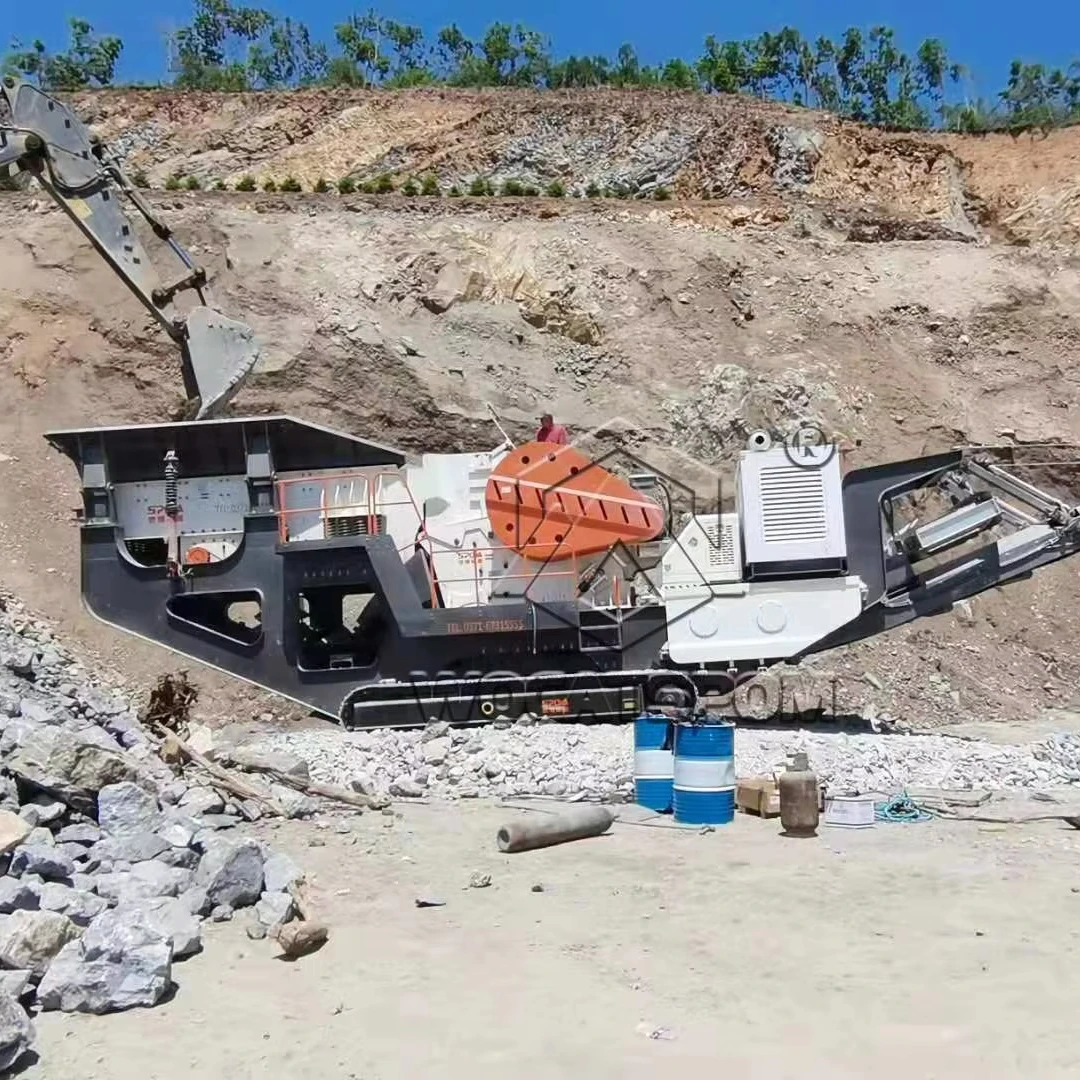

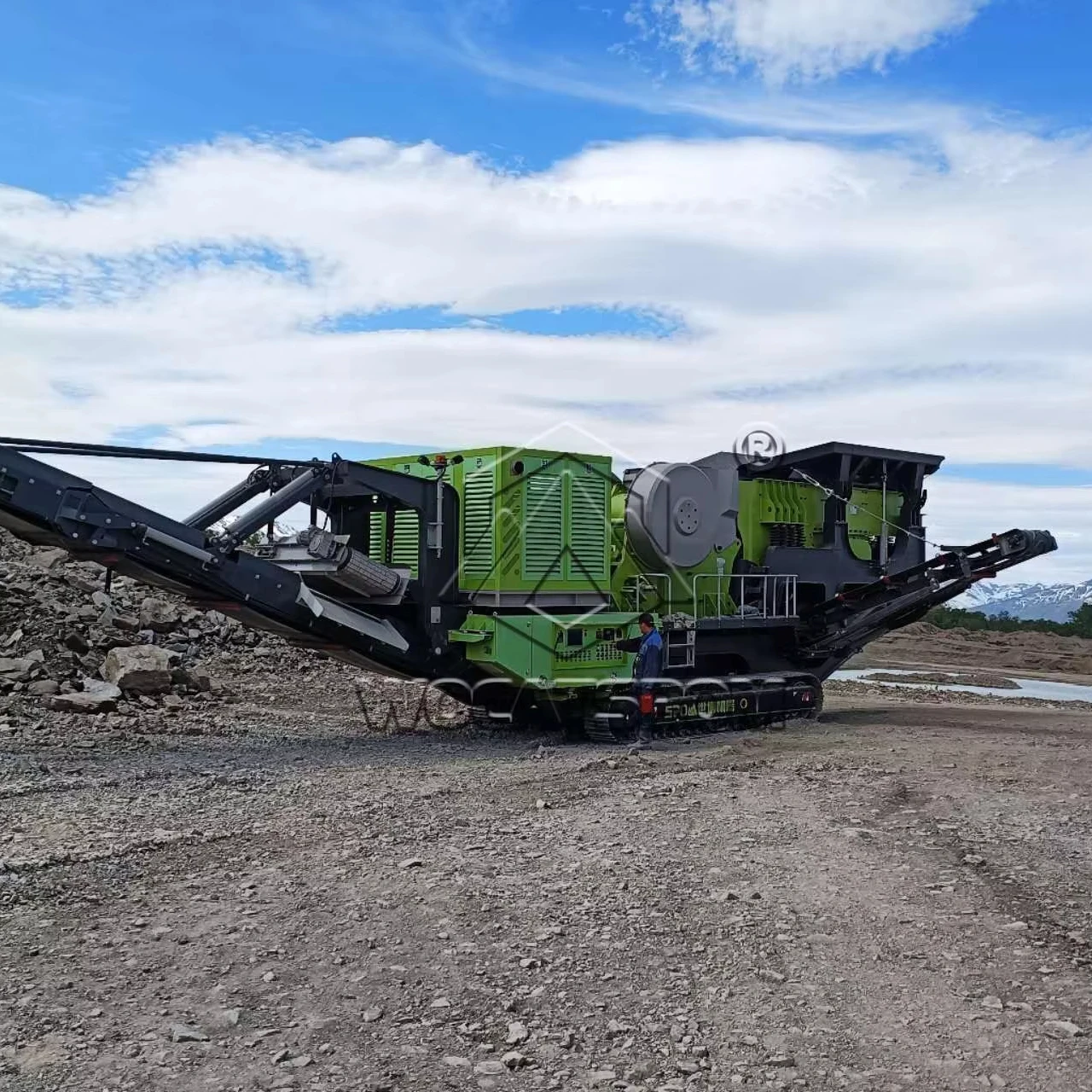

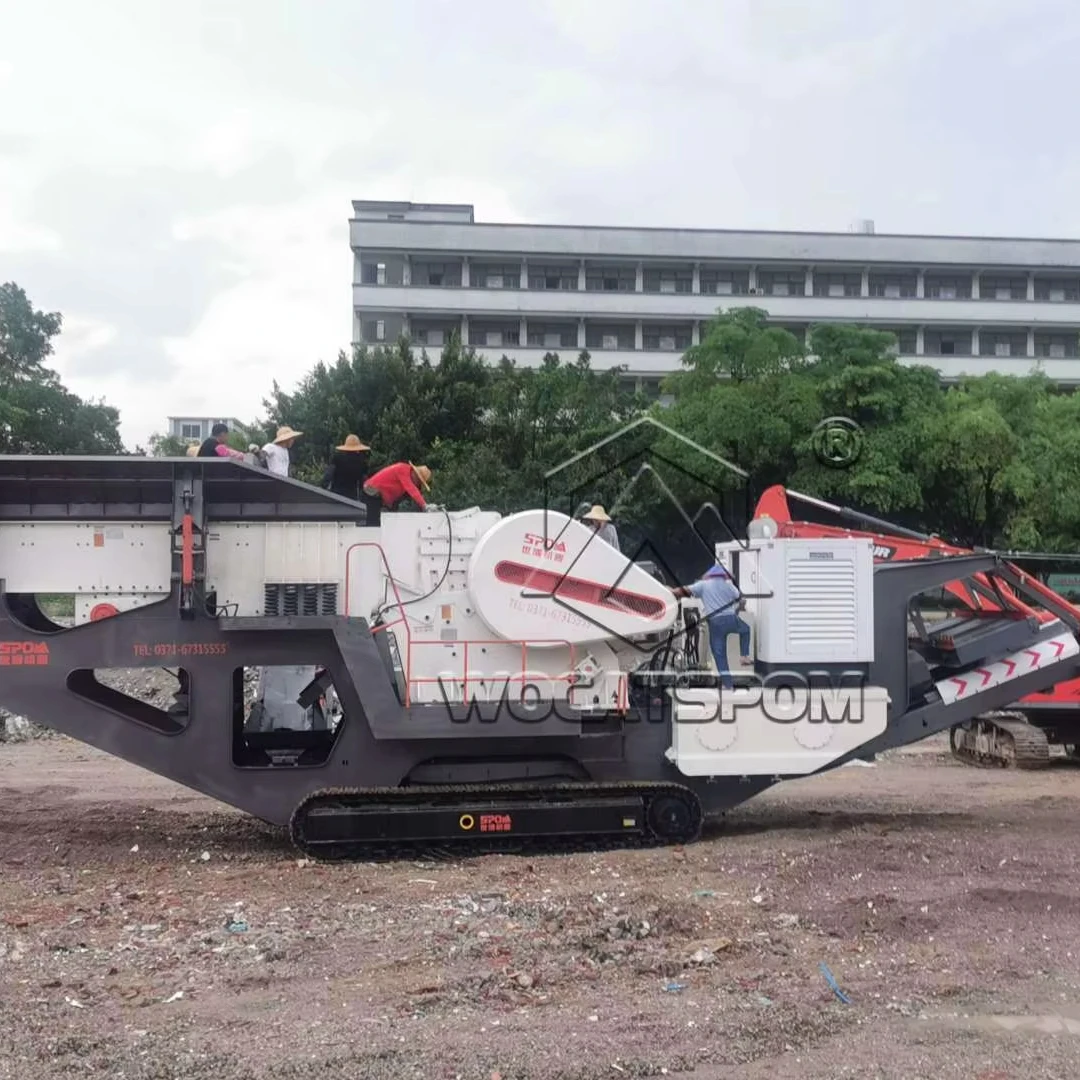

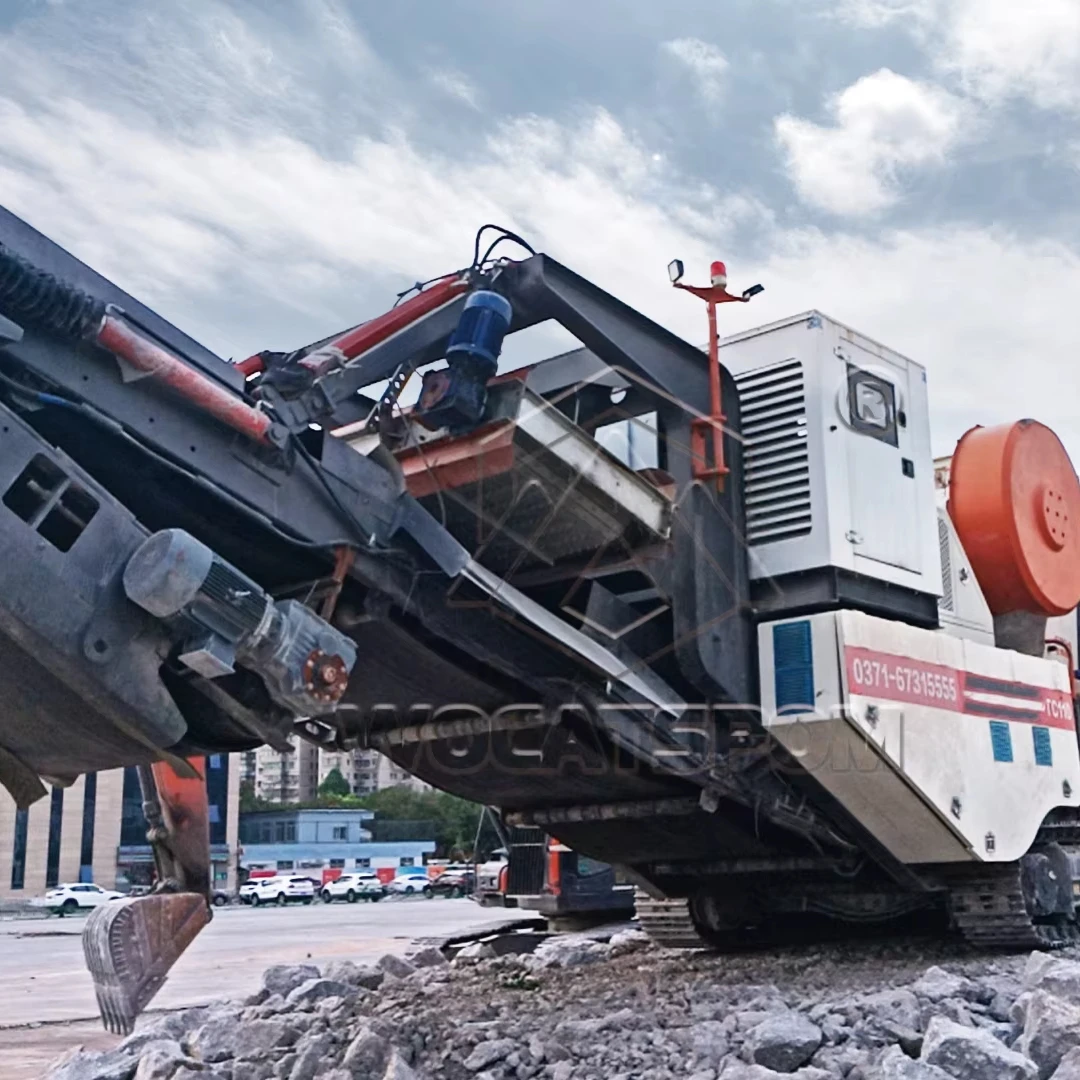

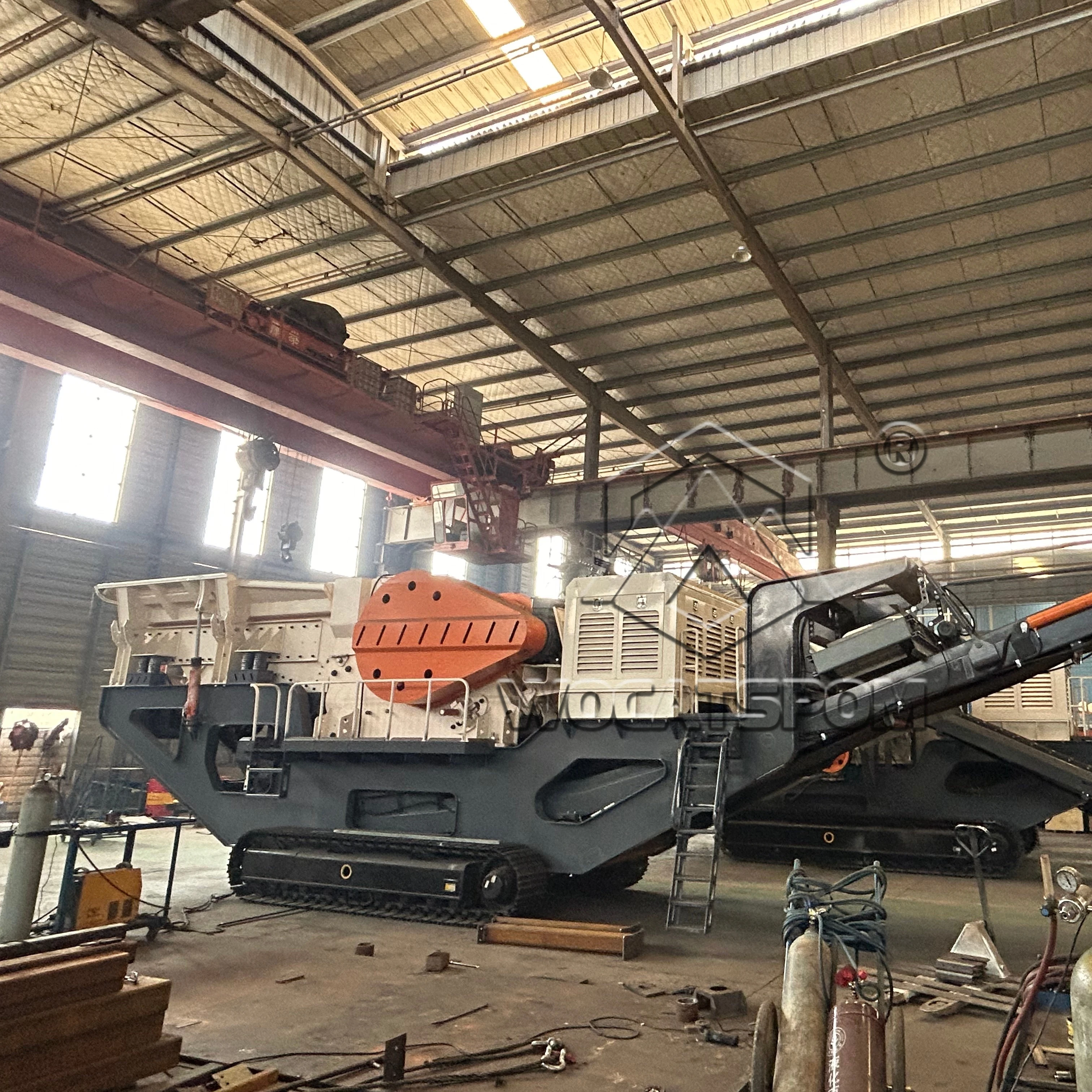

Большая гусеничная щековая дробилка передвижная дробильная установка дробление кварцевого камня бетона
- Категория: >>>
- Поставщик: Wocat Spom Group Mineral Tech Co. Ltd.
Сохранить в закладки 1601235208872:
Описание и отзывы
Характеристики
Product Description

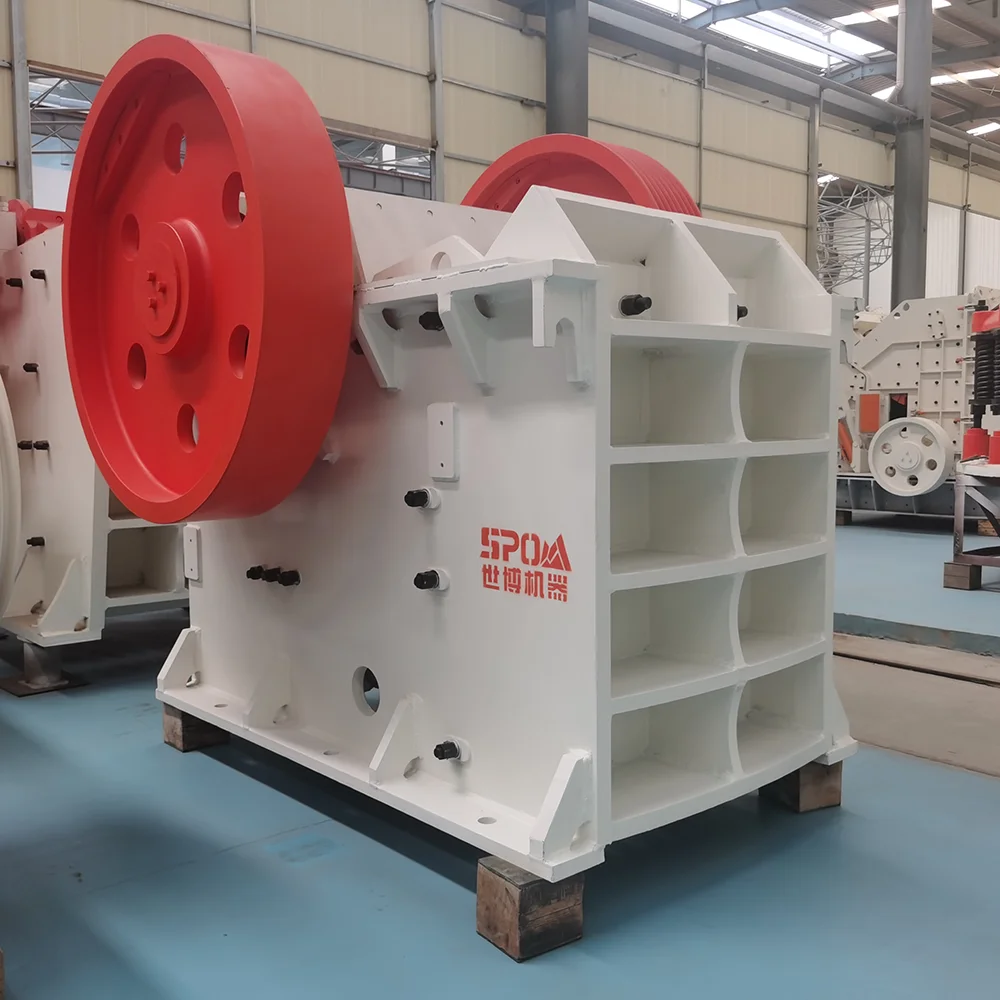

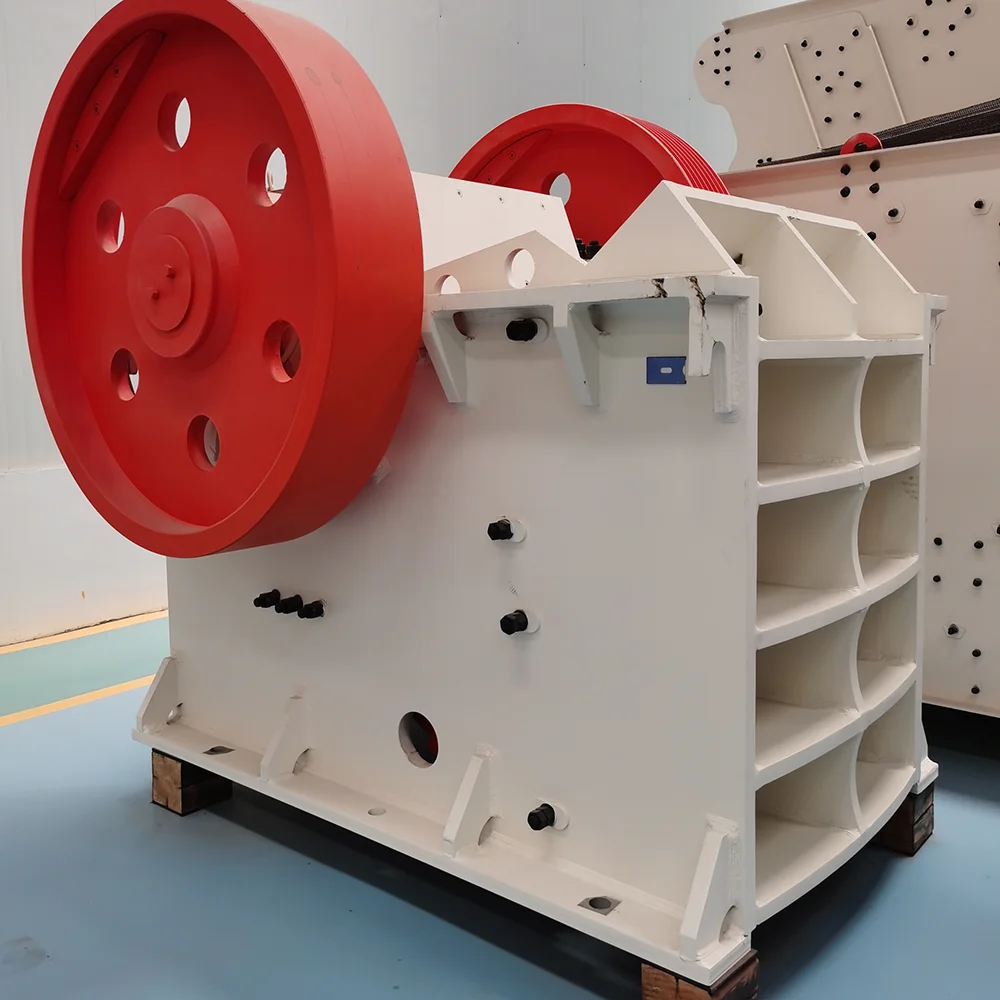

PE series jaw crusher is a low-cost, high-capacity mining crushing machine designed and improved by WocatSpom using foreign advanced technology combined with its own experience and technology. Different models can meet the production capacity of 1 tph to 1200 tph according to different needs.

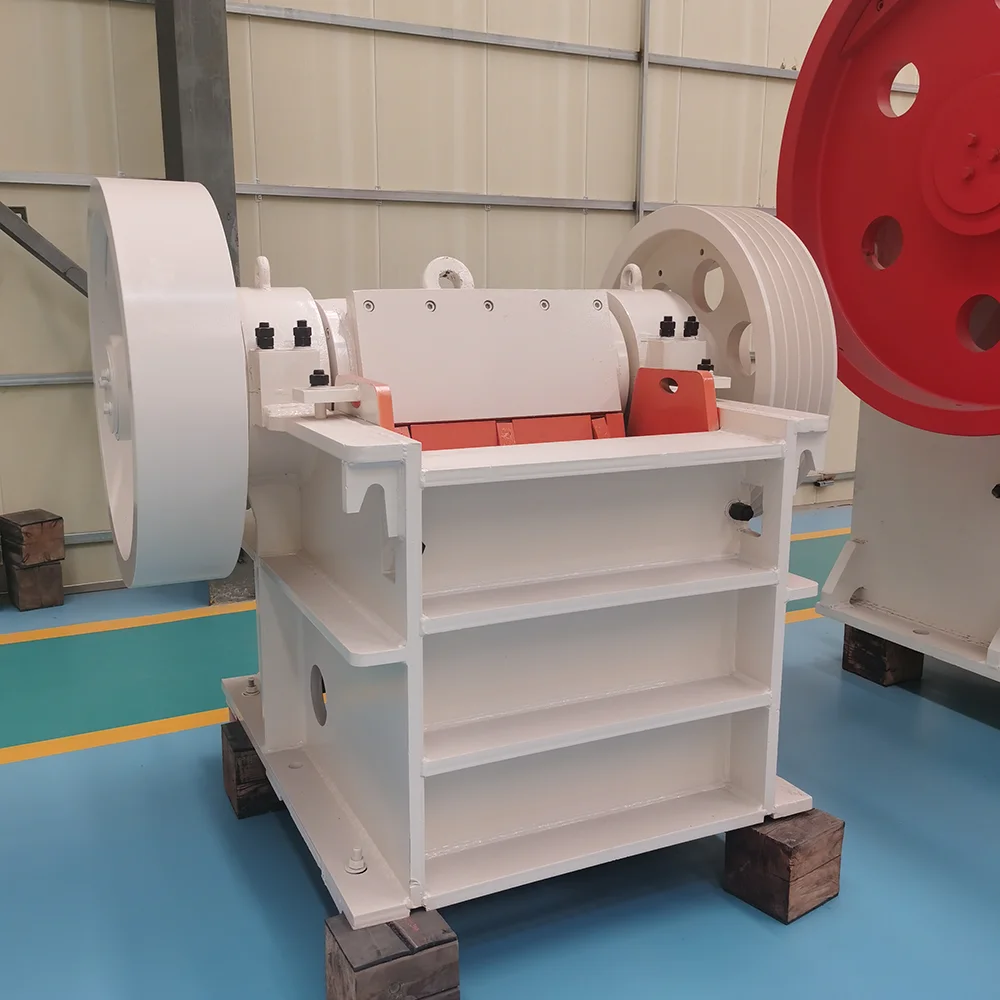

PE Jaw Crusher is a kind of coarse and medium crushing equipment, which is widely used for crushing all kinds of hard and soft ores with compressive strength below 320MPa, such as pebble, calcite, granite, quartz, concrete, dolomite, blue stone, iron ore, limestone and etc. Jaw crusher often forms a complete sand production line with cone crusher, impact crusher, sand making machine and so on. The crusher has been widely used in mining, metallurgy, chemical industry, building materials, highway, railroad, water conservancy and other industries.
Product Advantage
High crushing ratio
Uniform crushing strength
Low noise and dust
PE jaw crushers are characterized by solid structure, stable and reliable work, easy maintenance and low operation cost.
Technical Paraneters
Model | Maximum Feed size (mm) | Discharge size (mm) | Processing Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
PE 150×250 | 130 | 15-45 | 1-4 | 5.5 | 896×745×935 |
PE 250×300 | 150 | 15-55 | 3-6 | 7.5 | 1050×987×1000 |
PE 250×400 | 210 | 25-60 | 5-20 | 15 | 1215×1520×1030 |
PE 400×600 | 350 | 40-90 | 15-60 | 30 | 1650×1588×1050 |

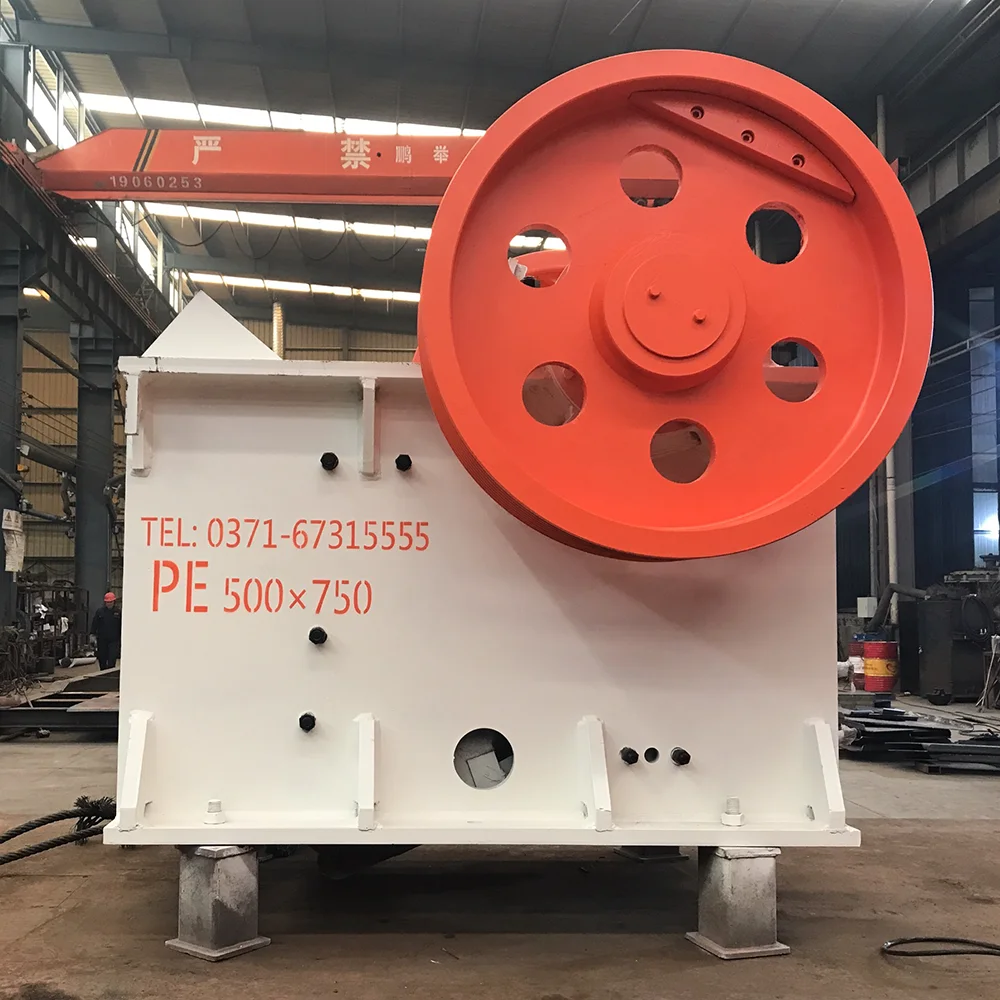

PE 500×750 | 425 | 50-100 | 40-110 | 45 | 1956×1918×1920 |
PE 600×900 | 500 | 60-125 | 90-180 | 75 | 2250×2733×2280 |
PE 800×900 | 600 | 80-150 | 100-220 | 75 | 2450×2950×2490 |
PE 750×1060 | 630 | 60-150 | 110-380 | 110 | 2531×2455×2783 |
PE 900×1060 | 700 | 100-160 | 230-390 | 110 | 2900×2657×2950 |
PE 900×1200 | 750 | 110-165 | 220-450 | 132 | 3100×2760×3260 |
PE 1000×1200 | 900 | 110-185 | 315-500 | 132 | 3200×2760×3260 |
PE 1200×1500 | 950 | 115-195 | 550-1000 | 220 | 3710×3446×4075 |
PE 1500×1800 | 1200 | 135-225 | 600-1200 | 280 | 5100×4700×4300 |
PEX150×750 | 120 | 10-40 | 8-25 | 15 | 1310×1118×1145 |
PEX250×750 | 210 | 15-50 | 15-35 | 22 | 1400×1751×1515 |
PEX250×1000 | 210 | 15-60 | 15-60 | 30 | 1550×1964×1380 |
PEX250×1200 | 210 | 15-60 | 20-60 | 37 | 1530×1946×1380 |
PEX300×1300 | 250 | 25-60 | 16-105 | 55-75 | 2000×2320×1730 |

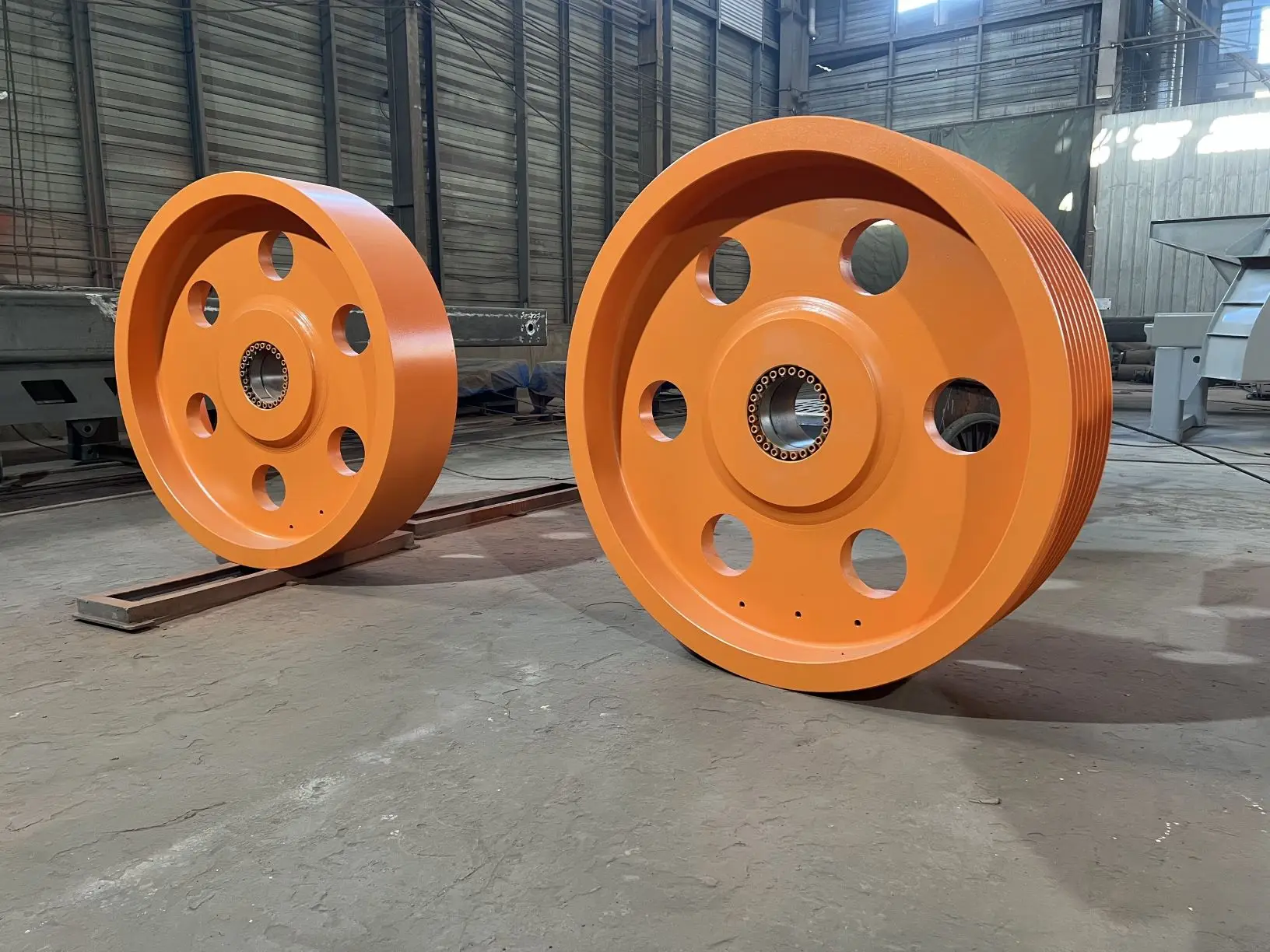

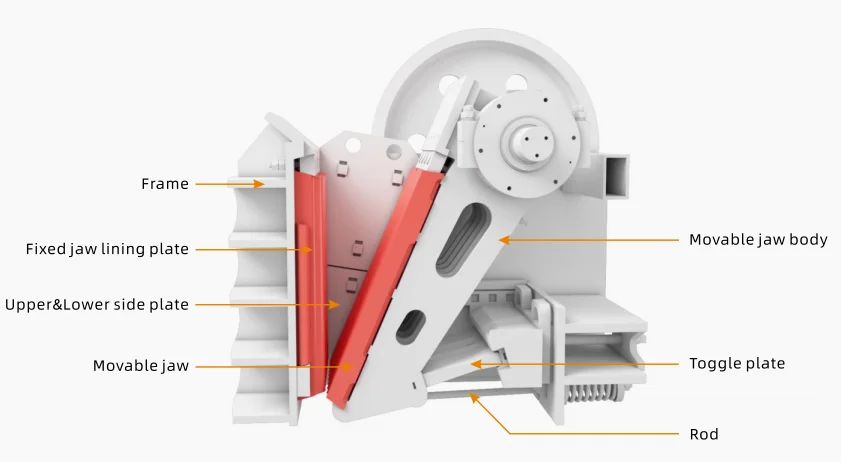

The electric motor drives the belt and pulley, through the eccentric shaft to make the moving jaw move up and down to complete the material crushing work.

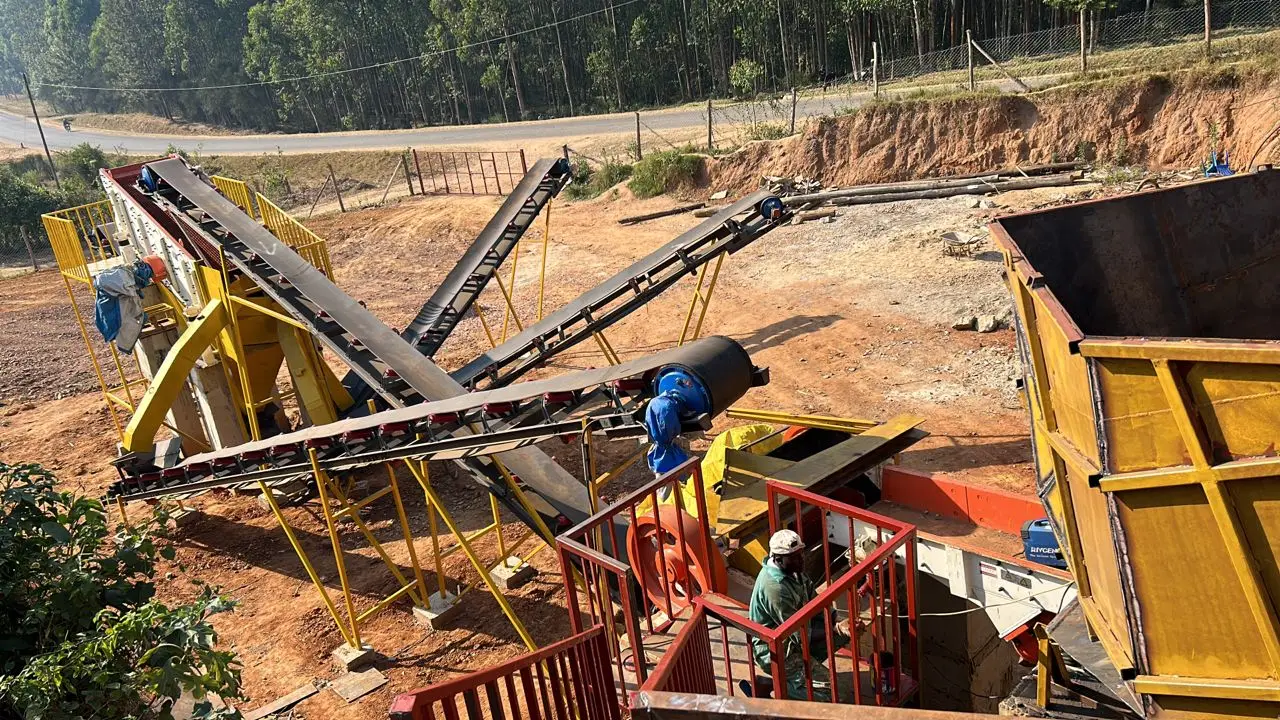

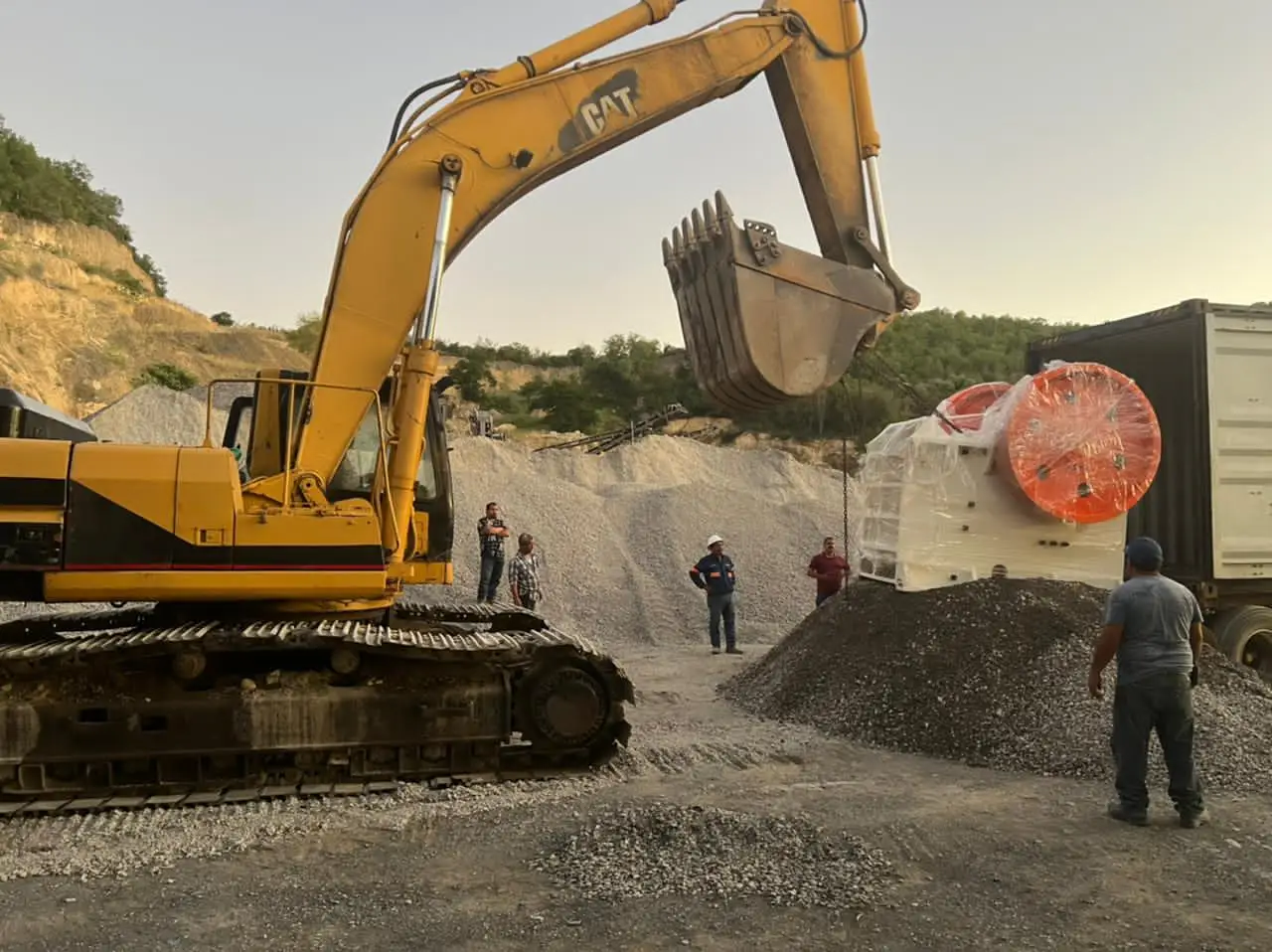

Working site

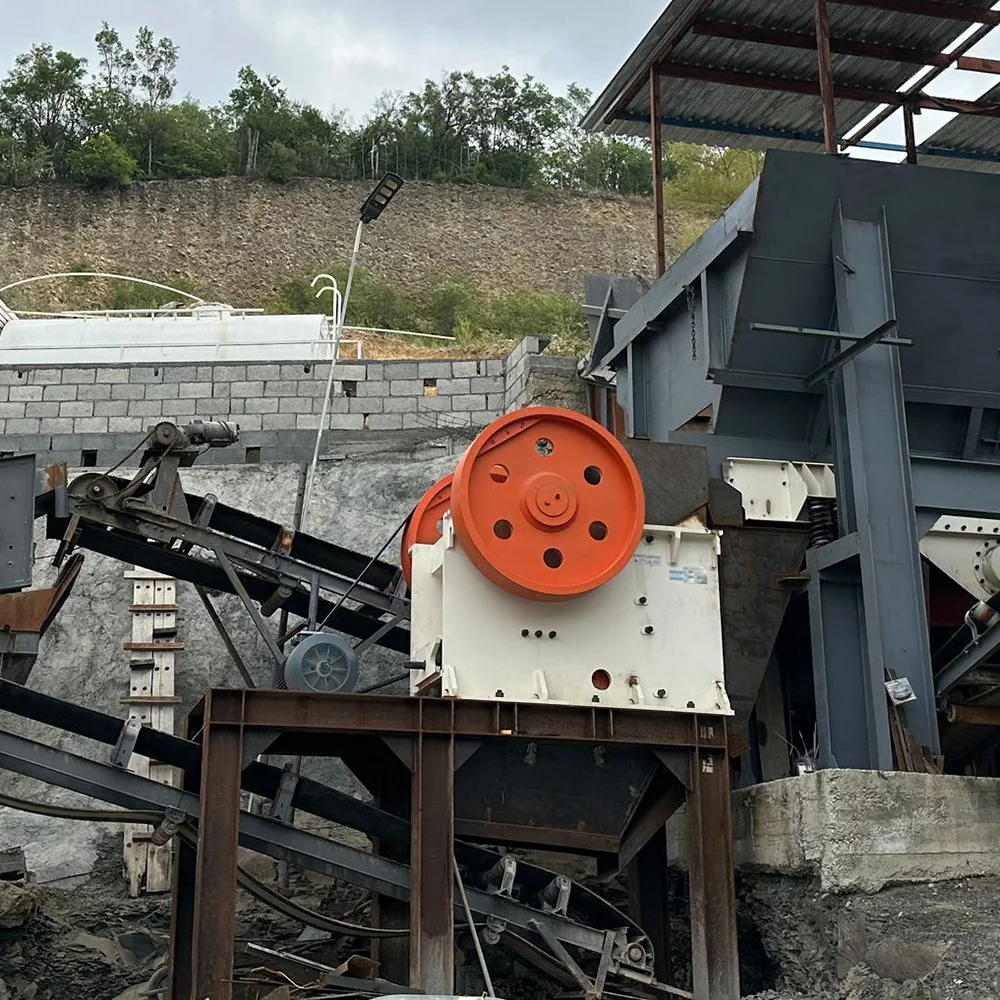

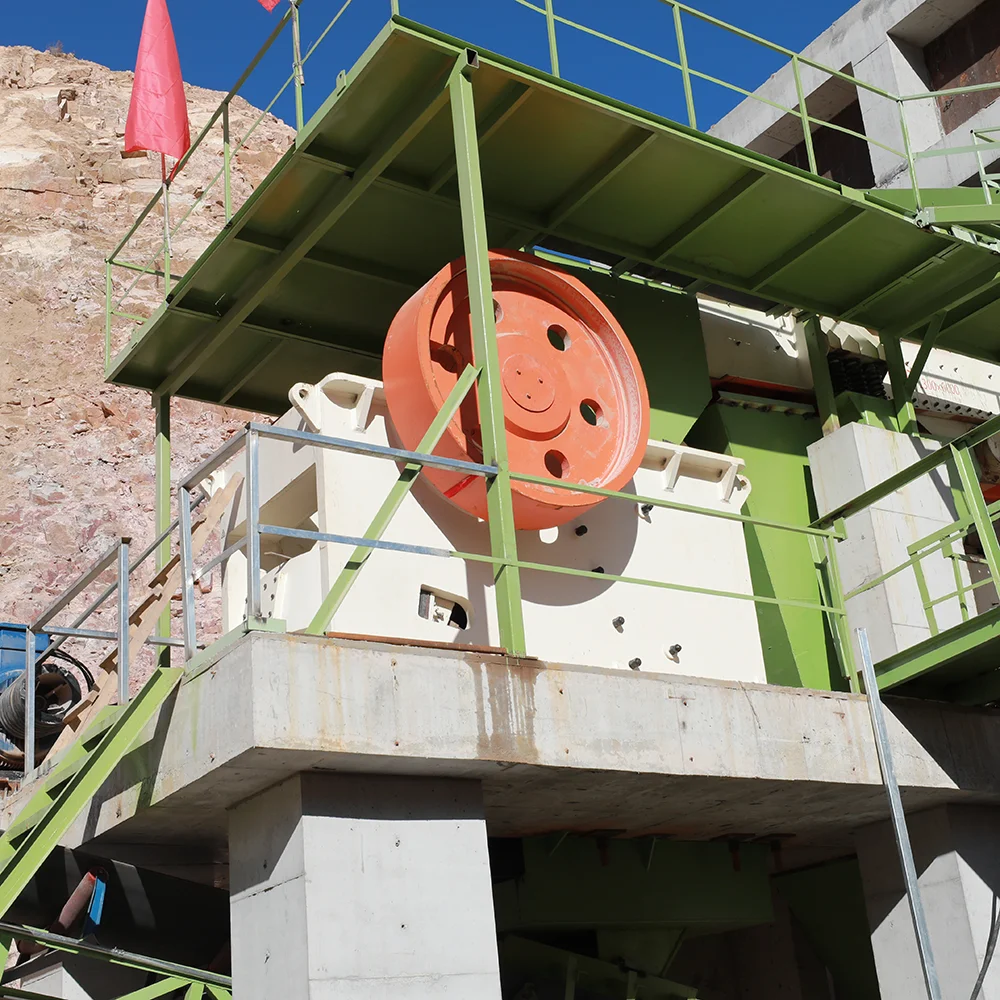

PEX-250×1200 Jaw Crusher
This is a 40 tons per hour limestone crushing and screening production line , max feeding size 210mm, final product size 15-60mm, the motor power is 37KW. Our products bring a lot of convenience to our customers and they are very satisfied!

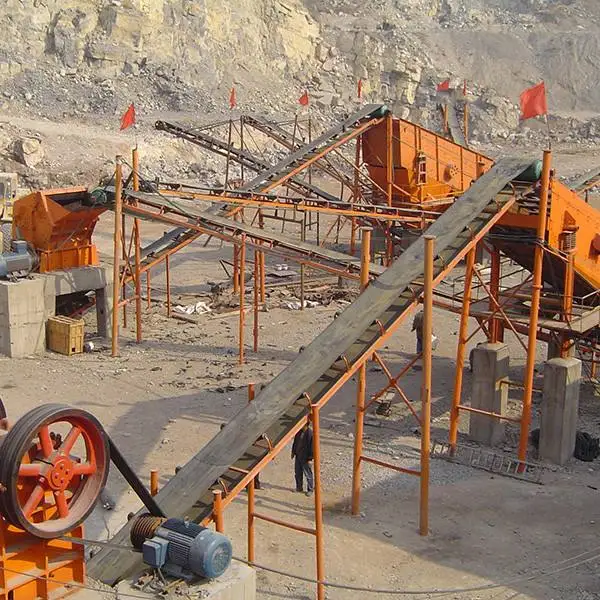

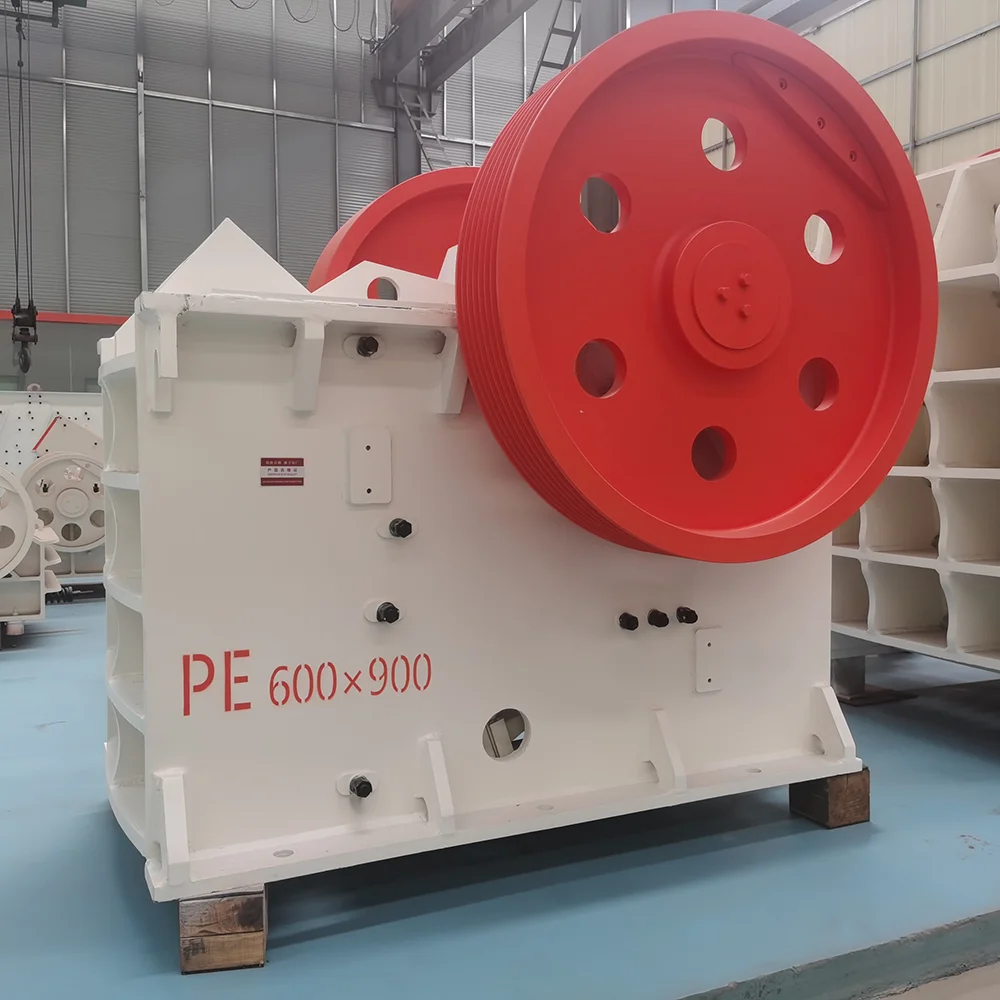

PE 600x900 Jaw crusher
This is 150 tons per hour crushing and screening production line , max feeding size 500mm, final product size 60-125mm, the motor power is 75KW. The PE jaw crusher is running smoothly, effectively processing materials and significantly improving production efficiency, meeting the clients' expectations. This transaction has led to a win-win situation, benefiting both the customers and the supplier.

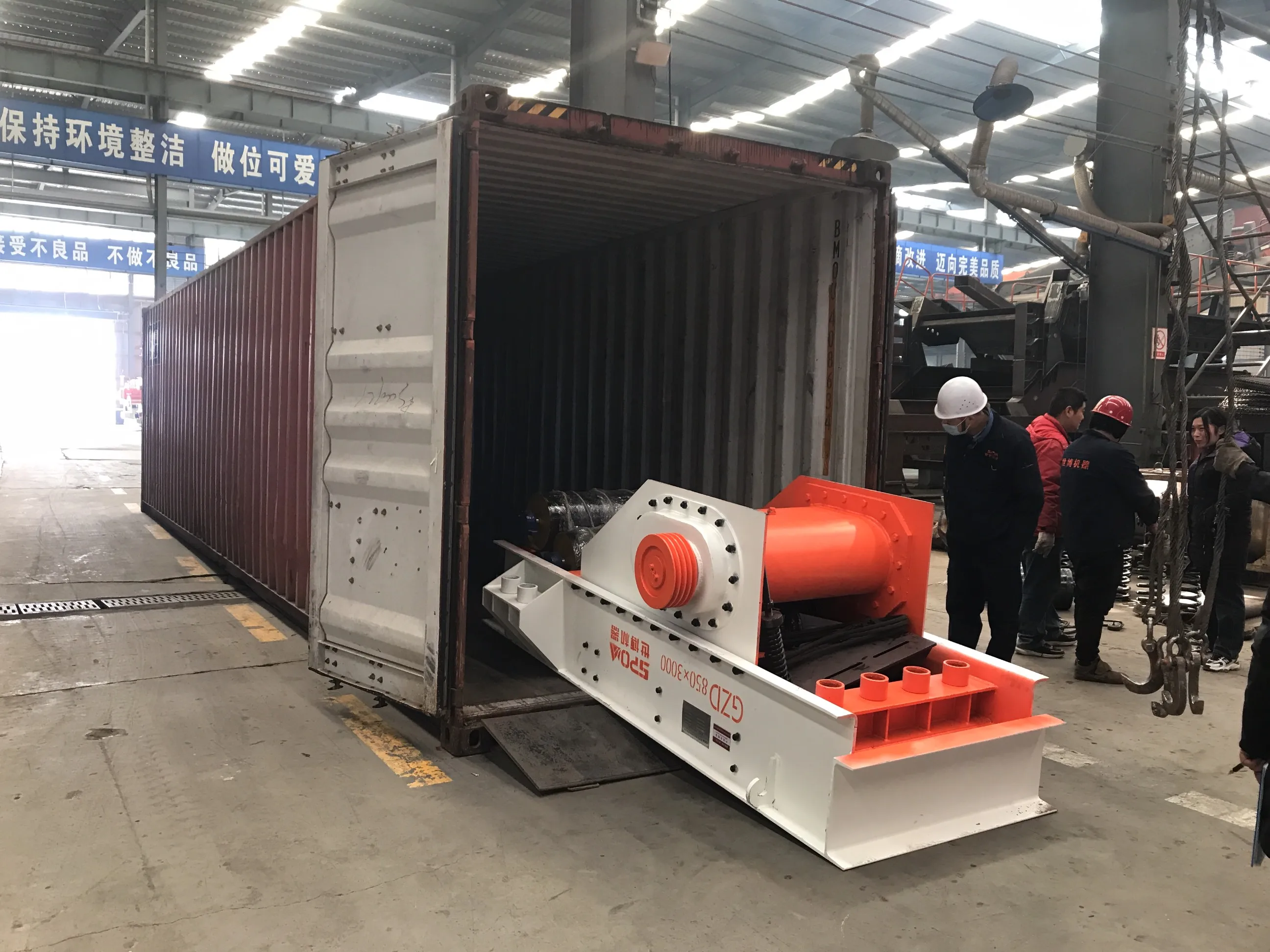

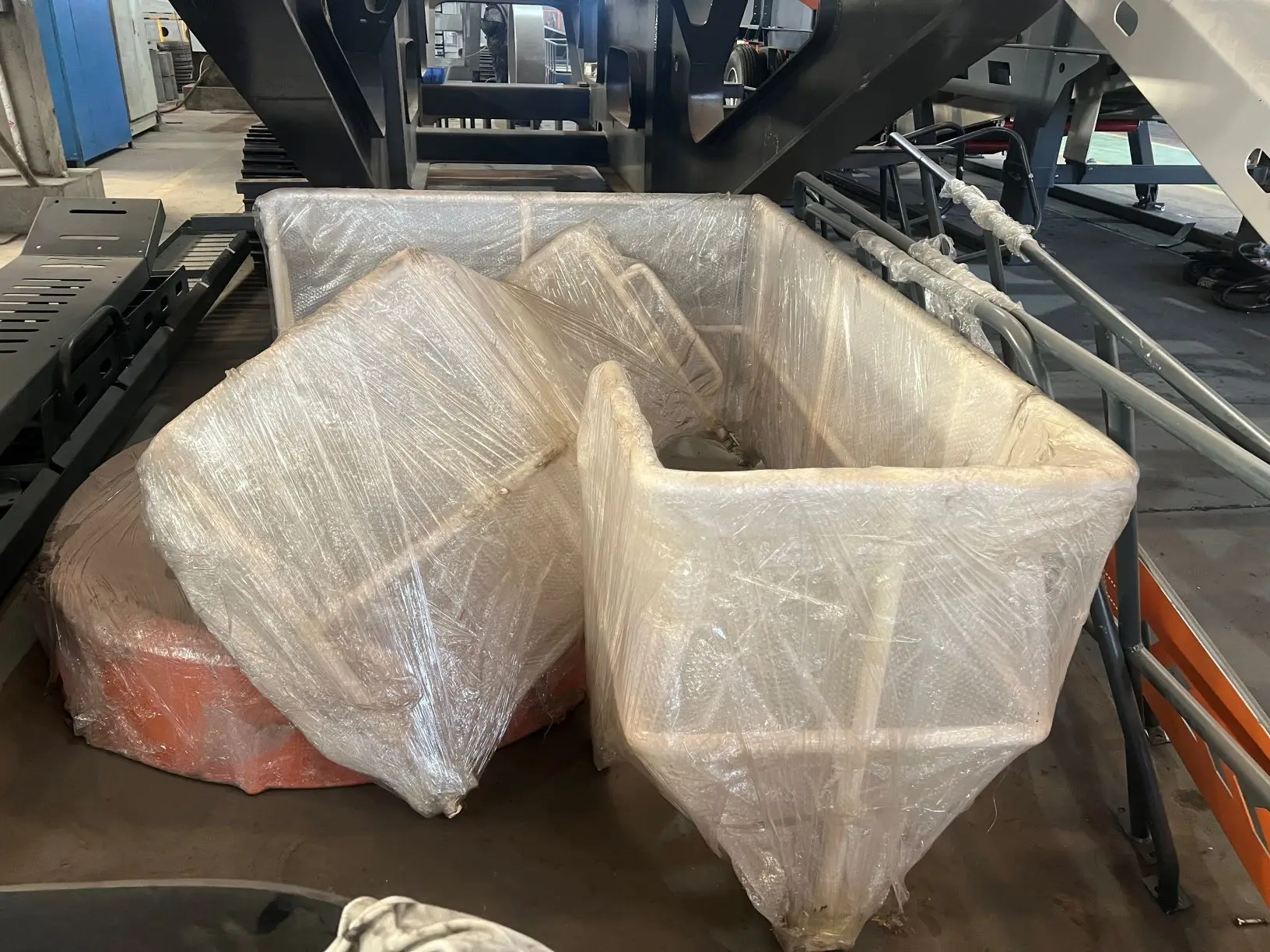

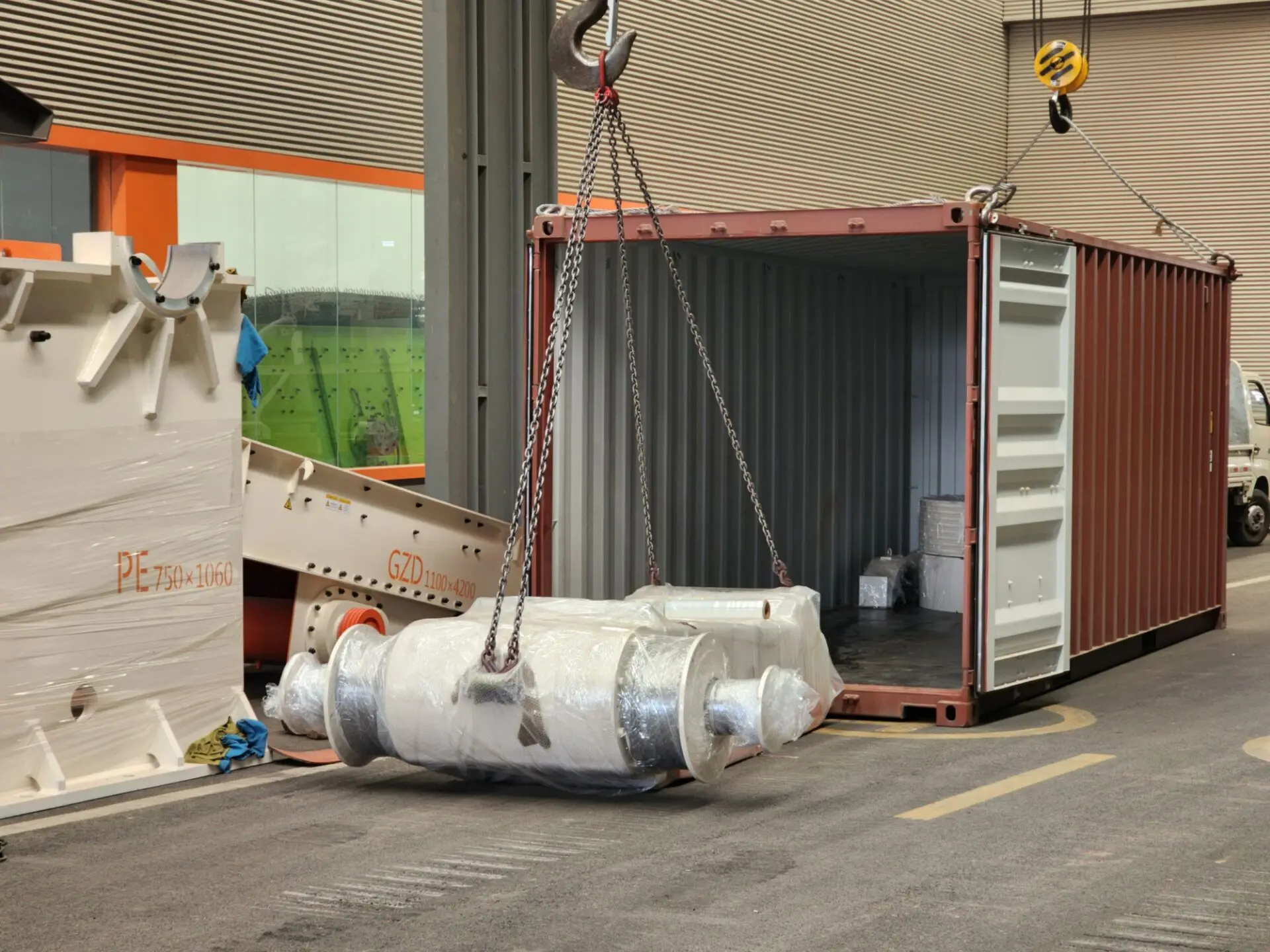

Packing & Shipping

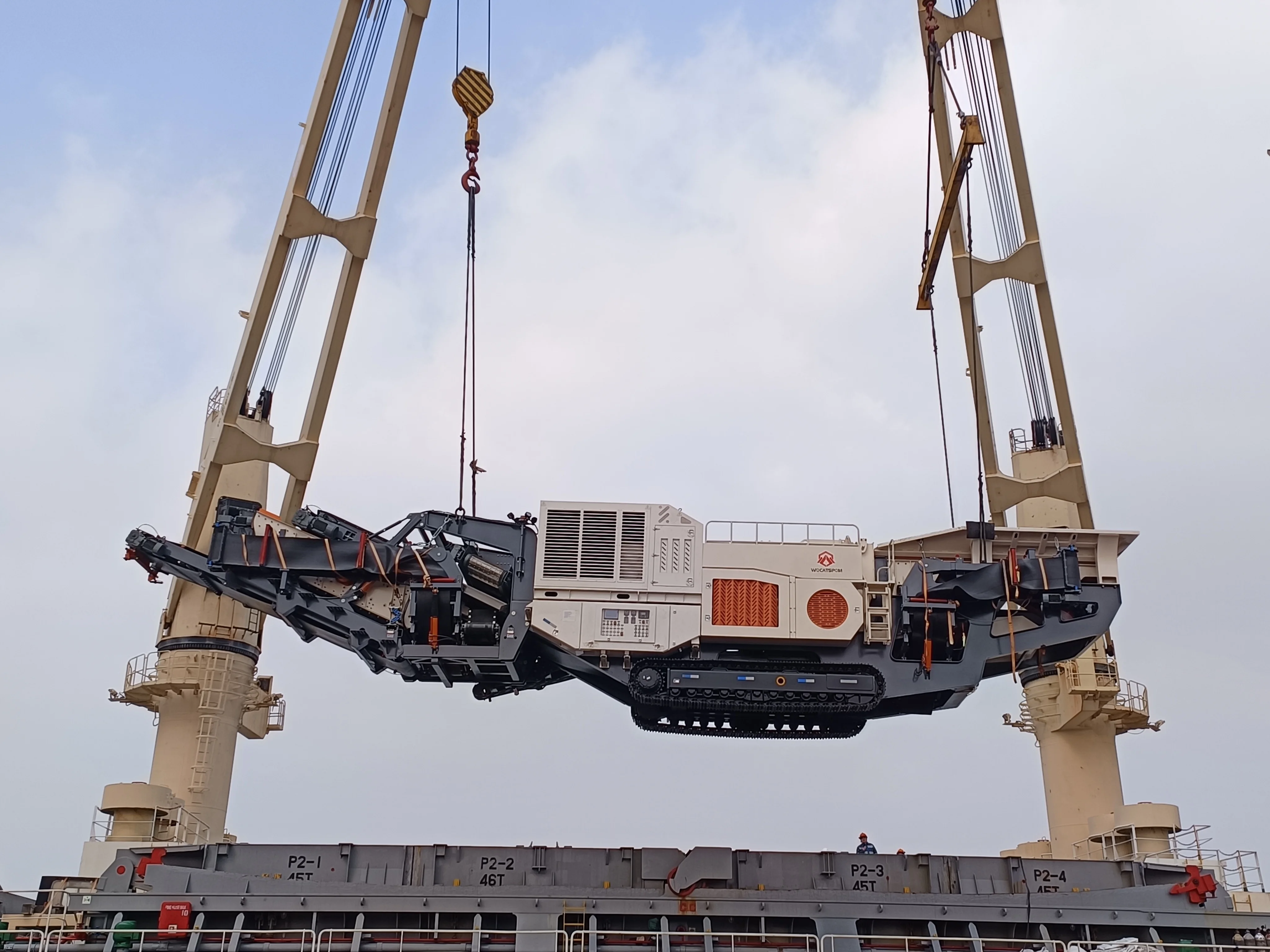

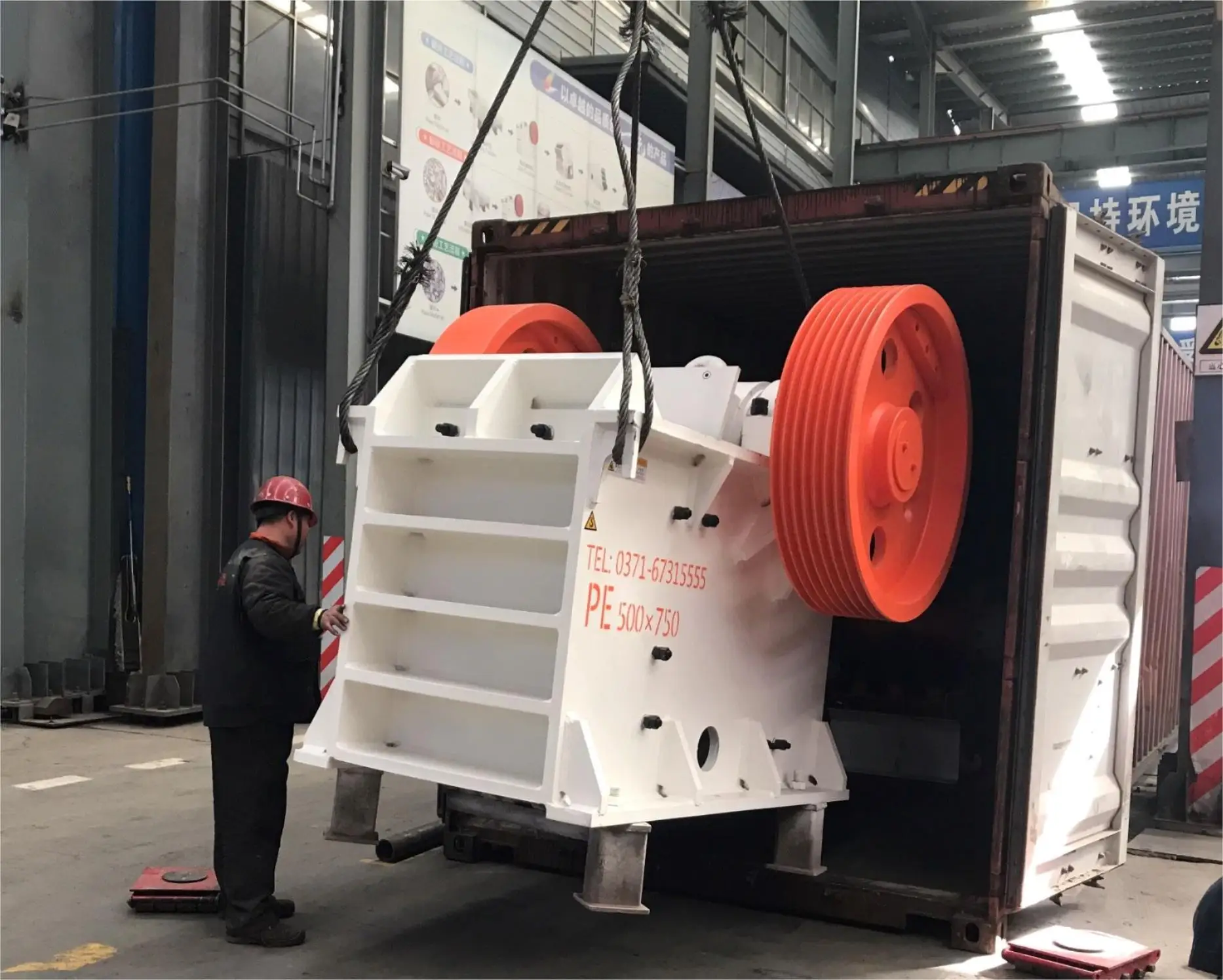

Our motor , v-belt , anchor bolt , control cabinet, spare parts etc. are packing into wooden box. Big model jaw crushers are nude packing into container directly. Some super big jaw crusher have to disassemble and load into several container or bulk carrier.
ABOUT US

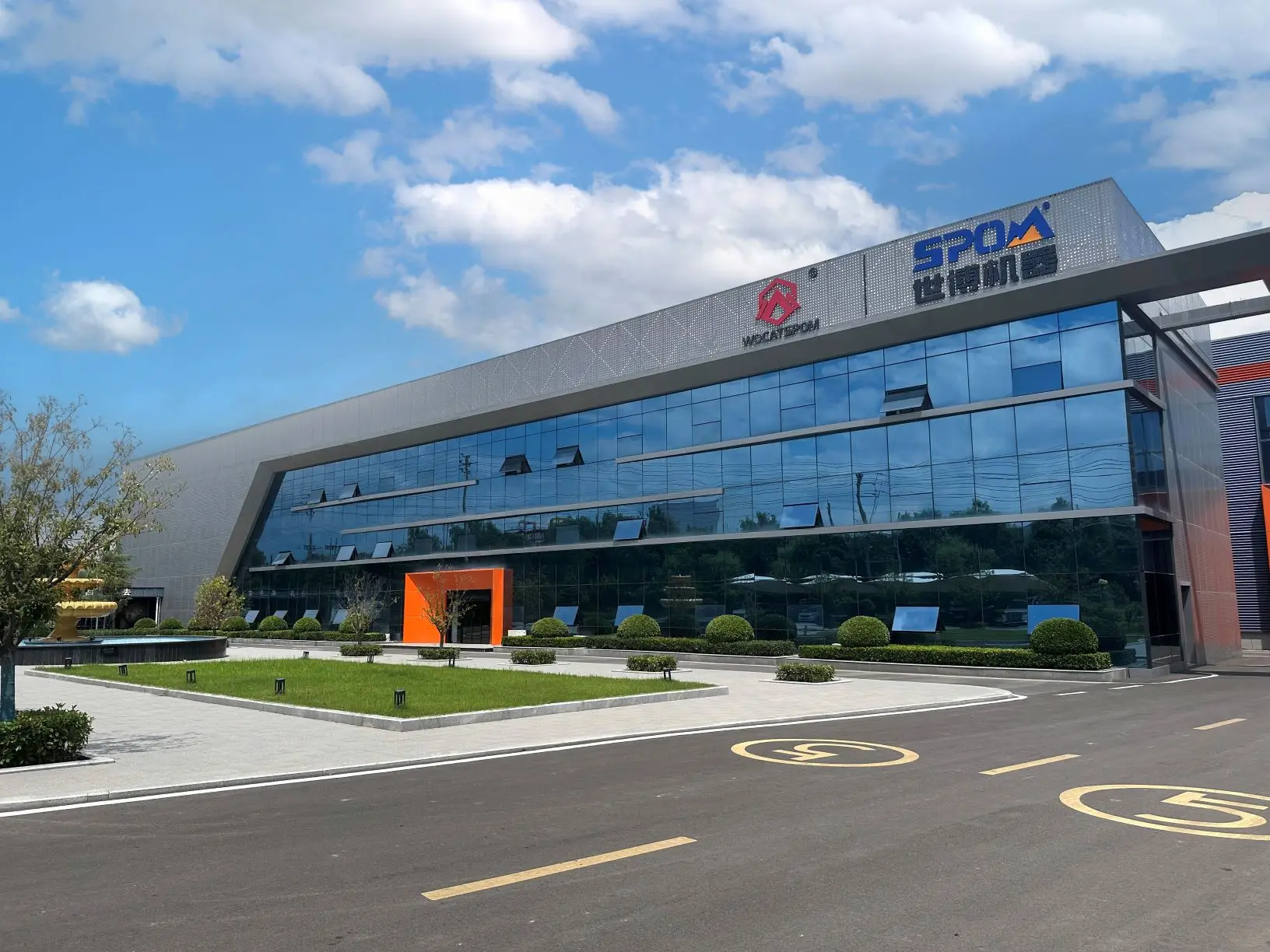

Wocat Spom Group Mineral Tech Co., Ltd., a professional manufacturer of stone crushers, grinding mills as well as solution provider, is located in Zhengzhou, Henan province with 25,000 square meters of standardized heavy industrial plants. The total number of employees is 125, of which 30 are professional technicians and engineers. We integrate research and development, design, manufacturing, sales and after-sales service, focusing on the development of automatic and mobile, energy-saving and environmental protection equipment. We are an expert in mobile crushers including crawler crusher, wheel-mounted crusher and skid-mounted crusher etc, helping to process construction waste, contributing to efficient infrastructure development and green mining.
Our products have been sold to 120 countries and regions in Southeast Asia, Eastern Europe, South America, the Middle East and Africa, and we will expand to more foreign markets in the future.
FAQ
1、If I need a complete stone production line, can you build it for us?
Yes, our company welcomes customers from all over the world to visit our factory at any time. We can also provide you with program customization, mine design, equipment manufacturing, after-sales service, etc.
2、Are you a stone crusher and grinding mill manufacturer?
We have been exporting business for 15 years, we have many customers in the world. For example, Middle East, South Asia. South Africa. Canada, and so on.
4、How to get free solution and quotation?
In order to save your time more efficiently, please send us your inquiry, leave your e-mail or other contact information, our sales manager will contact you in the shortest time!

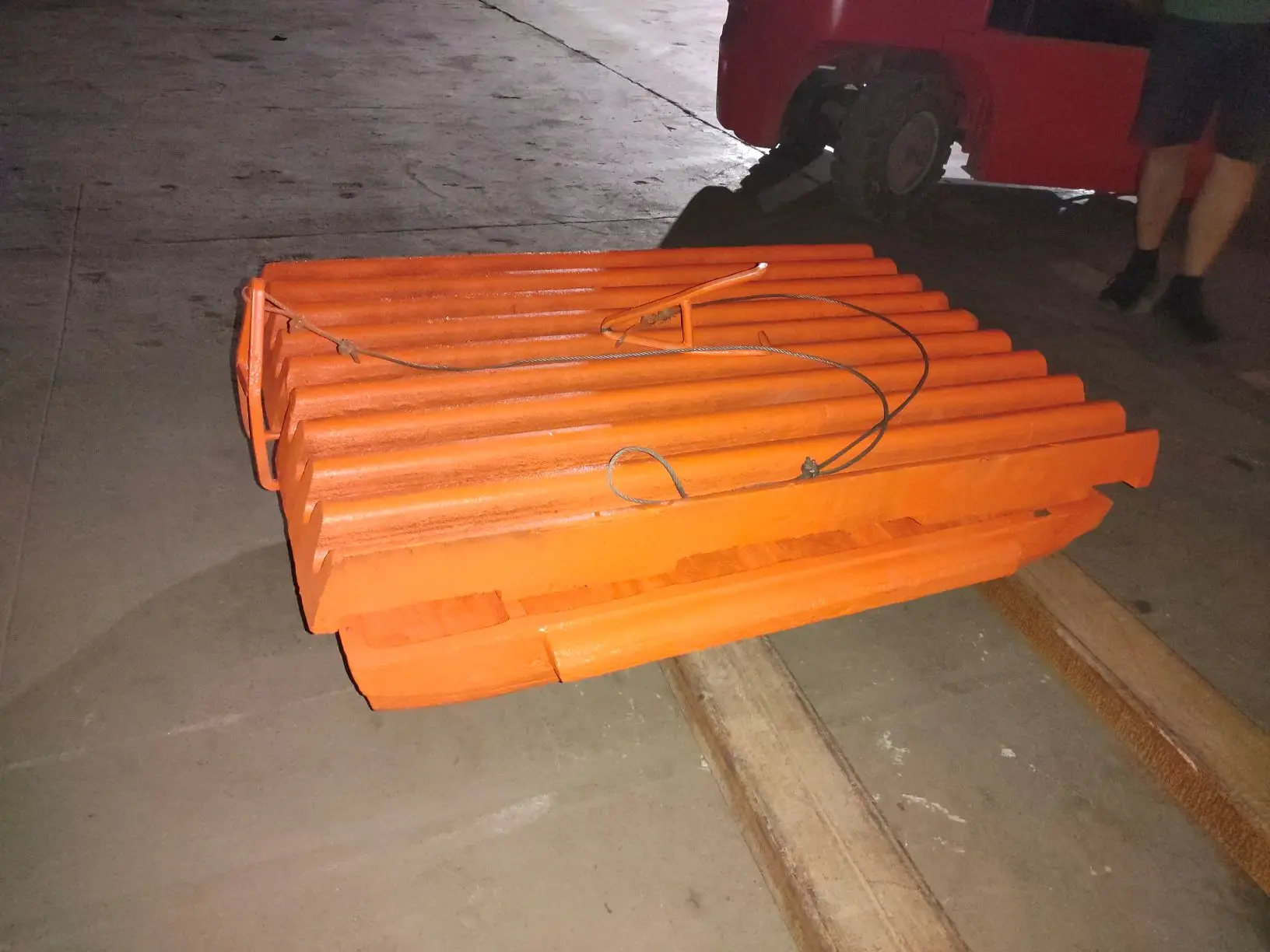

5、Does the company have related crusher parts service?
We can provide all kinds of accessories about crusher equipment with advanced technology, reliable performance and durability to ensure that customers' needs can be met in a timely and effective manner.
Yes, our company welcomes customers from all over the world to visit our factory at any time. We can also provide you with program customization, mine design, equipment manufacturing, after-sales service, etc.
2、Are you a stone crusher and grinding mill manufacturer?
Yes, our company has a strong design, R&D and manufacturing team, we can design the complete mineral production and processing line combined with your actual needs, and provide you with relevant professional advice when needed. We have set up many mining projects in China and overseas. We can set up the complete processing line according to your requirements.
3、Which countries have your products been exported to?We have been exporting business for 15 years, we have many customers in the world. For example, Middle East, South Asia. South Africa. Canada, and so on.
4、How to get free solution and quotation?
In order to save your time more efficiently, please send us your inquiry, leave your e-mail or other contact information, our sales manager will contact you in the shortest time!
5、Does the company have related crusher parts service?
We can provide all kinds of accessories about crusher equipment with advanced technology, reliable performance and durability to ensure that customers' needs can be met in a timely and effective manner.
Похожие товары

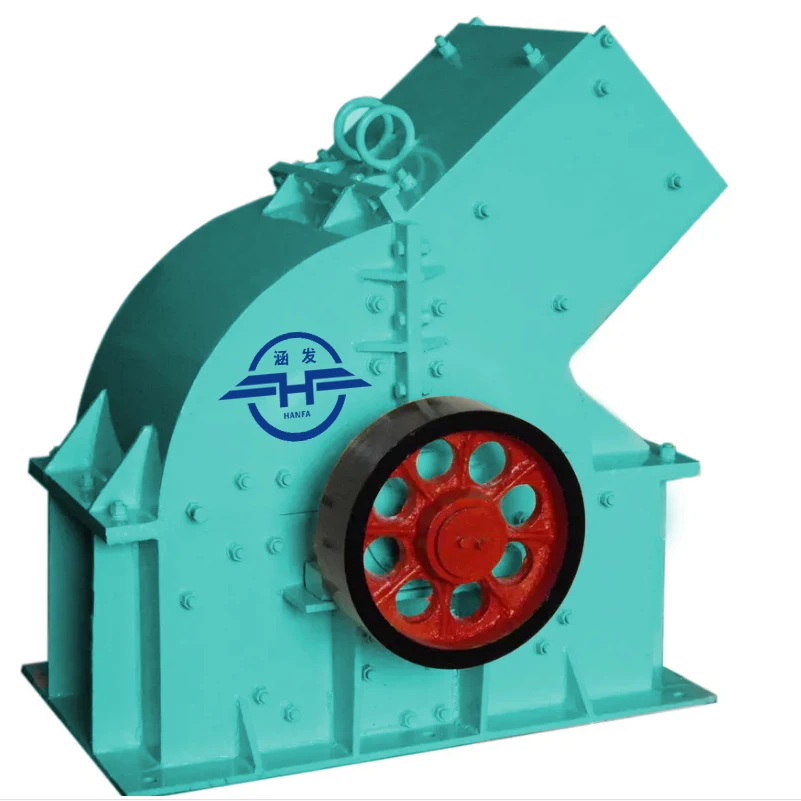

Дизельная молотковая дробилка PC400X300 с вибрационным экраном
