Новый 120ton/hr фиксированный асфальтосмесительный завод цена
18 640 228,00 ₽ - 38 376 940,00 ₽
Оборудование для смешивания асфальта цена завода LB2500 220 т/ч продажи с хорошей ценой
- Категория: >>>
- Поставщик: Shaanxi Roadbest Road Construction Machinery Co. Ltd.
Сохранить в закладки 1601235276486:
Описание и отзывы
Характеристики
Products Description

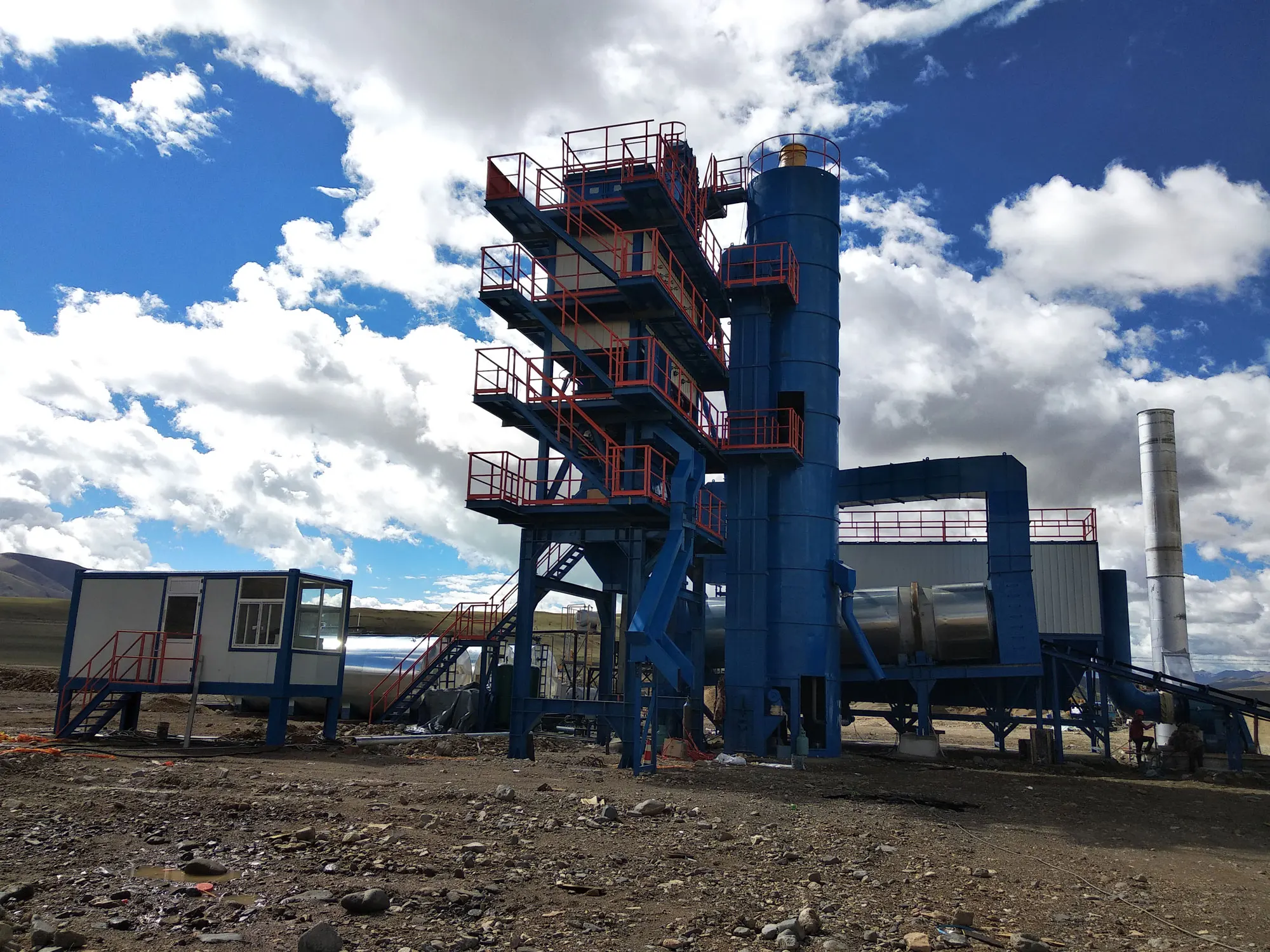

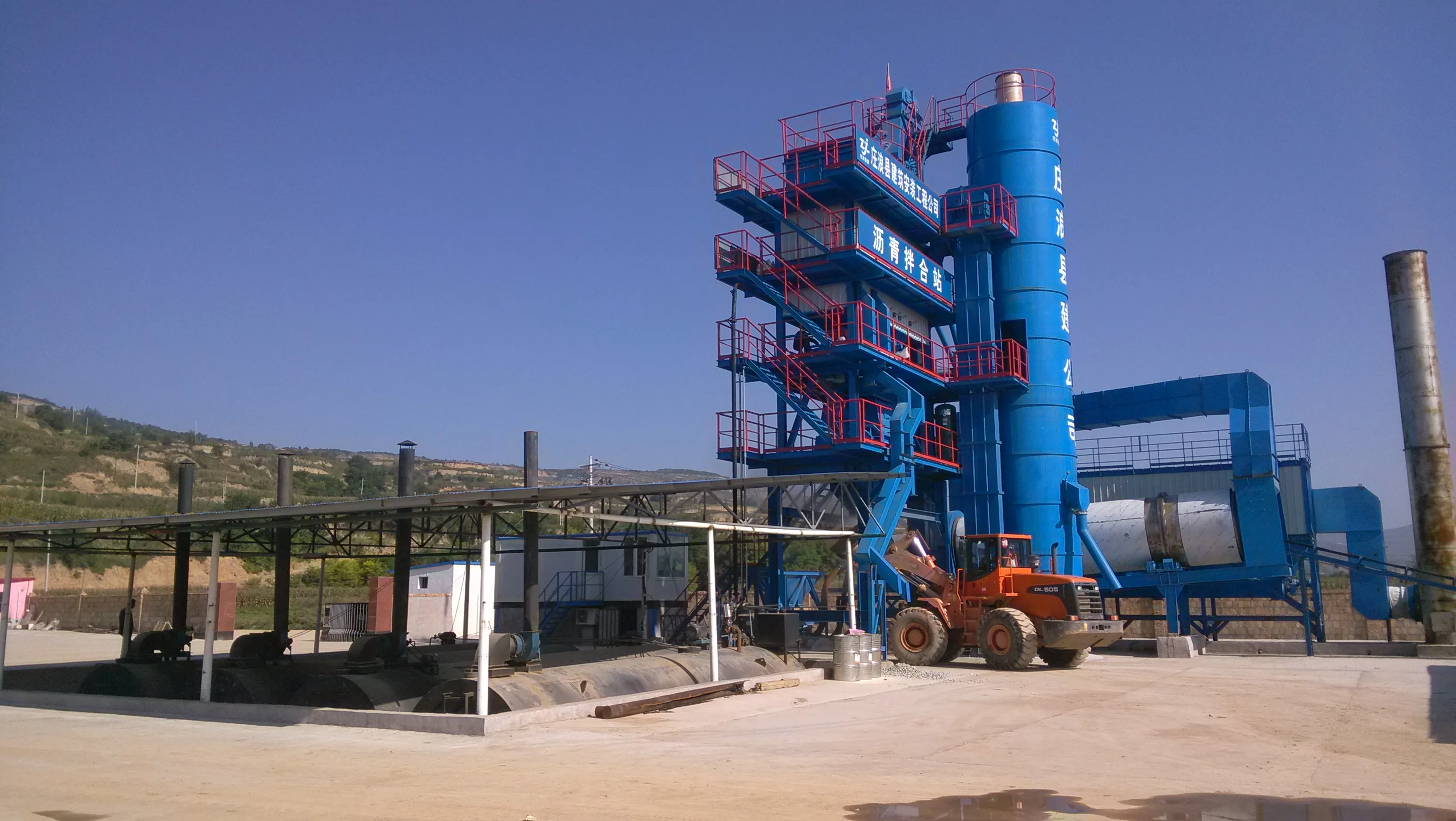

LB Series Asphalt Mixing Plant
The LB batch asphalt concrete mixing equipment adopts the advanced asphalt mixing technique and process from the foreign countries. It is a new product by combining our many years of experience in the production of asphalt concrete mixing equipment.
It is characterised by integrated system structure, fast transportation, and convenient installation and calibration. The
operation system is easy to operate and the performance is stable and reliable.
It is characterised by integrated system structure, fast transportation, and convenient installation and calibration. The
operation system is easy to operate and the performance is stable and reliable.
Product Paramenters

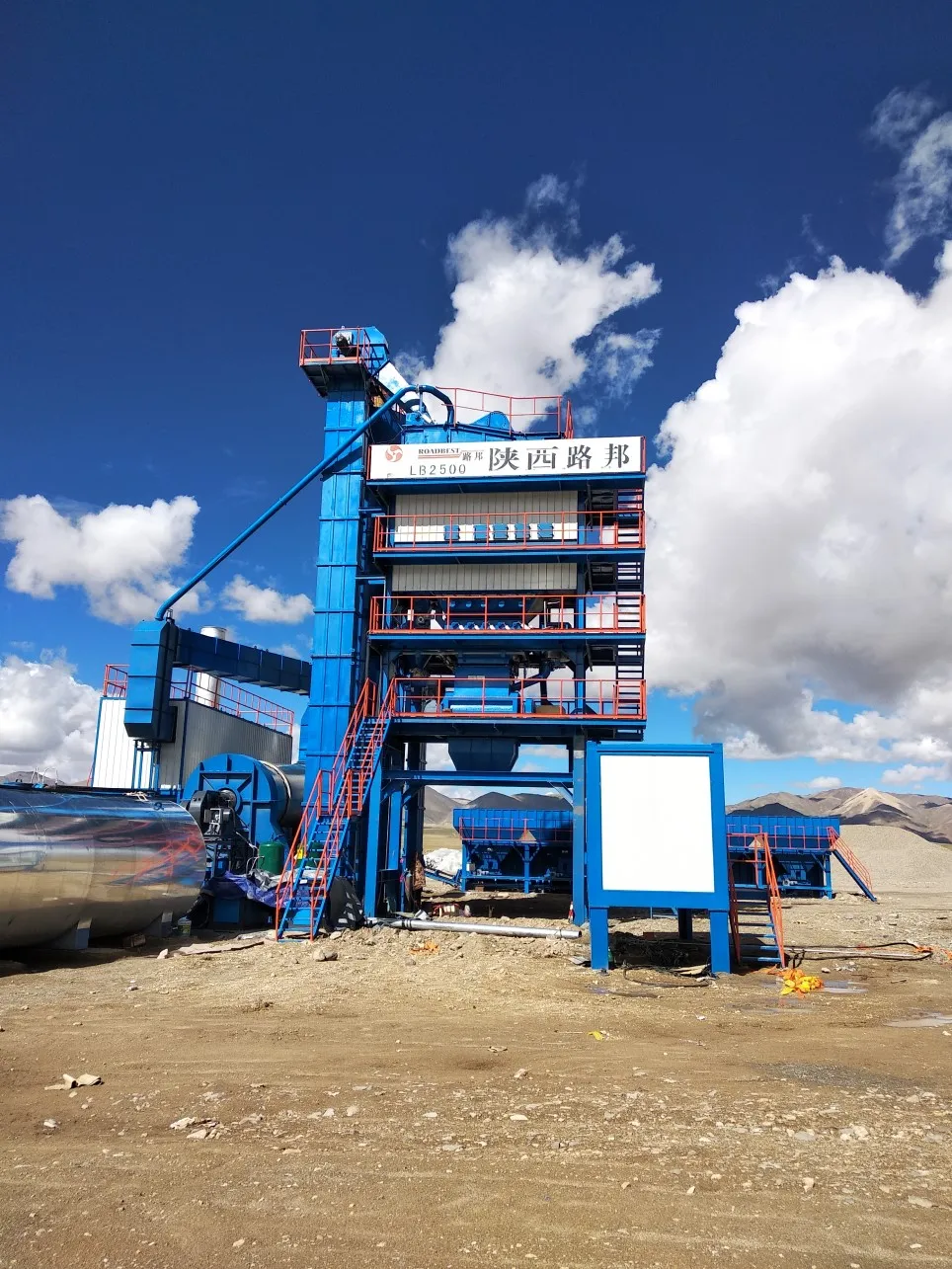

Model | LB 2500 | ||
Rated Capacity | 220 (t/h) | ||
Mixer Capacity | 2500kg/batch | ||
Gross installed capacity | |||
Number of screen layers | |||
Fuel | Diesel, Heavy Oil, Fuel Oil, Natural Gas, Coal | ||
Measuring precision(%) | Aggregate: ±0.5% , Powder: ±0.3% , Asphalt : ±0.2% | ||
Temperature control precision | ±5℃ | ||
Dedusting efficiency | >95% | ||
Operating System | Full Auto/Manual | ||
Ambient Noise (dB(A)) | ≤80dB | ||
Operation Position Noise (dB(A)) | ≤70dB | ||
Distributing device | Length x width（m） | 2.5 x 3.6 | |
Bucket capacity （m3） | 12 | ||
Aggregate belt machine | Width（m） | 0.65 | |
Power （kw） | 5.5 | ||
Vibrating screen | Width（m） | 5.5 x 1.8 | |
Power （kw） | 15 x 2 | ||
Drying cylinder | Diameter x length（m） | 2.5 x 9 | |
Power （kw） | 4 x 18.5 | ||
Mixing pan | Capacity（kg） | 2500 | |
Power （kw） | 2 x 37 | ||
Standard conditions： （please indicate special conditions at ordering） | 1. Sand moisture content ≤5% | ||
2. Altitude： sea level | |||
3. Environmental temperature： -20 ℃ +40℃ | |||
4. Fuel： 10330 kcal/kg （45.2 MJ/kg） | |||
5. Outlet temperature ： 160℃ | |||
Equipment Characteristics
Efficiency and energy-saving:
Special design of the blades and drying drum ensures the complete combustion of fuel. The highly efficient and energy-saving burner, fuelled both by diesel and heavy oil, is safe for working in harsh conditions.
Special design of the blades and drying drum ensures the complete combustion of fuel. The highly efficient and energy-saving burner, fuelled both by diesel and heavy oil, is safe for working in harsh conditions.
Heat resisting and high de-dusting efficiency：
The de-dusting system adopts NOMEX filter bags which have high resistance to heat. With
The de-dusting system adopts NOMEX filter bags which have high resistance to heat. With
the large and effective operation area, the
intelligent system can meet the national standard requirements of environmental protection. The spiral conveyer and powder
hoisting machine convey the collected dust into the powder recovery tank for reuse.
intelligent system can meet the national standard requirements of environmental protection. The spiral conveyer and powder
hoisting machine convey the collected dust into the powder recovery tank for reuse.
High efficiency, stable performance, high-wear-resistant, energy saving:
The vibrating screen has good and stable performance. The sieving efficiency is high. It has 5 screening layers which has simple
maintenance and convenient operation. The weighing system also adopt high-precision sensors.
maintenance and convenient operation. The weighing system also adopt high-precision sensors.
Powder feeding system
Smooth and reliable
The specially-designed powder spiral can convey the powder directly from powder tank to powder weighing hopper.
Professionally-designed rotary valve and tank cone pneumatic cleaning device ensures the uniform and continuous feeding.
The specially-designed powder spiral can convey the powder directly from powder tank to powder weighing hopper.
Professionally-designed rotary valve and tank cone pneumatic cleaning device ensures the uniform and continuous feeding.
Intelligent Central control system
Stable and reliable performance, easy operation:
The internationally advanced control system adopts world’s renowned electrical components, PLC, computer etc. PLC can achieve automatic, semi-automatic and manual control of weighing, mixing, feeding, transportation and stop. The intelligent system shows a stable and reliable performance.
The internationally advanced control system adopts world’s renowned electrical components, PLC, computer etc. PLC can achieve automatic, semi-automatic and manual control of weighing, mixing, feeding, transportation and stop. The intelligent system shows a stable and reliable performance.
Our Services
Pre-sales service
* Inquiry and consulting support.
* Factory visit is welcomed and airport pick-up service.
* Customising the design according to the requirements.
* Offer high quality and reasonable price for our customers.
* Factory visit is welcomed and airport pick-up service.
* Customising the design according to the requirements.
* Offer high quality and reasonable price for our customers.
After-sales service
* 24 hours on-line services.
* All after-sales service problem will be solved in 72 hours
* Accessories globally supplied.
* Training for installation and operation will be provide.
* All after-sales service problem will be solved in 72 hours
* Accessories globally supplied.
* Training for installation and operation will be provide.
* Engineers available to overseas services.
Company Profile
Our Company
Shaanxi Roadbest Road Construction Machinery Co., Ltd has been a professional manufacturer of road building and construction machinery for 22 years. Our company is located in Shaanxi，Xi Xian new area. It is a center of energy, finance and trade along the Silk Road Economic Belt.
We offer customers one-stop solutions ranging from products design, manufacturing , selling, technical guidance and installation. We also provide technicist training and after-sales service. To devote ourselves to what customer needs, we provide high quality products and service with high performance and good price.
With our customers’ support and trust, our products have been exported to Mongolia, Nigeria, Sierra Leone, Indonesia and other countries.
We offer customers one-stop solutions ranging from products design, manufacturing , selling, technical guidance and installation. We also provide technicist training and after-sales service. To devote ourselves to what customer needs, we provide high quality products and service with high performance and good price.
With our customers’ support and trust, our products have been exported to Mongolia, Nigeria, Sierra Leone, Indonesia and other countries.
FAQ
Q: Are you trading company or manufacturer?
A: We have our own factory. We design and manufacture product.
Q: How is the quality of the product?
A: We design and manufacture our machines according to the national and international standards. We have over 25 years’ experience and strictly test on each machine before delivery.
Q: How can I get the price?
A: We can offer you the high quality and the lowest price which stands out above all the competitors. We promise that we will not lower the price by reducing the quality of the products. We also give discount according to quantity.
Q：How long is the delivery time?
A: Normally delivery time within 15-20 days since receive deposit.
Q： What is the after-sales service?
A: We have professional after-sales service team to help you solving the problem
Recommend Products
Похожие товары

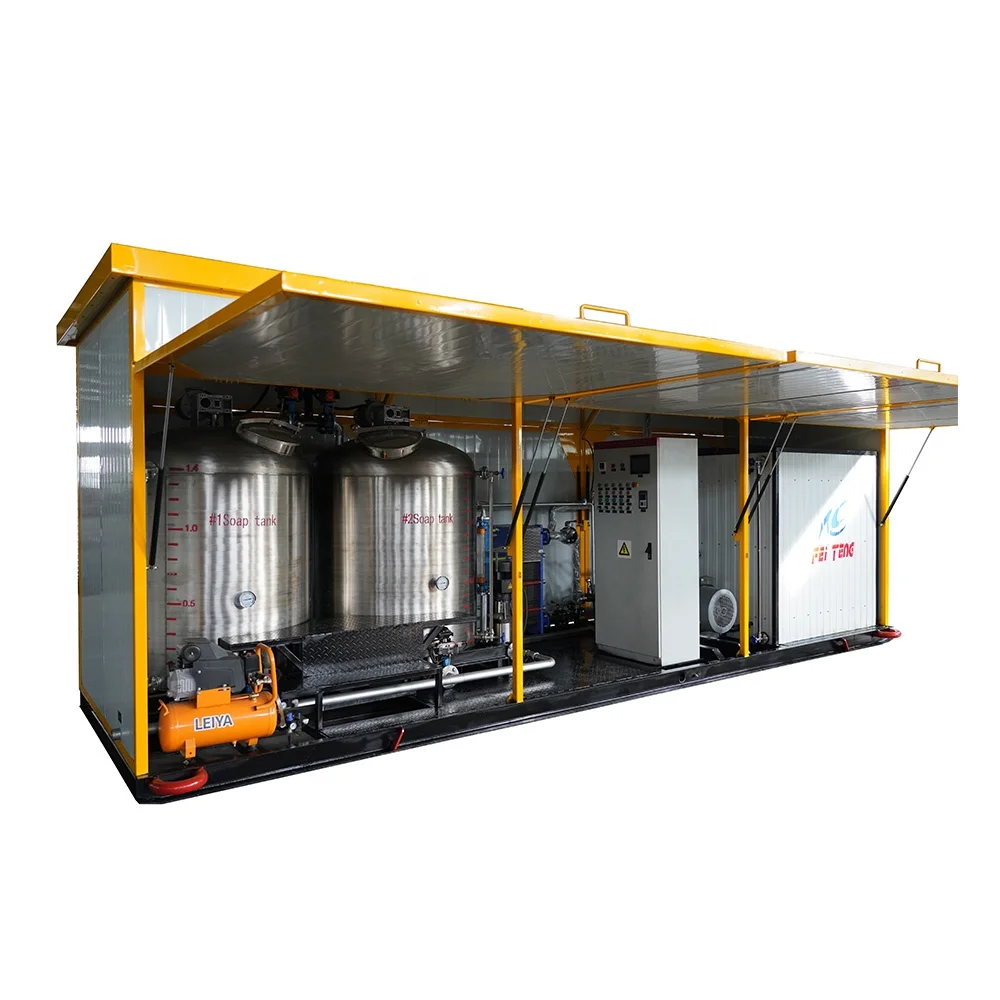

Непрерывное производство, легкая эксплуатация, установка битумной эмульсии для дорожного строительства
3 728 045,60 ₽ - 3 837 694,00 ₽
ПЛК эмульсионный битум завод для битумного завода
3 728 045,60 ₽ - 3 837 694,00 ₽

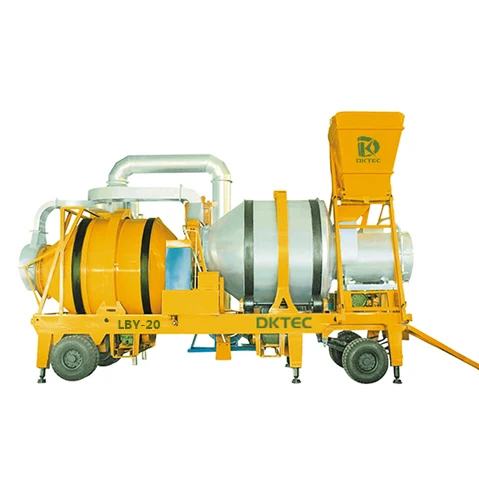

Строительное оборудование LBY-20B мобильный мини асфальтовый завод Цена установка для переработки асфальта цена асфальт бетонный завод
62 500,00 $
Асфальтосмесительная установка 20-400 т/ч поставщик асфальтового оборудования
21 929 680,00 ₽
Серия LB асфальтоукладчик, горячая распродажа
Электрические детали, более крупный нагревательный обменник PLC, Модифицированная эмульсионная битумная машина
3 728 045,60 ₽ - 3 837 694,00 ₽

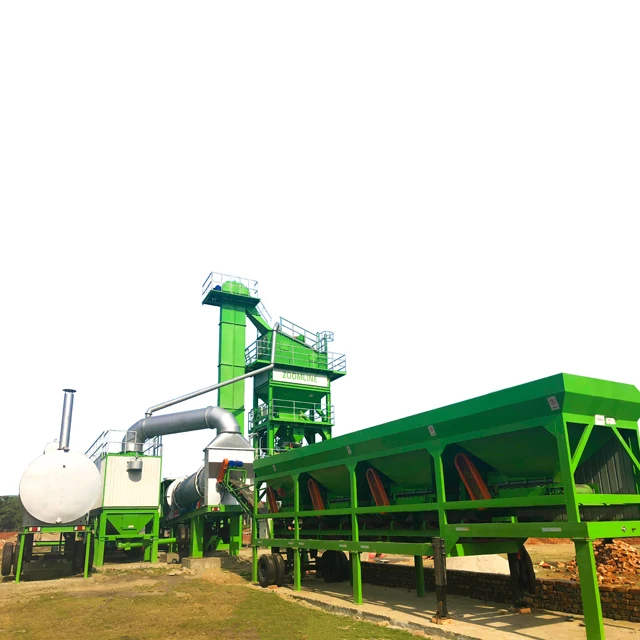

80tph модульный проектированный мобильный асфальтосмесительный завод от Zoomline
